Alpha Bidet UX-T Pearl User manual

UXT Pearl

Content
Others
Side control knob functions
Troubleshooting guide
16
17
Installation
01
03
05
06
07
08
10
11
12
Maintenance
13
1. Cleaning the unit
2. Spray nozzle maintenance
and care

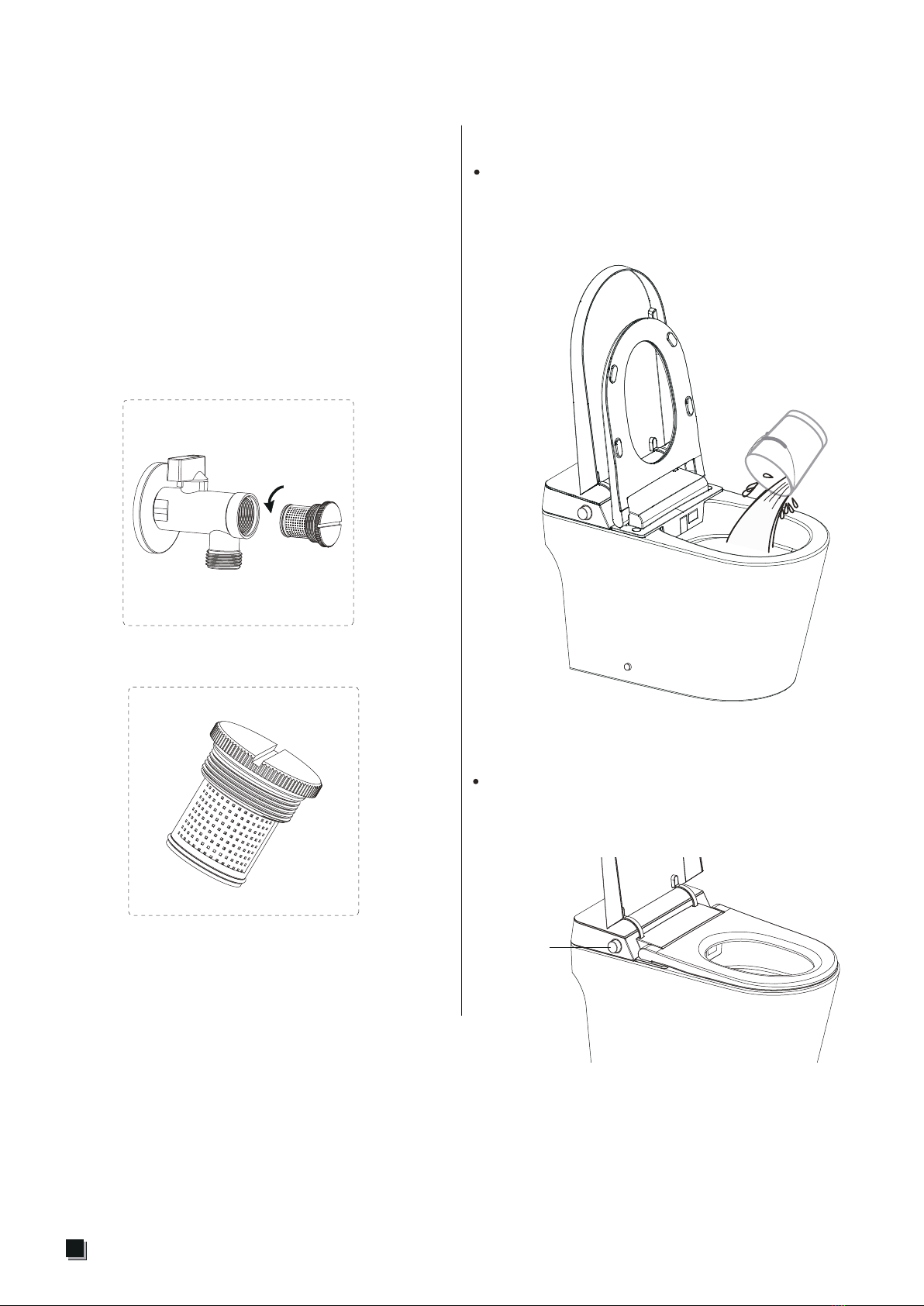

1. Filter maintenance
2. Manually flushing the toilet
3. No power flushing
4. Battery replacement
5. Failure to remote control
6. Toilet will be unused for > 3 weeks
7. To discharge water
14
Safety instructions
Technical specification
List of materials
Technical drawing
Parts identification
Toilet installation
Preparation

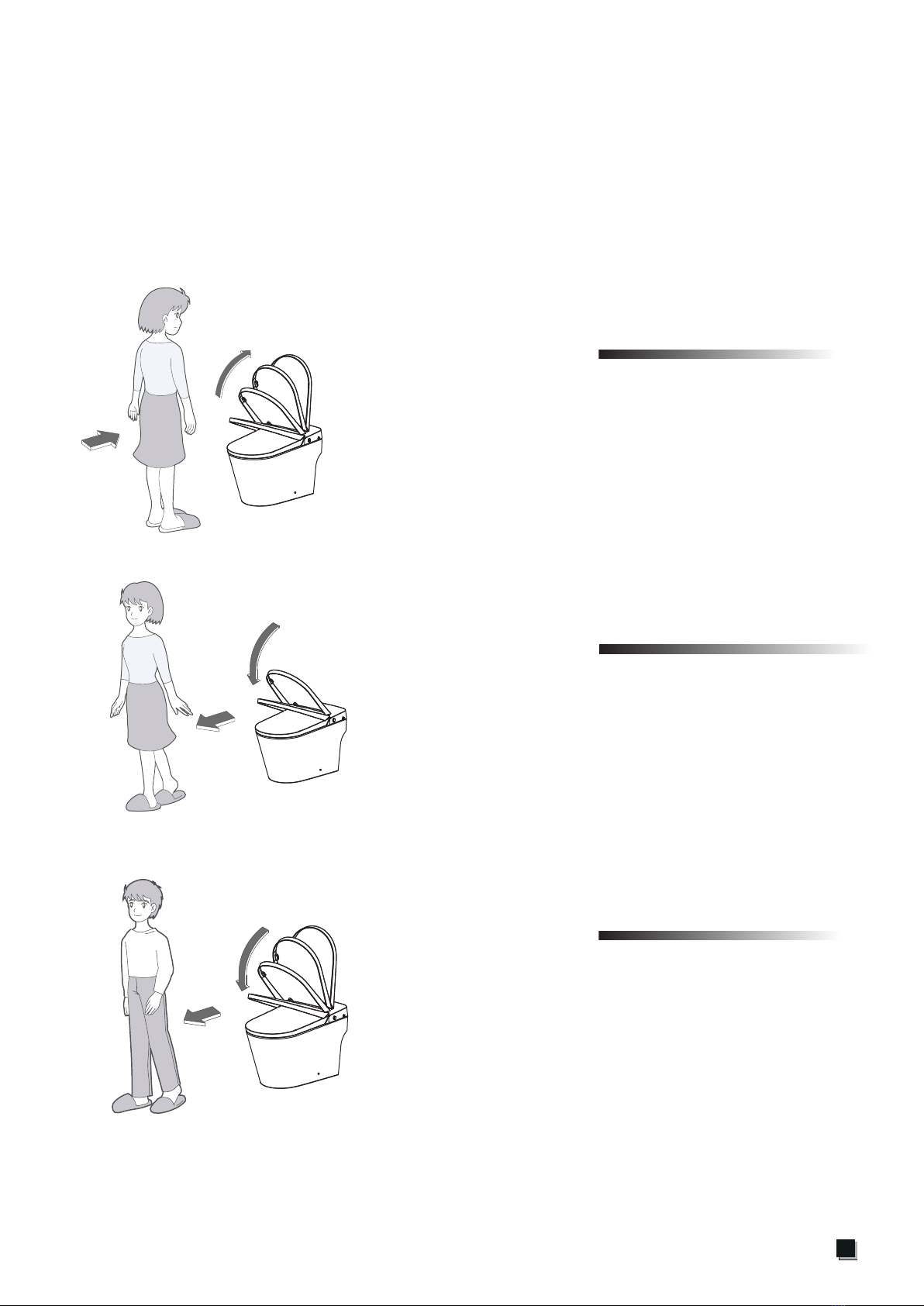

Automatic lid open/close

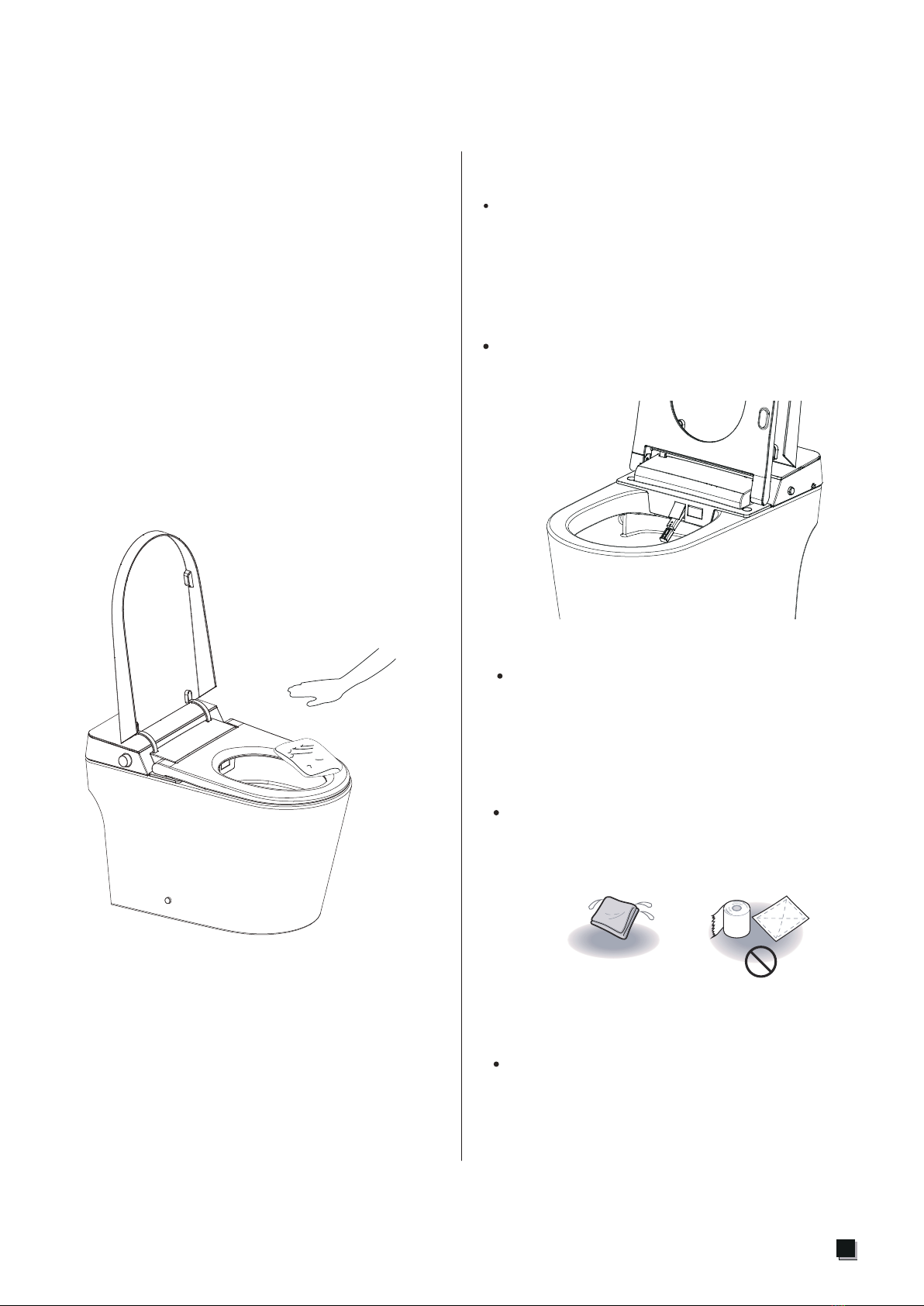

Foot sensor
Maintenance
Maintenance & troubleshooting

READ ALL INSTRUCTIONS BEFORE USING
IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present, basic safety
precautions should always be followed, including the following:
1. The appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
2. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
DANGER –To reduce the risk of electrocution:
WARNING –To reduce the risk of burns, electrocution, fire, or injury to persons.
1. Close supervision is necessary when this product is used by, on, or near children or
individuals with disabilities.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
product to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never use while sleeping or drowsy.
6. Never drop or insert any object into any opening or hose.
7. Do not use outdoors or operate where aerosol (spray) products are being used or
where oxygen is being administered.
8. Connect this product to a properly grounded outlet only. See Grounding
Instructions.
9. Do not throw cigarettes and other burning materials into toilet, otherwise it might
cause fire.
10. This product is an electric appliance, so it must be placed far away from water and
other liquid.
11. Do not lay the product on its side or upside down during the electrical circuit.
12. It is prohibited to use other electric appliances in the same socket.
13. It is forbidden to use the power extension or unstable loose outlet.
14.Do not reuse any existing water supply hoses, otherwise it might cause leakage,
fire or electrical shock. Installation should include specified components and a new
water supply hose.
1. Do not use while bathing.
2. Do not place or store product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for a product that has fallen into water. Unplug immediately.
5. Do not wash the main unit or electrical plug with water or detergent.
6. Do not handle the electrical plug with wet hands.
7. Never block the outlet of the air dryer.
8. Never disassemble, repair or modify this product.
9. During installation, disassembly, repair and maintenance of the product, the
power plug must be switched off and water supply be shut off.
01

02
IMPORTANT SAFETY INSTRUCTIONS
1. Do not install or use the product in wet places as steam room etc.
2. It is recommended to use water-proof electrical outlet which should be installed in a
place where is not easily to get wet.
3. This product should be used with 110V-120V, 50/60Hz electrical current only, load
current is at least 15A. Power plug must be equipped with ground fault circuit
interrupter or ground fault electrical leakage protector or similar high sensitive,
rapid type leakage switch
(Rated sensitive current under 6mA).
4. When it thunders, it is strongly recommended to pull out the power plug.
5. Do not use bleach, ammonia, or alcohol based chemical cleaners (most bathroom
cleaners) on the bidet seat. This will result in discoloration and cracks over time.
6. Ceramic toilet must install floor fixing bolts.
7. Do not stand on ceramic toilet, seat, or lid.
8. Do not lean against the lid when using the product, to avoid damage.
9. This product is equipped with a soft-closing seat and lid. Do not push the toilet seat
closed, or damage may occur.
10. Do not use any caustic chemicals or abrasive brusher to clean this product.
11. Exposure to direct sunlight is prohibited.
12. Only use tap water or potable water, otherwise it may cause chafing.
13. Do not connect water supply to heater outlet. Make sure inlet water temperature is
between 3~35℃/3 7.4~95℉
14.When the room temperature is under zero degree, please drain the water tank, to
avoid freezing.
15. Raise room temperature to prevent the toilet from damage due to freezing.
16. When moving the product from cold or wet environment into normal room
temperature, wait for 2 hours until the condensation water is fully volatilized. Doing
so can prevent the product from electrical short-circuit.
17. When not using the product over three(3) weeks, drain the water out of the toilet
and pull the electrical plug from the wall outlet.
18. Stop using the product and shut off the power when product malfunctions. Call for
professional service.
CAUTION
– Indicates that failure to follow the instruction may cause body injury or
property damage.
GROUNDING INSTRUCTIONS
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This product is equipped with a cord having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly installed and grounded.
DANGER – Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding
wire to either flat blade terminal. The wire with insulation having an outer surface that
is green with or without yellow stripes is the grounding wire.
This product is factory equipped with a specific electric cord and plug to permit
connection to a proper electric circuit. Make sure that the product is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
product. Do not modify the plug provided — if it will not fit the outlet, have the proper
outlet installed by a qualified electrician. If the product must be reconnected for use on
a different type of electric circuit, the reconnection should be made by qualified service
personnel.
SAVE THESE INSTRUCTIONS

03
Technical specification
Rated power
Main Unit
Toilet
Rated voltage
Siphonic jet
About 7ftPower cord length
Flush volume
Flushing mode
Rough-in
Outlet outside diameter
Drainage method S-trap
Heating power
Water temperature 5-level adjustment
Water volume
5-level adjustment
Cleaning mode
Pressure maintaining device, Automatic
pressure relief device
Anti-siphon device, air gap anti-backflow
Over 0.2m /min
3
6-level adjustment
Thermal fuse, Temperature sensor, Thermostat
250W
120V/1400W
4"
12"
Nozzle position
Water pressure
protector
Anti-backflow
Safety device
Warm air volume
Warm air temperature
Heating power
Safety device
Cleaning
device
Drying
device
Thermal fuse, Water temperature sensor,
Ground protection, Thermostat, Over
temperature protection, Leakage protection plug
Model
Water proof IPX4
UX-T
1.28 gpf
Water pressure range
Heating mode On demand
3-level adjustment
110V-120V, 50/60Hz
1170W
Rear wash / Oscillating
Front wash / Oscillating
0.18 MPa (dynamic pressure, flow rate of 5.81+
gal/min or 22.0+ L/min) - 0.8 MPa (static
pressure)

04
Seat sensor, Temperature sensor, Thermostat,
Thermal fuse, Leakage protection plug
Convenience
Night light assembly
User ID setting
Automatic flushing
Intelligent, Always on, Always off
To avoid interference when used by multiple users
Automatic flushing after use
Foot sensor
flushing function Foot sensor flushing
Lid opening Lid auto-open
Model UX-T
Heated seat
Surface temperature
Heating power
Safety device
6-level adjustment
50W
After 10 minutes of use, the seat temperature
will automatically drop slowly to a low level
Deodorizer Deodorization method Photocatalyst-free
Rated power:
Under the condition of ambient temperature 23℃/73℉, water static pressure 0.18MPa
±0.02MPa, water temperature 5℃/41℉, power, water pressure, seat temperature, water
temperature all set to the highest level in one rear washing cycle.
Flushing during
power failure
Battery backup (9V)
Burn protection

05
Main Unit Remote Control and Wall Mount
List of materials
Sealing Flange
7/8" - 1/2" Braided Hose
7/8" - 3/8" Compression
Braided Hose
Installation Cardboard
Mounting Kit x2
Installation Manual
NPT 1/2"
Angle Valve
Battery Box
Installation Manual
Thank you for choosing our products. Please read the instructions carefully before installation
and keep it available for future maintenance or reference.
Remote Manual

06
Technical drawing
The drawing is for reference only, and we reserve the right to modify
the product appearance.
27.6"
15.5"
16.25"
39.1"
18.7"
15.4"

07
Left side
Right side

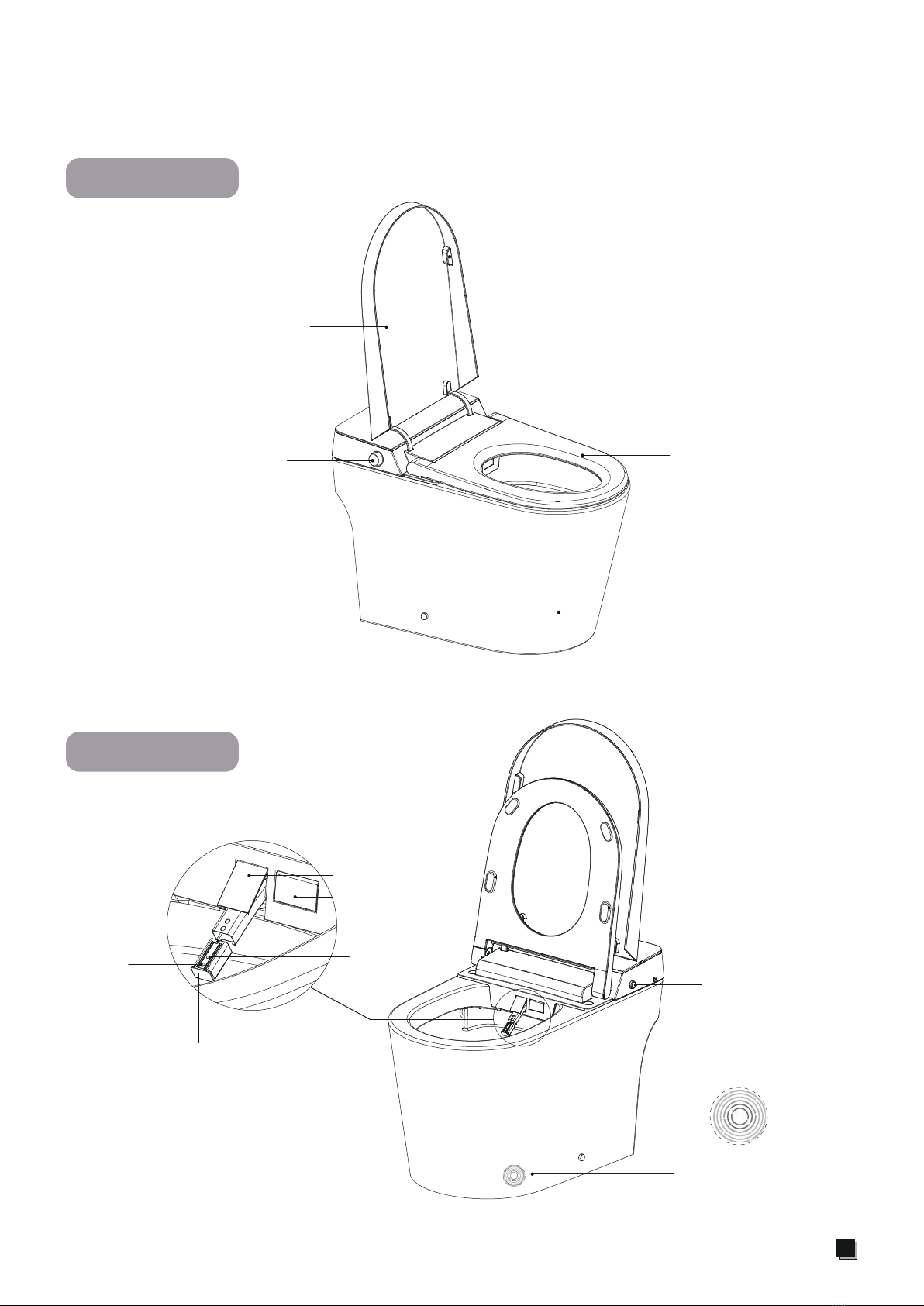

Parts identification
Bumper
Seat
Ceramic toilet
Remote
control sensor
Rear
washing
Spray
nozzle
Control knob
Front
washing
Foot sensor
Lid
Nozzle shield
Dryer shield

08

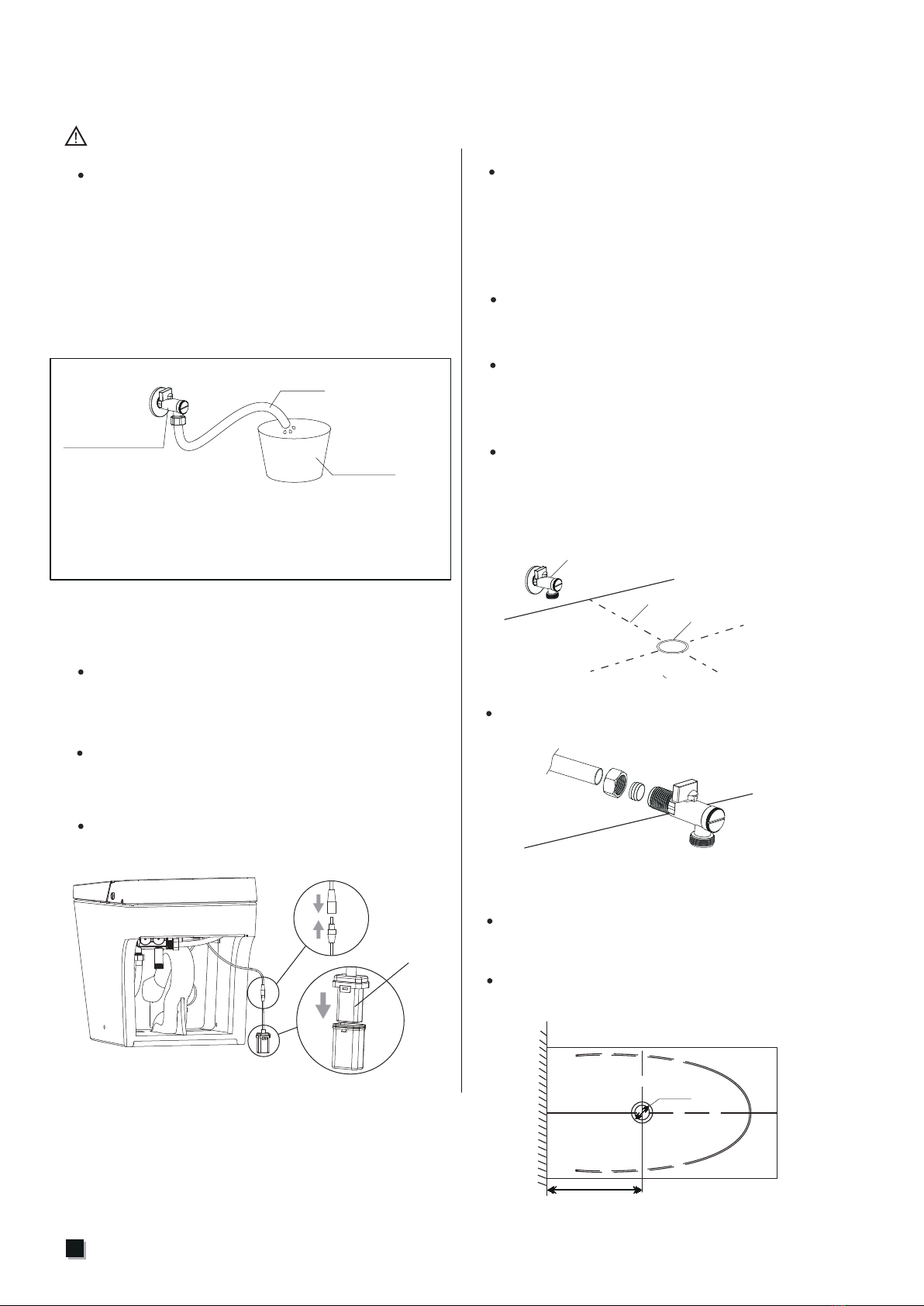

Toilet installation
Precaution before installing
Minimum dynamic working water
pressure: 0.18+ MPa (5.81+ gal/min or 22+
L/min), failure to meet this pressure will
not achieve the best flushing effect.
Note: Apply the methods below if you
don’t have water pressure testing device.
Open the angle valve to check the water
volume. If the water volume after 10
seconds is greater than 0.97Gal (3.7L), then
it is OK to proceed installation.
Angle valve
Hose
Water storage
barrel
Note: It is recommended to use a
high quality 6LR61 9V battery.
1.. Installation of backup battery box
The backup battery box allows you to
flush the toilet in the event that your
home loses power.
Insert a 9V battery into the box and plug
the connector into the wire harness
under the toilet.
Place battery box at the bottom of
toilet.
battery
12”
Drain outlet
3.. Cardboard template
Align cardboard with the centerline
of drain outlet
Use template as a guide for
positioning
1/2” NPT compression inlet
If the existing angle shut-off valve at the
wall is at least 8” off the center of the
drain and uses either a 3/8”
compression or 1/2” NPT thread, then it
can be used.
If not, the supplied angle valve can be
installed.
Installing the supplied 1/2” angle valve
and larger hose will provide optimal
flushing performance.
Draw drain outlet centerline on the floor,
install angle valve at least 8” away at an
appropriate height to clear the toilet
skirt.
2.. Installation of angle valve (optional)
Line
Drain outlet
Angle valve

09
4. Supply hose
Using the appropriately sized supply hose,
connect the toilet inlet to the angle valve.
Tighten securely and ensure the rubber
o-rings at each hose end are present.
Mounting bracket
Nut
Bolt
5. Mounting bracket installation
Loosely assemble the mounting
brackets with bolts, nuts, and washers as
below.
Install them into your flange plate in the
ground and then tighten the nuts
securely.
Washer
Angle valve connector Inlet connector
Flexible hose 7. Screw installation
Insert the screws through the fixing sleeves
and then install them through the holes on
both sides of the toilet. They secure to the
mounting brackets installed on the flange
plate. Lock tight.
Install the decorative cap on the fixing sleeve.
Fixing sleeve
Screw
Decorative cap
Toilet drain outlet
Sealing flange
6.. Ceramic toilet installation
Install the sealing flange into drain outlet.
Install the toilet by carefully lowering
it into position over the drain.
Note:
1. Two people are required to carry the toilet.
2. Clean the drain outlet before installing the seal.
3. Please make sure ceramic toilet outlet is
perfectly centered on drain outlet.

10
Angle valve
1.Turn on the angle valve slowly
Check the threaded connections at each end of the supply hose for leaks. If leaks
are found, shut off water, and re-connect the hose ensuring the o-rings are in place.
Add teflon tape if needed. Once leak-free, open the angle valve completely.
Preparation
3. Self-inspection startup sequence
1. Once power is connected, the seat should beep. The side knob light will turn on,
and the self-inspection startup sequence will start.
2. When the seat beeps again, the startup sequence is complete.
3. The UXT Pearl is now ready to use!
2. Power connection
Indicator light
Reset switch
Current detection
test button
Plug the electrical cord into a GFCI 3 prong outlet. Press the reset switch button to
activate. The indicator light should turn on, indicating that the power is on.
TEST BEFORE EACH USE
1. PLUG INTO RECEPTACLE
2. PRESS RESET BUTTON:
VISUAL INDICATOR
APPEARS.
3. PRESS TEST BUTTON:
VISUAL INDICATOR DISAPPEARS.
4. PRESS RESET FOR USE.
D O NOT USE IF
ABOVE TEST FAILS.
WARNING:

11
Automatic lid open/close
* The Alpha UXT Pearl is equipped with a proximity sensor that can raise and lower
the lid automatically. This function is disabled by default. Press and hold the
OPEN/CLOSE LID button on the remote control for 5 seconds to enable it.
When you approach the toilet and come within
range of the proximity sensor (roughly 1 foot), the
lid will automatically open.
•The automatic function will close both the seat and lid
if the seat is up.
•While the motorized seat and/or lid are in operation
please do not force the seat or lid in the opposite
direction. Doing so will reduce the life of the motor.
1.. Approaching the toilet
2.. Leaving the toilet
The lid will automatically close about 3 minutes
after you leave the toilet area.
Notes

12
Foot sensor
* The Alpha UXT Pearl is equipped with a foot sensor that can perform a few functions.
Trigger the sensor by touching the sensor area with your foot.
This sensor is enabled by default. On the remote control, press and hold the STOP button
and then press the FLUSH button to disable it.
1. When the lid and seat are both closed, touch the foot sensor to open the lid.
2. When the lid is open and seat closed, touch the foot sensor to open the seat.
3. When the seat and lid are both open, touch the foot sensor to close both the seat and lid
and activate a flush.
Seat
Lid
Lid
Seat
Lid

13
1.
2.
Unplug the power cord before doing
any cleaning or maintenance.
To clean the seat, lid, back housing,
and other plastic components, only
use a soft damp towel to wipe clean.
Warm water, mild soap and/or
vinegar are ok to use.
AVOID: harsh chemicals like bleach,
ammonia, and alcohol based cleaners.
These include most “natural” cleaners on
the market. These chemicals will slowly
erode and discolor plastic surfaces.
3. Only the ceramic toilet portion can be
safely cleaned with traditional
chemical bathroom cleaners and
disinfectants.
4. Once cleaning is completed and all
surfaces are dry, re-connect the
power plug.
Spray nozzle maintenance and care
1.. Nozzle cleaning
When no one is seated, turn the
knob clockwise to bring the nozzle
out for manual cleaning.
2.. Spray nozzle disassembly
WWhen the nozzle is extended, the tip can be
removed and cleaned separately.
3.. Use soft brush to clean the tip
Do not pull or push the main nozzle
assembly to avoid damage.
4.. Nozzle retraction
Insert the nozzle tip back into the main
assembly and press the knob in to
retract the nozzle back in place.
Reach underneath the nozzle and gently
pull only the tip downwards to separate it
from the main nozzle assembly.
Maintenance
Cleaning the main unit

14
Maintenance and troubleshooting
Filter maintenance
If you begin to notice reduced spray
performance and are using the supplied
angle valve, try cleaning the filter:
1. Unplug the power cord and shut off
the angle valve.
2. Unscrew the angle valve nut.
3.. Remove filter net.
4. Clean out the filter net under running
water using a toothbrush.
5. Reinstall filter net and angle valve nut.
6. Turn on the angle valve and connect the
power cord.
Manually flushing the toilet
Put around 2.1Gal (8L) water into a
container and dump it into the ceramic
bowl to manually flush the toilet.
Note: Avoid water spilling from bowl.
knob
No power flushing
If your home loses power and you have the
battery backup pack installed you can flush
the toilet by pressing in the side control knob.

15
Toilet will be left unused for > 3 weeks
When the product is left unused for a
long time, especially in cold weather, it
is highly recommended to drain the
water to prevent freezing.
To discharge water
1. Activate flushing, and then turn off the
angle valve to stop water supply.
2. Unplug the power cord
3. Disconnect the hose from angle
valve, drain the water and
reconnect.
Note：Be sure to unplug the power cord
before disconnecting the
supply hose.
* Please turn on power and water supply when
using again.
Backup battery replacement
1. Unplug DC connector and remove the
battery box.
2. Install a new 9V battery.
3. Reconnect the battery box.
Reminder:
1. It is recommended to use high quality
6LR61 9V battery.
2. It is recommended to replace the battery
every two years, regardless of use.
battery
Failure of remote control
Note: After battery replacement, the remote
control settings will be reset to the defaults.
User presets will need to be re-saved.
1. Operate via knob on the main unit.
2. Battery replacement
•Remove the remote control from
holder.
•Open the battery cover and replace
the batteries.
•Put the remote control back.

16
Side control knob functions
When Nobody is Seated
•Press the knob in to flush the toilet
•Turn the knob clockwise to bring the nozzle out for manual cleaning
•Press the knob in and hold for 3 seconds to turn off the LED ring light. Repeat to
turn it back on.
•Press the knob in and hold for 6 seconds to turn the toilet off. Repeat to turn it
back on.
When Seated, but Idle
•Press the knob in to flush the toilet
•Turn the knob clockwise to start a FRONT wash or counterclockwise to start
a REAR wash.
During an Active Wash Cycle
•Press the knob in to STOP the active function
•Turn the knob clockwise to move the nozzle position forward or counterclockwise
to move the nozzle position backward.
•By default, turning the knob during an active wash cycle will change the nozzle
position. Press and hold the knob in for 3 seconds during a wash to switch to
spray pressure adjustment mode. Press and hold the knob in for 3 seconds again
to switch back to nozzle position adjustment mode.
During an Active Drying Cycle
•Press the knob in to STOP the active function
•Turn the knob clockwise to increase the drying temperature or counterclockwise
to decrease the drying temperature.

17
Troubleshooting guide
Problem Cause
Water supply hose is kinked
Angle valve is off
Seat sensor not triggered
No water spraying
from nozzle
Poor water
spraying
Water supply hose is kinked
Angle valve is not fully
turned on
Filter is clogged
Low water
temperature
The water temperature is not
set properly
Low seat
temperature
The seat temperature is not
set properly
Eco mode is active
Low dryer
temperature
Dryer not blowing
Spray wand
cannot retract
Spray wand
cannot extend
Remote control
not working
Deodorizer
not working
Flush doesn’t
work during
power failure
Caution
The dryer temperature is not
set properly
Seat sensor not triggered
Power supply off
Nozzle is too dirty
Low battery
Batteries are inserted in the
direction
If the problem cannot be resolved as per above solutions,
please disconnect the power and contact us at
[email protected]
Deodorization function
continues after user leaves.
No or low battery in backup
pack
Solution
Straighten the hose to remove the kink
Turn on the angle valve
Sit fully on the seat with skin contact
Straighten the hose to remove the kink
Turn on the angle valve fully
Clean the filter
Adjust the water temperature
Adjust the seat temperature
Reload the batteries correctly
Replace the batteries
It is normal for the deodorizing function to
continue operating after user leaves, for
complete odor removal.
Test the power outlet
Clean the nozzle with a soft brush
Push back the spray wand gently and
test the power outlet
Turn off eco mode if you wish the seat
temperature to remain consistent
Sit fully on the seat with skin contact
Power supply off
Seat sensor not triggered Sit fully on the seat with skin contact
Seat sensor not triggered Sit fully on the seat with skin contact
Adjust the dryer temperature
Replace new 9V battery in backup pack
for power failure flushing.
