Alpha ALPHA6000 Series User manual

Preface
http://www.acdrive-china.com
1
Preface
Thank you for buying ALPHA6000 series ac drive made by Shenzhen ALPHA inverter
Co., Ltd.
To satisfy the high performance needs, ALPHA6000 series ac drives use magnetic flux
vector control method to achieve high torque at low speed and low-noise at steady
running. The inner PID operation can perform PID close loop control easily.
ALPHA6000 proprietary features include the advanced automatic torque compensation,
multiple controlling methods, up to 36 fault protections and warning functions. Online
watching and changing parameters, Integrated RS485 Interface, and operation flexibility.
In addition, energy saving running can furthest improves the motor power factor and
efficiency.
ALPHA6000 series are suitable for almost all motor driving applications like paper
process, textile machines, food process, cement, spinning weaving and dyeing,
metallurgy, iron and steel, and other machinery.
The ac drive has wide speed-adjusting range, stable operation, high accuracy and
reliable performance. It can be widely used in application of electrical power energy
saving.
If you have some problems that can’t be solved in operation, please contact the nearest
local agents or service center, or contact our company directly.
To ensure the perfect use of this product and the safety of user, please read the user
manual carefully before the operation of ac drive and keep the manual in proper place for
future reference.
The information contained in this manual is subject to change without notice.
Before mounting, wiring and commissioning the ac drive, to ensure the safety of user
and extending the life of this equipment, it strongly suggested that we must read the
safety rules warnings listed in this book and cautions marked on the ac drive.
When in operation, we must pay attention to the situation of driven load and all notes that
related on safety.

Preface
http://www.acdrive-china.com
2
All rights reserved. The contents in this document are subject to change without notice.
If you have any questions and problems about the use of our products, please contact our
agents or us.
Any improved suggestions are welcome.
Danger！
This system contains voltages that may be as high as 400 volts!
Electric shock can cause serious or fatal injury. Only qualified
personnel shall wire the drive.
Please cut off the power before wiring and inspecting. It is not
permissible to touch PCB or interior components before battery
control lamp goes off or until 5 minutes after the power has been
removed. It is necessary to use meters to confirm the charging
capacitance has discharged off. Otherwise, a risk of electric shock
may happen.
Don't contact AC power source to the output terminals U, V, W of
the ac drive.
When using the ac drive, the earthling terminal of the ac drive must
be grounded correctly and reliably according to IEC536 Class 1,
NEC and other applicable standards.
Warning！
Unauthorized change of inboard wiring and using accessories,
which sold or recommended by blame manufacturer may cause
fire, electric shock and injury.
Since body static electricity may cause serious damage to MOS
field-effect transistor and other sensitive elements, please don’t
touch the interior devices, such as PCB, IGBT module etc. before
any measure is took to prevent static electricity.
Caution！
Keep all marks and labels are clear to read. Replace the lost or worn
mark at any moment.
Please keep the user manual near the ac drive that can be reached
easily and give this manual to the users who use the product.

Contents
http://www.acdrive-china.com
3
Contents
Preface ............................................................................................................................ 1
Contents.......................................................................................................................... 3
Chapter 1 Purchase Inspection........................................................................................ 6
1.1 Unpacking Inspection ....................................................................................... 6
1.2 Naming Rule..................................................................................................... 6
1.3 Nameplate of Ac drive...................................................................................... 6
Chapter 2 Installation and Wiring................................................................................... 8
2.1 Exterior Size and Mounting Size (See Appendix 1) ......................................... 8
2.2 Mounting Place Requirement and Management ............................................... 8
2.2.1 Installation Location .................................................................................. 8
2.2.2 The Ambient Temperature......................................................................... 9
2.2.3 Preventive Measures .................................................................................. 9
2.3 Installation Direction and Space ....................................................................... 9
2.4 Main Circuit Wiring.......................................................................................... 9

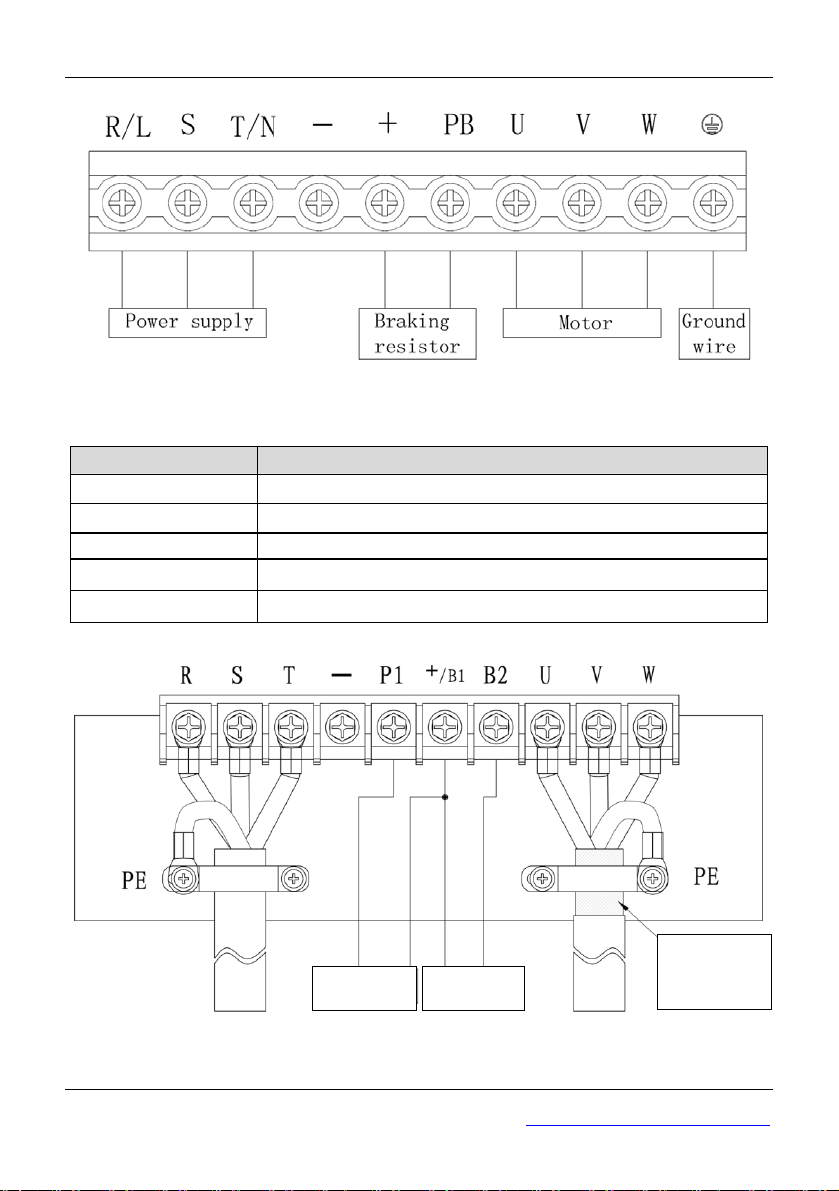

2.4.1 The Main Circuit Terminals Arrangement and wiring............................... 9
2.4.2 Main Circuit Wiring operation................................................................. 15
2.5 Control Circuit Connection............................................................................. 16
2.5.1 Function of Control Circuit Terminals..................................................... 16
2.5.2 Control Circuit Wiring............................................................................. 24
2.6 Wiring of Ac drive for Basic Operation.......................................................... 37
2.7 Wiring Attention............................................................................................. 41
Chapter 3 Operation...................................................................................................... 42
3.1 Function of keyboard...................................................................................... 42
3.1.1 Overview of keyboard ............................................................................. 43
3.1.2 Description of keystroke function............................................................ 45
3.1.3 Description of LED digitals and indicators.............................................. 46
3.1.4 Display state of keyboard......................................................................... 47
3.1.5 Operation method of keyboard ................................................................ 50
3.2 Run command mode select ............................................................................. 52
3.3 Trial Operation................................................................................................ 52

Contents
http://www.acdrive-china.com
4
3.3.1 Operation mode of ac drive...................................................................... 52
3.3.2 Before operation checkpoints .................................................................. 55
3.3.3 Operation checkpoints ............................................................................. 55
3.3.4 A trial run................................................................................................. 55
3.4 Commissioning of keyboard........................................................................... 57
3.5 Operation of Control Circuit Terminal ........................................................... 58
Chapter 4 Parameter Index ........................................................................................... 59
Chapter 5 Parameter Introductions ............................................................................. 110
5.1 Basic Function (Group P0) ........................................................................... 110
5.2 Start/Stop Control (Group P1) ...................................................................... 116
5.3 Auxiliary Operation (Group P2) ................................................................... 124
5.4 I/O Terminal Ctrl (Group P3) ....................................................................... 129
5.5 Analog and Pulse Function (Group P4) ........................................................ 148
5.6 PLC Operating (Group P5) ........................................................................... 152
5.7 Wobble Frequency Operating (Group P6).................................................... 157
5.8 PID Control (Group P7)................................................................................ 160
5.9 Fixed-length Function (Group P8)................................................................ 164
5.10 Advanced Control (Group P9).................................................................... 166
5.11 Motor Parameters (Group PA).................................................................... 169
5.12 MODBUS Communication (Group Pb)...................................................... 171
5.13 Display Control (Group PC) ....................................................................... 174
5.14 Protection and Fault Parameters (Group Pd) .............................................. 179
5.15 Running History Record (Group PE).......................................................... 184
5.16 Protection of parameters (Group PF).......................................................... 186
Chapter 6 Troubleshooting ......................................................................................... 190
6.1 Troubleshooting............................................................................................ 190
6.2 Warning display and explanation.................................................................. 195
6.3 Motor’s faults and corrective measure.......................................................... 196
Chapter 7 Peripheral Equipments ............................................................................... 198
7.1 Peripheral Equipments Connection Diagrams: ............................................. 198
7.2 Function of Peripheral Equipments .............................................................. 200
7.2.1 AC reactor.............................................................................................. 200
7.2.2 EMI Filter .............................................................................................. 201
7.2.3 Brake unit and resistor ........................................................................... 202

Contents
http://www.acdrive-china.com
5
7.2.4 Leakage current protector ...................................................................... 203
7.2.5 Capacitor Box ........................................................................................ 203
Chapter 8 Maintenance............................................................................................... 204
8.1 Inspection and Maintenance ......................................................................... 204
8.1.1 Daily Inspection..................................................................................... 204
8.1.2 Regular Maintenance ............................................................................. 205
8.1.3 Replace device at regular intervals ........................................................ 208
8.2 Storage and Keeping..................................................................................... 208
Chapter 9 Quality Guarantees..................................................................................... 209
Appendix 1 Exterior size and mounting size (Unit: mm) ................................... 211
Appendix 2 Technology Standards..................................................................... 216
Appendix 3 Main Circuit Output Cable Selection (Recommended)................... 219
Appendix 4 MODBUS Communication............................................................. 221
Appendix 5 Keyboard Mounting Size (Unit: mm) ............................................. 240
Appendix 6 Ac drive warranty............................................................................ 242

Chapter 1 Purchase Inspection
http://www.acdrive-china.com
6
Chapter 1 Purchase Inspection
1.1 Unpacking Inspection
All ac drives have passed the strict tests before delivery. After unpacking, please check if
the product was damaged by careless transport, the product specification, model is
complied with the order, and if it has a quality check passed mark. If there is any
problems, please contact the supplier.

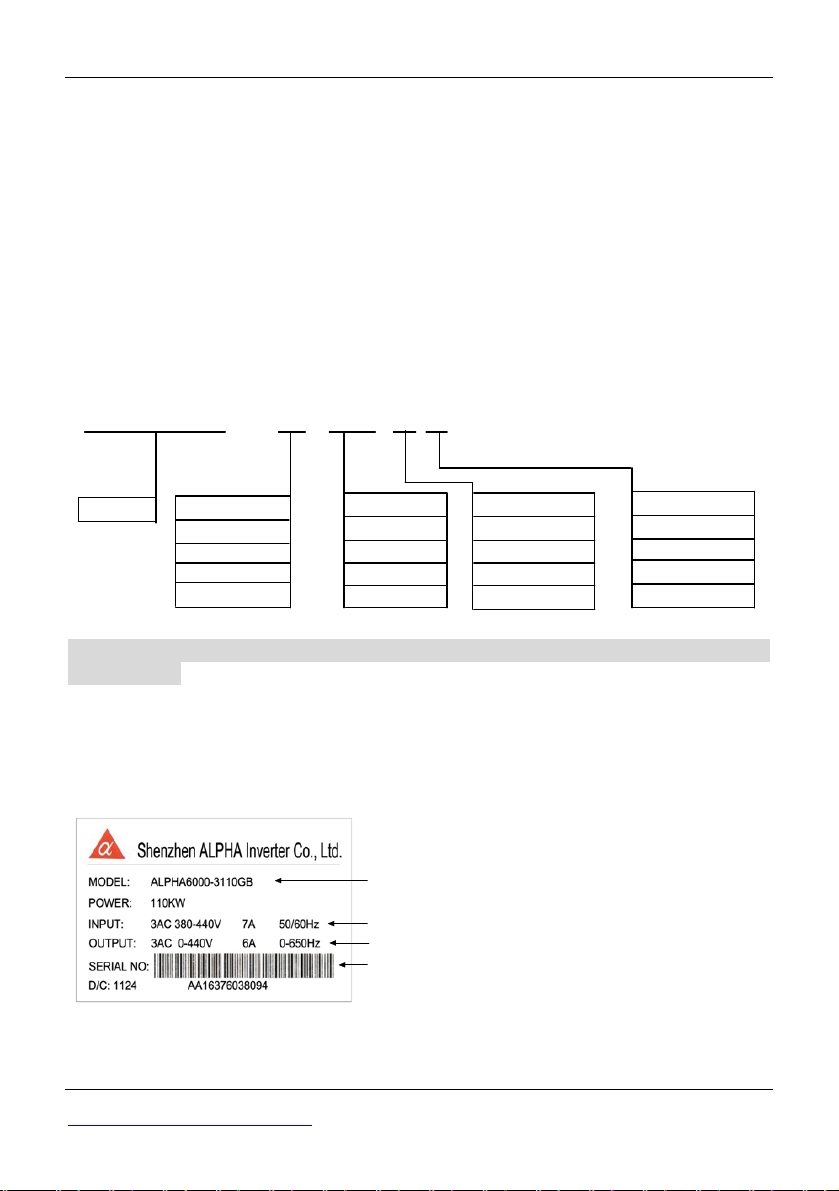

1.2 Naming Rule
The naming rule of the product is as following:
Additionaldescription
B ：
Withbrake;
ALPHA6000 - 3 7R5 G B
SeriesCode
075:75KW
7R5:7.5KW
R75:0.75KW
Motor Power
G ：
General
Application
P ： Squaretorqueload
Rated Voltage
S2:singlephase220V
2
：
threephases220V
3
： threephases380V
Attention: If the user has special needs, please specify the technology requirement
in the order.
1.3 Nameplate of Ac drive
On the right side of the bottom plate of ac drive, there is a nameplate, which marks the
model and rated values of ac drive. See the following figure:
Inverter types
Motor output power、rated current and frequency
Barcode information
Rated input voltage、current and frequency
Nameplate of Inverter

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
7

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
8
Chapter 2 Installation and Wiring
2.1 Exterior Size and Mounting Size (See Appendix 1)
2.2 Mounting Place Requirement and Management
Attention
· Don’t carry the ac drive by its cover. The cover cannot support the weight of the ac
drive and may drop.
· Please install the ac drive on a strong support, failing which the ac drive may fall off.
· Don’t install the ac drive in places where water pipes may leak onto it.
· Don’t allow screws, washers and other metal foreign matters to fall inside the ac
drive, otherwise there is a danger of fire or damage.
· Don’t operate the ac drive if parts are not complete, otherwise there is a danger of
fire or human injury.
· Don’t install the ac drive under direct sunshine; otherwise, it may be damaged.
· Don’t short circuit PB, + and -, otherwise there is a danger of fire or the ac drive may
be damaged.
· Cable lugs must be connected to main terminals firmly.
· Don’t apply supply voltage (AC 220V or higher) to control terminals except
terminals TA, TB, TC.
Please mount the ac drive as following application occasions and maintain appropriate
condition.
2.2.1 Installation Location
The installation location should meet the following conditions:
●Good indoor ventilation.
●Ambient temperature: -10 ℃~ 40 ℃. If the temperature is higher than 40 ℃, the ac
drive should be derating used and forced ventilation is required.
●Humidity should be lower than 95%, no condensing.
●Do not mount the ac drive on the timber or other combustible matters.
●Avoid direct sunlight.
●Mount in the location free of dust, metal powder, corrosive gas or combustible gas.
●The installation foundation should be solid and free of vibration.
●No electromagnetic interference, away from source of interference.
●Derating use must be considered when the ac drive is installed at high altitude, greater
than 1000 m. This is because the cooling effect of ac drive is deteriorated because of the
thin air. Derating 6% per 1000 m higher of the altitude.

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
9
2.2.2 The Ambient Temperature
In order to enhance operating reliability of the ac drive, be sure where the ac drive
mounted has a good ventilation; when the ac drive is used in a closed case, cooling fans
or an air-conditioning must be installed to keep the ambient temperature below 40℃.
2.2.3 Preventive Measures
Installing the ac drive, please set a shield to prevent metal debris falling into it, and
remove the shield after installing.
2.3 Installation Direction and Space
Ac drives of this series are all equipped fans for forced cooling. In order to be an
effective cooling cycle, the ac drive must be mounted in the vertical direction, up, down,
left and right away from adjacent articles or baffle(wall) maintain adequate space, as
Figure 2-1
50mm
or above 50mm
or above
120mm
or above
120mm
or above
Fig 2-1 Installation Direction and Space
2.4 Main Circuit Wiring
2.4.1 The Main Circuit Terminals Arrangement and wiring

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
10
Fig 2-2 S2R4GB～S2R75GB Main Circuit Wiring
Table2-1 S2R4GB～S2R75GB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Single-phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
U, V, W Three -phase AC output terminals
PE Earth terminal
Fig 2-3 S21R5GB～S22R2GB Main Circuit Wiring
Table2-2 S21R5GB～S22R2GB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Single-phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
- Output terminal for DC negative bus
U,V,W 3AC output terminals
PE Earth terminal

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
11
Fig 2-4 3R75GB～3004GB Main Circuit Wiring
Table2-2 3R75GB～3004GB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Three -phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
- Output terminal for DC negative bus
U, V, W 3AC output terminals
PE Earth terminal
Power supply
Braking
resistor
PE cable
core and
screen
Motor
DC
reactor
Fig 2-5 35R5GB/37R5PB～3015GB/3018PB Main Circuit Wiring

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
12
Table 2-4 35R5GB/37R5PB～3015GB/3018PB main circuit terminals function
Terminal Symbol Terminal name and function
R, S ,T Three -phase 380V AC supply input terminals
P1,+/B1 Reserved terminals for DC reactor
+/B1, B2 Reserved terminals for braking resistor
- Output terminal for DC negative bus
U,V,W 3AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1”and “+/B1”with supplied
copper bar.
Power supply Braking
resistor
PE cable
core and
screen
Motor
DC
reactor
Braking
Unit
Fig 2-6 3018G/3022P～3055G/3075P Main Circuit Wiring

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
13
Table 2-5 3018G/3022P～3055G/3075P main circuit terminals function
Terminal Function
R, S, T Three -phase 380V AC supply input terminals
P1,+ Reserved terminals for DC reactor
- Output terminal for DC negative bus
U, V, W Three -phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.
Fig 2-7 3160G/3185P～3355G/3400P Main Circuit Wiring

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
14
Fig 2-8 3400G～3500G Main Circuit Wiring
Table 2-6 3160G/3185P～3500G main circuit terminals function
Terminal Function
R, S, T Three -phase 380V AC supply input terminals
P1,+ Reserved terminals for DC reactor
- Output terminal for DC negative bus
U, V ,W 3AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
15
2.4.2 Main Circuit Wiring operation
Be sure that the motor is running forward when the running direction command of ac
drive is forward. If the motor is running reverse, interchange any two-output terminals
(U, V, W) can change the rotate direction of the motor, and you can change function code
P2.25 to change phase-sequence of the motor.
Never connect input power supply cables to output terminals, or else parts of the ac drive
would be damaged. Do not connect output terminals to earth, be sure output cables not
touch to the shell or be shorted, or else the ac drive would be damaged.
Be sure Earth terminal “PE” is connected to earth. The earthling resistance of 380V-class
should be below 10Ω. Be sure the earthling not be shared with an electric welding
machines or other high-current electrical equipments. Use ground wiring as mentioned
in “Appendix 3 Main Circuit Output Cable Selection” and keep the length as short as
possible.

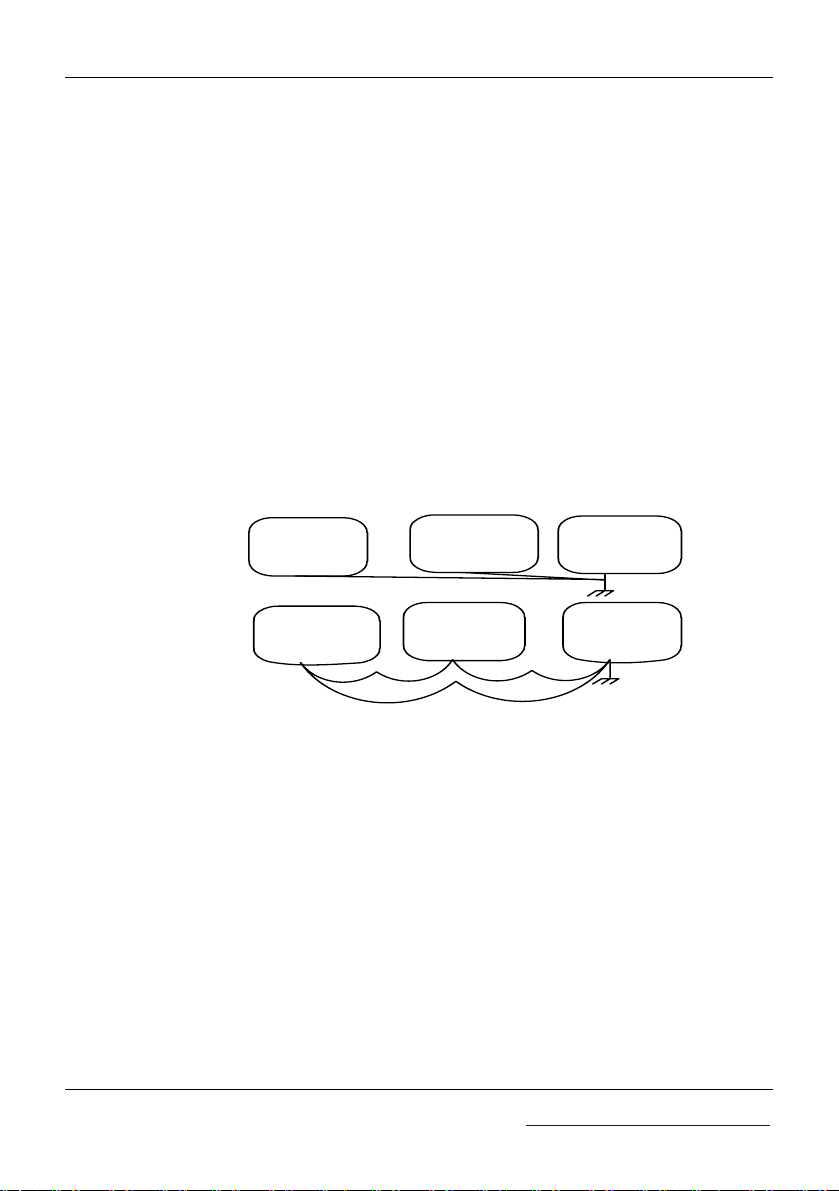

When two or more ac drives are used at the same time, do not loop the wires. The right
and wrong earthling connection methods are shown as Figure 2-9.
Inverter InverterRight
Inverter InverterInverter
Wrong
Inverter
Fig 2-9 Earthling Connection Method
Attention: The neutral point of motor using Y connection can’t be connected to
earth.
Since the ac drive output PWM wave, if a capacitance for improving power factor or a
lightning varistor is installed on the output side, which would case tripping or damage to
parts, be sure to remove it.
If a contactor or other on-off part is needed to be installed between the output and the
motor, be sure the on-off operation is done when the ac drive has no output, otherwise the
ac drive would be damaged.
Countermeasures to conduction interference: To inhibit conduction interference of the
output, besides installing noise filter and using shielded motor cables, leading all the
output cables to earthling metal tube is also a method. Make the distance between the
output cables and the control signal cables greater than 30 cm, the effect of conduction
interference will obviously decrease too.

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
16
Countermeasures to RFI: The input cables, output cables and the ac drive itself would
produce RFI. Placing noise filters both at input and output sides, and shielded with metal
shell would reduce RFI. The cables between the ac drive and the motor should be as
short as possible. Measure to reduce RFI is shown as Figure 2-10.
Power
supply
Noise
Filter Inverter Noise Filter Motor
Metal tube
Metal shell box
Fig 2-10 Method to Restrain RFI
Distance between the ac drive and the motor.
The longer the distance between the ac drive and the motor, the higher the carrier
frequency would be, and the greater the high harmonic leakage current of the cables
would be. Leakage current has a negative impact to ac drives and equipments nearby, so
reduce leakage current as little as possible.
The relationship of the distance between the ac drive and the motor and carrier frequency
is shown as Table 2-7.
Table 2-7 Distance between the ac drive and the motor and carrier frequency.
Distance between ac drive
and motor Below 50m Below 100m Above 100m
Carrier frequency Below 8 kHz Below 4 kHz Below 2 kHz
2.5 Control Circuit Connection
2.5.1 Function of Control Circuit Terminals
Fig 2-11 S2R4GB～3004GB Arrangement of Control Circuit Terminals

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
17
Fig 2-12 35R5GB/37R5PB～3500GB Arrangement of Control Circuit Terminals
In order to reduce interference and attenuation of control signal, the length of control
cables should be limited in 50m and away from power cables for more than 30cm. Avoid
control wire and power wire being parallel. Try to use STP (Shielded Twisted Pair) to
connect analog input and output signal.
●Function of Control Circuit Terminals
Table 2-8 Function of control circuit terminals
Category Terminal Name Functions Specifications
Analog
input
AI1 Analog
input1
Be able to accept
voltage/current input.
Data-chosen-switch
SW1 can select
voltage or current
input mode. Voltage
input mode is the
default mode, refer to
P4.00～P4.10 to set
the range.(The
reference ground is
Input voltage range:
0～10 V
(Input resistance:
100 kΩ)
Input current range:
0～20 mA
(Input resistance:
500Ω)

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
18
Category Terminal Name Functions Specifications
AI2 Analog
input2
GND)
AO1 Analog
output1
Be able to output
analog voltage
/current (total 12
kinds of
signals).Switch SW2
can select voltage or
current output mode.
Voltage output mode
is the default mode.
Refer to P4.16 for
details. (The
reference ground is
GND)
Analog
output
AO2
Analog
output2
(only
35R5GB/3
7R5PB～
3500G)
Be able to output
analog voltage
/current (total 12
kinds of
signals).Switch SW3
can select voltage or
current output mode.
Voltage output mode
is the default mode.
Refer to P4.17 for
details. (The
reference ground is
GND)
Output current
range: 0/4~20 mA
Output voltage
range: 0/2~10 V

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
19

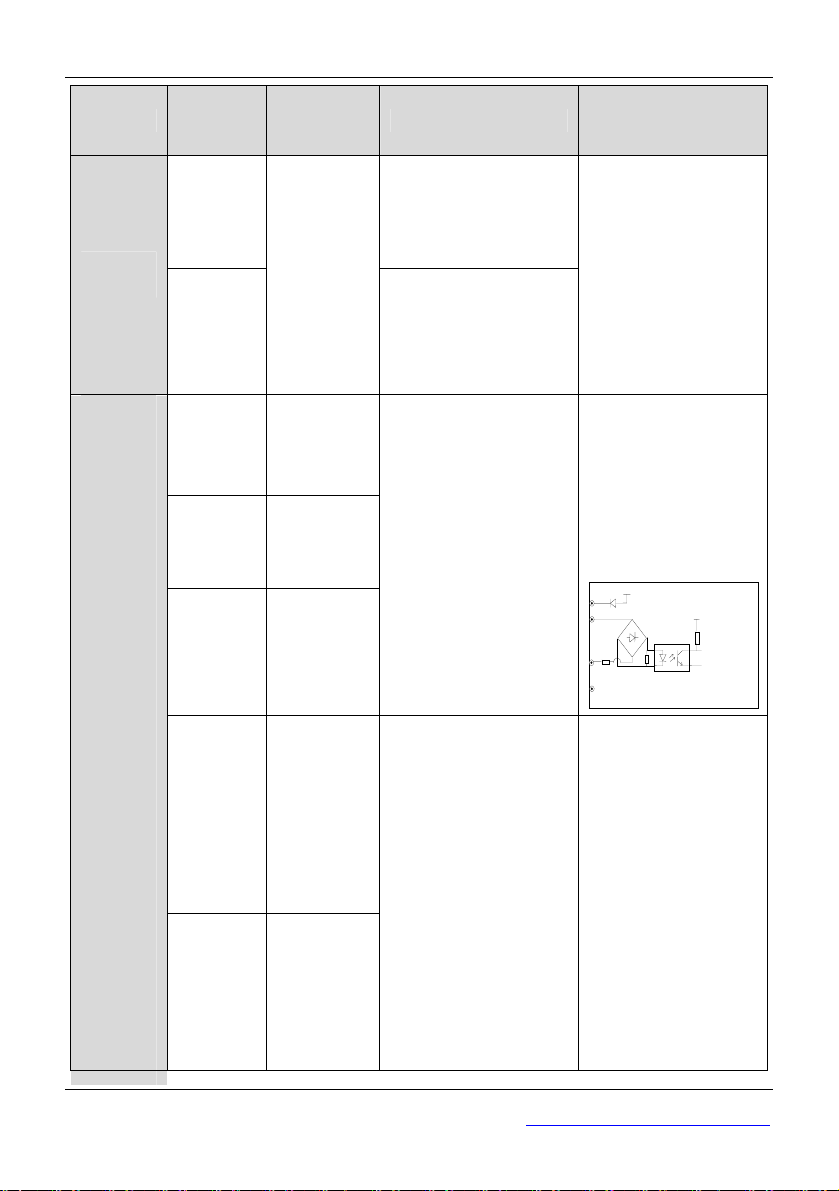

Category Terminal Name Functions Specifications
485+ RS485+
Communi
cation
485-
RS485
communic
ation
interface
RS485-
Standard RS-485
communication
interface
Not isolate with
GND
Please use
twisted-pair or
shielded cable
X1
Multi-
function
input
terminal 1
X2
Multi-
function
input
terminal 2
X3
Multi-
function
input
terminal 3
Be able to be defined
as multi- function
on-off input terminal.
See section 5.4 ,
Chapter 5 for the
function of input
terminals
(The common
terminal is PLC)
Optical-isolator
input
Input resistance:
R=3.9 kΩ
Maximum input
frequency: 400 Hz
Input voltage range:
0～30V
X4
Multi-
function
input
terminal 4
Mult-func
tion input
terminal
X5 Multi-
function
input
terminal 5
In S2R4GB～
3004GB, terminals
X4 and X5 can be
used as common
multi-function
terminals, they can
also be used as high
frequency pulse input.
In 35R5GB/37R5
PB～3500G, they
only be used as
common multi-
function terminals
See section 5.4,
Chapter 5 for details.
In S2R4GB～
3004GB
Maximum input
frequency: 50 Hz
Input voltage range:
0～30V
In 35R5GB/37R5PB
～3500G:
Optical-isolator
input
Input resistance:
R=3.9 kΩ
Maximum input
frequency: 400 Hz
Input voltage range:
COM
+24
X1 ～
PLC +
5V
24
R

Chapter 2 Installation and Wiring
http://www.acdrive-china.com
20
Category Terminal Name Functions Specifications
(The common
terminal is PLC)
0～30V
X6
Multi-
function
input
terminal
6(only
35R5GB/3
7R5PB～
3500G)
Be able to be defined
as multi-function on-
off input terminal.
See section 5.4,
Chapter 5 for details.
(The common
terminal is PLC)
Optical-isolator
input
Input resistance:
R=3.9 kΩ
Maximum input
frequency: 400 Hz
Input voltage range:
0～30V
Mult-func
tion input
terminal
X7
Multi-
function
input
terminal
7(only
35R5GB/3
7R5PB～
3500G)
Terminals X7 and X8
can be used as
common
multi-function
terminals, they can
also be used as high
frequency pulse
input. See section 5.4,
Chapter 5 for details.
(The common
terminal is PLC)
Max input
frequency: 50 KHz
Input voltage range:
0～30 V
