Alpha 6000 User manual

Preface
1
Preface
Thank you for buying ALPHA6000/6100 series inverter made by Shenzhen ALPHA
Inverter Co., Ltd.
To satisfy the high performance needs, ALPHA6000/6100 series inverters use magnetic
flux vector control method to achieve high torque at low speed and low-noise at steady
running. The inner PID operation can perform PID close loop control easily.
ALPHA6000/6100 proprietary features include the advanced automatic torque
compensation, multiple controlling methods, up to 36 fault protections and warning
functions. Online watching and changing parameters, Integrated RS485 Interface, and
operation flexibility. In addition, energy saving running can furthest improves the motor
power factor and efficiency.
ALPHA6000/6100 series are suitable for almost all motor driving applications like
paper process, textile machines, food process, cement, spinning weaving and dyeing,
metallurgy, iron and steel, and other machinery.
The inverter has wide speed-adjusting range, stable operation, high accuracy and reliable
performance. It can be widely used in application of electrical power energy saving.
If you have some problems that can’t be solved in operation, please contact the nearest
local agents or service center, or contact our company directly.
To ensure the perfect use of this product and the safety of user, please read the user
manual carefully before the operation of inverter and keep the manual in proper place for
future reference.
The information contained in this manual is subject to change without notice.
Before mounting, wiring and commissioning the inverter, to ensure the safety of user and
extending the life of this equipment, it strongly suggests that we must read the safety
rules warnings listed in this book and cautions marked on the inverter.
When in operation, we must pay attention to the situation of driven load and all notes that
related on safety.

Preface
2
Danger!
This system contains voltages that may be as high as 400 volts!
Electric shock can cause serious or fatal injury. Only qualified
personnel shall wire the drive.
Please cut off the power before wiring and inspecting. It is not
permissible to touch PCB or interior components before battery
control lamp goes off or until 5 minutes after the power has been
removed. It is necessary to use meters to confirm the charging
capacitance has discharged off. Otherwise, a risk of electric shock
may happen.
Don't contact AC power source to the output terminals U, V, W of
the inverter.
When using the inverter, the earthling terminal of the inverter must
be grounded correctly and reliably according to IEC536 Class 1,
NEC and other applicable standards.
Warning!
Unauthorized change of inboard wiring and using accessories,
which sold or recommended by blame manufacturer may cause
fire, electric shock and injury.
Since body static electricity may cause serious damage to MOS
field-effect transistor and other sensitive elements, please don’t
touch the interior devices, such as PCB, IGBT module etc. before
any measure taken to prevent static electricity.
Caution!
Keep all marks and labels clear to read. Replace the lost or worn
mark at any moment.
Please keep the user manual near the inverter that can be reached
easily and give this manual to the users who use the product.
All rights reserved. The contents in this document are subject to change without notice.
If you have any questions and problems about the use of our products, please contact our
agents or us.
Any improved suggestions are welcome.

Contents
3
Contents
Preface ............................................................................................................................ 1
Contents.......................................................................................................................... 3
Chapter 1 Purchase Inspection........................................................................................ 6
1.1 Unpacking Inspection ....................................................................................... 6
1.2 Naming Rule ..................................................................................................... 6
1.3 Nameplate of Inverter ....................................................................................... 7
Chapter 2 Installation and Wiring................................................................................... 8
2.1 Exterior Size and Mounting Size (See Appendix 1) ......................................... 8
2.2 Mounting Place Requirement and Management............................................... 8
2.2.1 Installation Location .................................................................................. 8
2.2.2 The Ambient Temperature......................................................................... 9
2.2.3 Preventive Measures .................................................................................. 9
2.3 Installation Direction and Space ....................................................................... 9
2.4 Main Circuit Wiring.......................................................................................... 9
2.4.1 The Main Circuit Terminals Arrangement and Wiring.............................. 9
2.4.2 Main Circuit Wiring Operation................................................................ 15
2.5 Control Circuit Connection............................................................................. 17
2.5.1 Function of Control Circuit Terminals..................................................... 17
2.5.2 Control Circuit Wiring............................................................................. 23
2.6 Wiring of Inverter for Basic Operation........................................................... 34
2.7 Wiring Attention............................................................................................. 38
Chapter 3 Operation...................................................................................................... 39
3.1 Function of Keyboard ..................................................................................... 39
3.1.1 Overview of Keyboard............................................................................. 40
3.1.2 Description of Keystroke Function.......................................................... 41
3.1.3 Description of LED Digitals and Indicators............................................. 43
3.1.4 Display State of Keyboard ....................................................................... 44
3.1.5 Operation Method of Keyboard ............................................................... 46
3.2 Run Command Mode Select ........................................................................... 48
3.3 Trial Operation................................................................................................ 48

Contents
4
3.3.1 Operation Mode of Inverter ..................................................................... 48
3.3.2 Checkpoints Before Operation................................................................. 49
3.3.3 Operation Checkpoints ............................................................................ 49
3.3.4 A Trial Run .............................................................................................. 50
3.4 Commissioning of Keyboard .......................................................................... 51
3.5 Operation of Control Circuit Terminal ........................................................... 52
Chapter 4 Parameter Index ........................................................................................... 54
Chapter 5 Parameter Introductions ............................................................................... 79
5.1 Basic Function (Group P0) ............................................................................. 79
5.2 Start/Stop Control (Group P1) ........................................................................ 86
5.3 Auxiliary Operation (Group P2) ..................................................................... 93
5.4 I/O Terminal Ctrl (Group P3) ......................................................................... 98
5.5 Analog and Pulse Function (Group P4) ........................................................ 118
5.6 PLC Operating (Group P5) ........................................................................... 122
5.7 Wobble Frequency Operating (Group P6).................................................... 127
5.8 PID Control (Group P7)................................................................................ 130
5.9 Fixed-length Function (Group P8)................................................................ 135
5.10 Advanced Control (Group P9) .................................................................... 138
5.11 Motor Parameters (Group PA).................................................................... 141
5.12 MODBUS Communication (Group Pb)...................................................... 143
5.13 Display Control (Group PC) ....................................................................... 146
5.14 Protection and Fault Parameters (Group Pd) .............................................. 151
5.15 Running History Record (Group PE).......................................................... 158
5.16 Protection of Parameters (Group PF).......................................................... 160
Chapter 6 Troubleshooting ......................................................................................... 163
6.1 Troubleshooting............................................................................................ 163
6.2 Warning Display and Explanation ................................................................ 168
6.3 Motor’s Faults and Corrective Measure........................................................ 169
Chapter 7 Peripheral Equipments ............................................................................... 172
7.1 Peripheral Equipments Connection Diagrams .............................................. 172
7.2 Function of Peripheral Equipments .............................................................. 174
7.2.1 AC Reactor ............................................................................................ 174
7.2.2 EMI Filter .............................................................................................. 175
7.2.3 Brake Unit and Resistor......................................................................... 176

Contents
5
7.2.4 Leakage Current Protector ..................................................................... 177
7.2.5 Capacitor Box ........................................................................................ 177
Chapter 8 Maintenance............................................................................................... 178
8.1 Inspection and Maintenance ......................................................................... 178
8.1.1 Daily Inspection..................................................................................... 178
8.1.2 Regular Maintenance ............................................................................. 179
8.1.3 Replace Device at Regular Intervals...................................................... 182
8.2 Storage and Keeping..................................................................................... 182
Chapter 9 Quality Guarantees..................................................................................... 183
Appendix 1 Exterior Size and Mounting Size (Unit: mm).................................. 185
Appendix 2 Technology Standards..................................................................... 193
Appendix 3 Main Circuit Output Cable Selection (Recommended)................... 196
Appendix 4 MODBUS Communication............................................................. 198
Appendix 5 Keyboard Mounting Size (Unit: mm) ............................................. 215
Appendix 6 Inverter Warranty............................................................................ 217

Chapter 1 Purchase Inspection
6
Chapter 1 Purchase Inspection
1.1 Unpacking Inspection
All inverters have passed the strict test before delivery. After unpacking, please check if
the product was damaged by careless transport, the product specification, model is
complied with the order, and if it has a quality check passed mark. If there is any problem,
please contact the supplier.

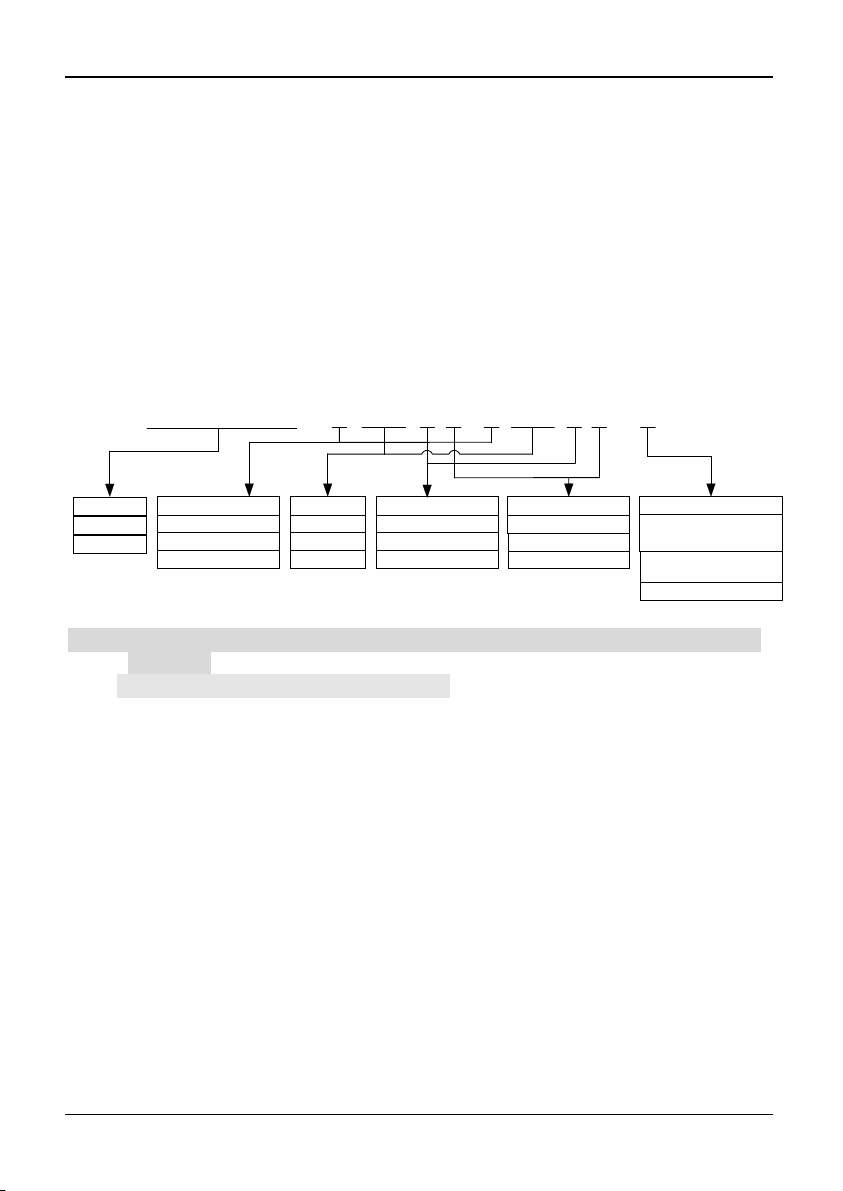

1.2 Naming Rule
The naming rule of the product is as following:
ALPHA6000 – 3 7R5 G B/ 3 011 P B - X
Series Code
S2: single phase 220V
Rated Voltage
2: three phase 220V
3: three phase 380V
R75: 0.75kW
Motor Power
7R5: 7.5kW
075: 75kW
G: General
Application
P: Square torque load
B: With Brake
Additional Description Additional Description
□:Narrow-body type
Y: Standard type
(Wall-mounted)
X:Standard type(with
base)
ALPHA6000
ALPHA6100
Note: 1. If the user has special needs, please specify the technical requirements in
the order.
2. X rule applies to 160-500kW models.

Chapter 1 Purchase Inspection
7
1.3 Nameplate of Inverter

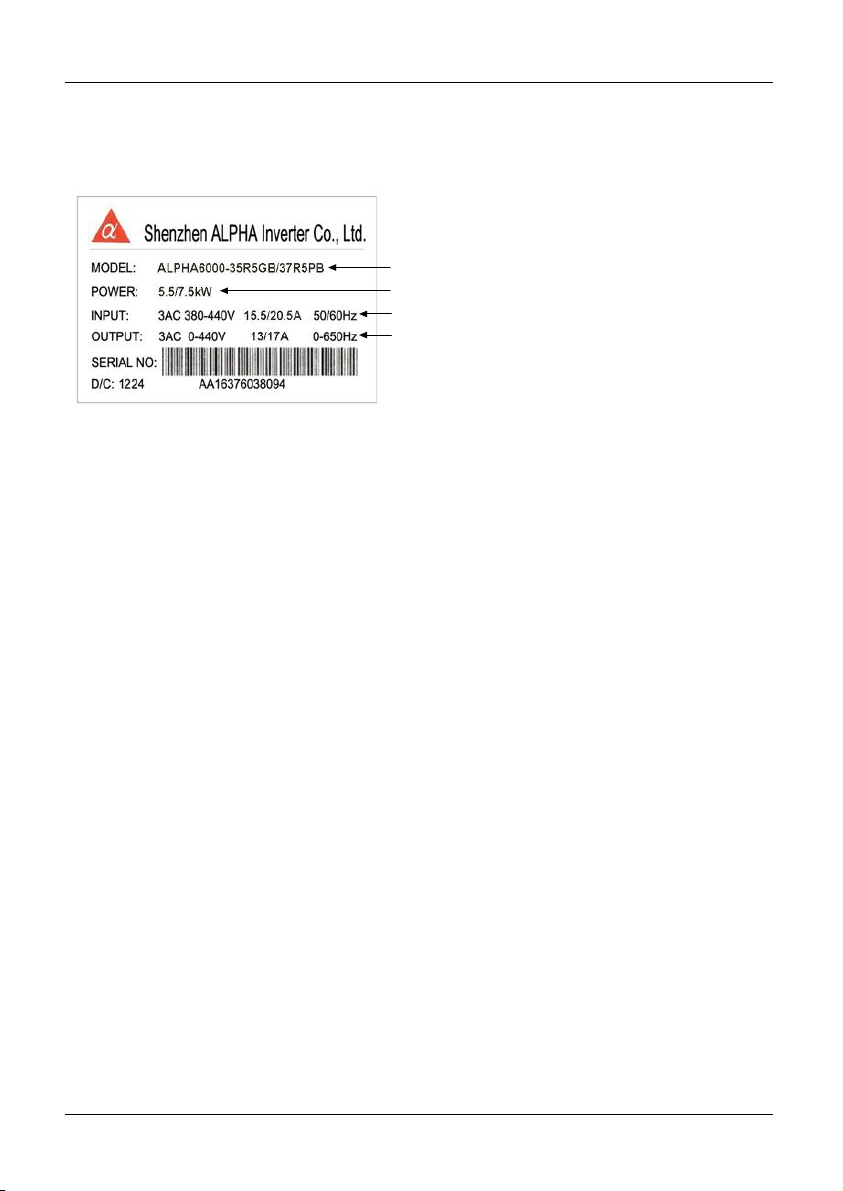

On the right side of the bottom plate of inverter, there is a nameplate, which marks the
model and rated values of inverter. See the following figure:
Inverter types
Motor output power,rated current and frequency
Barcode information
Rated input voltage,current and frequency
Nameplate of Inverter

Chapter 2 Installation and Wiring
8
Chapter 2 Installation and Wiring
2.1 Exterior Size and Mounting Size (See Appendix 1)
2.2 Mounting Place Requirement and Management
Attention
· Don’t carry the inverter by its cover. The cover cannot support the weight of the
inverter and may drop.
· Please install the inverter on a strong support, failing which the inverter may fall off.
· Don’t install the inverter in places where water pipes may leak onto it.
· Don’t allow screws, washers and other metal foreign matters to fall inside the
inverter, otherwise there is a danger of fire or damage.
· Don’t operate the inverter if parts are not complete, otherwise there is a danger of
fire or human injury.
· Don’t install the inverter under direct sunshine; otherwise, it may be damaged.
· Don’t short circuit PB, + and -, otherwise there is a danger of fire or the inverter may
be damaged.
· Cable lugs must be connected to main terminals firmly.
· Don’t apply supply voltage (AC 220V or higher) to control terminals except
terminals TA, TB, TC.
Please mount the inverter as following application occasions and maintain appropriate
condition.
2.2.1 Installation Location
The installation location should meet the following conditions:
Good indoor ventilation.
Ambient temperature: -10 ℃~ 40 ℃. If the temperature is higher than 40 ℃, the
inverter should be derating used and forced ventilation is required.
 Humidity should be lower than 95%, no condensing.
Do not mount the inverter on the timber or other combustible matters.
Avoid direct sunlight.
Mount in the location free of dust, metal powder, corrosive gas or combustible gas.
The installation foundation should be solid and free of vibration.
No electromagnetic interference, away from source of interference.
Derating use must be considered when the inverter is installed at high altitude,
greater than 1000 m. This is because the cooling effect of inverter is deteriorated
because of the thin air. Derating 6% per 1000 m higher of the altitude.

Chapter 2 Installation and Wiring
9
2.2.2 The Ambient Temperature
In order to enhance operating reliability of the inverter, be sure where the inverter
mounted has a good ventilation; when the inverter is used in a closed case, cooling fans
or an air-conditioning must be installed to keep the ambient temperature below 40℃.
2.2.3 Preventive Measures
Installing the inverter, please set a shield to prevent metal debris falling into it, and
remove the shield after installing.
Please remove the protection membrane when the ambient temperature is over 40℃or
the internal temperature is too high due to other reasons. Please pay attention to avoid
small parts falling into the inverter.

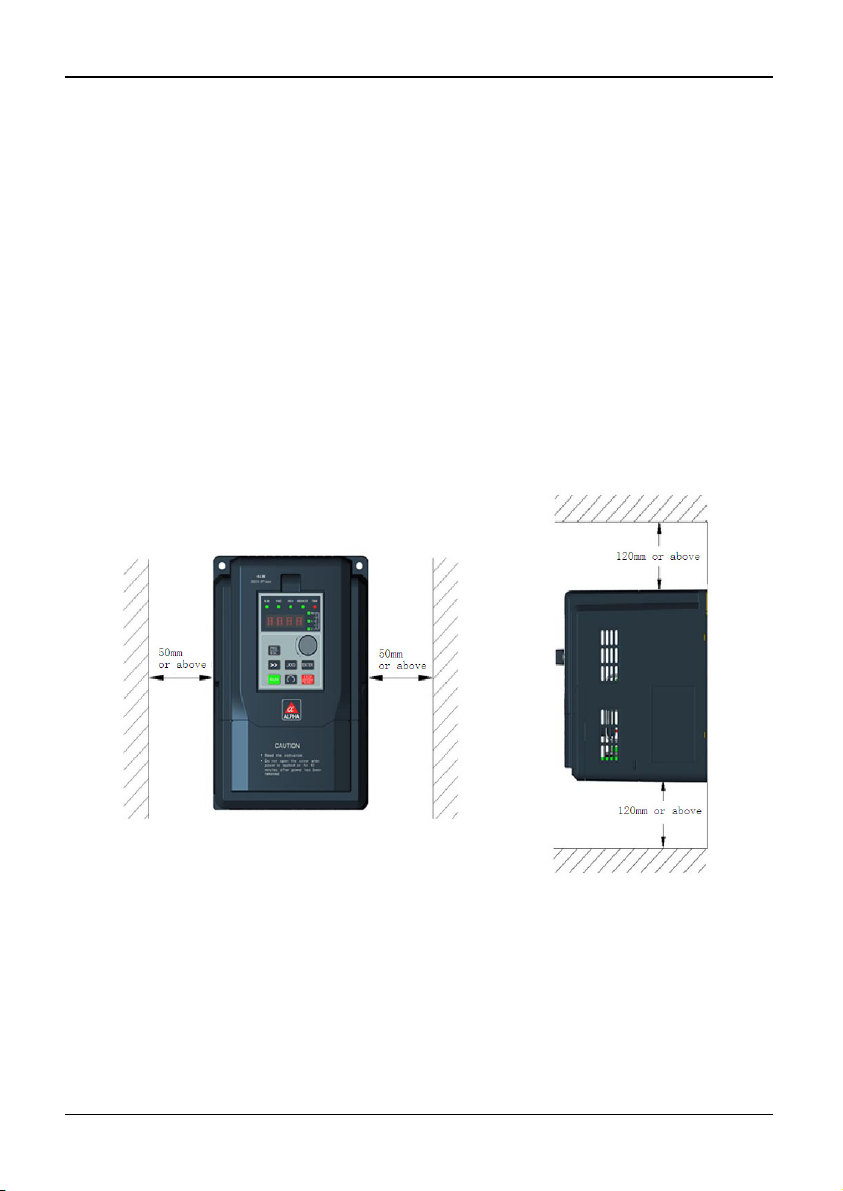

2.3 Installation Direction and Space
Inverters of this series are all equipped fans for forced cooling. In order to be an effective
cooling cycle, the inverter must be mounted in the vertical direction, up, down, left and
right away from adjacent articles or baffle (wall) maintain adequate space, as Figure 2-1
Fig 2-1 Installation Direction and Space
2.4 Main Circuit Wiring
2.4.1 The Main Circuit Terminals Arrangement and Wiring

Chapter 2 Installation and Wiring
10

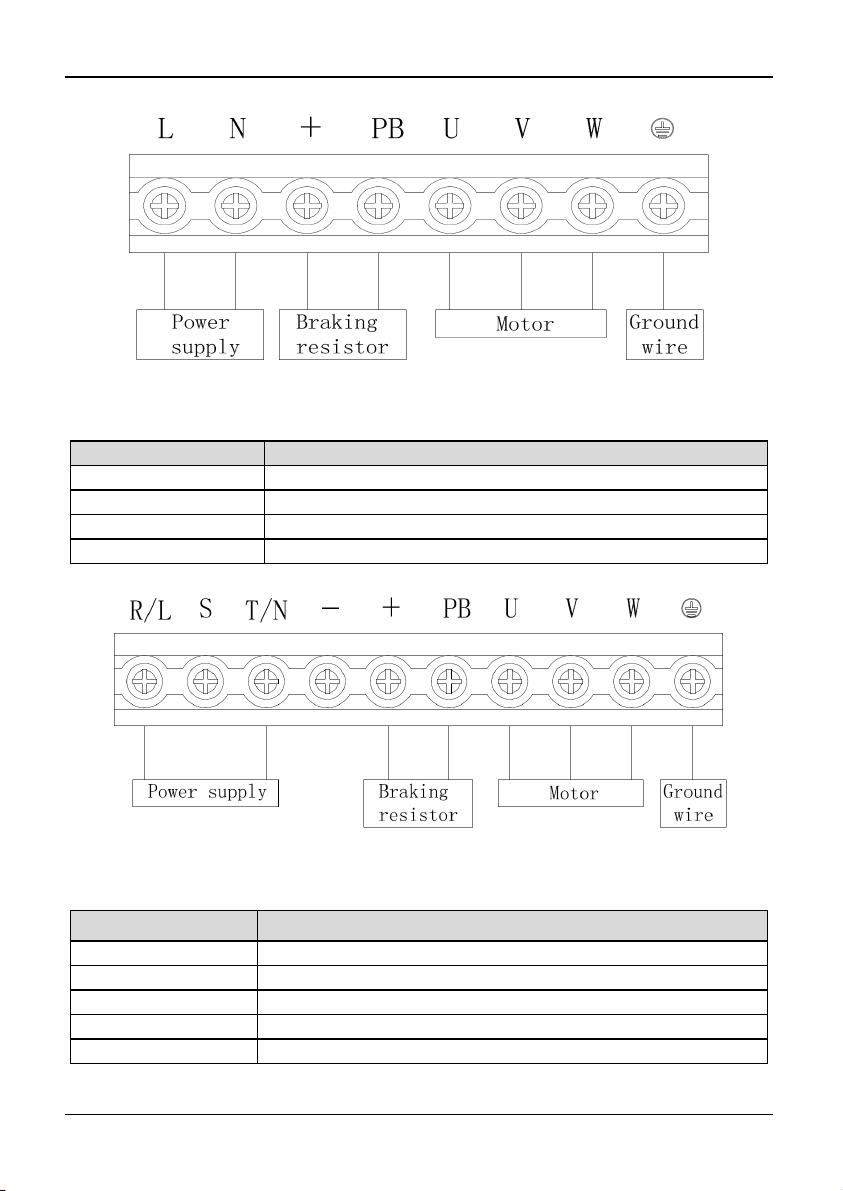

Fig 2-2 S2R4GB~S2R75GB Main Circuit Wiring
Table2-1 S2R4GB~S2R75GB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Single-phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
U, V, W Three-phase AC output terminals
PE Earth terminal
Fig 2-3 S21R5GB~S22R2GB Main Circuit Wiring
Table2-2 S21R5GB~S22R2GB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Single-phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
- DC negative bus output terminal
U,V,W Three-phase AC output terminals
PE Earth terminal

Chapter 2 Installation and Wiring
11
Fig. 2-4 3R75GB/31R5PB~3004GB/35R5PB Main Circuit Wiring
Table2-2 3R75GB/31R5PB~3004GB/35R5PB main circuit terminals function
Terminal Symbol Terminal name and function
L, N Three-phase 220V AC supply input terminals
+, PB Reserved terminals for braking resistor
- DC negative bus output terminal
U, V, W Three-phase AC output terminals
PE Earth terminal
Fig. 2-5 35R5GB/37R5PB~3015GB/3018PB Main Circuit Wiring
Power supply
Braking
resisto
r
PE cable
Core and
screen
Motor
DC
reacto
r

Chapter 2 Installation and Wiring
12
Table 2-4 35R5GB/37R5PB~3015GB/3018PB main circuit terminals function
Terminal Symbol Terminal name and function
R, S ,T Three-phase 380V AC supply input terminals
P1,+/B1 Terminals for an external DC reactor
+/B1, B2 Terminals for an external braking resistor
- DC negative bus output terminals
U,V,W Three-phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1”and “+/B1”with supplied
copper bar.
Power supply Braking
resistor
PE cable
core and
screen
Motor
DC
reactor
Braking
Unit

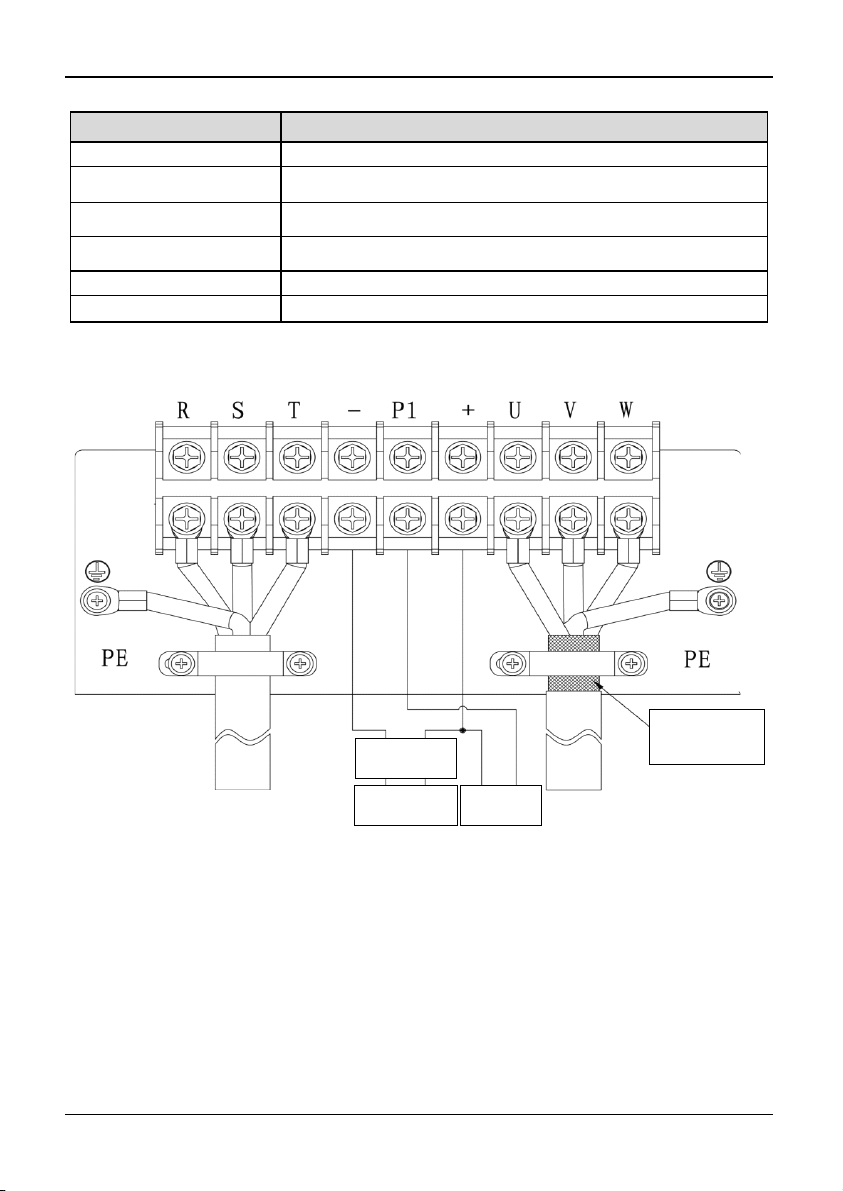

Fig. 2-6 3018G/3022P~3055G/3075P Main Circuit Wiring

Chapter 2 Installation and Wiring
13
Table 2-5 3018G/3022P~3055G/3075P main circuit terminals function
Terminal Function
R, S, T Three-phase 380V AC supply input terminals
P1,+ Terminals for an external DC reactor
- Terminal for an external DC negative bus
U, V, W Three-phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.
Fig. 2-7 3160G/3185P~3355G/3400P Main Circuit Wiring

Chapter 2 Installation and Wiring
14

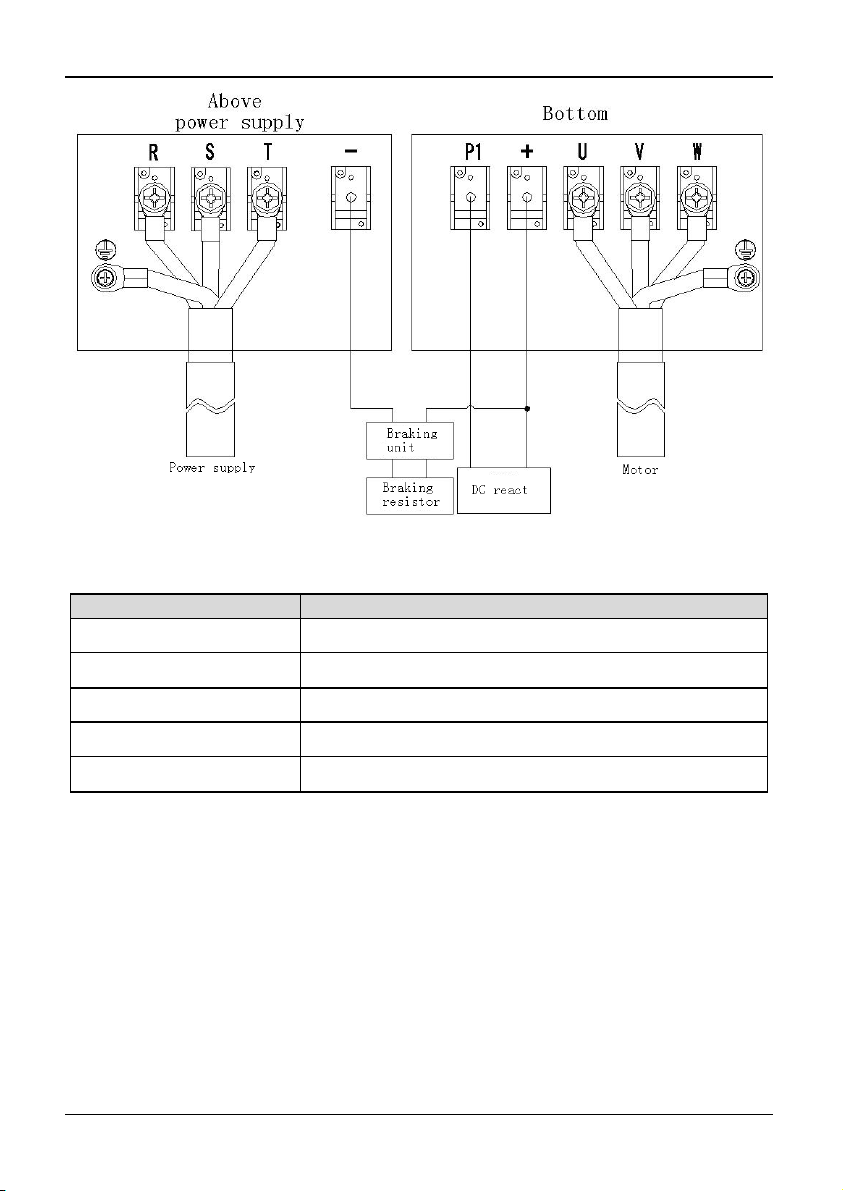

Fig. 2-8 3400G~3500G Main Circuit Wiring
Table 2-6 3160G/3185P~3500G main circuit terminals function
Terminal Function
R, S, T Three-phase 380V AC supply input terminals
P1,+ Terminals for an external DC reactor
- DC negative bus output terminals
U, V ,W Three-phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.

Chapter 2 Installation and Wiring
15
2.4.2 Main Circuit Wiring Operation
When the motor is running, please make sure if it is in positive rotation while the motor
receives positive rotation command. If the motor is in reverse rotation, the rotation
direction of the motor can be changed by exchanging any two wires of output terminals
(U, V, and W) of the inverter. The rotation direction can also be changed by modifying
the function code P2.33 to change the phase sequence of the motor.
Do not mistakenly connect the input power cable to the output terminal; otherwise the
components in the inverter will be damaged. Output terminals are prohibited to be
grounded. The lines should not be collided with the enclosure, or short connected;
otherwise the inverter will be damaged. Be sure Earth terminal “PE” is connected to
earth. The earthing resistance of 380V-class should be below 10Ω. Be sure the earthing
not be shared with electric welding machines or other high-current electrical equipments.
Use ground wiring as mentioned in “Appendix 3 Main Circuit Output Cable Selection”
and keep the length as short as possible.
When two or more inverters are used at the same time, do not loop the wires. The right
and wrong earthling connection methods are shown as Figure 2-9.
Inverter InverterRight
Inverter InverterInverter
Wrong
Inverter
Fig. 2-9 Earthing Connection Method
Attention: The neutral point of motor using Y connection can’t be connected to
earth.
Since the inverter output PWM wave, if a capacitance for improving power factor or a
lightning varistor is installed on the output side, which would cause tripping or damage
to parts, be sure to remove it.
If a contactor or other on-off part is needed to be installed between the output and the
motor, be sure the on-off operation is done when the inverter has no output, otherwise the
inverter would be damaged.
Countermeasures to conduction interference: To inhibit conduction interference of the
output, besides installing noise filter and using shielded motor cables, leading all the
output cables to earthing metal tube is also a method. Make the distance between the

Chapter 2 Installation and Wiring
16
output cables and the control signal cables greater than 30 cm, the effect of conduction
interference will obviously decrease too.

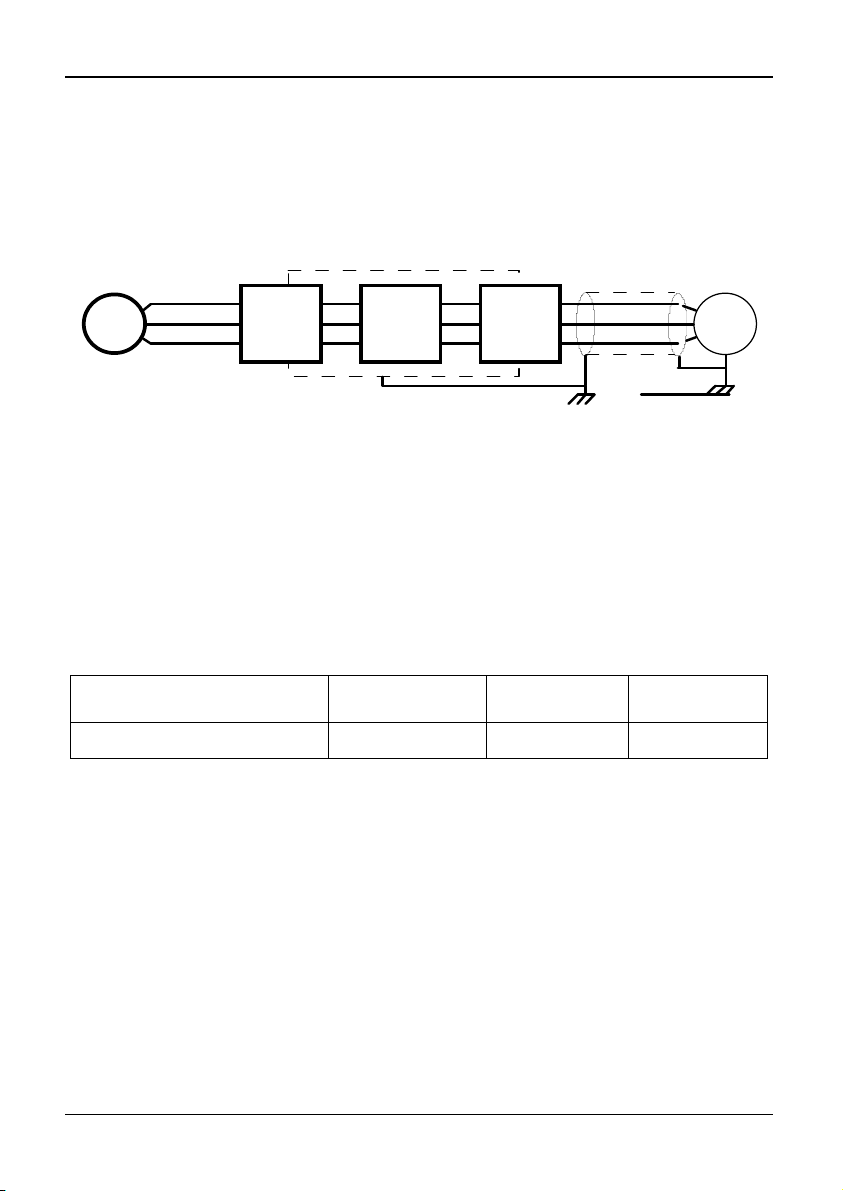

Countermeasures to RFI: The input cables, output cables and the inverter itself would
produce RFI. Placing noise filters both at input and output sides, and shielded with metal
shell would reduce RFI.. The cables between the inverter and the motor should be as
short as possible. Measure to reduce RFI is shown as Figure 2-10.
Power
supply
Noise
Filter Inverter Noise Filter Motor
Metal tube
Metal shell box
Fig. 2-10 Method to Restrain RFI
Distance between the inverter and the motor.
The longer the distance between the inverter and the motor, the higher the carrier
frequency would be, and the greater the high harmonic leakage current of the cables
would be. Leakage current has a negative impact to inverters and equipments nearby, so
reduce leakage current as little as possible.
The relationship of the distance between the inverter and the motor and carrier frequency
is shown as Table 2-7.
Table 2-7 Distance between the inverter and the motor and carrier frequency.
Distance between inverter
and motor Below 50m Below 100m Above 100m
Carrier frequency Below 8 kHz Below 4 kHz Below 2 kHz

Chapter 2 Installation and Wiring
17
2.5 Control Circuit Connection
2.5.1 Function of Control Circuit Terminals

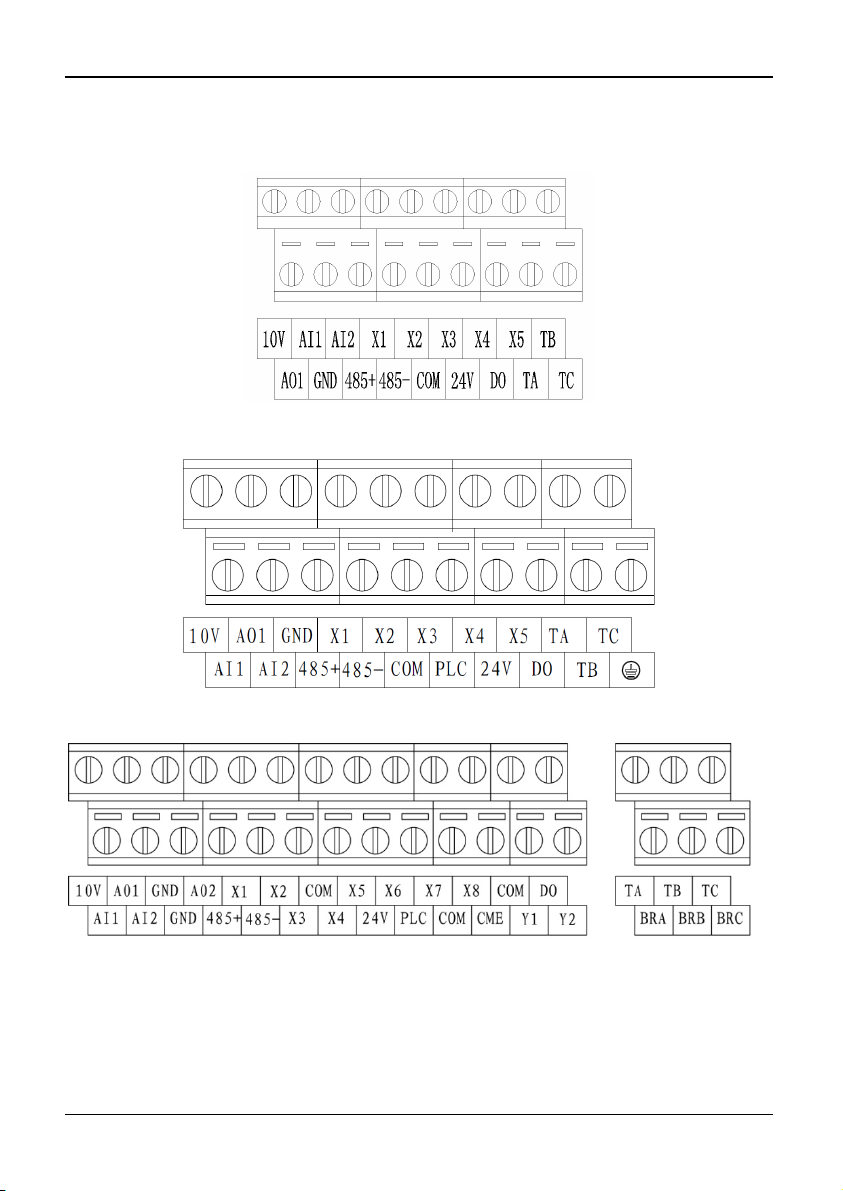

Fig. 2-11 S2R4GB~S2R75GB Arrangement of Control Circuit Terminals
Fig. 2-12 S21R5GB~3004GB/35R5PB Arrangement of Control Circuit Terminals
Fig. 2-13 35R5GB/37R5PB~3500GB Arrangement of Control Circuit Terminals
In order to reduce interference and attenuation of control signal, the length of control
cables should be limited in 50m and away from power cables for more than 30cm. Avoid
control wire and power wire being parallel. Try to use STP (Shielded Twisted Pair) to
connect analog input and output signal.

Chapter 2 Installation and Wiring
18
Function of Control Circuit Terminals
Table 2-8 Function of control circuit terminals
Category Terminal Name Functions Specification
Analog input
AI1 Analog input1
Receive voltage/current
input. Voltage or current
input mode are
selectable by
data-chosen-switch
SW1. Voltage input
mode is the default
mode, refer to
P4.00~P4.10 to set the
range.(The reference
ground is GND)
Input voltage range:
0~10 V
(Input resistance:
100 kΩ)
Input current range:
0~20 mA
(Input resistance:
500Ω)
AI2 Analog input2
Analog output
AO1 Analog
output1
Provide analog voltage
/current output(total 12
kinds of signals).
Voltage or current
output mode are
selectable by switch
SW2. Voltage output
mode is the default
mode. Refer to P4.17 for
details. (The reference
ground is GND) Output current range:
0/4~20 mA
Output voltage range:
0/2~10 V
AO2
Analog
output2
(only
35R5GB/37R5
PB~3500G)
Provide analog voltage
/current output (total 12
kinds of signals).
Voltage or current output
mode are selectable by
switch SW3. Voltage
output mode is the
default mode. Refer to
P4.18 for details. (The
reference ground is
GND)

Chapter 2 Installation and Wiring
19
Category Terminal Name Functions Specification
Communication
485+
RS485
communicatio
n interface
RS485+
Standard RS-485
communication
interface
Not isolated with
GND
Please use
twisted-pair or
shielded cable
485- RS485-
Multi-function input terminal
X1
Multi-
function input
terminal 1 It can be defined as
multi- function on-off
input terminal. See
section 5.4 (Group P3),
Chapter 5 for the
function of input
terminals
(The common terminal
is PLC)
Optical-isolator input
Input resistance:
R=3.9 kΩ
Maximum input
frequency: 400 Hz
Input voltage range:
0~30V
X2
Multi-
function input
terminal 2
X3
Multi-
function input
terminal 3
X4
Multi-
function input
terminal 4
In
S2R4GB~3004GB/35R
5PB, terminals X4 and
X5 can be used as
common multi-function
terminals, they can also
be used as high
frequency pulse input.
In 35R5GB/37R5
PB~3500G, they only be
used as common multi-
function terminals
See section 5.4, Chapter
5 for details.
(The common terminal
is PLC)
In
S2R4GB~3004GB/35
R5PB
Maximum input
frequency: 50 Hz
Input voltage range:
0~30V
In 35R5GB/37R5PB
~3500G:
Optical-isolator input
Input resistance:
R=3.9 kΩ
Maximum input
frequency: 400 Hz
Input voltage range:
0~30V
X5
Multi-
function input
terminal 5
COM
+24
Xi
PLC +
5V
24
