Alpha ATS-16A User manual

ATS-16A/20A/30A/32A
Automatic Transfer Switch
User Manual
1
Table of Contents
1.
Safety Instructions..................................................................................2
2. Product Description................................................................................3
3. Installation and Operating Instructions...................................................4
3.1. Packaging...............................................................................................4
3.2. Choose an installation location...............................................................4
3.3. Product Introduction ...............................................................................5
3.4. Product Installation and Operation.......................................................10
4. Troubleshooting....................................................................................12
5. System Specifications ..........................................................................13
6. Appendix A. Dry contacts available for configuration...........................15

2
1. Safety Instructions
SAVE THESE INSTRUCTIONS. This manual contains important
instructions that should be followed during installation and
maintenance of the ATS.
1. Do not disassemble this product without a technician from the original
manufacturer or authorized distributor. Doing so voids your warranty and is
also a shock hazard.
2. Every component of this product is checked for high specification standards.
Performance maintenance or parts replacement should only be done by a
qualified technician or authorized distributor.
3. Do not install the product at the following locations without a qualified
technician:
4. Medical equipment directly related to human life preservation;
5. Equipment on elevators or rapid transit systems related to personal safety;
6. Critical computing hardware for public systems;
7. Other equipment similar to the ones mentioned above.
8. Please discuss with your distributor before installing the product at the
locations mentioned above. Special considerations and designs are required
for the operation, setup, management, and maintenance of critical equipment
and emergency backup power generators related to personal safety and public
facilities.
9. Do not place vases or other water containers on top of the main unit. Water
spilled into the machine may damage internal components and pose a shock
hazard.
10.Using this product in locations with sparks, smoke, or natural gas may result in
arcing, personal injury, and fire hazards.
11.The operating environment and storage method affects the product lifespan
and malfunctions. Thus, please keep the product away from the following
operating environments:
12.Locations specified in the operating manual as high temperature, low
temperature, and high humidity (temperatures outside -5 to 40℃and relative
humidity outside 30% to 90%);
13.Locations with sparks;
14.Locations with dust, corrosive material, salt content, or flammable gas;
15.Outdoors.
16.Immediately stop using this product in the event of abnormal sounds or odors.
Contact your distributor for maintenance.
17.Improper grounding results in electrical leakage. Please make sure your AC
input power is properly grounded.
18.Please confirm the input voltage does not exceed the rated capacity of the
ATS.
3
2. Product Description
The ATS (Automatic Transfer Switch) features two independent power supply
circuits supplying power to the load (as shown in Figure 1 below). In the event of a
power failure in the main circuit, the ATS automatically switches to the other
circuit to supply power to the load. The ATS automatically switches back to the
main circuit after power is restored. In addition, the ATS also provides user
configurable power states (voltage or frequency) for the ATS switching condition.
Figure 1. ATS block diagram
Load
SOURCE A
SOURCE B

4
3. Installation and Operating Instructions
3.1. Packaging
3.1.1. Remove the PE foam.
3.1.2. Inspect accessories
○
1
RS-232 cable x1 pcs
○
2
USB cable x1 pcs
○
3
CD (monitoring software, Setting tool and user manual) x1 pcs
○
4
Backplate and screws x1 set
○
5
Power cable x2 pcs ( Available only forATS-216 models)
3.2. Choose an installation location
An appropriate installation location will optimize system performance, reduce
the chances of malfunctions, and prolong product lifespan. Please follow the
guidelines below for an appropriate location:
3.2.1. Avoid excessive high temperature or high humidity;
3.2.2. Keep away from dust, volatile gases, excessive salt content, or
corrosive gases;
3.2.3. Do not use outdoors.
5
3.3. Product Introduction
3.3.1. Front Panel
No. Item Description/function
○
1Mute button Turns off alarm
○
2Source selection button Select source to view info: Input A, Input B, or
Load
○
3Info selection button Select source info to view: Voltage, current,
frequency, load capacity
○
4Input selection button Switch input source: Input A Input B
○
5LCD System status display
○
6Input indicator A Lit: Normal input voltage and frequency
Dim: Abnormal input voltage and frequency
Flashing: Indicates higher priority
○
7Input indicator B Lit: Normal input voltage and frequency
Dim: Abnormal input voltage and frequency
Flashing: Indicates higher priority
○
8Error indicator Lit: System malfunction or abnormal
Dim: System normal
○
9USB port Connection for software setup or monitoring
software
○
10 RS-232 port Connection for software setup or monitoring
software
○
11 Dry contact port Dry Contact
○
12 External communication
slot For external communication cards, e.g. RS- 485, SNMP

6
3.3.2. LCD
Symbol Description/function
Input A error or power failure
Input B error or power failure
Overload
System malfunction or abnormal
Alarm on
Alarm off
Digital display showing input/output power
connected to load
ATS numeric display
7
3.3.3. Rear Panel
ATS-216(230V-16A)
ATS-120(120V-20A)
ATS- 232(230V-32A)
ATS- 130(120V-30A)
○
1 Power input (B)
○
5 Output socket
○
2 Power input (A)
○
6 Output breaker
○
3,
○
4Input breaker (optional, sold separately)

8

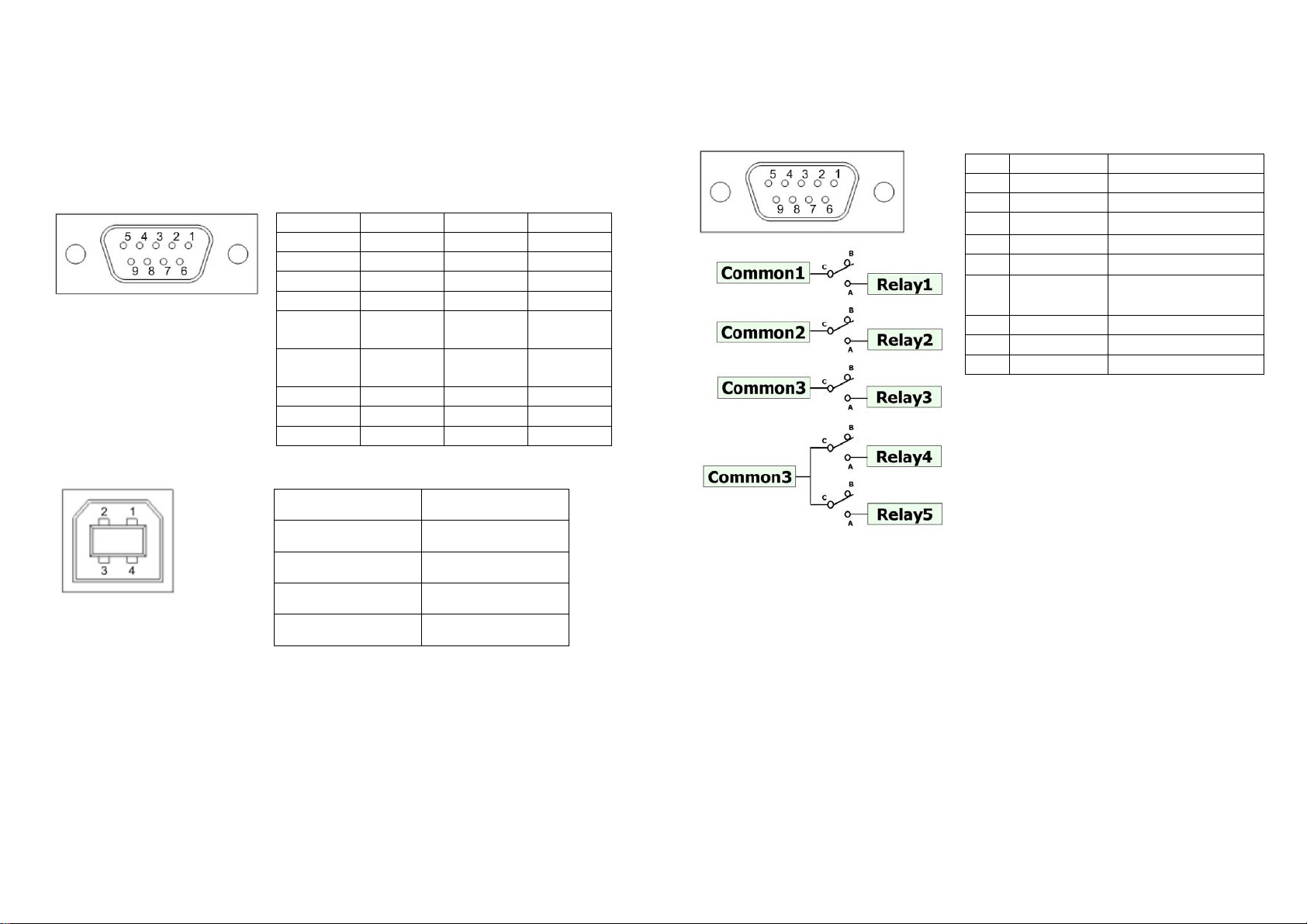

3.3.4. Interface
The ATS provides three communication ports and one external
communication slot (optional) for the user.
Standard communication ports: RS-232, USB, and 5 dry contacts
External communication slot: SNMP, RS-485
3.3.4.1. RS-232
3.3.4.2. USB
Pin Definition Type Signal
1 N/A N/A N/A
2 TX Output TX
3 RX Input RX
4 N/A N/A N/A
5 GND
Power
source N/A
6 +12V
Power
source N/A
7 N/A N/A N/A
8 N/A N/A N/A
9 N/A N/A N/A
Pin Signal
1 VBUS
2 D-
3 D+
4 GND
9
3.3.4.3. Dry Contact
The ATS provides five user configurable dry contacts for customized
features. The capacity of each contact is 24Vdc/1A, additional information is
provided in Appendix A.
Pin Definition Signal (default)
1 Common 3 N/A
2 Relay 3 Overload
3 Relay 4
Overload time out
4 Common N/A
5 Relay 5
Over temperature
6 Common 1 N/A
7 Relay 1
Source A abnormal
8 Common 2 N/A
9 Relay 2
Source B abnormal

10
3.4. Product Installation and Operation
3.4.1. Installation Procedure:
1.Open package and note the packaging layers. Keep the box and packaging
material in case further transportation is required.
2.Check for damage to the ATS from shipping and handling. Please contact your
local distributor if the product is damaged.
3.Check the input power cable/socket and output socket of the delivered ATS
model with your order.
4.Affix the backplate (Figure 1) onto the ATS (Figure 2). Affix the ATS onto the
frame of the chassis (Figure 3).
5.Insert the load plugs into the ATS sockets labeled "OUTPUT" and spreading
them as evenly as possible.
6.Check that the total load does not exceed ATS specifications (e.g. voltage,
current).
7.Supply power to the ATS. The ATS automatically boots up after 1 second and
supplies the capacity power to the connected load.
Figure 1 & 2
Figure 3
11
3.4.2. Boot up
Once input power is connected, the ATS automatically boots up. The LCD display
during boot is as shown in Figure 4 and all LEDs ( , , ) are lit.
LCD display is as shown in Figure 5 after boot up, only the LEDs for Power A
() and Power B ( ) are lit.
Figure4 Figure5
3.4.3. Switch input source
This products supports manual switching between power supplies as instructed
below:
Push and hold the button for 2 seconds until you hear two short beeps.
The system then needs to reconfirm the power transfer (LCD display as shown in
Figure 6), so push and hold the button for 2 seconds to confirm. The
system will switch to the other input (LCD display as shown in Figure 7) if the
power supply is normal, otherwise the transfer is not made and a warning is
shown (LCD display as shown in Figure 8).
Figure6 Figure7 Figure8

12
4. Troubleshooting
If your ATS is not working normally, use the following status and
troubleshooting table to make the appropriate adjustments. Please contact your
distributor as soon as possible if the issue cannot be resolved.
Issue Possible reason Solution
ATS is OFF
Not connected to the
electrical grid Check the connection from the electrical grid to the ATS input
Abnormal electrical grid Request service by professional
electrician
Input breaker has been
tripped Reset breaker
Internal components
have been damaged Please contact the distributor
Power is supplied to
the load but panel
remains off
Internal components
have been damaged Please contact the distributor
Error code Er03 to
Er06 Not connected to the electrical grid Check the connection from the electrical grid to the ATS input
Abnormal electrical grid Request service by professional
electrician
Error code Er16 Overload Check the load capacity
Error code Er22 to
Er32 Abnormal internal components Please contact the distributor
13
5. System Specifications
Model ATS-120 ATS-130
Input
Input voltage 100/110/115/120/127
(+/-5%/10%/15%/20%)
Input voltage range 75Vac~150Vac
Input frequency 50/60Hz(+/- 5%/10%/15%/20%)
Input current 20A 30A
Output
Output voltage 100/110/115/120/127
Output current 20A 30A
Connection
Input NEMA 5-20 x 2 NEMA L5-30 x 2
output NEMA 5-20 x 8 NEMA 5-20 x 16,
NEMA L5-30 x 1
Protection Input Breaker(option)
Electronic circuit
Communication RS-232, USB, Dry contact
external slot for option card(SNMP, RS-485)
Transfer time(ms) 8~12ms (Typical)
Efficiency 99%(with full linear load)
Display LCD+LED
Physical
Dimension,
D X W X H (mm) 275x440x44 275x440x88
Net Weight (kgs) 4 6
Environment
Operating
e
mperature -5~40 C @ 20~90% RH(non∘-condensing)
Standards
o
mpliance Safety UL 60950-1/CAN/CSA C22.2 No. 60950-1
EMC FCC Part 15

14
Model ATS-216 ATS-232
Input
Input voltage 200/208/220/230/240
(+/-5%/10%/15%/20%)
Input voltage range 150Vac~300Vac
Input frequency 50/60Hz(+/- 5%/10%/15%/20%)
Input current 16A 32A
Output
Output voltage 200/208/220/230/240
Output current 16A 32A
Connection
Input IEC-C20 inlets x2 40A terminal 6P
output IEC-C13 x 8,
IEC-C19 x 1 IEC-C13 x16, IEC-C19 x2
Protection Input Breaker(option)
Electronic circuit
Communication RS-232, USB, Dry contact
external slot for option card(SNMP, RS-485)
Transfer time(ms) 8~12ms (Typical)
Efficiency 99%(with full linear load)
Display LCD+LED
Physical
Dimension,
D X W X H (mm) 275x440x44 275x440x88
Net Weight (kgs) 4 6
Environment
Operating
e
mperature -5~40 C @ 20~90% RH(non∘-condensing)
Standards
o
mpliance Safety UL 60950-1/ CAN/CSA C22.2 No. 60950-1 / IEC 60950-1
EMC FCC Part 15 / EN62310-2
15
6. Appendix A. Dry contacts available for configuration
Event Code
1 Source A voltage abnormal Er03
2 Source B voltage abnormal Er04
3 Source A frequency abnormal Er05
4 Source B frequency abnormal Er06
5 Output Over Load Er16
6 Unit fault (Source A circuit power defected) Er22
7 Unit fault (Source B circuit power defected) Er23
8 Cabinet temperature abnormal Er24
9 Unit fault (Sensor circuit defect) Er25
10 Unit fault (EEPROM data abnormal) Er26
11 LCD panel connection abnormal Er28
12 Overload time out Er30
13 Transferring fail by sync setting condition Er31
14 Pre-alarm active Er32

16 17

18 19
192321342002002
