Quick reference guide
AlphaVision IP & IP + GPRS

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 2

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 3
Table of contents
TABLE OF CONTENTS......................................................................................................... 3
INTRODUCTION.................................................................................................................. 4
PREPARATIONS................................................................................................................. 5
MOUNTING........................................................................................................................ 5
ALPHATRONICS DEVICE DISCOVERY................................................................................... 6
LOGIN............................................................................................................................... 6
CONFIGURATION WIZARD ................................................................................................... 7
PRIMARY CONNECTION ...................................................................................................... 7
BACKUP CONNECTION........................................................................................................ 8
WEB INTERFACE................................................................................................................ 8
END OF WIZARD................................................................................................................. 9
MEANING OF THE TRANSCEIVER LEDS:........................................................................ 10
MEANING OF THE INDICATION LEDS:............................................................................. 10
MEANING OF THE STATUS LEDS: ................................................................................... 10
DIPSWITCH SETTINGS ON THE ALPHAVISION IP (+ GPRS).............................................. 11

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 4
Introduction
The Installer manual for the AlphaVision IP (+ GPRS), given the size of this manual, is not
included in the product package. This manual is available on request from the sales
department or can be downloaded as a pdf version from the website. Go to Security Installers
and then to Service & Support. You will need to login (see screen below)
User: your customer number (format: 1XXXXXX)
Password: the province in which your company is situated (starting with a capitol letter)
Then you can download the file under Digital Manuals, IP solutions:
Installer manual AlphaVision IP & AlphaVision IP + GPRS transceiver.
Should you prefer to receive a paper copy, please contact the sales dept.
We will then send a copy.

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 5
Preparations
Before installing make sure the following components are present:
Alphatronics AlphaVision NG or XL security alarm system with RS-485 bus
12VDC power supply available from the alarm system (via the RS-485).
Router or switch with a free LAN connection
Working Internet connection
Computer / laptop with Internet Explorer 6 or higher#,Mozilla FireFox, Google Chrome
or compatible browser.
Network cable and optional cross-over network cable for programming
# Note: Internet Explorer 5.0 (or lower) is not supported!
Before installing make sure the following information is known:
The IP address and registration port of the RC-4001 IP or RX-5000/8000 receiver in
the central station including the subscriber number.
The IP address, subnet mask and (local) Gateway that must be programmed into the
AlphaVision IP (+ GPRS) when not using DHCP configuration in the Ethernet settings.
Mounting
1. The AlphaVision IP alarm transceiver (art. code. 003609) is delivered as a plug-on
board and can be mounted on top of the AlphaVision NG main board using the
delivered mounting studs. Connect the supplied flat cable between the AlphaVision IP
transceiver and the AlphaVision NG mainboard. The AlphaVision is now connected to
the RS-485 bus of the control panel. The AlphaVision IP receives it power supply
through the RS-485 bus.
2. The AlphaVision IP + GPRS alarm transceiver (art. Code. 003614) is delivered in a
synthetic casing. It is advised to place the AlphaVision IP + GPRS alarm transceiver in
the enclosure of the AlphaVision NG or XL control panel. If the enclosure of the control
panel is a metal casing the casing must be equipped with a proper grounding. Connect
the AlphaVision IP + GPRS alarm transceiver to the RS-485 bus connection of the
Alphatronics control panel using the 4 blue terminals (+, A, B, 0).
3. Then connect a network cable between the AlphaVision IP (+ GPRS) and the router,
the transceiver can now be accessed via the internal network. Use the free Device
Discovery Tool (see www.alphatronics.nl) to detect Alphatronics IP devices on the
network.
4. It is also possible to connect directly to the PSTN-2-IP (GPRS) using a Cross-over
network cable (art. code. 003620) between the LAN port of the laptop and the PSTN-2-
IP (GPRS). Ensure that the laptop has a fixed IP address in the same range
(192.168.0.xx) as the PSTN-2-IP (GPRS). Set dipswitches 2 * and 3 ** to ON.
*dipswitch 2 to ON ensures that it is always possible be log-in to the web server with Username "admin" and no
Password needs to be entered. Also, the IP address of the AlphaVision IP (+ GPRS) is temporarily set to
192.168.0.48 (http port 80). Dipswitch 2 can remain OFF if the Username, Password and the IP address of the
PSTN 2 IP (GPRS) is known.
** dipswitch 3 to ON (default) ensures that the programming can be accessed / modified.
If dipswitch 3 is set to OFF then the webpage of the AlphaVision IP (+ GPRS) is completely blocked and it is
not possible to get into the programming.

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 6
Alphatronics Device Discovery
All Alphatronics IP devices (including the PSTN 2 IP (GPRS)) can always be easily found on
an internal network by using the 'Alphatronics Device Discovery tool. This tool is present in the
AlphaTool software but is also available as a single tool which can be freely downloaded from
the website www.alphatronics.nl (installer, service & support). Start the tool and then double-
click the desired device. The default browser on your laptop will open automatically and opens
the webserver of this device with the selected IP address.
Login
Once your browser has been opened, the login screen of the selected IP device is shown. For
the AlphaVision IP (+ GPRS) transceiver it is the following screen:
When dipswitch 2 is set to ON you can login using the user "admin". The Password field
should be left empty. The temporary IP address is now 192.168.0.48. When dipswitch 2 is set
to OFF, then the correct username and password must be entered.
If too often an incorrect user / password combination is entered then access to the web server
is temporarily blocked and optionally an alarm message is generated.

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 7

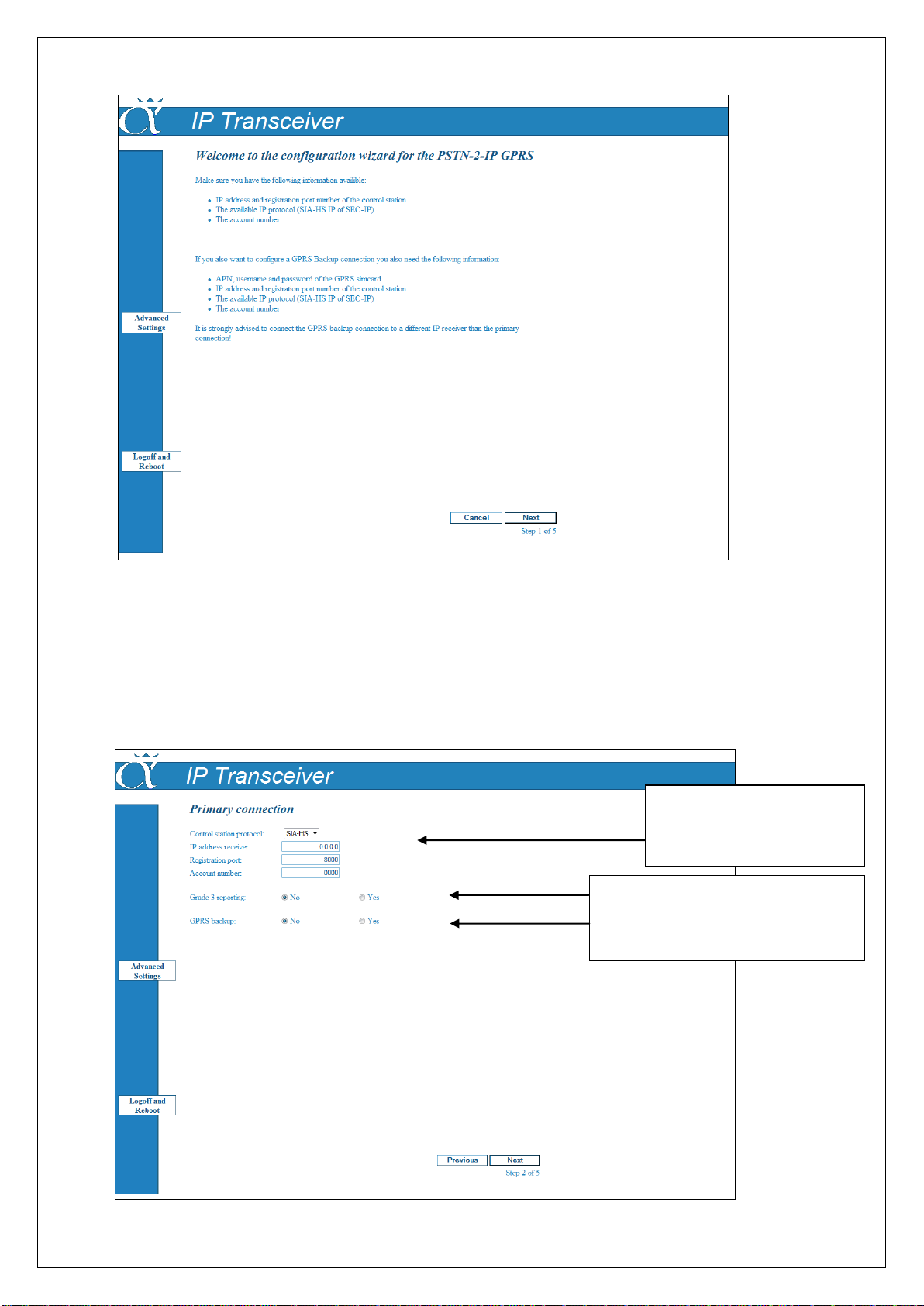

Configuration wizard
From firmware version 2.00 a configuration wizard has been introduced to the AlphaVision IP
(+ GPRS) to be able to program the transceiver in 5 simple steps. Read the welcome screen
carefully and make sure that all required information is present before you start programming.
You can always return to the standard programming screens by clicking the 'Advanced
Settings' button. If you have all required information present press Next:
Primary connection
Central station protocol
(SIA-HS or Sec IP)
IP-address, Registration
port and Account number.
Grade-3 reporting
Polling 300 (No) or 90 sec. (Yes).
GPRS back-up
GSM module present (Yes or No)

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 8
Backup connection
Web interface
Usersname
Password
Central Station protocol
(SIA-HS or Sec IP)
IP-address, Registration
port and Account number.
Pin code simcard
APN name
Username
Password

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 9
End of wizard
Press Finish to save all settings, the AlphaVision IP (+ GPRS) will restart. Verify that the
AlphaVision IP (+ GPRS) functions correctly. Through 'Advanced Settings', the System Status
screen can be shown with a summary of the status of the device.

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 10
Meaning of the TRANSCEIVER LEDs:
LED number
Colour
Description
LED OP2
green
Flashes slowly when the firmware in the transceiver functions correctly.
LED OP3
red
Illuminates when a message is in the buffer or when no dialers have
been programmed.
LED OP4
green
Status of the 2nd transceiver with corresponding backup path.
LED OP5
green
Status van de 1st transceiver with corresponding backup path.
Meaning of the INDICATION LEDs:
LED number
Colour
Description
LED OP8
green
Power supply present
LED OP6
green
LAN activity
LED OP7
green
LAN link
Meaning of the STATUS LEDs:
LED number
Colour
Description
LED OP1
green
Watchdog LED. Should be constantly illuminated to indicate that the
hardware functions correctly. Is turned off during flashing.

AlphaVision IP & IP + GPRS Quick reference Rev.1.0 01-11-2012 Page. 11
DIPSWITCH settings on the AlphaVision IP (+ GPRS)
Dipswitch
number
Setting
Description
1
OFF
‘Normal’ position
ON
When dipswitch 1 is set to ON and the AlphaVision IP (+ GPRS) is
powered up, the default settings will be programmed.
2
OFF
‘Normal’ position. The programmed web server- and Ethernet settings
will be used.
For access to the programming the programmed ‘Username’ and
corresponding ‘Password’ must be entered.
ON
Default web server and Ethernet settings are used instead of the
programmed settings.
The AlphaVision IP (+ GPRS) can now be reached via IP address
192.168.0.48 and web server port 80. The programmed settings are not
erased!
For access to the web server the standard Username (admin) must be
entered and no Password instead of the programmed Username and
Password.
Note: the default gateway in this mode is set to 0.0.0.0
The AlphaVision IP (+ GPRS) is temporarily not accessible from the
outside world!
Use this mode only to program the Ethernet and Username / Password
settings. Restart the AlphaVision IP (+ GPRS) and set dipswitch 2 to
OFF.
Note: when the AlphaVision IP (+ GPRS) is set to DHCP and dipswitch 2
is set to ON, the AlphaVision IP (+ GPRS) temporarily works with a fixed
IP address 192.168.0.48 and web server port 80!
3
OFF
Access to the programming is blocked entirely. When trying to access
the webpage a page will be displayed with a message that access to the
transceiver is not possible. This is the most secure mode.
ON
Access to the programming is possible using the programmed Username
and Password.
4
OFF
Dipswitch 4 should always be set to OFF. The helpdesk personnel of
Alphatronics may ask you temporarily (!) to set to ON.
