Alpine Saunas OSLO Operating instructions

1
INDOOR INFRARED SAUNA
Installation & Owners Manual
OSLO

2

3
Important Safety & Operational Cautions..................................................
Parts Check.....................................................................................................................
Installation Requirements.....................................................................................
Assembly Instructions ............................................................................................
Control Panel Operation.........................................................................................
Recommendations for Use...................................................................................
Cleaning & Maintenance.........................................................................................
Troubleshooting...........................................................................................................
4
6
7
8
17
21
22
23
CONTENTS

4
IMPORTANT SAFETY & OPERATIONAL CAUTIONS
PLEASE READ ENTIRE MANUAL THROUGH BEFORE
PROCEEDING WITH INSTALLATION.
1. Read and follow all instructions carefully.
2. When installing and using this electrical equipment, basic safety precautions
should always be followed.
3. Do not allow children to use the sauna unless they are closely supervised at all
times.
4. Do not use the sauna immediately following strenuous exercise. Wait at least
30 minutes to allow the body to cool down completely.
5. Excessive temperature has a high potential for causing fetal damage during the
early months of pregnancy. Pregnant or possibly pregnant women should contact
their physician prior to using the sauna.
6. Persons using medications, suffering from obesity or with a medical history
of heart disease, low or high blood pressure, circulatory system problems, or
diabetes should consult a physician prior to using the sauna.
7. Always stay hydrated while using the sauna.
8. Never use a sauna under the inuence of alcohol or drugs.
9. Beware of exhaustion and sauna usage.
10. Avoid touching the surface of the heaters behind wood frames as they will be
hot and may cause burns.
SAFETY

5
CAUTIONS
1. DO NOT use any type of cleaning agents on the interior of the sauna.
2. DO NOT stack or store any object on top of or inside the sauna.
3. If the power supply cord becomes damaged ensure power is off, cable is unplugged
and retailer is contacted.
4. Altering or tampering of any electrical connections on the power supply will void the
warranty.
5. Dry your hands before handling electrical controls. Never unplug the power cord
or adjust the controls with wet hands or when you have wet bare feet. A danger of
electrical shock exists.
6. DO NOT attempt any repair without consulting Alpine Spas rst. Unauthorised repair
attempts will void warranty.
7. Unplug the sauna from the wall outlet before cleaning DO NOT use liquid cleaners or
aerosol cleansers inside the sauna. Use a clean damp cloth for cleaning.
8. Always unplug your sauna from the wall outlet before servicing.
9. Please contact Alpine Spas for replacement parts if required.
All natural wood articles have variations in the color, grain, and
irregularities such as knots, and ne cracks. These characteristics
are a part of the natural beauty of the wood, and in no way should be
considered defective.

6
PARTS CHECK
This sauna uses pre-installed latches to help piece it together so minimal tools are
required other than a phillips screwdriver.
Roof Screws: 4pc 4*40mm
Bench Seat Screws: 2pc 4*40mm
Installation Parts
Floor Panel Roof Panel Bench Seat
Left Side Panel Back Panel Right Side Panel Front Panel (with Glass Door)
+ Door Handle Assembly

7
INSTALLATION REQUIREMENTS
Bench Seat
Front Panel (with Glass Door)
+ Door Handle Assembly
1. Your sauna can be plugged into a regular house socket but will draw close to 10A.
Try to plug into a socket on an electrical circuit that is not shared with other large
appliances.
2. Install the sauna on a hard, level surface.
3. If the oor surface is damp or cold, install a form of insulation between the bottom of
the sauna and the ground such as rubber matting.
4. Do not store ammable objects or chemical substances near the sauna.
5. The sauna must be placed indoors and in a dry area. Excess moisture will cause
damage to the interior and exterior of the sauna.
6. We recommend 2 persons to install the sauna.

8
ASSEMBLY INSTRUCTIONS
Simply place the oor panel on a at level surface.
Note: This model includes wooden oor panel
(tiled pattern oor panel pictured in instructions)
1.

9
Place the back panel up against the rear side of
the oor tile.
2.

10
Place one of the side panels up against the side of
the oor tile and latch to the back panel.
3.
ASSEMBLY INSTRUCTIONS
Latch back wall to side wall.
(Latches on the outside of the sauna.)

11
Place the remaining side panel up against the
oor tile and latch to the back panel.
4.
Latch back wall to side wall.

12
ASSEMBLY INSTRUCTIONS
Place the Bench Seat inside the sauna on the
provided supports. Screw the bench seat into the
left and right supports using 2x 4*40mm screws.
5.
Use two of the 4*40mm screws to screw the bench seat
into the side supports in the locations marked above.

13

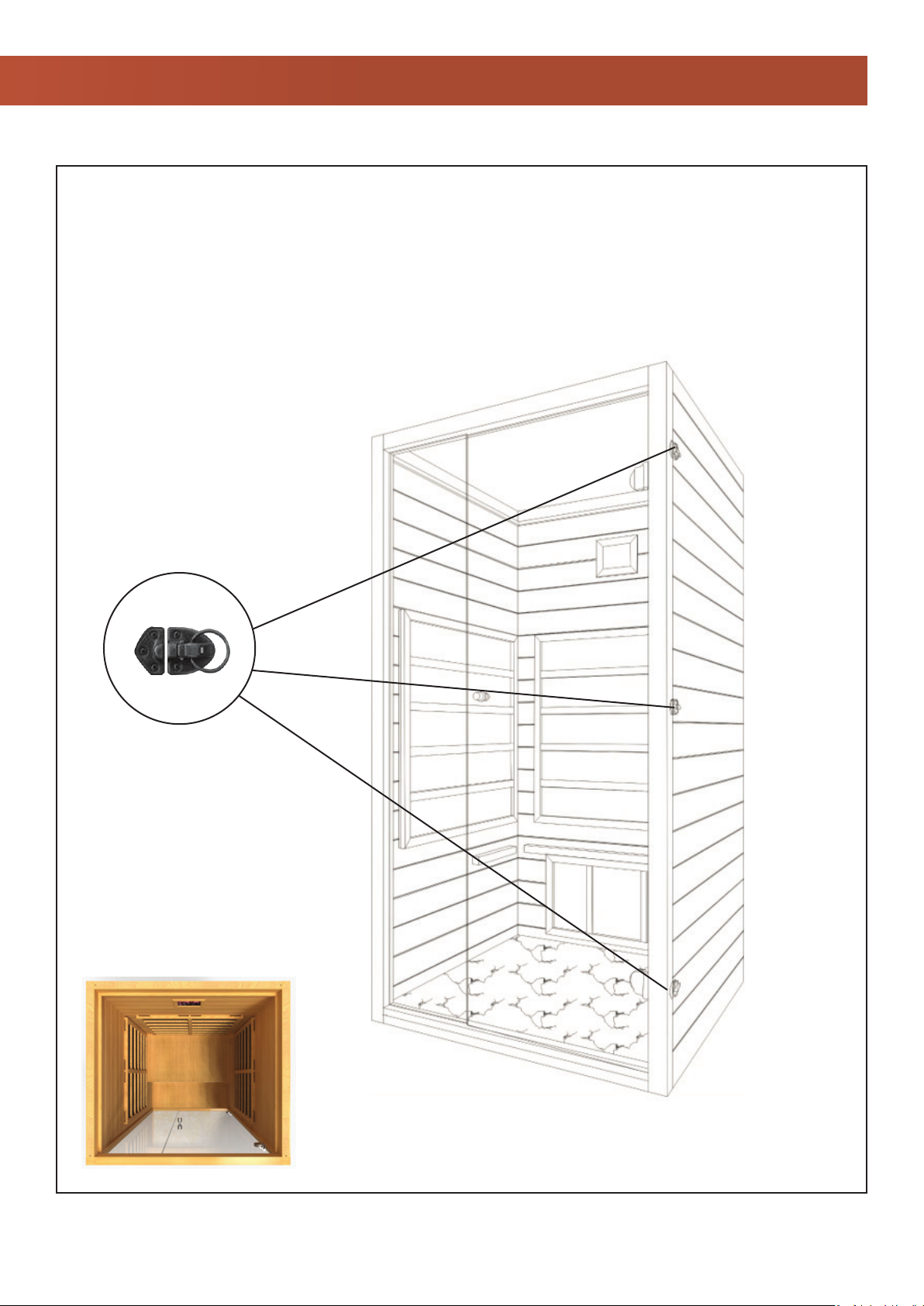

Place the Front Panel onto the sauna and secure
with the latches side latches.
6.
Latch back wall to side wall.

14
ASSEMBLY INSTRUCTIONS
Simply lift the Roof Panel onto the top of the sauna.
Pass the heater cables through the provided slots
before securing the t. Fix the roof to the side panels
with the remaining 4*40mm screws.
7.
Use 4*40mm screws to screw the roof panel into the
side panels in the locations marked above.
Pressure may need to be applied downwards while
screwing in if the roof is bowed.

15
Install the door handle by feeding through
the threaded screw, adding the washers and
tightening on the two opposite handle pieces.
8.

16
Plug in the heater and electrical cables (A, B, C)
into the control box on top of the sauna roof piece
as per diagram below:
9.
ASSEMBLY INSTRUCTIONS

17
Overview of Control Panel
CONTROL PANEL OPERATION

18
CONTROL PANEL OPERATION
1. Powering on
Plug the main power cord into the wall outlet.
Press the “Power” button once.
The control panel should beep and is now operable, but the heaters are
not on by default.
2. Turning on the Heaters
Press “Power” button again.
The “Heating” light will turn on, which indicates the heaters are active.
3. Lighting
Interior and Exterior lights are controlled separately via different
buttons on the control panel.
Press the “Exterior Lights Button” to turn the exterior
lights on/off.
Press and hold the “Interior Colour Lights Button”
for 3 seconds to activate the interior colour lights.
Cycle through the available colours/options by repeatably
pressing the “Interior Colour Lights Button”.
The last option in the cycle is ‘auto’ mode which will ‘step’
through the colours in a cycle.
BASIC OPERATION

19
Session Time Adjustment
Sauna session timer can be set between 0 to 90 minutes.
Press the time “UP/DOWN ARROWS” to enter the time adjustment
mode and allow you to set the session time. Time value will increase or
decrease by 1 minute at a time (hold down the buttons to speed up the
increments).
5 seconds without adjustment will exit the time adjustment mode.
Once set, the timer display will show the remaining minutes until
the session ends and the heaters turn off.
Temperature Adjustment
Temperature can be set between 25 - 70°C.
Press temp “UP/DOWN ARROWS” to adjust temperature. Temp value
will increase or decrease by 1 degree at a time (hold down the buttons
to speed up the increments).
5 seconds without adjustment will exit the temp adjustment mode.
Once set, the temp display will show the current actual temperature
inside the sauna.
Heating light ON indicates heating. Once desired temperature is
reached, heater will be managed (turned on/off automatically) to
maintain the set temperature. Set temp will be stored in memory and
will be displayed at next startup.
PROGRAMMING THE CONTROL PANEL

20
CONTROL PANEL OPERATION
Pre-Setting (Turning on the Sauna at a Desired Time)
To pre-set a time for the sauna to turn on and start heating follow these
steps:
1. Press “SET” once.
2. Use both the TEMP (to change hours) and TIME (to change minutes)
“UP/DOWN ARROWS” to set a range within 00:00-23:59.
3. No further action required. The system will begin heater after the set
time has elapsed. (e.g. Setting it to ‘4:00’ at 8AM would start the sauna
heating up at 12:00PM)
Changing between Fahrenheit and Celsius
Simply press the F/C button to switch between temp options.
