Alpine 3DA-W882E User manual

R
3DA-W882E
In-Dash CD Changer/Cassette/
DSP Receiver
40W x4
DOLBY B•C NR
O / C
EJECTOPEN
CLOSE
IN-DASH CD CHANGER / CASSETTE / DSP RECEIVER 40Wx4 3DA-W882E
MODE
SUB W.
CLK TITLE
SOURCE
DEMO
BAND
PROG
DISP
T.S.M.
S.P.S.
INTLZ PWR
DISC TITLE MEMORY SUB WOOFER LEVEL CONTROL
EQ
SUR
BBE
SEEK
TRACK
P.S.
EQ
LEVEL
UP
DN
MANU/DISCREW FF
EQ BAND
DN UP
123456 789101112
FUNC
B/C NR
MHCT
EQ
FLAT MALE FEMA. POPS ROCK NEWS
SUR
DISC
NORM. STAD. LIVE HALL CHUR. DANCE
BBE
1 2 3
LEVEL
RL
FR
MIN.
MAX
63 • 160 • 400 • 1K • 2.5K • 6.3K • 16K ••
DX ST
MTL
B C NR
D.A.P.
USER
PRESET
M.I.X.ALL
REPEAT
MONO
RPT ALL
B.SKIP
TUNE
SCAN A.MEMO
FUNC
COMPACT DISC CHANGER
• OWNER'S MANUAL (page 2- page 67)
Please read this manual to maximize your
enjoyment of the outstanding performance and
feature capabilities of the equipment, then retain
the manual for future reference.
(3DA-W882E)

2
English

3
English
Precautions
This label is intended to alert the user to the presence of important
operating instructions.
Failure to heed the instructions will result severe injury or death.
Warning
DO NOT DISASSEMBLE OR ALTER
Attempts to disassemble or alter may lead to an accident, fire and/or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN
Store small articles (batteries, screws, etc.) in places not accessible to children. If
swallowed, consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES
Replace fuses only with fuses of the same ampere rating. Failure to do so may result in a
fire and/or damage to the vehicle.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS
When problems appear, stop using the system immediately and contact the dealer from
whom you purchased the equipment. Some problems which may warrant immediate
attention include a lack of sound, noxious odors or smoke being emitted from the unit, or
foreign objects dropped inside the unit.
DO NOT OPERATE THE REMOTE CONTROL WHILE DRIVING
Do not change settings while driving. If operation requiring a prolonged view of the display
is required, stop the vehicle in a safe location before attempting operation.
Caution This label is intended to alert the user to the presence of important
operating instructions.
Failure to heed the instructions can result injury or material damage.
DO NOT BLOCK VENTS OR RADIATOR PANELS
Do not block air vents or heat discharge plates. Blocking them will cause heat to build up
inside and may result in fire.
DO NOT RAISE THE VOLUME EXCESSIVELY
Keep the volume at a level where you can still hear outside noises while driving. Driving
while unable to hear outside sounds could cause an accident.
DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE
Do not use this equipment for purposes other than those listed for a vehicle. Failure to do
so may result in an electric shock or an injury.
KEEP FOREIGN OBJECTS OUT OF THE CD OR CASSETTE COMPARTMENT SLOT
Keep any foreign objects, including fingers, out of the CD or cassette compartment slot.
STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD
INTERFERE WITH YOUR DRIVING
If loading or unloading a CD or cassette interferes with your driving, stop the vehicle in a
safe location before attempting operation.
DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE COR-
RECT BATTERY POLARITY
Do not mix new batteries with old batteries and do not replace with other than specified
batteries. When inserting the batteries, be sure to observe proper polarity (+ and –) as
instructed. Battery rupture or chemical leakage can cause an injury or equipment malfunc-
tion.

4
English
Page
6 .......................................................................Precautions
Basic Operation
10 ......................................................Initial System Start-Up
10 ............................................... Turning Power On and Off
11 ......................................................Subwoofer On and Off
12 .................................................................. Demonstration
13 ......................................................Sound Guide Function
14 .....................................Adjusting Volume/Balance/Fader
Radio Operation
15 ..................................................................Manual Tuning
16 .................................................... Automatic Seek Tuning
17 ....................................Manual Storing of Station Presets
18 .................................................... Mono/Stereo Switching
19 .............................. Automatic Memory of Station Presets
20 ..............Storing into Direct Access Preset (D.A.P.) Band
21 ................................................. Tuning to Preset Stations
22 ...................................................Displaying Station Titles
23 ..................................................................Titling Stations
25 .................Searching Titled Stations (Title Search Menu)
CD Operation
26 ..................................................Preparation for Playback
27 ....................................................Normal Play and Pause
28 ............................................ Fast Forward and Backward
28 ......................................................................Repeat Play
29 ......................................................... Music Sensor (Skip)
30 ....................................................... M.I.X. (Random Play)
31 ..........................................................Scanning Programs
32 .........................................................To Display CD Titles
33 ........................................................................Titling Disc
35 ............................................................. Erasing Disc Title
36 ..................... Searching Titled Discs (Title Search Menu)
37 .....................................................CD Shuttle Operation
Cassette Player Operation
40 .................. Opening and Closing of the Movable Display
41 ...........................................................................Playback
42 ..................................... Dolby B/C NR (Noise Reduction)
42 ......................................................................Repeat Play
43 ................................................ Fast Forward and Rewind
43 ......................................................... Blank Skip (B.SKIP)
44 ............................................................... Manual Reverse
45 .....................................................Program Sensor (P.S.)
Contents

5
English
Contents
Page
Equalizer Surround Operation
46 ........................................................ Selecting BBE Mode
47 ..................................... Sound Position Selector (S.P.S.)
48 .....................................................DSP Surround Presets
49 ............................................................. Equalizer Presets
50 ...................................... Adjusting the Equalizer Settings
51 ...................................Memorizing the Equalizer Settings
52 .................................Recalling the Memorized Equalizer/
Surround Settings
52 ........................................... Switching the Display Modes
Clock Operation
54 ................................................................Displaying Time
55 ..................................................................... Setting Time
56 .............................................................. Remote Control
59 .........................................................................Disc Care
60 ........................................................In Case of Difficulty
65 ................................................................. Specifications
• Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation. "DOLBY" and the double-D
symbol are trademarks of Dolby Laboratories Licensing
Corporation.

6
English
Precautions

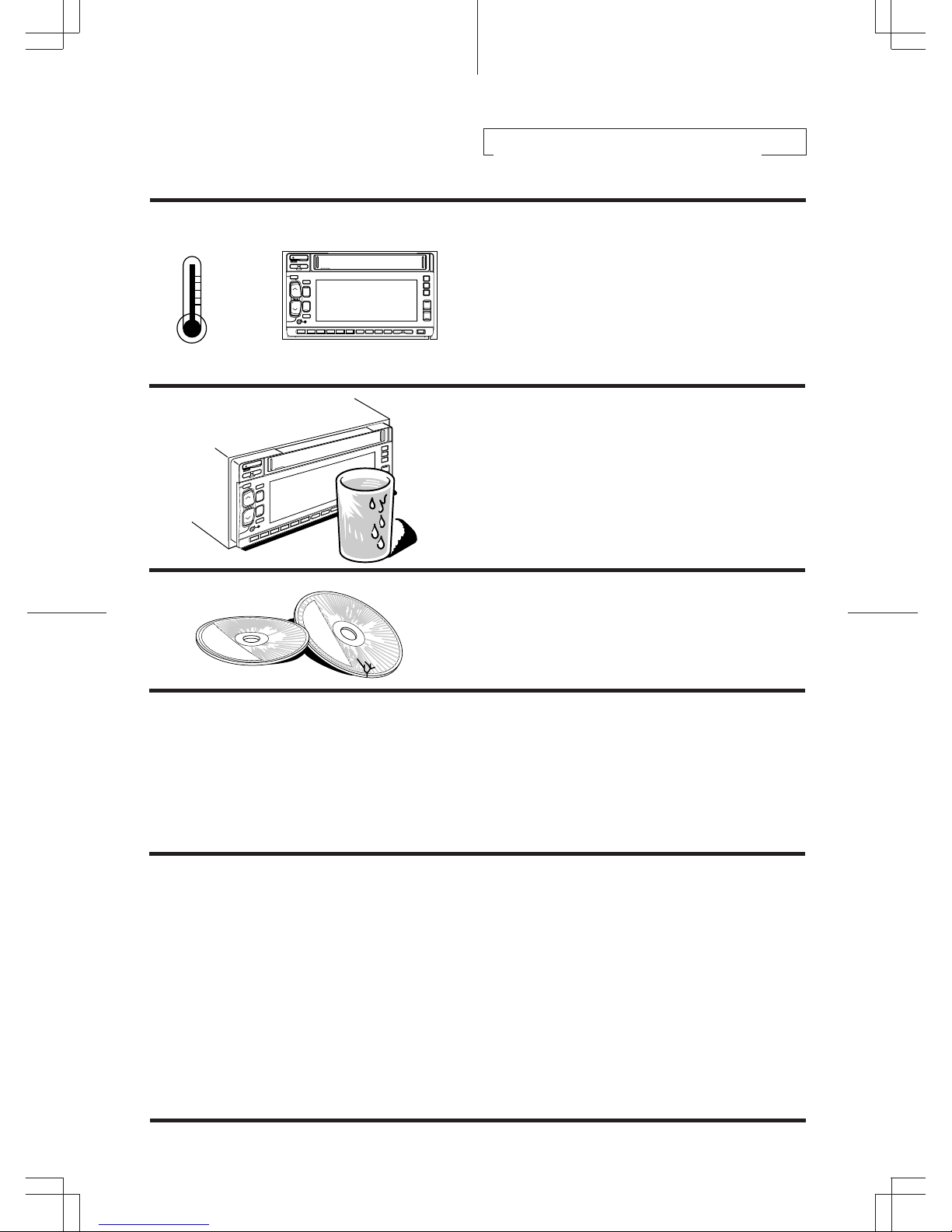

Thermal Protection Circuit
Be sure the temperature inside the vehicle is
between +60°C (+140°F) and –10°C (+14°F)
before attempting to play a disc. If the tempera-
ture is over +60°C (+140°F), the protection
circuit functions to stop the CD player, and "HI-
TEMP" is displayed.
Moisture Condensation
You may notice the CD playback sound
wavering due to condensation. If this happens,
remove the disc from the player and wait about
an hour for the moisture to evaporate.
Damaged Disc
Do not attempt to play cracked, warped, or
damaged discs. Playing a bad disc could
severely damage the playback mechanism.
Maintenance
If you have problems, do not attempt to repair
the unit yourself. Return it to your Alpine dealer
or the nearest Alpine Service Station for
servicing.
Irregular Shaped Discs
Make sure the discs you use in this unit do not
have any irregularities. The outer and inner
edges should be round and smooth. Use of
irregularly shaped discs may cause damage to
the mechanism.
+60°C
–10°C

7
English

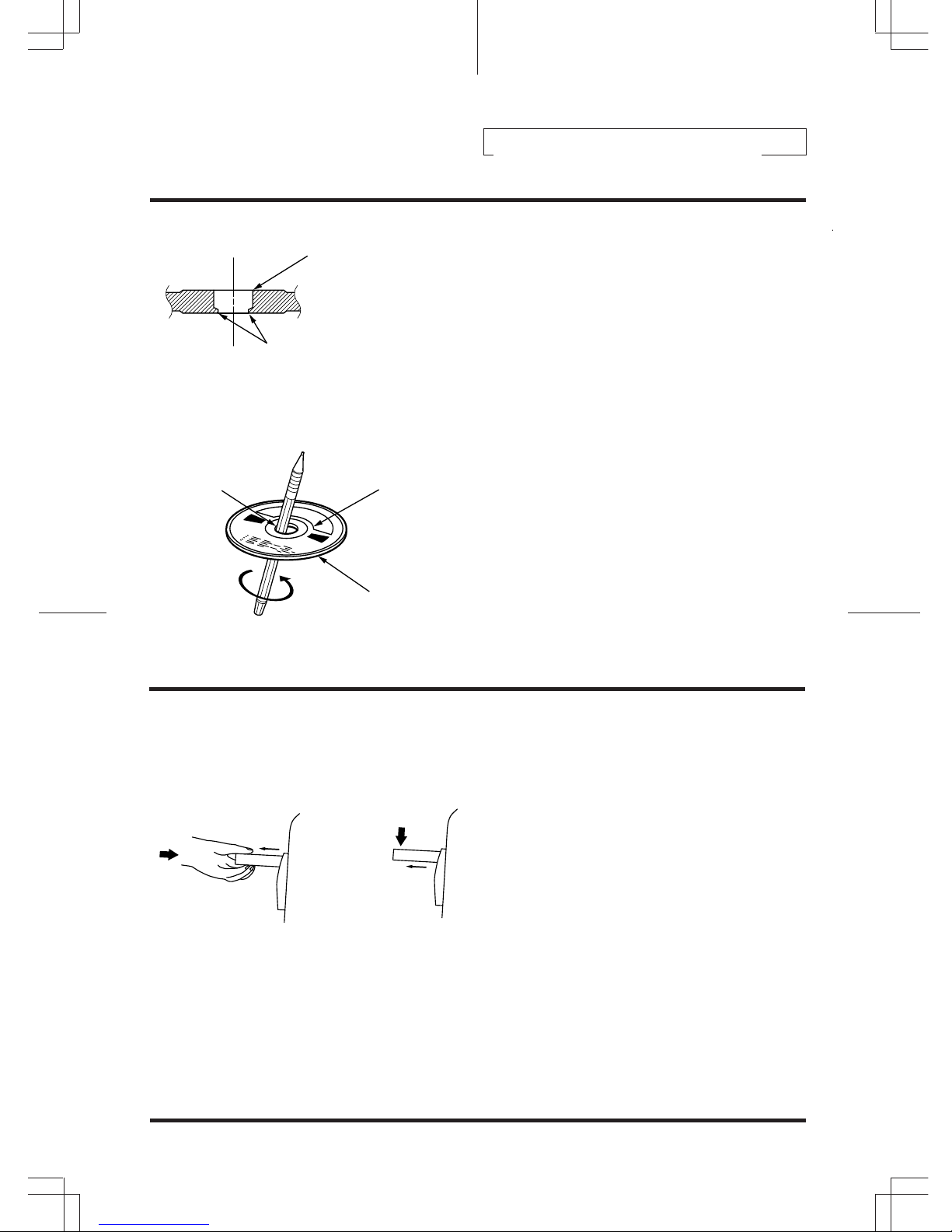

New Discs
As a protective measure, the CD player will
automatically eject discs that have either been
inserted incorrectly or have irregular surfaces. If
a new disc is ejected immediately after loading,
use your finger to feel around the outer edge of
the CD and its center hole. If you feel any small
bumps or irregularities, this could inhibit proper
loading of the disc. To remove the bumps, rub
the inside edge of the hole and outside edge of
the disc with a ball-point pen or other such
instrument, then insert the disc again.
Handling Magazine
When discs are being exchanged in the 3DA-
W882E, the magazine is pushed out from the
changer. While this operation is in progress, do
not try to pull out the magazine or stop its
movement in any way, as this could cause
damage to the mechanism. In addition, be
aware of the changer's operation so it will not
interfere with your driving. For example, before
changing gears, check the position of the
magazine so as not to hit it while it is changing
discs.
CAUTION:
Do not insert anything other than magazine into
insertion slot.
Precautions
Bumps
New Disc
IMPROPER
Center Hole
Center Hole
Outside (Bumps)
IMPROPER

8
English
Precautions
Tape Slack
Check and make sure any slack in the tape is
taken up before inserting the tape into the unit.
A loose tape can get caught in the mechanism
and cause damage to the unit and the tape
itself. Tighten the tape by inserting a pencil or a
similar instrument into the spindle hole and turn
until all the slack has been taken up.
Excessively Thin Tape
C-120 type cassette tapes are not recom-
mended for use in automobile tape players.
Precision Tape Mechanism
Prevent any foreign objects from entering the
cassette opening as the precision mechanism
and tape head may be damaged.
Never play dirty or dusty tapes – they can
damage the tape head.
Tape Head Cleaning
Periodic cleaning (approximately every 20
hours of use) of the tape head with a wet type
head-cleaning cassette tape (available at audio
stores) is necessary for best performance.
Fuse Replacement
When replacing the fuse(s), the replacement
must be of the same amperage as shown on
the fuse holder. If the fuse blows more than
once, carefully check all electrical connections
for shorted circuitry. Also have your vehicle’s
voltage regulator checked.

9
English

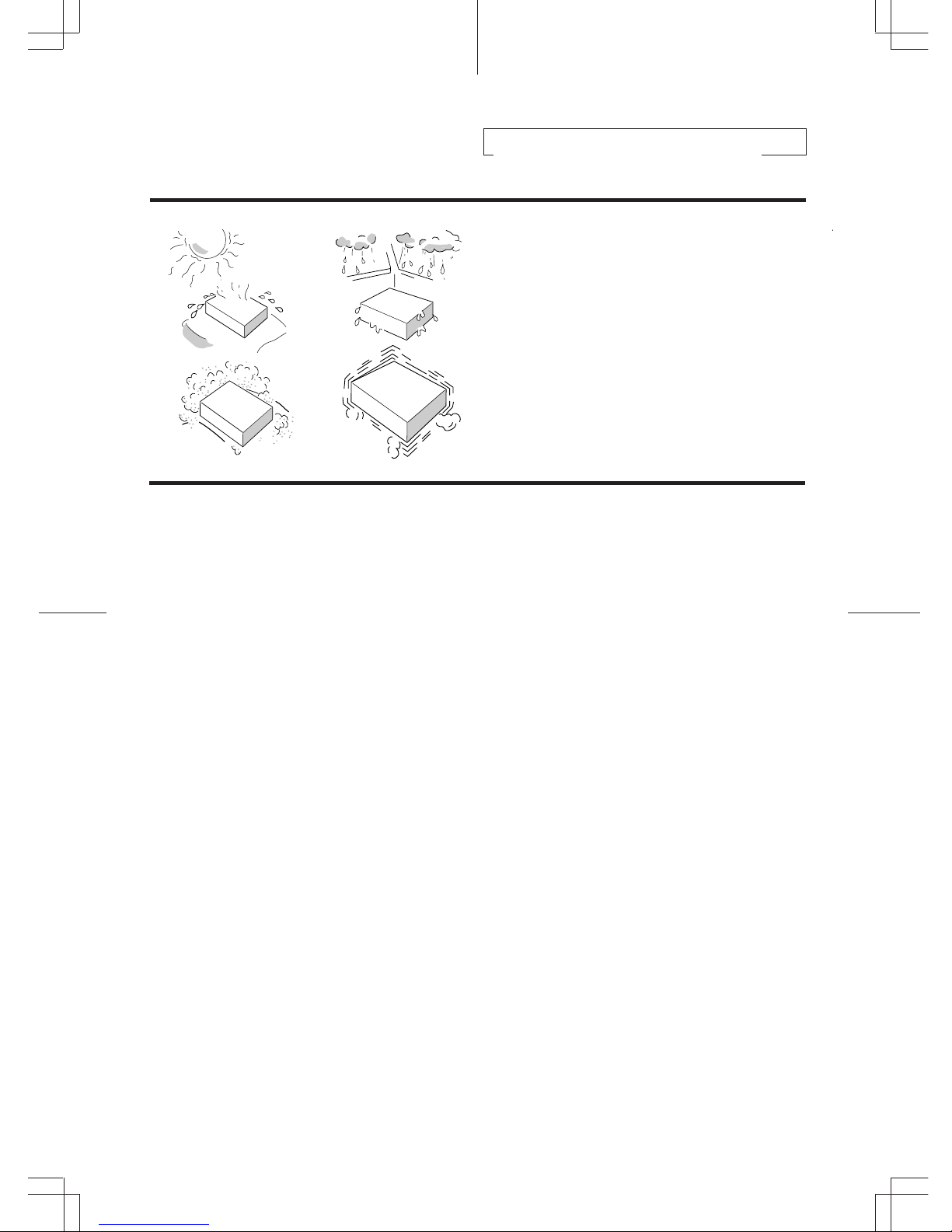

Installation Location
Make sure the 3DA-W882E player/receiver will
not be exposed to:
• Direct sun and heat
• High humidity
• Excessive dust
• Excessive vibrations
Precautions

10
English
Basic Operation
1
1
1
1
INTLZ PWR

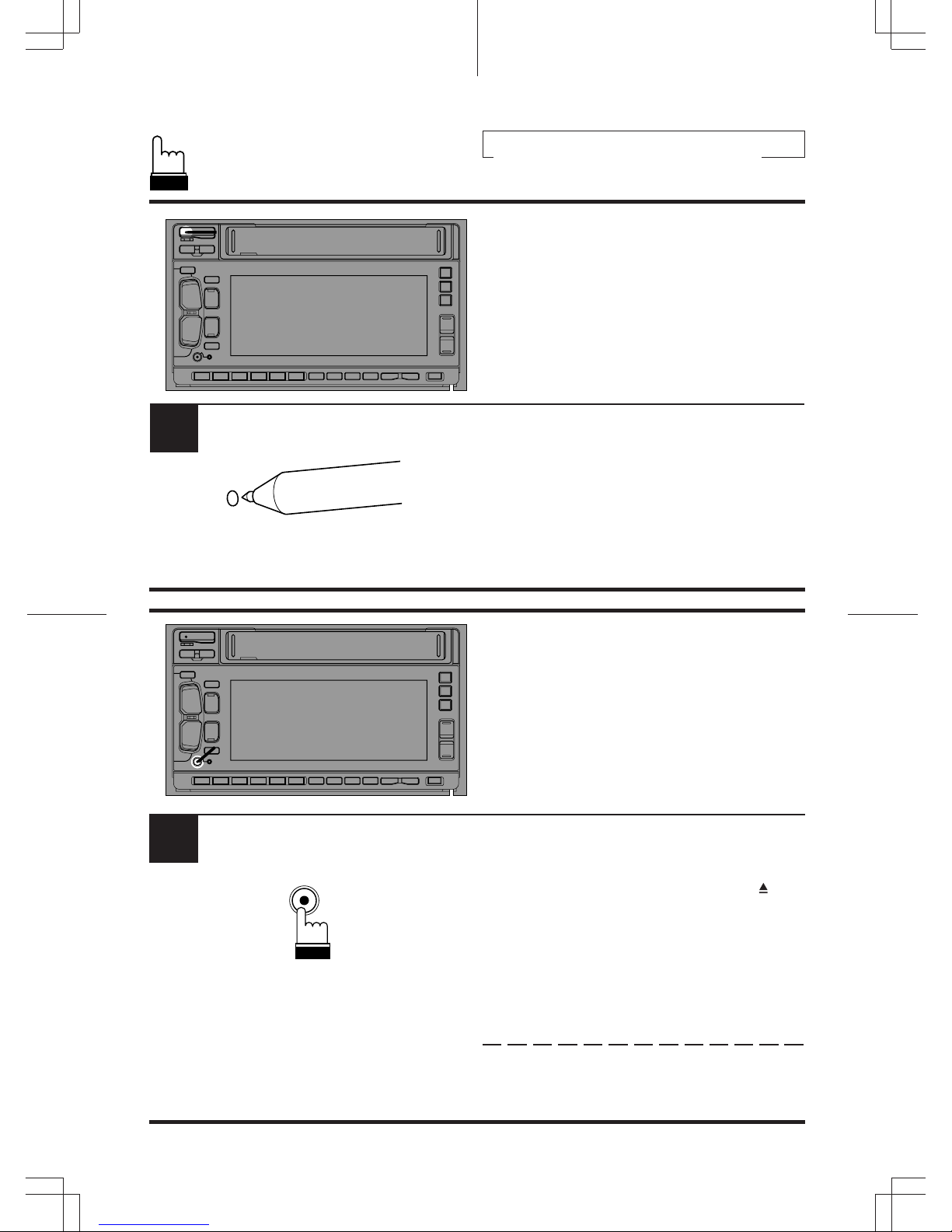

Initial System Start-Up
Immediately after installing or applying power to
the unit, it should be initialized. At the upper-left
corner of the front panel is a small button. Using
a pencil or other pointed object, press this reset
button to complete the initialization procedure.
Turning Power On and Off
Press the PWR button to turn on the unit.
Note: The unit can be turned on by pressing
any other button except the eject ( h ),
O/C and CLK buttons.
The volume level gradually increases to the
previous level you were listening to before the
unit was turned off.
Press the PWR button again to turn off the unit.

11
English
Basic Operation

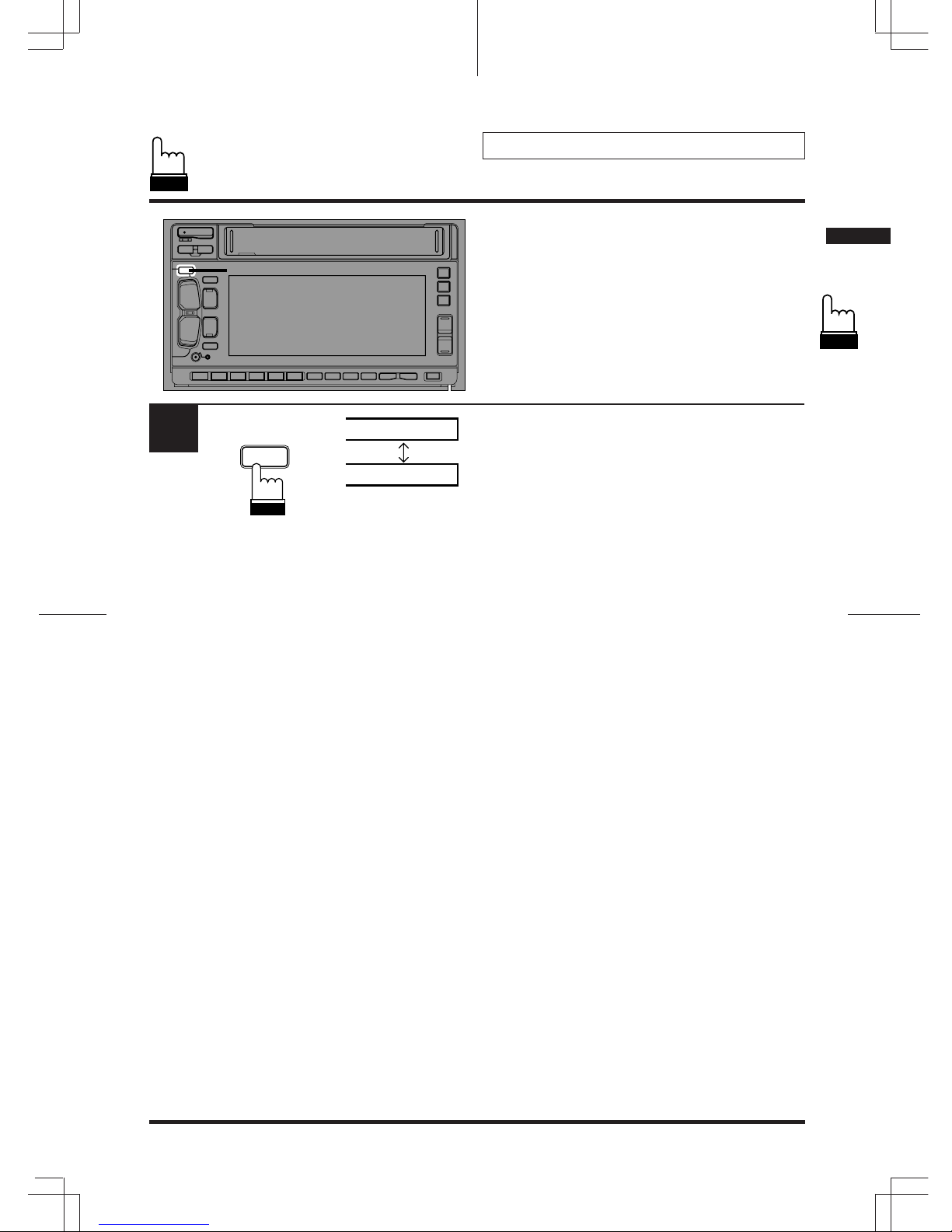

Subwoofer On and Off
This unit is not equipped with a low pass filter.
Turn on the Subwoofer Output when an
amplifier having the built-in filter is connected to
drive your subwoofer.
Press and hold the SUB W. button for at least 3
seconds.
With each press, Subwoofer is toggled On or
Off.
Notes:
• Initial mode is "SUBW OFF."
• Leave the "SUBW OFF" as long as the
Subwoofer output is not being used.
• When the subwoofer is turned on, the
subwoofer output level can be adjusted. For
more details, refer to the Adjusting Volume/
Balance/Fader section on page 14.
1
1
MODE
SUB W.
SUBW ON
SUBW OFF

12
English
Basic Operation
Demonstration
Equalizer/surround/BBE demonstration
functions are provided in this unit.
Press and hold the DEMO button for at least 2
seconds to activate the DEMO mode.
The unit automatically performs the following
operations.
1 Equalizer scanning operation (set by the
manufacturer).
2 Surround scanning operation (set by the
manufacturer).
3 BBE scanning operation.
4 Operations 1 – 3 are carried out repeatedly.
To end the DEMO mode, press one of EQ,
SUR, and BBE buttons.
1
12
SOURCE
DEMO
2
EQ
SUR
BBE

13
English
Basic Operation
1
2
1.#
Sound Guide Function
This function will give audible feedback with
varying tones depending upon the button
pressed.
Press and hold the PWR button for more than 3
seconds.
Press the Preset 1button and the display
shows "BEEP ON."
Pressing the button again turns the Sound
Guide function off. "BEEP OFF" will be
displayed and no tones will be heard.
Press the PWR button to activate the normal
mode.
Note: The caution beeps for disc change and
eject operations of the built-in 3D Shuttle,
or for opening and closing of the movable
display, will be audible regardless of the
BEEP ON or OFF display.
2
3
1
INTLZ PWR
INTLZ PWR
BEEP ON
BEEP OFF

14
English
Basic Operation
1
1
2
Adjusting Volume/Bal-
ance/Fader
Press and release the MODE button repeatedly
to choose the desired mode.
Notes:
• If the or button is not pressed in 5
seconds after selecting the BAL and FAD
modes, the unit automatically returns to the
VOL mode.
• With the Subwoofer mode turned on,
Subwoofer output level can be adjusted.
Press the button or until the desired sound
is obtained in each mode.
MODE
SUB W.
VOL
BAL
FAD
2

15
English
Radio Operation
1
23
1
Manual Tuning
Press the SOURCE button to select the radio
mode.
(* Only with the CD shuttle connected.)
Press the BAND button repeatedly until the
desired radio band is displayed.
Press the [or ]button to move
downward or upward one step respectively until
the desired station frequency is displayed.
Note: The "ST" indicator in the display shows
that a stereo broadcast is being received.
TUNER CD SHUTTLE TAPE
*
3D
SOURCE
DEMO
2
3
F1
F2
AM
90.10
F1
BAND
PROG
T.S.M.
MANU/DISCREW FF
EQ BAND
DN UP
11 12
Downward Upward

16
English
Radio Operation
1
243
1
Automatic Seek Tuning
Press the SOURCE button to select the mode.
(* Only with the CD shuttle connected.)
Press the BAND button repeatedly until the
desired radio band is displayed.
Press the 9(TUNE) button to illuminate the
DX indicator in the display. With the DX mode
activated, both strong and weak stations will be
tuned automatically.
Press again to return to the local mode. The DX
indicator will turn off and only strong stations
will be tuned.
Press the DN ( c ) or UP ( f ) button to
automatically seek a station downward or
upward respectively.
The unit will stop at the next station it finds.
Press the same button again to seek next
station.
SOURCE
DEMO
TUNER CD SHUTTLE TAPE
*
3D
2
F1
F2
AM
BAND
PROG
T.S.M.
3
9
4
90.10
F1
UP
DN
DX

17
English
Radio Operation
1
1
Manual Storing of Station
Presets
1. Tune in the desired radio station you wish to
store in the preset memory.
2. Press and hold any one of the preset
buttons (1through 6) for at least 2
seconds. The frequency display will begin
to blink.
3. Press the preset button into which you wish
to store the station while the display is
blinking (within 5 seconds).
The display stops blinking once the station
has been memorized. The display shows the
band, preset No. with a triangle ( ) and the
station frequency memorized.
4. Repeat the procedure to store 5 other
stations onto the same band.
To use this procedure for other bands,
simply select the band desired and follow
steps 1 – 3 above.
A total of 24 stations can be stored in the preset
memory (6 stations for each band; FM1, FM2,
AM and D.A.P.).
Note: If you store a station in a preset memory
which already has a station, the current
station will be cleared and replaced with
the new station.
123456

18
English
Radio Operation
1
1

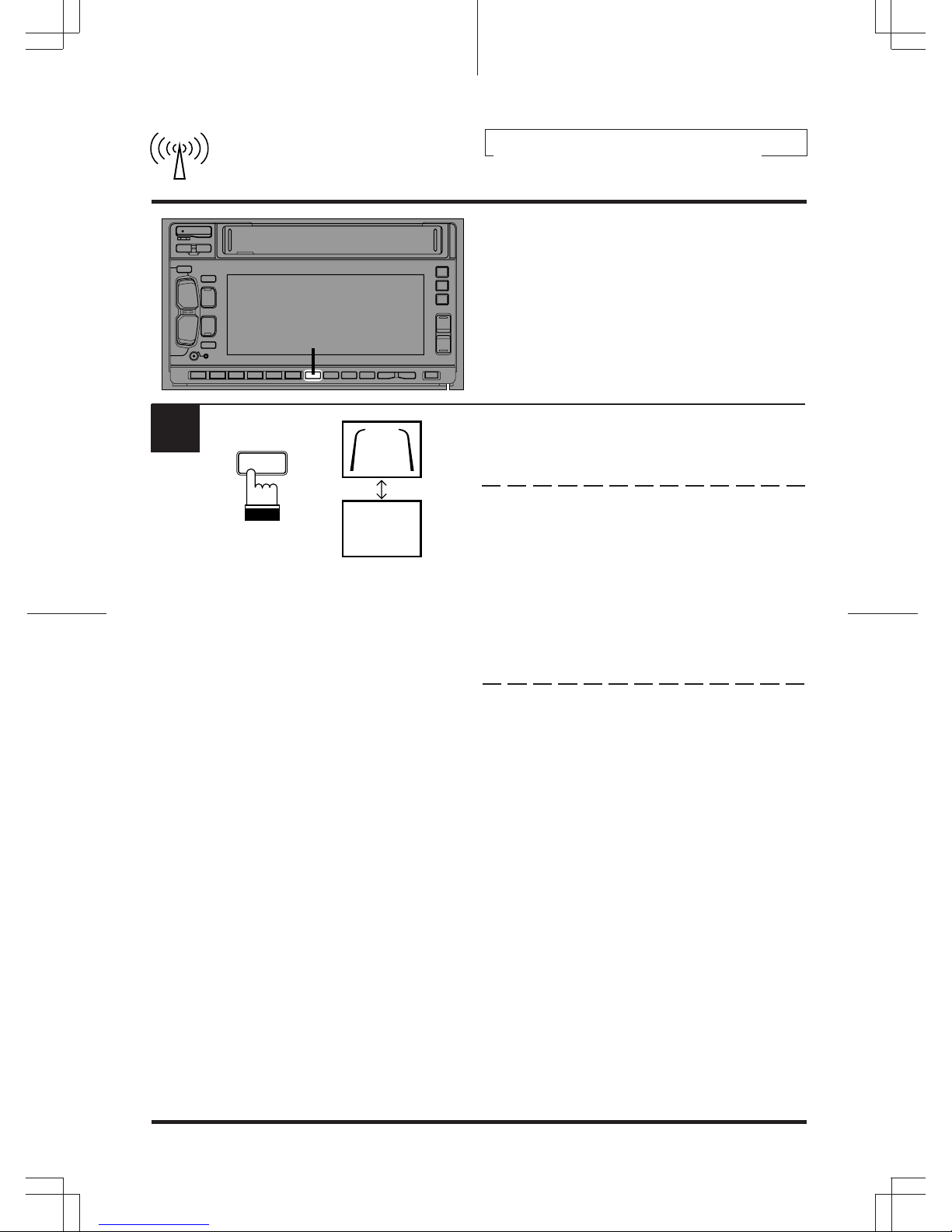

Mono/Stereo Switching
"ST" indicator appears when a stereo station is
tuned in.
Press the 8(MONO) button to switch from
stereo to monaural FM reception. This will help
in reducing the noise of weak FM Stereo
broadcasts. In the monaural mode, the "ST"
indicator turns off. Press the 8(MONO)
button again to return to the stereo mode.
8
(OFF)
MONO
MONO

19
English
Radio Operation
2
1
1
BAND
PROG
T.S.M.
F1
F2
AM
2
10
Automatic Memory of
Station Presets
Press the BAND button repeatedly until the
desired radio band is displayed.
Press the 0(A. MEMO) button. The fre-
quency on the display continues to change
while the automatic memory is in progress.
The tuner will automatically seek and store 6
strong stations in the selected band in order of
signal strength.
When the automatic memory has been
completed, the tuner goes to the station stored
in the preset location No. 1.
Note: If no stations are stored, the tuner will
return to the original station you were
listening to before the auto memory
procedure began.
A.MEMO

20
English
Radio Operation
Storing into Direct Access
Preset (D.A.P.) Band
A combination of radio stations from any band,
AM and FM (up to 6 stations) can be manually
preset onto the D.A.P. band.
Press the 7(D.A.P.) button to activate the
D.A.P. mode.
Press the BAND button to select FM or AM.
The selected band will be displayed.
To memorize stations onto the D.A.P. band,
follow the steps for the automatic or Manual
Storing of Station Presets section above.
To cancel the D.A.P. mode, press the 7
(D.A.P.) button.
1
1
D.A.P.
D.A.P.
(OFF)
7
