I Operating lnstructions BA 1 12213 E
Rlpine 11
Fine Impact Mill
Tangential design
pressure resistant
to 10 bar overpressure
Manufacturer's Address:
Alpine AG
Peter-Dorfler-Str. 13-25
W-8900 Augsburg
Germany
Telephone number: (0821
1 5906-0
Telex: 53802
Fax number:
49 821 573558
Machine Number:
.
Year of construction: 1 Cl I
Reprint with our explicit approval only!
10.90
Please observe this instructionmanual. It will help you to ovoid accidents and dameges. It ir imponant that youmake these
instructionsand direct~onsavailable to ell personnal concerned withthe instellation and operetion of the mentionad machine.
Ourliabilitydoesnotapplytooperatingor maintenencamistakes orarbitrarvmodifications of themachine orcomponentstherof
or to the incorporationof spare paR6 of foreign make.
MADE IN GERMANY

315 UPZ - 1122/3E
Table of contents
1.0 Equipment of the machine
2.0 Prevention of accidents
3.0 Technical data
3.1 Connections and dimensions
3.2 Drive
3.3 Tools
4.0 Installation
4.1 Mi11
4.2 Drive
4.3 Speeds of rotation
4.4 Direction of rotation
4.5 Rinsing air
4.6 Electrical connection
Operation
Preliminary work
Selection of grinding media
- general instructions -
Start-up
Mode of operation
Shut-down
Exchange of complete grinding systems
Exchange of grinding tracks and sieve grates
Alpine ,1,
6.0 Haintenance
6.1 Lubrication
6.2 Cleaning
6.3 Wear control
6.4 Spare parts
7.0 Servicing
7.1 Exchange of studs
7.2 Beater system
7.3 Grinding tracks and sieve grates
7.4 Bearing
Page

315 UPZ - 112213E
Alpine 11.

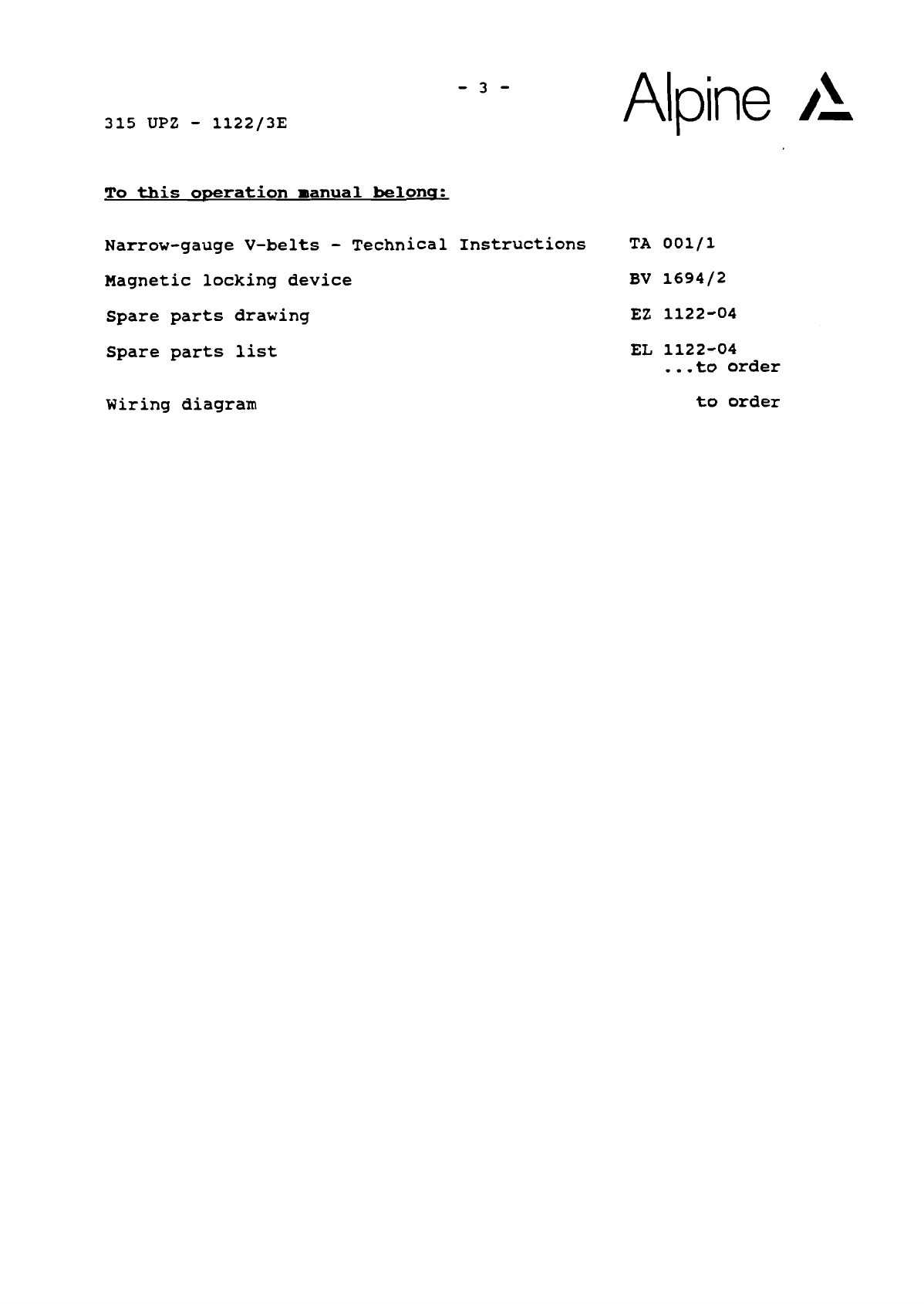

To this operation manual belons:
Narrow-gauge V-belts - ~echnicalInstructions TA 00111
Magnetic locking device SV 169412
Spare parts drawing EZ 1122-04
Spare parts list
EL 1122-04
... to order
Wiring diagram
to order

315 UPZ - 1122/3E
1.0 Ecrui~ment of the machine
Alpine 11
The Multiplex fine impact mill type 315 UPZ f0r pressure
resistant operation up to max. 10 bar (overpressure) with
tangential feeding and discharge.
The mill can be equipped vith
- Stud discs (E
- Plate beater unit (C)
- Swing beater unit (D)
- Beater dick
(F)
,N6fALLE - Baffle-ribbed grinding track ) (G/H/J)
-% - Triangular-shaped grinding track
)
- Sieve grate with screens (K/L/M/N)
The mill can be equipped with a drive between 7.5 and 22
kW.
The required equipment, speed and thus the power of the
drive is preset by the respective application and the
product
.

315 UPZ - 1122/3E
2.0 Prevention of accidents
Alpine 11
For the design and equipment of the machine, the re-
spective regulations from registers @lAW and "B" of the
general administration directions concerning the "Law on
the safety of machinery GSGu have been adhered to.
Accessories
such as product feed and discharge devices, protective
equipment for the drive, electrical equipment, etc. which
do not belong to our scope of delivery, also have to
conform to the respective directions for accident pre-
vention
- guideline no. 1 (plastics processing) of the
Chemical Industry, VBG 4, 5, VDE 0113, etc. if they are
provided by the operator.
Saf
etv eauivment
- The electromechanical door locking device MVS permits
an opening of the mill only after the complete
standstill of the grinding system. A switching-on of
the opened mill is not possible.
An operation manual of the magnetic locking device of
the door hinge which is controlled by a standstill
supervising system is annexed.
- Belt guard for mill drive
WARNING
Do not remove belt guard during operation!
Do not switch on machine with removed belt guard!

315 UPZ - 1122/3E
Alpine 11-

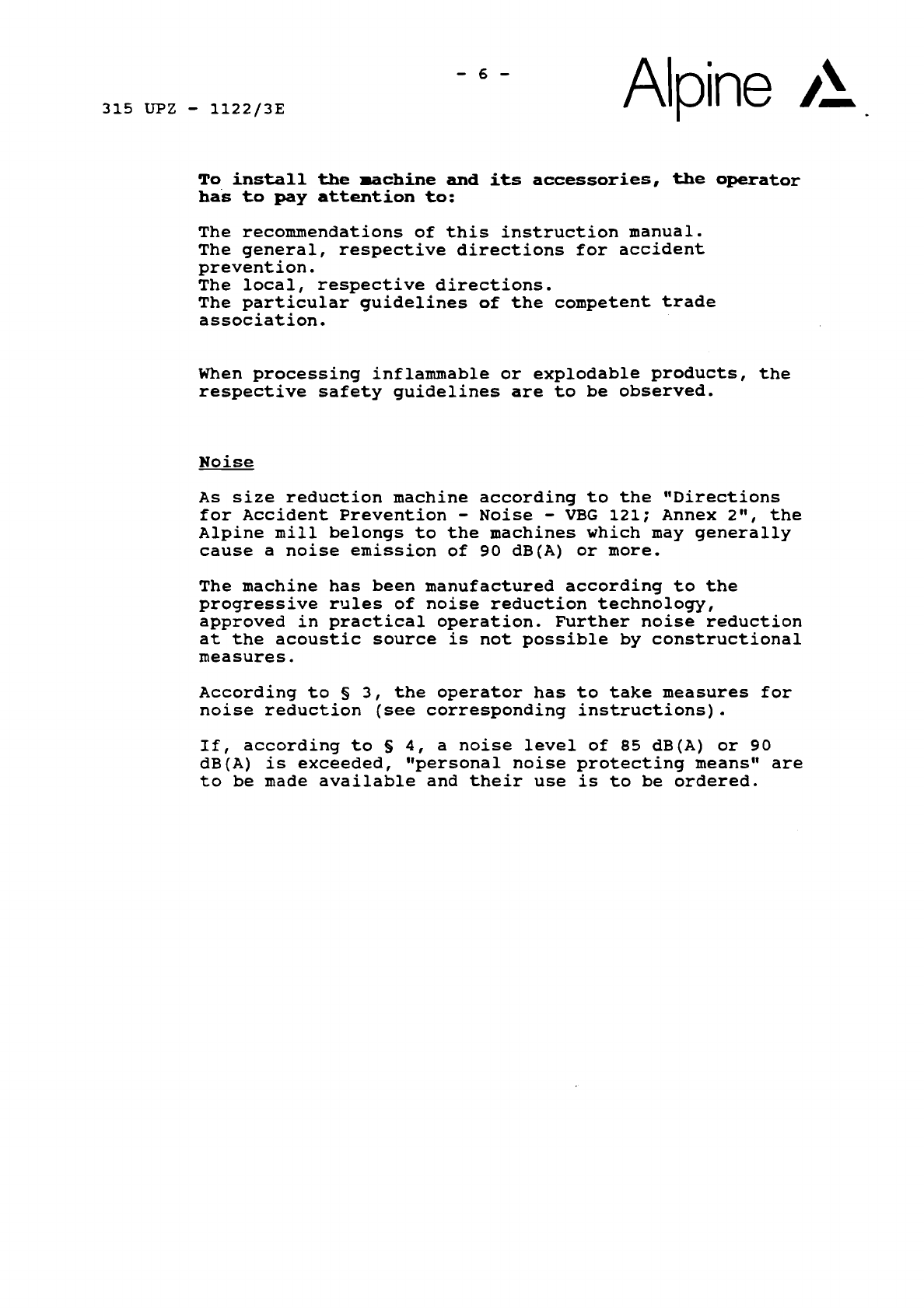

To install the machine and its accessories, the operator
has to
pay attention to:
The recommendations of this instruction manual.
The general, respective directions for accident
prevention.
The local, respective directions.
The particular guidelines of the competent trade
association.
When processing inflammable or explodable products, the
respective safety guidelines are to be observed.
Noise
As size reduction machine according to the "Directions
for Accident Prevention - Noise - VBG 121; Annex 2", the
Alpine mill belongs to the machines which may generally
cause a noise emission of 90 dB(A) or more.
The machine has been manufactured according to the
progressive rules of noise reduction technology,
approved in practical operation. Further noise reduction
at the acoustic source is not possible by constructional
measures.
According to 3, the operator has to take measures for
noise reduction (see corresponding instructions).
If, according to g 4, a noise level of 85 dB(A) or 90
dB(A) is exceeded, "personal noise protecting meansn are
to be made available and their use is to be ordered.

315 UPZ - 1122/3E
Alpine 11
Electrical equipment of the Alpine machine conforms to
the VDE directions for processing machines with a
nominal voltage up to 1000 volt; VDE standard 0113, when
the machine was supplied with complete electrical equipment
by Alpine.
The o~eratoris responsible for ensurina that:
the specified accident prevention measures are taken,
the directions for accident prevention are observed, and
that the safety devices are available and in good
working order at all times.

315 UPZ - 1122/3E
3.0 Technical Data
3.1 Connections and Dimensions
Alpine 11
Fig. 1: General view
- freiansaugend I free suction
DN
23 DIN 2633 I R1'
- Zwangsspülung I forced rinsing

315 UPZ - 1122/3E
Alpine f
Stud disc
(E) nominal @ = 315 mm
Plate beater system (C) da = 298 mm
Swing beater system (D) da = 298 mm
Beater disc
(F) da = 298 mm
Drive
naximum mill sveed
Stud disc
(E) %ax = 9000 r.p.m.
Plate beater system (C) %ax = 7100 r.p.m.
Sving beater system (D) %ax = 5000 r.p.mi.
Beater disc (F)
Drive mver
Depending upon the order and
equipment of the mill:
Motor speed:

315 UPZ - 1122/3E
Alpine I.
land
vith different motors and crrindina svstems:
Narrow-gauge V-belts
Number
X profile X length
Weight of the machine:
Tools
6 X SPZ X 1800
acc. to DIN 7753
- See name-plate -
All assembly and maintenance work can be carried out
with normal trade tools.

315 UPZ - 1122/3E
4.0 Installation
Alpine 11
If a lifting harness is used to transport the machine,
the lifting lugs at the machine housing are to be used.
To choose lifting equipment, carrying means etc., the
indicated weight is to be observed.
Also refer to the "directions for accident prevention
-
load lifting units, used as lifting meansl1 (VBG 9a)!
Installation according to the available planning or
offer drawing presented by Alpine.
Special attention has to be paid to sufficient stability
of the machine foundation and base!
Align the machine with a spirit level and fix it with
bolts M16.
Install the accessories
- such as feeding device,
product bin, filter etc.
- according to the drawing.
Drive
Put the motor onto the slide rails and adjust the
tension of the V-belts.
Pay attention to proper alignment of the pulleys and
correct belt tension.
In this respect, please refer to the Technical
Instructions llNarrow-gaugeV-belts enclosed to this
instruction manuai.

315 UPZ - 1122/3E
Alpine II
If the machine is supplied vithout Alpine instaiiation
table :
After alignment, pin and bolt the slide rails to the
foundation.
If no belt guard is included in Alpine's delivery scope,
the drive has to be equipped with a protection
corresponding to the directions for accident prevention.
WARNING
Pay attention to the data given in para. 3.2 and on the
machine.
The maximum speeds should not be exceeded!
Direction of rotation
- Sieve grates:
If the machine is equipped with sieve grates, the
direction of rotation of the beater system employed is
optional .
If the sieve insert of the sieve is a rasp-like sieve,
the direction of rotation of the beater system should be
selected so that the beaters move towards the sieve
apertures and the ground material can pass through the
sieve without deflection.

315 UPZ - 1122/3E
Alpine ,1.
"gegen Forderrichtung "
" rn it Förderric h tung "
Fig. 3: Baffle-ribbed grinding track: direction of
rotationin and contrary to the conveying direction
- Triangular-shaped grinding track:
The direction of rotation against the short edge is used
when processing hard, brittle materials.
Generally speaking, this results in a finer product than
selecting the direction of rotation against the long
edge
.
The direction of rotation against the long edge is
preferred for softer, compressible materials which tend
to form deposits. The beater system can either be
directly reversed in the direction of rotation or, if
this is not possible (plate beater system), can be
turned by 180
O .

315 UPZ - 1122/3E
Alpine 11
Drehrichtung Mohlwerk
-+
(z.B.Plottenschlogerwerk)
-
--------
J
Mahl-
spolt
kurze Konfe I
Ionge Konfe
Fig. 4: Triangular-shaped grinding track and direction
of rotation
Rinsins air
Normally, the rinsing air intake is automatic.
WARNING
The rinsing air is taken from the air suction duct to
the mill inlet and is supplied to the mill via the
socket
(Ag) .

315 UPZ - 1122/3E
Alpine 11
For example, in the case of inert or circuit gas
operation.
The rinsing gas or air is fed via the socket
(Ag).
The discharge screw (A10) may not be removed!
Pressure and volume of the rinsing air (rinsing gas)
depend on the operating conditions.
Guide values:
Pressure : up to appr. 0.2 bar (overpr. )
Volume :
generally between 20 - 50 m3/h

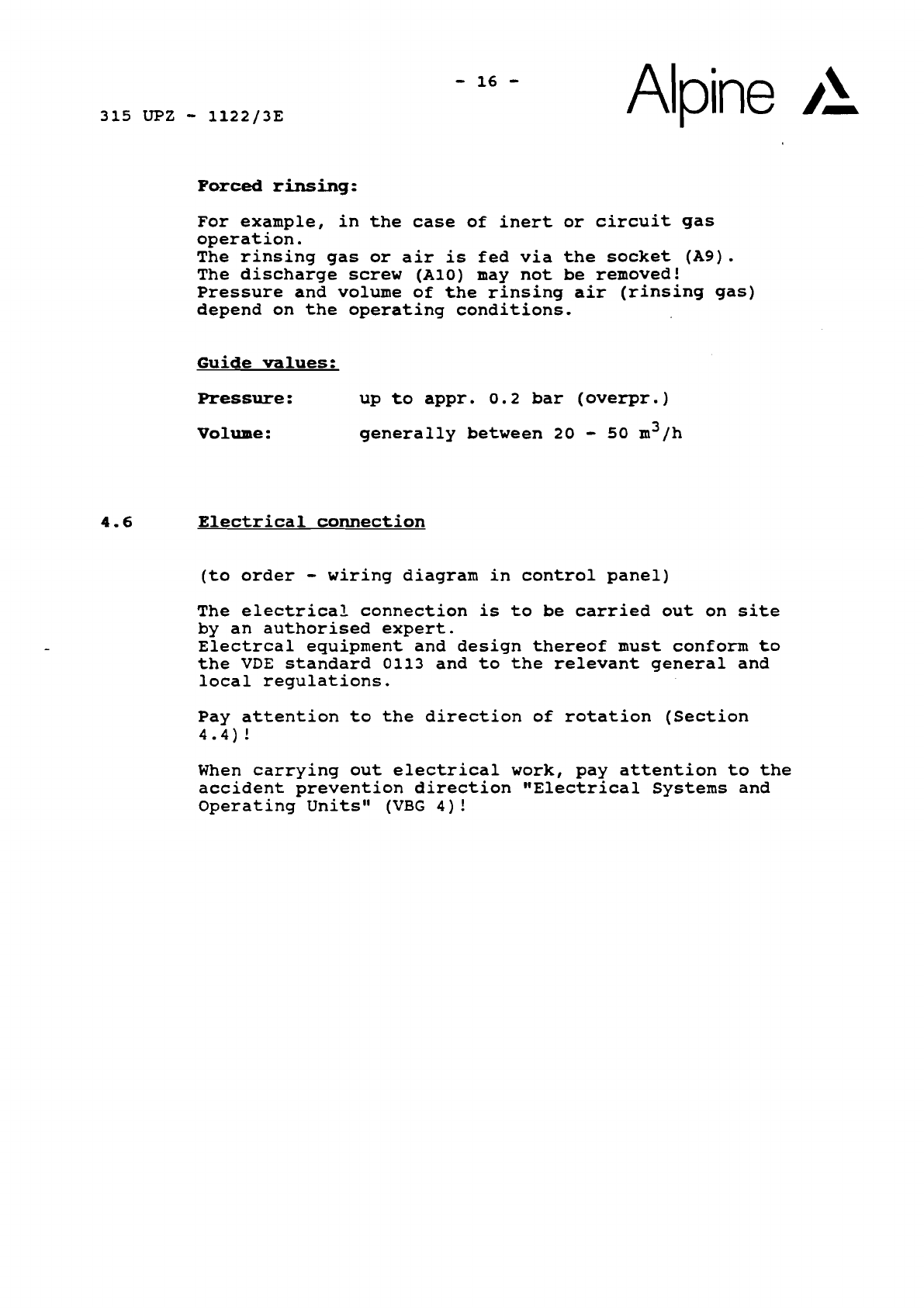

Electrical connection
(to order
- wiring diagram in control panel)
The electrical connection is to be carried out on site
by an authorised expert.
Electrcal equipment and design thereof must conform to
the VDE standard 0113 and to the relevant general and
local regulations.
Pay attention to the direction of rotation (Section
4.4)!
When carrying out electrical work, pay attention to the
accident prevention direction v'Electrical Systems and
Operating Unitsl1 (VBG 4) !

315 UPZ - 1122/3E

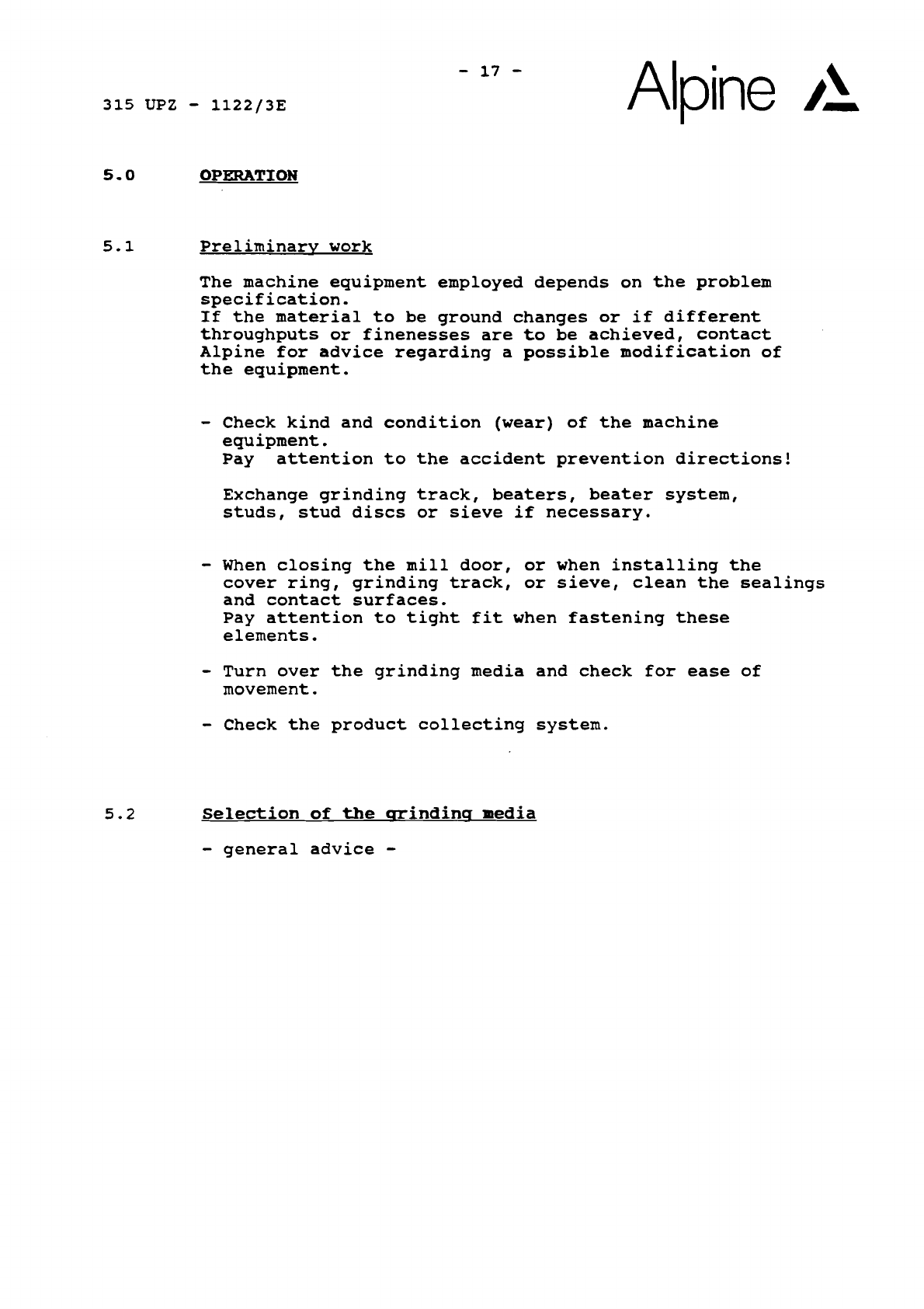

5-0 OPERATION
Preliminarv work
Alpine 11
The machine equipment employed depends on the problem
specification.
If the material to be ground changes or if different
throughputs or finenesses are to be achieved, contact
Alpine for advice regarding a possible modification of
the equipment.
- Check kind and condition (wear) of the machine
equipment.
Pay attention to the accident prevention directions!
Exchange grinding track, beaters, beater system,
studs, stud discs or sieve if necessary.
- When closing the mill door, or when installing the
Cover ring, grinding track, or sieve, clean the sealings
and contact surfaces.
Pay attention to tight fit when fastening these
elements.
- Turn over the grinding media and check for ease of
movement
.
- Check the product collecting system.

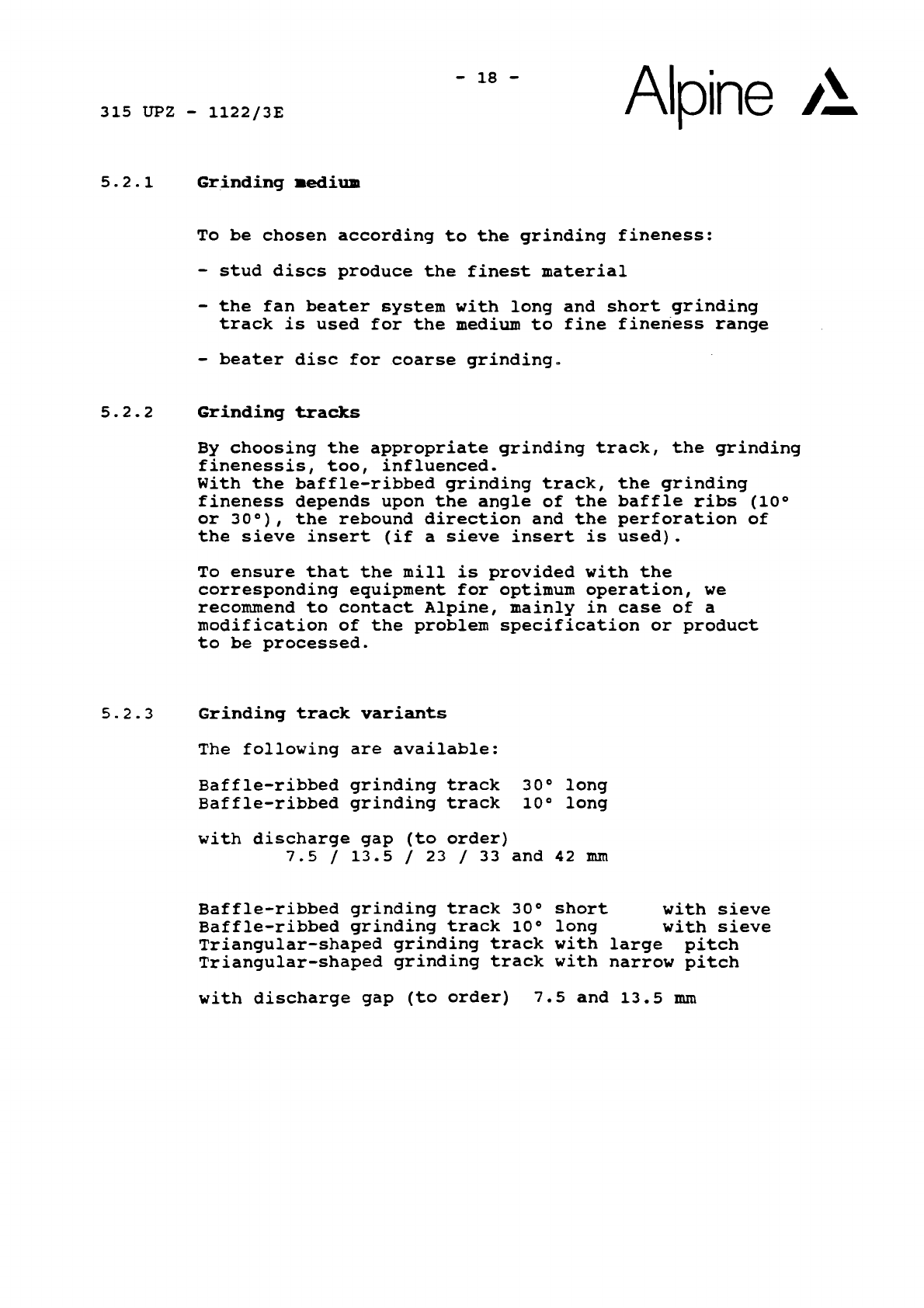

Selection of the crrindinq media
- general advice -

315 UPZ - 1122/3E
Alpine 11
5.2.1 Grinding medium
To be chosen according to the grinding fineness:
- stud discs produce the finest material
- the fan beater system with long and short grinding
track is used for the medium to fine fineness range
- beater disc for coarse grinding.
5.2.2 Grinding tracks
By choosing the appropriate grinding track, the grinding
finenessis, too, influenced.
With the baffle-ribbed grinding track, the grinding
fineness depends upon the angle of the baffle ribs (10°
or 30°), the rebound direction and the perforation of
the sieve insert (if a sieve insert is used).
To ensure that the mill is provided with the
corresponding equipment for optimum operation, we
recommend to contact Alpine, mainly in case of a
modification of the problem specification or product
to be processed.
5.2.3 Grinding track variants
The following are available:
Baffle-ribbed grinding track 30° long
Baffle-ribbed grinding track 10° long
with discharge gap (to order)
7.5
/ 13.5 / 23 / 33 and 42 mm
Baffle-ribbed grinding track 30° short with sieve
Baffle-ribbed grinding track 10° long with sieve
Triangular-shaped grinding track with large pitch
Triangular-shaped grinding track with narrow pitch
with discharge gap (to order) 7.5 and 13.5
mm

315 UPZ - 1122/3E
Alpine 11-
5.2.4 Sieve
Easily flowable material6 which contain few fines and
have a granular or gritty structure, are optimally
produced by using the beater disc and sieve; for this
application, the speedusually has to be considerably
reduced.
5.2.5 Air throughput
The highest air throughput is used for the fan beater
system; a medium air throughput is available with the
swing beater system, whereas the air throughput is
lowest when using the stud disc and beater disc.
Referring to the equipment of the mill, the air
throughput is approximately proportional to the speed.
For the size reduction of heat-sensitive products, the
fan beater system is ideally suitable.
The high air flow allows an effective cooling of the
product and size reduction media.
The effects of the air throughput on the operating
characteristics have to be tested in every individual
case.
Pay attention to the accident prevention directions!
Start the plant according to the switching-on sequence.
Then start product feed and slowly increase up to the
maximum, permissible load.
Observe the ammeter.

315 UPZ - 1122/3E
Alpine II
5.4 Hode of o~eration
Pay attention to the fact that no foreign matter which
could damage the grinding media is contained in the feed
material.
Note:
Feed the product to the machine as constantly as
possible
- use an appropriate feed rating device!
Check the feed rate by means of the ammeter.
Too high a feed rate might cause blocking of the mill.
WARNING
In case of overload (blocking, stalling), stop the
machine immediately.
Pay attention to the directions for accident prevention!
Open the machine.
Clean the feed duct and the grinding chamber.
Check and clear the cause.
Check ease of movement of the grinding system, pay
attention to eventual damage; repair if necessary.
Close the machine.
Stop the product supply.
Keep machine in operation until all product being in the
machine is ground.
The current consumption decreases to idling value (appr.
40%).
Stop the drive motor.
Stop the plant according to the interlocking scheme.
In case of a longer shut-down period, Open the machine.
Pay attention to the directions for accident prevention!
