Altherma EKRTR User manual

INSTALLATION MANUAL
EKRTR
EKRTETS
Room thermostat

60
12534
87
170 161
28 50
±1.5 m
1.5 m
±1.5 m
12
3
45
>0.2 m
>0.2 m
>0.2 m
>0.2 m
3
1
2
4
5

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
1
Contents
1. Introduction ............................................................................ 2
2. Installation of EKRTETS as floor temperature sensor............ 3
3. Installation of EKRTR ............................................................. 6
4. Setting up codes in the installer menu ................................. 14
5. Technical characteristics ...................................................... 22
EKRTR
EKRTETS Room thermostat Installation manual
Read this manual attentively before starting up the unit.
Do not throw it away. Keep it in your files for future
reference.
Improper installation or attachment of equipment or
accessories could result in electric shock, short-circuit,
leaks, fire or other damage to the equipment. Be sure
only to use accessories made by Daikin which are
specifically designed for the use with the equipment and
have them installed by a professional.
If unsure of installation procedures or use, always
contact your dealer for advice and information.

Installation manual
2
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
1. Introduction
The room thermostat EKRTR can be used to control floor
heating-only applications and floor heating/cooling applications.
It is typically connected to the indoor unit. Refer to the "Typical
application examples" in the Installation manual of the indoor
unit.
■ In case of floor heating-only applications the room
thermostat can also be connected to the individual motorized
valve of the floor heating loop.
■ If a floor heating-only application is used in combination with
fan coil units each fan coil unit should have its dedicated fan
coil thermostat.
Optionally, an external temperature sensor EKRTETS can be
connected to the thermostat and used as:
■ external ambient temperature sensor to control the room
temperature (instead of the temperature sensor inside the
thermostat). In that case, install the temperature sensor
where you want to control the ambient temperature.
■ floor temperature sensor to protect the floor temperature. In
that case, install the temperature sensor in the floor (refer to
"Installation of EKRTETS as floor temperature sensor" on
page 3).

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
3
2. Installation of EKRTETS
as floor temperature sensor
As it should be integrated into the floor, the installation of the
temperature sensor EKRTETS should be planned and
performed in advance.
If EKRTETS is installed as floor temperature sensor, the
thermostat EKRTR should be wall-mounted. Refer to "Wall-
mounted installation" on page 6.
1 Take the installation suggestions for the thermostat into
account when selecting the installation location.
Refer to figure 3.
NOTE
The below procedure only serves as an example.
Your actual situation may differ from what is
represented here.

Installation manual
4
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
2 Integrate the EKRTETS temperature sensor in an electrical
conduit ( ∅ 16 mm maximum) in the floor construction as
shown below.
Make sure to seal the temperature sensor electrical conduit
to protect the thermostat from hot air currents and to allow
the replacement of the temperature sensor.
3 Pass the temperature sensor cable through the conduit until
it reaches the seal.
1
Thermostat
2
Temperature sensor conduit (Ø16 mm maximum)
3
Temperature sensor EKRTETS (in conduit with seal)
4
Water pipes
1
2
34

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
5
4 Connect the temperature sensor cable to the thermostat as
described in "Wall-mounted installation" on page 6.
NOTE
Install the temperature sensor as close as possible
to the floor loop inlet.

Installation manual
6
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
3. Installation of EKRTR
You can mount the EKRTR thermostat on the wall or use it as
table-top model.
3.1. Wall-mounted installation
The EKRTR thermostat can be wall-mounted, with supplied
screws and plugs. Refer to figure 1.
This is the case when you want to install the optional EKRTETS
as external temperature sensor.
1 At the left of the thermostat, gently push the lid.
2 Remove the front cover by pulling it towards you.
3 Optionally for the EKRTETS, unscrew the screw of the cable
holder in the bottom left corner of the back part of the
thermostat and remove the transparent cable protection.
4 Remove the battery insulator.
5 Drill holes in the wall taking the dimensions of the thermostat
into account and insert the supplied plugs in the holes.
Refer to figure 4 (unit of measurement: mm).
3
3
2
1
4
3

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
7
6 Optionally, pass the temperature sensor wiring (EKRTETS)
through the back of the thermostat and wire it as shown
below.
7 Fasten the thermostat with the supplied screws.
8 Optionally for the EKRTETS, put the transparent cable
protection back into place and fix the cable protection with
the screw.
9 Close the thermostat cover.
10 Remove the protective film from the LCD.
3.2. Table-top installation of the thermostat
Only if the optional temperature sensor
EKRTETS is not installed as external
temperature sensor, the EKRTR can be
used as a table-top model.
In that case, no particular installation
for the thermostat is needed. The
thermostat functions as a complete
wireless unit and can be put anywhere
in the house into its table holder.
Remove the battery insulator and the protective film from the
LCD, as described in "Wall-mounted installation" on page 6.
Be careful not to pinch the wiring when fastening.

Installation manual
8
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
3.3. Installation of the receiver
Typically the receiver needs to be installed next to the
AD
indoor unit.
Recommendations for an optimum signal
reception
Take the installation suggestions for the receiver into account
when selecting the installation location and follow the
recommendations below.
■ Do not install the receiver inside a metal box.
■ Mount the receiver vertically, and minimum 10 cm away
from the AD indoor unit.
■ Mount the receiver minimum 10 cm away from any vertical
metal pipe or vertical electric circuit.
■ Mount the receiver at least 1.5 m above the ground.
Before obtaining access to terminals, all power
supply circuits must be interrupted.

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
9
Keep the front clear at all times for access.
1 Drill holes in the wall taking the dimensions of the receiver
into account and insert the supplied plugs in the holes.
Refer to figure 5.
2 Fasten the receiver with the supplied screws.

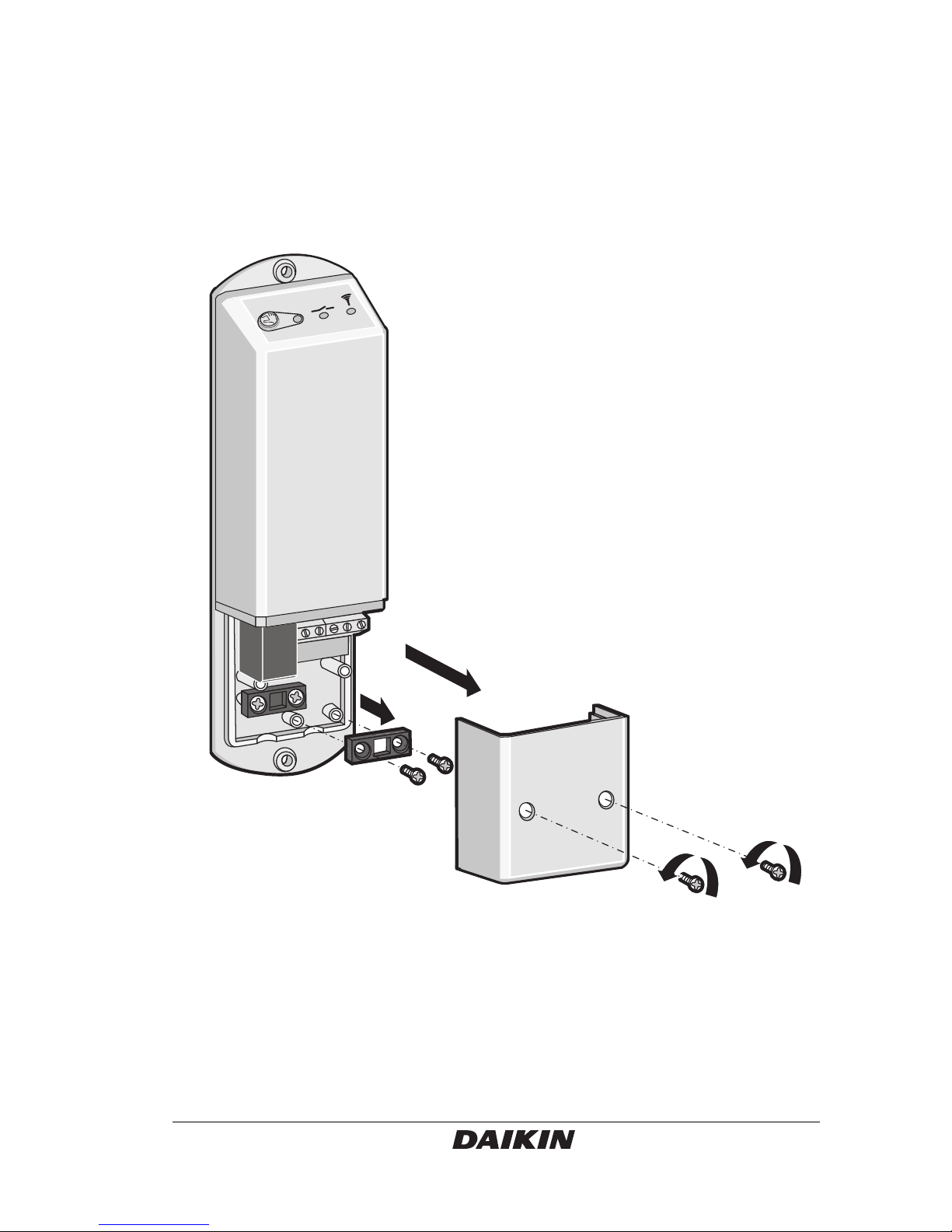

3 Unscrew both screws and remove the front cover.
4 Unscrew both screws of the lower right cable bracket and
remove the bracket.
3
4
3
4

Installation manual
10
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
5 According your application, perform the wiring.
5a When connected to the indoor unit, wire the indoor unit and
the receiver as shown below.
For heating-only applications, wire 17-C or 2-C is not to be
installed.
Use wire size 0.75~1.50 mm
2
.
5b When connected to the motorized valve, wire the motorized
valve and the receiver as shown below (for heating-only
applications).
The output relays (H and C are voltage-free contacts) can
handle a maximum load of 100 mA - 230 VAC.
EKHB(H/X)007AC***
EKHB(H/X)008
EKHB(H/X)016
H Heating demand
C Cooling demand
23 17 15 13
HCLN
H C com L N
EKRTR receiver
X2MX1M
1234
HCLN
H C com L N
EKRTR receiver
X2M
X2M
X1M
L N LN
1N~50 Hz
230 VAC
1N~50 Hz
230 VAC
H C com L N
EKRTR receiver
X2MX1M

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
11
6 Put the cable bracket back into place and tighten the screws.
7 Close the receiver cover and tighten the screws.
Receiver-thermostat radio configuration
You need to configure the radio connection between the receiver
and the thermostat in order to make communication possible.
1 Put the receiver in radio configuration mode by pressing
è
during 4 seconds.
The
!
LED lights up green and the receiver is now waiting for
a thermostat configuration address.
If needed, you can simply exit this mode by pressing
è
again.
2 Send the configuration address by going to code 5® 03 ( ®ƒ ‡≈î‹ )
in the installer menu on the thermostat.
Refer to “Setting up codes in the installer menu” on page 14.
The thermostat will now send radio signals. On the LCD the
icon
j
flashes.
3 Verify that the radio signals are correctly received by the
receiver.
If the configuration is OK, the
!
LED blinks green at each
radio signal received from the thermostat.
This also means that the receiver has left the radio
configuration mode.
4 On the thermostat, exit the installer menu by pressing
>
till
the "
/
" code is displayed and then pressing
=
.
5 Verify if the receiver is in thermostat mode and not in manual
mode by checking if the
è LED is off.
Refer to "LED overview" on page 12.
Make sure to protect the power supply with a fuse of
3 A.
Select the power cable in accordance with relevant
local and national regulations.
A main switch or other means for disconnection,
having a contact separation in all poles, must be
incorporated in the fixed wiring in accordance with
relevant local and national legislation.

Installation manual
12
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
LED overview
èè
èè §§ §§ !! !!
Meaning
OFF RED OFF Thermostat mode:
Heating demand
OFF GREEN OFF Thermostat mode:
Cooling demand
YELLOW RED OFF Manual mode: forced
heating
YELLOW GREEN OFF Manual mode: forced
cooling
YELLOW OFF OFF Manual mode: forced
OFF
YELLOW/
OFF
GREEN/
RED/OFF
GREEN:
Quick
short blink
Communication
between receiver and
thermostat
YELLOW/
OFF
GREEN/
RED/OFF
GREEN:
continuous
Receiver in radio
configuration mode
OFF OFF GREEN:
slow blink
There is no longer
communication
between the receiver
and the thermostat
both heating and
cooling demand is
stopped. A manual
override is still
possible (refer to
"Manual control" on
page 13).

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
13

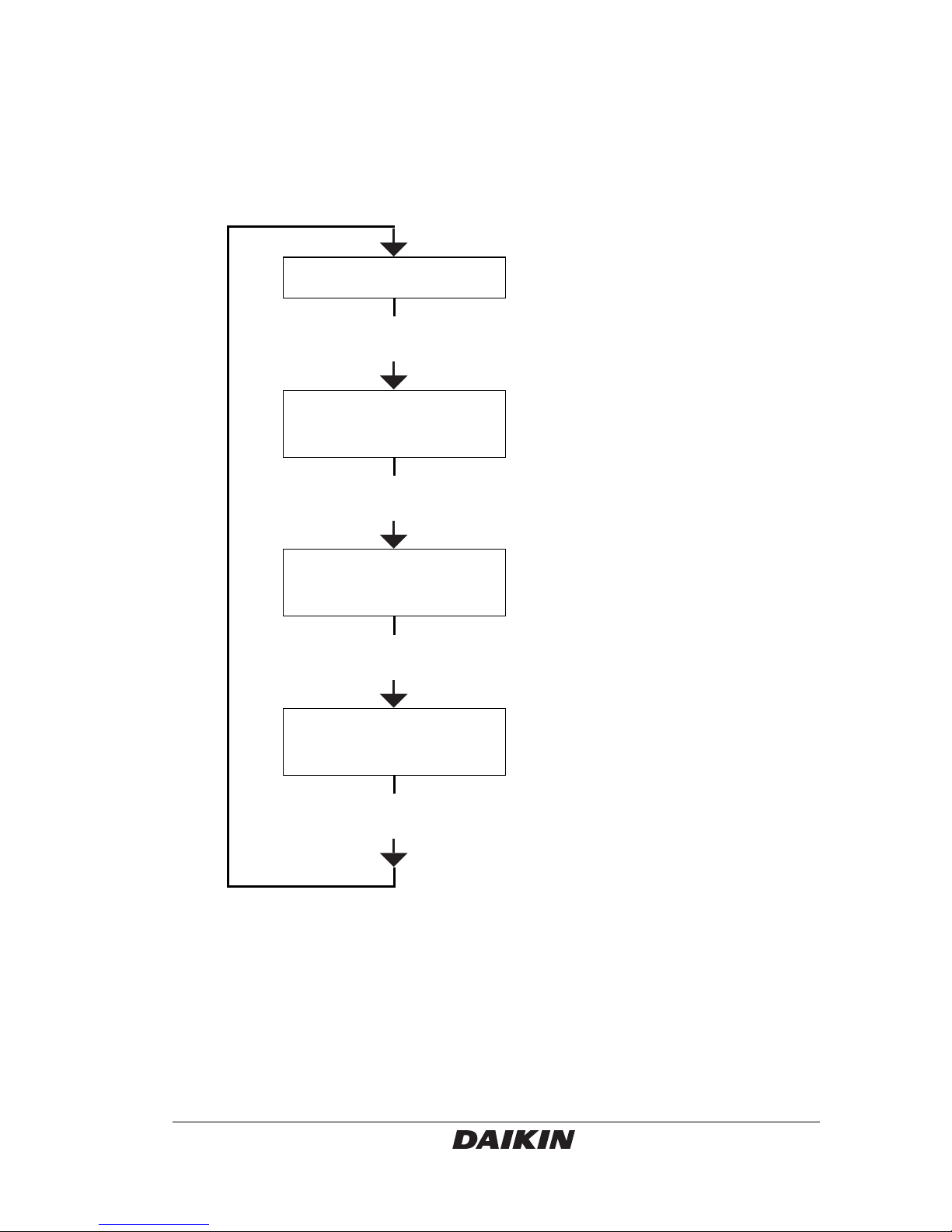

Manual control
You can use the receiver to manually override the heating or
cooling command of the thermostat when for example the
batteries of the EKRTR are empty or when the thermostat is
broken. Manual control is activated when the
è
LED lights up
yellow. In thermostat mode the è
LED is off.
Thermostat mode
è
LED is off
Press
è
Manual mode:
forced heating
Red
§
LED
Yellow
è
LED
Press
è
Manual mode:
forced cooling
Green
§
LED
Yellow
è
LED
Press
è
Manual mode:
forced OFF
§
LED is off
Yellow
è
LED
Press è

Installation manual
14
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
4. Setting up codes in the installer menu
You can set up codes, starting from the time and date menu (in
advanced mode).
1 Activate the advanced mode by pushing > during 5
seconds in OFF mode (
D
).
2 Navigate to the date and clock setting menu (
G
) by pressing
> .
3 Press
>
and keep it pressed while now pressing
=
during 10 seconds.
y
is displayed next to
4®
.
4 Press
<
or
>
to consult the current settings of the
codes.
5 To modify codes, press + , - or = .
The value is flashing when being modified.
6 Press
+
or
-
to increase or decrease the code value by
1 step.
To put a code back to its default value, press +
and
-
at
the same time.
7 Press
=
to save your selection.
You can exit this code menu by going to the "
/ " code and
pressing
=
.
Refer also to "Overview of all codes" on page 17.
NOTE
As a consequence of a customized configuration, it
is not abnormal that some codes are no longer
accessible.

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
15
4.1. Set-up for heating/cooling applications
For heating/cooling applications, set the following codes:
4.2. Set-up floor temperature protection
If EKRTETS is installed as floor temperature sensor it can be
used to manage and thus protect the floor temperature. Refer to
"Installation of EKRTETS as floor temperature sensor" on
page 3. When this function is active the icon
U flashes below the
ambient temperature.
To enable floor protection, set the following codes:
1st
code 2nd
code Description Required setting
5® 01
Cooling mode present?
ÚêÒ
1st
code 2nd code Description Required setting Step
5® 02
External temperature
sensor EKRTETS
installed?
ÚêÒ
—
7® 01
Enable floor high/low
temperature limit?
ÚêÒ
—
02
Lower limit of floor
temperature
18.0
(a)
(a) default value. Can be modified as preferred.
0.5°C
03
Upper limit of floor
temperature
35.0
(a)
0.5°C

Installation manual
16
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
4.3. Set-up for EKRTETS as external ambient
temperature sensor
EKRTETS can be used as external ambient temperature sensor
to control the room temperature (instead of the temperature
sensor inside the thermostat). In that case, install the external
temperature sensor where you want to control the ambient
temperature.
To enable the function, set the following codes:
1st
code 2nd
code Description Required setting
5® 02
External temperature sensor
EKRTETS installed?
ÚêÒ
6® 01
Selection of sensor for
temperature control: use
external ambient temperature
sensor?
ÚêÒ
NOTE
This function cannot be combined with floor
temperature protection.

EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation manual
17
4.4. Overview of all codes
Following codes can be changed in the installer menu:
1st
code 2nd code Description Default Range Step
Readout codes
4® 01 + R
Calibration of
temperature
sensor inside
the thermostat.
Actual
temperature +
offset are
displayed. The
hsymbol
appears when
the offset
deviates from 0.
Offset = 0 Offset:
–5°C~5°C
0.1°C
02 + U
Calibration of
external
temperature
sensor. Actual
temperature +
offset are
displayed. The
hsymbol
appears when
the offset
deviates from 0.
Offset = 0 Offset:
–5°C~5°C
0.1°C
03
Calibration of
humidity sensor.
Actual humidity
+ offset are
displayed. The
hsymbol
appears when
the offset
deviates from 0.
Offset = 0 Offset:
–10°C~10°C
1%

Installation manual
18
EKRTR + EKRTETS
Room thermostat
4PW45518-1B
Installation codes
5® 01 Cooling mode
present?
≈œ ÚêÒ/≈œ —
02 External
temperature
sensor
EKRTETS
installed?
≈œ ÚêÒ/≈œ —
03 ®ƒ ‡≈î‹ and j
are displayed
on the LCD.
This code is
used during the
receiver-
thermostat
radio
configuration.
Refer to
"Receiver-
thermostat
radio
configuration"
on page 11.
—— —
Temperature control codes
6® 01 Selection of
sensor for
temperature
control: use
external
ambient
temperature
sensor?
≈œ ÚêÒ (use
external
temperature
sensor)/
≈œ (use
temperature
sensor
inside the
thermostat)
—
1st
code 2nd code Description Default Range Step
