Altimium SCA121DTN User manual

SCA121DTN
Scaler Switcher with Digital Amplifier-TN
(12 Inputs)
All Rights Reserved
Version: SCA121DTN _2016V1.1
User Manual

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium www.altimium.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till December 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2016-12-2.
Trademarks
Product model and logo mentioned in this manual are trademarks of our company. Any
other trademarks mentioned in this manual are acknowledged as the properties of the
trademark owner. No part of this publication may be copied or reproduced without prior
written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium www.altimium.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium www.altimium.com
Contents
1. Introduction.................................................................................................................1
1.1. Introduction to SCA121DTN.............................................................................1
1.2. Features ...........................................................................................................1
1.3. Package Contents ............................................................................................1
2. Panel Description........................................................................................................3
2.1. Front Panel.......................................................................................................3
2.2. Rear Panel........................................................................................................3
3. System Connection.....................................................................................................5
3.1. Usage Precautions ...........................................................................................5
3.2. System Diagram...............................................................................................5
3.3. Connection Procedures....................................................................................5
3.4. PoC Solution.....................................................................................................6
3.5. Applications......................................................................................................7
3.6. Collocation Products.........................................................................................7
4. Operations..................................................................................................................9

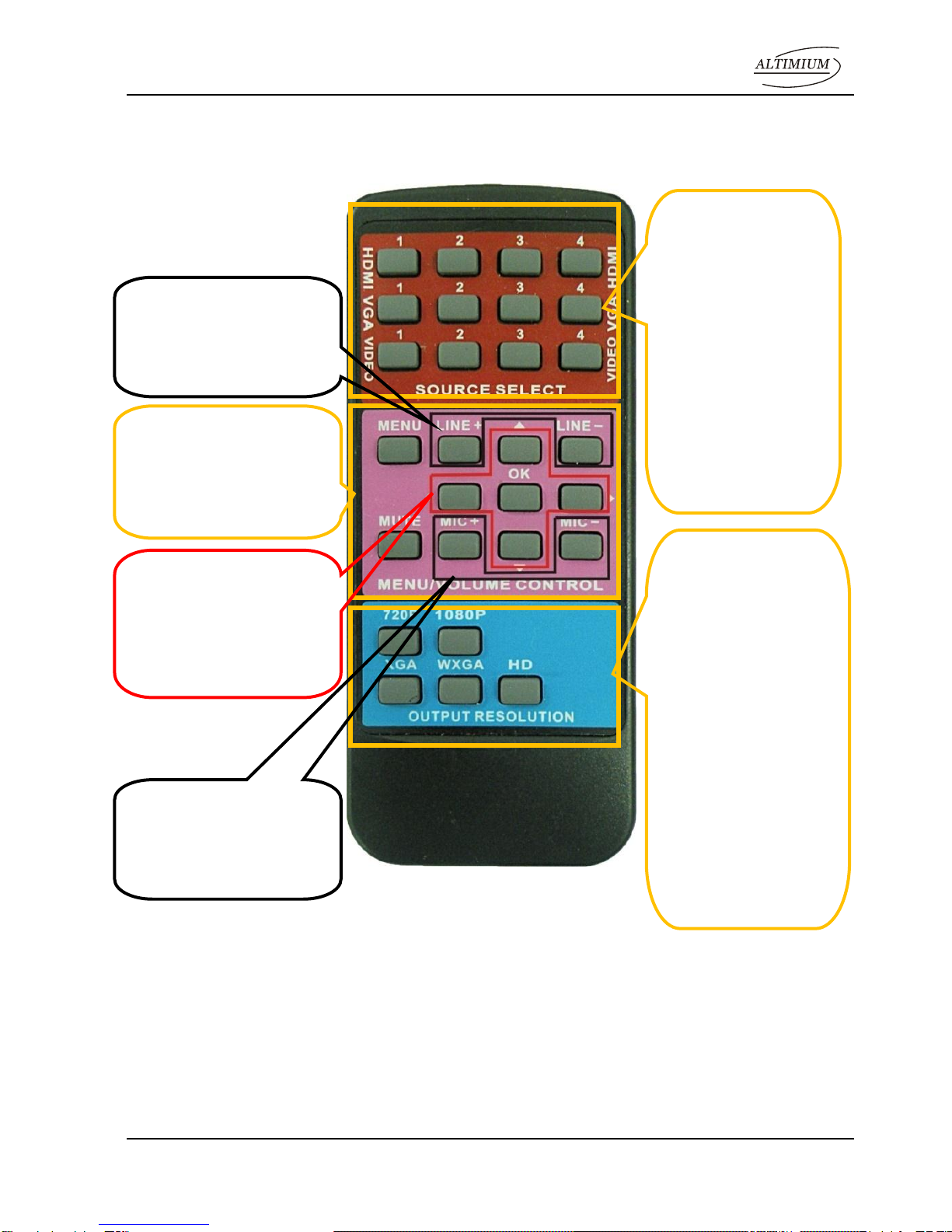

4.1. Operations of the IR Remote............................................................................9
4.2. OSD Operations ...............................................................................................9
4.2.1. Picture Setting......................................................................................10
4.2.2. Audio Setting........................................................................................10
4.2.3. System Setting .....................................................................................11
4.3. Firmware Update............................................................................................11
4.4. RS232 Control................................................................................................12
4.4.1. Installation/uninstallation of RS232 Control Software...........................12
4.4.2. Basic Settings.......................................................................................12
4.4.3. RS232 Commands ...............................................................................13
4.4.4. Control Modes......................................................................................16
4.4.5. Control SCA121DTN via TCP/IP communication software...................18
4.4.6. TCP/IP Configuration............................................................................19
5. Specification .............................................................................................................20
5.1. Specifications of SCA121DTN........................................................................20
5.2. Specifications of Video/Audio Input/output .....................................................21
5.2.1. C-Video and S-Video input...................................................................21
5.2.2. YPbPr input ..........................................................................................21
5.2.3. VGA input .............................................................................................22
5.2.4. HDMI input............................................................................................22
5.3. Audio input/output...........................................................................................22

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium www.altimium.com
6. Panel Drawing ..........................................................................................................24
7. Troubleshooting & Maintenance ...............................................................................25
8. After-sales Service....................................................................................................27

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 1 www.altimium.com
1. Introduction
1.1. Introduction to SCA121DTN
SCA121DTN is a full HD scaler switcher with 12 video, 6 audio & 2 MIC inputs. It scales
& switches any video signal HDMI, VGA, YPbPr, C-Video & S-video to HDBaseT, HDMI
& VGA simultaneously, and any audio to 2x20W amplifier. It’s controllable via the button,
IR, RS232 & TCP/IP.
It’s a remarkable scaler for education institution, meeting room, conference room,
demonstration hall etc. with its excellent performance.
1.2. Features
12 video Inputs: 4 HDMI, 4 VGA, 1 YPbPr, 2 C-video & 1 S-video.
2 MIC inputs with level control and mixer function.
Upscale to outputs HDBaseT, HDMI & VGA simultaneously up to 1080P.
HDBaseT output to be paired with HDMI/IR/RS232 Twisted Pair PoC receiver for
60M transmission.
Built-in 2x20Watt@4Ω digital amplifier (or 2x10Watt@8Ω).
Output resolution selectable to assure preferred output.
Output display H/V size: adjustable to settle any over scale problem.
Output display H/V position moveable.
MIC volume and line volume adjustable.
Video parameter setting and preset.
Powerful OSD function with full control.
Ultra-switching for instaneous display.
HDMI1.3 and HDCP compliant.
Firmware updatable via USB.
Output freeze function.
Energize PoC receiver with PoC function
Front panel lockout.
Controllable via HDMI/IR/RS232 Twisted Pair PoC receiver at display end.
Controllable via button, IR, RS232 & TCP/IP.
1.3. Package Contents
1 x SCA121DTN
1 x HDBT Receiver
2 x Mounting Ears (for HDBT Receiver)
4 x Screws
3 x Captive Screw Connectors
1 x RS232 cable
4 x Plastic cushions
1 x IR remote (Cell battery is not included)
1 x Power Cord

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 2 www.altimium.com
1 x User Manual
Notes：Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 3 www.altimium.com
2. Panel Description
2.1. Front Panel
①Power indicating LED. It will illuminate red when the unit is connected with power.
②IR sensor, receive signals sent from of IR remote.
③Video source selection buttons. You can select video/audio sources by pressing
these buttons. And VIDEO source includes three different signals: YPbPr, C-Video
and S-Video.
④Signal channel selection buttons, 4 in total, correspond to the 4 input sources
separately.
⑤Resolution selection buttons. These including 1024×768, 1280x720p, 1280×800,
1360×768, 1920×1080p.
⑥MIC volume control buttons. “MUTE”for mute MIC volume, “△”for MIC volume up,
“▽”for MIC volume down, loop controlling.
⑦Line volume control buttons. “MUTE”for muting line volume, “△”for line volume up,
“▽”for line volume down.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
2.2. Rear Panel
①Two RCA connectors for stereo audio output;
One VGA output;
One HDMI output with audio embedded;
One HDBT port for HDMI extending (works with HDMI twisted pair Receiver),
support PoC.
②Four VGA connectors for VGAinputs.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 4 www.altimium.com
③Four HDMI connectors for HDMI inputs.
④Four 3.5mm audio connectors for VGA audio inputs.
⑤One Component video input: Y/Pb/Pr, two composite video inputs: C-Video, one
Separate video input: S-Video, two pairs L/R for analog audio input.
⑥One RS232 port for series control, one USB port for firmware update.
⑦One TCP/IP port (selectable): for network controlling.
⑧Amplifier with 2x10W@8Ω output.
⑨Connector for POWER.
⑩Two MIC connectors: MIC with pre-amplification, LINE for audio direct input.
⑪Grounding protection.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 5 www.altimium.com
3. System Connection
3.1. Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.
3.2. System Diagram
3.3. Connection Procedures
Step1.Connect source devices (e.g. PC, DVD) to video input ports with corresponding
cables. For example, connect VGA INPUTS ports and the VGA ports of source
devices via VGA cable.
Step2. Connect the corresponding audio source to the corresponding AUDIO INPUT
port of SCA121DTN with audio cable separately. C-VIDEO1 shares the same
audio input port with S-VIDEO3; Pr-Pb-Y shares the same audio input port with
C-VIDEO4, you can select either side as audio input port.
Rs232
PTN control panel
VIS
HDTV
Projector
DV Camera
Speaker
Laptop
CAT5e
60m
DVD
MIC
HDTV
Receiver

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 6 www.altimium.com
Step3.Connect a microphone to the MIC input port; plug an audio source device or a
wireless microphone to the LINE port.
Step4. Connect a control device (e.g. a PC) to the TCP/IP ports or RS232 sockets of
SCA121DTN. Send commands to control SCA121DTN via control software.
Step5. Connect the HDMI HDBT port of SCA121DTN with HDMI twisted pair
Receiver with PoC to extend the signal.
Step6.Connect display devices to video output ports; connect earphones/amplifiers to
audio output ports. (Abiding by the color instruction on output sockets)
Step7.Connect the output ports of amplifiers to stereo equipment’s.
Step8.Plug the power cable of the switcher to an AC100V~240V power supply, HDMI
twisted pair Receiver with PoC is able to get energized with PoC solution.
3.4. PoC Solution
HDBT port supports PoC, which allows SCA121DTN and HDMI twisted pair Receiver
with PoC share the same power supply and eliminates the need for extra power supply
at the remote nodes.
Connect SCA121DTN with HDMI twisted pair Receiver with PoC via a CAT5e/6 cable,
then plug the power cable of the switcher to an AC100V~240V power supply, HDMI
twisted pair Receiver with PoC can be energized synchronously with PoC solution, see
the picture below:
Note: To activate PoC solution, all related parts (including the devices to share the same
power supply and connecting cable) should support PoC.
CAT5e60m
HDMI Twisted Pair Receiver
with PoC
ScalerSwitcherwithDigitalAmplifier-TN
100-240VAC

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 7 www.altimium.com
3.5. Applications
SCA121DTN has a good application in various occasions, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.
3.6. Collocation Products
SCA121DTN usually works with other devices to deliver multiple video& audio sources.
Here are the most common collocation products.
Description:
1) 8x8 Modular Matrix Switcher with audio
Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA
cards (Compatible with YUV, YC & CVBS.) to configure any matrix.
Support HDMI1.4a, support 3D.
Integrated HDBaseT technology.
Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd
parties control.
Speaker
CAT5e
MIC
Projector
Blu-ray
Laptop
Speaker
CAT5e
MIC
Projector
Blu-ray
Laptop
Programmable Control Panel
Monitor
8x8ModularMatrixSwitcherwithaudio
ScalerSwitcherwithDigitalAmplifier-TN
Speaker
Programmable Control Panel
Programmable Control Panel
Control Room
Projector
Router
HDMI twisted pair Receiver
with PoC
HDMI twisted pair Receiver
with PoC
HDMI twisted pair Receiver
with PoC
Scaler Switcher with Digital Amplifier-TN

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 8 www.altimium.com
LCD display.
2) HDMI twisted pair Receiver with PoC
60m transmission distance in max over single CAT5e/CAT6 cable.
Support PoC & CEC.
Support 1080P@60Hz,48b/pixels,3D & 4Kx2K.
Bi-directional and simultaneous RS232 & IR control.
3) Programmable Control Panel
Every button can be programmed to send the bi-direction RS232 and RS485
commands simultaneously to control third party devices.
Every button can be programmed to send the infrared code, control the relay, to
let them work simultaneously to control the third party devices.
Every button is built in the infrared code and RS232 code learning function, and
baud-rate setting.
ID looping function. 99pcs Programmable Control Panel can be looped and
controlled together, by ID identifying.
Programmed by USB or RS232, working with PC software (PS-WP).
Crystal and backlit buttons with easy user-friendly customizable changeable
labels.
The backlit brightness is controllable.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 9 www.altimium.com
4. Operations
4.1. Operations of the IR Remote
4.2. OSD Operations
SCA121DTN provides a nice OSD operation menu, with various functions and
languages.
The operation introduction is showed as follows.
Source select
area, 12 channels
for inputs,
including:
4 HDMI
4 VGA
2 C-VIDEO
1 S-Video
1 YPbPr
Direction and OK
buttons area, these
buttons are available
only in MENU mode.
Menu/ Volume control
area, MUTE for line
and MIC audio mute.
Line volume control
area, can work when
not in MENU mode.
MIC volume control
area, can work when
not in MENU mode.
Output resolution
select area, five
different
resolutions can be
selected,
including：
720P: 1280x720
1080P: 1920x1080
XGA: 1024x768
WXGA: 1280x800
HD: 1360x768

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 10 www.altimium.com
4.2.1. Picture Setting
The first icon from left of the OSD menu is to set the picture parameter. It includes
picture mode, color temperature, contrast, brightness, hue, saturation, sharpness, scale,
and Advance picture adjust.
Some parameters are available depending on different inputs. The Advance Picture
Adjust can set the Digital Noise Reduction, dynamic color, skin tone and Adaptive Luma
adjustment function on or off. And DNR is suggested to be on, this can make the output
image clear and smooth.
Please check the picture below:
4.2.2. Audio Setting
The Second icon from left of the OSD menu is to set the audio/sound parameter. It
includes the sound effect preset, bass, treble, balance, scene mode, surround and
smart volume setting. Some parameters are available depending on different inputs.
Please check the picture below:

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 11 www.altimium.com
4.2.3. System Setting
The Third icon from left of the OSD menu is system setting, which includes OSD
language setting, listen, freeze, VGA setting, output adjustment etc.
Listen: Audio output only. To resume video output, please press button “MENU”.
VGA setting: Adjust the H/V signal of VGA input, includes auto adjustment.
Output adjustment: Adjust H/V size and H/V position of the output. This function is
available only with HDMI and VGA inputs.
4.3. Firmware Update
SCA121DTN supports firmware field-updating by USB flash disk. The operation
procedures are:

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 12 www.altimium.com
1) Copy the file “MT23ATV.bin” to a USB flash disk. (The “MT23ATV.bin” file is
provided/ authorized by our engineering department)
2) Plug the USB flash disk to the USB port on SCA121DTN.
3) Pressing the button “HDMI”on the front panel for 6 seconds or sending RS232
command 0698% for updating, then press the button “OK”on the remote or send
RS232 command 0609% to confirm update. SCA121DTN will capture the new
firmware from USB flash disk.
4) After finishing update, reboot and send the command “0617%”to reset to factory
settings.
5) After reset, reboot again.
Notice: The name of the update file must be MT23ATV.bin.
4.4. RS232 Control
As RS232 can be transmitted bi-directionally between SCA121DTN and HDMI twisted
pair Receiver with PoC, so it is able to control a third party RS232 device from local or
control SCA121DTN from remote.
Control local device from remote:
Connect the RS232 ports of SCA121DTN and HDMI twisted pair Receiver with PoC,
and connect a control device (e.g. a PC) to HDMI twisted pair Receiver with PoC, then
it’s able to send corresponding commands to control SCA121DTN from remote.
4.4.1. Installation/uninstallation of RS232 Control Software
Installation Copy the control software file to the computer connected with
SCA121DTN.
Uninstallation Delete all the control software files in corresponding file path.
4.4.2. Basic Settings
Firstly, connect SCA121DTN with all input devices and output devices needed, then
connect it with a computer which is installed with RS232 control software. Double-click
the software icon to run this software.

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 13 www.altimium.com
Here we take the software CommWatch.exe as an example. The icon is showed as
below:
The interface of the control software is showed as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, and then you are able to send commands in Command Sending Area.
4.4.3. RS232 Commands
Communication protocol: RS232 Controlling Protocol Command Type: ASCII
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Function Description
Feedback Example
0600%
MUTE Line
LINE Mute On
Parameter Configuration area
Monitoring area, indicates
whether the command sent
works.
Command Sending area

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 14 www.altimium.com
Command
Function Description
Feedback Example
0601%
UnMute Line
LINE Mute Off
0602%
Audio turn up, XX ranges from 00 to 99.
LINE Volume: xx
(xx=0~99)
0603%
Audio turn down, XX ranges from 00 to 99.
LINE Volume: xx
(xx=0~99)
0604%
Lock the front panel button
Panel Locked
0605%
Unlock the front panel button
Panel UnLocked
01XX%
Preset the volume. The XX is ranging from
00 to 99
Volume: XX
02XX%
Preset the brightness. XX ranges from 00 to
99.
Brightness: XX
03XX%
Preset the contrast. The XX is ranging from
00 to 99
Contrast: XX
04XX%
Preset the saturation. The XX is ranging
from 00 to 99
Saturation: XX
05XX%
Preset the sharpness. The XX is ranging
from 00 to 07
Sharpness: XX
0606%
Auto-adjust the input signal(VGA only)
VGA Adjustment
0607%
Auto-adjust the color temperature
Color Temp: XX (XX
can be cool, normal,
warm or user.)
0608%
ZOOM the image, set the aspect ratio
Aspect Ratio: XX (XX
can be Full or 4:3.)
0609%
OK, for OSD selection
OK
0610%
Left of OSD
Left
0611%
Right of OSD
Right
0612%
Up of OSD
Up
0613%
Down of OSD
Down
0614%
Set the picture mode
Picture Mode : XX (XX
can be user, soft,
standard, or Bright.)
0615%
SM Mode
Sound Mode: XX (XX
can be user, standard,
news, or movie.)
0616%
MENU of OSD
MENU
0617%
Command to reset to factory defaults
Factory reset
0618%
Change the resolution to 1360X768 HD
Resolution: HD

Scaler Switcher with Digital Amplifier-TN (12 inputs)
Altimium 15 www.altimium.com
Command
Function Description
Feedback Example
1360X768
0626%
Change the resolution to 1024X768 XGA
Resolution: XGA
1024X768
0627%
Change the resolution to 1280X720 720P
Resolution: 720P
1280X720
0628%
Change the resolution to 1280X800 WXGA
Resolution: WXGA
1280X800
0629%
Change the resolution to 1920X1080 1080P
Resolution: 1080P
1920X1080
0630%
Check the volume level
LINE Volume: XX/MIC
Volume: XX
0631%
Check the input source
Source: XXXXXX
0632%
Check the output resolution
Resolution:
XXXXXXXX
0633%
Check the image mode
Picture Mode : XX
0634%
Check the audio mode
Sound Mode: XX
0635%
Check the image aspec ratio
Aspect Ratio: XX
0636%
Check the brightness
Brightness: XX
0637%
Check the contrast
Contrast: XX
0638%
Check the saturation
Saturation: XX
0639%
Check the sharpness
Sharpness: XX
0640%
Check the color temperature
Color Temp: XX
0644%
OSD CHANNEL display able
OSD Source: Display
0645%
Shield OSD CHANNEL
OSD Channel (Source):
No Display
0646%
Volume Bar display able
Volume Bar: Display
0647%
Volume Bar display unable
Volume Bar: No Display
0648%
Digital audio (HDMI and SPDIF) output able
Digital Sound Ouput:
Enable
0649%
Shield digital audio (HDMI and SPDIF)
output
Digital Sound Ouput:
Disable
0650%
Check OSD CHANNEL display status
OSD Source: Display
0651%
Check Volume Bar display status
Volume Bar: Display
0652%
Check Digital audio output status
Digital Sound Ouput:
Enable
0655%
Freeze output image
Freeze: Enable
0656%
Cancel the freezing of output image
Freeze: Disable
0698%
Firmware update
0701%
Switching to HDMI1 input
Source: HDMI 1
