CN5102US/DUAL AC MODULE FOR CABLE-NOOK Jr. ™User’s Guide
400-0568-002
1
Installation Options
Welcome!
We greatly appreciate your purchase of the CN5102US. We are
sure you will find it reliable and simple to use. Superior
performance for the right price, backed by solid technical and
customer support is what Altinex has to offer.
We are committed to providing our customers with Signal
Management Solutions®to the most demanding audiovisual
installations at competitive pricing and we welcome you to join the
ranks of our many satisfied customers throughout the world.
1. Precautions and Safety Warnings
Please read this manual carefully before using your CN5102US.
Keep this manual handy for future reference. These safety
instructions are to ensure the long life of your CN5102US and to
prevent fire and shock hazards. Please read them carefully and
heed all warnings.
1.1 General
•There are no user serviceable parts inside. Qualified Altinex
service personnel must perform all service.
1.2 Handling
•To prevent fire or shock, do not expose this unit to water or
moisture. Do not place the CN5102US in direct sunlight, near
heaters, or heat-radiating appliances, or near any liquid.
Exposure to direct sunlight, smoke, or steam can harm
internal components.
•Handle the unit carefully. Dropping or jarring can cause
damage.
•Do not pull any cables that are attached to the CN5102US.
•Do not place heavy objects on top of the CN5102US.
1.3 Cleaning
•Unplug the CN5102US before cleaning.
•Clean only with a dry cloth. Never use strong detergents or
solvents such as alcohol or thinner. Do not use a wet cloth or
water to clean the unit. Do not open the unit to clean.
1.4 FCC Notice
•This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
•This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with
instructions found herein, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
•Any changes or modifications to the unit not expressly
approved by Altinex, Inc. could void the user’s authority to
operate the equipment.
2. Installation Procedures
The CN5102US can be installed inside a Cable-Nook Jr. or into furniture horizontally or vertically as
shown. Typically, furniture units are installed in a tabletop, but can be installed inside a desk or podium.
Note: Download and read the entire online manual to become familiar with the CN5102US.
Step 1. Locate the best position for the CN5102US.
Step 2. If installing in furniture, prepare the cutout for the table.
Warning: Altinex recommends using an experienced professional to make the table cutout.
This ensures accuracy and aesthetically pleasing results.
Step 3. Install the CN5102US into the Cable-Nook Jr. opening or tabletop.
Tabletop: Route the power cord down through the opening in the tabletop. Fasten the
CN5102US to the surface using the appropriate screws.
Cable-Nook Jr.: Route the power cord down through the opening in the Cable-Nook Jr. Fasten the
CN5102US to the surface using the 4 screws provided with the unit. The
CN5102US requires 5 hole sets of the 13 total hole sets available in the
Cable-Nook Jr.
3. Limited Warranty/Return Policies
Please see the Altinex website at www.altinex.com for details on warranty and return policies.

CN5102US User’s Guide
400-0568-002
2
4. Technical Specifications
Specifications are subject to change. See www.altinex.com for up-to-date information.
Features/Description
CN5102US
Pass-Through AC Power
9-10 ft (2.7 to 3.0 m)
120 VAC, 60 Hz, 12 A
NEMA F (2)
NEMA M (1)
Compatibility
Cable-Nook Jr. Series
Requires 5 hole sets *
Agency Approvals
UL Listed
File E254082
Safety
UL, CUL
Accessories Included
Hardware
Mounting screws
Table 1. CN5102US General
Mechanical
CN5102US
Material/Color
0.062 in AL, Black
Height (face plate)
3.466 in (88.0 mm)
Height (body only)
2.396 in (60.9 mm)
Width
1.21 in (30.7 mm)
Depth **
1.75 in (44.5 mm)
Net Weights
1.3 lb (0.59 kg)
Shipping Weights
(approximate)
2.0 lb (0.9 kg)
TOperating
10C-35C
TMaximum
50C
Humidity
90non-condensing
Table 2. CN5102US Mechanical
Electrical
CN5102US
Pass-Through AC
(total through both receptacles)
1440 W max.
Table 3. CN5102US Electrical
** Dimension does NOT include the face plate thickness or
the power cord and strain relief outside of enclosure.
Strain relief extends approximately 1.1 in (28 mm) outside
edge of enclosure and does not include bend radius of
power cord.
*The Cable-Nook has a total of 13 hole sets for custom
modules.

CN5102US User’s Guide
400-0568-002
2
5. About Your CN5102US
•UL Listed for US and Canada
•12A load capacity
•Compact and easy to install
•Two standard AC power outlets for U.S. , Canada , Mexico, or Japan
•Comes with 9 ft (3 m) cable terminated with a single male plug
•Covers 5-screw hole sets of the Cable-Nook Jr.
The Altinex CN5102US Dual AC Power Module is designed for use inside Altinex's Cable-Nook Jr. series of interconnect boxes but can
also be installed directly into furniture. The Cable-Nook Jr. is designed for boardrooms and conference rooms where it provides a
simple and effective means of hiding/storing multimedia cables and connectors. The cables remain connected to a presentation system
enabling the user to access connections to video, audio, and other media sources. The modular Cable-Nook Jr. uses a half-moon lid
that remains flush with the table when not in use.
The CN5102US module provides safe, ample AC power for users to power laptops, projectors, or other presentation equipment.
To access the CN5102US power module inside the Cable-Nook Jr., simply lift the door and plug in to the AC receptacles the same as
any other AC power outlet. The lid closes easily even with several cables in use.

CN5102US User’s Guide
400-0568-002
3
6. Application Diagrams
Diagram 1: Typical Setup

CN5102US User’s Guide
400-0568-002
4

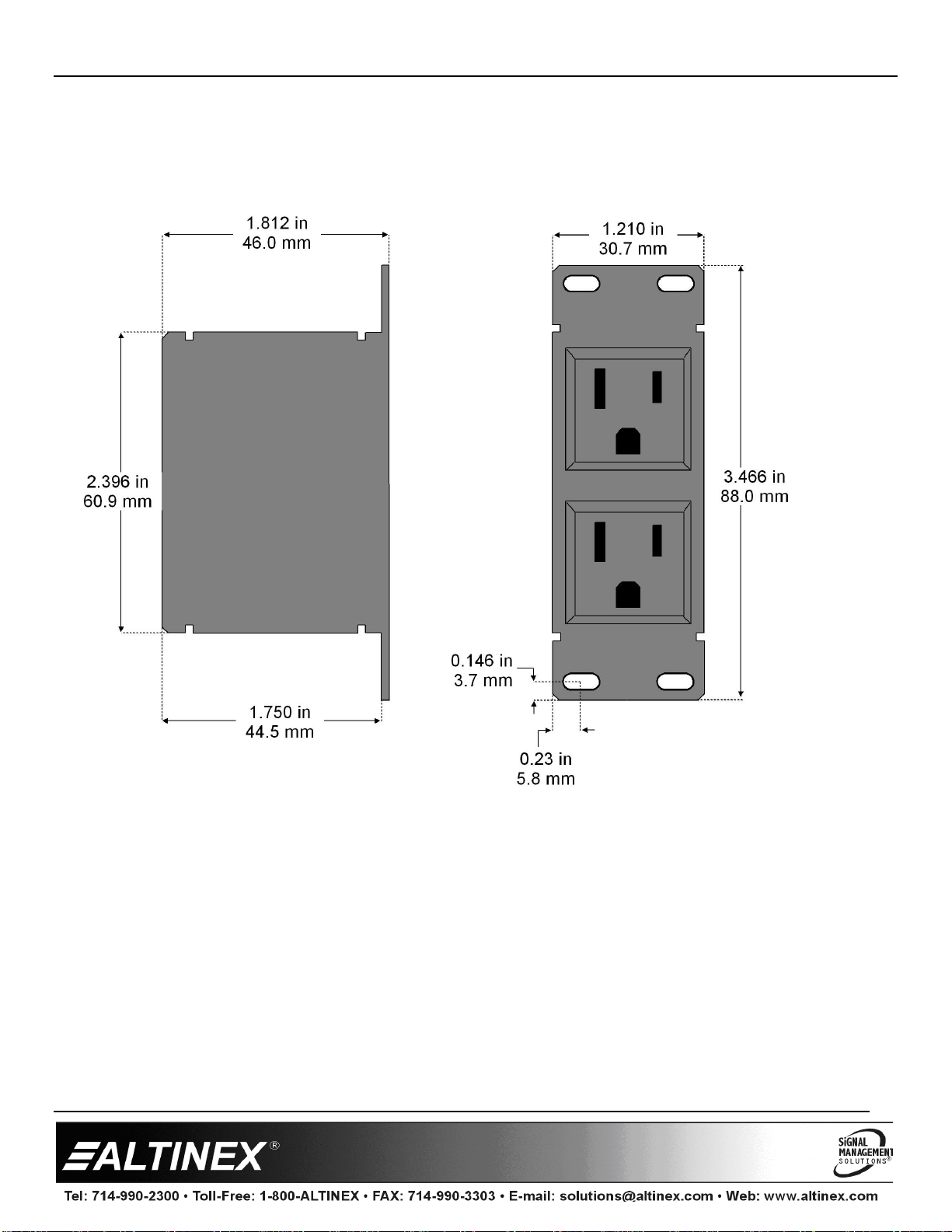

Diagram 2: Dimensions

CN5102US User’s Guide
400-0568-002
5
7. Operation
The CN5102US requires no adjustments for optimum performance.
Once installed, the CN5102US will work trouble-free without user intervention.
8. Troubleshooting Guide
We have carefully tested and found no problems in the supplied CN5102US; however, if you experience any problems or have
questions, call Altinex at [phone].
