Features
The SPECTRA SERIES LED lighting xtures are the rst of its kind in the Theatrical and Architectural Lighting
Industry oered by Altman Lighting.
• Compatible with DMX512 and RDM protocols.
• 8/16 bit DMX512 control for smoother dimming.
• On board power supply, microprocessor controller, and current drivers.
• Feed thru DMX/RDM data with a maximum total run of 1000 feet.
• Push button addressing.
• Stand-Alone Pre-programmed modes.
• Keypad Lock functions to prevent accidental Re-Programming.
• Ecient cooling system oering Silent Operation with No Fans.
WARNING: ALL ELECTRICAL WIRING AND CONNECTIONS SHOULD BE PERFORMED BY A QUALIFIED
ELECTRICIAN

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
5

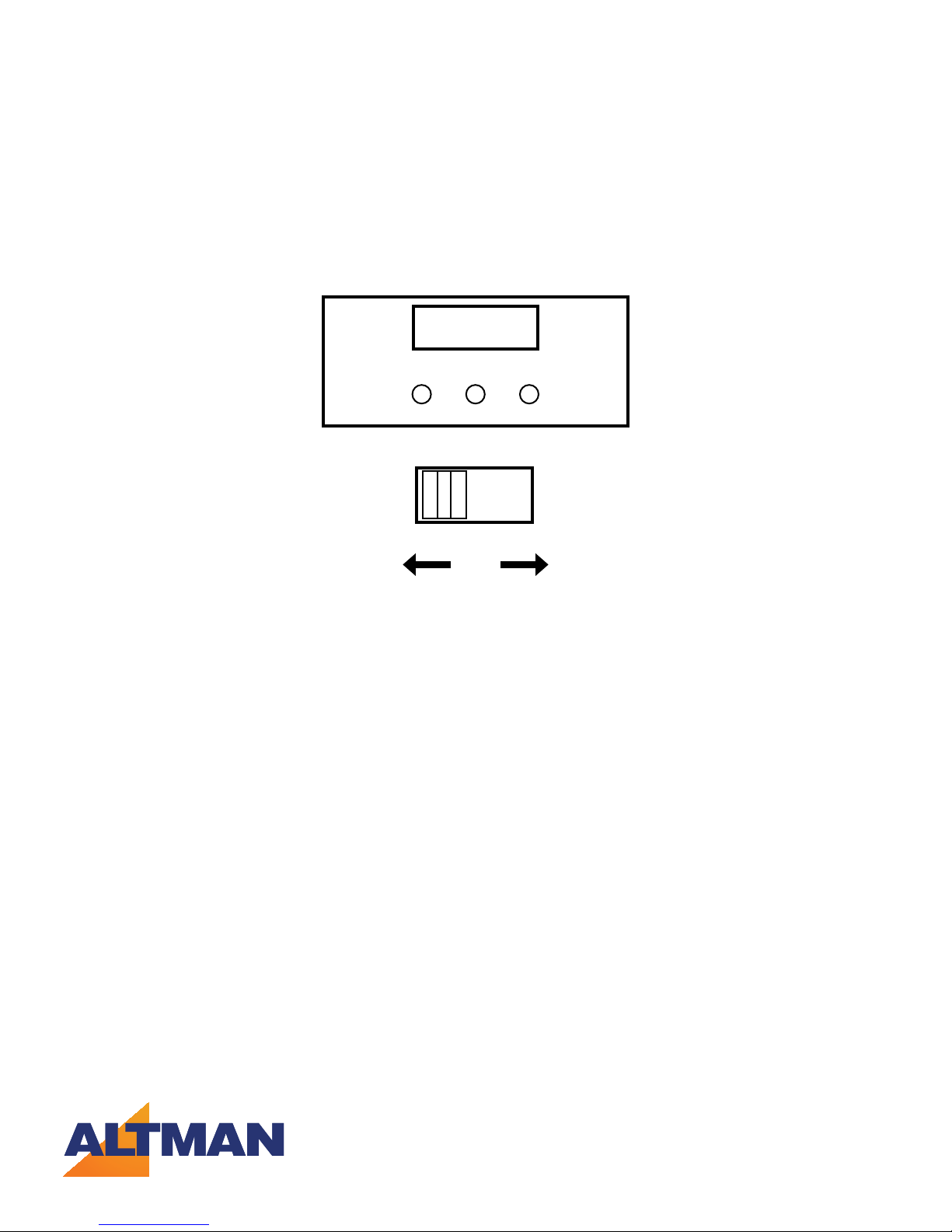

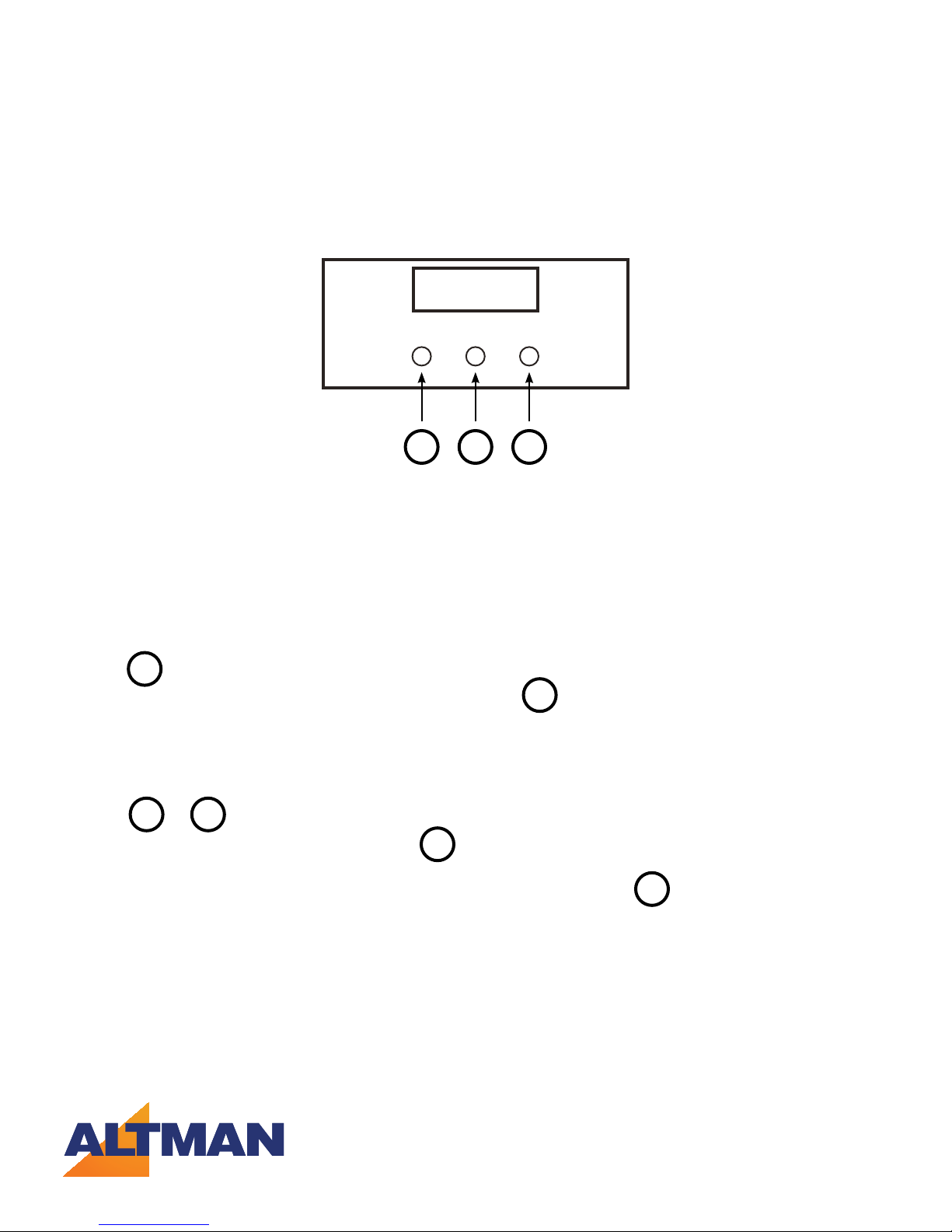

There are 3 buttons below the 3 digit LED display on the side of the unit. The buttons are : (From left to right)
( Firmware Version: V2.3.6)
OPERATION
There are 3 main operating Modes: DMX, Fixed Color, and Locked.
All settings for Modes, DMX address, Personalities, etc., can be made by using the three buttons on the back
of the unit while power is on.
(Note: Display goes out after no activity for approx 4 sec. Touch any button once to bring it back on.)
[ HUNDREDS ] , [ TENS ] , [ ONES ].

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
6
DMX Mode:
DMX Mode is used for Setting DMX address, Personalities, and Stand-alone Eects. This is the default mode
for a new unit. (Also see Fixed Color Mode section on page 9.)
To Switch to DMX Mode from Fixed Color Mode (or vice versa ) :
Wait a few seconds until the display goes blank,
• press and hold the [ ONES ] button
• press and hold the [ TENS ] button
• release the [ ONES ] button
• release the [ TENS ] button.
PERSONALITIES:
There are 8 dierent personalities.
Each personality is made up of 3 settings: RESOLUTION (8 Bit /16 Bit), MASTER (On /O), and SMOOTHING
(On/O) which are explained in greater detail below.
The current active Personality # is displayed for about 1 second during power up. The format is Pxx where xx
is replaced by the active personality #01-08.
To set the desired Personality, you must be in DMX mode (not Fixed Color mode).
To select the personality:
• Press the buttons until the desired personality address 601-608) appears in the display (see list below).
• Wait a few seconds, and a conrmation display will appear that shows a question mark? on the left,
followed by the personality #. This gives you an opportunity to either accept or reject the new setting.
• To accept the new personality, press the [ ONES ] button.
• To reject the new personality, press the [HUNDREDS] button (below the ? ).
Once the new personality is accepted, it is entered into memory and retained even if power is disconnected.
Once personality is either accepted or rejected, the display will go back to the current DMX address. The
default personality for a new unit is #02.
EXAMPLE: Let's say that we want to select personality #05. We enter 605 on the display.
After a few seconds the display will show ?05 . Since we want this, we press the [ONES] button
(below the 5 ), and that enters personality #05 into memory.
To set, press the buttons repeatedly (or hold) to count up until the desired DMX address (1-512), appears on
the display. Wait a few seconds, the display will blink once quickly, and the address is set live and retained in
memory, even if you remove power.
(RDM addressing sent from a remote unit will overwrite local DMX setting.)
DMX ADDRESS

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
7
PERSONALITY ADDRESS SETTINGS LIST
609-612: 1-COLOR CHANNELS
609 Personality #09 8 bit Smoothing OFF
Uses 1 DMX Channel
610 Personality #10 8 bit Smoothing ON
Uses 1 DMX Channel
611 Personality #11 16 bit Smoothing OFF
Uses 2 DMX Channels
612 Personality #12 16 bit Smoothing ON
Uses 2 DMX Channels
601 Personality #01 8 bit Master OFF Smoothing OFF
Uses 4 DMX Channels Channel order is RGBA
602 Personality #02 8 bit Master OFF Smoothing ON
Uses 4 DMX Channels Channel order is RGBA
603 Personality #03 8 bit Master ON Smoothing OFF
Uses 5 DMX Channels Channel order is RGBAM
604 Personality #04 8 bit Master ON Smoothing ON
Uses 5 DMX Channels Channels order is RGBAM
605 Personality #05 16 bit Master OFF Smoothing OFF
Uses 8 DMX Channels Channel order is RrGgBbAa
606 Personality #06 16 bit Master OFF Smoothing ON
Uses 8 DMX Channels Channel order is RrGgBbAa
607 Personality #07 16 bit Master ON Smoothing OFF
Uses 10 DMX Channels Channel order is RrGgBbAaMm
608 Personality #08 16 bit Master ON Smoothing ON
Uses 10 DMX Channels Channel order is RrGgBbAaMm
601-608: 4-COLOR CHANNELS:

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
8
RESOLUTION is selectable as either:
8 Bit (one DMX channel per color) this is normal resolution,
or
16 Bit (two DMX channels per color) Coarse+Fine high resolution similar to moving lights.
If unit is in 8 Bit mode, and the unit is set to DMX Channel 001, then the DMX channels would be:
CH1 Red
CH2 Green
CH3 Blue
CH4 Amber*
If unit is in 16 Bit Mode, and the unit was set to DMX Channel 001, then the DMX channels would be:
CH1 Red Coarse CH2 Red Fine
CH3 Green Coarse CH4 Green Fine
CH5 Blue Coarse CH6 Blue Fine
CH7 Amber* Coarse CH8 Amber* Fine
Master Channel is selectable as ON or OFF and provides a Master fade channel that dims
all 4 colors proportionally at the same time in order to maintain the color .
If you are in 8 Bit mode and the unit is set to DMX Channel 001, then the DMX channels would be:
CH1 Red
CH2 Green
CH3 Blue
CH4 Amber*
CH5 Master
If you are in 16 Bit mode and the unit is set to DMX Channel 001, then the DMX channels would be:
CH1 Red Coarse CH2 Red Fine
CH3 Green Coarse CH4 Green Fine
CH5 Blue Coarse CH6 Blue Fine
CH7 Amber* Coarse CH8 Amber* Fine
CH9 Master Coarse Ch10 Master Fine
SMOOTHING is selectable as ON or OFF and provides a smooth transition ramp from one level to
another in a similar way to how an incandescent lamp behaves. This helps to eliminate the "steppiness"
associated with LED xtures that is caused by the instantaneous response of LEDs.
*Amber if RGBA, or White if RGBW

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
9
STAND-ALONE MODE (does not require a control console):
Note: Must be in DMX Mode (see page 6). If Master Mode (see page 10) is on, stand-alone eects from a
single unit will control other units connected via DMX cable to all synchronize. Set other units to DMX
channel 001.
(Do not use the Stand-Alone Eects while connected to a control console or a conict may result.)
Color Fades (700-799):
700 - 709 R»A»G»B fade 700 = faster -709 = slower
740 - 749 B»G»A»R fade 740 = faster -749 = slower
780 - 789 R»A»G»B»W fade 780 = faster -789 = slower
790 - 799 W»B»G»A»R fade 790 = faster -799 = slower
Strobes (800-879):
800 - 809 WHITE STROBE 800 = faster - 809 = slower
810 - 819 RED STROBE 810 = faster - 819 = slower
820 - 829 AMBER STROBE 820 = faster - 829 = slower
830 - 839 GREEN STROBE 830 = faster - 839 = slower
840 - 849 BLUE STROBE 840 = faster - 849 = slower
850 - 858 R-A-G-B RAINBOW STROBE 850 = faster - 859 = slower
870 - 879 B-G-A-R RAINBOW STROBE 870 = faster - 879 = slower

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
10
FIXED COLOR MODE:
This is a special mode that allows you to manually select colors for a single unit using the 3 keys. (Also see
DMX Mode on page 6.)
To enter Fixed Color Mode (or exit to DMX Mode) :
Wait a few seconds until the display goes blank,
1. press and hold the [ ONES ] button
2. press and hold the [ TENS ] button
3. release the [ ONES ] button
4. release the [ TENS ] button
While in Fixed Color Mode, the hundreds button cycles through 'r', 'G', 'b', and 'A' colors . The tens and ones
digits select 0-99 values. Level 99 is that channel at full.
Locked Mode:
To Lock (or unlock) the buttons:
Wait a few seconds until the display goes blank,
1. press and hold the [ ONES ] button
2. press and hold the [ HUNDREDS ] button
3. release the [ ONES ] button
4. release the [ HUNDREDS ] button.
Display will show Loc for a moment and then blink. Buttons will ave no eect until they are unlocked.

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
11
MASTER MODE ( Dierent than the Master Channel described on page 7.)
Master Mode only works while in STAND-ALONE EFFECTS MODE (see page 8). It causes the unit that is
set to Master Mode to behave like a console and Transmit 4-channel (RGBA) 8-bit DMX set on address 001,
reecting its present light output.
Note: Only the rst unit that is going to serve as the MASTER xture should be set to Stand-alone Eects
mode with Master Mode on. Stand-alone Eects Mode with Master Mode on should also not be used while
units are connected to a DMX console. All xtures following the Master xture should be set with the Master
Mode OFF, for Normal Operation.
To Turn on MASTER MODE:
To Turn othe MASTER MODE:
1. Place xture in Stand-alone Mode (see page 8)
2. Wait a few seconds until the display goes blank
3. Press and hold the [ HUNDREDS ] button
4. Press and hold the [ ONES ] button
5. Release the [ HUNDREDS ] button
6. Release the [ ONES ] button
7. Display will show ON for a moment to indicate new setting and then blink.
8. Address remaining xtures connected to the MASTER xture to DMX address 001
Wait a few seconds until the display goes blank
Press and hold the [ HUNDREDS ] button
Press and hold the [ ONES ] button
Release the [ HUNDREDS ] button
Release the [ ONES ] button
Display will show OFF for a moment to indicate new setting and then blink.

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
12
SLAVE MASTER
MASTER and SLAVE modes refer to the origin of the control signal the xture is listening to.
SLAVE
• Putting the switch in the “Slave” position means the xture is listening to the incoming DMX signal.
• Also considered “Normal” operation.
MASTER
• Putting the switch in the Master position means the xture is NO LONGER listening to the incoming DMX
signal and has now become the source of DMX control information for all xture coming after it. The
Master xture will broadcast the pre-built show included in the xtures software that has been selected
by the user. All xtures coming after the Master xture should be set to Slave to receive the DMX signal
originated from the Master xture. This feature allows for rudimentary color changing capability without
the need of an outside DMX control device.
• Also considered Stand-alone operation.
Spectra Strip Operation

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
13
M - +
M
M
M
M
Pressing
• Shows the current mode or the next menu item; use the button to browse menus and settings
without making any changes
• Saves a changed value
• Turns othe display at the last menu item
Pressing or
• Changes a value (which is only saved when is pressed).
• Accidentally changed a value but haven’t conrmed it yet by pressing ? By refraining from
pressing the buttons for at least 8 seconds, you will leave the ,menu (display is turned o) without
changing the value.
• If you are in a menu and want to change to another menu, refrain from pressing the buttons for at least 8
seconds (display is turned o), and subsequently press the button combination for the menu you want
to change to.
-+
Menu Navigation

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
14
M
-+
DMX Mode:
Set/read the DMX start address of the xture
Change network resolution to 8 or 16 bit
Select the interpolation mode
Show Mode:
• Selecting one of the 8 pre-programmed shows
• Change the speed of the selected show
• Turn Chase on or o
Note: When the Spectra Strip is in Show Mode, the xture will not respond
to any incoming DMX signal!
Select Preset
Select one of the pre-programmed presets: Concert or Theater:
CON1-CON6: Concert Mode.
• Concert mode groups individual LED Cells into groups. CON1 is
all LED cells responding to channels 1-4(RGBA). CON6 is each cell
responding to channels 1-48(RGBA).
THE1-THE6: Theater Mode
• Theater Mode groups cell by traditional border light 3 circuit / 4
circuit emulation.
Set Intensity:
• Sets the maximum intensity for the xture.
• Default is 255 or maximum intensity.
Dimming Curve*:
Selects the output dimming curve. Options are:
• LIN - Linear
• LOG - Logarithmic
• SQUA - Square
Default is LOG
Control Mode Selection
Preset Selection
To operate the Spectra Strip, one of two control modes must be selected: DMX Mode or Show Mode (also
known as Stand-alone mode).
Spectra Strip Presets govern the operation of the xture including how each cell responds, the maximum
intensity the xture will output and the dimming curve the xture will operate with.
Hold for 5 sec.
MODE SELECTION
PRESET SELECTION
Display o
Display o
M+
+
DMX
SHOW
SETMODE
PRESETS
INTENSITY
DIMCURV
CON1
CON2
CON3
CON4
CON5
CON6
THE1
THE2
THE3
THE4
THE5
THE6
-+
0 » 255
-+
LIN
LOG
SQUA
-+
M
M
M
M

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
15
Select DMX start address
• This is the start address of the rst output of the xture.
• Total amount of addresses per xture depends on xture
conguration and number of cells.
• Default address is 1.
Select network resolution:
• Change between 8 and 16 bit resolution.
• Using 16 bit gives you 2 addresses per output: Address 1 - Coarse,
Address 2 - Fine.
Interpolation modes:
To get the mose optimized dimming performance for dierent
applications. Default is COLR.
Select Show:
Select one of the pre-programmed shows
• 1 - Static, all outputs 100%
• 2 - Static, R 100%
• 3 - Static, G 100%
• 4 - Static, B 100%
• 5 - Static, A 100%
• 6 - RGB color change
• 7- RGBA color change
• 8 - RGB+A color shift
• 9 - All outputs o
Default is show 1
Set speed:
• Set the show speed between -99 and 99.
• Default is 0
Enable Chase mode:
• Selects the show chasing mode for more dynamic eects.
• Default is OFF
DMX Mode parameter selection
SHOW Mode parameter selection
Conguration of the operation of the Spectra Strip while in DMX mode, responding to a DMX control signal.
Conguration of xture operation while operating as a Stand-alone xture or Master xture.
While in DMX MODE
DMX ADDR
SHOW
NETWRES
SPD
INTERPOL
CHAS
-+
-+
-+
-+
-+
-+
M
M
M
M
M
M
0 » 512
1 » 9
-99 » 99
8 bit
16 bit
OFF
VID
COLR
WHIT
GLOW
OFF
ON
Display o
Display o
M
M
While in SHOW MODE

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
16
Select Lock level:
Soft: Disables menu operation until UNLOCK is applied.
Hard: Disables menu operation until FACTORY RESET is applied
NOTE: Only activate the hard lock after careful consideration: once you
have hard-locked the xture you can ONLY reset the xture to its factory
default setting.
Select Lock level:
Soft: Disables menu operation until UNLOCK is applied.
Hard: Disables menu operation until FACTORY RESET is applied
NOTE: Only activate the hard lock after careful consideration: once you
have hard-locked the xture you can ONLY reset the xture to its factory
default setting.
Fixture LOCK
Fixture unLOCK
Fixture test Reset to factory defaults
Disabling of the menu while xture is in operation.
Re-enabling of the menu while xture is in operation.
Individual testing of channels Rests xture to factory default values
LOCK
UNLOCK
TEST RESET
PRESMENU
-+
-+
Lock
Unlock
Test Reset to Factory Default
M+
+
M+
+
Display o
Display o
Display o
Display o
M
M
M
NO
SOFT
HARD
YES
NO
for 5 sec.
for 5 sec.
M+
+-+for 5 sec.
M+
+-+
R
G
B
A
RGBA
R
G
B
A
RGBA
1
1
1
1
1
1
1
1
1
1
sec.
sec.
sec.
sec.
sec.
sec.
sec.
sec.
sec.
sec.

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
17
PRESET CONFIGURATIONS FOR FIXTURES
Control conguration for each Preset setting per xture.
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
2’ SPECTRA STRIP
Concert 1
Concert 2
Concert 1
Concert 2
Concert 3
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
A
A
A
A
A
A
A
A
B
B
B
B
C
C
C
C
B
B
B
B
D
D
D
D
4’ SPECTRA STRIP
Concert 1
Concert 4
Theater 2
Concert 2
Concert 5
Theater 3
Concert 3
Theater 1
Concert 6
Theater 4
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
A
A
A
A
B
B
A
A
A
A
A
A
B
B
A
A
C
C
C
C
E
E
C
C
B
B
B
B
C
C
C
C
F
F
C
C
A
A
A
A
C
C
A
A
E
E
B
B
I
I
E
E
D
D
B
B
E
E
B
B
J
J
E
E
A
A
A
A
A
A
A
A
A
A
B
B
A
A
A
A
A
A
C
C
A
A
A
A
A
A
A
A
A
A
C
C
B
B
B
B
C
C
B
B
B
B
D
D
B
B
B
B
D
D
B
B
A
A
A
A
C
C
C
C
D
D
A
A
G
G
D
D
C
C
D
D
D
D
A
A
H
H
D
D
A
A
A
A
D
D
C
C
F
F
C
C
K
K
F
F
D
D
D
D
F
F
C
C
L
L
F
F
A
A
A
A
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
C
C
C
A
A
B
B
B
B
B
B
B
B
B
B
A
A
B
B
B
B
C
C
B
B
C
C
C
C
6’ SPECTRA STRIP

Lighting
BRINGING IMAGINATION TO LIGHT
Lighting
BRINGING IMAGINATION TO LIGHT
ManualOPERATION
Spectra Series
57 Alexander St., Yonkers, NY 10701 Tel: [phone] Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
18
Interpolation Curves
