Alto-Shaam ASC-2E8 ASC-4E Original operating instructions

W164 N9221 Wa er S ree • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: [phone] • 800.558.8744 USA/CANADA FAX: [phone] • 800.329.8744 U.S.A.ONLY
www.alto-s aam.com
Model:
ASC-2E
ASC-4E
Manual
Control
C o n v e c t i o n O v e n
E l e c t r i c
• I N STALLATION
• OPERATION
• MAI NTE NANC E
MN-28666 • 02/10
P R I N T E D I N U .S.A.
ASC-2E
WITH
Mobile Stand Option 5004687
ASC-4E
WITH
Stand Option 5003489

i
Delivery..................................1
Unpacking................................1
Safety Procedures and Precautions . . . . . . . . . . . . 2
Insta ation
SiteInstallation..........................3
Clearance Requirements . . . . . . . . . . . . . . . . . . 3
DimensionDrawings......................4
Installation Requirements . . . . . . . . . . . . . . . . . . 5
Leveling...............................5
Restraint Requirements . . . . . . . . . . . . . . . . . . . 6
Elecrtical Connection . . . . . . . . . . . . . . . . . . . . . 7
Stacking Instructions . . . . . . . . . . . . . . . . . . . . 8-9
Oven Stand Assembly Option . . . . . . . . . . . . . . 10
Operating Instructions
User Safety Information . . . . . . . . . . . . . . . . . . 11
Start-UpOperation......................11
Capacity..............................11
Options & Accessories . . . . . . . . . . . . . . . . . . . 11
Pan/Shelf Postioning . . . . . . . . . . . . . . . . . . . . 12
Electronic Control Operation and Features . . . . 13
Cooking Guidelines . . . . . . . . . . . . . . . . . . . . . 14
Care and C eaning
Cleaning and Preventative aintenance. . . . . . 15
Protecting Stainless Steel Surfaces . . . . . . . . . 15
CleaningAgents........................15
Cleaning aterials......................15
EquipmentCare........................16
CleanDaily............................16
Exterior...............................17
otorCare............................17
Service
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . 17
Full Assembly View (ASC-2E) . . . . . . . . . . . . . . 18
Electrical (ASC-2E).....................19
RearPanel(ASC-2E)....................20
Full Assembly View (ASC-4E) . . . . . . . . . . . . . . 21
Interior Oven Compartment View (ASC-4E) . . . 22
Electrical View (ASC-4E) . . . . . . . . . . . . . . . . . 23
RearPanel(ASC-4E)....................24
ServicePartsList.......................25
Wire Diagrams
ASC-2E, anual, 1PH, 208/240V . . . . . . . . . . . 26
ASC-2E, anual, 3PH, 208/240V . . . . . . . . . . . 27
ASC-4E, anual, 1PH, 208/240V . . . . . . . . . . . 28
ASC-4E, anual, 3PH, 208/240V . . . . . . . . . . . 29
ASC-4E, anual, 3PH, 440-480V . . . . . . . . . . . 30
Warranty
Transportation Damage and Claims . . Back Cover
Limited Warranty . . . . . . . . . . . . . . . . Back Cover

D E L I V E R Y
This Alto-Shaa appliance has been
thoroughly tested and inspected to ensure only the
highest quality unit is provided. Upon receipt,
check for any possible shipping da age and report
it at once to the delivering carrier. See
Transportation Damage and Claims section
located in this manual.
This appliance, co plete with unattached
ite s and accessories, ay have been delivered in
one or ore packages. Check to ensure that all
standard ite s and options have been received
with each odel as ordered.
Save all the infor ation and instructions
packed with the appliance. Co plete and return
the warranty card to the factory as soon as
possible to ensure pro pt service in the event of a
warranty parts and labor clai .
This anual ust be read and understood by
all people using or installing the equip ent
odel. Contact the Alto-Shaa service
depart ent if you have any questions concerning
installation, operation, or aintenance.
NOTE: All clai s for warranty ust include the
full odel nu ber and serial nu ber of
the unit.
U N P A C K I N G
1. Carefully re ove the
appliance fro the
carton or crate.
NOTE: Do not discard the
carton and other
packaging aterial
until you have
inspected the unit
for hidden da age
and tested it for
proper operation.
2. Read all instructions in this anual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This anual is considered to be part of the
appliance and is to be provided to the owner or
anager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
service department.
3. Re ove all protective plastic fil , packaging
aterials, and accessories fro the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 1

1. This appliance is intended to cook, hold or
process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are familiar
with the purpose, limitations, and associated
hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by ualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
N O T E : Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
C A U T I O N
Used to indicate the presence of a hazard that can
or will cause minor personal injur , propert
damage, or a potential unsafe practice if the
warning included with this s mbol is ignored.
C A U T I O N
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injur or propert
damage if the warning included with
this s mbol is ignored.
D A N G E R
Used to indicate the presence of a
hazard that WILL cause severe
personal injur , death, or substantial
propert damage if the warning
included with this s mbol is ignored.
W A R N I N G
Used to indicate the presence of a
hazard that CAN cause personal injur ,
possible death, or major propert
damage if the warning included with
this s mbol is ignored.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
e uipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
N O T E
For equipment de ivered for use
in any ocation regu ated by the
fo owing directive:
DO NOT DISPOSE OF ELECTRICAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 2

D A N G E R
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
C A U T I O N
DO NOT LIFT OR MOVE THE
OVEN BY USING THE DOORS
OR THE DOOR HANDLES.
C A U T I O N
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
D A N G E R
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
SITE INSTALLATION
The Alto-Shaam convection
oven must be installed in a
location that will permit the
oven to function for its
intended purpose and to allow
adequate clearance for
ventilation, proper cleaning,
and maintenance.
1. Hood installation is recommended.
(CHEC LOCAL CODES).
2. The oven must be installed on a stable and
level surface.
3. D N T install this oven in any area where it may be
affected by any adverse conditions such as steam,
grease, dripping water, high temperatures, etc.
4. D N T store or use any flammable liquids or
allow flammable vapors in the vicinity of this
oven or any other appliance.
5. This appliance must be kept free and clear of any
combustible materials.
6. This appliance must be kept free and clear of
any obstructions blocking access for maintenance
or service.
®

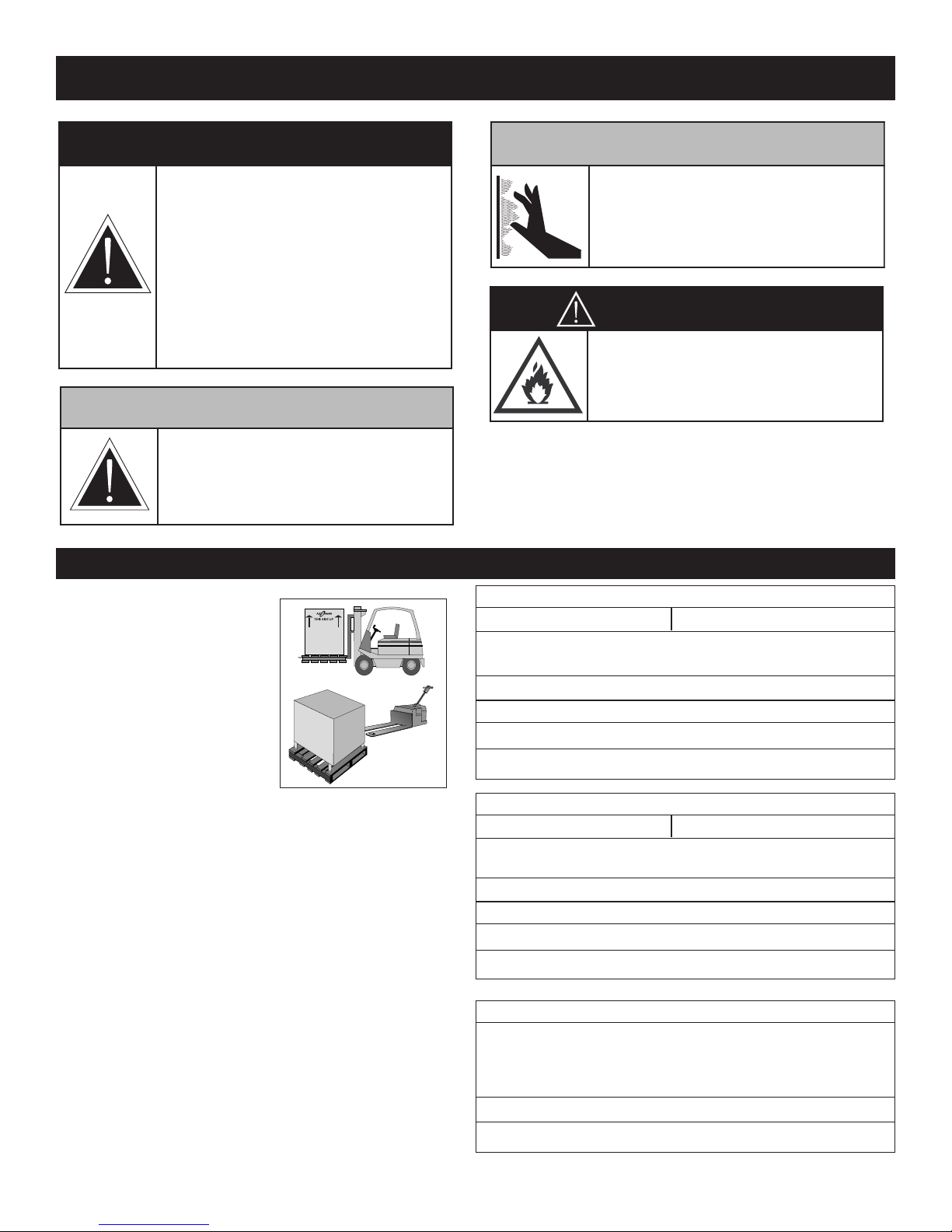

A S C - 2 E • W E I G H T
NET:250 lb (113 kg) EST.SHIP:325 lb ( 147 kg) EST.
CRATE 44" H X42" W X42" D
D I M E N S I N S :(1118mm x 1067mm x 1067mm)
MINIMUM ENTRY CLEARANCE 31" (787mm) UNCRATED
A S C - 2 E • D I M E N S I O N S H x W x D
EXTERI R: 32-1/8" x 30" x 30-1/8" (815mm x 762mm x 815mm)
INTERI R: 20" x 15" x 21" (508mm x 381mm x 533mm)
A S C - 4 E • W E I G H T
NET:393 lb (178 kg) EST.SHIP:438 lb ( 199 kg)
CRATE 40" H X44" W X53" D
D I M E N S I N S :(1016mm x 1118mm x 1346mm)
MIN.ENTRY CLEARANCE 31-1/2" (800mm) UNCRATED W/O LEGS
A S C - 4 E • D I M E N S I O N S H x W x D
EXTERI R: 57-1/2" x 38" x 44-1/2" (1461mm x 965mm x 1130mm)
INTERI R: 24" x 29-1/8" x 25" (610mm x 740mm x 635mm)
M I N I M U M C L E A R A N C E R E Q U I R E M E N T S
BACK 0" (0mm)
LEFT SIDE 2" (51mm)
RIGHT SIDE 2" (51mm)
FROM GREASE PRODUCING EQUIPMENT 6" (152mm)
RECOMMENDED SERVICE ACCESS:20" (508mm) RIGHT SIDE
INSTALLATION
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 3

30-5/8" (778mm)
8" (203mm)
CAVITY VENT
ELECTRICAL
INLET
3-5/32"
(80,1mm)
9-15/16" (252mm)
ELECTRICAL ENTRANCE
123°
129°
29" (737mm)
CAVITY WIDTH
38" (965mm)
31-1/16" (789mm)
4" (102mm)
ELECTRICAL INLET
54-5/8" (1387mm)
44-1/2" (1130mm)
26-1/2" (672mm)
57-1/2" (1461mm)
33-5/16" (846mm)
30" (762mm)
28-3/16" (715mm)
3-15/16" (100mm)
32-1/8" (815mm)
3-3/8" (86mm)
23-1/4" (590mm)
4-11/16"
(119mm)
1"
(25mm)
21-1/8 (536mm)
3-1/4"
(83mm)
25-7/16 (646mm)
30-1/8" (815mm)
Exhaust Electrical
2" (51mm)
from bottom

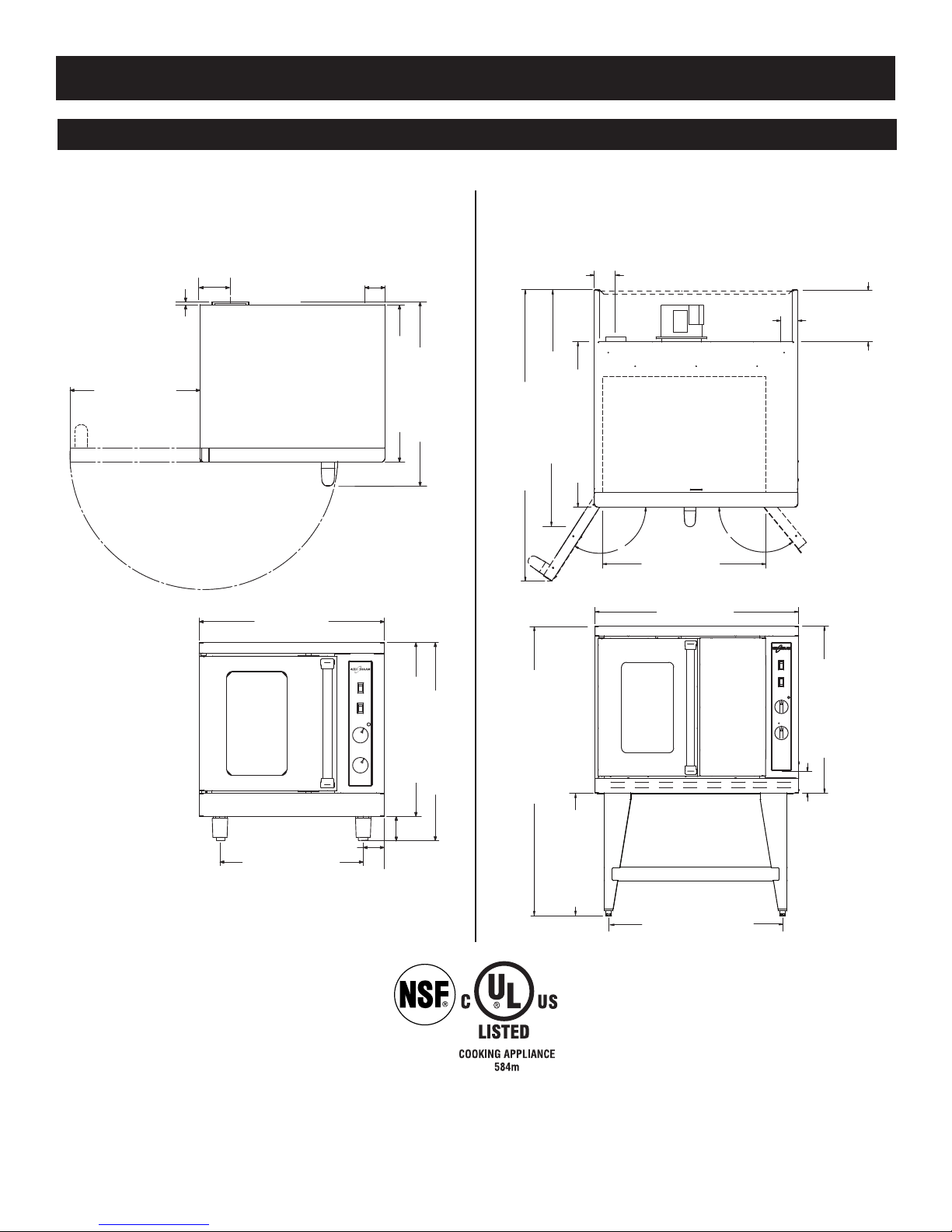

EXTERIOR DIMENSIONS
A S C - 2 E A S C - 4 E
I N S T A L L A T I O N
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 4

The oven must be mounted on the factory equipped
oven legs or on an optional oven stand. Installation
on a solid or concrete base that in any way restricts
air flow may void the warranty.
All clearances for a proper ventilation air supply
must be maintained to minimize fire hazard. Do
not locate the oven immediately adjacent to any
other heat-generating appliance.
A number of adjustments are associated with initial
installation and start-up. Adjustments must be
conducted by a qualified service technician.
Installation and start-up adjustments are the
responsibility of the dealer or user. These
adjustments include but are not limited to
thermostat calibration, door adjustment, leveling,
and gas pressure verification. The Platinum series
oven burners are factory-adjusted with fixed air
openings and require no field adjustment.
LEVELING
The oven should be leveled before the gas
supply is connected. Level the oven from side-to-
side and front-to-back with the use of a spirit level.
For ovens installed on a mobile stand, it is
important that the floor surface be level due to the
probability of frequent oven repositioning.
We recommend checking the level of the oven
periodically to make certain the floor has not
shifted nor the oven moved.
I N S T A L L A T I O N R E Q U I R E M E N T S
W A R N I N G
Inadequate ventilation, or failure to
ensure an adequate supply of fresh
air will result in a high ambient
temperature at the rear of the
appliance. An excessive ambient
temperature can cause the thermal-
overload protection device on the
blower motor to trip resulting in severe
damage to the blower motor.
C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
INSTALLATION
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 5
Where automatically operated appliances are vented
through a ventilating hood or exhaust system
equipped with a damper or with a power means of
exhaust, provisions shall be made to allow the
equipment to operate only when the damper is open
to a position to properly vent the appliance and
when the power means of exhaust is in operation.
ACCORDANCE WITH NFPA 54 C O M M O N W E A LT H O F
MASSACHUSETTS ONLY.

I N S T A L L A T I O N R E Q U I R E M E N T S

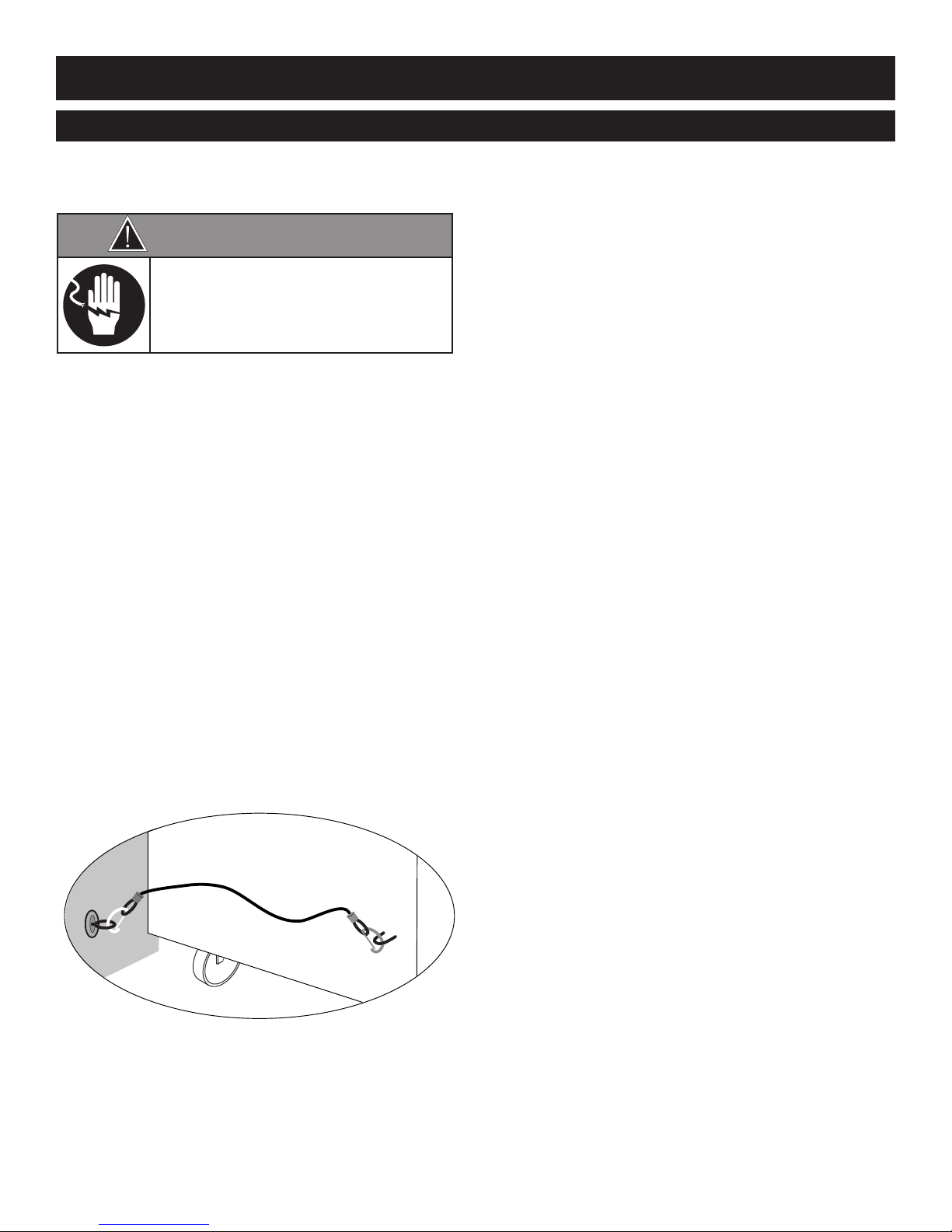

RESTRAINT REQUIREMENTS
—MOBILE EQUIPMENT
Any appliance that is not furnished with a power
supply cord but includes a set of casters must be
provided with a tether. Adequate means must be
provided to limit the movement of this appliance
without depending on or transmitting stress to the
electrical conduit. The following requirements apply:
1. Casters must be a maximum height of 6" (152mm).
2. Two of the casters must of be the locking type.
3. Such mobile appliances or appliances on mobile
stands must be installed with the use of a flexible
connector secured to the building structure.
A mounting connector for a restraining device
is located on the lower back flange of the appliance
chassis or on an oven stand, approximately
18" (457mm) from the floor. A flexible connector
is not supplied or available from the factory.
W A R N I N G
RISK OF ELECTRIC SHOCK.
Appliance must be secured
to building structure.
I N S T A L L A T I O N
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 6

xThe oven must be installed by a qualified
electrician. This appliance must be branch circuit
protected with proper ampacities, in accordance with
the wiring diagram located in this manual or in the
electrical compartment of the oven. The oven must
be properly grounded in accordance with the
National Electrical Code and applicable local codes.
Plug the unit into a properly grounded receptacle
ONLY, positioning the unit so that the plug is easily
accessible in case of an emergency. Arcing will occur
when connecting or disconnecting the unit unless all
controls are in the “off” position.
Proper receptacle or outlet configuration or
permanent wiring for this unit must be installed by a
licensed electrician in accordance with applicable
local electrical codes.
Wire size for the main incoming power to the
unit must match the minimum size listed in the
specifications applicable to the specific oven model.
For supply connections, locate the wire size posted
on the label located near the electric terminal block
behind the service panel or elsewhere listed in this
manual. Before attempting the electrical connection,
the rating plate should be checked to ensure that the
electrical characteristics of the appliance and the
electrical supply characteristics agree.
Installation of the wiring must be made in
accordance with U.L. 197 Commercial Electric
Cooking Appliance Standards, Local and/or
National Electrical Code, ANSI /NFPA 70-1990.
Service line entry is made through the rear of the
oven for connection to the terminal block. Remove
the service panel on the right side of the oven for
access to the terminal block.
The oven is wired at the factory for either single
phase or three phase service as indicated on the
original purchase order. Input voltage and phase
must match the voltage and phase of the oven.
Visually check all electrical connections.
ELECTRICAL CONNECTION
D A N G E R
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
D A N G E R
To avoid electrical shock, this
applia ce MUST be adequately
grou ded i accorda ce with local
electrical codes or, i the abse ce of
local codes, with the curre t editio
of the Natio al Electrical Code
ANSI/NFPA No. 70. I Ca ada, all
electrical co ectio s are to be
made i accorda ce with CSA C22.1,
Ca adia Electrical Code Part 1 or
local codes.
INSTALLATION
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 7
D A N G E R
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
E L E C T R I C A L • A S C - 2 E
VOLTAGE PHASE CYCLE/HZ AWG AMPS kW
208 (AGCY)1 60 10 24.0 5.0
240 (AGCY)1 60 10 20.8 5.0
208 (AGCY)3 60 12 13.8 5.0
240 (AGCY)3 60 12 12.0 5.0
N O C O R D A N D P L U G
E L E C T R I C A L • A S C - 4 E
VOLTAGE PHASE CYCLE/HZ AWG AMPS kW
208 (AGCY)1 60 6 50.0 10.4
240 (AGCY)1 60 6 43.3 10.4
208 (AGCY)3 60 8 28.8 10.4
240 (AGCY)3 60 8 25.0 10.4
480 (AGCY)3 60 8 12.5 10.4
N O C O R D A N D P L U G
Wire diagrams are located in the inside access panel of the unit

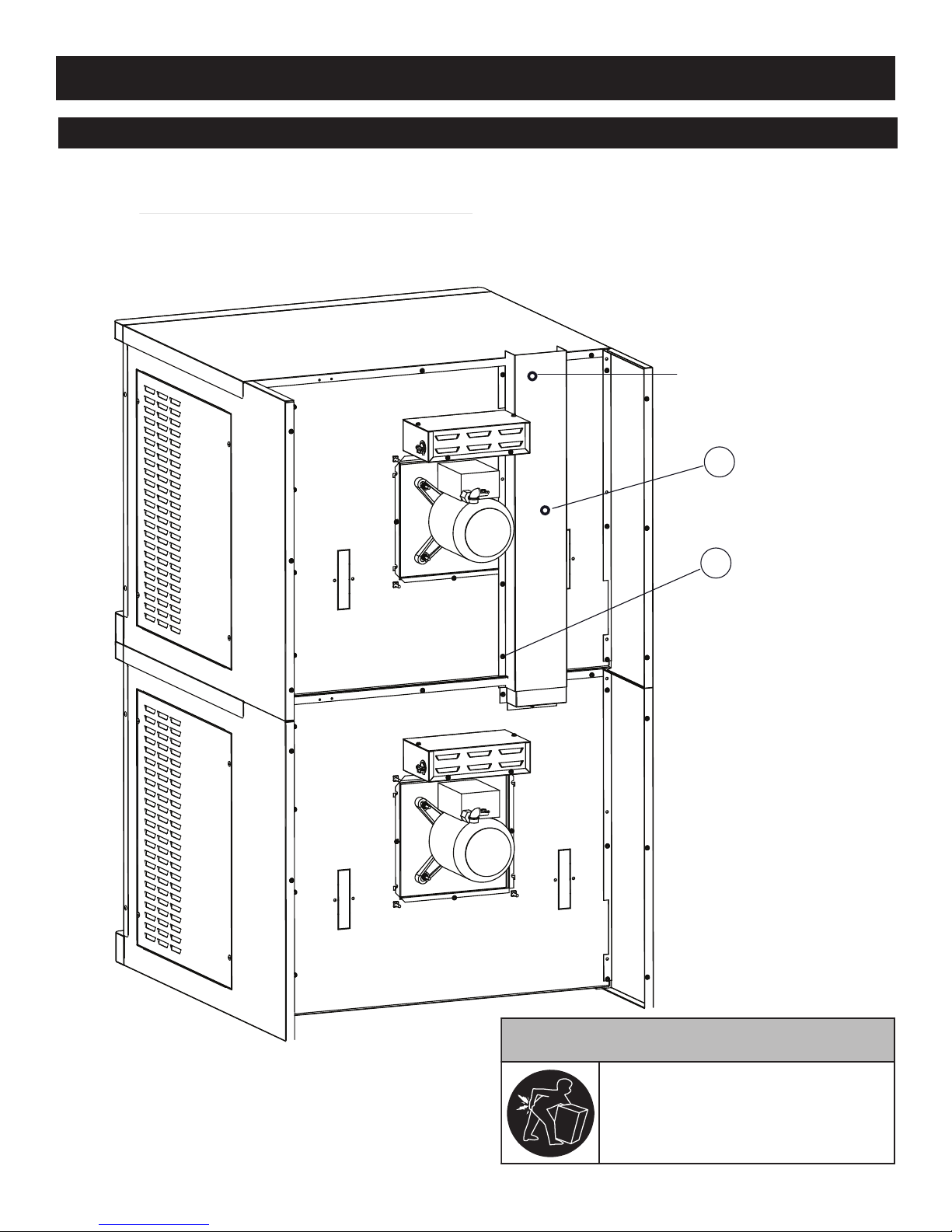

STACKING & VENTING ASSEMBLY for 2-ASC-2E/STK
I N S T A L L A T I O N
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 8
C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
INSTALLATION
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 9

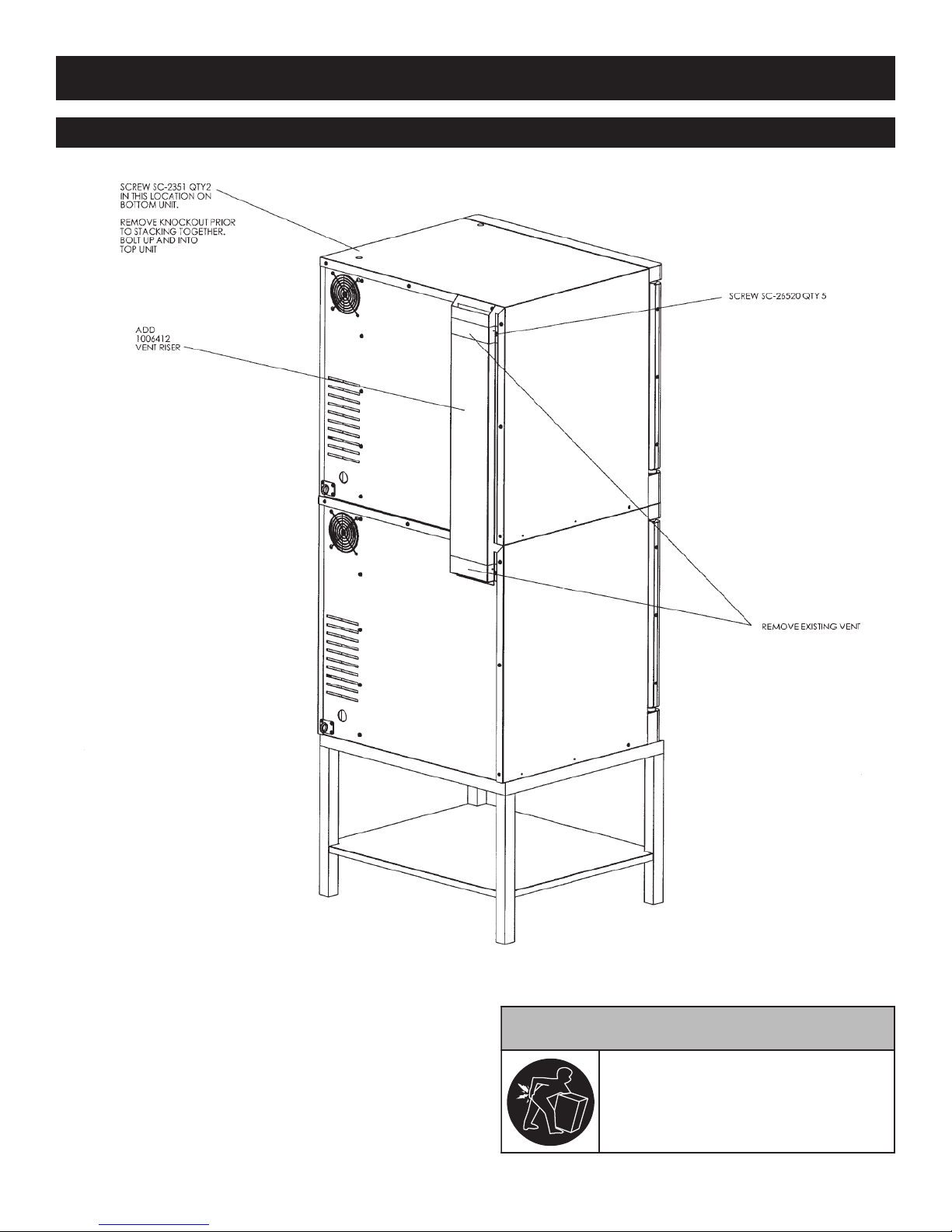

STACKING & VENTING ASSEMBLY for 2-ASC-4E/STK
2
3
Remove top elbow
vent prior to
installing riser.
Assemble venting
components
2 and 3 as shown.
2 1004984 RISER, FLUE ELECTRIC 1
3 SC-26520 SCREW, #10 SMS .5LG 5
Item No. Part No. Description Qty.
After legs or casters have been installed
on the bottom oven, place the upper oven
on top of lower unit. Align.

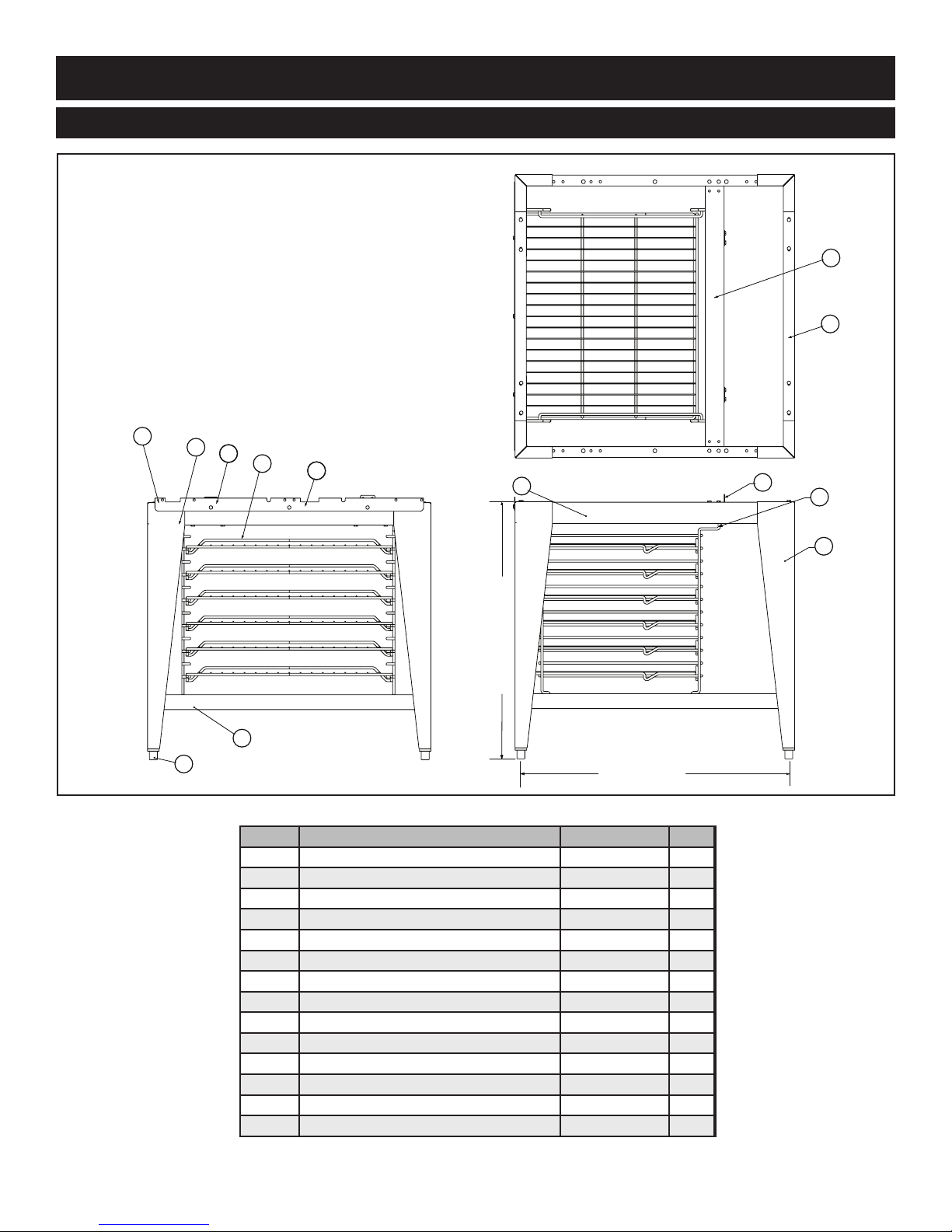

OVEN STAND ASSEMBLY
8
1
1
7
3
4
29
1
2
34-5/16" (876mm)
5
6
2
38" (956mm)
OVEN STAND 5003489 SHOWN
I T E M D E S C R I P T I O N PA R T N O . Q T Y
1 LEG SUPPORT ASSE BLY 5003488 2
2 CHANNEL, SUPPORT 1004459 2
3 LEG LG-22185 4
CASTERS, RIGID CS-25674 2
CASTERS, SWIVEL W/BRAKE CS-25675 2
4 BRACKET, STAND 1004461 1
5 BRACKET, ATTACH ENT 1004369 2
6 CHANNEL, BACK 1004460 1
7 SHELF, STAND 1004466 1
8 RACK, OVEN SUPPORT SR-26551 2
9 OVEN RACK SH-26395 6
10 SCREWS, 1/4-20 X 1/2 HEX HEAD SC-22729 27
11 NUT, 1/4-20 NYLON INSERT, 18-8 S/S NU-23984 27
12 LOCK WASHER, 1/4" STAINLESS STEEL WS-2294 27
I N S T A L L A T I O N
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 10

USER SAFETY INFORMATION
CAUTION
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 11
OPERATING INSTRUCTIONS
IN THE EVENT OF A POWER FAILURE
• TURN ALL SWITCHES OFF.
• WAIT UNTIL POWER IS RESTORED BEFORE
ATTEMPTING TO OPERATE THE OVEN.
N TE: If such an event has occurred , it is strongly
recommended that you ensure the food in
the oven is safe for consumption according
to local health regulations.
This appliance is intended for use in commercial
establishments by qualified operating personnel
where all operators are familiar with the purpose,
limitations, and associated hazards of this appliance.
Operating instructions and warnings must be read
and understood by all operators and users.
BEFORE INITIAL USE
Interior oven surfaces must be heated to remove
surface oils and the accompanying odor produced
during the first use of the oven.
1. Wipe all wire shelves, side racks and the full
oven interior with a clean, damp cloth.
2. Close the oven doors, press the power switch
to the N position, and set the thermostat to
300°F (149°C).
3. Allow the oven to cycle for approximately
2 hours or until no odor is detected.
PREHEATING
Always preheat a cold oven for a minimum of
20 minutes before cooking product. Follow
the operating instructions indicated on the next
few pages of this manual.
A S C - 2 E • P R O D U C T \ PA N C A PA C I T Y
27 lb (12 kg) MAXIMUM — 17 qts (15 liters)
Nine (9): 18" x 13" x 1" HALF-SIZE SHEET PANS
5 chrome plated wire shelves with 2 removable side
racks and 9 shelf positions spaced
at 1-5/8" (41mm) ea.
A S C - 4 E • P R O D U C T \ PA N C A PA C I T Y
72 lb (33 kg) MAXIMUM — 45 qts (43 liters)
Twelve (12): 18" x 26" x 1" FULL-SIZE SHEET PANS
6 chrome plated wire shelves with 2 removable side racks and
12 shelf positions spaced
at 1-3/4" (43mm) ea.
O P T I O N S & A C C E S S O R I E S • A S C - 4 E
■■CASTER SET, 6" (152mm)
FOR MOBILE STAC APPLICATIONS 5003790
■■C LING RACK FOR OVEN STAND 5003791
LEG SET (4)
■■6" (152mm) with Bullet Feet 5003794
■■6" (6152mm) with Seismic Feet 5003795
■■25" (635mm) with Seismic Feet 5003785
■■PANEL F R BACK, Stainless Steel 5005876
SHELF, VEN RACK
■■INTERCHANGEABLE WITH COOLING RAC SH-26795
STACKING HARDWARE SEE INDIVIDUAL STAC ING
COMBINATION SPECIFICATION SHEETS
STAND, STAINLESS STEEL
■■Mobile, with Cooling Racks & Casters, 38" H (965mm) 5003786
■■Stationary, with Cooling Racks & Bullet Feet 5003489
■■Stationary, with Cooling Racks & Seismic Feet 5003787
34-1/4" (870mm) min. • 35-1/2" (902mm) max. H (FEET ARE
ADJUSTABLE)
O P T IO NS & A CC ES S O R I E S • A S C - 2 E
LEG KIT, 4" (102mm)
■■Seismic feet 5004688
LEG KIT
■■with Bullet feet, 19-1/2" (495mm) HEIGHT 5005169
■■with Seismic feet, 19-1/2" (495mm) HEIGHT 5005168
■■with Casters, 23" (584mm) HEIGHT 5005181
■■SHELF, VEN RACK SH-26894
STACKING HARDWARE SEE INDIVIDUAL STAC ING
COMBINATION SPECIFICATION SHEETS
STAND, SINGLE VEN
■■with Bullet feet, 26-1/2" (673mm) HEIGHT 5004672
■■with Seismic feet, 26-1/2" (673mm) HEIGHT 5005172
■■with Casters, 30" (762mm) HEIGHT 5004687
S T A R T- U P O P E R A T I O N

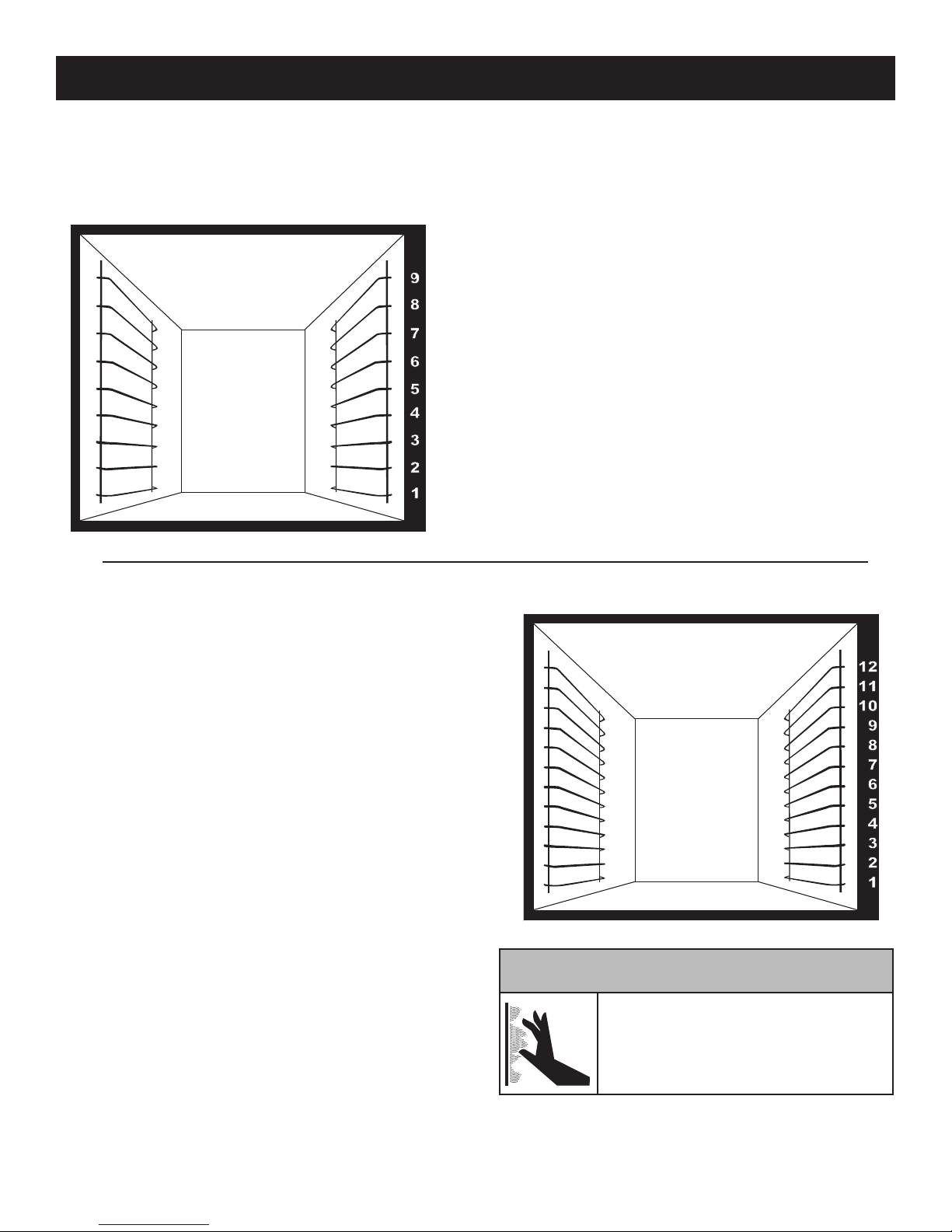

PAN/SHELF POSITIONS FOR ASC-4E
The oven includes 6 chrome plated wire shelves
with two removable side racks and 12 shelf
positions spaced at 1-3/4" (43mm).
1. The best arrangement for broiling, baking
cookies and for other baked goods under
2-1/2" (65mm) in height. This
arrangement can also be used as the
maximum capacity for reconstituting
frozen entrées.
2. General baking with the use of sheet
pans for products under 3-1/2" (89mm)
in height. Products include cakes, pies,
muffins, or extended dishes in
12" x 20" x 2-1/2" deep pans
(530mm x 325mm x 65mm GN 1/1).
3. Ideal positions for baking bread,
meringue, or extended dishes and roasts
in pans not to exceed 5-1/2" (140mm)
in height.
4. Arrangement necessary for roasting
whole turkey or roasts up to 7" (178mm)
in height.
P SITI N
2
4
6
8
12
P SITI N
1
4
7
10
P SITI N
1
5
9
P SITI N
1
6
1.The best arrangement for broiling, baking
cookies and for other baked goods under
2-1/2" (65mm) in height. This arrangement
can also be used as the maximum capacity for
reconstituting frozen entrées.
2. General baking with the use of sheet pans for
products under 3-1/2" (89mm) in height.
Products include cakes, pies, muffins, or
extended dishes in 12" x 20" x 2-1/2" deep
pans (530mm x 325mm x 65mm GN 1/1).
3. Ideal positions for baking bread, meringue, or
extended dishes and roasts in pans not to
exceed 5-1/2" (140mm) in height.
4. Arrangement necessary for roasting whole
turkey or roasts up to 7" (178mm) in height.
PAN/SHELF POSITIONS FOR ASC-2E
The oven includes 5 chrome plated wire
shelves with two removable side racks and
9 shelf positions spaced at 1-5/8" (41mm).
P SITI N
2
4
6
8
P SITI N
1
4
7
P SITI N
1
5
P SITI N
1
6
C A U T I O N
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 12
OPERATING INSTRUCTIONS

ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 13
OPERATING INSTRUCTIONS





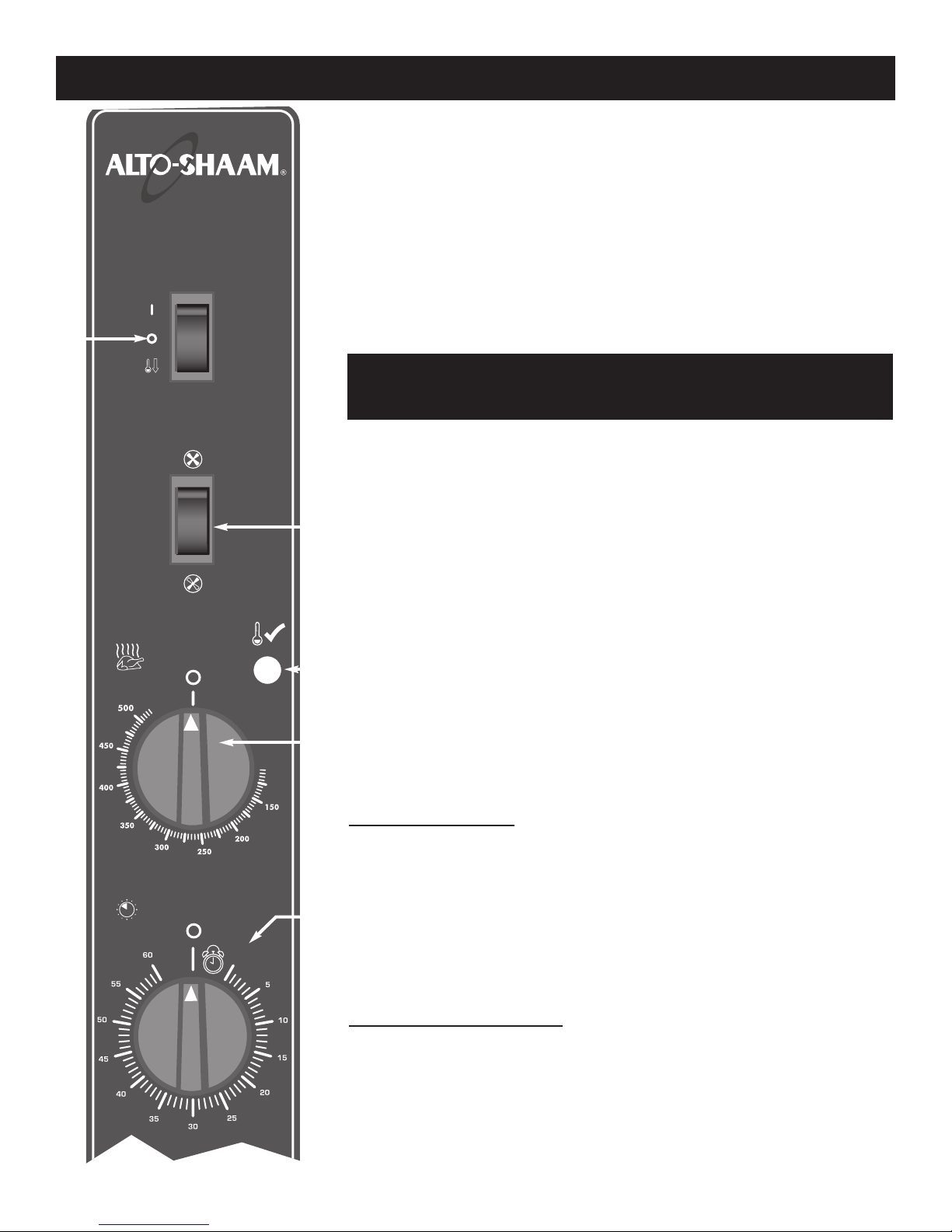

M A N U A L C O N T R O L O P E R AT I O N
1. Press POWER SWITCH to the ON position.
2. Press FAN SWITCH to high or low fan speed.
3.Set COO TEMPERATURE THERMOSTAT 
to the temperature desired.
When this temperature is reached, LIGHT OFF\OVEN READY
indicator light will go out.
4. Load product into the oven.
For best results, always load the oven from the
bottom to the top position and load as quickly as
possible to retain maximum oven compartment heat.
5. Set COO TIMER by rotating the knob
clockwise past the time required and then back to
the desired time.
The timer will begin to count down. When the
timer reaches zero, the oven will produce an audible
alert signal that will continue for three minutes or
until the timer knob is turned counterclockwise to
the OFF position.
C L-D WN M DE
1. Press P WER SWITCH  to
the COOL DOWN position.
2. Open the oven doors.
SHUT-D WN PR CEDURE
1. Press POWER SWITCH 
to the OFF position.
ALL W A MINIMUM F 20 MINUTES
T PREHEAT A C LD VEN.


OPERATING INSTRUCTIONS
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 14
C H E F O P E R AT I N G T I P S
he Alto-Shaam convection oven will provide the best results and longest possible
service with the utilization of the following suggestions and guidelines.
NOTE: Moisture will escape around the doors when baking products with a heavy
moisture content such as chicken, potatoes, etc. his is a normal operating condition.
Do not place anything directly
on the bottom of the oven cavity.
A T T H E E N D O F T H E D A Y ,
U T I L I Z E T H E C O O L - D O W N M O D E
A N D O P E N T H E O V E N D O O R S .
1. horoughly preheat the oven for approximately
20 minutes before use.
2. As a general rule, the cooking temperature can
be set lower than the temperature used in a
conventional oven. Cooking time may also be
shorter. It is suggested the first batch of each
product prepared be monitored closely to check
for variances.
3. Maintain a record of the temperatures, times, and
load capacities established for products cooked on a
regular basis since they will be the same or similar
for succeeding loads.
4. When practical, start cooking the lowest temperature
products first and gradually work up to products
with a higher cooking temperature.
5. If the cooking temperature setting for the previous
product is more than 10°F (5°C to 6°C) higher
than the temperature needed for the next load,
use the FAN COOL-DOWN feature to decrease
the oven temperature before setting the oven to a
lower temperature.
6. Work as quickly as possible when loading the
oven to prevent heat loss.
7. When the audible signal indicates the time has
expired, remove the food product from the oven
as quickly as possible to avoid over cooking.
8. Pans should be centered between side racks and each
shelf should be loaded evenly to allow proper air
circulation within the oven compartment.
9. o assure even cooking when baking, weigh or
measure the product in each pan.
10. ASC-2E: When cooking five pans of product, start
from the bottom of the oven and use side rack
positions 1, 3, 5, 7, and 9.
ASC-4E: When cooking six pans of product, start
from the bottom of the oven and use side rack
positions 2, 4, 6, 8, 10, and 12.
11. Do not overload the oven. Refer to product/pan
capacties indicated in this manual.
12. o obtain an evenly baked product, muffin pans
should be placed in the oven with the short side of
each pan facing the front of the oven.
13. When rethermalizing frozen casseroles, preheat the
oven 100°F (38°C) over the suggested temperature to
compensate for the introduction of a large quantity of
frozen product into the oven compartment. Reset the
thermostat to the correct cooking temperature after
the oven is loaded.
14. Use a pan extender or two inch (51mm) deep,
18” x 26” pans for batter-type products that weigh
more than 8 pounds (3 to 4 kg), i.e.; pineapple
upside-down cake.
15. o avoid obstructing airflow that would result in
uneven cooking, never place anything directly on the
bottom of the oven cavity.
Cook ng Gu del nes
Food Temperature T me
(M nutes) Food Temperature T me (M nutes)
Cakes, Sheet 325°F 163°C 25 Macaroni & Cheese
(frozen, full oven) 350°F 177°C 90
Chicken pieces (30 breasts &
thi hs, 25 le s & win s) 400°F 204°C 25 Macaroni & Cheese
(refri erated) 350°F 177°C 30
Chicken halves 400°F 204°C 40 Muffins 325°F 163°C 13-15
Beef patties 400°F 204°C 8 Pies, Frozen 325°F 163°C 40
Bacon 350°F 177°C 16 Pizzas, Individual 325°F 163°C 15
Fish, frozen (5 oz.) 350°F 177°C 15 Potatoes, Baked 350°F 177°C 50
Macaroni & Cheese
(frozen, 1 pan) 350°F 177°C 50 Sandwiches, Grilled Cheese 400°F 204°C 4-6
Tater tots 450°F 232°C 10

CARE AND CLEANING
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 15
PROTECTING STAINLESS STEEL SURFACES
It is imp rtant t guard against
c rr si n in the care f
stainless steel surfaces.
Harsh, c rr sive, r
inappr priate chemicals can
c mpletely destr y the
pr tective surface layer f stainless steel.
Abrasive pads, steel w l, r metal implements
will abrade surfaces causing damage t this
pr tective c ating and will eventually result in
areas f c rr si n. Even water, particularly hard
water that c ntains high t m derate
c ncentrati ns f chl ride, will cause xidati n
and pitting that result in rust and c rr si n. In
additi n, many acidic f ds spilled and left t
remain n metal surfaces are c ntributing fact rs
that will c rr de surfaces.
Pr per cleaning agents, materials, and
meth ds are vital t maintaining the appearance
and life f this appliance. Spilled f ds sh uld be
rem ved and the area wiped as s n as p ssible
but at the very least, a minimum f nce a day.
Always th r ughly rinse surfaces after using a
cleaning agent and wipe standing water as quickly
as p ssible after rinsing.
CLEANING AGENTS
Use n n-abrasive cleaning pr ducts designed f r
use n stainless steel surfaces. Cleaning agents
must be chl ride-free c mp unds and must n t
c ntain quaternary salts. Never use hydr chl ric
acid (muriatic acid) n stainless steel surfaces.
Always use the pr per cleaning agent at the
manufacturer's rec mmended strength.
C ntact y ur l cal cleaning supplier f r
pr duct rec mmendati ns.
CLEANING MATERIALS
The cleaning functi n can usually be acc mplished
with the pr per cleaning agent and a s ft, clean
cl th. When m re aggressive meth ds must be
empl yed, use a n n-abrasive sc uring pad n
difficult areas and make certain t scrub with the
visible grain f surface metal t av id surface
scratches. Never use wire brushes, metal sc uring
pads, r scrapers t rem ve f d residue.
C L E A N I N G A N D P R E V E N T I V E M A I N T E N A N C E
C A U T I O N
TO PROTECT STAINLESS STEEL
SURFACES, COMPLETELY AVOID
THE USE OF ABRASIVE CLEANING
COMPOUNDS, CHLORIDE BASED
CLEANERS, OR CLEANERS
CONTAINING QUATERNARY SALTS.
NEVER USE HYDROCHLORIC ACID
(MURIATIC ACID) ON STAINLESS
STEEL. NEVER USE WIRE
BRUSHES, METAL SCOURING
PADS OR SCRAPERS.
N
O
S
C
R
A
P
E
R
S
N
O
W
I
R
E
B
R
U
S
H
E
S
N
O
S
T
E
E
L
P
A
D
S

CARE AND CLEANING
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 16
C L E A N T H E O V E N O N A D A I LY B A S I S
1. After the oven has cooled, remove all detachable
items such as wire shelves, side racks, and drip
pan. Clean these items separately.
2. Remove any food scraps from shelves, shelf
supports, and blower fan wheel. Convection
baffle openings must be kept clear of food
scraps and grease.
3. Wipe the interior metal surfaces of the oven
with a paper towel to remove any remaining
food debris.
4. Clean interior with a damp cloth or sponge
and any good commercial detergent at the
recommended strength.
5. For baked-on food deposits, use a non-caustic
and non-toxic commercial oven cleaner
appropriate for the interior oven surface of
your oven. Follow the product manufacturer's
instructions carefully for the use of this
product. Any commercial oven cleaner
must be approved for use on food contact
areas. Remove soil with the use of a plastic
scouring pad.
6. Wipe door gaskets
thoroughly since these areas
harbor food debris and grease.
7. Rinse surfaces by wiping with a
clean cloth or sponge and clean
warm water.
8. Remove excess water with a sponge and wipe
dry with a clean cloth or air dry. Leave doors
open until interior is completely dry. Replace
side racks and shelves.
Always follow appropriate state or local health
(hygiene) regulations regarding all applicable
cleaning and sanitation requirements for food
service equipment.
The oven is fabricated with an easy to clean porcelain
enamel interior or an optional stainless steel interior.
NOTE Always allow the oven to cool before
cleaning. If the oven is hot, allow the
interior surfaces to become cool to the
touch by opening the oven doors and
engaging the cool-down function.
DO NOT USE ABRASIVE CLEANING COMPOUNDS.
Completely avoid the use of abrasive cleaning
compounds, chloride-based cleaners, or cleaners
containing quaternary salts. To protect metal
finish on stainless steel, never use hydrochloric
acid (muriatic acid).
A T T H E E N D O F T H E D A Y ,
UTILIZE THE COOL-DOWN MODE
AND OPEN THE OVEN DOORS.
D A N G E R
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.
D A N G E R
AT NO TIME SHOULD THE INTERIOR
OR EXTERIOR BE STEAM CLEANED,
HOSED DOWN, OR FLOODED WITH
WATER OR LIQUID SOLUTION OF
ANY KIND. DO NOT USE WATER JET
TO CLEAN.
SEVERE DAMAGE OR
ELECTRICAL HAZARD
COULD RESULT.
WARRANTY BECOMES VOID IF
APPLIANCE IS FLOODED

CARE AND CLEANING
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 17
EX T E R I O R
To help maintain the protective film coating on
polished stainless steel, clean the exterior of the
cabinet with a cleaner recommended for stainless
steel surfaces. Spray the cleaning agent on a clean
cloth and wipe with the grain of the stainless steel.
Wipe control panel, door vents and door handles,
thoroughly since these areas harbor food debris.
Clean exterior glass surfaces with a commercial
window cleaner.
DO NOT USE ABRASIVE CLEANING COMPOUNDS.
MO T O R C A R E
The convection oven motor contains self-
lubricating, sealed ball bearings and is
generally maintenance-free. During operation,
the interior of the motor is cooled by air flowing
into the rear of the motor case. This is a general
operating feature when proper clearances have
been allowed.
A T T H E E N D O F T H E D A Y ,
UTILIZE THE COOL-DOWN MODE
AND OPEN THE OVEN DOORS.
T R O U B L E S H O O T I N G G U I D E
SERVICE
TROUBLE POSSIBLE CAUSE REMEDY
Oven has no power • Insufficient power supply
• Defective power cord or plug
• Defective power switch.
• Loose electrical connection
• Check power source.
• Check and replace if necessary.
• Check and replace if necessary.
• Check all electrical connections
Cook temperature
too high/low
• Thermostat out of calibration
• Defective thermostat
• Check Calibration using a digital
thermometer in the center of the
cavity. Calibrate if necessary
• Replace thermostat
Cook temperature too low • Defective door gasket
• Door not closing properly
• Replace Gasket
• Check latches on the top and
bottom of door.
Fan not running • Door switch defective or out of ad ustment
• Motor switch tripped (2E only)
• Door not closing properly
• Ad ust or replace
• Reset, Black button should
be pushed in
• Check latches on the top and
bottom of door.
Fan running but no heat • High limit tripped
• Defective element
• Reset high limit and test temperatures
• Replace element
Fan runs with door open • Door switch defective or out of ad ustment • Ad ust or replace

S E R V I C E
ASC-2E & ASC-4E Electric Convection Ovens - anual Control • 18
Part numbers and drawings are subject to change without notice.
D A N G E R
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.
F U L L A S S E M B LY ( W I T H O P T I O N A L S T A N D ) - A S C - 2 E
DOOR ASSEMBLY
DR-27848
PANEL OVERLAY
PE-26978
SWITCH,
ON/OFF COOL-DOWN
SW-34 2
SWITCH,
FAN, HI/LO
SW-34 0
INDICATOR LIGHT
LI-3025
THERMOSTAT
TT-34092
TIMER
TR-34 74
GASKET
TOP & BOTTOM 0053 6
SIDES 0053
STAND, MOBILE
(OPTIONAL) 5004687
OVEN SHELF (5 PCS)
SH-26894
DOOR ROLLER
ASSEMBLY
LT-26976
DOOR ROLLER
ASSEMBLY
LT-26976
SIDE RACK (2 PCS)
SR-26893
KNOB, THERMOSTAT
KN-34297
KNOB, TIMER
KN-34 03
