Alto-Shaam ASC-4G Electronic Control User manual

W164 N9221 Water Street • P.O. Box 450
Menomonee Falls, Wisconsin 53052-0450 U.S.A.
PHONE: [phone] • 800.558.8744 U.S.A. / CANADA
FAX: [phone] • 800.329.8744 U.S.A. ONLY
www.alto-shaam.com Consult instructions
for operation and use.
Model:
ASC-4G
Electronic
Control
Convection Oven
Gas
printed in u.s.a.
• INSTALLATION
• OPERATION
• MAINTENANCE
MN-28663 (Rev 5) • 03/16

MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN
Delivery..................................1
Unpacking ...............................1
Safety Procedures and Precautions............2
Installation
Site Installation .........................4
Clearance Requirements ..................4
Installation Requirements .................5
Leveling ...............................5
Dimension Drawings .....................5
Capacity............................... 5
Gas Specifications......................6-8
Electrical Connection ....................9
Ventilation ............................ 10
Stacking Instructions..................11-12
Oven Stand Assembly Option ............. 13
Operating Instructions
User Safety Information.................. 14
Options & Accessories .................. 14
Start-Up Operation ..................... 15
Electronic Control Operation and Features 16-19
Chef Operating Tips .................... 20
Care and Cleaning
Cleaning and Preventive Maintenance ...... 21
Protecting Stainless Steel Surfaces ........ 21
Cleaning Agents ....................... 21
Cleaning Materials...................... 21
Clean Daily............................ 22
Exterior .............................. 22
Motor Care............................ 22
Service
Troubleshooting Guide .................. 23
Full Assembly View ..................... 24
Electrical Chassis ...................... 25
Interior Oven Compartment View .......... 26
Motor ................................ 27
Door Package ......................... 28
Door Mechanism ....................... 29
Door Hardware ........................ 30
Leg Assembly ......................... 31
Wire Diagrams
Always refer to the wire diagram(s) included with
the unit for most current version.
Warranty
Transportation Damage and Claims . Back Cover
Limited Warranty ................Back Cover

MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 1
Delivery
This Alto-Shaam appliance has been thoroughly
tested and inspected to ensure only the highest
quality unit is provided. Upon receipt, check for any
possible shipping damage and report it at once to the
delivering carrier. See Transportation Damage and
Claims section located in this manual.
This appliance, complete with unattached items
and accessories, may be delivered in one or more
packages. Ensure all standard items and options
have been received with each model as ordered.
Save all the information packed with the appliance.
Register online at www.alto-shaam.com to ensure
prompt service in the event of a warranty parts and
labor claim.
This manual must be read and understood by all
people using or installing the equipment model.
Contact the Alto-Shaam Tech Team Service
Department if you have any questions concerning
installation, operation, or maintenance.
1-800-558-8744; [email protected]
Unpacking
• Carefully remove the appliance
from the carton or crate.
NOTICE: Do not discard the
carton and other
packaging material
until you have
inspected the unit
for hidden damage
and tested it for
proper operation.
• Read all instructions in this manual carefully
before installing this appliance, using the appliance
or performing routine maintenance. Following
procedures other than those indicated in this
guide to use and clean the appliance is considered
inappropriate and may cause damage, injury or
fatal accidents, in addition to invalidating the
guarantee and relieving Alto-Shaam of all liability.
• DO NOT DISCARD THIS MANUAL.
This manual is considered part of the appliance
and is provided for the owner or manager of the
business and for training personnel. Additional
manuals are available from the Alto-Shaam
Tech Team Service Department.
• Remove all protective plastic film, packaging
materials, and accessories from the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
WARNING
Appliance and accessories may be
heavy. To prevent serious injury, always
use a suicient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
ENVIRONMENTAL CONDITIONS
• Operational Environmental Conditions
• Unit must acclimate to room temperature in the
environment it is placed. 24 hours is recommended.
• Ambient temperature range of 60°F to 110°F (16°C to 43°
C).
• Relative humidity of less than 95% non-condensation.
• Atmospheric pressure range of 50KPa to 106KPa.
Serial number is required for all inquiries.
Always include both model and serial numbers in your
correspondence regarding the appliance.
Model: ____________________________________
Serial Number: ____________________________________
Purchased From: ____________________________________
Date Installed: _______________ Voltage: __________

MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 2
CAUTION
Used to indicate the presence of a hazard that
can or will cause minor personal injury, property
damage, or a potential unsafe practice if the
warning included with this symbol is ignored.
CAUTION
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injury or property
damage if the warning included with
this symbol is ignored.
DANGER
Used to indicate the presence of
a hazard that WILL cause severe
personal injury, death, or substantial
property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of
a hazard that CAN cause personal
injury, possible death, or major
property damage if the warning
included with this symbol is ignored.
• This appliance is intended to cook, hold or process
foods for the purpose of human consumption. No
other use for this appliance is authorized and is
therefore considered dangerous. The appliance
must not be used to cook food containing flammable
materials (such as food with alcohol). Substances
with a low flash point can ignite spontaneously and
cause a fire.
• This appliance is intended for use in commercial
establishments where all operators are familiar with
the purpose, limitations, and associated hazards of
this appliance. Operating instructions and warnings
must be read and understood by all operators and
users. We recommend regular training of your
staff to avoid the risk of accident or damage to the
unit. Operators must also receive regular safety
instructions.
• Any trouble shooting guides, component views, and
parts lists included in this manual are for general
reference only and are intended for use by qualified
and trained technicians.
• This manual should be considered a permanent
part of this appliance. This manual and all supplied
instructions, diagrams, schematics, parts lists,
notices, and labels must remain with the appliance
if the item is sold or moved to another location.
NOTICE: Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
Safety Procedures
and Precautions
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. The following hazard signal words and
symbols may be used throughout this manual.
Used to indicate that referral to
operating instructions is a mandatory
action. If not followed the operator
could suffer personal injury.
Used to indicate that referral to
operating instructions is recommended
to understand operation of equipment.
NOTICE: For equipment delivered for use in
any location regulated by the
following directive: 2012/95/EC WEEE
DO NOT dispose of electrical or
electronic equipment with other
municipal waste.

MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 3
• To prevent serious injury, death or property
damage, your appliance should be inspected and
serviced at least every twelve (12) months by an
authorized service partner or trained technician.
• ONLY allow an authorized service partner or
trained technician to service or to repair your
appliance. Installation or repairs that are not
performed by an authorized service partner or
trained technician, or the use of non-factory
authorized parts will void the warranty and relieve
Alto-Shaam of all liability.
• When working on this appliance, observe
precautions in the literature, on tags, on labels
attached to or shipped with the appliance and other
safety precautions that may apply.
• If the appliance is installed on casters freedom of
movement of the appliance must be restricted so
that utility connections (including gas, water, and
electricity) cannot be damaged when the unit is
moved. If the appliance is moved, make sure that all
utility connections are properly disconnected. If the
unit is returned to its original position, make sure
that any retention devices and utility connections
are properly connected.
• ONLY use the appliance when it is stationary.
Mobile oven racks, mobile plate racks, transport
trolleys, and appliances on casters can tip over
when being moved over an uneven floor or
threshold and cause serious injury.
• ALWAYS apply caster brakes on mobile appliances
or accessories when these are not being moved.
These items could move or roll on uneven floors
and cause property damage or serious injury.
• Be extremely careful when moving appliances
because the food trays may contain hot fluids that
may spill, causing serious injury.
• ALWAYS open the appliance door very slowly.
Escaping hot vapors or steam can cause serious
injury or death.
Additional Safety Procedures
and Precautions
• If your gas appliance is installed under an
exhaust hood, the hood must be switched ON
when the oven is in use to avoid the build up of
combustion gases. Failure to do so may result in
serious injury, death or property damage.
•
NEVER place objects near the oven exhaust vents.
This area is hot and could be a potential ignition
source for a fire.
• Do not allow objects to block or obstruct the area
below the oven base. This may result in fire,
damage to the equipment or serious injury.
• Do not use the attached hand-held hose to spray
anything other than the interior of the oven
compartment.
• Do not use the attached hand-held hose on the
surface of a hot cooking compartment. The
sudden temperature change can damage the oven
interior. Allow the oven to cool to a minimum of
150°F (66°C). Failure to observe this precaution
can void the warranty.

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 4
WARNING
Improper installation, alteration,
adjustment, service, cleaning, or
maintenance could result in property
damage, severe injury, or death.
READ and UNDERSTAND the
installation, operating and
maintenance instructions thoroughly
before installing, servicing, or
operating this equipment.
CAUTION
Do not lift or move the oven
by using the doors or the
door handles.
CAUTION
To prevent SEVERE PERSONAL
INJURY or PROPERTY DAMAGE:
ALWAYS use hand protection when
operating this appliance to avoid
burns. Metal parts of this equipment
become extremely hot when in
operation.
WARNING
FOR YOUR SAFETY
DO NOT store or use gasoline or
other flammable vapors or liquids in
the vicinity of this or any other
appliance.
The Alto-Shaam convection
oven must be installed in
a location that will permit
the oven to function for its
intended purpose and to
allow adequate clearance for
ventilation, proper cleaning,
and maintenance.
1. Hood installation is required.
(
CHECK LOCAL CODES .)
2. The oven must be installed on a stable
and level surface. A non-combustible, heat
resistant, and fireproof surface is highly
recommended. If the oven is to be installed
on a combustible surface, factory supplied
legs or oven stand MUST be used.
3. DO NOT install this oven in any area where
it may be affected by any adverse conditions
such as steam, grease, dripping water, high
temperatures, etc.
4. This appliance must be kept free and clear of
any combustible materials.
5. This appliance must be kept free and clear
of any obstructions blocking access for
maintenance or service.
®
SITE INSTALLATION
WEIGHT
NET 420 lb (191 kg)
SHIPPING 465 lb (211 kg)
CRATE 45" L X53" W X49" H
DIMENSIONS:(1143mm x 1346mm x 1245mm)
MINIMUM ENTRY CLEARANCE 31-1/2" (800mm) UNCRATED
DIMENSIONS H x W x D:
EXTERIOR: 58-1/2" x 38" x 44-1/2"
(1486mm x 964mm x 1130mm)
INTERIOR: 24" x 29-1/8" x 25"
(610mm x 740mm x 635mm)
MINIMUM CLEARANCE REQUIREMENTS
COMBUSTIBLE
SURFACES
NON-COMBUSTIBLE
SURFACES
BACK 0" (0mm) 0" ( 0mm)
LEFT SIDE 2" (51mm) 0" ( 0mm)
RIGHT SIDE 2" (51mm) 2" (51mm)
FROM GREASE
PRODUCING EQUIPMENT 6" (152mm) 6" (152mm)
ENTRY CLEARANCE:31-1/2" (800mm) UNCRATED
RECOMMENDED SERVICE
ACCESS: 20" (508mm) RIGHT CONTROL SIDE

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 5
INSTALLATION
The oven must be mounted on the factory equipped
oven legs or on an optional oven stand. Installation
on a solid or concrete base that in any way restricts
air flow may void the warranty.
All clearances for a proper ventilation air supply
must be maintained to minimize fire hazard. Do not
locate the oven immediately adjacent to any other
heat-generating appliance.
A number of adjustments are associated with
initial installation and start-up. Adjustments
must be conducted by a qualified service
technician. Installation and start-up adjustments
are the responsibility of the dealer or user.
These adjustments include but are not limited to
thermostat calibration, door adjustment, leveling,
and gas pressure verification. The Platinum series
oven burners are factory-adjusted with fixed air
openings and require no field adjustment.
Leveling
The oven should
be leveled before the
gas supply is connected. Level the oven
from side-to-side and front-to-back with the use of
a spirit level. For ovens installed on a mobile stand,
it is important that the floor surface be level due to
the probability of frequent oven repositioning.
We recommend checking the level of the oven
periodically to make certain the floor has not
shifted or the oven moved.
NOTICE: Failure to properly level this oven can
cause improper function as a result
of erratic burner combustion and will
result in the uneven baking of products
consisting of semi-liquid batter.
INSTALLATION REQUIREMENTS
NOTICE
Inadequate ventilation, or failure to ensure an
adequate air flow may result in high ambient
temperatures at the rear of the appliance. High
ambient temperatures can cause the thermal-
overload protection device on the blower motor to
trip resulting in severe damage to the blower motor.
WARNING
Appliance and accessories may be
heavy. To prevent serious injury, always
use a suicient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
30-5/8" (778mm)
44-1/2" (1130mm)
58-1/2" (1486mm)
31-15/16" (810mm)
38" (965mm)
25-11/16" (652mm)
3-5/16" (84,4mm)
29-1/8" (740mm)
1/2" GAS INLET
3-5/32" (80mm)
6-15/16" (176mm)
9-15/16" (252mm)
LINE CORD ENTRANCE
31-1/16" (789mm)
4" (102mm)
1/2" GAS INLET
EXHAUST
VENT
CAVITY WIDTH
123°
129°
26-1/2" (673mm)
54-5/8" (1387mm)
3-11/16" (93mm)
LINE CORD ENTRANCE
12-15/16"
(329mm)
CORD LENGTH
9' (2,743mm)
MODEL ASC-4G
Electronic Control
PRODUCT\PAN CAPACITY
72 lb (33 kg) maximum • 45 qts (43 liters)
Twelve (12): 18" x 26" x 1" full-size sheet pans
6 chrome plated wire shelves with 2 removable side racks
and 12 shelf positions spaced at 1-3/4" (43mm)

GAS SUPPLY & INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 6
GAS SUPPLY & INSTALLATION
GAS PRESSURE CHART
The gas valve and burner have been fitted
according to the gas type specified on the
identification name plate.
DANGER
Connecting to the wrong gas
supply could result in fire or an
explosion causing severe injury
and property damage.
WARNING
To prevent SERIOUS PERSONAL
INJURY, installation of this appliance
must conform to local, state, and
national codes; the current edition
of the American National Standard
Z223.1, National Fuel Gas Code, and
all local municipal building codes.
In Canada, installation must be in
accordance with Standard CAN/CSA
B 149.1 and Installation Codes - Gas
Burning Appliances, and local codes.
GAS SPECIFICATIONS
FIELD CONVERSION OF FUEL TYPE
To convert from either fuel type, replace the orifice
located at the burner inlet with the desired orifice.
Replace the spring kit located on the front left side of
the valve. Remove the cap and nylon screw, replace
spring and nylon screw with desired kit. Set the
manifold pressure to the corresponding values
located under technical specifications.
F U E L T Y P E O R I F I C E S I Z E O R I F I C E P/N M A N I F O L D P R E S S U R E
Natural # 31 OR-29586 5.0 IN/WC
Propane* 2.15mm OR-29451 (male) 10.0 IN/WC
# 43 OR-29054 (male) 10.0 IN/WC
# 43 OR-26430 (female) 10.0 IN/WC
C O N V E R S I O N S P R I N G K I T S
Natural VA-28821 Propane VA-28444
* Contact Factory with serial number
TECHNICAL SPECIFICATIONS
Natural Gas
Min. connected pressure 7.0" W.C. 1.74 kPa
Max. connected pressure 14.0" W.C. 3.48 kPa
Orifi ce Size #31
Manifold pressure 5.0" W.C. 1.25 kPa
Gross thermal output 50,000 Btu/hr
Propane Gas
Min. connected pressure 11.0" W.C. 2.74 kPa
Max. connected pressure 14.0" W.C. 3.48 kPa
Orifi ce Size 2.5mm
Manifold pressure 10.0" W.C. 2.49 kPa
Gross thermal output 50,000 Btu/hr
INSTALLATION REQUIREMENTS
GAS CONNECTION:
1/2" NPT
CHECK PLUMBING CODES FOR PROPER SUPPLY LINE SIZING TO
ATTAIN BURNER MANIFOLD
NOTICE: If a flexible gas line is used, it must be AGA
approved, commercial type, and at least 1" I.D.

GAS SUPPLY & INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 7
Gas Requirements
The gas inlet is located at the back of the oven.
Code requires the installation of a manual gas
shutoff valve to be installed in the gas line ahead
of the oven. This oven is also equipped with
fixed burner orifices determined by the elevation
specified as the initial installation location.
The oven is furnished with a regulator integral
to the operation of the gas solenoid valve
and may not require an additional external
regulator. To ensure safe and proper operation,
the gas pressure regulator installed in the oven
is required for use with both natural gas and
propane. If the connected pressure exceeds
14.0" W.C. (3.48 kPa), a step-down regulator
is required. A step-down regulator is not the
responsibility of the manufacturer.
Use an approved pipe sealant at all connections.
Do not use Teflon®tape. Gas supply connections
and pipe joint compound must be resistant to the
action of propane gases. Pipes must be clean, free
of obstructions and pipe joint compound.
Gas Connection
In the U.S.A., installation must conform to local
codes or, in the absence of local codes, with the
current edition of the National Fuel Gas Code,
NFPA-54 and ANSI Z223.1-1980 (latest edition).
In Canada, installation must be in accordance
with local codes, CAN/CGA-B149.1,
Installation
for Natural Gas Burning Appliances and
Equipment (latest edition) or CAN/CGA-B149.2
Installation for Propane Burning Appliances
and Equipment (latest edition).
The inlet supply line must be properly sized
to accommodate all individual appliances
simultaneously used on the same line but
must never be smaller than 1/2" NPT.
INCORRECT CORRECT
A
B
C
D
E
F
G
H
GAS INTAKE
A-G Installation elbow
B Ball Valve
C-D Three-piece union fitting
(minimum 1 per installation)
E-F End connector for the flexible tube
H Marking line
WARNING
To prevent SERIOUS INJURY, DEATH,
or PROPERTY DAMAGE:
Installation, air adjustment and/or
service work must be in accordance
with all local codes and must be
performed by a trained service
technician qualified to work on
gas appliances.

GAS SUPPLY & INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 8

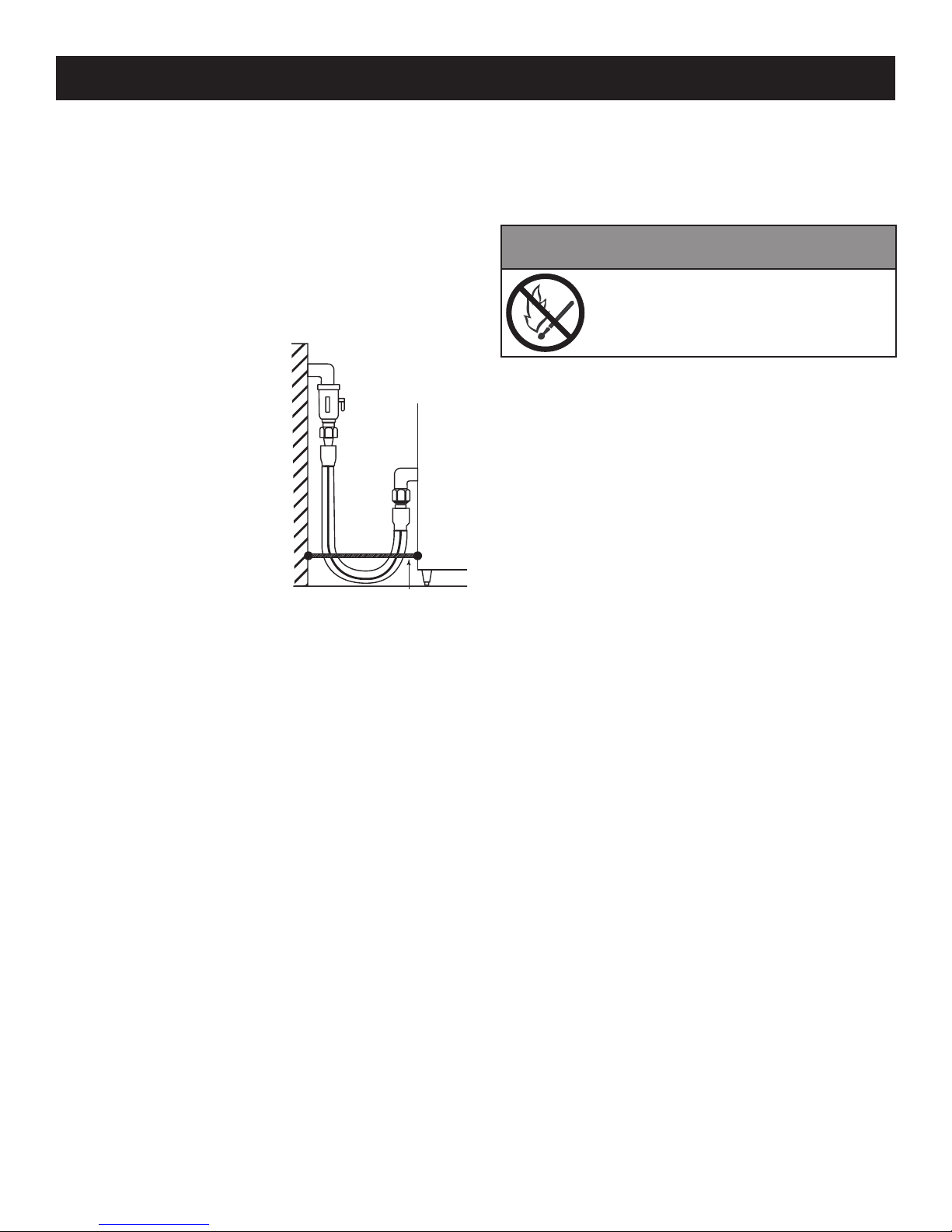

Gas Connection For Ovens On Casters
The oven must be supplied with a flexible connector
that complies with The Standard for Connectors
for Movable Gas Appliances, ANSI Z21.69, CGA
6.16 and addenda Z21.69a (latest editions). A quick
disconnect device must be installed to comply with
The Standard for Quick Disconnect Devices for Use
with Gas Fuel, ANSI Z21.41 and CAN1-6.9 (latest
editions). A flexible connector is not supplied by
the factory.
Adequate means must
be provided to limit the
movement of the appliance.
Limitation of movement
must be made without
depending on the connector,
the quick disconnect device,
or the associated piping
designed to limit oven
movement. Mounting holes
for a restraining device are
located on the lower back
flange of the oven chassis.
Shut the gas supply OFF if it becomes
necessary to disconnect the restraint. Reconnect
the restraint immediately following the return
of the oven to its original position. Turn the gas
supply ON after the restraint has been reconnected.
CORRECT
RESTRAINT
Leak Testing
Use a soap and water solution on all gas supply
line connections.
WARNING
Never use an open flame or other ignition
sources to check for gas leakage. Failure
to do so may cause a fire or explosion
and result in serious injury or death.

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 9
This appliance is equipped with a three-prong
grounding plug. For your protection against shock
hazard this appliance should be plugged directly into
a properly grounded three-prong receptacle. Do not
cut or remove the grounding prong from this plug.
Plug the unit into a properly grounded receptacle
ONLY, positioning the unit so that the plug is easily
accessible in case of an emergency. Arcing will occur
when connecting or disconnecting the unit unless all
controls are in the OFF position.
Proper receptacle or outlet configuration or
permanent wiring for this unit must be installed by
a licensed electrician in accordance with applicable
local electrical codes.
ELECTRICAL CONNECTION
CAUTION
Power source must match voltage identified
on appliance rating tag. The rating tag
provides essential technical information
required for any appliance installation,
maintenance or repairs. Do not remove,
damage or modify the rating tag.
WARNING
To prevent SERIOUS INJURY,
DEATH, or PROPERTY DAMAGE:
All electrical connections must be
made by a qualified and trained
service technician in accordance
with applicable electrical codes.
This appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence
of local codes, with the current
edition of the National Electrical
Code ANSI/NFPA No. 70. In Canada,
all electrical connections are to be
made in accordance with CSA C22.1,
Canadian Electrical Code Part 1 or
local codes.
ELECTRICAL
VOLTA GE PHASE C YCLE/HZ AMPS KW
120 160 7.5 0.9
9' (2743mm) cord with plug included: NEMA 5-15P

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 10
VENTILATION
Ventilation Hoods
Proper venting along with a sufficient quantity of
make-up air is essential for proper oven operation.
A mechanically driven, canopy exhaust hood is
the preferred method of ventilation and must
conform to local codes along with the current
version of NFPA-96 Vapor Removal from Cooking
Equipment (latest edition). The oven hood must
extend 6" (152mm) beyond all sides of the oven.
The distance from the floor to the bottom edge of
the hood should be between 6' (1829mm) and
7' (2134mm).
A ventilation hood that supplies make-up air
down the back vertical wall should be avoided
since air currents can interfere with the oven
flue exits. If such installation is unavoidable, an
additional draft hood, specifically designed to
deflect downdrafts, must be installed.
Direct Venting
When necessary, direct venting can be used
in situations where space is limited or to help
offset the high cost of ventilation hoods.
Direct venting should be installed in
compliance with local codes by a certified
professional. In the absence of local codes,
refer to National Fuel Code NFPA 54, ANSI
Z223.1 (latest revision).
WARNING
Failure to properly vent this appliance
may cause SERIOUS INJURY, DEATH,
or PROPERTY DAMAGE. The
formation of volatile substances may
cause suffocation, equipment damage,
operational problems and
unsatisfactory cooking performance
as a consequence of improper venting
and is not covered by your warranty.
WARNING
To prevent SERIOUS INJURY, DEATH,
or PROPERTY DAMAGE:
Installation, air adjustment and/or
service work must be in accordance
with all local codes and must be
performed by a trained service
technician qualified to work on
gas appliances.
Ventilation hoods and exhaust systems shall be
permitted to be used to vent appliances installed in
commercial applications.
In accordance with NFPA 54 for the
Commonwealth of Massachusetts only:
Where automatically operated appliances are
vented through a ventilation hood or exhaust
system equipped with a damper or with a power
means of exhaust, provisions shall be made to
allow the fl ow of gas to the main burners only
when the damper is open to a position to properly
vent the appliance and when the power means of
exhaust is in operation.

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 11
WARNING
Appliance and accessories may be
heavy. To prevent serious injury, always
use a suicient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.

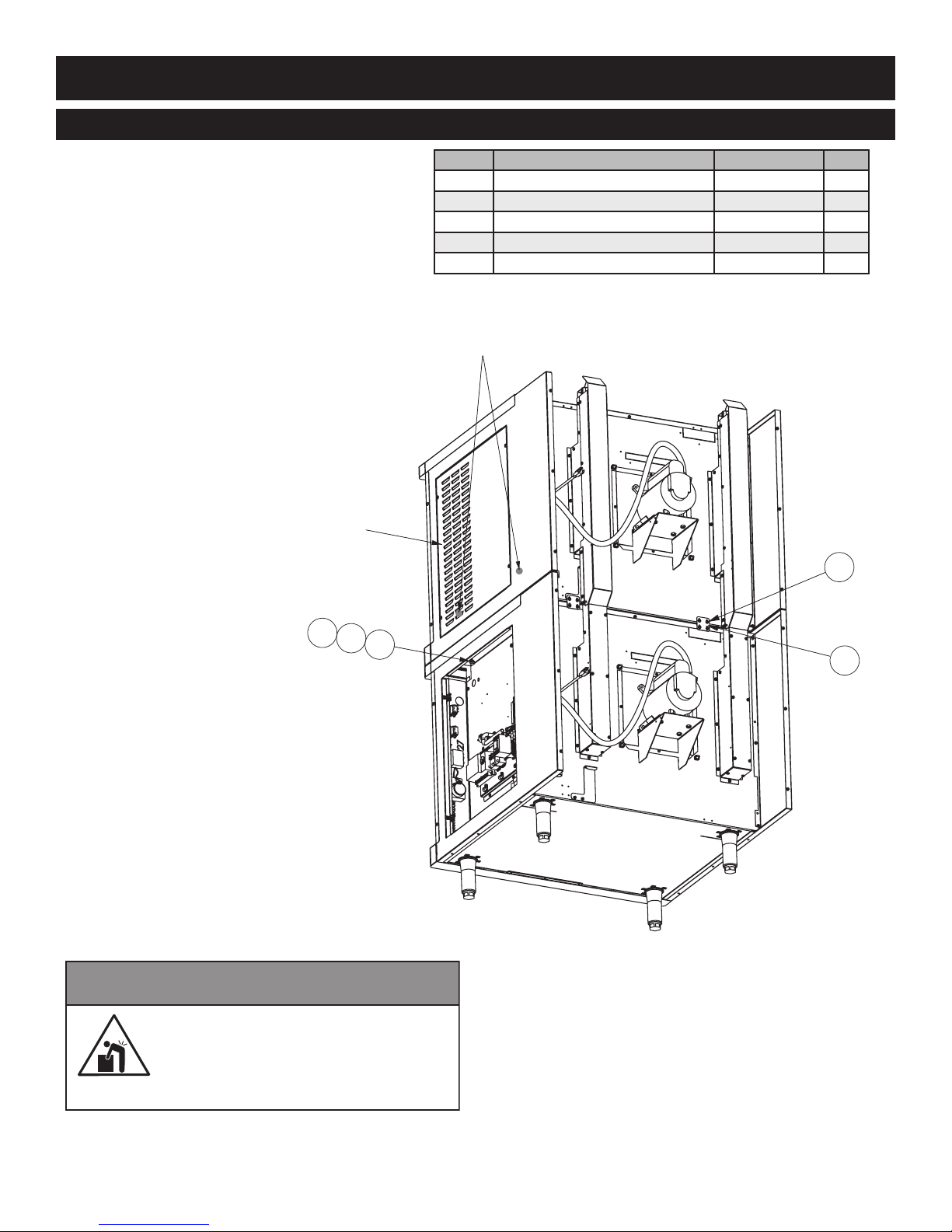

STACKING KIT (5005783)
Stacking Instructions
A) Remove side panels.
B) Knock out the mounting holes on top of
the intended bottom oven.
C) After legs or casters have been installed
on the bottom oven, place the upper
oven on top of lower unit. Align.
D) Bolt at 1 and 2.
E) Using mounting holes on bottom oven,
bolt at 4.
ITEM DESCRIPTION PART NO. QTY
1BRACKET, ATTACHMENT, FSCO 1004369 2
2SCREW, #10 SMS .5LG SC-26520 20
3SCREW, HEX HEAD, 5/16-18X 1"LG SC-2191 2
45/16 FLAT WASHER WS-23725 2
5WASHER, LOCK, 5/16 DIA. WS-2867 2
TOLERANCE: UNLESS SPECIFIED:
2
1
3
4
5
Rev 07/14
MOUNTING
HOLES
SIDE
PANEL
Note: Actual unit may be
different than shown.
Part numbers and drawings are subject to change without notice.

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 12

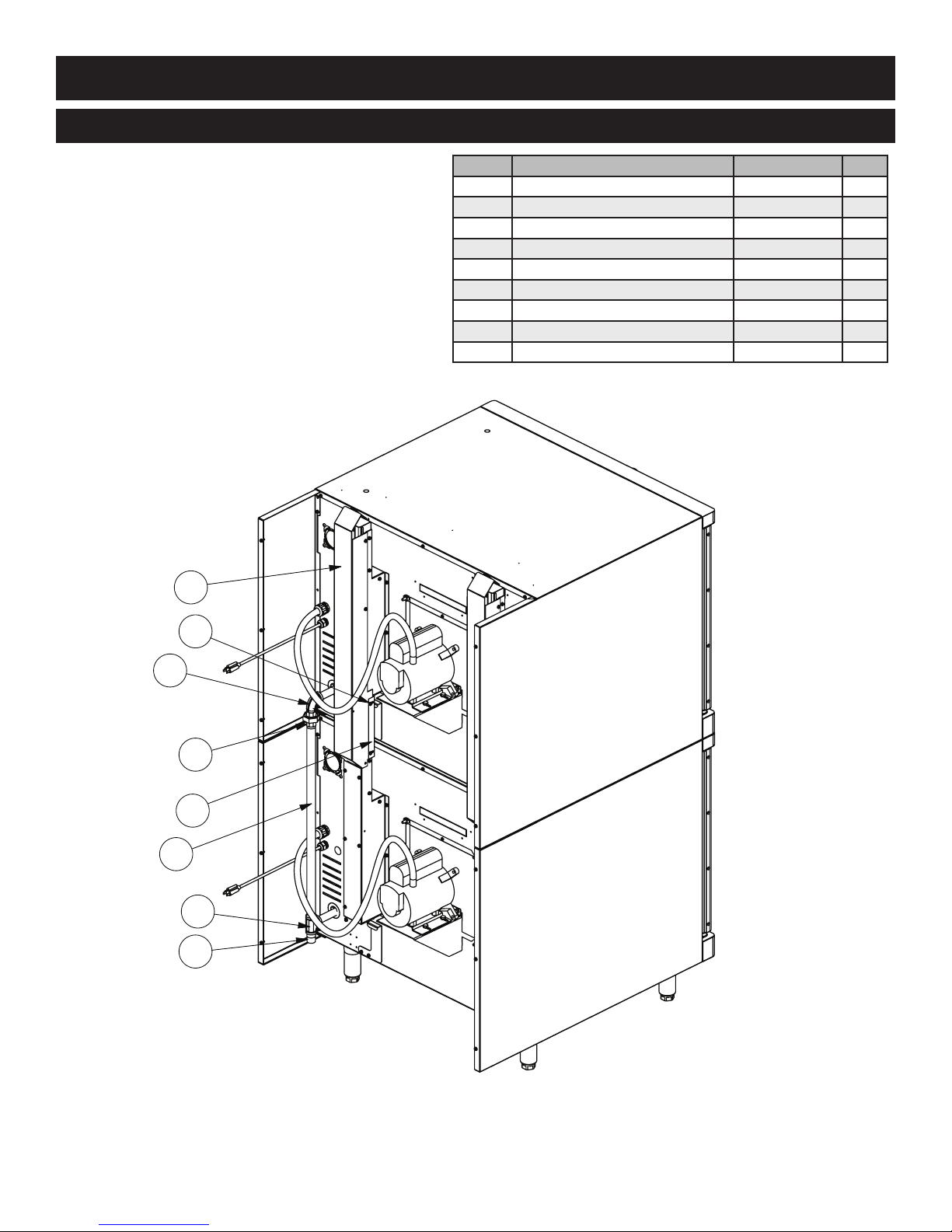

STACKING, GAS PLUMBING & FLUE INTERCONNECT (5003788)
TOLERANCE: UNLESS SPECIFIED:
1
2
5
3
4
6
7
8
Rev 07/14
Assembly Instructions
1: Assemble plumbing items 3-4 and 6-8 as shown
2: Assemble items 1, 2 & 5 as shown
Note: Actual unit may be
different than shown.
* NOT SHOWN
ITEM DESCRIPTION PART NO. QTY
1OUTER FLUE BOX, DBL STACK 1004372 2
2SCREW, #10 SMS .5LG SC-26520 24
3ELBOW 90 DEG STREET 3/4" NPT EB-26489 1
4FITTING, UNION 3/4" NPT FT-26488 1
5CAP, FLUE BOX, DBL STACK 1004373 2
63/4" MANIFOLD PIPE PP-26529 1
7FITTING, TEE 3/4" NPT FT-26487 1
83/4" MANIFOLD PIPE PP-26528 1
9* BUSHING BU-26440 2
Part numbers and drawings are subject to change without notice.

INSTALLATION
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 13
8
1
1
7
3
4
29
1
2
34-5/16" (876mm)
5
6
2
38" (956mm)
OVEN STAND ASSEMBLY
ITEM DESCRIPTION PART NO. QTY
1LEG SUPPORT ASSEMBLY 5003488 2
2CHANNEL, SUPPORT 1004459 2
3 LEG LG-22185 4
*CASTERS, RIGID CS-25674 2
*CASTERS, SWIVEL W/BRAKE CS-25675 2
4BRACKET, STAND 1004461 1
5BRACKET, ATTACHMENT 1004369 2
6CHANNEL, BACK 1004460 1
7SHELF, STAND 1004466 1
8RACK, OVEN SUPPORT SR-26551 2
9OVEN RACK SH-26795 6
10* SCREWS, 1/4-20 x1/2 HEX HEAD SC-22729 27
11* NUT, 1/4-20 NYLON INSERT, 18-8 S/S NU-23984 27
128 LOCK WASHER, 1/4" STAINLESS STEEL WS-2294 27
*NOT SHOWN
OVEN STAND 5003489 SHOWN
Part numbers and drawings are subject to change without notice.

OPERATING INSTRUCTIONS
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 14
FACTORY INSTALLED OPTIONS
Direct Vent Kit (
TO VENT DIRECTLY TO OUTSIDE)
Increases height 8" (203mm)
Single oven 5003797
Stacked ovens 5012618
Stacking Hardware
See individual stacking combination specification sheets.
Security Device
FOR C O R R E C T I O N A L F A C I L I T Y USE
Includes security back panel, door locking hasp,
security screw package, security control cover.
5020687
ACCESSORIES
Caster Set, 6" (152mm)
FOR MOBILE STACK APPLICATIONS
5003790
Leg Kit (4)
6" (152mm), with Bullet Feet 5003794
6" (152mm), with Seismic Feet 5003795
25" (635mm), with Seismic Feet 5003785
Rear Enclosure Panel, stainless steel 5005876
Shelf, Oven Rack
Interchangeable with cooling rack SH-26795
Stand, Stainless Steel
Mobile with Cooling Racks & Casters 5003786
Stationary with Cooling Racks & Bullet Feet 5003489
Stationary with Cooling Racks & Seismic Feet 5003787
USER SAFETY INFORMATION
CAUTION
To prevent SEVERE PERSONAL
INJURY or PROPERTY DAMAGE:
ALWAYS use hand protection when
operating this appliance to avoid
burns. Metal parts of this equipment
become extremely hot when in
operation.
DANGER
Before starting the appliance, make
certain you do not detect the odor
of gas.
IF YOU SMELL GAS:
• Shut off the gas supply immediately.
• Do not attempt to light any appliance.
• Do not touch any electrical elements.
• Extinguish any open fl ame.
• Evacuate the area.
• Use a telephone outside the property
and immediately contact your gas
supplier.
• If unable to contact your gas supplier,
contact the fire department.
The Platinum Series gas convection oven is intended
for use in commercial establishments by qualified
operating personnel where all operators are familiar
with the purpose, limitations, and associated
hazards of this appliance. Operating instructions
and warnings must be read and understood by all
operators and users.
Instructions to be followed in the event the odor
of gas is detected should be posted in a prominent
location. Specific instructions are available from
your local gas supplier.
IN THE EVENT OF A POWER FAILURE:
•Turnallswitchesoff.
•Waituntilpowerisrestoredbeforeaempting
to operate the oven.
NOTICE: If such an event has occurred, it is strongly
recommended that you ensure the food in
the oven is safe for consumption according to
local health regulations.

OPERATING INSTRUCTIONS
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 15
START-UP OPERATION
Before Initial Use:
Interior oven surfaces must be heated to remove
surface oils and the accompanying odors produced
during the first use of the oven.
1. Wipe all wire shelves, side racks, and the full
oven interior with a clean, damp cloth.
2. Close the oven doors, press the power switch
to the ON position, and set the thermostat to
300°F (149°C).
3. Allow the oven to cycle for approximately 2
hours, or until no odor is detected.
Preheating:
Always preheat the oven for a minimum of 20 minutes before cooking product. Follow the operating
instructions indicated on the next page of this manual.
Pan/Shelf Positions:
The oven includes 6 chrome plated wire shelves
with two removable side racks and 12 shelf
positions spaced at 1-3/4" (43mm).
1. The best arrangement for broiling,
baking cookies and for other baked
goods under 2-1/2" (65mm) in height.
This arrangement can also be used as
the maximum capacity for reconstituting
frozen entrées.
2. General baking with the use of sheet pans
for products under 3-1/2" (89mm)
in height. Products include cakes, pies,
muffins, or extended dishes in
12" x 20" x 2-1/2" deep pans
(530mm x 325mm x 65mm GN 1/1).
3. Ideal positions for baking bread,
meringue, or extended dishes and roasts
in pans not to exceed 5-1/2" (140mm)
in height.
4. Arrangement necessary for roasting
whole turkey or roasts up to 7" (178mm)
in height.
POS ITION
2
4
6
8
12
POS ITION
1
4
7
10
POS ITION
1
5
9
POS ITION
1
6
CAUTION
To prevent SEVERE PERSONAL
INJURY or PROPERTY DAMAGE:
ALWAYS use hand protection when
operating this appliance to avoid
burns. Metal parts of this equipment
become extremely hot when in
operation.

OPERATING INSTRUCTIONS
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 16
1 PREHEAT INDICATOR
2 READY INDICATOR
3 LED DISPLAY
4 UP/DOWN ARROWS
5 COOK INDICATOR
6 TEMPERATURE INDICATOR
7 PROBE INDICATOR
8 PRESET LOCK INDICATOR
9 COOK
10 PROBE
11 TIME
12 PRESET LOCK
13 START/STOP
14 PRESETS
15 CANCEL
16 FAN SPEED
17 COOL DOWN
18 MAIN POWER SWITCH
CONTROL
IDENTIFICATION 1
3
5
6
9
13
10
15
17
4
7
8
16
11
1
8
14
1
2
2

OPERATING INSTRUCTIONS
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 17
A. Push MAIN POWER SWITCH (18) ON.
 • TheDISPLAY (3) will alternate between
last cook set temperature and actual cavity
temperature.
 • Theovenwillpreheattopreviouscook
temperature, and the PREHEAT (1) indicator
will illuminate.
To terminate procedure,
push START/STOP (13) button twice.
B. If the previous cook cycle is acceptable,
proceed to step C.
•To cook by time:*
  • PushCOOK (9).
  • PushTIME (11).
  • Confirmfanspeed.
  • Adjustthecookingtemperaturewiththe
UP/DOWN (4) arrows.
•To cook by probe (optional):*
  • PushCOOK (9).
  • PushPROBE (11).
  • Confirmfanspeed.
  • Adjustthecookingtemperaturewiththe 
UP/DOWN (4) arrows.
C. When the cook preheat temperature has
been reached:
 • TheSTART/STOP (13) button and READY
INDICATOR (2) will flash.
 •Thecontrolwillproduceanaudiblebeepevery
30 seconds.
•Load product in a timely manner.
•To cook by time:
•WhencookingbyTIME (11), the
DISPLAY (3) will alternate between cook
temperature and remaining cooking time.
• To cook by probe (optional):
• Ifcookingbyprobe,removeprobefrom
its bracket, wipe the probe tip with a
disposable alcohol pad and properly
insert probe into product.
• When cooking by PROBE (11), the
DISPLAY (3) will alternate between cook
temperature, probe temperature, and
elapsed time.
•Close the oven door —push
START/STOP (13) button.
•After cook cycle is complete and product
is ready:
  • TheDISPLAY (3) will indicate “DONE”.
  • TheSTART/STOP (13) button and READY
INDICATOR (2) will flash.
  •Thecontrolwillproduceanaudiblebeep
every 30 seconds.
•Remove product promptly to avoid
overcooking.
To terminate procedure,
push START/STOP (13) button twice.
D. Cooling the oven:
 • Open door.
 • Push COOL DOWN (17) button.
•Cool continuously*
  • Fanwillruncontinuously.
  • Shutoffpowertoterminate.
•Set cool down temperature*
  •Setdesiredcooldowntemperaturewith
UP/DOWN (4) arrows. The cool down
temperature ranges from 80°F-450°F
(27°C-232°C).
  •Fanwillruncontinuously.
  •Whenthedesiredcooldowntemperatureis
reached, DISPLAY (3) will indicate "DONE".
START/STOP (13) button will stop the fan and
terminate the COOL DOWN (17) feature.
E. At the end of the day, shut off oven power
before leaving the premises.
ELECTRONIC CONTROL OPERATION
* If more than 5 seconds elapse before a decision is made,
themodebuonmustbepushedagaintocontinue.

OPERATING INSTRUCTIONS
MN-28663 (Rev 5) 03/16 • ASC-4G CONVECTION OVEN • 18
Programming
ThisAlto-Shaamelectronicconvectionovenallowstheoperatorto
program up to seven cooking procedures. Each cooking program
entered can be preset in any program function to cook by time
(orprobe,ifaprobeisincludedontheoven).Cookingprograms
are stored and recalled with the PRESET (14) buttons labeled 1
through 7.
Push the MAIN POWER SWITCH (18) ON.
 • TheDISPLAY (3) will alternate between last cook set
temperature and actual cavity temperature. The oven will begin
preheating and the PREHEAT (1) indicator will illuminate. The
fan will operate at high speed “FnHi”.
follow instructions listed on the
previous pages of this manual.
Push and hold selected PRESET (1 through 7) for 4 seconds.
 • A beep sounds.
 • The numbered button indicator light will illuminate.
The programmed procedure is now stored in memory for the specific
number button selected. To lock a PRESET (14) (1 through 7), push
PRESET LOCK (12) simultaneously with up arrow. To unlock, push
PRESET LOCK (12) simultaneously with the down arrow.
At this point, push START/STOP (13) twice. This will protect the
PRESET (14) in case of a power outage.
Important
After programming a specific product into memory of a preset, it is
very important to make a written permanent record of the product
and the program letter assigned.
MENU PRESETS
Erasing A Program
To erase a program, the oven must be in the preheat mode. The oven
cannot be running a preset menu program.
 •Whentheovenisinthepreheatmode,pushandholdboththe
CANCEL (15) button and the appropriate number PRESET (14)
button to be erased. Hold both buttons until the oven beeps
for one second and the program's indicator light goes out. This
indicates the program has been erased.
Cook — Using Preset Menu Buttons
 •PushdesiredPRESET (14) (1 through 7).Preheat will begin.
 •Theovenwillbeepwhenthepreheattemperaturehasbeen
reached.
 •Loadfoodinsidetheoven.If cooking by probe, remove probe from
its bracket, wipe the tip with a disposable alcohol pad and insert probe
properly into product.
 •Closetheovendoor.
 •PushSTART (13).
NOTICE: •IftheoventemperatureishigherthanthePRESET
program, utilize the COOL DOWN mode.
 •TimeandTemperature have been programmed
in PRESET--theycannotbeadjustedduringthe
PRESET cooking cycle.
1
3
5
6
9
13
10
15
17
4
7
8
16
11
1
8
14
1
2
2
