COMBITHERM®
PROTECT AGAIN T
●Formation of scale buildup
●Corrosion of metal surfaces
PROVIDE
●Improved equipment efficiency
●Reduced service requirements
●Extended equipment life
●Scale formation that builds up and adheres to surfaces is a hard, rock-
like layer of dissolved minerals precipitated by heating water. Built-
up scale reduces energy efficiency and will build to a point of creating
downtime and expensive service calls.
●The CombiGuard System effectively binds dissolved minerals to
inhibit the formation of scale.
●Particulate matter found in water also contributes to scale formation
and restricts the flow through plumbing that leads to blockage.
●The CombiGuard System filters dirt, sediment, and other debris as
small as 1/2 micron.
●Chlorine compounds become corrosive in water vapor resulting in the
corrosion of heating elements and boilers which causes pitting on
metal surfaces.
●The CombiGuard System will significantly reduce chlorine content to
protect against corrosion.
CombiGuard™
TRIPLE-GUARD WATER FILTRATION SYSTEM
ITEM FI-23014
W164 N9221 Water treet • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U. .A.
PHONE: [phone].558.8744 U..A./CANADA FAX: [phone].329.8744 U..A.ONLY
WEB ITE: www.alto-shaam.com
®
Improved water quality at a
lower cost will add years to
the life of your combi oven.

#464 - 06/07 D U E T O O G O I G P R O D U C T I M P R O V E M E T,S P E C I F I C AT I O S A R E S U B J E C T T O C H A G E W I T H O U T O T I C E .WEBSITE: www.alto-shaam.com
®

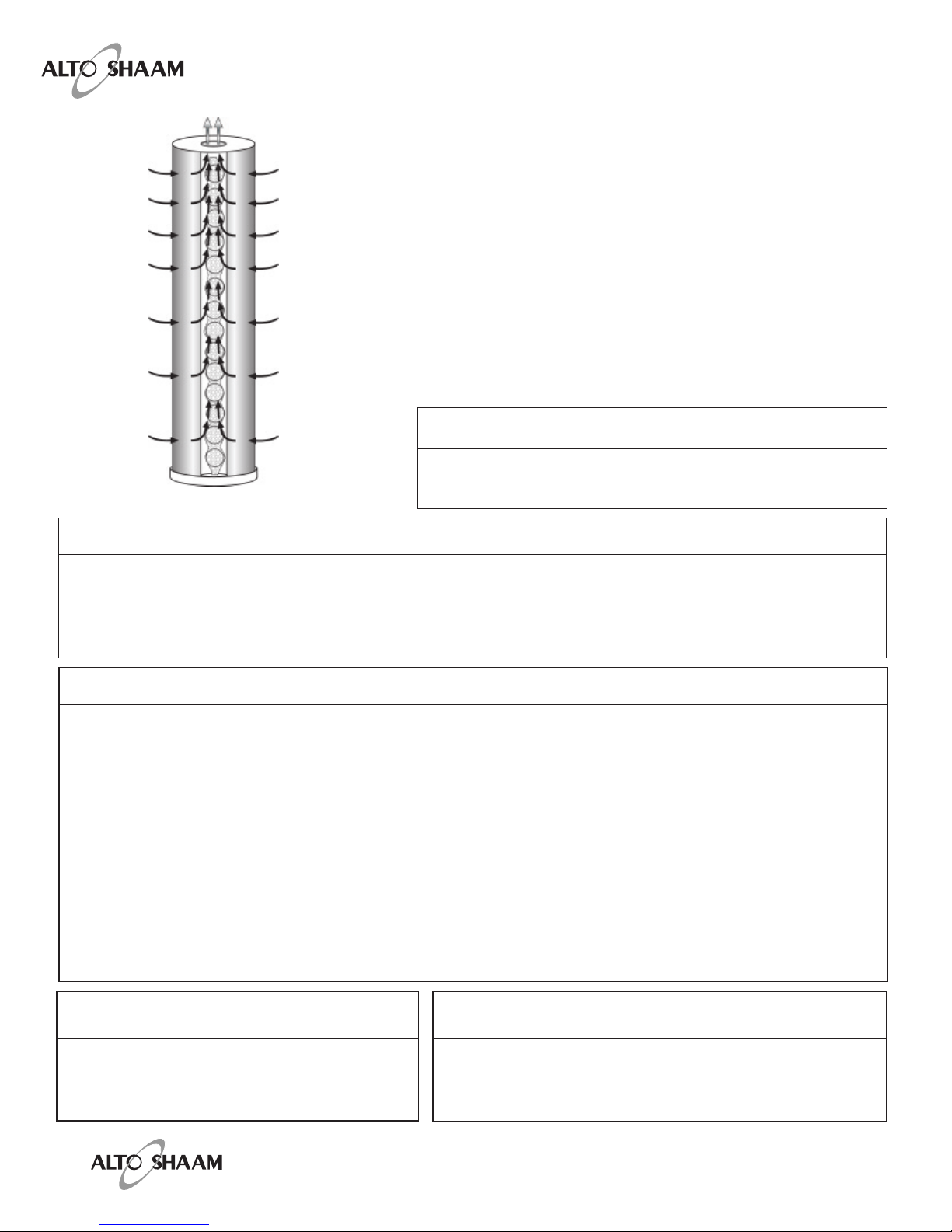

Each FI-26356 filter cartridge contains 70 grams of iliphos®,
which is isolated and evenly distributed through the core of the
filter for maximum contact time and consistent dosing between
filter changes. This scale and corrosion inhibiting technology
provides a perfect balance of media which effectively reduces the
precipitation and accumulation of damaging scale and guards
against corrosion in steam generating equipment.
W164 N9221 Water treet • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U. .A.
PHONE: [phone].558.8744 U..A./CANADA FAX: [phone].329.8744 U..A.ONLY
WEB ITE: www.alto-shaam.com
®
CombiGuard™
TRIPLE-GUARD WATER FILTRATION SYSTEM
ITEM FI-23014
D I M E N S I O N S : H x W x D
15" x 7-5/16" x 5-17/32"
(381mm x 186mm x 141mm)
C L E A R A N C E R E Q U I R E M E N T S
Allow a minimum of 3" (76mm) under the housing to provide sufficient clearance for filter replacement.
The CombiGuard system must not be mounted near any source of heat nor in any area or above any device that
would be adversely affected by water.
INSTALLATION REQUIREMENTS
MAXIMUM PRE URE:125 psi (8.6 bar)
INLET/OUTLET CONNECTION : 3/4" PT
MAXIMUM TEMPERATURE:100°F (38°C)
MINIMUM TEMPERATURE:35°F (2°C)
ERVICE FLOW RATE:1.5 gpm (6 lpm)
GALLON RATING:15,000 gal (56,775 ltrs)
The CombiGuard Water Filtration System will preform as indicated with the water supply in most areas;
however, the water supply should be tested prior to installation to make certain it meets the water
criteria listed on the Combitherm specification sheet for the oven model used. Contact Alto- haam
service for recommendations if water does not meet published standards.
SHIPPING WEIGHT
10 lb
(4,5 kg)
OPTIONS & ACCESSORIES
■■Filter Cartridge Replacement FI-26356
■■O-Ring FI-26381
