Alto 772 User manual

AMERICAN-LINCOLN
TECHNOLOGY
Operator's
Manual

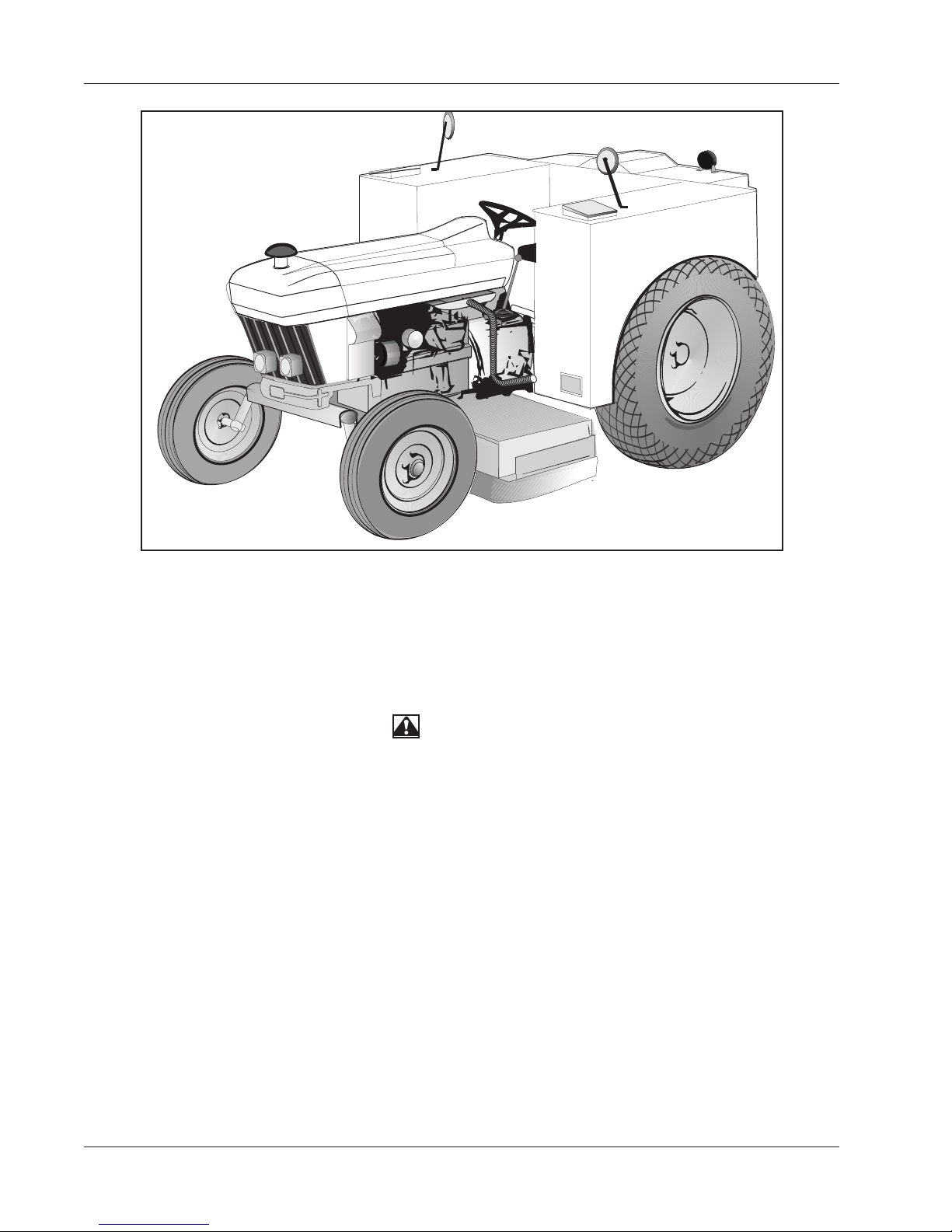

772
Scrubmobile
Beginning with
Serial No. 102569
READ THIS BOOK!
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books, write to: Alto U.S., Inc., 1100 Haskins Road, Bowling Green, Ohio 43402
This book has important information for the use and safe operation of this machine. Failure
to read this book prior to operating or attempting any service or maintenance procedure to
your machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. you must have training in the operation of this machine
before using it. If you or your operator (s) cannot read English, have this manual explained
fully before attempting to operate this machine.
Si Ud. o sis operadores no pueden leer el Inglés, se hagen explicar este manual
completamente antes de tratar el manejo o servicio de esta máquina.
Part No. 2-86-00173 1994 American-Lincoln Technology®
931030
Printed in the USA
UL
®
ISO 9001
FILE A2287
#
®
American-Lincoln
772
Alto

American-Lincoln Technology 1-2
772 Operator’s Manual
MACHINE SPECIFICATIONS ........................................................................................................................... 1-5
MODEL H772 DIMENSIONS ............................................................................................................................. 1-10
SAFETY PRECAUTIONS .................................................................................................................................. 1-11
SAFETY DECALS ............................................................................................................................................. 1-12
MACHINE PREPARATION ................................................................................................................................ 1-14
MACHINE SYSTEMS & CONTROLS ............................................................................................................... 1-15
FORD 3930 TRACTOR POWER UNIT ..................................................................................................... 1-15
BRAKE CONTROLS ................................................................................................................................. 1-16
BRAKE PEDAL LOCK .............................................................................................................................. 1-16
PARKING BRAKE ..................................................................................................................................... 1-16
FOOT THROTTLE .................................................................................................................................... 1-16
DIFFERENTIAL LOCK .............................................................................................................................. 1-16
INDEPENDENT PTO CONTROL LEVER ................................................................................................. 1-16
8X2 TRANSMISSION GEARSHIFT LEVERS ........................................................................................... 1-17
CLUTCH.................................................................................................................................................... 1-17
BRUSH DRIVE AND CONTROL HYDRAULICS ....................................................................................... 1-17
SOLUTION TANKS ................................................................................................................................... 1-18
RECOVERY TANKS ................................................................................................................................. 1-18
VACUUM TURBINE .................................................................................................................................. 1-18
SOLUTION METERING SYSTEM ............................................................................................................ 1-18
SPLASH CONTROL SYSTEM .................................................................................................................. 1-18
SQUEEGEE CONTROL............................................................................................................................ 1-18
BRUSH DRIVE CONTROL ....................................................................................................................... 1-18
BRUSH DRIVE LOCK-UP......................................................................................................................... 1-18
RECOVERY SOLUTION LEVEL WARNING ............................................................................................ 1-18
TRACTOR CONTROLS AND INSTRUMENTS ................................................................................................. 1-19
LIGHT SWITCH ........................................................................................................................................ 1-19
KEY STARTER SWITCH .......................................................................................................................... 1-19
DIESEL ENGINE STOP CONTROL .......................................................................................................... 1-19
HAND THROTTLE .................................................................................................................................... 1-19
FUEL GAUGE ........................................................................................................................................... 1-19
TEMPERATURE GAUGE ......................................................................................................................... 1-19
WARNING LIGHTS................................................................................................................................... 1-19
HOUR METER .......................................................................................................................................... 1-19
TACHOMETER ......................................................................................................................................... 1-19
HORN BUTTON ........................................................................................................................................ 1-19
CAMEL RECYCLING SYSTEM CONTROL PANEL ......................................................................................... 1-20
CAMEL RECYCLING SYSTEM ON/OFF SWITCH .................................................................................. 1-20
SOLUTION HIGH WARNING LIGHT ........................................................................................................ 1-20
DETERGENT LOW WARNING LIGHT ..................................................................................................... 1-20
DETERGENT FLOW KNOB ..................................................................................................................... 1-20
THE SCRUBBING SYSTEM ............................................................................................................................ 1-21
THE BASIC SCRUBBING SYSTEM COMPONENTS .............................................................................. 1-21
THE STANDARD SCRUBBING SYSTEM - HOW IT WORKS ................................................................. 1-22
THE CAMEL SCRUBBING SYSTEM - HOW IT WORKS ......................................................................... 1-23
OPERATING INSTRUCTIONS .......................................................................................................................... 1-24
PRE-START CHECK-LIST ........................................................................................................................ 1-24
STARTING PROCEDURE-GASOLINE & LP ENGINES ......................................................................... 1-24
WARM WEATHER STARTING ................................................................................................................. 1-24
COLD WEATHER STARTING ................................................................................................................ 1-24
STARTING PROCEDURE-DIESEL ENGINES ......................................................................................... 1-25
WARM WEATHER STARTING ................................................................................................................. 1-25
COLD WEATHER STARTING ................................................................................................................ 1-25
COLD WEATHER STARTING AIDS ......................................................................................................... 1-25
THERMOSTAT .......................................................................................................................................... 1-25
COOLANT IMMERSION HEATER ............................................................................................................ 1-26
STARTING THE TRACTOR WITH JUMPER CABLES ............................................................................. 1-25
STOPPING THE ENGINE ......................................................................................................................... 1-26
GASOLINE / LP ENGINES ....................................................................................................................... 1-26
DIESEL ENGINES .................................................................................................................................... 1-26
TO OPERATE THE TRANSMISSION ....................................................................................................... 1-27
TO DRIVE THE MACHINE........................................................................................................................ 1-27
TO OPERATE THE SCRUBBING EQUIPMENT....................................................................................... 1-27
TABLE OF CONTENTS

1-3 American-Lincoln Technology
772 Operator’s Manual
TO OPERATE WHILE DOUBLE SCRUBBING ........................................................................................ 1-28
TO END THE SCRUBBING OPERATION ................................................................................................ 1-28
TO STOP THE ENGINE............................................................................................................................ 1-28
POST OPERATION INSTRUCTIONS - ENGINE STOPPED .................................................................... 1-29
TO CLEAN THE SOLUTION TANKS ...................................................................................................... 1-29
TO CLEAN THE RECOVERY TANK ......................................................................................................... 1-29
TO OPERATE THE VACUUM WAND ...................................................................................................... 1-29
PUSHING OR TOWING ......................................................................................................................... 1-30
OPERATION ON GRADES ....................................................................................................................... 1-30
SERVICE INSTRUCTIONS ............................................................................................................................... 1-31
SERVICE CHART ..................................................................................................................................... 1-31
HELPFUL HINTS FOR CLEANING OPERATION .................................................................................... 1-33
BRUSH LOAD AND WEAR ...................................................................................................................... 1-34
SQUEEGEE TOOL FLOOR HEIGHT ADJUSTMENT ............................................................................... 1-34
SQUEEGEE TOOL LEVEL ADJUSTMENT .............................................................................................. 1-35
AUTOMATIC SQUEEGEE LIFT ADJUSTMENT ....................................................................................... 1-35
SQUEEGEE LIFT HEIGHT ADJUSTMENT .............................................................................................. 1-36
TURBINE BELT ADJUSTMENT ................................................................................................................ 1-36
SPLASH SKIRT ADJUSTMENT ................................................................................................................ 1-37
SERVICING THE RECOVERY TANK ....................................................................................................... 1-37
SERVICING THE SOLUTION TANK ........................................................................................................ 1-38
VACUUM RELIEF VALVE ......................................................................................................................... 1-38
CHECKING THE ENGINE OIL LEVEL ..................................................................................................... 1-39
CHANGING THE ENGINE OIL & FILTER ................................................................................................. 1-39
CHECKING THE ENGINE COOLING SYSTEM ....................................................................................... 1-40
CHECKING THE FUEL FILTER / SEDIMENT .......................................................................................... 1-40
SEPARATOR ............................................................................................................................................. 1-40
SEDIMENT SEPARATOR ......................................................................................................................... 1-40
BLEEDING THE DIESEL FUEL SYSTEM ................................................................................................ 1-41
AIR CLEANER .......................................................................................................................................... 1-42
TRANSMISSION ....................................................................................................................................... 1-43
POWER STEERING HYDRAULICS ......................................................................................................... 1-44
HYDRAULIC LIFT SYSTEM (REAR AXLE) .............................................................................................. 1-45
HYDRAULIC OIL FILTER .......................................................................................................................... 1-45
LUBRICATION FITTINGS ......................................................................................................................... 1-45
ENGINE COOLING SYSTEM ................................................................................................................... 1-46
FAN BELT ADJUSTMENT ........................................................................................................................ 1-47
ALTERNATOR ........................................................................................................................................... 1-47
REGULATOR (VOLTAGE) ........................................................................................................................ 1-47
BATTERY .................................................................................................................................................. 1-48
TIRES ..................................................................................................................................................... 1-48
FUEL INJECTION PUMP .......................................................................................................................... 1-48
BRAKE ADJUSTMENT ............................................................................................................................. 1-49
CLUTCH PEDAL ADJUSTMENT .............................................................................................................. 1-49
SPARK PLUGS ......................................................................................................................................... 1-50
DISTRIBUTOR POINTS............................................................................................................................ 1-50
VALVE CLEARANCES ............................................................................................................................. 1-50
FUEL INJECTORS .................................................................................................................................... 1-50
ENGINE SPEED ADJUSTMENT .............................................................................................................. 1-50
FRONT WHEEL BEARINGS .................................................................................................................... 1-50
STANDARD HARDWARE TORQUE VALUES ............................................................................................... 1-51
HYDRAULIC FITTING TORQUE CHART ....................................................................................................... 1-52
DECIMAL METRIC CONVERSION CHART ..................................................................................................... 1-53
TROUBLESHOOTING GUIDE - SCRUBBER SYSTEMS ............................................................................... 1-54
TROUBLESHOOTING GUIDE - HYDRAULIC SYSTEM ................................................................................. 1-55
TROUBLESHOOTING GUIDE - POWER STEERING SYSTEM ..................................................................... 1-56
TROUBLESHOOTING GUIDE - GASOLINE/DIESEL ENGINE SYSTEMS .................................................. 1-57
TROUBLESHOOTING GUIDE - LP ENGINES ............................................................................................... 1-58
TROUBLESHOOTING GUIDE - GENERAL ENGINE SYSTEM ...................................................................... 1-60
TROUBLESHOOTING GUIDE - CAMEL RECYCLING PUMP ........................................................................ 1-62
TROUBLESHOOTING GUIDE - CAMEL DETERGENT PUMP ........................................................................ 1-63
ELECTRICAL SCHEMATIC DIAGRAM .......................................................................................................... 1-64
ELECTRICAL CONNECTION DIAGRAM ......................................................................................................... 1-65
TABLE OF CONTENTS

American-Lincoln Technology 1-4
772 Operator’s Manual
HYDRAULIC SCHEMATIC DIAGRAM - STANDARD MACHINE ..................................................................... 1-66
HYDRAULIC SCHEMATIC DIAGRAM -CAMEL MACHINE ............................................................................ 1-67
HARDWARE ABBREVIATIONS ........................................................................................................................ 1-68
ORDERING PARTS ........................................................................................................................................... 1-69
TABLE OF CONTENTS – CHAPTER 2 ............................................................................................................ 2-1
FRAME, BRACKETS & BUMPER ............................................................................................................ 2-2
BRUSH DRIVE ......................................................................................................................................... 2-4
BRUSH LIFT & SOLUTION CONTROL .................................................................................................... 2-6
TURBINE .................................................................................................................................................. 2-8
SQUEEGEE LIFT ...................................................................................................................................... 2-10
SQUEEGEE TOOL ................................................................................................................................... 2-12
SOLUTION TANK ..................................................................................................................................... 2-14
CAMEL SOLUTION TANK COMPONENTS ........................................................................................... 2-16
RECOVERY TANK .................................................................................................................................... 2-18
CAMEL RECOVERY TANK .................................................................................................................... 2-20
LIQUID PROPANE .................................................................................................................................... 2-22
EXHAUST SYSTEM .................................................................................................................................. 2-24
CAMEL RECYCLING SYSTEM ................................................................................................................ 2-26
HYDRAULICS (SCRUBBING SYSTEM) .................................................................................................. 2-28
CAMEL HYDRAULICS (SCRUBBING SYSTEM) ................................................................................... 2-30
ELECTRICAL ASSEMBLY ...................................................................................................................... 2-32
DECALS .................................................................................................................................................... 2-34
TABLE OF CONTENTS – CHAPTER 3 ............................................................................................................ 3-1
BRUSH OPTIONS .................................................................................................................................... 3-2
FOAM FILLED TIRES ............................................................................................................................... 3-3
FRONT BUMPER ..................................................................................................................................... 3-4
OVERHEAD GUARD ................................................................................................................................ 3-5
TURN SIGNAL OPTION ........................................................................................................................... 3-6
WARNING LIGHT OPTION ...................................................................................................................... 3-7
BRAKE LIGHT OPTION ............................................................................................................................ 3-8
CATALYTIC MUFFLER OPTION FOR GAS AND LP .............................................................................. 3-10
TRANSMISSION LOCK OUT ................................................................................................................... 3-11
VACUUM WAND ...................................................................................................................................... 3-12
INDEX ..................................................................................................................................................... 3-14
WARRANTY ..................................................................................................................................................... 3-17
TABLE OF CONTENTS

1-5 American-Lincoln Technology
772 Operator’s Manual
MACHINE SPECIFICATIONS
CLEANING PATH 72 inches
TRAVEL SPEED 1.3 - 14 MPH
TURNING RADIUS 117 inches
AISLE WIDTH FOR U-TURNS 20 Feet
DIMENSIONS
Length 138.50 inches
Width 93.3 inches
Height 66.5 Inches without Guard
WEIGHT 5800 lbs. Net
FRAME
Main frame assembly utilizes Ford 3930 Series industrial tractor as base component. All heavy-duty steel
construction.
POWER SOURCE
Available in gasoline, liquid propane (LP) or diesel power 45 P.T.O.-HP, 3-cylinder, liquid cooled, Ford 201
cu. in. industrial engine, electric start, Engine air filter, 17.3 gal. Fuel tank, LP model includes a 33 lb. tank
(ICC) and fittings, catalytic exhaust muffler to reduce emissions (Diesel model).
TRANSMISSION
8-speed forward, 2-speed reverse, manual high-low gear shift with foot operated clutch.
ELECTRICAL SYSTEM
12 volt, automotive type, with maintenance free battery.
HYDRAULIC SYSTEM
Heavy-duty Ford Tractor gear pump provides power to individually mounted brush drive motors. 2500 PSI
high pressure relief valve for squeegee and brush lift mechanisms.
SOLUTION TANKS
Two (2) 100 gallon capacity each, steel construction, one on each side, crossover allows filling from either
side, clean-out doors and oversize fill openings are standard.
RECOVERY TANK
One (1) 210 gallon capacity, steel construction, equipped with vacuum shut-off float activated when tank
reaches capacity. Clean-out doors anddump valves for easy draining.
VACUUM SYSTEM
Power provided by a regenerative air turbine, V-belt driven from the tractor PTO to 5,000 RPM.
SCRUBBING BRUSHES
Four (4) 18 inches diameter, disc type
Brushes are mounted to a 3/8" steel frame and are readily accessible. Hydraulic cylinder raises and lowers
brush assembly off ground level for travel and storage. Scrub brush discs are gimbals mounted to follow
irregular floor contours. One-piece or sectional brushes are available.

American-Lincoln Technology 1-6
772 Operator’s Manual
OPTIONAL BRUSHES
Bassine
Straight wire
Nylon
Amerfil (.025)
Amerfil (.040)
Amerfil and wire (One-piece only)
Amergrit
Supergrit
Soft Nylon
Crimped wire scarifier (sectional only)
SQUEEGEE ASSEMBLY
Two (2) overlapping, independently suspended double-bladed, gum rubber. Swivel caster allows adjustment
up and down for optimum pick-up pressure. Provides maximum recovery from cracks and porous surfaces.
Squeegees lift automatically when unit goes into reverse direction.
STEERING
Hydrostatic power steering.
BRAKES
Mechanical wet discs on individual rear wheels, separate parking brakecontrol.
CONTROLS
Key start ignition Tachometer,
Alternator warning light Recovery tank level warning light
Headlights Horn button
Rear reflectors Brush and squeegee raise/lower levers
Engine hour meter, PTO lever
Brush drive control Solution metering control.
BEARINGS & LUBRICATION
All ball bearings on rotating shafts are lubricated for long life and sealed against dust and foreign material.
Grease fittings are provided to allow for proper lubrication at all necessary points.
TIRES
Front (2) 7.50 - 18 pneumatic rubber
Rear (2) 13.6 - 28 pneumatic rubber
FILTERS
One (1) engine and one (1) hydraulic oil filter trap particles down to 10 microns in size.
MACHINE SPECIFICATIONS

1-7 American-Lincoln Technology
772 Operator’s Manual
MACHINE SPECIFICATIONS
FORD 3930 TRACTOR SPECIFICATIONS
CAPACITIES
Fuel Tank 17.3 US gals.
Cooling System 11.2 US qt.
Power Steering System 2.3 US qt.
Engine Crankcase
With Filter Change 7 US qt.
Without Filter Change 6 US qt.
Hydraulic Lift System
(Rear Axle)
With Ind. P.T.O. 12.0 US gal.
Transmission
8 x 2 3.2 US gal.
ENGINE
Bore 4.4 in.
Stroke 4.4 in.
Displacement 201 cu. in.
Compression Ratio
Diesel/Gasoline 16.3:1 / 7.75:1
Firing Order 1 - 2 - 3
Idle Speed(rpm) 600-850
Maximum Speed: No Load (rpm)2175
Rated (rpm) 2000
Low Idle 600-850
Valve Clearance
(Lash) Warm
Engine
Intake 0.014 in. - 0.016 in.
Exhaust 0.017 in. - 0.019 in.
LUBRICANTS
All Ford Tractor lubricants are specially blended from select base stocks and premium additives for long life
and trouble-free service. The use of these lubrications is recommended as follows:
Oils:
Transmission/Rear Axle/hydraulic Sump Ford M2C134-D/C
Power Steering Pump Ford M2C134-D/C
Engine Crankcase Ford M2C121-E
(see note below)
Grease:
Front Wheel Bearings and all Grease Fittings-M1C75-A/B or M1C137-B
NOTE: Engine Crankcase Oils
1) Viscosity grade selection for your climate:(see Figure 2)

American-Lincoln Technology 1-8
772 Operator’s Manual
OUTDOOR TEMPERATURES AND RANGES OF APPLICATION
In areas where prolonged periods of extreme temperatures are encountered, local lubricant practices are
acceptable, such as the use of SAE 5W, SAE 40 or SAE 50 grades of oil. These oils much be of API CD or
SF/CD Quality.
Engine crankcase oil drain intervals should be adjusted downward when diesel fuel sulfur content is above
0.5%. Consult your dealer for details of Engine Crankcase Oil Usage.
COOLING SYSTEM
Type Pressurized liquid, re-circulating bypass
Water Pump
Type Centrifugal
Drive V-belt
Fan
Diameter 16 in.
Fan belt deflection 1/4 to 1/2 in. with 25 lbs. force applied midway between alternator and
crankshaft pulleys
Thermostat:
Starts to Open180° F
Fully Open203° F
Radiator Cap10 psi
ELECTRICAL SYSTEM
Alternator 12-volt
Output 55 amp. (STD)
Voltage Regulator Integral
Battery
Diesel Engine 107 amp. hour rating
Ground negative
Starting Motor positive engagement
Headlamp Sealed Beam Unit
(Std. Fenders) No. 4419
Headlamp (Opt. Flat Top Fenders)
Dual Beam (inner) Lamps No. 4460
Tail Lamp Bulb No. 1155
Flasher Warning Lamp Bulb No. 1156
Instruments and Warning
Light Bulb No. 1895
-25ºC -10ºC 0ºC +32ºC
SAE 10W
SAE 10W-30
SAE 15W-40
SAE 30
-13ºF +14ºF +32ºF +90ºF
P4840
MACHINE SPECIFICATIONS
P4840

1-9 American-Lincoln Technology
772 Operator’s Manual
IGNITION SYSTEM
Diesel
Type compression
Gasoline
Type spark
Method coil and distributor
Distributor Point Gap-Breaker 0.022-0.025 in.
Dwell Angle 35-38
Timing (at 600-700 rpm with vacuum line disconnected)
5 Deg. BTDC
Spark Plugs
Type Autolite AG5
Gap 0.023-0.027 in.
CLUTCH
w/Independent P.T.O. 13 in. single dry plate
Pedal Free Travel 1.1-1.6 In.
BRAKES
Type Mechanical, wet disc
Disc Diameter 8.0 in. O.D.,6.8 in. I.D.
No. Of Discs 3 Per Side
STEERING
Type Hydrostatic Power
Steering
Turns Lock-to-Lock 3.4
Pump
Type gear
FUEL SYSTEM
Carburetor (Gasoline):
Type Zenith
Injection Pump (Diesel)
Type Distributor
8 x 2 TRANSMISSION
ROAD SPEED IN MILES PER HOUR AND KILOMETERS PER HOUR
Engine Speed
Gear 1450 RPM
1 1.2 MPH
2 1.51 MPH
3 2.65 MPH
4 3.60 MPH
5 4.31 MPH
6 5.38 MPH
7 4.46 MPH
8 12.85 MPH
R1 1.77 MPH
R2 6.20 MPH
Tire Size 13.6 x 28
MACHINE SPECIFICATIONS

American-Lincoln Technology 1-10
772 Operator’s Manual
55.00
67.25
81.75
90.40
84.50
138.50
MACHINE DIMENSIONS
