PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
1. TECHNICAL SPECIFICATIONS
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
2. ILLUSTRATIVE SWITCH CONNECTION
- Installation of the switch should be carried out by authorized persons (e.g. ECS authorisations to operate electrical devices up to 1 kV).
NOTE
- The switch should be powered by a separate circuit and protected by a quick fuse for example: circuit breaker type B10.
Power supply:
Operating temperature:
Average range:
Works exclusively with motors without built-in radio control.
Works with all AC series transmitters included in the ALUPROF S.A. offer.
UP To 20 transmitters can be programed to one motor Each next transmitter will overwrite the first one,.
230 VAC / 50 Hz
~ -20°C - ~ +55°C
80 meters (in open space), 20 meters (inside buildings)
Protection degree: IP30
Frequency: 433.92 MHz
Company reserves the tolerance of catalog data due the different conditions usage.
In accordance with the provisions of the Directive of the European Parliament and of the Council 2012/19 / EU of 4 July 2012 on waste electrical and
electronic equipment (WEEE), it is prohibited to place of used equipment together with other wastes, marked with crossed out wheeled bin symbol.
The users are obliged to transfer their used equipment to a designated collection point for proper processing. The marking means, at the same time,
that the equipment was put on the market after 13 August 2005. These legal obligations have been introduced to reduce the amount of waste
generated from waste electrical and electronic equipment and to ensure an appropriate level of collection, recovery and recycling. The equipment
does not contain any dangerous components, which would have any particularly negative impact on the environment and human health.
230V / 50Hz

2
We reserve the right to any technical change.
Valid on 2021.05.27
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER

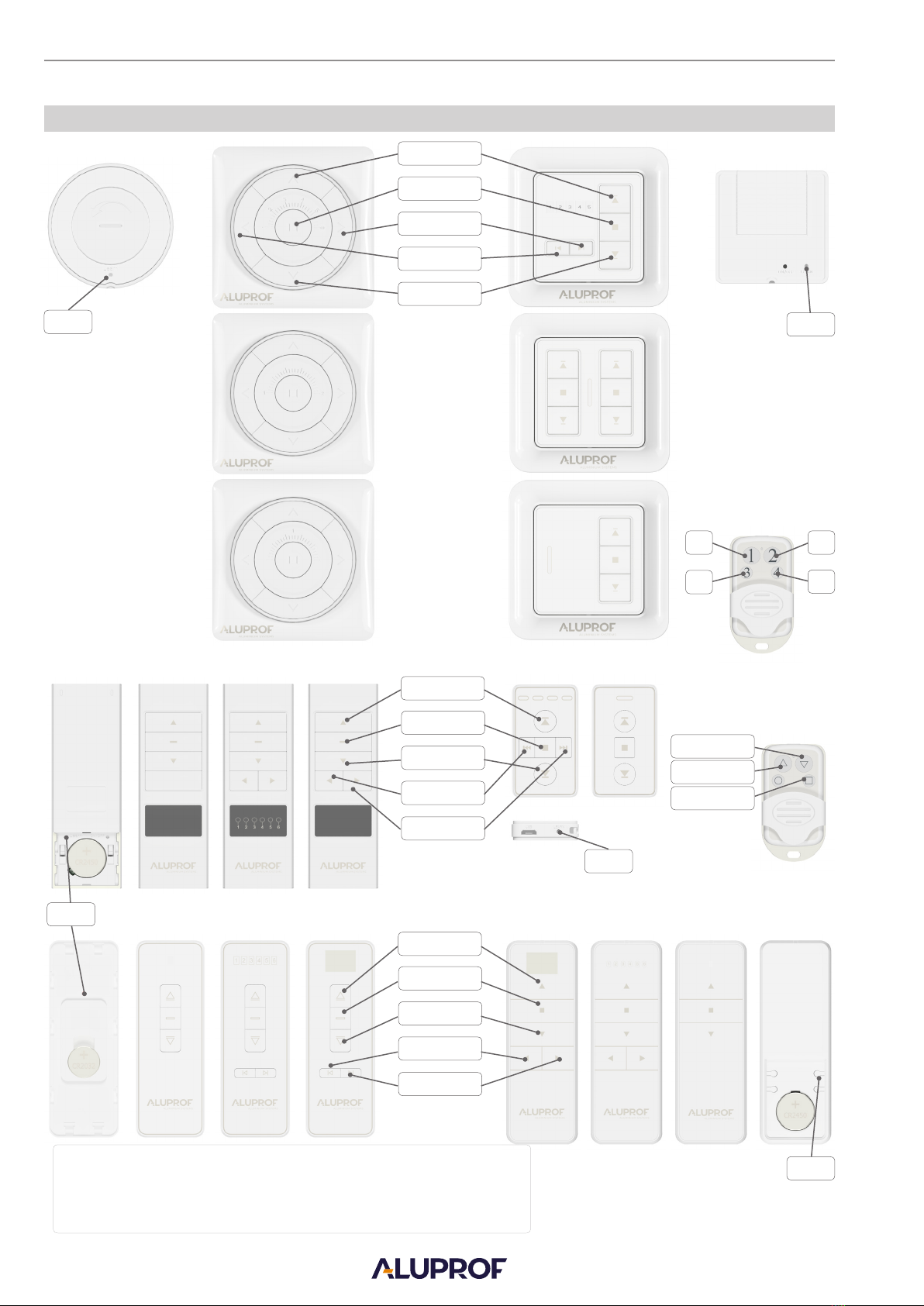

3. REMOTE CONTROLLERS
P2
P2
P2
AC12701 AC12706 AC12716 AC14016 AC14006 AC14001
AC12904 AC12901
AC13601 AC13606 AC13616
AC13406
AC13402
AC13401 AC13301
AC13302
AC13305
P2
AC11604
K2
K4
K1
K3
P2
AC11603
UP
STOP
K+
K-
DOWN
UP
UP
STOP
STOP
K+
K+
K-
K-
DOWN
DOWN
UP
STOP
DOWN
UP
DOWN
K-
- activation of this button will move curtain up.
- activation of this button will move curtain down.
- activation of this button will switch to the previous channel.
K1/K2/K3/K4 - individual channel buttons.
STOP - activation of this button will stop curtain.
K+ - activation of this button will switch to the next channel.
P2 - activation of this button will switch to programming mode.

3
We reserve the right to any technical change.
Valid on 2021.05.27
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER

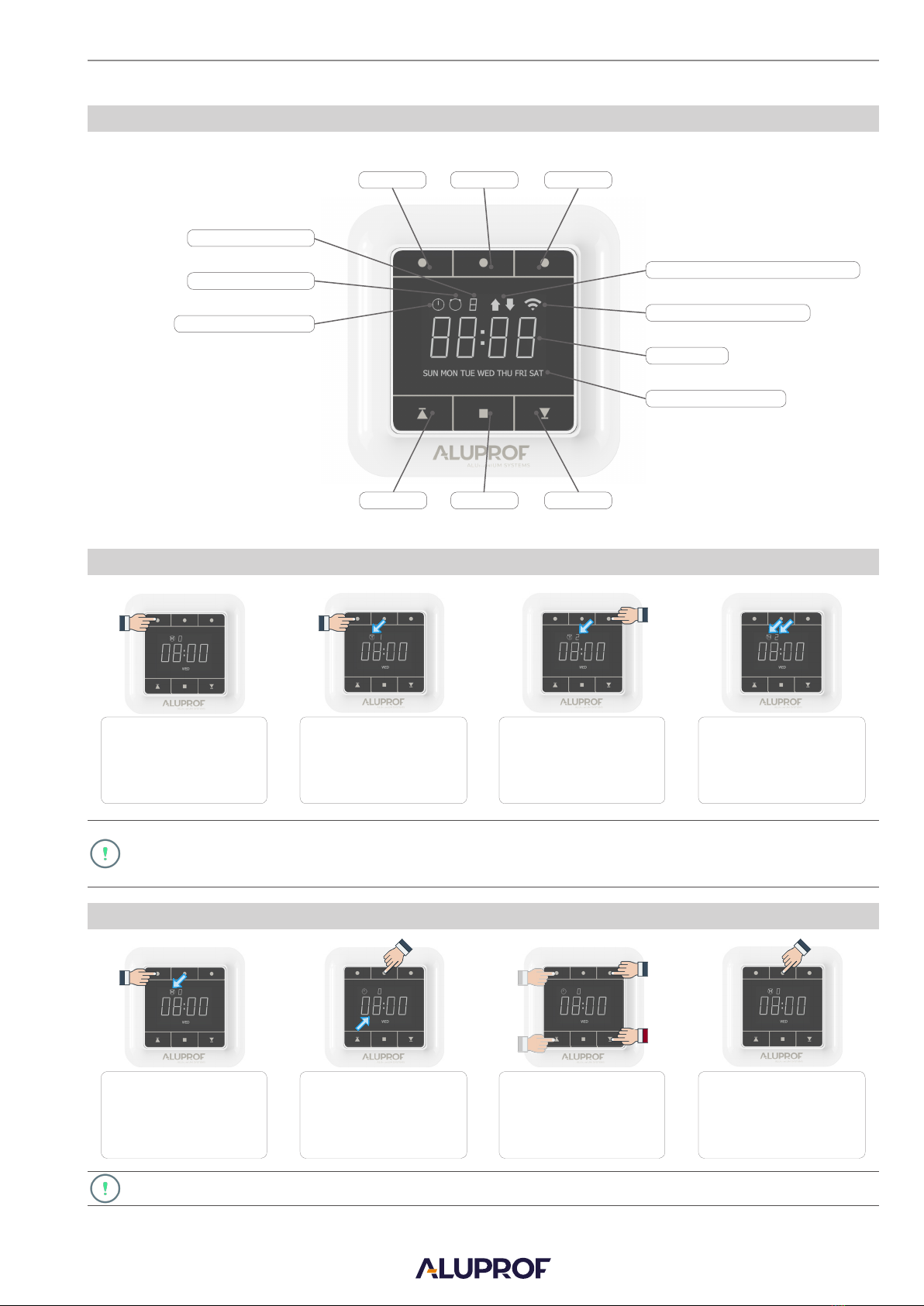

4. DIAGRAM OF THE FRONT PANEL
STOP DOWN UP
MENU rightleft
CLOCK
WEEK DAYS
SYMBOL SYGNAŁU
OPERATING MODE
AKTUALNY CZAS
CLOCK MODE
6. SETTING THE CURRENT TIME AND DAY OF THE WEEK
5. OPERATING MODE CHANGE
Press and hold the“LEFT”
button for 1 second.
Next holding of the button
changes the mode between
“Manual” (M),
To select one of the three
options from “Timer Mode”(T),
press and hold the “RIGHT” button for
In “Random Timer Mode”(T ±) the
same option is always active that is
active in “Timer Mode” (T).
“Timer Mode”(T),
“Random Timer Mode” (T ±). 1 second.
Option T1 - setting the same opening / closing hours for each day.
Option T2 - setting individual opening / closing hours for each day.
Option T3 - setting individual opening / closing hours at the weekend and the same for other days.
Switch to “Manual” (M) mode.
Press and hold the
“MENU” button
for 4 seconds. The
Press“LEFT” / ”RIGHT” to select
the position to change.
Pressing ‘UP’ / ‘DOWN’
To save the settings press
the “MENU” button.
change its value.
hour will flash.
THE DIRECTIONS OF MOVEMENT
The setting mode will close after 10 seconds of inactivity and the changes will not be saved.

4
We reserve the right to any technical change.
Valid on 2021.05.27
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
7. TIMER SETTING
Switch to “Timer” (T) mode. Select the required “Timer
Mode” (T) option.
Press“LEFT” / ”RIGHT” to select
the position to change.
Pressing ‘UP’ / ‘DOWN’
To save the settings press
the “MENU” button. The arrow
will change to the
change its value.
Press and hold the
“MENU”button for 4 seconds.
The hour will flash.
The arrow on the display
indicates the direction in which
the settings are being made.
opposite direction
Repeat the previous two steps
until none of the arrows are
displayed.
The timer has been set.
8. LOCKING OF THE BUTTONS
Press and hold the“STOP”
button for 4 seconds.
After 2 seconds,
“SET” will be displayed.
After 4 seconds,
“LOCK” will be displayed.
Release the button.
The buttons have been blocked.
The setting mode will close after 10 seconds of inactivity and the changes will not be saved.
9. UNLOCKING OF THE BUTTONS
Press and hold the“STOP”
button for 4 seconds.
After 2 seconds,
“SET” will be displayed.
After 4 seconds,
“Good” will be displayed.
Release the button.
The buttons have been
unlocked.

5
We reserve the right to any technical change.
Valid on 2021.05.27
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
Press and hold the“LEFT”
and “RIGHT” buttons
After 2 seconds,
“SET” will be displayed.
After 4 seconds, “INCh” (without
support) or “CONT” (with
support) will be displayed.
for 4 seconds.
The setting has been saved.
10. PROGRAMMING OF THE FIRST TRANSMITTER.
Press and hold the“RIGHT”
button for 1 second.
Press the“UP” button on
the transmitter.
The signal symbol
will flash quickly 3 times.
The signal symbol will
The transmitter has been
added.
flash.
Press and hold the“STOP”
button on the transmitter
On the new transmitter
press the ”UP” button.
The signal symbol
will flash quickly 3 times.
already added for 6 seconds.
The transmitter has been
added.
The signal symbol will flash.
12. MODE CHANGE (WITH OR WITHOUT SUPORT)
Press and hold the“RIGHT”
button for 1 second.
Press the“STOP” button
on the transmitter.
The signal symbol
will flash quickly 3 times.
The signal symbol will flash.
The setting has been saved.
I
II
11. PROGRAMMING OF THE ANOTHER TRANSMITTER
Repeating of the procedure returns to the previous operating mode.
Release the buttons.
For the AC116-04 transmitter, instead of the ”UP” button, press the selected channel number twice.
Additional transmitters can be programmed according to point 9.

6
We reserve the right to any technical change.
Valid on 2021.05.27
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER

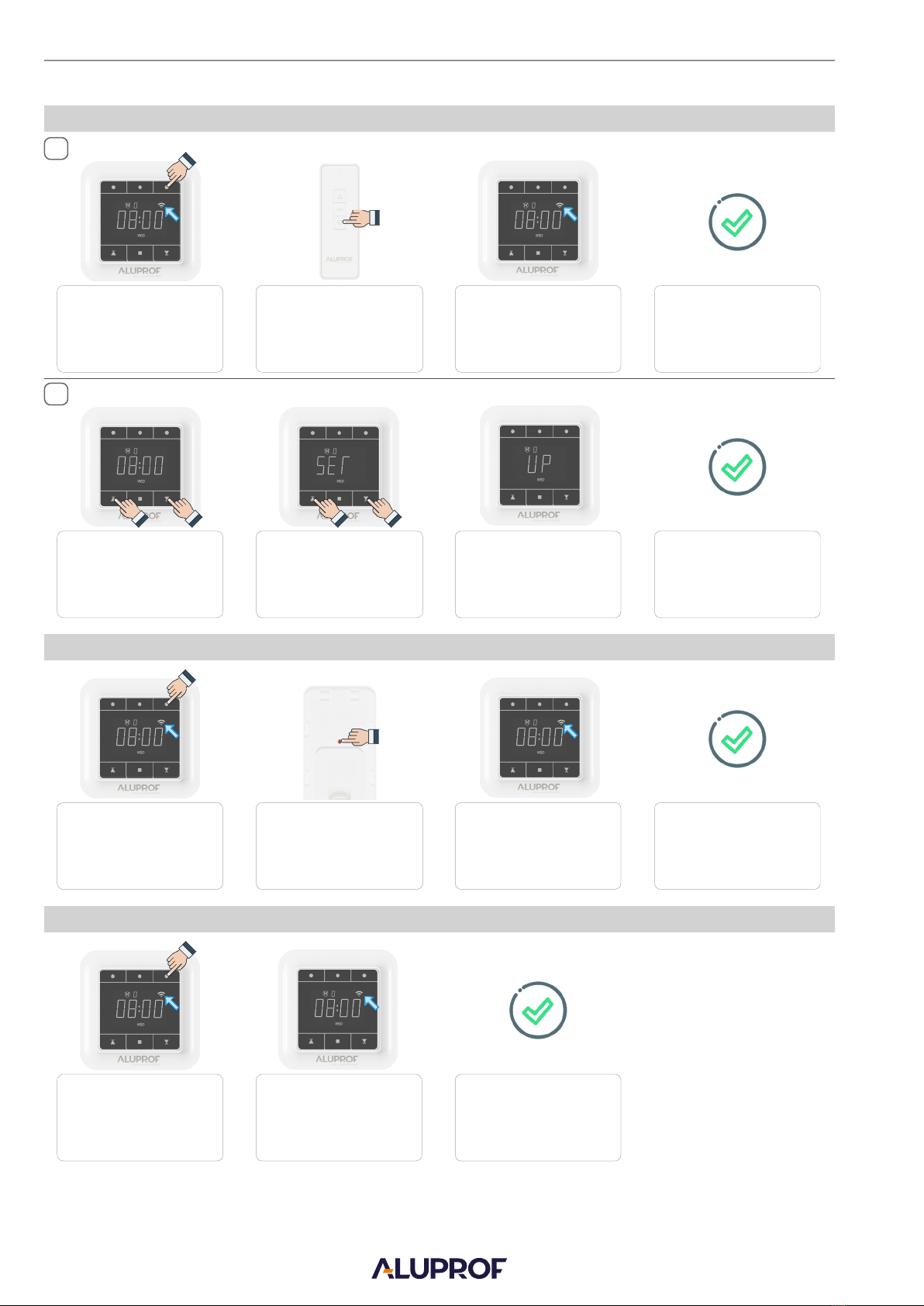

14. ERASING ONE TRANSMITTER.
Press and hold the“RIGHT”
button for 1 second.
On the transmitter
press the „P2” button.
The signal symbol
will flash quickly 3 times.
The signal symbol will
The transmitter has been
deleted.
flash.
13. PROGRAMMING THE DIRECTION OF MOVEMENT
I
II
15. ERASING ALL OF THE TRANSMITTERS.
The transmitters have been
deleted.
Press and hold the“RIGHT”
button for 6
seconds. The signal
symbol will flash.
After 6 seconds, the
signal symbol will
flash quickly 3 times .
Press and hold the“UP” and
“DOWN” buttons for
After 2 seconds,
“SET” will be displayed.
After 4 seconds,
“UP” or “dn” will be displayed.
Release the buttons.
4 seconds.
The setting has been saved.
Press and hold the“RIGHT”
button for 1 second.
Press the “DOWN”
button on the transmitter.
The signal symbol
will flash quickly 3 times.
The signal symbol will
The setting has been saved.
flash.
