Amada Promecam ITS 50/12 User manual

PROMECAM
HYDRAULIC PRESS BRAKES
I.T.S
TECHNICAL MANUEL
63, Rue de Strasbourg 93206 Saint Denis Cedex 1 - FRANCE Tel: [phone] TELEX: 232717Telec. : 161 48 22 61 57

...
.J
,.~
, ....... ,
._".....-.

PROMECAM

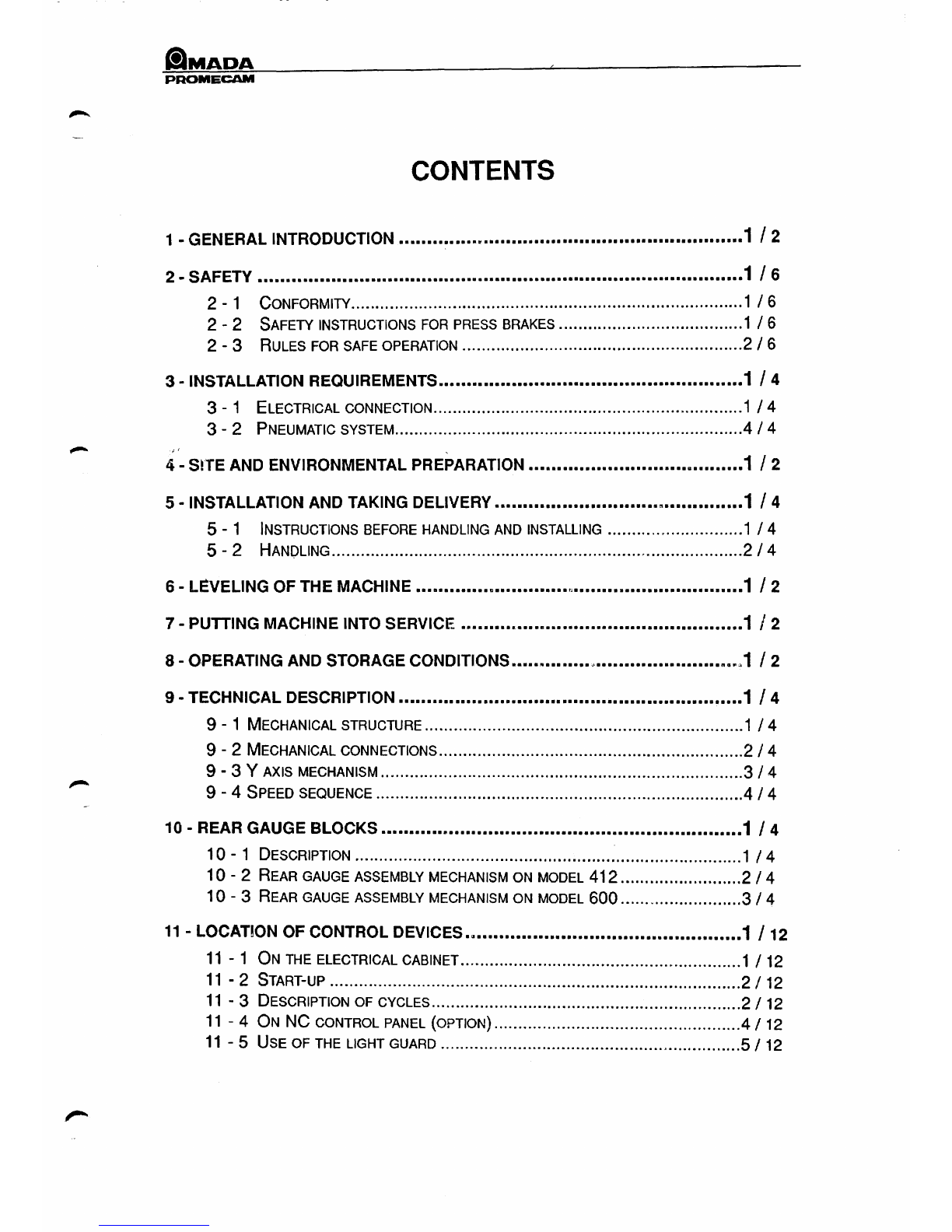

CONTENTS
1 • GENERAL INTRODUCTION .............................................................. 1 I 2
2. ~AI=E:T" ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••1 16
2 - 1 CONFORMITY ................................................................................. 1 16
2 - 2 SAFETY INSTRUCTIONS FOR PRESS BRAKES ...................................... 1 16
2 - 3 RULES FOR SAFE OPERATION .......................................................... 2 / 6
3 - IN~TALLATION REQUIREMENT~ ••••••••••••••••••••••••••••••••••••••••••••••••••••••1 I 4
3 - 1 ELECTRICAL CONNECTION ................................................................ 1 /4
3 - 2 PNEUMATIC SYSTEM ......... '" ............................................................ 4 14
4 '. ~rTE AND ENVIRONMENTAL PREPARATION ....................................... 1 / 2
5 -
IN~TALLATION AND TAKING DELIVERY ••••••••••••••••••••••••••••• ,.. ............. 1 I 4
5 - 1 INSTRUCTIONS BEFORE HANDLING AND INSTALLING ............................ 1 / 4
5 - 2 HANOLING ................................................................... .................. 2/4
6 • LEVELING 01= THE MACHINE •••••••••••••" ............................................. 1 I 2
7 • PUTTING MACHINE INTO ~ERVICE ••••••••u ......................................... 1 I 2
8 • OPERATING AND ~TORAGE CONDITIONS•••••"••••••••.'••••••••••••••••••••• an""~ 1 12
9 - TECHNICAL DESCRIPTION •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••1 I 4
9 - 1 MECHANICAL STRUCTURE .................................................................. 1 / 4
9 - 2 MECHANICAL CONNECTIONS ............................................................... 2 I 4
9 - 3 Y AXIS MECHANISM ........................................................................... 3/4
9 - 4 SPEED SEQUENCE ............................................................................ 4 / 4
10 -REAR GAUGE BLOCKS ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••1 I 4
10 - 1 DESCRiPTION ................................................................................ 1 14
10 - 2 REAR GAUGE ASSEMBLY MECHANISM ON MODEL 412 ......................... 2/4
10 - 3 REAR GAUGE ASSEMBLY MECHANISM ON MODEL 600 ......................... 3/4
11 - LOCAT~ON OF CONTROL DEVICES.n••••••••••••••••••••••••••••••••••••••••••••••1 112
11 - 1 ON THE ELECTRICAL CABINET .......................................................... 1 / 12
11 - 2 START-UP ..................................................................................... 2/ 12
11 - 3 DESCRIPTION OF CYCLES ................................................................ 2 / 12
11 - 4 ON NC CONTROL PANEL (OPTION) ................................................... 4/12
11 - 5 USE OF THE LIGHT GUARD .............................................................. 5 112

PAOMECAM
12 -MB NUMERICAL CONTROL (OPTION) •••••••••••••••••••••••••••••••••••••••••••••1 / 6
12 - 1 DESCRIPTION· ............................................................................... 1 / 6
12 -2 GENERAL CHARACTERISTICS OF THE
MB NUMERICAL CONTROl. ......... 1 / 6
12 - 3 MANAGEMENT OF AXES .. " .............................................................. 2/6
12 - 4 OPERATING DIAGRAM ..................................................................... 3 / 6
12 -5 CHARACTERISTICS OF COMMAND AND CONTROL PANEL BOARDS
......... 4 / 6
13 -BENDING AND PUNCHING TECHNIQUES .......................................... 1 / 8
13 - 1 AIR BENDING ................................................................................. 1 /8
13 - 2 COINNING ..................................................................................... 2/8
13 - 3 PUNCHING TECHNIQUE ................................................................... 3 / 8
13 - 4 MOUNTING TOOLS
.......................................................................... 4,/8
14 -USE WITHOUT NUMERICAL CONTROL••••••••••••••••••••••••••••••••••••••••••••1 I 4
14 - 1 PRELIMINARY OPERATIONS .............................................................. 1 / 4
14 -2 IMPORTANT RECOMMENDATIONS ....................................................... 1 /4
14 -3 TURNING ON AND OFF ....................................................... , ............. 1 /4
14 -4 MUTE-LEVEL SETTING ..................................................................... 1 / 4
14 -5 PRESSURE REGULATOR SETTING
...................................................... 2 /4
14 - 6 HYDRAULIC GAUGE BLOCK CONTROL SETTING ................................... 3 / 4
15 -USE OF NUMERICAL CONTROL (TYPE MB)••••••••••••••••••••••••••••••••••••••1 / 14
15 - 1 PRELIMINARY OPERATIONS .............................................................. 1 / 14
15 - 2 OPERATION ................................................................................... 2 / 14
15 -3 USE IN TEACHING MODE ................................................................. 8/ 14
15 - 4 SELF-DIAGNOSTiC .......................................................................... 9 / 14
15 - 5 ERROR MESSAGES ....................................................................... 11 / 14
15 - 6 TROUBLE-SHOOTING ..................................................................... 12/ 14
16 -NUMERICALCONTROL CUSTO,MIZATION ........................................ 1 I 2
16 - 1 METHOD OF ACCESS ...................................................................... 1/ 2
16 - 2 KEY VALUES .................................................................................. 1 / 2
16 -3 METHOD
OF 'CHECKING ................................................................... 2 / 2
16 - 4 METHOD OF WRITING ..................................................................... 2 / 2
17 -PROGRAMMING••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••1 /18
17 - 1 PROGRAMMING OF A PART .............................................................. 1 / 18
17 - 2 PROGRAMMING OF BENDS ............................................................... 3 / 18
17 -3 FINDING PINCH DIMENSION .............................................................. 5 118
17 -4 FINDING BENDING DEPTH VALUE ....................................................... 9 / 18
17 - 5 PRODUCTION ............................................................................... 17 / 18
18 -MAINTENANCE ••••••••••••••••••••• 11 ••••••••••••••••••••••••••••••••••••••••••••••••••••• 1 I 6
18 - 1 MACHINE MAINTENANCE .................................................................. 1 / 6
18 - 2 REAR GAUGE ASSEMBLY MAINTENANCE ............................................. 3 / 6
18 - 3 ADJUSTABLE INTERMEDIATE SETS
..................................................... 5 /6 ~

PAOMIiCAM
1 -GENERAL INTRODUCTION
This document is designed to facilitate the handling, placing operations and connection t9 the
electricity and compressed
air supply networks of your ITS or ITPS hydraulic press brake (Figure
1.1).
This publication covers the following models:
ITS 50/12
ITS 50/20
ITS 80/25
ITS 103
ITS 125/30
List of available versions:
On ITS 50112
Type 412 rear thrust block with:
Xaxis
or
X axis + R1, R2
ITS/ITPS - GENERAL INTRODUCTION
On ITS 50/20, 80/25, 103, 125/30
Type 600 rear thrust block with:
-axis X
or
-axis X + R1 ; R2
au
X axis + R1, R2 + 21,22
1 -112

.MADA
PROMECAM
TABLE OF MACHINE CHARACTERISTICS
DESIGNATION UNITES 50/12 50/20 80/25 103 125/3
NOMINAL POWER KN 500 500 800 1000 1250
DISJUNCTION KN
10
8
20
18
18
MAX BENDING LENGTH
mm
1250 2000 2500 3000 3100
TABLE LENGTH
mm
1200 2000 2500 3000 3100
TABLE WIDTH
mm
60 60
60
90
90
WORKING TOP HEIGHT
mm
960 960 960 960 960
INTAKE
mm
370 370 370 370 370
STROKE
mm
100 100
100
~OO
100
GOOSE NECK
mm
400
400 400
400
400
SIDEPLATE ENTRY
mm
1020 1690 2160 2600 2600
MAXI PRESSURE M.Pa
31,S
31,5 25,2 51,5
26,3
NB. OF CYLINDERS 1 1 2 2 3
OIL CAPACITY Liters
45 45
70
85 110
50 160 Hz INST. POWER
Kw
6,5
6,5
9,5
11
13
INST. POWER Kw 4,5
4,5
7,5
9-
11
50 Hz APPROX. SPEED
mm/s
85
85 85 85 85
60 Hz APPROX. SPEED
mm/s
82 82
82 82 82
50/60 Hz WORKING SPEED
mm/s
10 10 10
10
10
50/60 Hz RETURN SPEED
mm/s
80
80
80
80 80
No. OF CYCLES 4 4 4 4 4
OVERALL HEIGHT mm
2030 2180 2200 2325 2400
OVERALL LENGTH
mm
1700 2500 2860 3300 3300
OVERALL WIDTH
mm
1745 1745 1880
1930
1940
WEIGHT Kg
2600
3300 4600 6000
7200
WEIGHT GAUGE Kg
175
330
410 430 430
No.OF ADJUST. INTERS 6
10 13 15
15
ADJUSTABLE INTERS mm
120 120 120 120 120
TOOLS
Width: 835 1 2 3 4 4
Width: 415 1 1
AS AMADA PROMECAM'S POLICY IS ONE OF CONTINUOUS DEVELOPMENT, ALL
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
,
1- 2/2
INSTALLATION MANUEL - ad: 03/90
I-,J

PROMECAM

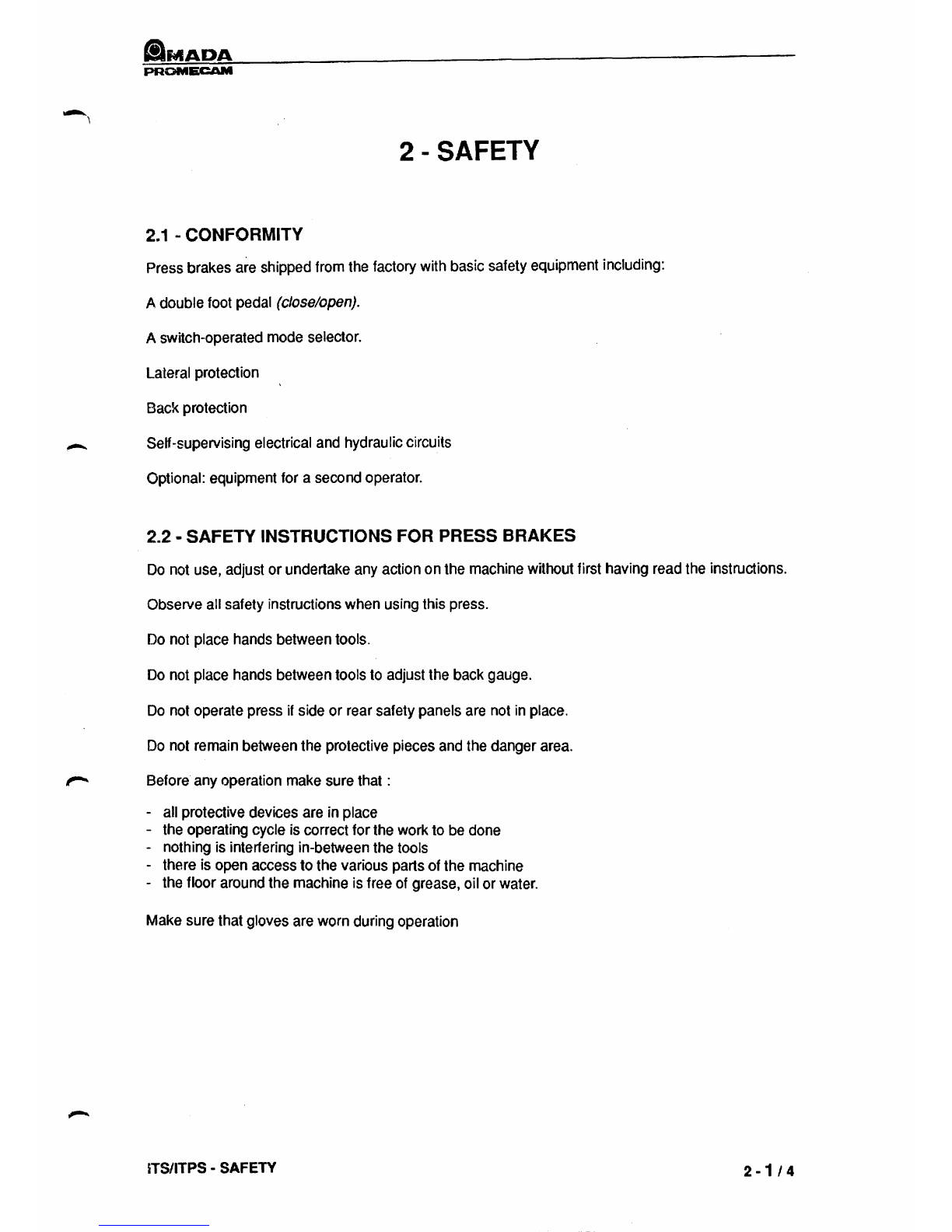

2 -SAFETY
2 .. 1 -CONFORMITY
Press brakes are shipped from the factory with basic safety equipment including:
Adouble
foot pedal (close/open).
A switch-operated mode selector.
Lateral protection
Back protection
SeH-supervising electrical and hydraulic circuits
Optional:
equipment for a second operator.
2.2 -SAFETY INSTRUCTIONS FOR PRESS BRAKES
Do not use, adjust or undertake any action on the machine without first having read the instructions.
Observe all safety instructions when using this press.
Do not place hands between tools.
Do not place hands between tools to adjust the back gauge.
Do not operate press if side or rear safety panels are not in place.
Do not remain between the protective pieces and the danger area.
Before any operation make sure that :
-all protective devices are in place
- the operating cycle is correct for the work to be done
-nothing is interfering in-between the tools
- there is open access to the various parts of the machine
- the floor around the machine is free of grease, oil or water.
Make sure that gloves are worn during operation
'TS/ITPS -SAFETY
2-1/4

PROMECAM
2.3 - RULES FOR SAFE OPERATIC)N
Use pliers or any other tooling to help bend small dimension or small width parts. Never
place your fingers nearthe punches.
Remove your hands form the part to be bent after the latter has been pinched between the tools.
Otherwise this might result in serious injuries.
Make sure that the operator removes the punches and the tooling in compliance with the
procedure described in this manual. Make sure that the motor is stopped at that moment.
2-2/4
INSTALLATION MANUEL- 00:03/90

PROMECAM
Never place your hand between the part and the rear gate while operating your machine.
Never place any part of your body between the die and the punch during a bending operation.
Never try to support the end of the workpiece by supporting it on both sides of the beam.
ITS/ITPS • SAFETY
2·3/4

PROMECAM

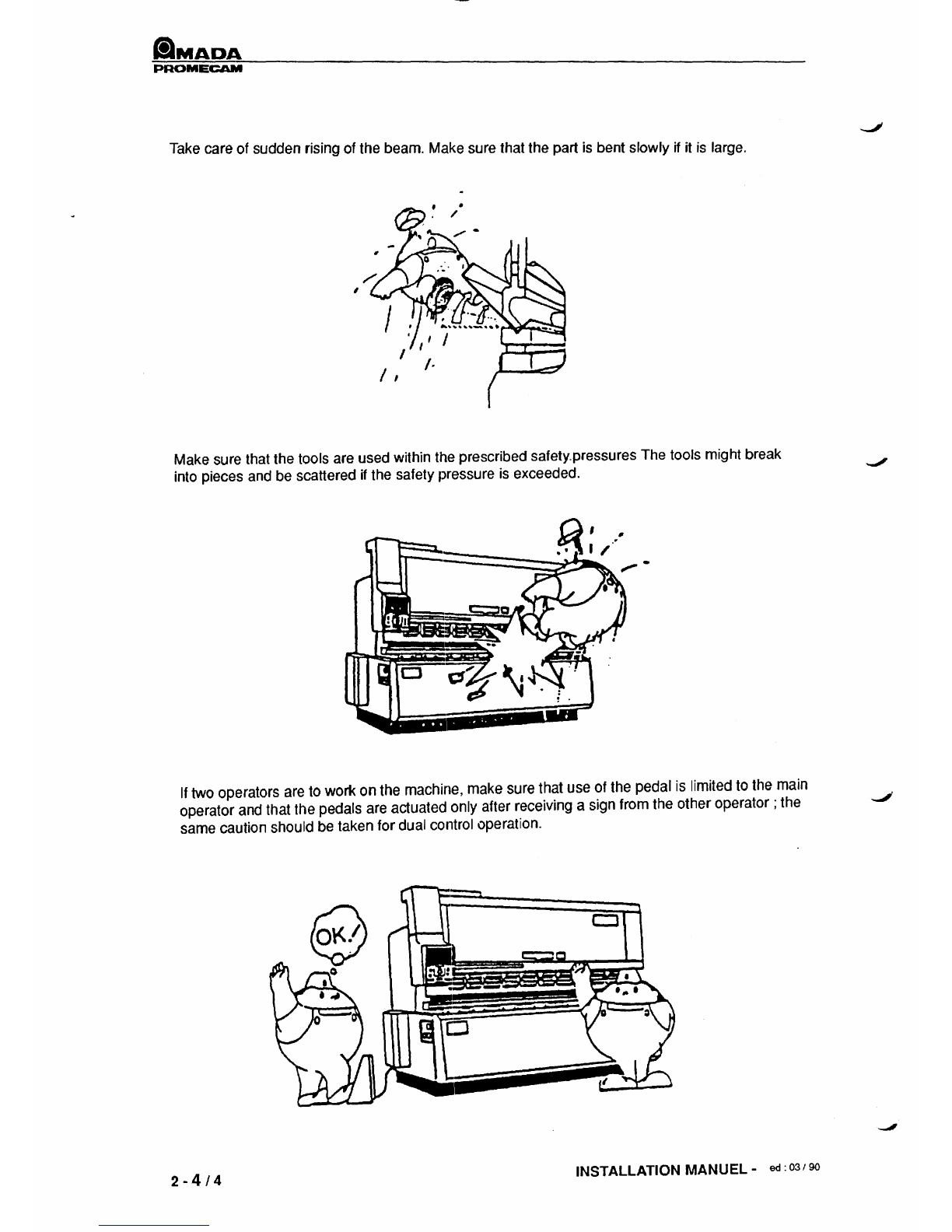

Take care of sudden rising of the beam. Make sure that the part is bent slowly if it is large.
,
Make sure that the tools are used within the prescribed safety_pressures The tools might break
into pieces and be scattered
if the safety pressure is exceeded.
If two operators are to work on the machine, make sure that use of the pedal is limited to the main
operator and that the pedals are actuated only after receiving a sign from the other operator; the
same caution should be taken for dual control operation.
2-4/4
INSTALLATION MANUEL- ed:03/90

PROMECAM

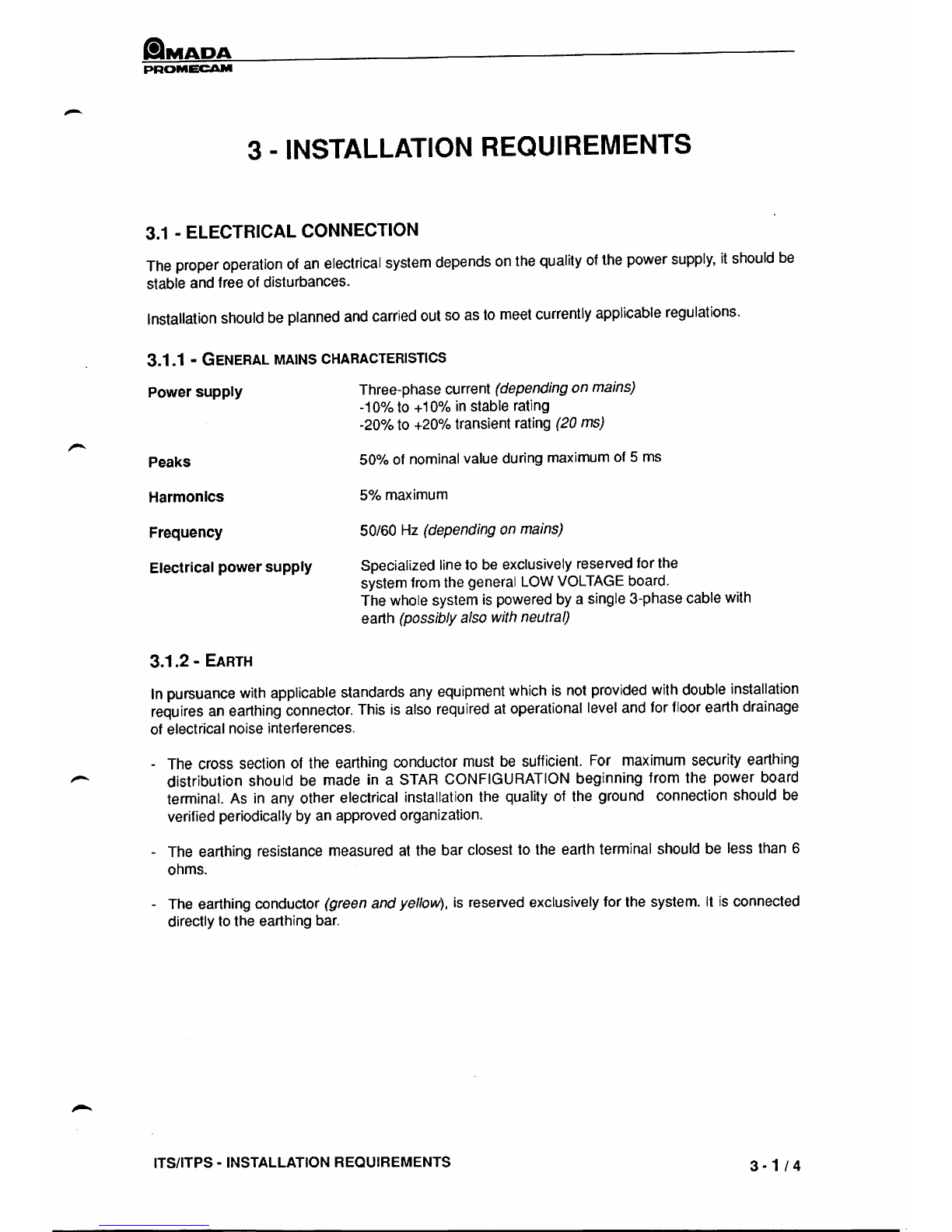

3 -INSTALLATION REQUIREMENTS
3.1 -ELECTRICAL CONNECTION
The proper operation of an electrical system depends on the quality of the power supply, it should be
stable and free
of disturbances.
Installation should be planned and carried out so as to meet currently applicable regulations.
3.1.1 -GENERAL MAINS CHARACTERISTICS
Power supply
Peaks
Harmonics
Frequency
Electrical powersupply
Three-phase current (depending on mains)
-10% to +10% in stable rating
-20% to +20% transient rating (20 ms)
50% of nominal value during maximum of 5 ms
50/0 maximum
50160 Hz (depending on mains)
Specialized line to be exclusively reserved for the
system from the general
LOW VOLTAGE board.
The whole system is powered
by a single 3-phase cable with
earth (possibly also with neutraQ
3.1 .2 -EARTH
In pursuance with applicable standards any equipment which is not provided with double installation
requires an earthing connector. This is also required at operational level and
for floor earth drainage
of electrical noise interferences.
-The cross section
of the earthing conductor must be sufficient. For maximum security earthing
distribution should be made in a STAR CONFIGURATION beginning from the power board
terminal. As in any other electrical installation the quality of the ground connection should be
verified periodically by an approved organization.
-The earthing resistance measured at the bar closest to the earth terminal should be less than 6
ohms.
-The earthing conductor (green and yellow), is reserved exclusively for the system. It is connected
directly to the earthing bar.
ITS/ITPS -INSTALLATION REQUIREMENTS 3
·114

laMADA
PAOMECAM
3.1.3 -INTERFERENCES RELATED TO MAINS AND ENVIRONMENT
IMPORTANT
DO NOT UNDER ANY CIRCUMSTANCES WELD A PIECE TO THE MACHINE. YOU
COULD DAMAGE THE MECHANICAL, ELECTRICAL AND ELECTRONIC COMPONENTS.
The distribution network introduces some interferences (micro-powercuts, frequency drifts,
harmonics, interferences etc...). These might be detrimental to the correct operation of the system.
So, some electonic components might therefore be submitted to abnormal or excessive voltages and
currents causing their damage beyond repair.
It may be necessary to provide for some adapter elements without galvanic connection to mains
(voltage stablizer, rectifier, converter, transformer, insulation transformer etc...). If required the quality
of this electrical power supply should be checked by an approved organization and analysis of the
results should determine the required equipment type.
The following interference must be considered as disturbing for
any electronic system:
Electrostatic discharges
These are very critical in an environment with relatively low ambient humidity : people or moving
assemblies often create a discharge of several thousand volts by touching a door handle or a metal
upright or, even worse, the chassis. Therefore, it is necessary to provide for an antistatic
environment (anti-static carpetfor example).
Transient on mains powersupply
Transient are electrical noise pulses propagated along the mains leads which may affect system
operation. Their origin may be
internal: motor, lift, refrigerator, air conditioning unit, fluorescent tube
or any other machine generating mains noise :
or external : stormy weather, neighbouring plant ...
Transient specifications accepted by the system are
50% of the nominal voltage for a maximum
duration of 5 ms.
Stormy weather
The charges accumulated in stormy conditions result in transient on the mains or on the connecting
cables.
Magnetic fields
A variable magnetic field induces a voltage into a closed circuit creating considerable interference.
Cathode ray tubes are sensitive to magnetic fields.
Their sensitivity is materialized by faulty
chromatics of the image or of its geometry.
Tl1ese are therefore fitted with a protective shielding.
Medlum- or high-frequency electro-magne!tic radiation
This interference type may be the origin of a large number of problems in the systems (operational
amplifiers, DP memory). Generally, the
ma~Jnitude of such disturbances depends of the radiation
duration and intensity. They may be due
to RADAR installations (near airports for instance) or to
radio frequency transmitters (military, civil, Police, Stations, FM
.. ) or even to defective or badly
filtered discharge tubes. Walkie-talkies can pll'Oduce the same effect when used near input channels.
The reference value to be taken into consideration corresponds to an 0.2 to 0.5 VIM field in a
frequency range of
10KHz to 1 GHZ.
3-2/4
INSTALLATION MANUEL -ed:03/90
-,'

PROMECAM
3.1.4 -CHARACTERISTICS OF THE MACHINE POWER SUPPLY CABLE
MODELS
POWER CABLE
(in tons) (section in
mm2 for a line ~ 20 meters)
50 2.5
80/100 4
125 6
We recommend the installation of a circuit protector or breaker at the head of the line.
Cable may be led in from the floor (fig 3.2) or on an aerial line (fig 3. 1).
The power cable should, in no event, pass through the control box or channel located on its front.
The main switch located in the electrical cabinet is designed to receive up to three safety padlocks.
We advise that you immediately install a lock so as to prevent untimely power-up.
Aerial line Fig 3.1 Floor line Fig 3.2
3.1.5 -CHECKING THE POWER SUPPLY VOLTAGE
Check your mains voltage. This value should be specified to the AMADA agent who will connect and
start your machine.
ITS/ITPS· INSTALLATION REQUIREMENTS
3-3/4

PROMECAM

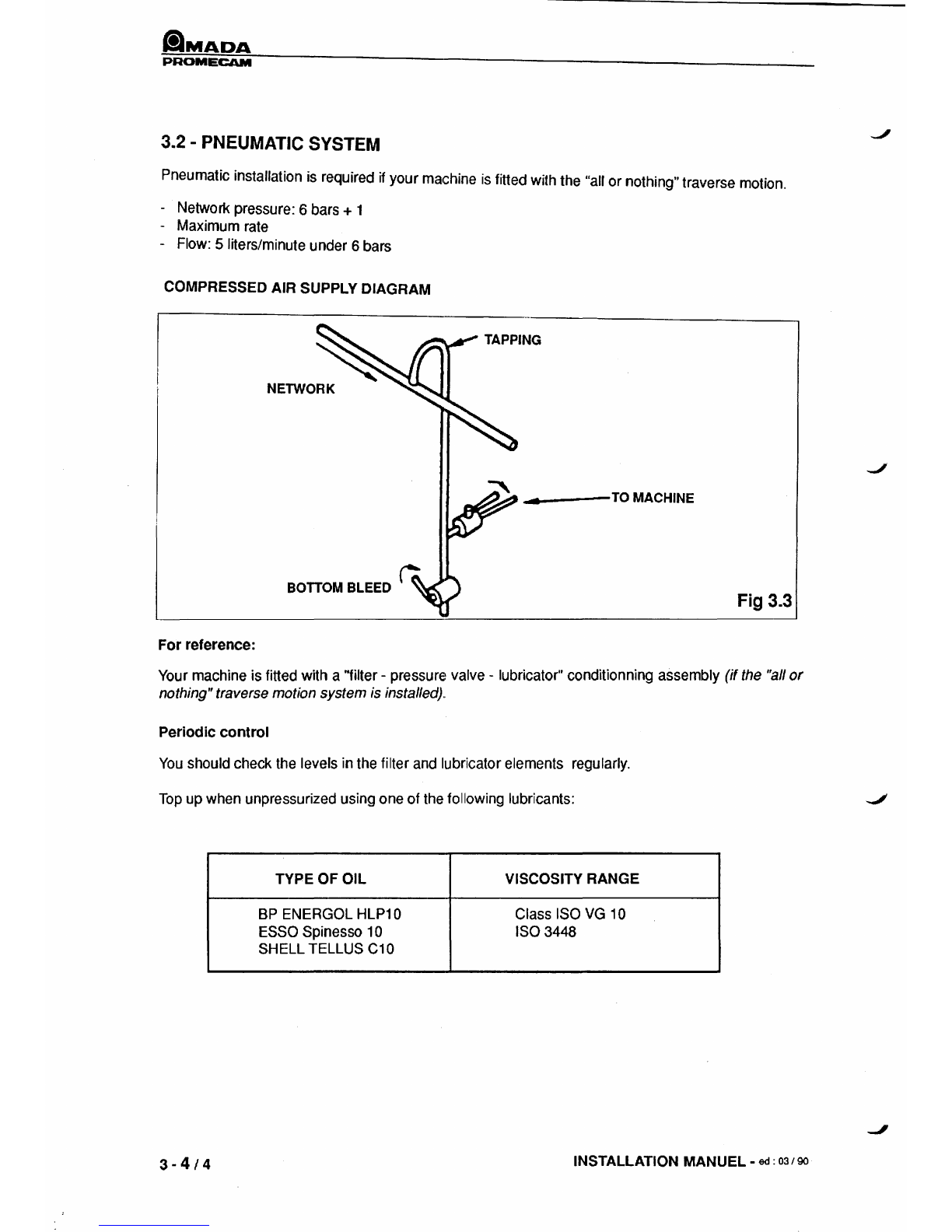

3.2 -PNEUMATIC SYSTEM
Pneumatic installation is required if your machine is fitted with the "all or nothing" traverse motion.
-Network pressure: 6 bars + 1
-Maximum rate
-Flow: 5 liters/minute under 6 bars
COMPRESSED AIR SUPPLY DIAGRAM
TAPPING
_~ ____ --TO MACHINE
Fig 3.3
For reference:
Your machine is fitted with a "filter - pressure~ valve -lubricator" conditionning assembly (if the "all or
nothing"traverse motion system ;s installed)..
Periodic control
You should check the levels in the filter and lubricator elements regularly.
Top up when unpressurized using one of the following lubricants:
TYPE OF OIL VISCOSITY RANGE
BP ENERGOL HLP1 0 Class ISO VG 10
ESSO Spinesso 10
1803448
SHELL TELLUS C1 0
3-4/4
INSTALLATION MANUEL -ed : 03190

PROMECAM
4 -SITE AND ENVIRONMENTAL PREPARATION
Press brakes installation requires a stable, rigid ground surface.
Flooring in the work area should be a 50 mm thick concrete
slab, with a plane surface (maximum
tolerance 2 mm per metet'). For the installation conditions please consu It our technical department.
Access to the press shou Id be provided on all four sides :
-At the back leave a space of approximately 1 meter for maintenance operations and adjustments.
-On at least one of the sides provide for a space slightly above the maximum bending length, so
that lateral withdrawal removal of some parts is allowed on the whole press brake lengh
(dimension
A, Figure1).
H
0
0
0
.,-
l'
I"'"
A +200
--
+100
~
-.
[!!J
~
~B~
A
~
..
--
Please see chapter on characteristics for other specifications.
MACHINE A 8
50/12 1250 990
50/20 2000 925
80/25 2500 910
103 3000 890
125/30 3100 850
ITS/ITPS -SITE AND ENVIRONMENTAL PREPARATION 4
-112

PROMECAM
4-2/2
INSTALLATION MANUEL - ed: 03190

PROMECAM
5 -INSTALLATION
5.1 -INSTRUCTIONS PRIOR TO HANDLING AND INSTALLATION
5.1.1 -PREPARATION OF THE INSTALLATION FLOOR
Once the location is prepared, carefully sweep the area to be occupied by the press.
5.1.2 -FORBIDDEN OPERATIONS
In no case should handling accessories (slings, hooks, straps, etc.) be attached to the following
components:
-
Upper beam
- Lower beam
-Electrical cabinet
- NC Cabinet
- Bending Depth control (ITS)
- Pressure limiter (ITS)
- Mechanical protectors on:
- Goose neck
- back of machine
- Hooding
- Back gauge
Please see section 5.3.2 to identify the areas recommended for floor support.
IMPORTANT
CERTAIN PARTS OF THE MACHINE (ESPECIALLY ITS NUMERICAL CONTROL IF
FITTED) ARE NOT DESIGNED TO WITHSTAND THE WEIGHT OF A MAN WITHOUT
DEFORMATION. THEY ARE INDICATED BY A TAG AS ILLUSTRADED ON FIG. 5.1
Figure 5.1
ITS/ITPS -INSTALLATION
5-1/4

PROMECAM
5.2 -HANDLING
5.2.1 -BASIC PRINCIPLES
The lifting efforts should only be applied at the slinging points provided for this purpose (Fig. 5.2).
LOAD DISTRIBUTION RELATED
TO SLING ANGLE
6 Example A : (450 angle)
50%
of load weight on each sling
arm.
b Example B : (900 angle)
75%
of load weight on each sling
arm.
DO NOT EXCEED
AN ANGLE OF 90°.
TYPE
CENTRE OIF GRAVITY E
WEIGHT IN KG
X V Z
50/12
810 670 525 30 2600
50/20
915
670 710 30 3300
80/25 1005 670 700 40 4600
103
1120 670 770 40 6000
125/30 1140 670 770
45 7200
Add approximately 500 Kg if your machine is fitted with a numerically controlled back gauge.
5-2/4
INSTALLATION MANUEL - ad :03/90

PROMECAM

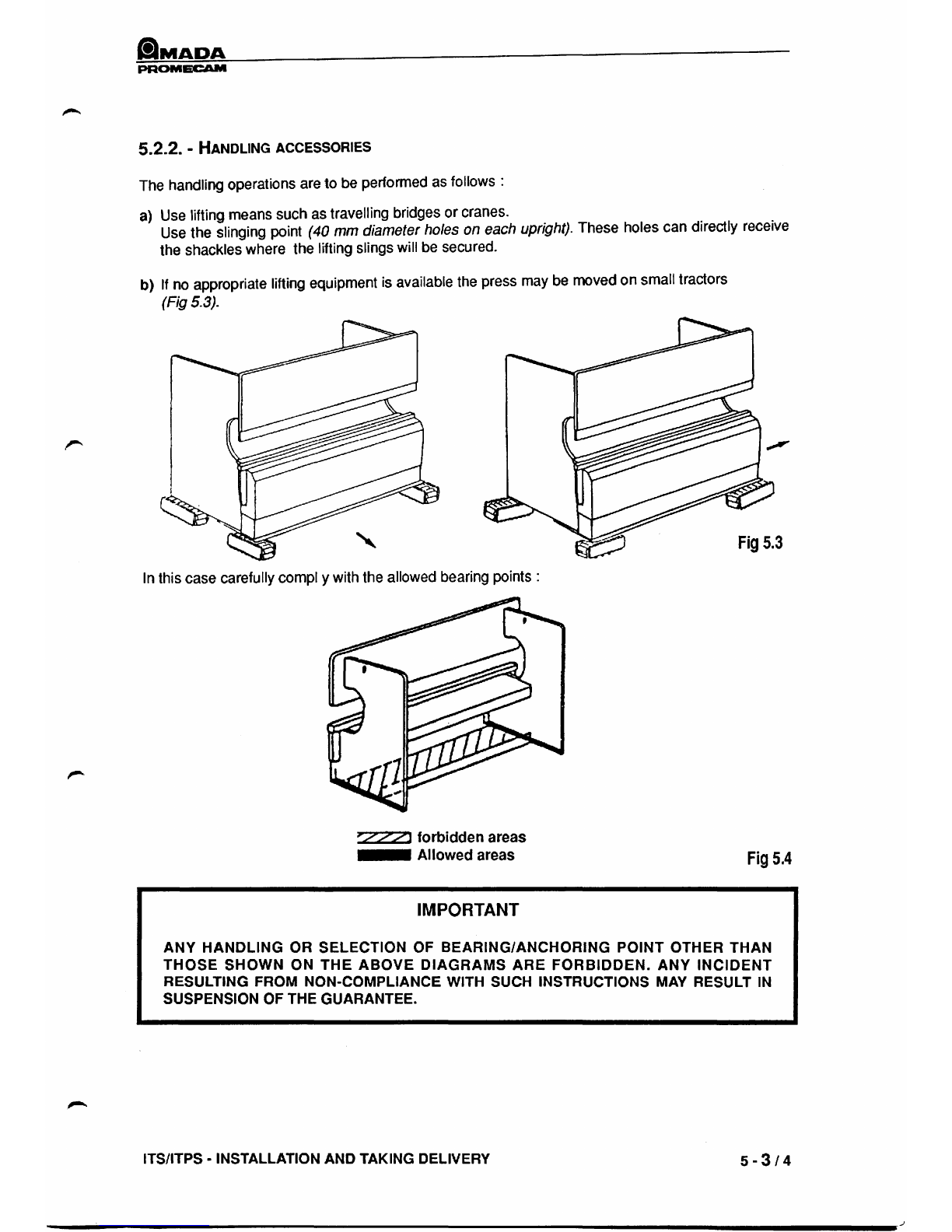

5.2c2. -HANDLING ACCESSORIES
The handling operations are to be performed as follows:
a) Use lifting means such as travelling bridges or cranes. .'
Use the slinging point (40 mm diameter holes on each upright). These holes can directly receive
the shackles where the lifting slings will be secured.
b) If no appropriate lifting equipment is available the press may be moved on small tractors
(Fig 5.3).
In this case carefully campi ywith the allowed bearing points:
'%%2] forbidden areas
Allowed areas
IMPORTANT
Fig 5.3
Fig 5.4
ANY HANDLING OR SELECTION OF BEARING/ANCHORING POINT OTHER THAN
THOSE SHOWN ON THE ABOVE DIAGRAMS ARE FORBIDDEN. ANY INCIDENT
RESULTING FROM NON-COMPLIANCE WITH SUCH INSTRUCTIONS MAY RESULT IN
SUSPENSION OF THE GUARANTEE.
ITS/ITPS -INSTALLATION AND TAKING DELIVERY
5-3/4

PROMECAM
5-4/4
INSTALLATION MANUEL- ad: 03/90
