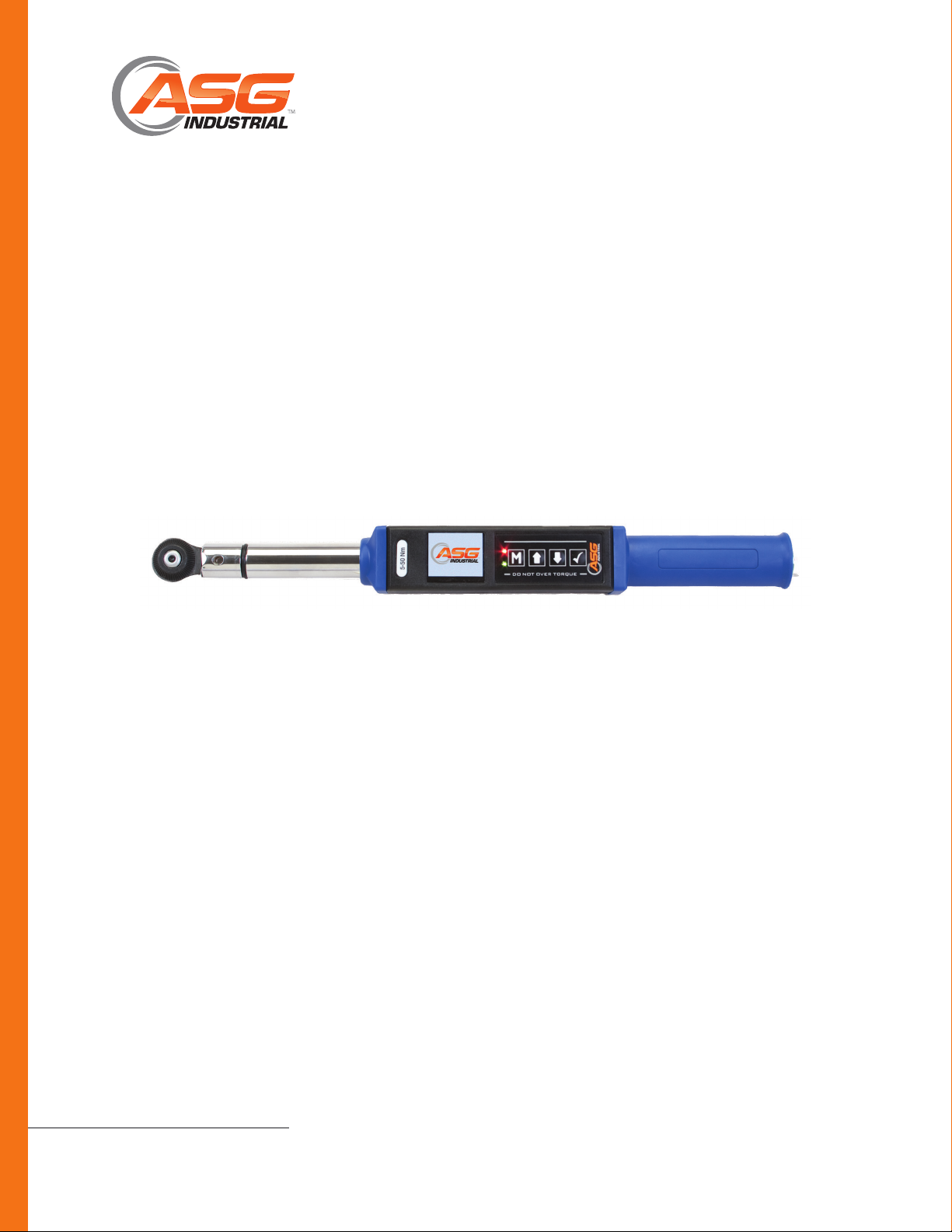

TAW Series Digital Torque Wrenches
Torque and Angle Model User Manual
© 2015 Jergens, Inc. All Rights Reserved | Revision Date: 2/2/2016

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 2 of 13
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual
Table of Contents
Basic Description and Guidelines ................................................................................... 3
Recommended Use ............................................................................................... 3
General Characteristics ......................................................................................... 3
Changing the Batteries ......................................................................................... 3
Ratchet Head Guidelines....................................................................................... 4
Guidelines............................................................................................................. 4
Calibration ............................................................................................................ 4
Modes of Operation....................................................................................................... 5
Language Mode .................................................................................................... 5
Unit Mode............................................................................................................. 6
Date Mode ............................................................................................................ 6
Track Mode ........................................................................................................... 6
Peak Mode ............................................................................................................ 7
Just Angle Mode ................................................................................................... 7
Just Move Mode.................................................................................................... 8
Set Mode............................................................................................................... 9
Pre-Set Mode ...................................................................................................... 11
Recall Mode ........................................................................................................ 12
Upload Mode ...................................................................................................... 12
Comms Mode...................................................................................................... 13
Clear Mode ......................................................................................................... 13

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 3 of 13
Recommended Use
General Characteristics
Changing the Batteries
The TW Series Digital Torque Wrench Torque and Angle Model is a state of the art hand-held device suitable for both torque auditing
and torque application. As a precision tool, it is highly accurate as well as highly repeatable. For product portfolio cohesion, the
Torque and Angle Model uses the same organic LED display, membrane keypad, user interface and PC based data management
software as other standard products within this range of electronic torque tools. Additionally, training time is kept to a minimum due
to the ease of use of the tool itself.
Our products are demonstrated to have an accuracy of 1% or better, and are both simple to set and calibrate as well as coming with
a fully traceable ISO 6789-2003 Certication.
The TW Series Digital Torque Wrench Torque and Angle Model has both visual and audible alarms that signal good or bad torque.
Furthermore, there is a visual battery life indicator, alarms for preset value approach, fastener overload, range overload and maximum
mechanical overload.
The TW Series Digital Torque Wrench Torque and Angle Model is specically designed for use in
all industrial settings and applications where high accuracy and repeatability combined with a
complete torque data management and control system are required.
Accuracy Right hand side torque = 1% of actual reading
Left hand side torque = 1% of actual reading
Resolution
0.01 to 50 N.m
0.1 to 999 N.m
1 to 2000 N.m
Alarms Pre-Set Value Approach, Range Overload,
Mechanical Overload, Low Battery, Memory Full
Memory Capacity 5000+ Values
1. Unscrew the metal end cap at the opposite end of the wrench to the ratchet head
2. Remove the four AA cell batteries and replace with a new set
3. Screw back the metal end cap
4. Turn on the wrench and check to ensure the date and time are both set correctly
Basic Description and Guidelines
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 4 of 13
Ratchet Head Guidelines
• Store in a cool, dry location
• Oil frequently to prevent ratchet head from becoming stiff and seizing
• Do not exceed specied torques
• Do not use external forces on ratchet (i.e. a hammer)
• Max Torques: 1/4” = 30 N.m, 3/8” = 135 N.m, 1/2” = 340 N.m
Guidelines
The following are a set of general guidelines for using and storing the wrench that
should be adhered to at all times.
• All torque tools are precision instruments and should be handled with care
• Do not subject the tool to torque loads in excess of the model range
• Do not use the tool to loosen fasteners tightened beyond maximum tool capacity
• Using non-linear extensions may affect the accuracy of the readings
• The use of torque extensions will increase the torque applied
• Do not operate the tool unless it has been powered on and the display screen can
be read clearly
• Do not drop the tool or subject it to heavy impact blows
• Ensure the tool is stored in a cool, dry location to protect from damage
• Adhere to safety instructions
• Torque should be applied to the center of the torque wrench handle as torque is
length dependent
• Ensure safe footing and safe force application
Calibration
For calibration instructions please contact ASG.
Basic Description and Guidelines
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 5 of 13
Torque reading starts at 5% of maximum capacity with an accuracy of 1% beginning at 10%
of maximum capacity (threshold to maximum span).
The following are the different modes available with the TW Series Digital Torque Wrench
Torque and Angle Model:
• Language Mode
• Unit Mode
• Date Mode
• Set Mode
• Just Angle Mode
• Just Move Mode
• Pre-Set Mode
• Recall Mode
• Upload Mode
• Clear Mode
• Comms Mode

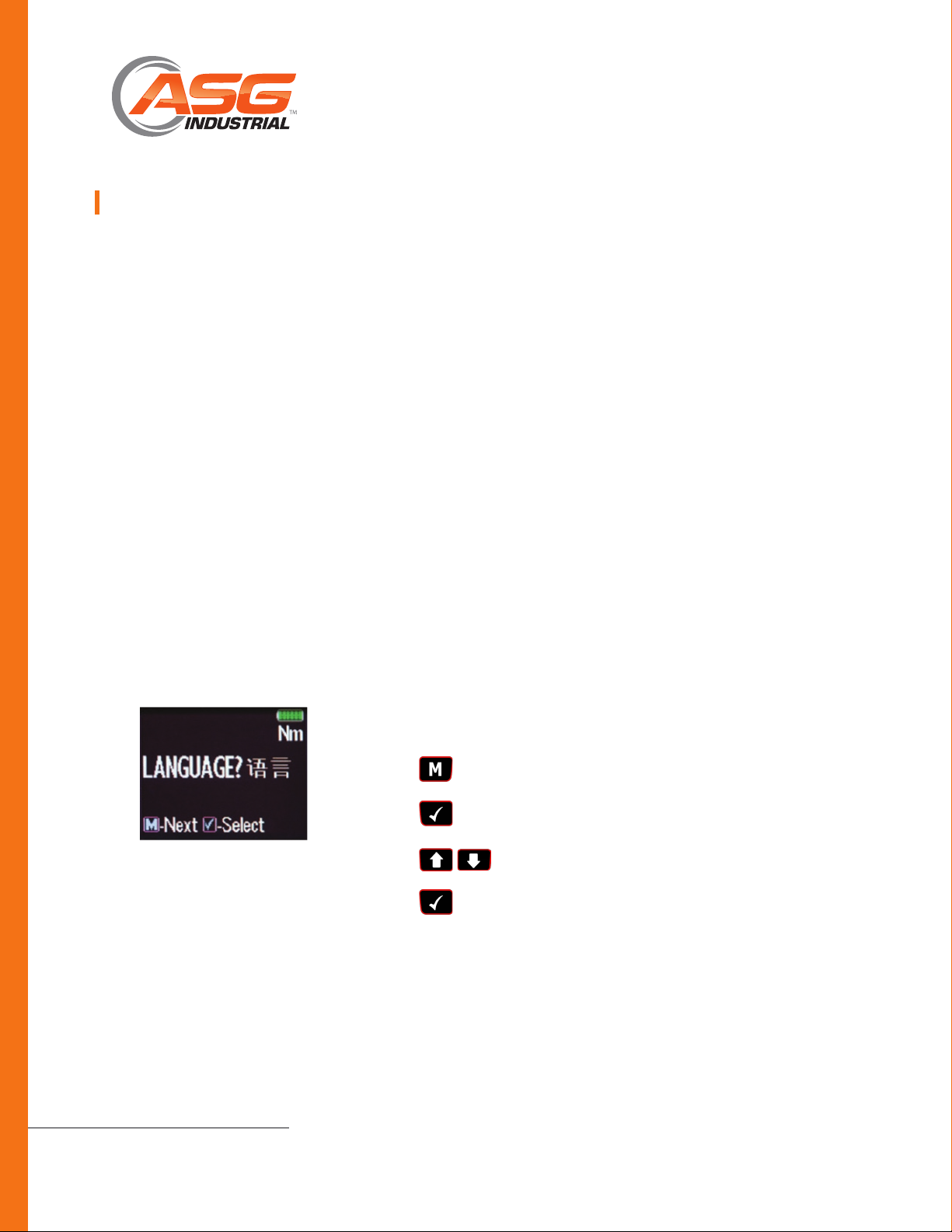

The languages of operation available to the user are: English, Chinese, French, German,
Italian, Polish, Portuguese, Russian, Spanish
Step 1: Press to scroll to the Language Menu
Step 2: Press to enter Language Menu
Step 3: Press to scroll to the language required
Step 4: Press to conrm operation in this language
Language Mode
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 6 of 13

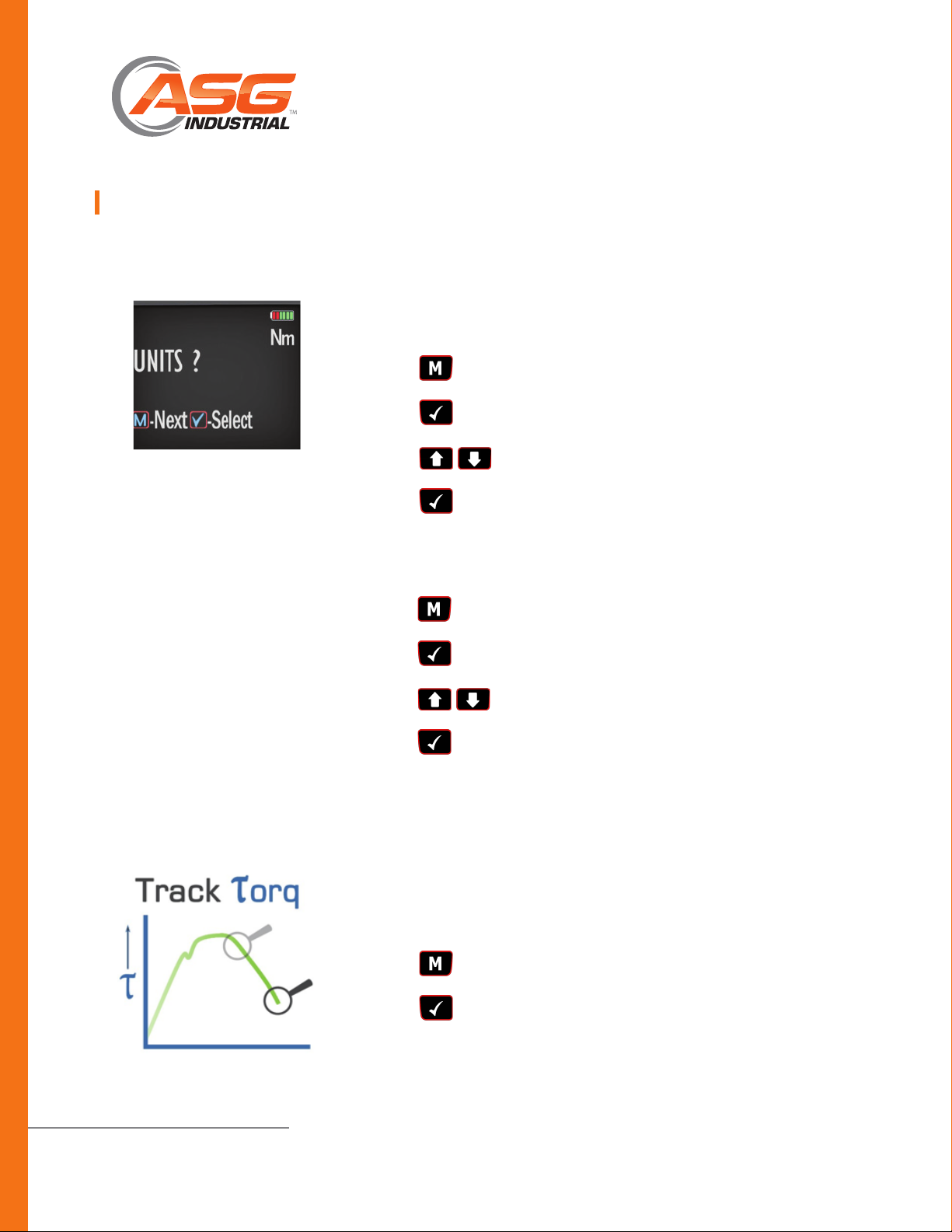

Unit Mode – Keypad Function
Date Mode – Keypad Function
Track Mode
The following units of measurement are available: kgf.cm, kgf.m, cN.m, N.m, ozf.in,
lbf.in, lbf.ft
Step 1: Press to scroll to the Units Menu
Step 2: Press to enter Units Menu
Step 3: Press to scroll to the units required
Step 4: Press to conrm selected units
Step 1: Press to scroll to the Date Menu
Step 2: Press to enter Date Menu
Step 3: Press to scroll to set the minute and hour
Step 4: Press to conrm
Step 5: Repeat steps 3 and 4 to set the month, date and year
As torque is applied, the driver will actively display the applied torque reading from
5% up to the maximum span of the device. Upon removal of the load, the display
will return to zero.
Step 1: Press to scroll to Track Mode
Step 2: Press to operate in Track Mode
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 7 of 13
Peak Mode
Just Angle Mode
In Peak mode, the maximum torque reading will remain on the OLED display when the
load is removed as long as the torque loaded is above the 10% of maximum capacity
threshold. The user has the option to store the reading in memory. If storage of the
reading is not required, the user may continue to the next measuring task.
Step 1: Press to scroll to Peak Mode
Step 2: Press to operate in Peak Mode
Step 3: Press to store the peak value if required
In Just Angle Mode, the maximum torque reading will remain on the OLED display
when the load is removed as long as the torque loaded is above the 10% of
maximum capacity threshold. The angle turned from 5% of the tool span until
maximum torque reading is also displayed. The user has the option to store the
reading in memory. If storage of the reading is not required, the user may continue
to the next measuring task.
Step 1: Press to scroll to Just Angle Mode
Step 2: Press to operate in Just Angle Mode
Step 3: Press to store the peak torque and peak angle values if necessary. If storage
is not required, then apply a new load to test again
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 8 of 13
Just Move Mode
In Just Move Mode, the torque recorded after a pre-dened number of degrees
(dened in Set Mode) will remain on the OLED display when the load is removed, as
long as the torque loaded is above the 10% of maximum capacity threshold. The nal
torque and nal angle measurements will also be displayed. The user has the option
to store the reading in memory. If storage of the reading is not required, the user may
continue to the next measuring task.
Step 1: Press to scroll to Just Move Mode
Step 2: Press to operate in Just Move Mode
Step 3: Press to store the Just Move torque along with the nal peak torque and
angle values. If storage is not required, then apply a new load to test again.
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 9 of 13

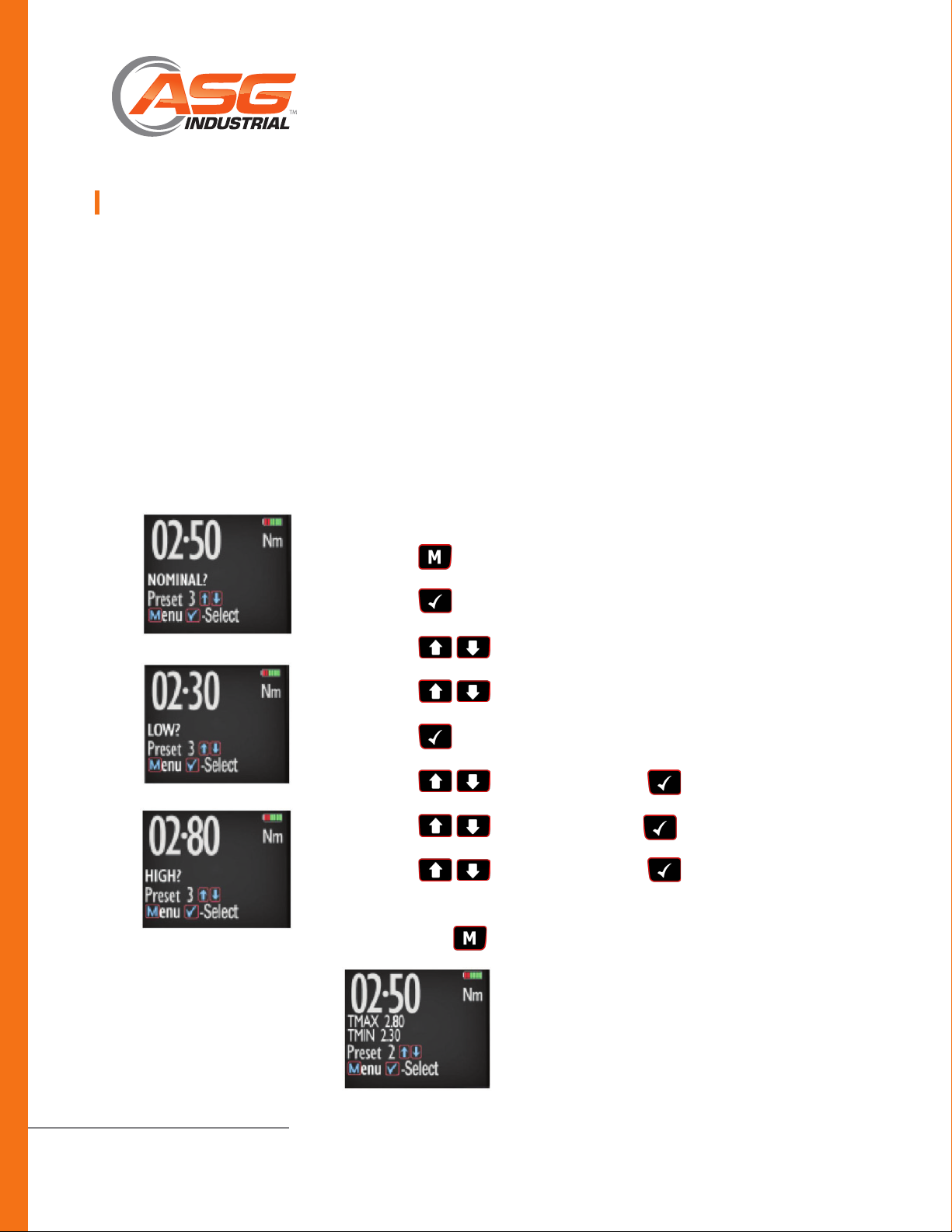

Set Mode
This mode allows the user to set limits for 1. Torque, 2. Torque and Angle or 3. Just Move.
The operator can choose to set torque values by % or tolerance. During operation the
OLED display will be green when approaching the pre-set tolerance and will change to red
if exceeded.
The user can choose from the following Set Modes:
• Set Torque
• Set Torque & Angle
• Set Just Move Pre-Set
Set Mode −Torque:
Step 1: Press to scroll to Set Mode
Step 2: Press to select Set Mode
Step 3: Press to scroll to set by % or set by tolerance
Step 4: Press to scroll to required pre-set number (i.e.1 to 99)
Step 5: Press to conrm pre-set number selected
Step 6: Press to set nominal value and to conrm
Step 7: Press to set your low value and to conrm
Step 8: Press to set your high value and to conrm
Step 9: Once the parameters have been conrmed the operator can nd the task within
Pre-Set Mode. Use to select Pre-Set Mode from the main menu to nd the task
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 10 of 13
Set Mode (Cont.)
Set Mode −Torque and Angle:
This mode allows the user to prepare minimum and maximum acceptable limits for both
torque and angle. The angle starts once the reference torque has been reached.
Step 1: Press to scroll to Set Mode
Step 2: Press to select Set Mode
Step 3: Press to scroll to select Torque and Angle
Step 4: Press to scroll to required pre-set number (i.e. 1 to 99)
Step 5: Press to conrm pre-set number selected
Step 6: Press to set reference torque value and to conrm. Once this
reference torque value is reached, the angle value will set to zero degrees
Step 7: Press to set low torque value and to conrm
Step 8: Press to set high torque value and to conrm
Step 9: Press to set low angle value and to conrm
Step 10: Press to set high angle value and to conrm
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 11 of 13
Set Mode (Cont.)
Set Mode −Just Move:
Just Move allows the user to measure torque after rotation of a pre-dened number of
degrees. Degrees will count once load applied is above 5% of the maximum tool span.
Torque will be captured at the angle dened here.
Step 1: Press to scroll to Set Mode
Step 2: Press to select Set Mode
Step 3: Press to scroll to select Just Move
Step 4: Press to scroll to required pre-set number (i.e. 1 to 99)
Step 5: Press to conrm pre-set number selected
Step 6: Press to set just move pre-set angle and to conrm
Pre-Set Mode
In Pre-Set mode, the operator chooses their preferred ‘Pre-Set’ for operation from their
pre-congured pre-sets (using Set Mode). For Torque and Angle Mode wrenches, the
user can choose between Torque, Torque and Angle and Just Move pre-sets.
Step 1: Press to scroll to Pre-Set Mode
Step 2: Press to enter Pre-Set Mode
Step 3: Press to select your preferred pre-set number (i.e. 1 to 99)
Step 4: Press to operate within this pre-set parameter
Step 5: Press to store the applied torque if required
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 12 of 13
Recall Mode
This mode allows the user to view the stored torque and angle data. Only locations
containing data will be displayed. Note that as data is stored, the locations are
populated sequentially from 01.
Step 1: Press to scroll to Recall Mode
Step 2: Press to enter and view memory locations, results and functions
Step 3: Press to scroll through locations that contain data
Upload Mode
This mode allows the user to upload stored torque data. In Upload mode, the driver
must be connected to a PC running the PC Front-End Software (PCFE) via the USB
port on the Driver and the PC.
Step 1: Press to scroll to Upload Mode
Step 2: Press to enter Upload Mode
Step 3: Press to select “From” and for end location to be uploaded
Step 4: Press to conrm “From” location
Step 5: Press to select “To” and for end location to be uploaded
Step 6: Press to conrm. You are asked if you are sure, press to conrm
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual

ASG, Division of Jergens, Inc.
15700 S. Waterloo Road | Cleveland, OH 44110-3898 | Phone: [phone] | Fax: [phone] | Email: [email protected] | Web: www.asg-jergens.com
Page 13 of 13
Comms Mode
This mode allows the user to select the method of communication. The standard
model allows communication by standard USB cable to the included software. For
communication by ASCII or BINARY, the wrench will need physical modications in
advance.
Step 1: Press to scroll to Comms Mode
Step 2: Press to enter Comms Mode
Step 3: Press to select the method of communication and to conrm
Note: For standard communication to the included software program, select ‘PCFE’
Clear Mode
This mode allows the user to clear the stored data from an individual range of
locations. Before clearing the selected range and as a safety precaution, the user will
be asked are they sure they wish to clear selected data. This can be done by pressing
the conrm button.
Step 1: Press to scroll to Clear Mode
Step 2: Press to enter Clear Mode
Step 3: Press to select “From” range to be cleared and press to
Step 4: Press to select “To” range to be cleared and press to
Step 5: Press to conrm and you will be asked if you are sure
Step 6: Press to conrm and that the range of the data is cleared from the
wrench memory
conrm
conrm
Modes of Operation
TAW Series Digital Torque Wrenches
Torque and Angle Model
User Manual
