Welbilt 151603 User manual

ALWAYS WEAR EYE PROTECTION
Clear Guard
Lock On Switch
Dust Extraction Port
350W JIGSAW
OPERATING INSTRUCTIONS
SPECIFICATIONS – ITEM# 151603
Onboard Allen Key
Adjustable Base Plate
Input Power: 350W
Input Voltage: 120V 60Hz
No Load Speed: 3000 RPM
Cutting capacity in plate steel (90°): 1/4in. (6mm)
Dia. capacity in wood/plastic (90°): 2in. (55mm)
Distributed by Northern Tool & Equipment Co., Inc. Burnsville, MN 55306-6936 NorthenTool.com
Made in China

WARNING! Always ANSI-approved eye protection
such as safety glasses and cover your mouth and nose
with a breathing mask to prevent inhaling dust particles.
This product is double insulated. Provided the tool is not
disassembled, this means that you are protected against
touching any parts that can be connected with live
electrical current.
GENERAL USE
This Jigsaw is designed to cut accurately through plastic,
wood and thin metals. It’s purpose is to provide versatile
cutting to your desired shape and has been designed for
DIY (Do It Yourself) and hobbyist purposes. The machine
has an adjustable base plate which allows you to set the
required angle for cutting the material. The six-sided
spanner provided has a dual purpose; loosening and
tightening of the adjustable base plate and the fitting of
the Jigsaw blade.
Before using the machine, carefully read the
instructions, especially the safety rules. Observe the
instructions to ensure your machine always operates
properly. Before attempting to operate the machine,
familiarise yourself with the controls and make sure you
know how to stop it quickly in an emergency. Save these
instructions and the other documents supplied with this
machine for future reference.
SAFETY INSTRUCTIONS FOR ALL POWER TOOLS
• Keep the work area clean
A cluttered work area may cause accidents.
Make sure the work area is well lit.
• Work environment
Never leave electric tools in the rain.
Do not use tools in damp or wet places.
Never use tools near flammable liquids or gasses.
• Prevent electric shock
Keep the power lead away from heat, oil and sharp
edges. Avoid skin contact with exposed parts of the
power lead or plug.
• Store in a safe place
Tools that are not used must be stored in a dry and
locked place out of reach of children.
• Do not force the tool
The machine will do the job better and safer at the
rate for which it was intended. Damage caused by
forcing the tool is not covered by the warranty.
• Use the right type of tool
Do not use low-powered tools for heavy-duty
operations. Never use the tool for anything other
than its intended purpose.
• Wear suitable clothing
Do not wear loose clothing or jewellery that
might get caught in moving parts. Never wear
rings with protruding parts. Cover long hair.
Wear rubber footwear.
• Wear safety glasses
Wear a dusk mask when working in a dusty
environment.
GENERAL SAFETY RULES

GENERAL SAFETY RULES
ADDITIONAL SAFETY INSTRUCTIONS FOR JIGSAWS
• Cable or lead
Never carry the tool by its cable and do not tug
at the cable to pull the plug from the socket.
Keep the cable away from heat, oil and sharp edges. oil
and sharp edges.
• Always clamp the work
Always clamp the work against the bench
Never work on objects that are too small to hold.
• Posture
Do not overreach. Be sure of your footing and balance at
all times.
• Maintain the tool with care
The tool works best and safer if it is kept clean
Observe the instructions for maintenance and changing
accessories. Keep the tool dry and free from oil and
grease.
• Disconnect the machine
Disconnect the machine when it is not in use and when
changing blades. Never leave saw running unattended.
• Avoid unintentional starting
Never carry the plugged-in machine with your finger on
the switch. Make sure the switch is off when the
machine is plugged in.
• Extension cable or lead for outdoor use
Only use approved extension cables suitable
for outdoor use.
• Stay alert
Watch what you are doing. Use your common sense.
Do not operate the tool when you cannot keep your
mind on the job.
• Check the machine for damage
Before starting the machine, check that all safety devices
and parts operate smoothly and efficiently.
Make sure all moving parts are in good working order.
Check the machine for any broken or jammed parts,
make sure all parts are fitted properly.
• Hearing protection devices are recommended
for the user.
• This tool is not intended for use by young
children.
• Young children should be supervised to ensure
they do not play with the tool.
• Do not operate this tool if under the influence of
alcohol or drugs or if you are tired. Read
warning labels on prescriptions to determine if
your judgment or reflexes are impaired while
taking the medication. If there is any doubt, do
not attempt to operate.
• Pull out all nails in the material before starting to saw.
Cutting nails may damage your tool.
• Do not cut hollow pipe with the Jigsaw
• Do not cut material above the specified thickness
• Always allow enough clearance underneath the
material to ensure the blade does not touch the floor
table etc.
• Hold the tool at a comfortable length from your body.
Do not over stretch to reach the material.
• Do not touch moving parts with your fingers or hand.
• Do not cut through walls or cavities without first
checking for hidden electrical wires.
• Ensure that you have tightened the blade prior to
starting the machine.
• When finished sawing, wait until the saw blade has
ceased moving prior to removing it from the material.
• Do not touch the saw blade immediately after use.
Allow time for the blade to cool or it may burn you
due to the heat generated during sawing.
• Always check accessories to ensure that they are
suitable for the operating speeds of this tool.
• Incorrect accessories can break apart at high speed
and cause serious damage or injury
• Always use the appropriate blade for the material
being cut. There are special blades for each type of
material. Please check with your retailer or accessory
packaging to determine the appropriate type of blade
for the material.
• Make sure the blades are attached securely before
plugging saw.
• Firmly position the saw's base plate on the workpiece
before tuning on the tool.
• When plunge (pocket) cutting, use a blade designed
for that purpose.
• Do not use a dull or damage blade.
• Make sure the trigger lock is in the "Off" position
before unplugging or turning off the saw, or before
turning it on.

OPERATION
WARRANTY
SIX-SIDED SPANNER STORAGE
When the six-sided spanner isn't in use, it can be stored
conveniently in the base of the tool
OPERATION
It is recommended that you first mark your intended
cutting line with a pencil or appropriate marker. Start the
tool and wait a short moment until the blade achieves
maximum speed Put the bottom base on the work piece
and move forward slowly along the cutting line.
Take extra care when cutting curved lines. This reduces
the stress on the blade and avoids breakage.
CUTTING ANGLES
Use the six-sided spanner to adjust the base plate and set
the required angle Loosen the bolts and slide the base
backwards away from the blade. Use the angle markings
on the base plate to accurately set the angle then slide the
base plate back to position and re-tighten the bolts.
While the tool is made to precise settings we recommend
that for cutting requiring extreme accuracy. a checking
device such as a protractor is used. Adjustment of the base
plate is critical for precision cutting. The base plate can be
tilted from 0 to 45° left or right.

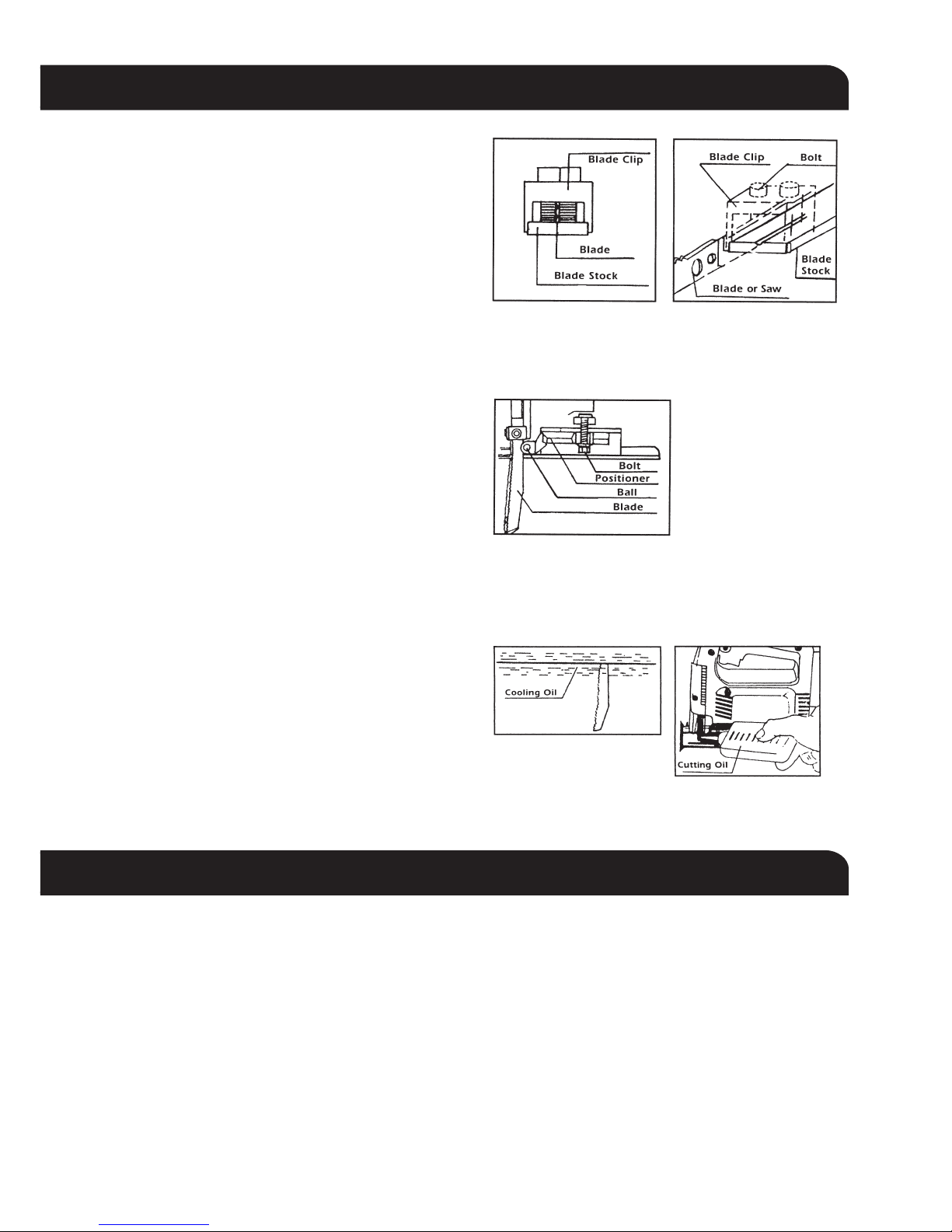

JIGSAW BLADE MOUNTING
Remove the power plug from the socket before
changing blade.
Various kinds of Jigsaw blades fit into the stock of the
tool. Please check with your retailer to ensure proper fit
before purchasing new blades. Use the six-sided
spanner to loosen or tighten the stock and mount the
blade according to the following diagrams.
USE OF THE BALL (or ROLLER GUIDE)
Loosen the bolts which fix the base plate and positioner
with the six sided spanner. Slide the positioner so that
the ball touches the blade then
tighten the bolt.
CUTTING METAL
When cutting metal you must use a suitable cooling
agent like cutting oil. Unnecessary wear and stress is
placed on the blade without the use of cooling
assistance.
THIS WARRANTY FORM SHOULD BE RETAINED BY
THE CUSTOMER AT ALL TIMES
PURCHASED FROM:_______________________________
DATE PURCHASED: _______________________________
The warranty is only made available by returning the tool
to the place of purchase with a confirmed register receipt.
6-MONTH REPLACEMENT WARRANTY
Your Wel-Bilt tool is covered by a 6-month replacement
warranty from the date of purchase. Industrial or high
frequency use will void this warranty. The warranty
covers faulty parts or workmanship.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage
other than that specified on the unit.
• If the tool shows signs of damage or defects caused
by or resulting from abuse accidents or alterations.
• If the tool has been disassembled or tampered with in
any way.
Warranty excludes consumable parts such as brushes,
batteries, sanding pads, blades, discs and drill bits.
