Amada AMFS14 User manual

Step 1C For Solid Concrete and Concrete Block Walls
Thank you for choosing this AMADA product! At AMADA we
strive to provide you with the best quality products and services
in the industry. Should you have any issues, please don't hesitate
to contact us at [email protected].
Floating Shelf Instruction Manual V1.0
Model: AMFS14
F
B
15/64 in.(ø6mm)
1 37/64 in.(40mm)
①
②
③
④
03

E
②
The wall anchor [E]
is for drywall only!
The wall anchor [E]
is for drywall only!

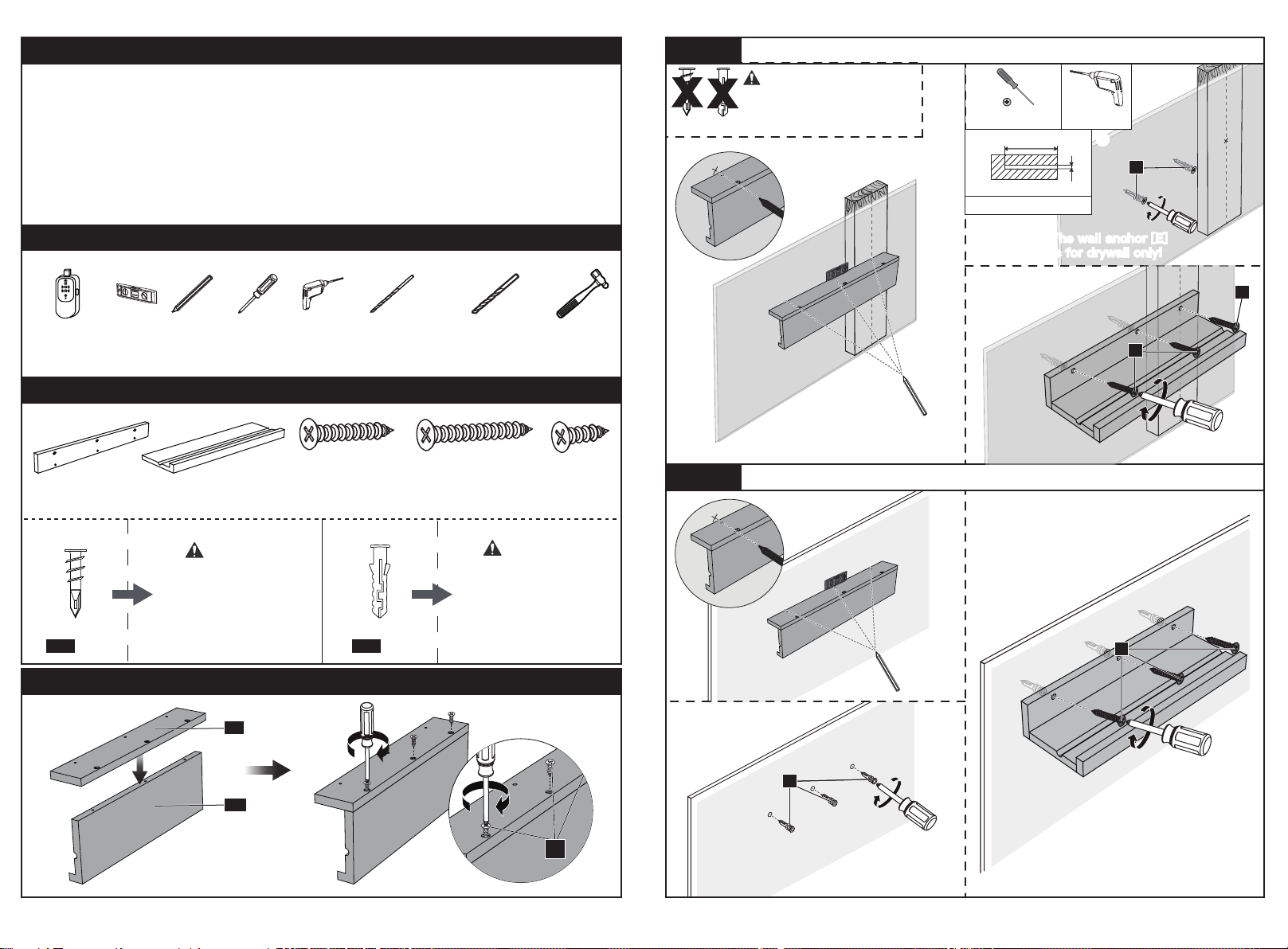

Assemble the Floating Shelf
[Optional]
E
• Check package contents against supplied parts and hardware lists to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you require
replacement parts, please contact amada customer service at [email protected].
• Carefully read all instructions before attempting installation. If you do not understand the
instructions or have any concerns or questions, please contact customer service at
[email protected].
• Not all parts and hardware included will be used.
• Do not use this product for any purpose that is not explicitly specified in this manual. Do not
exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting,
incorrect assembly or inappropriate use. Thank you for your understanding.
IMPORTANT SAFETY INFORMATION
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Wall Anchor
13x42mm
x6
E
CAUTION!
This wall anchor [E] is
for drywall ONLY. DO
NOT use them in
concrete / brick / wood
studs wall.
CAUTION!
This wall anchor [F] is
for concrete or brick
walls ONLY. DO NOT
use them in drywall or
wood studs.
x6
F
Wall Anchor
M6x30mm
Step 1A For Wood Stud
Step 1B For Drywall
[Not Included]
For wood stud mounting, wall
anchors [E] and [F] are not
necessary.
WARNING:
XX
E F
01 02
Stud Finder Phillips
Screwdriver
Level Drill 5/64 in.(2mm)
Wood Drill
15/64 in.(6mm)
Concrete Drill HammerPencil
For Long Lag Screw
1 31/32 in.(50mm)
ø5/64 in.(ø2mm)
For Long Lag Screw
①
②
③
①
③
C
B
B
Short Lag Screw
M4x35mm
(B) x6
Long Lag Screw
M4x50mm
(C) x2
Floating Shelf
(A2) x2
(A1) x2 Screw
M4x25mm
(D) x6
D
A1
A2
