Amana PHB**C User manual

Installation Instructions
January 1997(1) 10730405
Amana Refrigeration, Inc.
Fayetteville, TN 37334
As a professional installer you have an obligation to
know the product better than the customer. This
includes all safety precautions and related items.
Priortoactualinstallation,thoroughlyfamiliarizeyour-
self with this Instruction Manual. Pay special atten-
tion to all safety warnings. Often during installation or
repair it is possible to place yourself in a position
which is more hazardous than when the unit is in
operation.
Remember, it is your responsibility to install the
product safely and to know it well enough to be able
to instruct a customer in its safe use.
Safety is a matter of common sense...a matter of
thinking before acting. Most dealers have a list of
specific good safety practices...follow them.
The precautions listed in this Installation Manual
should not supersede existing practices but should
be considered as supplemental information.
ATTENTION INSTALLING PERSONNEL
PHB**C and PHD**C
Single Package
Heat Pump
Heating and Cooling Unit
Affix this manual, Specification Sheet and User
Information manual adjacent to the unit.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION
Contents
I. Safety Information................................................2
II. General Information ............................................2
III. Rigging and Handling.........................................3
IV. Duct Connections...............................................4
V. Electrical Wiring..................................................4
Vl. Circulating Air and Filters ..................................5
VII. Condensate Drain .............................................6
VIII. Sequence of Operations ..................................6
IX. Startup and Adjustment .....................................6
X. Maintenance .......................................................7
XI. Accessories and Functional Parts......................7

2
I. Safety Information
Important
To The Installer
Before installing this unit please read this manual and
the Specification Sheet to familiarize yourself on the
specific items which must be adhered to such as maxi-
mum external static pressure to unit, air temperature
rise, minimum or maximum CFM and motor speed
connections.
To The Owner
It is important to complete the owner registration card
and mail it immediately. This will assist Amana in con-
tacting you if any service or warranty information should
change in the future. When completing the registration
card, be sure to include the Model, Manufacturing and
Serial Numbers, plus the installation date.
The warranty certificate is also supplied with the unit.
Read the warranty carefully and note what is covered.
Keep the warranty certificate in a safe place so you can
find it if necessary.
If additional operating instructions are required, call the
dealer where the purchase was made. Keep this litera-
ture in a safe place for future reference.
WARNING
Topreventdeath,personalinjuryorprop-
erty damage, do not use this unit if any
part of the unit has been under water.
Immediately call a qualified service tech-
nician to inspect the unit and to replace
any part of the control system which has
been under water.
WARNING
To prevent death, personal injury, or
property damage due to improper instal-
lation, adjustments, alterations, service
or maintenance, when servicing or per-
forming maintenance to this unit consult
this manual, the service manual, a quali-
fied installer, a service agency.
WARNING
This product contains or produces a
chemical(s) which may cause death or
serious illness and which are known by
the State of California to cause cancer,
birth defects or other reproductive harm.
Locating The Unit
WARNING
To prevent death, personal injury, prop-
erty damage or equipment damage, the
following points must be observed when
installing the unit.
All Installations:
Ground Level Installations Only:
•When the unit is installed on the ground adjacent to
the building, a level concrete (or equal) base is
recommended. Prepare a base the same physical
size as the unit or slightly larger and 3 inches thick.
•The base should also be located where no runoff of
water from higher ground can collect in the unit.
Rooftop Installations Only:
• To avoid possible personal injury or property dam-
age, the roof must have sufficient structural strength
to carry the weight of the unit(s) and snow or water
loads as required by local codes.
• If horizontal air delivery is used, the unit may be
installed directly on wood floors or on Class A,
Class B, or Class C roof covering material.
• To avoid possible personal injury, a safe, flat sur-
face for service personnel must be provided.
• If vertical air discharge is used and the unit is
installed on combustible flooring or class A, B, or C
roofing material, then theAmana roof curb (PRC01*)
is required.
II. General Information
This unit is approved only for an outdoor installa-
tion. To assure that your unit operates safely and effi-
ciently, it must be installed, operated, and maintained in
accordance with these installation and operating in-
structions, all local building codes and ordinances.
The heating and cooling capacities of the unit should be
greater than or equal to the design heating and cooling
loads of the area to be conditioned. The loads should be
calculated by an approved method or in accordance
with A.S.H.R.A.E. Guide or Manual J - Load Calcula-
tions published by the Air Conditioning Contractors of
America.
Obtain from:
American National Standards Institute
1430 Broadway
New York, NY 10018

3
Transportation Damage
All units are securely packed in shipping containers
approved by the International Safe Transit Association.
The carton should be checked upon arrival for external
damage. If damage is found, a request for inspection by
carrier agent should be made in writing immediately.
The unit should be carefully inspected upon arrival for
damage and bolts or screws which may have loosened
in transit. In the event of damage, the consignee should:
1. Make notation on delivery receipt of any visible
damage to shipment or container.
2. Notify carrier promptly and request an inspection.
3. In case of concealed damage, carrier should be
notifiedassoonaspossible-preferablywithin 5 days.
4. File the claim with the following supporting docu-
ments within the 9 month statute of limitations.
a. Original Bill of Lading, certified copy, or indem-
nity bond.
b.Originalpaidfreightbillorindemnityinlieuthereof.
c. Original invoice or certified copy thereof, showing
trade and other discounts or reductions.
d. Copy of the inspection report issued by carrier
representative at the time damage is reported to
the carrier. The carrier is responsible for making
prompt inspection of damage and for a thorough
investigation of each claim. The distributor or
manufacturer will not accept claims from dealers
for transportation damage.
NOTE: When inspecting the unit for transportation dam-
age, remove all packaging materials. Recycle or dis-
pose the packaging material according to local codes.
III. Rigging and Handling
CAUTION
To prevent property damage, the unit
should remain in an upright position dur-
ing all rigging and moving operations.
To facilitate lifting and moving when a
crane is used, place the unit in an ad-
equate cable sling.
Important: If using bottom discharge with roof curb,
ductwork should be attached to the curb prior to install-
ing the unit. Ductwork dimensions are shown in Amana
roof curb installation instructions.
Refer to the Amana Roof Curb Installation Instructions
for proper curb installation. Curbing must be installed in
compliance with the National Roofing Contractors As-
sociation Manual.
Lower unit carefully onto roof mounting curb. While
rigging unit, center of gravity will cause condenser end
to be lower than supply air end.

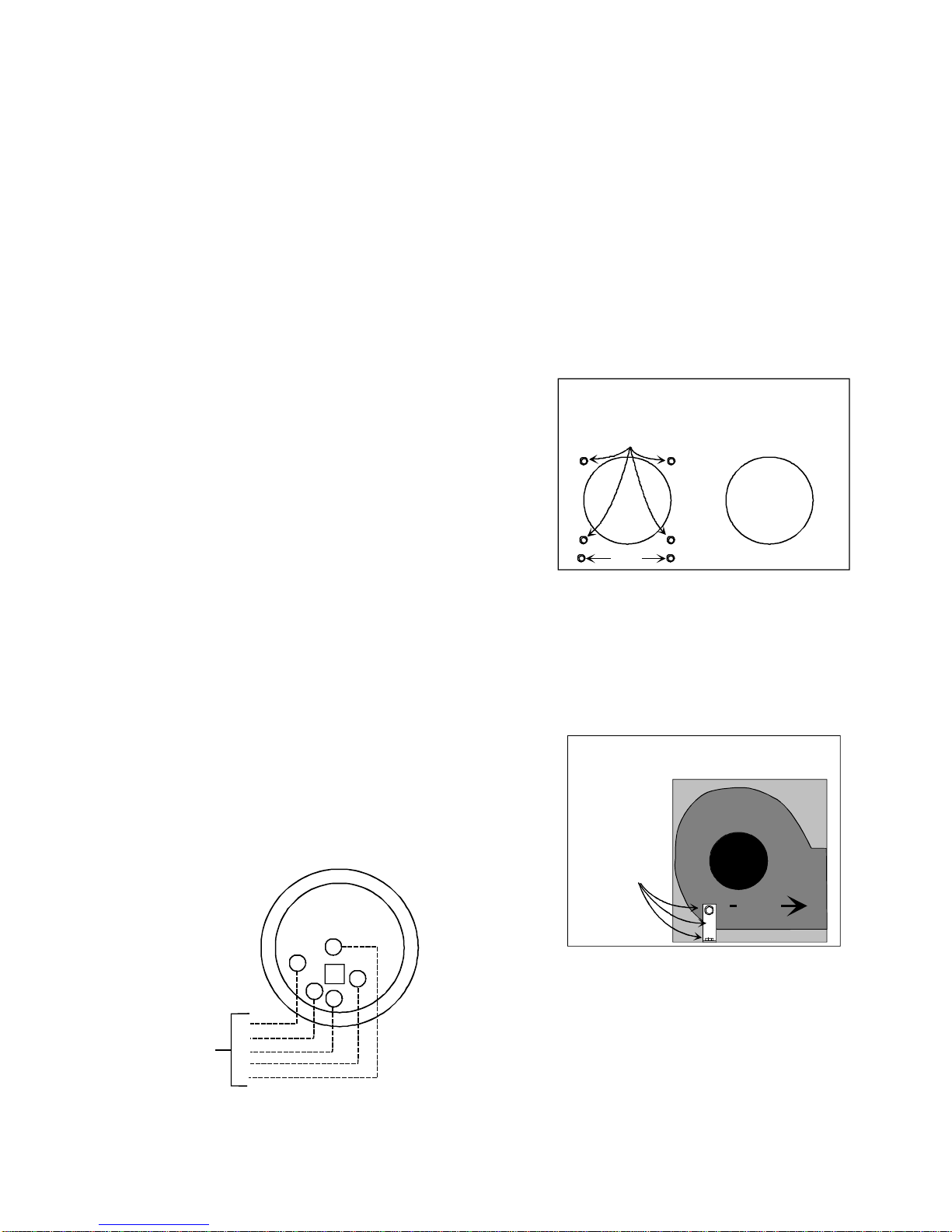

Figure 1
Rigging

4
IV. Duct Connections
Horizontal Airflow Installations
Two three inch collar connections are shipped in the
return air openings on the side of the unit. Remove the
two collars, reverse and snap back into place in the
outlet and inlet openings. Be sure the flanges are to the
outside of the unit. Secure with screws provided.
V. Electrical Wiring
Locating The Thermostat
Thermostat should be mounted 5 feet above the floor,
on a vibration free inside wall in a room or a hallway that
has good air circulation.
Movement of air should not be obstructed by furniture,
door, draperies, etc. The thermostat should not be
mounted where it will be affected by drafts, hot or cold
water pipes or air ducts in walls, radiant heat from
fireplace, lamps, the sun, television, etc. Consult the
Instruction Sheet packaged with thermostat for mount-
ing instructions.
All units have one stage of heating and one stage of
mechanical cooling. Units which will have economizers
may use thermostats with one or two stages of cooling.
WARNING
To avoid death or personal injury due to
electrical shock, disconnect the electri-
cal power before electrically connecting
the unit.
The units are designed for operation on 60 hertz current
and at voltages as shown on the rating plate. All internal
wiring in the unit is complete. It is necessary to bring in
the power supply to the contactor as shown on the unit
wiring diagram which is supplied with each unit. 24 volt
wiring must be connected between the unit control panel
and the room thermostat. Refer to Figure 4 for location
of low voltage terminal board and Figure 5 for proper
thermostat wiring.
60 TEST
30
90
DEFROST
VAL
COMMON
Y OUT
PS2
PS1
P
S
1
A
A
B
B
DF
0
OUT
FAN
Fuse
G
C
R
W
O
Y
R
Low
Voltage
Terminal
Board
Connectors
Figure 4
Low Voltage Control Board
Refer to the unit wiring diagram for electrical connec-
tions. When installed, the unit must be electrically
grounded in accordance with local codes or in the ab-
sence of local codes, with the National Electrical Code,
ANSI/NFPA No. 70, and/or the CSA C22.1 Electrical
Code, if an external source is utilized.
WARNING
To avoid death or personal injury due to
electrical shock, wiring to the unit must
be properly grounded.
CAUTION
To avoid personal injury or property
damage due to fire, use only copper con-
ductors.
CAUTION
To prevent improper and dangerous op-
erationdue to wiring errors, label all wires
prior to disconnection when servicing
controls. Verify proper operation after
servicing.

5
The best protection for the wiring is the lowest rated
fuse or circuit breaker which will supply power to the
unit during normal operation without nuisance trips.
Such a device will provide maximum circuit protection.
DO NOT EXCEED THE MAXIMUM OVERCURRENT
DEVICE SIZE SHOWN ON UNIT DATA PLATE.
All line voltage connections must be made through
weatherproof fittings. All exterior power supply and
ground wiring must be in approved weatherproof con-
duit. Low voltage wiring from the unit control panel to
the thermostat requires coded cable.
Flexible Set-Up For Wiring On The Left Or Right
Side
Even though the electrical box is on the left side of the
unit, both line voltage and low voltage wiring can enter
the unit according to the following (see dimension draw-
ing on the Specification Sheet for knockout locations):
• Line voltage, electrical heater wiring, and low volt-
age on the right side.
• Line voltage and low voltage wiring on the left side
with electrical heater wiring on the right side.
• Line voltage and electrical heater wiring on the right
side with low voltage wiring on the left side.
• Low voltage wiring on the left side and line voltage
and electric heater wiring on the right side.
Using the single-point wiring kit adds further flexibility to
installation wiring.
Unit Voltage
The unit transformer is factory connected for 230V
operation. If the unit is to operate on 208V, reconnect
the transformer primary lead as shown on the unit
wiring diagram.
Thermostat Wiring
When an electric heater is installed, the thermostat
wiring will be made at the heater accessory box.
If no heater is installed, the thermostat wiring will be
made to the low voltage control board.
See the unit wiring diagram for electrical connections.
O
RW
Y
G
O
R
W
Y
G
From
Unit
Figure 5
Typical Thermostat and Unit 24 V Wiring
Hookup
Vl. Circulating Air and Filters
Airflow Conversion
Units can easily be converted from horizontal to vertical
airflow delivery.
Units will ship from the factory ready for horizontal
airflow. If conversion to vertical airflow is necessary,
proceed as follows:
1. Cut insulation around bottom openings and remove
panels from the bottom of the unit, saving the
screws holding the panels in place.
2. From the rear of the unit, remove the four screws
securing the blower assembly in place and loosen
the two screws directly below the duct opening.
(Figure 6)
Remove
Loosen
Figure 6
Duct Removal
3. Remove the clamp securing the blower assembly to
the bottom of the unit. The clamp and screws may
be discarded. (Figure 7)
Airflow
Remove
Figure 7
Clamp Removal
4. Rotate the blower assembly 90° clockwise, setting
the blower assembly outlet on the bottom of the unit
and secure with two screws removed in step 2.
(Figure 8)

6
Airflow
Install
Screws
Removed
From
Back
Panel
Figure 8
Vertical Blower Assembly
5. Tighten the two screws below the duct opening that
were loosened in step 2.
6. Use both the horizontal duct cover kit (CHK001*)
and Round to horizontal duct kit to complete the
installation. (Figure 9)
Figure 9
Horizontal Duct Cover Kit
Ductwork
Duct systems and register sizes must be properly de-
signed for the C.F.M. and external static pressure rating
of the unit. Ductwork should be designed in accordance
with the recommended methods of Air Conditioning
ContractorsofAmericaManual D(Residential)orManual
Q (Commercial). All ductwork exposed to the outdoors
must include a weatherproof barrier and adequate insu-
lation.
A duct system should be installed in accordance with
Standards of the National Board of Fire Underwriters for
the Installation of Air Conditioning, Warm Air Heating
and Ventilating Systems. Pamphlets No. 90A and 90B.
The warm air supply duct from the unit through a wall
fabricated of combustible material may be installed
without clearance. However, minimum clearances for
the unit must be observed as shown in Specification
Sheet.
The outlet duct should be provided with an access
panel.
For vertical airflow, the ductwork should be attached to
the roof curb prior to installing the unit. Ductwork di-
mensions are shown in the Amana PRC roof curb instal-
lation manual.
If desired, supply and return duct connections to the unit
may be made with flexible connections to reduce
possible unit operating sound transmission.
Filters
CAUTION
To prevent property damage due to fire
and loss of equipment efficiency or
equipment damage due to dust and lint
build up on internal part, never operate
unit without a filter installed .
Even though a return air filter is not supplied with this
unit, there must be a means of filtering all return air.
Refer to Specification Sheet provided with unit for filter
size information.
If using the Over/Under Transition Kit, the filter(s) may
be located in the return air duct(s) or return air filter
grille(s). Filters installed external to the unit should be
sized in accordance with their manufacturer recommen-
dations. A throwaway filter must be sized for a maxi-
mum face velocity of 300 feet per minute.
Filter Installation
Important: When installing a filter, the air flow arrows
on the filter must point toward the indoor blower.

7
Operating Instructions
1. Turn on the electrical power supply to the unit.
2. Place the room thermostat selector switch in the
COOL or HEAT position (or AUTO if available, and
if automatic changeover from cooling to heating is
desired).
3. Set the room thermostat to the desired tempera-
ture.
X. Maintenance
WARNING
To avoid death or personal injury due to
electrical shock, disconnect electrical
power before performing any mainte-
nance.
Replacing Or Cleaning Filter
A return air filter is not supplied with this unit; however,
there must be a means of filtering all of the return air.
The filter(s) may be located in the return air duct(s),
return air filter grille(s). Consult with your installing
dealer for the actual location of the return air filter(s) for
your unit.
Dirty filters are the most common cause of inadequate
heating or cooling performance. Filter inspection should
be made at least every two months; more often if
necessary because of local conditions and usage.
Dirty throwaway filters should be discarded and re-
placed with a new, clean filter. Dirty permanent filters
should be washed with water, thoroughly dried and
sprayed with a filter adhesive before being reinstalled.
(Filteradhesivesmaybe foundatmanyhardware stores.)
Permanent filters should last several years. However,
should one become torn or uncleanable, it should be
replaced.
Maintaining Cabinet Finish
Use a fine grade automotive wax on the cabinet finish
to maintain the finish’s original high luster. This is espe-
cially important in areas with high ultraviolet radiation.
Clean Outside Coil (Qualified Servicer
Only)
The coil with the outside air flowing over it should be
inspected annually and cleaned as frequently as neces-
sary to keep the finned areas free of lint, hair and
debris.
VII. Condensate Drain
Condensate Drain Connection
This unit has a built-in trap - no external trap is required;
the drain may be extended using 3/4” PVC piping.
VIII. Sequence of Operations
Normal Sequence of Operations
NOTE: There is a fan delay on initial power to unit
before the low voltage board resets and is operational.
1. Thermostat calls for heating or cooling. The com-
pressor and outdoor fan are energized.
2. Approximately 30 seconds later, the indoor fan
starts.
3. The unit will deliver heating or cooling to the condi-
tioned space until the thermostat is satisfied.
4. The compressor and outdoor fan will be de-ener-
gized when the thermostat opens.
5. The indoor fan continues to run for approximately
30 seconds after the thermostat is satisfied. This
allows additional cooling from the indoor coil to be
transferred to the conditioned space. Then, the in-
door fan stops.
IX. Startup and Adjustment
CAUTION
This unit must not be used as a “con-
struction heater” during the finishing
phases of construction on a new struc-
ture. This type of use may result in pre-
maturefailureoftheunitduetoextremely
low return air temperatures and expo-
sure to very dirty atmospheres.
Compressor Protection Devices
The PHB**C and PHD**C compressor includes compo-
nents which are designed to protect the compressor
against abnormal operating conditions.
WARNING
To avoid death or personal injury, al-
ways disconnect electrical power before
inspecting or servicing the unit. All com-
pressor protection devices reset auto-
matically, energizing the contactor and
outdoor fan.

8
Condenser and Evaporator Motors
Bearings on the air circulating blower motor and the
condenser motor are permanently lubricated. No addi-
tional oiling is required.
WARNING
To avoid death or personal injury due to
electrical shock, do not remove any in-
ternal compartment covers or attempt
any adjustment.
CAUTION
Verify proper operation after servicing.
XI. Accessories
Additional Amana accessories, as described below, can
be purchased to fit specific application needs. Accesso-
ries can be ordered by the part numbers in the table and
each accessory includes its own separate instructions.
Accessory
Duct Tranistion Over/Under (PDTR043A)
Horizontal Duct Covers (CHK01A)
Electric Heater Kit
Compressor Sound Blanket Kit (CSB04A)
Horizontal Filter Kit
Round to Square Kit (RSDK01A)
Replacement Parts
Refer to the description in the Parts Catalog when
ordering any part. Be sure to provide the unit model,
manufacturing, and serial numbers with the order.
