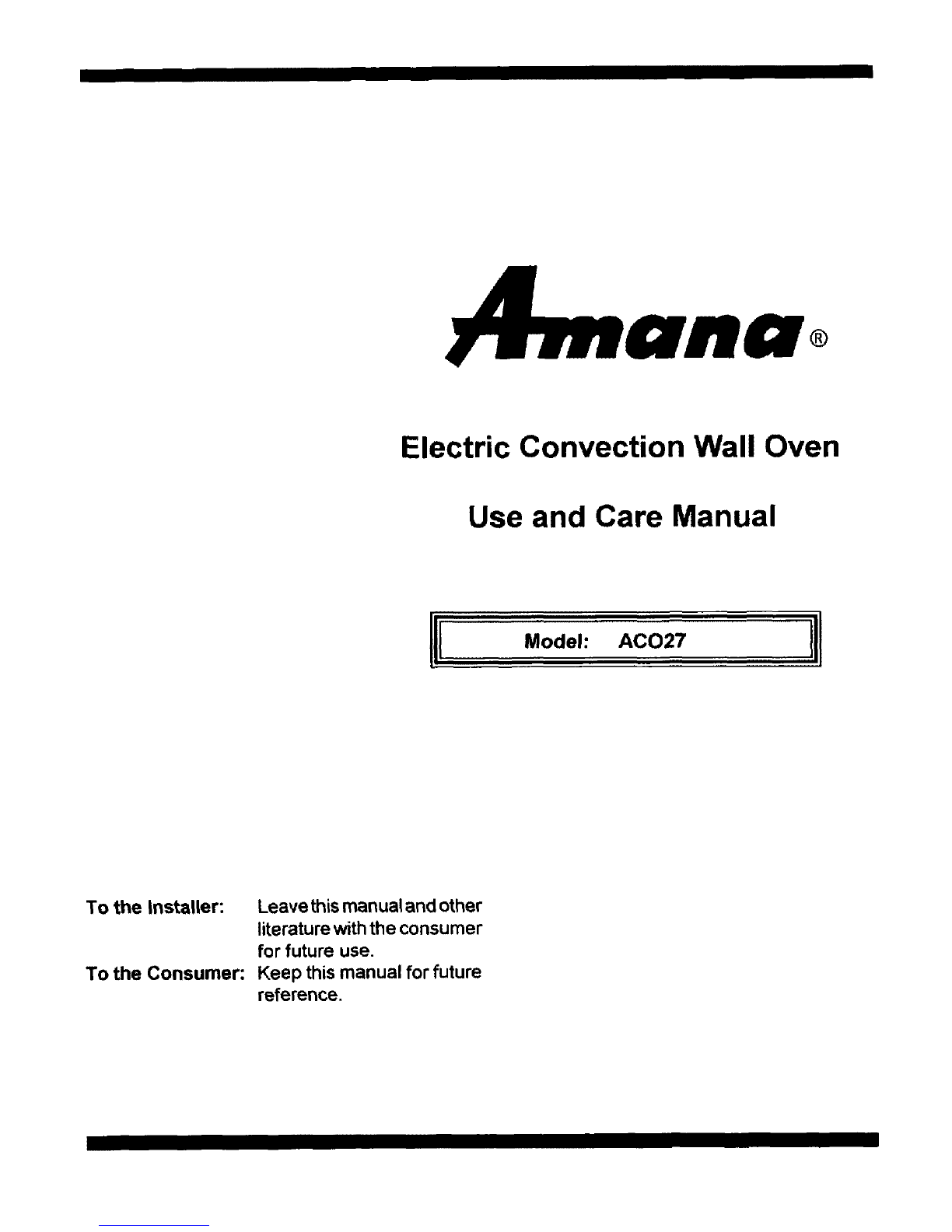

Amana ACO27 User manual

_l_SnQ_
Electric Convection Wall Oven
Use and Care Manual
Ill Mo0e,: Ill
To the Installer: Leave this manual and other
literature with the consumer
for future use.
To the Consumer: Keep this manual for future
reference.

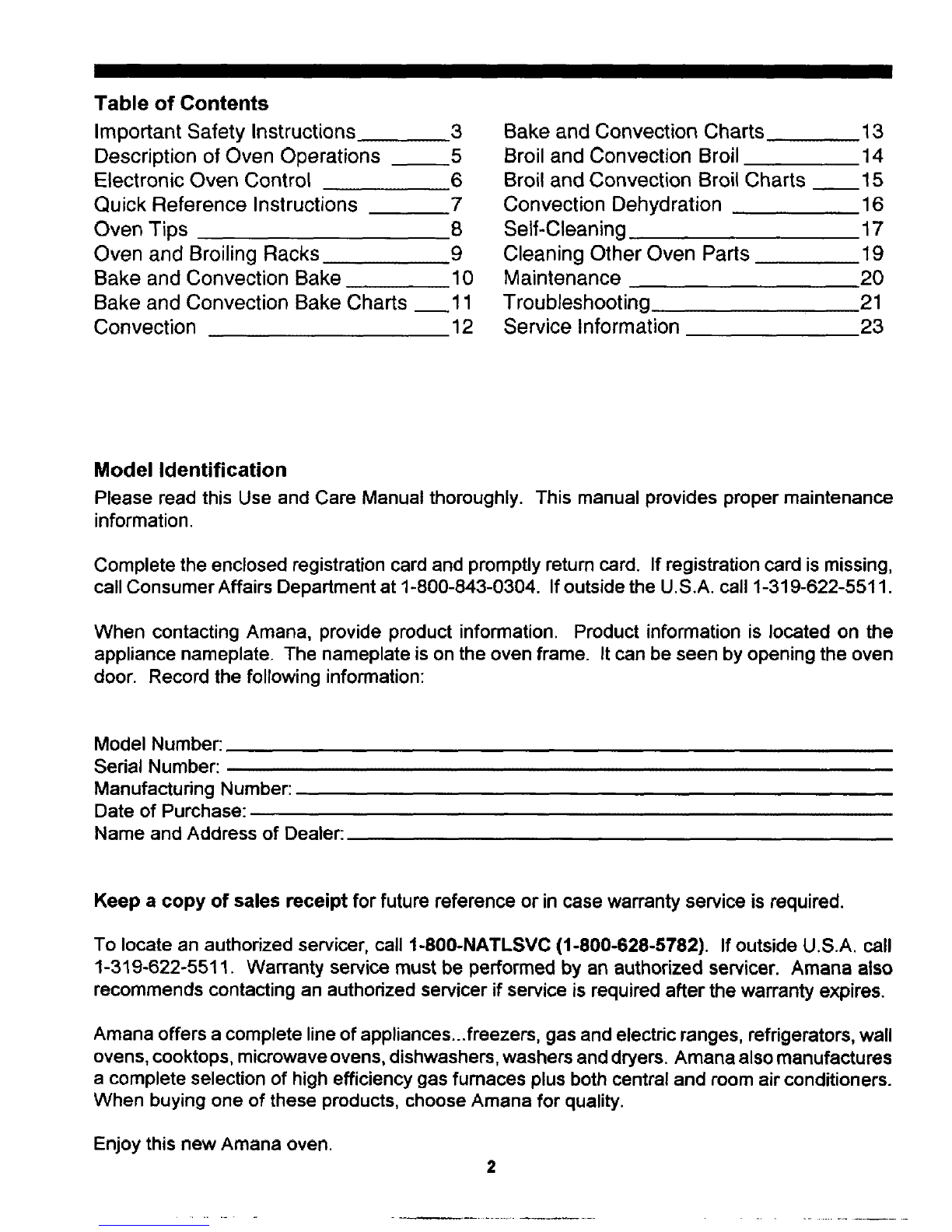

Table of Contents
Important Safety Instructions
Description of Oven Operations
Electronic Oven Control
Quick Reference Instructions
Oven Tips
Oven and Broiling Racks
Bake and Convection Bake
Bake and Convection Bake Charts
Convection
3 Bake and Convection Charts 13
5 Broil and Convection Broil 14
6 Broil and Convection Broil Charts 15
7 Convection Dehydration 16
8 Self-Cleaning 17
9 Cleaning Other Oven Parts 19
10 Maintenance 20
11 Troubleshooting 21
12 Service Information 23
Model Identification
Please read this Use and Care Manual thoroughly. This manual provides proper maintenance
information.
Complete the enclosed registration card and promptly return card. If registration card is missing,
call Consumer Affairs Department at 1-800-843-0304. If outside the U,S.A. call 1-319-622-5511.
When contacting Amana, provide product information. Product information is located on the
appliance nameplate, The nameplate is on the oven frame. It can be seen by opening the oven
door. Record the following information:
Model Number:
Serial Number:
Manufacturing Number:
Date of Purchase:
Name and Address of Dealer.
Keep a copy of sales receipt for future reference or in case warranty service is required.
To locate an authorized servicer, call 1-800-NATLSVC (1-800-628-5782). If outside U.S.A. call
1-319-622-5511. Warranty service must be performed by an authorized servicer. Amana also
recommends contacting an authorized servicer if service is required after the warranty expires.
Amana offers acomplete line of appliances...freezers, gas and electric ranges, refrigerators, wall
ovens, cooktops, microwave ovens, dishwashers, washers and dryers. Amana also manufactures
a complete selection of high efficiency gas furnaces plus both central and room air conditioners.
When buying one of these products, choose Amana for quality.
Enjoy this new Amana oven. 2

Important Safety Instructions
As with all appliances, there are certain rules to
follow for safe operation. Make sure everyone
who operates this oven is familiar with this
product's operation and with these precautions.
Use this appliance only for its intended purpose
as described inthis manual. Payclose attention
to the safety sections of manual. You can
recognize the safety section by looking for the
symbol or the word safety.
Recognize this symbol
as a safety precaution.
To avoid the risk of property damage or
personal injury do not obstruct the flow of
ventilation air to or from the oven.
To avoid the risk of electrical shock,
serious personal injury or death: Make
sure your oven has been properly
grounded and always disconnect the
electrical supply at the main circuit
breaker before servicing this unit.
Due to the nature of cooking, fires can occur
as a result of overcooking or excessive grease.
Although afire is unlikely, if one occurs
proceed as follows:
Oven Fires
1. Do not open the oven door
2 Turn all controls to OFF.
3. As an added precaution turn off the
electricity at the main circuit breaker or
fuse box.
4. Allow the food or grease to burn itself out
in the oven.
If smoke or fire persist call the local fire
department.

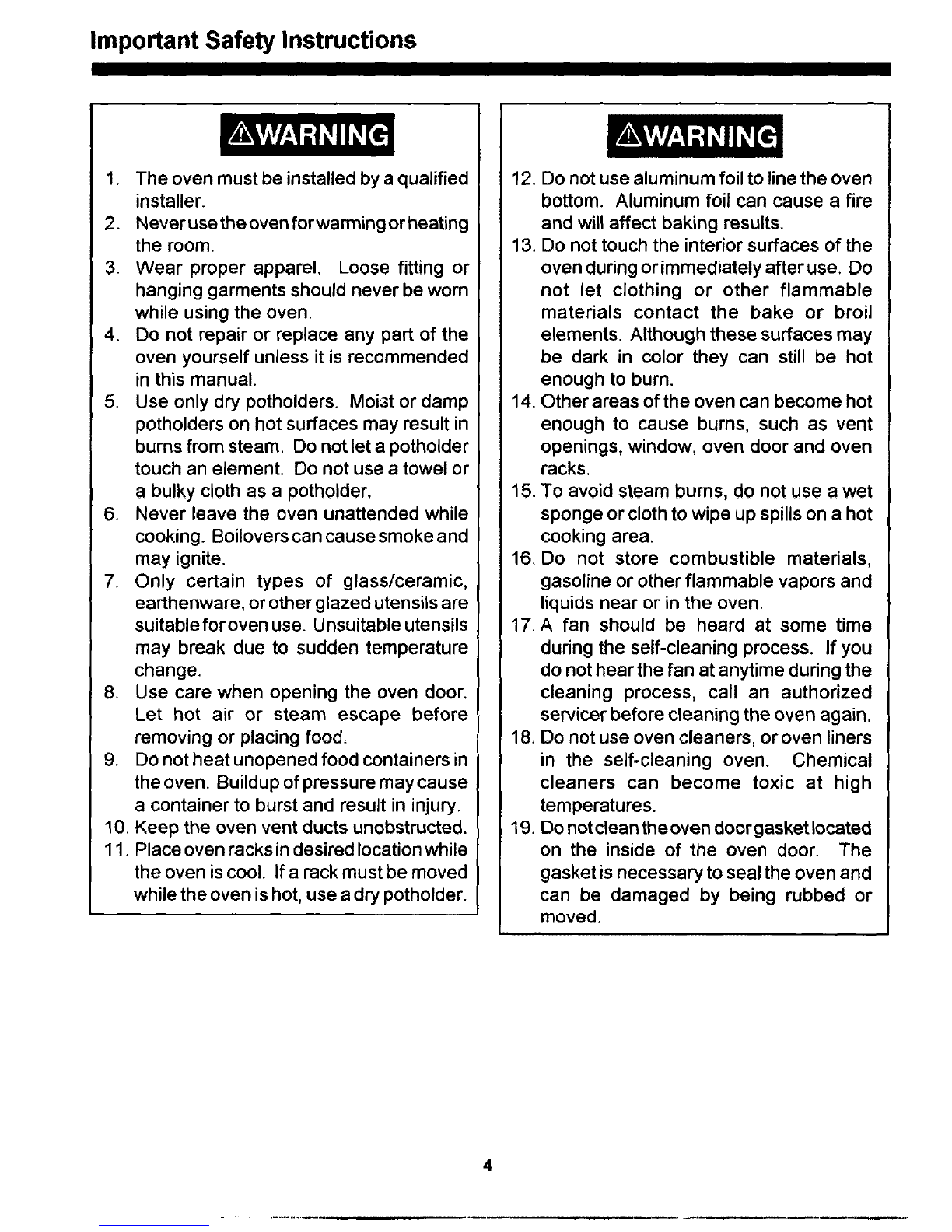

Important Safety Instructions
1. The oven must be installed by a qualified
installer.
2. Never usethe oven forwarming or heating
the room.
3. Wear proper apparel, Loose fitting or
hanging garments should never be worn
while using the oven.
4. Do not repair or replace any part of the
oven yourself unless it is recommended
in this manual.
5. Use only dry potholders. Moi3t or damp
potholders on hot surfaces may result in
burns from steam. Do not let a potholder
touch an element. Do not use atowel or
a bulky cloth as a potholder.
6. Never leave the oven unattended while
cooking. Boilovers can cause smoke and
may ignite.
7. Only certain types of glass/ceramic,
earthenware, or other glazed utensils are
suitableforoven use. Unsuitable utensils
may break due to sudden temperature
change.
8. Use care when opening the oven door.
Let hot air or steam escape before
removing or placing food.
9. Do not heat unopened food containers in
the oven. Buildup of pressure may cause
a container to burst and result in injury.
10. Keep the oven vent ducts unobstructed.
11. Place oven racks in desired location while
the oven is cool. If arack must be moved
while the oven is hot, use a dry potholder.
12. Do not use aluminum foil to line the oven
bottom. Aluminum foil can cause a fire
and will affect baking results.
13. Do not touch the interior surfaces of the
oven dudng orimmediately after use. Do
not let clothing or other flammable
materials contact the bake or broil
elements. Although these surfaces may
be dark in color they can still be hot
enough to burn.
14. Other areas of the oven can become hot
enough to cause burns, such as vent
openings, window, oven door and oven
racks,
15. To avoid steam bums, do not use a wet
sponge or cloth to wipe up spills on ahot
cooking area.
16. Do not store combustible materials,
gasoline or other flammable vapors and
liquids near or in the oven.
17. A fan should be heard at some time
during the self-cleaning process. If you
do not hear the fan at anytime during the
cleaning process, call an authorized
servicer before cleaning the oven again.
18, Do not use oven cleaners, or oven liners
in the self-cleaning oven. Chemical
cleaners can become toxic at high
temperatures.
19. Do notcleantheoven doorgasketlocated
on the inside of the oven door. The
gasket is necessary to seal the oven and
can be damaged by being rubbed or
moved.

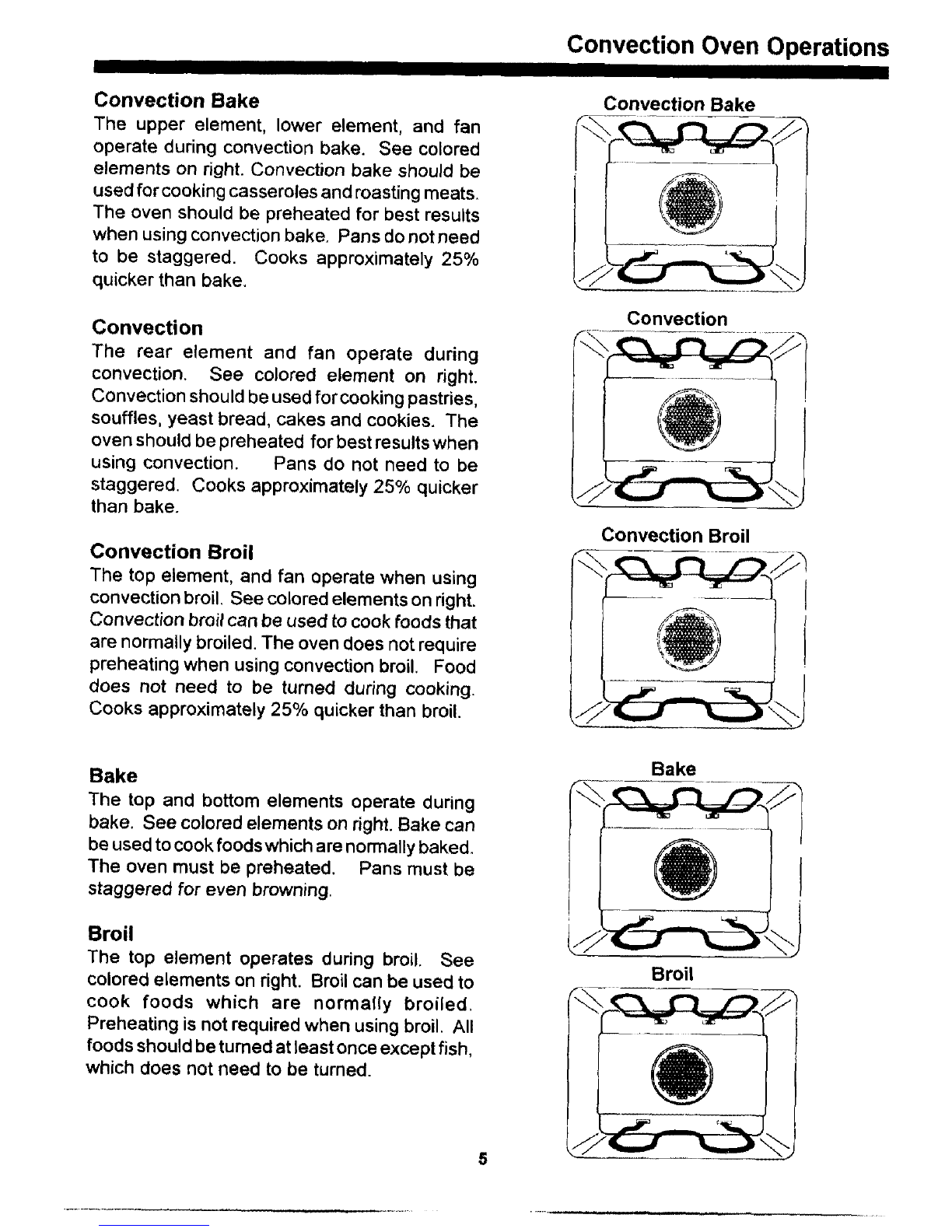

Convection Bake
The upper element, lower element, and fan
operate during convection bake. See colored
elements on right. Convection bake should be
used for cooking casseroles and roasting meats.
The oven should be preheated for best results
when using convection bake, Pans do not need
to be staggered. Cooks approximately 25%
quicker than bake.
Convection
The rear element and fan operate during
convection. See colored element on right.
Convection should be used for cooking pastries,
souffles, yeast bread, cakes and cookies. The
oven should be preheated for best results when
using convection. Pans do not need to be
staggered. Cooks approximately 25% quicker
than bake.
Convection Broil
The top element, and fan operate when using
convection broil. See colored elements on right.
Convection broil can be used to cook foods that
are normally broiled. The oven does not require
preheating when using convection broil. Food
does not need to be turned during cooking.
Cooks approximately 25% quicker than broil.
Bake
The top and bottom elements operate during
bake. See colored elements on right. Bake can
be used to cook foodswhich are normally baked.
The oven must be preheated. Pans must be
staggered for even browning.
Broil
The top element operates during broil. See
colored elements on right. Broil can be used to
cook foods which are normally broiled.
Preheating is not required when using broil. All
foods should be turned at least once except fish,
which does not need to be turned.
5
Convection Oven Operations
Convection Bake
Convection
Convection Broil
Bake
I
Broil

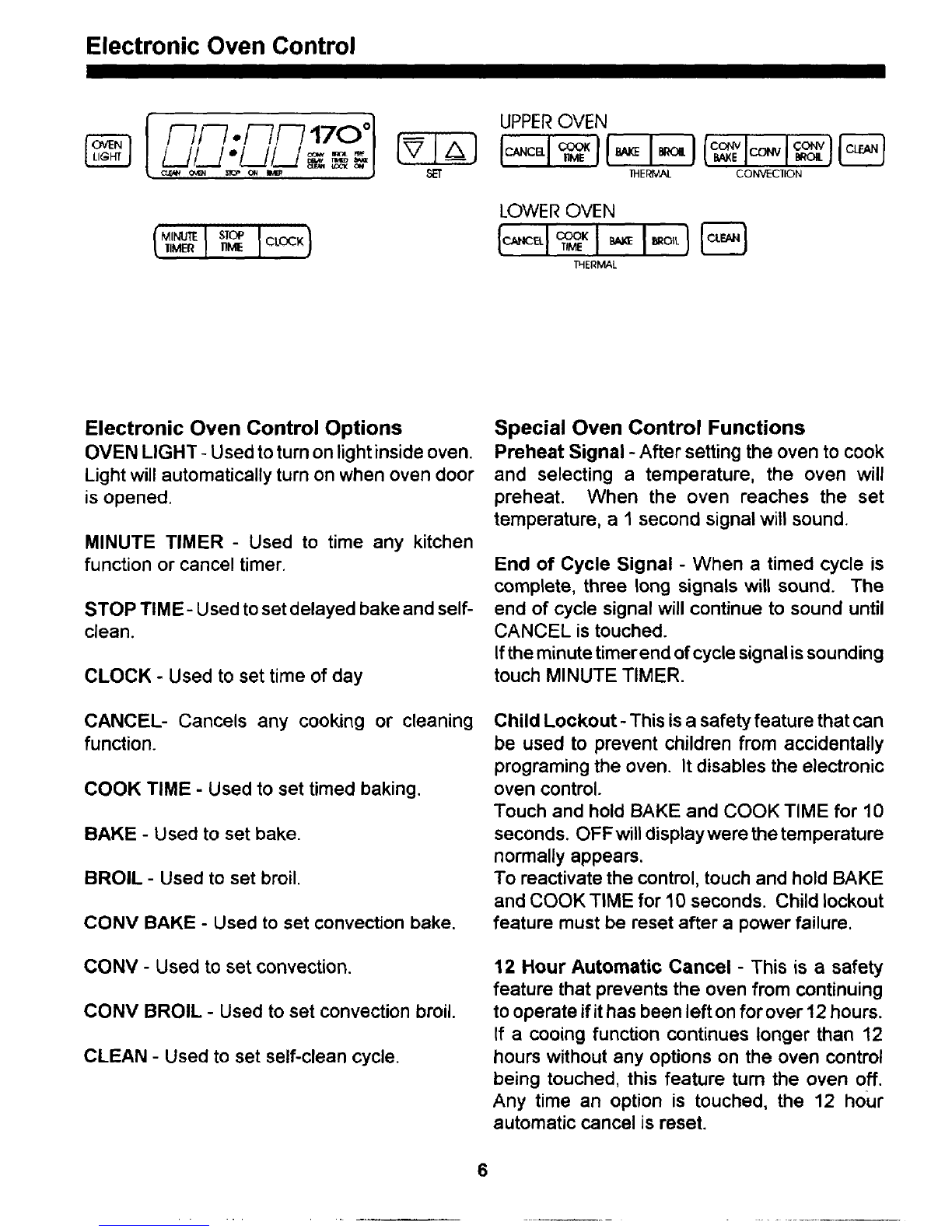

Electronic Oven Control
I/--//--/./--7/-? 170;
MINUTE STOP
( I"IMER} TIME ICLOCK }
UPPER OVEN
I}-IEP,_,V_L CONVECTION
LOWER OVEN
THERMAL
Electronic Oven Control Options
OVEN LIGHT - Used to turn on light inside oven.
Light will automatically turn on when oven door
is opened.
MINUTE TIMER - Used to time any kitchen
function or cancel timer.
STOP TIME- Used to set delayed bake and self-
clean.
CLOCK - Used to set time of day
CANCEL- Cancels any cooking or cleaning
function.
COOK TIME - Used to set timed baking.
BAKE - Used to set bake.
BROIL - Used to set broil.
CONV BAKE - Used to set convection bake.
CONV - Used to set convection.
CONV BROIL - Used to set convection broil.
CLEAN - Used to set self-clean cycle.
Special Oven Control Functions
Preheat Signal - After setting the oven to cook
and selecting a temperature, the oven will
preheat. When the oven reaches the set
temperature, a 1 second signal will sound.
End of Cycle Signal - When a timed cycle is
complete, three long signals will sound. The
end of cycle signal will continue to sound until
CANCEL is touched.
Ifthe minute timerend of cycle signal is sounding
touch MINUTE TIMER.
Child Lockout- This is a safety feature that can
be used to prevent children from accidentally
programing the oven. It disables the electronic
oven control.
Touch and hold BAKE and COOK TIME for 10
seconds. OFF will display were the temperature
normally appears.
To reactivate the control, touch and hold BAKE
and COOK TIME for 10 seconds. Child lockout
feature must be reset after a power failure.
12 Hour Automatic Cancel - This is a safety
feature that prevents the oven from continuing
to operate ifit has been left on for over 12 hours.
If a cooing function continues longer than 12
hours without any options on the oven control
being touched, this feature turn the oven off.
Any time an option is touched, the 12 hour
automatic cancel is reset.

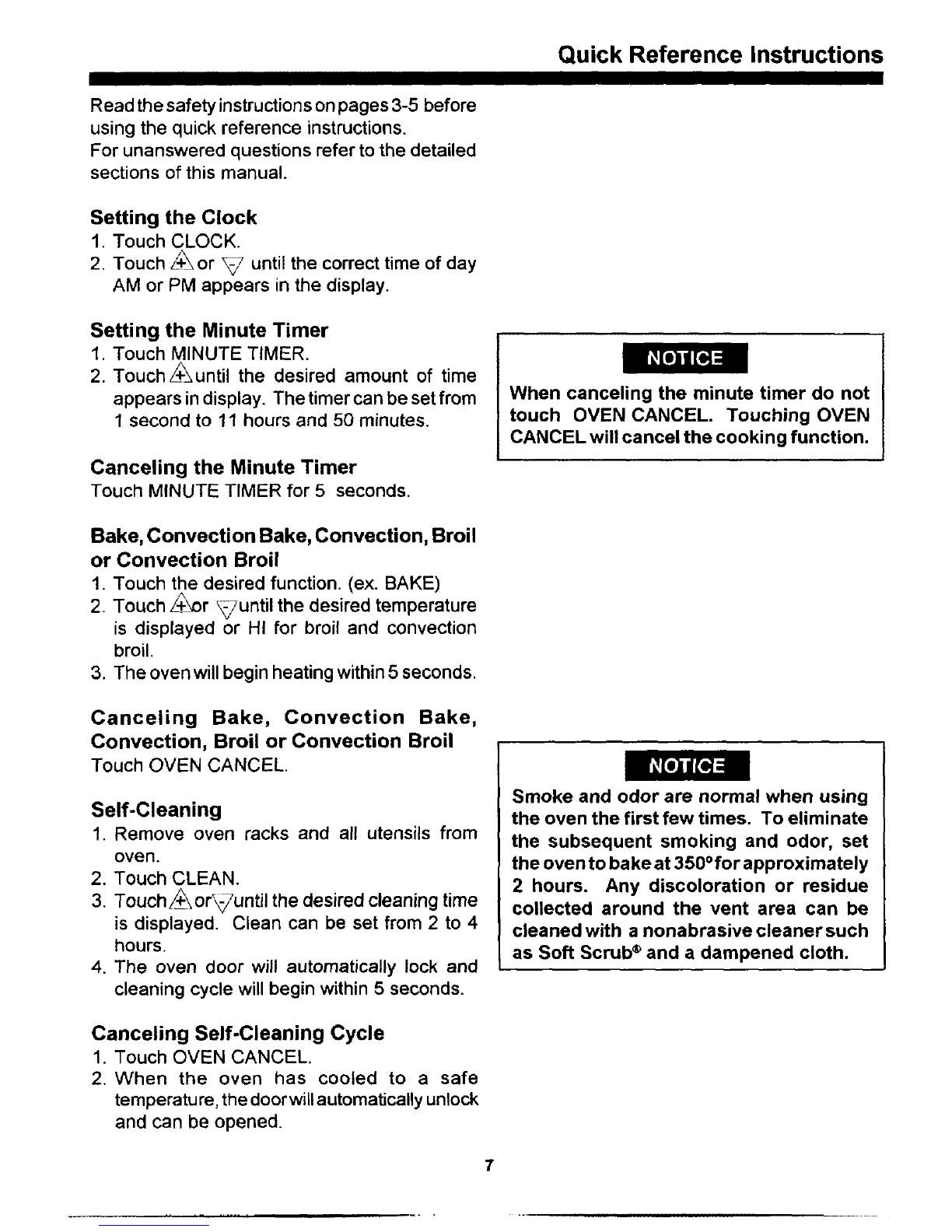

Quick Reference Instructions
Read the safety instructions on pages 3-5 before
using the quick reference instructions.
For unanswered questions refer to the detailed
sections of this manual.
Setting the Clock
1. Touch CLOCK.
2. Touch/_+_or" _7 until the correct time of day
AM or PM appears in the display.
Setting the Minute Timer
1. Touch MINUTE TIMER.
2. Touch_until the desired amount of time
appears in display. The timer can be set from
1 second to 11 hours and 50 minutes.
Canceling the Minute Timer
Touch MINUTE TIMER for 5 seconds.
Bake, Convection Bake, Convection, Broil
or Convection Broil
1. Touch the desired function. (ex. BAKE)
2. Touch i_r "_until the desired temperature
is displayed or HI for broil and convection
broil.
3. The oven will begin heating within 5 seconds.
Canceling Bake, Convection Bake,
Convection, Broil or Convection Broil
Touch OVEN CANCEL.

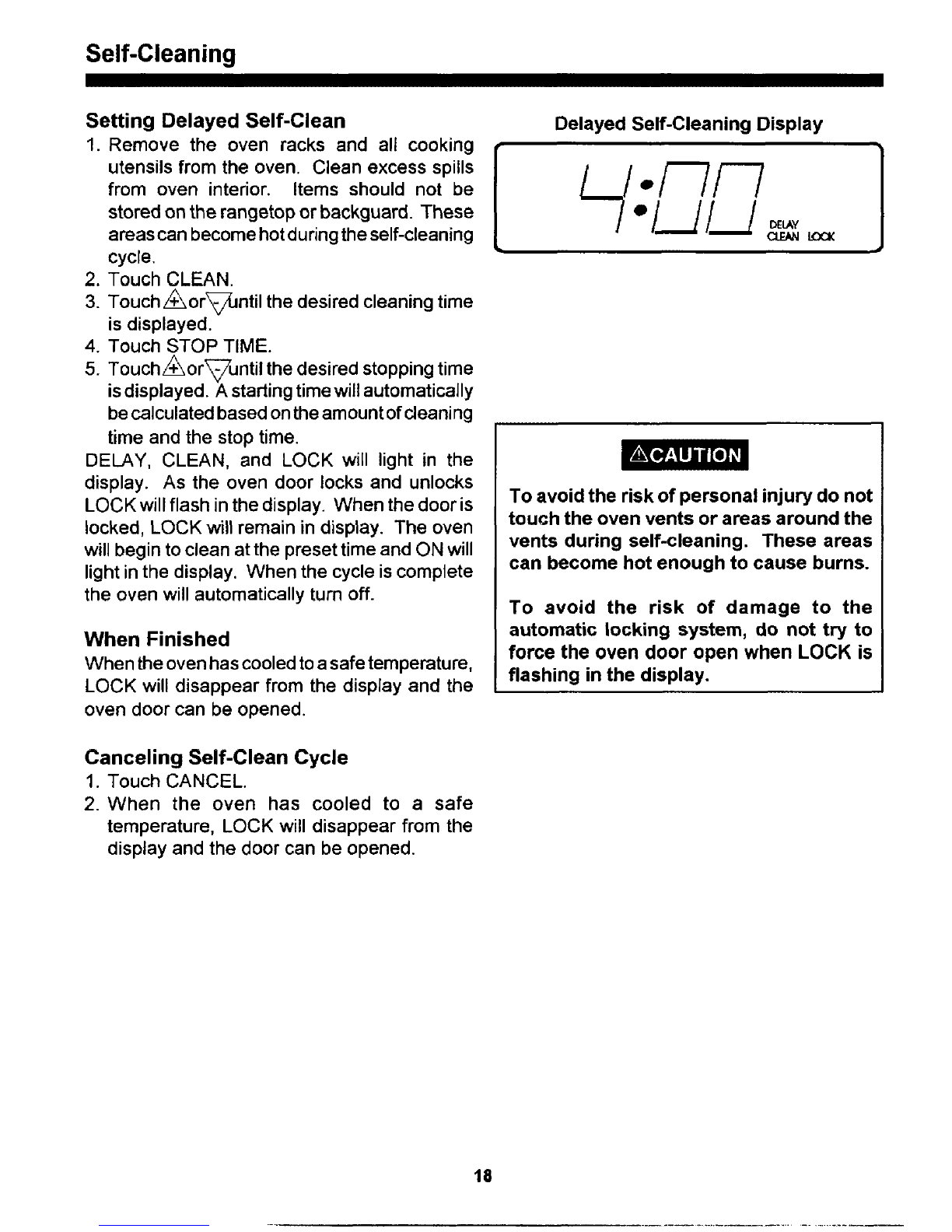

Self-Cleaning
1. Remove oven racks and all utensils from
oveR.
2. Touch CLEAN.
3. Touch/_\or_until the desired cleaning time
is displayed. Clean can be set from 2 to 4
hours.
4. The oven door will automatically lock and
cleaning cycle will begin within 5 seconds.
Canceling Self-Cleaning Cycle
1. Touch OVEN CANCEL.
2. When the oven has cooled to a safe
temperature, the door will automatically unlock
and can be opened.
When canceling the minute timer do not
touch OVEN CANCEL. Touching OVEN
CANCEL will cancel the cooking function.
Smoke and odor are normal when using
the oven the first few times. To eliminate
the subsequent smoking and odor, set
the oven to bake at 350 ° for approximately
2 hours. Any discoloration or residue
collected around the vent area can be
cleaned with a nonabrasive cleaner such
as Soft Scrub ®and a dampened cloth.

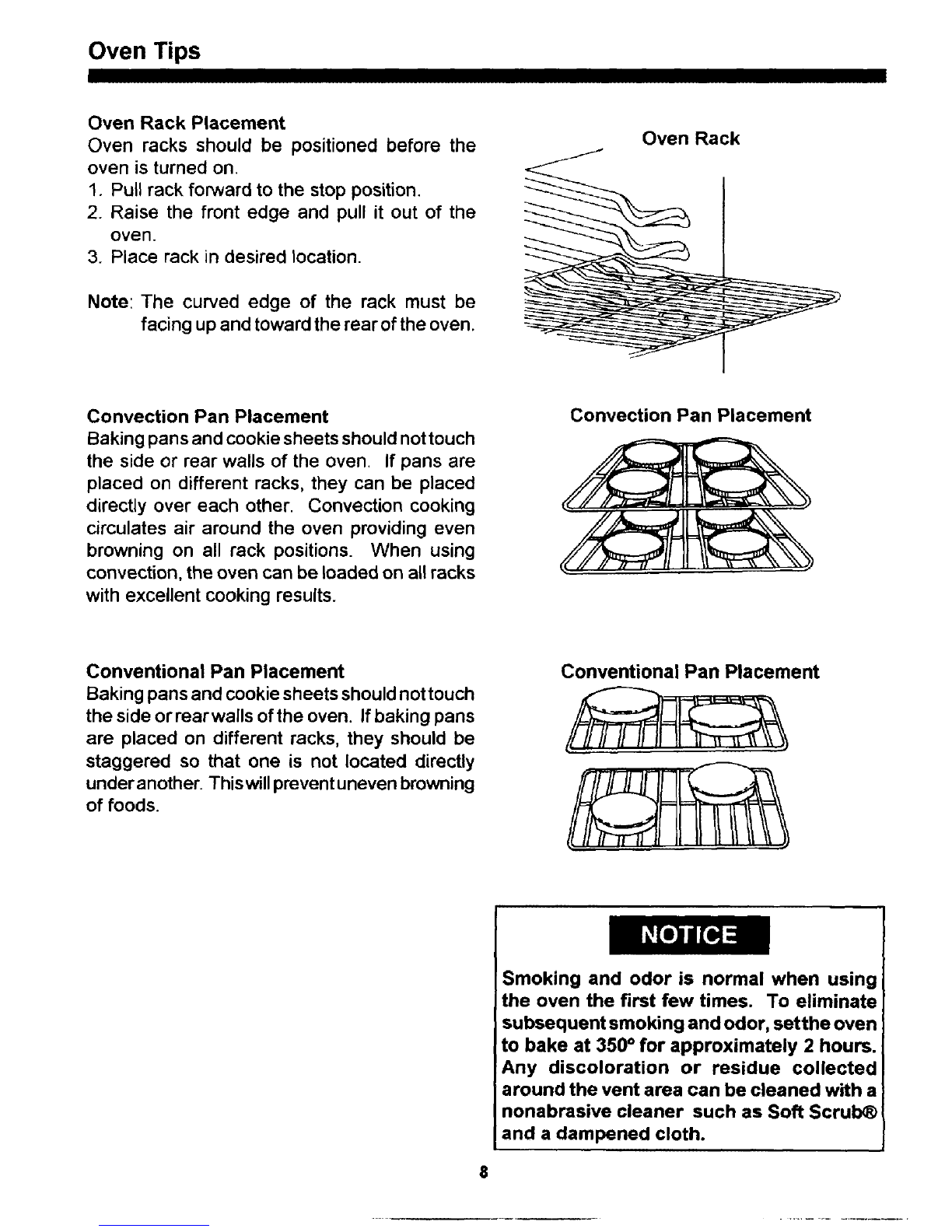

Oven Tips
Oven Rack Placement
Oven racks should be positioned before the
oven is turned on.
1. Pull rack forward to the stop position.
2. Raise the front edge and pull it out of the
oven.
:3. Place rack in desired location.
Note: The curved edge of the rack must be
facing up and toward the rear of the oven.
Oven Rack
Convection Pan Placement
Baking pans and cookie sheets should not touch
the side or rear walls of the oven. If pans are
placed on different racks, they can be placed
directly over each other. Convection cooking
circulates air around the oven providing even
browning on all rack positions. When using
convection, the oven can be loaded on all racks
with excellent cooking results.
Convection Pan Placement
Conventional Pan Placement
Baking pans and cookie sheets should not touch
the side or rear walls of the oven. If baking pans
are placed on different racks, they should be
staggered so that one is not located directly
underanother. Thiswill prevent uneven browning
of foods.
Conventional Pan Placement
Smoking and odor is normal when usin
the oven the first few times. To eliminate
subsequent smoking and odor, setthe oven
to bake at 350 ° for approximately 2 hours.
Any discoloration or residue collected
around the vent area can be cleaned with a
nonabrasive cleaner such as Soft Scrul_
and a dampened cloth.

Oven and Broiling Racks
Convection Oven Racks
The convection oven has five rack positions.
The oven is provided with 2 flat racks and
one elevated rack. This design allows the
racks to be placed in the oven an equal
distance apart.
Lower Oven Racks
The lower oven has four rack positions and
two racks. The lower oven racks are slightly
larger than the upper oven racks (see right).
Do not use the lower oven racks in the
convection oven. The lower oven racks will
extend beyond the oven door opening.
Do not use the convection oven racks in the
lower oven. The convection oven racks may
tip forward during use.
Convection Broiling Rack
The convection oven is provided with a
special broiling rack. This rack should be
placed on top of the broiler pan and grid (see
right). The convection broiling rack allows
air to circulate around the food and cook
evenly without turning.
Convection Oven Rack
Lower Oven Rack
Convection Broiling Rack
16-112"

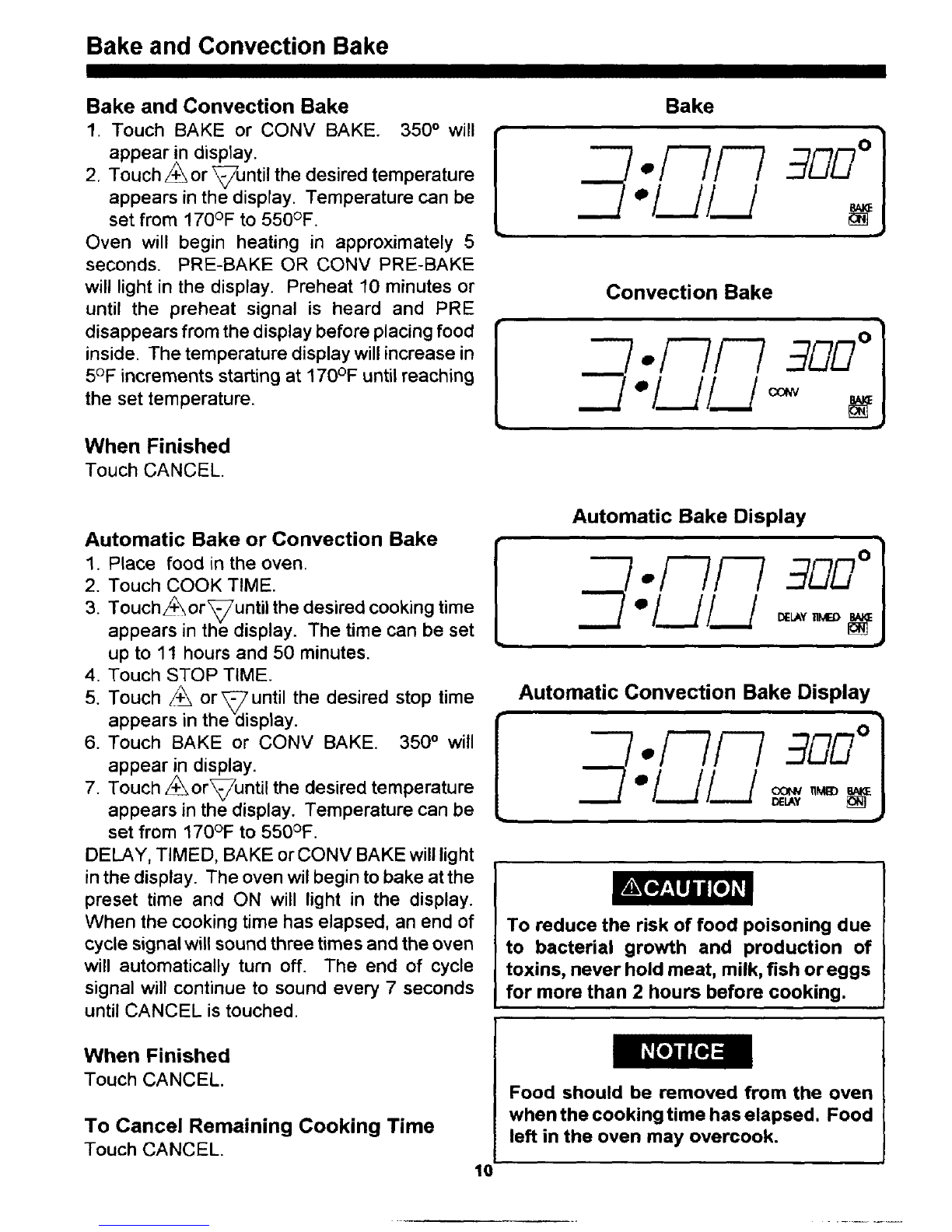

Bake and Convection Bake
Bake and Convection Bake
1. Touch BAKE or CONV BAKE. 350 ° will
appear !n display.
2. Touch _or _Tuntil the desired temperature
appears in the display. Temperature can be
set from 170°F to 550°F.
Oven will begin heating in approximately 5
seconds. PRE-BAKE OR CONV PRE-BAKE
will light in the display. Preheat 10 minutes or
until the preheat signal is heard and PRE
disappears from the display before placing food
inside. The temperature display will increase in
5°F increments starting at 170°F until reaching
the set temperature.
When Finished
Touch CANCEL.
Bake 3OO°
°/__//__/
Convection Bake
Automatic Bake or Convection Bake
1. Place food in the oven.
2. Touch COOK TIME.
3. Touch_or_'until the desired cooking time
appears in the display. The time can be set
up to 11 hours and 50 minutes.
4. Touch STOP TIME.
5. Touch/+_ or_Tuntil the desired stop time
appears in the display.
6. Touch BAKE or CONV BAKE. 350 °will
appear _ display.
7. Touch +i_or_Tuntil the desired temperature
appears in the display. Temperature can be
set from 170°F to 550°F.
DELAY, TIMED, BAKE or CONV BAKE will light
in the display. The oven wil begin to bake at the
preset time and ON will light in the display.
When the cooking time has elapsed, an end of
cycle signal will sound three times and the oven
will automatically turn off. The end of cycle
signal will continue to sound every 7 seconds
until CANCEL is touched.
When Finished
Touch CANCEL.
To Cancel Remaining Cooking Time
Touch CANCEL.
Automatic Bake Display
-FqY 3 °
Automatic Convection Bake Display
To reduce the risk of food poisoning due
to bacterial growth and production of
toxins, never hold meat, milk, fish or eggs
for more than 2 hours before cooking.
10
Food should be removed from the oven
when the cooking time has elapsed. Food
left in the oven may overcook.

Bake and Convection Bake Charts
Time and temperature will vary with meat
temperature and size and type of utensil being
used. Follow these charts only as a guide for
time and temperature.
Poultry Bake Chart
Food
Whole Chicken
(4 Ibs to 5 Ibs)
Whole Chicken
(Over 5 Ibs)
Turkey (6 Ibs to 8 Ibs)
Turkey (8 Ibs to 12 Ibs)
Turkey (12 Ibs to 16 Ibs)
Turkey (16 Ibs to 20 Ibs)
Turkey (20 Ibs to 22 Ibs)
Duck (3 Ibs to 5 Ibs)
Goose (6 Ibs to 8 Ibs)
Oven Temp.
Degrees F.
375o
375°
325°
3250
325o
325°
325 o
325o
325°
Hours
1-1/2 to 1-3/4
1-3/4 to 2
3-1/2to 4
4to 4-1/2
5-1/2
5-1/2to7
7 to 8-1t2
1-1/2to 2
3to 3-1/2
Poultry Convection Bake Chart
Food
Whole Chicken
(4 Ibs to 5 Ibs)
Whole Chicken
(Over 5 Ibs)
Turkey (6 Ibs to 8 Ibs)
Turkey (8 Ibs to 12 Ibs)
Turkey (12 Ibs to 16 Ibs)
Turkey (16 Ibs to 20 )bs)
Turkey (20 Jbsto 22 Ibs)
Duck (3 Ibs to 5 Ibs)
Goose (6 Ibs to 8 Ibs)
Oven Temp.
Degrees F.
325°
325°
275°
275o
275Q
275°
2750
275_
275°
Hours
1-1t2 to 2
2to 2-1/2
3to 3-I/2
3-1/2 to 4-1/2
4-1/2 to 5-1/2
5to7
7to8
1to 1-1/2
2-I/2 to 3-1/2
Beef and Pork Bake Chart
Food
Beef Roast (Rare)
Beef Roast (Medium)
Beef Roast (VVell)
Roiled Roast (Rare)
Rolled Roast (Medium)
Rolled Roast (Well)
Fresh Whole Ham
Pork Loin
Pork Shoulder, Butt
Pork Picnic Shoulder
Mild Cured Ham
Picnic, Shoulder
Oven Temp.
Degrees F.
325°
3250
325°
325o
325°
325o
325°
325o
325°
325°
350°
Minutes
Per Pound
20-25
26-30
33-35
32-36
36-40
43-45
22-28
35-4o
40-45
35-40
30-35
Beef and Pork Convection Bake Chart
Food
Beef Roast (Rare)
Beef Roast (Medium)
Beef Roast (Well)
Rolled Roast (Rare)
Rolled Roast (Medium)
Rolled Roast (Well)
Fresh Whole Ham
Pork Loin
Pork Shoulder, Butt
Pork Picnic Shoulder
Mild Cured Ham
Picnic, Shoulder
Oven Temp. Minutes
Degrees F. Per Pound
275° 15-20
275° 25-30
275_ 30~35
275°20-25
2750 25-35
2750 35-45
275°20-25
2750 30-35
275° 3,5-40
275 ° 30-35
275_ 20-35
11

Convection
Convection
1. Touch CONV. 350 ° will appear in display.
2. Touch z_ or_ntil the desired temperature
appears in the display. Temperature can be
set from 170°F to 550°F.
Preheat approximately 10 minutes or until the
preheat signal is heard before placing food
inside. The temperature display will increase in
5°F increments starting at 170°F until reaching
the set temperature. Some minor smoking is
normal when using the oven for the first time.
When Finished
Touch CANCEL.
Convection
Delayed Convection
1. Place food in the oven.
2. Touch COOK TIME.
3. Touch/_or_--_until the desired cooking time
appears in the display. The time can be set
up to 11 hours and 50 minutes.
4. Touch CONV. 350 °will appear in display.
5. Touch z_ or_Tuntil the desired temperature
appears in the display. Temperature can be
set from 170°F to 550°F.
CONV, DELAY, and TIMED will light in the
display. The oven will begin to bake at the
preset time and ON wil light in the display. When
the cooking time has elapsed, an end of cycle
signal will sound three times and the oven will
automatically turn off. The end of cycle signal
will continue to sound every 7 seconds until
CANCEL is touched.
When Finished
Touch CANCEL.
Delayed Convection
To reduce the risk of food poisoning due
to bacterial growth and production of
toxins, never hold meat, milk, fish or eggs
for more than 2 hours before cooking.
To Cancel Remaining Cooking Time
Touch CANCEL. Food should be removed from the oven
when the cooking time has elapsed. Food
left in the oven may overcook.
12

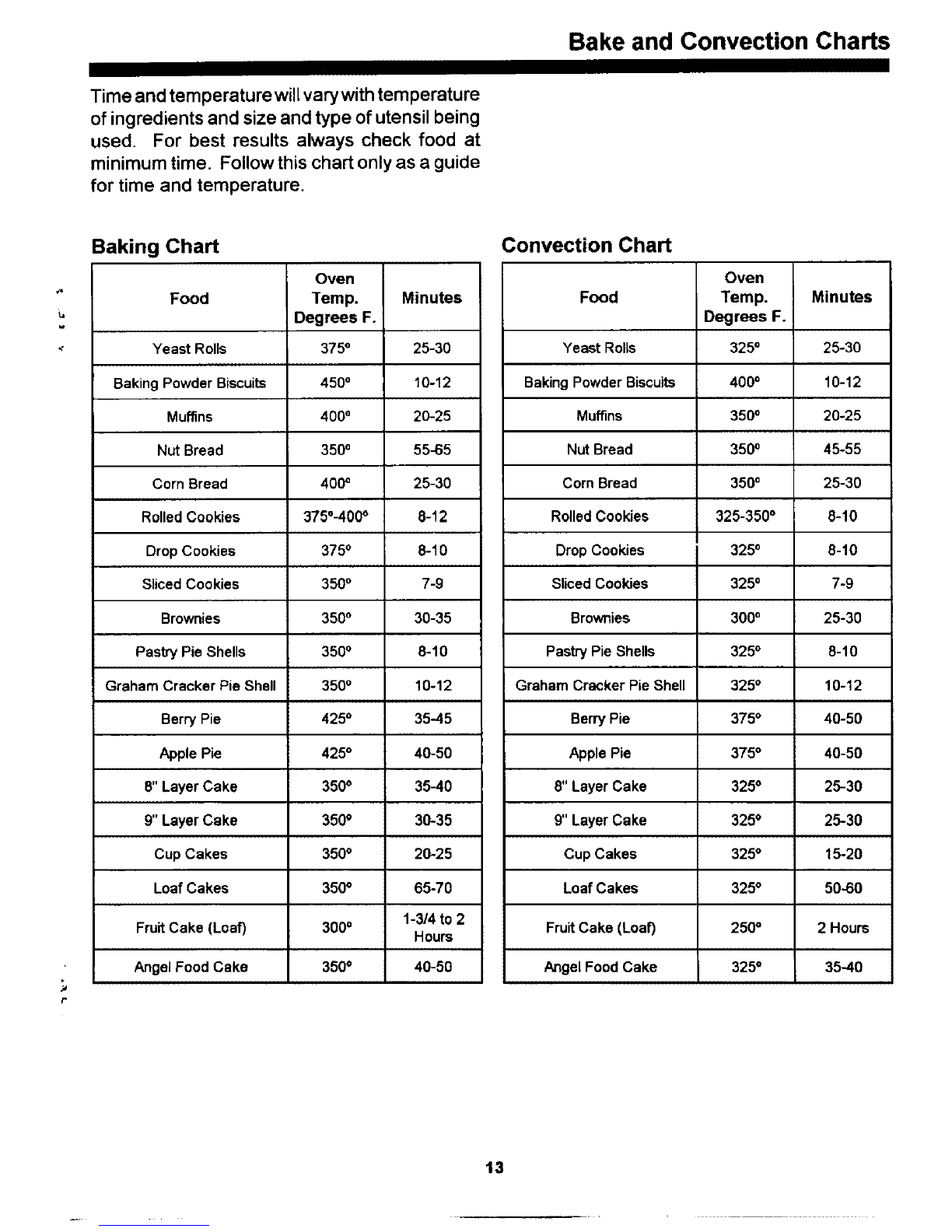

Bake and Convection Charts
Time and temperaturewill vary with temperature
of ingredients and size and type of utensil being
used. For best results always check food at
minimum time. Follow this chart only as a guide
for time and temperature.
Baking Chart
Oven
Food Temp. Minutes
Degrees F.
Yeast Rolls 375° 25-30
Baking Powder Biscuits 450o10-12
Muffins 400_20-25
Nut Bread 35(P 55-65
Corn Bread 400° 25-30
Rolled Cookies 375o-400° 6-12
Drop Cookies 375 o 8-10
SlicedCookies 350 ° 7-9
Brownies 3500 30-35
Pastry Pie Shells 3500 8-10
Graham Cracker Pie Shell 3500 10-12
Berry Pie 425 ° 35-45
Apple Pie 425 ° 40-50
8" Layer Cake 350° 35-40
9" Layer Cake 350°30-35
Cup Cakes 350° 20-25
Loaf Cakes 350° 65-70
1-3/4 to 2
Fruit Cake (Loaf) 300=Hours
Angel Food Cake 350° 40-50
Convection Chart
Oven
Food Temp. Minutes
Degrees F.
Yeast Rolls 325 ° 25-30
Baking Powder Biscuits 400 ° 10-12
Muffins 350o 20-25
Nut Bread 350o45-55
Corn Bread 350° 25-30
RolledCookies 325-350 ° 8-10
Drop Cookies 3250 8-10
Sliced Cookies 3250 7-9
Brownies 300° 25-30
Pastry Pie Shells 325° 8-10
Graham Cracker Pie Shell 3250 10-12
Berry Pie 375° 40-50
Apple Pie 375° 40-50
8" Layer Cake 325° 25-30
9" Layer Cake 325° 25-30
Cup Cakes 325° 15-20
Loaf Cakes 325° 50--60
FruitCake (Loaf) 250° 2 Hours
Angel Food Cake 325° 35-40
13

Broil and Convection Broil
Broil Tips
1. Remove excess fat from meat before broiling.
Cut the edges of the meat to prevent curling.
2. Place the food on a cold ungreased broiling
pan. If the pan is hot the food will stick.
3. Fish should be broiled with the skin side
down. When using BROIL, all food except
fish should be turned at least one time. It is
not necessary to turn foods when using CONV
BROIL.
4. Season the meat after it has browned.
5. Broiling does not require preheating.
6. Begin cooking using the suggested rack levels
on the broiling chart (see page 15) to test the
broiler results. If the food is not browned
enough, cook on a higher position. Ifthe food
is too browned, cook on a lower position.
Broil and Convection Broil
1. Center the food on the broiling grid and pan;
place in oven. When using convection broil,
place food on convection broil rack.
2. Oven door can be closed or open to the first
stop position.
3. Touch BROILorCONV BROIL. Hlwillappear
in the display.
4. Touch Z+_ or_Tuntil the desired setting is
displayed. Broil can be set from 170°F to HI.
The oven will begin to broil in approximately 1
minute. ON, BROIL or CONV BROIL and the
selected setting will be displayed.
When Finished
Touch CANCEL.
[Broil Display
.Fqi-7 H/
"/__//___/
Convection Broil Display H/
To avoid risk of fire, do not line the broiler
grid with foil. Foil may trap grease on top
of the grid close to the burner causing a
fire.
Never leave the oven unattended while
broiling. Overcooking could result in a
fire.
14

Broil and Convection Broil Charts
Broil Chart
Approximate Broiling Time
Food Thickness (doneness) Rack Position Minutes
Beef Steak ......................... 1" thick (med) ......................... 2nd from top ............... 12-14
Beef Steak ......................... 1" thick (well) .......................... 2nd from top ............... 20
Beef Steak ......................... 1 112"thick (med) ................... 2nd from top ............... 20-25
Beef Steak ......................... 1 1/2" thick (well) .................... 2nd from top ............... 30
Hamburgers ....................... (3/4" to 1" thick) ...................... 3rd from top ................ 10-15
Fish Fillets and Steaks ....................................................... 3rd from top ................ 12-18
Pork Chops or Steak .......... 1" thick ................................... 2nd from top ............... 12-14
Pork Chops or Steak .......... 1 1/2" thick ............................. 2nd from top ............... 20-25
Bacon ................................................................................ 3rd from top ................ 10-15
Ham Slice (precooked) ....... 1/2" thick ................................ 2nd from top ............... 19-20
Ham Slice (precooked) ....... 1" thick ................................... 2nd from top ............... 20-30
Convection Broil Chart
Approximate Broiling Time
Foo._d Thickness (doneness| Rack Position Minutes
Beef Steak ......................... 1" thick (reed) ......................... 3rd from top ................ 9-15
Beef Steak ......................... 1" thick (well) .......................... 3rd from top ................ 16-18
Beef Steak ......................... 1 1/2" thick (med) ................... 3rd from top ................ 18-20
Beef Steak ......................... 1 1/2" thick (well) .................... 3rd from top ................ 20-25
Hamburgers ....................... (3/4" to 1" thick) ...................... 4th from top ................ 9-15
Fish Fillets and Steaks ....................................................... 4th from top ................ 10-16
Pork Chops or Steak .......... 1" thick ................................... 3rd from top ................ 12-14
Pork Chops or Steak .......... 1 1/2" thick ............................. 3rd from top ................ 15-20
Bacon ................................................................................ 4th from top ................ 7-9
Ham Slice (precooked) ....... 1/2" thick ................................ 3rd from top ................ 10-15
Ham Slice (precooked) ....... 1" thick ................................... 3rd from top ................ 15-18
15

Convection Dehydration
Convection dehydration is an excellent way to
preserve fresh foods. The best way to become
familiar with dehydration is using fruits,
vegetables, herbs and spices.
Dehydrating
1. Place food on dehydration rack or cookie
sheet in middle of oven.
2. Open door to first stop position.
3. Touch CONV BAKE.
4. Touch _, until the 170°F appears in the
display.
The oven is equipped with a 12 hour automatic
cancel feature. If dehydration time is longer
than 12 hours the control will need to be reset.
When Finished
Touch CANCEL.
Dehydration Tips
Fruits
1. Always start with fresh fruit.
2. Cut fruit in equal pieces approximately
1/8" thick. Thinner pieces will dry quicker.
3. Fruits need to be dipped into an antioxidant,
a color keeping preservative, or two parts
water and one part lemon juice.
4. Treating the fruit with an antioxidant will help
it retain vitamins, color and flavor.
Vegetables
Most vegetables require blanching to inactivate
the enzymes.
Herbs and Spices
1. Herbs and spices dry quickly.
2. Check every 30 minutes to avoid over- drying.
3. When drying herbs, the leaf clusters should
be separated from the stems.
Dehydration Chart
Approximate Dehydration Time
Apples
Drying Time .............. 4 to 6 hours
Results ..................... Leathery Soft
Bananas
Drying Time .............. 16 to 20 hours
Results ..................... Leathery
Mushrooms
Drying Time .............. 3to 4 hours
Results ..................... Leathery, Dry
Carrots
Drying Time .............. 3 to 7 hours
Results ..................... Dry, Brittle
Parsley
Drying Time .............. 45 to 90 minutes
Results ..................... Dry, Crumbly
OrangelLemon Peel
Drying Time .............. 1to 2 hours
Results ..................... Hard, Tough
16

Self-Cleaning
Tips For Self-Cleaning
1. A small amount of smoke is normal when
cleaning. Excessive smoke may indicate too
much food residue has been left in the oven
or a faulty gasket.
2. The oven should be cleaned before it gets
too dirty. Wipe up large spills before self-
cleaning.
3. Do not use the cleaning cycle ifthe oven light
cover is not propedy in place.
4. Oven light will not work during clean cycle.
Setting the Oven to Self-Clean
1. Remove the oven racks and all cooking
utensils from the oven. Clean excess spills
from oven interior. Items should not be
stored on the rangetop or backguard. These
areas can become hot during the self-cleaning
cycle.
2. Touch CLEAN.
3. Touchi_or_until the desired cleaning time
is displayed. Clean can be set from 2 to 4
hours.
The oven will begin to clean in approximately 1
minute. CLEAN, LOCK and ON will light in the
display. As the oven door locks and unlocks
LOCK will flash in the display. When the door is
locked, LOCK will remain in display. When the
cleaning cycle has elapsed, the oven will
automatically turn off. An end of cycle signal will
not sound.
When Finished
When the oven has cooledto a safe temperature,
LOCK will disappear from the display and the
door can be opened.
Interrupt Self-Clean Cycle
1. Touch CANCEL.
2. When the oven has cooled to a safe
temperature, lock will disappear from the
display and the door can be opened.
Suggested Self-Cleaning Times
Light Soil .................................... 2 Hours
Heavy Soil ................................. 3-4 Hours
Self-Cleaning Display ]
To avoid the risk of personal injury do not
touch the oven vents or areas around the
vents during self-cleaning. These areas
can become hot enough to cause bums.
To avoid the risk of damage to the
automatic locking system, do not try to
force the oven door open when LOCK is
flashing in the display.
t7

Self-Cleaning
Setting Delayed Self-Clean
1. Remove the oven racks and all cooking
utensils from the oven. Clean excess spills
from oven interior. Items should not be
stored on the rangetop or backguard. These
areas can become hot during the self-cleaning
cycle.
2. Touch CLEAN.
3. Touch/_or_until the desired cleaning time
is displayed.
4. Touch STOP TIME.
5. Touch_or_--_until the desired stopping time
isdisplayed. A starting time will automatically
be calculated based on the amount of cleaning
time and the stop time.
DELAY, CLEAN, and LOCK will light in the
display. As the oven door locks and unlocks
LOCK will flash in the display. When the door is
locked, LOCK will remain in display. The oven
will begin to clean at the preset time and ON will
light in the display. When the cycle is complete
the oven will automatically turn off.
When Finished
When the oven has cooled toa safe temperature,
LOCK will disappear from the display and the
oven door can be opened.
Canceling Self-Clean Cycle
1. Touch CANCEL.
2. When the oven has cooled to a safe
temperature, LOCK will disappear from the
display ancl the door can be opened.
[Delayed Self-Cleaning Display °/___///CtEAN LOCK
To avoid the risk of personal injury do not
touch the oven vents or areas around the
vents during self-cleaning. These areas
can become hot enough to cause burns.
To avoid the risk of damage to the
automatic locking system, do not try to
force the oven door open when LOCK is
flashing in the display.
18

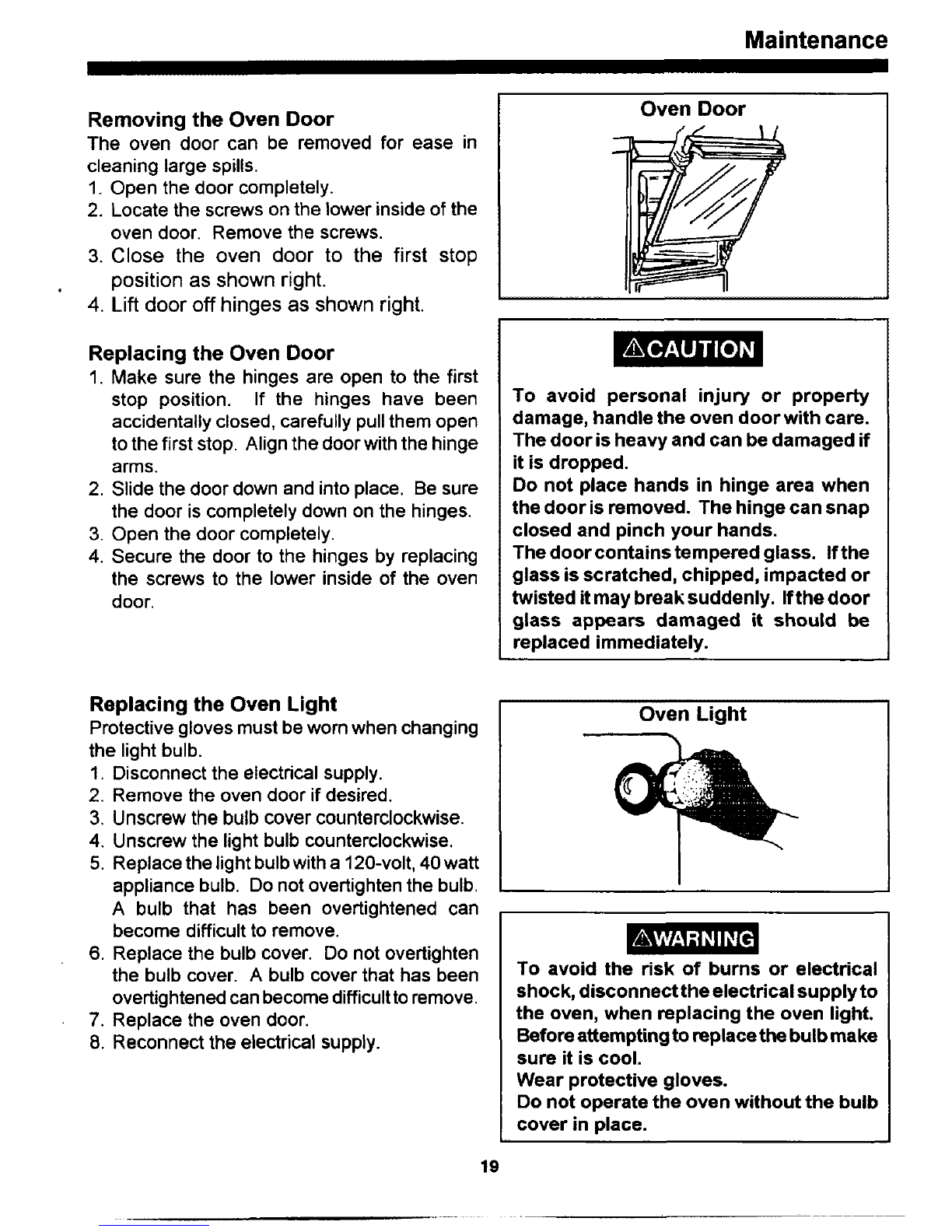

Maintenance
Removing the Oven Door
The oven door can be removed for ease in
cleaning large spills.
1. Open the door completely.
2. Locate the screws on the lower inside of the
oven door. Remove the screws.
3. Close the oven door to the first stop
position as shown right.
4. Lift door off hinges as shown right.
Replacing the Oven Door
1. Make sure the hinges are open to the first
stop position. If the hinges have been
accidentally closed, carefully pull them open
to the first stop. Align the door with the hinge
arms.
2. Slide the door down and into place, Be sure
the door is completely down on the hinges,
3. Open the door completely.
4. Secure the door to the hinges by replacing
the screws to the lower inside of the oven
door.
Oven Door
To avoid personal injury or property
damage, handle the oven door with care.
The dooris heavy and can be damaged if
it is dropped.
Do not place hands in hinge area when
the door is removed. The hinge can snap
closed and pinch your hands.
The door contains tempered glass. If the
glass is scratched, chipped, impacted or
twisted it may break suddenly. Ifthe door
glass appears damaged it should be
replaced immediately.
Replacing the Oven Light
Protective gloves must be worn when changing
the light bulb.
1. Disconnect the electrical supply.
2. Remove the oven door if desired.
3. Unscrew the bulb cover counterclockwise.
4. Unscrew the light bulb counterclockwise.
5. Replace the light bulb with a 120-volt, 40 watt
appliance bulb. Do not overtighten the bulb,
A bulb that has been overtightened can
become difficult to remove.
6. Replace the bulb cover. Do not overtighten
the bulb cover. A bulb cover that has been
overtightened can become difficult to remove.
7. Replace the oven door.
8. Reconnect the electrical supply.
19
Oven Light
To avoid the risk of burns or electrical
shock, disconnect the electrical supply to
the oven, when replacing the oven light.
Before attempting to replace the bulb make
sure it is cool.
Wear protective gloves.
Do not operate the oven without the bulb
cover in place.

Cleaning Other Oven Parts
Oven Part Cleaning Materials General Directions
Do not clean the bake or broil element. Any soil will burn off
Bake, Broil Elements during cooking.
Drain fat, cool pan and grid slightly. (Do not let soiled pan and
Soap and a Nonabrasive grid stand in oven to cool.) Sprinkle with soap. Fill the pan with
Broiler Pan and Grid Plastic Scouring Pad warm water. Let pan and grid stand for a few minutes. Wash
and Water and scour if necessary. Rinse and dry. Option: The broiler pan
and grid may also be cleaned in the dishwasher.
Wash using a soft cloth dampened in soapy water. Care should
Mild Soap and Water or be taken not to soak the cloth and allow water to run down inside
Control Panel Glass Cleaner the control panel. Option: Clean using paper towel and glass
cleaner. Polish with dry cloth.
Cool before cleaning. Frequent wiping with mild soap and water
Interior Oven Door will prolong the time between major cleanings. Be sure to rinse
Outside Door Gasket Soap and Water throughly. For extra dried on soil a mild abrasive can be used.
Never use strong abrasives, gritty cleaners, commercial oven
cleaners or steel wool.
Gasket should not be cleaned. Care should be taken not to wet
Oven Door Gasket Do Not Clean or rub the gasket.
For heavy soil, clean by hand and rinse throughly. Remove the
Oven Racks Soap and Water oven racks for ease in cleaning.
Wash all glass with cloth dampened in soapy water. Rinse and
polish with a dry cloth. Do not allow water to run down inside the
Outside of Oven Soap and Water surface while cleaning. Clean stainless steel with stainless steel
cleaner conditioner.
20
