Amana BCI21WW User manual

Bottom Freezer
Refrigerator
Owner's Manual
Keep these instructions for future reference.Be sure this
manualstays with refrigerator.
English.....................................................................1
Español.................................................................. 21
Français................................................................. 42

2
Contents
ElectricalRequirements ...........................................2
ModelIdentification ..................................................2
Service ....................................................................3
AsureTM Extended Service Plan................................3
Parts and Accesories...............................................3
ProperDisposal ofYour Refrigerator .........................3
Installation Instructions ............................................4
SpaceRequirements.............................................4
LevelingRefrigerator .............................................4
DoorReversal .......................................................4
Connect ice maker water supply line
(somemodels). .....................................................6
Installation Checklist................................................7
Controls ...................................................................8
FreshFoodandDeepfreezeTM Controls .................8
SettingControls ....................................................8
Fresh Food Features ................................................8
Fresh FoodShelves ..............................................8
AdjustableDeli DrawerTM (some models)...............8
GardenFreshTM Crisper .........................................9
Chiller FreshTM System (some models) .................9
StorageRack (some models).............................. 10
CoveredStorage Bucket (somemodels)............. 10
DairyCenter (somemodels)................................ 10
DoorBuckets...................................................... 10
TallPackageRetainer ......................................... 11
DoorShelves ...................................................... 11
AdjustableDivider (somemodels)....................... 11
BottleHolder....................................................... 11
DeepfreezeTM Features........................................... 12
Frost-FreeSystem .............................................. 12
Automatic Ice Maker (some models) .................. 12
Ice Service Rack (some models) ........................ 12
Slideout Shelf(somemodels) ............................. 12
Vertical Shelf Divider (some models) .................. 13
Wire Shelf(somemodels)................................... 13
Wire Basket(somemodels)................................ 13
Ice Bin (some models)........................................ 13
CareandCleaning.................................................. 14
GeneralCleaning ................................................ 14
Adhesives........................................................... 14
Door Gaskets ..................................................... 14
CondenserCoils ................................................. 14
Glass Shelves .................................................... 14
OdorRemoval..................................................... 14
LightBulb Replacement ...................................... 15
VacationTips ......................................................... 15
EnergyTips............................................................ 15
NormalOperatingSounds ...................................... 16
BeforeCalling ForService ..................................... 17
Warranty ................................................................ 19
Espanõl.................................................................. 21
Français ................................................................. 42
Note
Translation may sometimes cause variations in meaning.
In all cases where meaning varies, the most accurate
meaning will be the English version of this document.
Electrical Requirements
!
Recognize this symbol as a safety precaution.
!

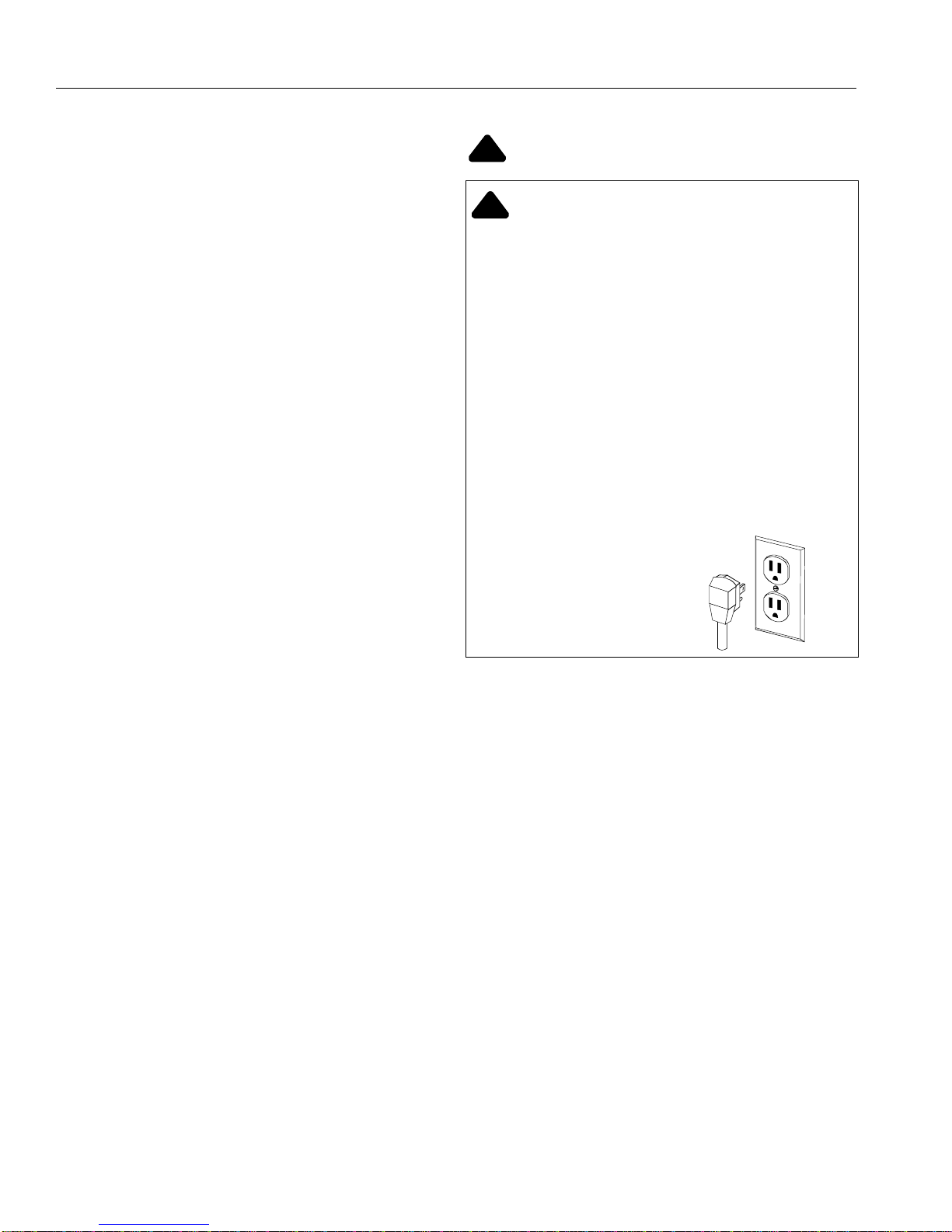

WARNING:
To avoid electrical shock which can cause severe
personal injury or death do not cut or remove the
round grounding prong from the plug. Refrigerator
must be grounded at all times. Do not remove
warning tag from power cord.
Do not use a two-prong adapter. Do not use an
extension cord.
Electrical Grounding Instructions —Thisrefrigeratoris
equippedwithathree-prong(grounding)plugfor
protection against possible shock hazards. If you
encountera two–prong receptacle,contacta qualified
electricianand have thetwo-prongwall receptacle
replacedwithaproperlygroundedthree-prongwall
receptacle in accordance with the National Electrical
Code.
Refrigeratoris designed tooperate on aseparate 103 to
126 volt, 15 amp., 60 cycle line.
Model Identification
Thankyouforpurchasingthis Amana®refrigerator.Please
readthis Owner's Manual thoroughly.This manual
providespropermaintenance information. Anyquestions,
calltheConsumer AffairsDepartmentat1-800-843-0304
insideU.S.A.and1-319-622-5511outside the U.S.A.
Completeregistrationcard and promptlyreturn.If
registration card is missing, call the Consumer Affairs
Department.
Whencontact Amana ,provideproduct information.
Product information is on the serial plate, located on
(upperleft corner, ceiling) ofFresh Food section.Record
thefollowinginformation.
ModelNumber: _________________________
ManufacturingNumber: _________________________
S/Nor Serial Number: _________________________
Dateof Purchase: _________________________
Dealer'snameandaddress:________________________
________________________________________________
For more information visit our website
www.amana.com

3
Service
Keep a copy of sales receipt for future referenceor in
case warranty service is required. Any questions or to
locateanauthorizedservicer, call 1-800-NAT-LSVC
(1-800-628-5782)insideU.S.A.319-622-5511outside
U.S.A.Warranty service must be performed by an
authorizedservicer.Amana, also recommendscontacting
an authorized servicer if service is required after warranty
expires.
Asure™ Extended Service Plan
Amana offers long-term service protection for this new
refrigerator.Asure™Extended Service Planis specially
designedto supplement Amana’sstrong warranty.This
plan covers functional parts, labor, and travel charges.
Call1-800-528-2682forinformation.
Parts and Accessories
Purchasereplacement partsand additional accesories
(e.g.refrigerator shelves) over thephone. Toorder
accessoriesfor your product,call1-800-843-0304 inside
U.S.A.or319-622-5511 outside U.S.A.
!
DANGER
Proper Disposal of Your
Refrigerator
IMPORTANT: Child entrapmentandsuffocation
arenot problemsof the past. Junked or abandoned
refrigeratorsarestilldangerous--
even if they will sit for "just a few days." If you
discardan old refrigerator,please followthe
instructions below to help prevent accidents.
BEFOREBEFORE
BEFOREBEFORE
BEFOREYY
YY
YOUOU
OUOU
OU THRTHR
THRTHR
THROO
OO
OW AW A
W AW A
W AWW
WW
WAA
AA
AYY
YY
YYY
YY
YOUR OLDOUR OLD
OUR OLDOUR OLD
OUR OLD
REFRIGERAREFRIGERA
REFRIGERAREFRIGERA
REFRIGERATT
TT
TOR OR FREEZER:OR OR FREEZER:
OR OR FREEZER:OR OR FREEZER:
OR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so that children may
not easily climb inside.

4
Installation Instructions
Properinstallation willensure this refrigerator operates
most efficiently.
Space Requirements
!
WARNING:
Keep flammable materials and vapors, such as
gasoline, away from refrigerator. Failure to do so can
result in death, explosion, fire, or burns.
•Toensureproper ventilationforyour refrigerator, allow
for a 1"(2.5 cm) space at the top of your refrigerator.
• If your refrigerator has an ice maker, make sure you
leave some extra space at the back to allow for the
waterlineconnection.The refrigerator can beflush
with the back wall if you do not have an ice maker
installed.
• If you are installing your refrigerator next to a fixed
wall, leave 2 1/2"minimumon hingeside (depending
on your model) to allow for the door to swing open
90°.
NOTE:Donotinstall the refrigeratornear an oven,
radiator, or other heat source. Do not install the
refrigeratorin a locationwhere the temperaturewillfall
below55°F(13°C).
Leveling Refrigerator
!
CAUTION:
Protect soft vinyl or other flooring with cardboard,
rugs or other protective material to avoid property
damage.
Some installations may require door reversal to achieve
full door swing.If so, proceed to "Door Reversal" section
beforelevelingyourrefrigerator.
If your refrigerator requires ice maker water supply
connection,proceed to“Connect icemaker water supply”
section on page 6 before leveling your refrigerator.
1. Plugin power cord.
2. Moverefrigerator into finallocation.
3. Level refrigerator using a level placed on top of the
refrigerator.
• Remove toe grille. Remove bottom hinge cover if
refrigerator has a stabilizing leg.
• Turn roller adjustment screws to raise or lower
refrigerator cabinet.Front of refrigeratormustbe
1/4" (6 mm), or 1/2bubble on your level, higher than
the back of your refrigerator.
• Make sure refrigerator cabinet is level from side to
side by adjusting left and right roller adjustment
screw.
• Turn stabilizing leg (some models) clockwise until
firmly againstfloor.
Roller
adjustment
screw
Bottom hinge
cover Stabilizing leg
(some models)
Door Reversal
Some installations may require door reversal to achieve
full door swing. To reverse door swing direction perform
the following steps:
Tools Required
Putty knife (blade covered by masking tape)
5/16" hex nut driver
3/8" hex nut driver
1/4" hex nut driver
Phillipsscrewdriver
Bladescrewdriver
1. Removeandreverserefrigeratorhandle.
IMPORTANT: For plugremoval requiring useof flatblade
screwdriver or putty knife, blade of tool must be
covered with masking tape to avoid damage to
refrigerator finish. For plugs usingascrewdriver- ornut
driver-style head, useappropriate tool toavoid damage
to plugs.
• Remove handle screw from top handle trim. Pry
up edge of handle trim using a putty knife with the
bladecovered withmasking tape. Removehandle
fromdoor byremoving 1remaining mounting screw
at each end of handle.
• Remove 1 plug from top hinge side of door and 2
from front hinge side of door. Mount handle on
opposite side of door using mounting screws
removed in previous step.

5
Handle trim
Handle
screws
Handle
Handle
trim
Handle
screw
Plugs
• Snap handle trim into place. Replace 3 plugs in
emptymounting holes.
2. Remove top hinge cover.Top hinge cover snaps off.
Remove top hinge and hinge shim using hex nut
driver.
3. Removerefrigerator door by lifting dooroff of center
hingepin.
4. Remove center hinge pin using hex nut driver.
5. Removefreezer door bylifting dooroff bottom hinge.
An internal support rod may slide out of hinge socket.
Replacerodbefore hanging door.
6. Removecenter hinge bracketand hinge shimusing
Phillipsscrewdriver.
7. Remove toe grille and bottom hinge cover.Both snap
off.
8. Remove bottom hinge and hinge shim using hex nut
driver.
5/16" screws
Top hinge
Phillips screws
Center hinge
pin Center hinge
bracket
3/8" or
5/16"
hex nut
Center hinge
3/8"
screws
Bottom hinge
9. Removefreezerdoorhandle.
• Pry up back edge of handle cap using a putty knife
with the blade covered in masking tape. Remove
handlecap from handle.Remove handlefrom door
by removing mounting screw at each side of
handle.
• Remove 2 plugs from hinge side of door.
Handle
cap
Freezer
handle
Screws
Plug
10. Reversedoors by performingthe following steps:
• Remove plugs and screws in opposite side of
refrigerator cabinet. Insert in holes left from hinge
removal.
•Replace internal support rod in hinge side of
freezer door before to hanging door.
Support
rod
11. Rehangdoors byreplacing bottom, center,and top
hinges,along with freezer andrefrigeratordoors on
oppositeside of refrigeratorperforming steps 2–8in
reverseorder.
• Use a penny at top to space door 3/4" (18 mm)
fromcabinet.
• Handleside of doorshould be approximately
1/8" (3 mm) higher than hinge side. Door will
become level when it is loaded with food.
12. Mount freezer handle to opposite side of door using
mountingscrews removed inprevious step.
• Anglefront edge ofhandle capdownward toward
back lip of freezer handle.Verify bottom tab on
freezercap slidesunder rearlip of freezer handle.
Snap rear edge of handle cap in place. Place 2
plugs in empty mounting holes.

6
• Donot install coppertubing in areawhere
temperaturesdropbelow32°(0°).
MaterialsRequired
1/4" O.D.(6 mm) flexible copper tubing is required.Length
of copper tubing must reach from water supply
connection to water valve inlet port on back of
refrigerator, plus additional 8 ft.(2 m) of tubing for a
service loop. A service loop will allow refrigerator to be
pulledaway fromthe wall withoutdisconnecting tubing.
Procedure
1. Remove plastic cap from water valve inlet port.
Plastic
cap
Water valve
inlet port
2. Place brass nut and brass sleeve on copper tubing.
(Brass nut and sleeve are found in your literature
packet.) Insert copper tubing into water valve inlet
port.Connect brass nut on copper tubing to water
valve inlet port.Make sure copper tubing is secure by
pullingoncopper tubing.
Brass nut
Brass sleeve
Water valve
inlet port
Copper
tubing
"P" clamp
3. Turn on water supply to refrigerator and check for
leaks. Correct any leaks at connection. Be careful not
to overtighten connection.
4. Create a service loop using extreme care to avoid
kinks.Secure copper tubingto refrigerator cabinet
with a "P" clamp. It is important to secure copper
tubingto refrigerator toavoid leaks whenpushing
refrigeratorbackinto opening.
3/4"
(18 mm)
1/8"
(3 mm)
Connect ice maker water supply line (some
models).
!
DANGER:
To avoid electrical shock which can cause severe
personalinjuryor death. Disconnectpowertorefrigerator
before connecting watersupply.
!
CAUTION:
Observethe following toavoid property damage:
• Make sure water pressure to water valve is between
20and 100 poundsper square inch.
• Tighten adapter fitting and nuts with pliers and
wrenches.Do not overtighten.
• Check for water leaks and correct if necessary
beforereturning refrigerator to normallocation. After
24 hours check again for leaks.
Important
• Before connecting watter supply, contact a
plumberto connect copertubing to household
plumbing in compliance with local codes and
ordinances.
• DO NOT use piercing type or 3/16" saddle valves!
Both reduce water flow, become clogged with time
and in addition, may cause leaks if repair is
attempted. the correct type of shut-off valve
requires a ¼" hole to be drilled in the water supply
pipebefore valve attachment.

7
Installation Checklist
This checklist is for personal records only.
Consumer Installer Doors
Handles are solidly attached to doors.
Handleside of dooris 1/8" (3mm) higher thanhinge side. (Doorlowers when
loadedwithfood.)
Doorsseal completely torefrigerator cabinet.
Leveling
Refrigerator is tilted 1/4"(6mm)from frontto rear.
Toegrilleis properly attachedtorefrigerator.
Ice Maker
Watersupply torefrigerator is turned on.
Waterleaks arenotpresent atconnectionbetween household watersupplyand
refrigerator.(After 24 hours, consumer should check connection for water leaks.)
Ice maker arm is in on position for ice production. (It may take up to 24 hours for
first harvest of ice.)
Product Literature
Owner'smanual is reviewed includingthefollowing information.
• productregistrationcard
• FreshFood and Deepfreeze©controls
• Humidity-controlledcrispers
• normaloperatingsounds
Notes
Consumer's Signature DateInstaller's Company Name/Phone Number
Installer's Signature

8
Fresh Food Features
Fresh Food Shelves
Shelves adjust to meet individual storage needs. Some
models feature SpillsaverTM Shelves and Easy GlideTM
shelves. SpillsaverTM Shelves hold minor spills for easier
cleaning.
!
CAUTION:
Make sure shelf is secure before replacing items on
shelf to avoid property damage.
!
CAUTION:
Handle tempered glass shelves carefully to avoid
personal injury or property damage.Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperaturechange.
• Remove shelves by lifting up shelf front, releasing
hooks from metal track, then pulling out.
• Replace shelves by inserting hooks into metal track
and lowering front of shelf.
Shelf
Metal
track
hook
Easy GlideTM shelves pull forward for easy access to
items in back.
Adjustable Deli Drawer™ (some models)
• Removedrawerandsleeve by liftingandpullingout.
Referto“Spillsaver™Shelves” for instructionson
removingandreplacingshelf.
• Replacedrawer in slidingin.
Controls
Thisrefrigerator isdesigned tooperate at normal
householdtemperatures of55° to 110°F(13° to 43°C).
Fresh Food and DeepfreezeTM Controls
Fresh Food control is located on upper rear wall of Fresh
Foodsection.
456
7
3
2
1
DeepfreezeTM control is located on left front ceiling of
freezer section.
4Deepfreeze Control
Cold Coldest
Setting Controls
When DeepfreezeTM control is set to OFF , neither
refrigerator nor freezer sections will cool. Initially, set
both controls to 4 . Wait 24 hours for refrigerator and
freezer sections to stabilize temperatures. After 24
hours, adjust controls, one number at a time, as desired.
One is warmest setting and seven is coldest.
Set controls precisely using a household thermometer
witha temperaturerange between -5°to 50°F
(-21°to 10°C).
Put thermometer snugly between frozen packages in
freezer section.Wait 5–8 hours.If DeepfreezeTM
temperature is not 0° to 2°F (-17° to -16°C), adjust
DeepfreezeTM control one number at a time. Check again
after5–8 hours.
Put thermometer in a glass of water in middle of Fresh
Food section.Wait 5–8 hours.If Fresh Food temperature
is not 38° to 40°F (3° to 4°C), adjust Fresh Food control
one number at a time. Check again after 5–8 hours.

9
Garden FreshTM Crispers
GardenFreshTM crisperskeepproduce freshlonger.Wrap
produce tightly.Do not wash produce before placing in
crispers. Excess moisture could cause produce to spoil
prematurely.Do not line crispers with paper towels.Paper
towelsretain moisture.
Garden FreshTM crispers control is located below front
shelf trim. Control adjusts humidity in crisper drawers.
Slide control to high for produce with leaves such as
lettuce, spinach or cabbage. Slide control to low for
produce with skins such as cauliflower, corn or tomatoes.
Remove shelf and crisper drawers by completing the
following steps:
1. Openleft crisper.
• For doors hinged on left, open right crisper.
!
CAUTION:
Handle tempered glass shelves carefully to avoid
personal injury or property damage.Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperaturechange.
2. Remove glass crisper top by gently pushing up from
underneath.Tilt one end up and pull out.
Glass crisper
top
3. Remove left crisper by lifting from front while
supporting underneathand pulling out.Fordoors
hinged on left, remove right crisper.
4. Remove support post at recess in bottom center of
Fresh Food section.
5. Remove other crisper by sliding to opposite wall. Lift
fromfront whilesupportingunderneath and pull out.
6. Replace crispers and shelf by performing steps 2–5
inreverse order.
Chiller FreshTM System
(some models)
The Chiller FreshTM System features a drawer inside a
sleeve. Freezer air circulates between drawer and
sleeve.This systems keeps food fresh longer and up to
5°F(3°C)colder than refrigeratortemperature.
Chiller FreshTM control is located below front shelf trim.
Controladjusts amountof air circulating around drawer.
Slidecontrol to COLD for normal refrigeratortemperature
and to COLDER for colder temperature. Ice crystals may
formon draweror food on COLDER setting. Coldair
entering theChiller FreshTM drawer can decrease
refrigerator temperature.FreshFood controlmayneedto
be adjusted to a lower number to compensate for colder
air.
Chiller FreshTM drawer can be moved from the left to the
right side of the refrigerator compartment to accomodate
different storage needs.To movedrawer perform the
followingsteps:
1. Removedrawer by liftingand pulling out.Remove
shelf by lifting from front, releasing hooks from metal
track, then pulling out.
2. Remove plastic cap from back wall of Fresh Food
section by placing a knife covered with masking tape
underneathcapandpullingforward.
3. Rotate boot 180° to opposite side.
4. Insert plastic cap in opposite side of Fresh Food
section. Confirm cap is snugly in place. Cold air
may cause food to freeze if cap is not replaced.
5. Replace shelf by inserting hooks into metal track and
lowering the front.Use slots 4 though 6 only.
6. Replace drawer by sliding in. Make sure boot fits
snugly over air inlet in back wall.
Boot
Air
inlet
Boot
rotated
180°
Air
inlet
Metal
track
Plastic
cap
Chiller Fresh System
installed on left side of
refrigerator
Plastic
cap
Chiller Fresh
control
Chiller Fresh System
installed on right side of
refrigerator
Chiller Fresh
control

10
Storage Rack (some models)
Storagerack provides convenientstorage fora large
bottle, eggs, etc.
• Hang rack by hooking over side of shelf.
Bottle
rack
Covered Storage Bucket (some models)
The covered storage bucket has a lid and removable egg
tray.When tray is removed, bucket will accept standard
egg carton, ice, etc.
Utility
bin
Egg
tray
Lid
Dairy Center (some models)
The dairy center provides convenient storage for butter,
cheese, etc.
• Remove dairy center by lifting door, pushing tabs of
shelf down on both sides, and pulling out.
• Replace dairy center by sliding in until tabs lock into
place,thenlowerdoor.
Door
Tab
Door Buckets
Door buckets adjust to meet individual storage needs.
• Remove door buckets by pushing tabs on both sides
of shelves toward center and pulling bucket out.
• Replace door buckets by sliding in until tabs lock
intoplace.
Tabs

11
Tall Package Retainer (some models)
Tall package retainer keeps tall items secure.Retainer fits
onfront edge ofany refrigeratordoor bucket ordoor shelf.
Tall package
retainer
Door Shelves
• Remove door shelves by lifting ends and pulling out.
• Replace door shelves by placing shelf on glides and
slidingdown.
Door
shelf
Glide
Adjustable Divider (some models)
Adjustable divider keeps items in place and adjusts to
meet individual storage needs. Divider fits in any door
bucket or door shelf.
Adjustable
divider
Bottle Holder (some models)
Bottle holder keeps items in place and adjusts to meet
individual storage needs. Bottle holder fits in any door
bucket or door shelf.
Bottle
Holder

12
Ice Service Rack (some models)
Install ice service rack by placing ice service rack on
washersandsliding down.
!
CAUTION:
Slideout Shelf (some models)
Slide out shelf pulls forward for easy access to items in
back.
• Remove slideout shelf by sliding forward until ball
pointbeneath centerrail catchesin molding groove.
• Grasp shelf by center rail, pull up, and remove.
• Slide in until ball point falls into molding groove.
DeepfreezeTM Features
Frost-Free System
The Fresh Food and freezer sections are completely
frost-free.Defrosting isautomatic under normal
conditions.Fresh Food and freezer sections never have
to be defrosted.
Automatic Ice Maker (some models)
• Make sure ice bucket is in place and ice maker arm
isdown.
Ice maker
arm
Off
position
On
position
• Afterfreezer sectionreaches normal temperature,
the ice maker fills with water and begins operating.
Allow 24–48 hours after installation before first
harvest of ice. Ice maker produces 7 to 9 harvests of
icein a24-hour periodunder ideal conditions.
• After ice is formed, ice maker drops ice cubes into
ice storage bucket. During ice production, ice maker
arm raises and lowers.When ice storage bucket is
full, ice maker arm turns ice maker off.
Note: Discard first 3 harvests of ice so any impurities left
in the water line after installation are not consumed.
• If you wish to stop automatic ice production lift ice
maker arm. A definite click is heard when proper
position is reached. Ice maker arm will remain in that
positionuntil pusheddown.
Make sure shelf is secure before placing items on shelf
to avoid property damage.
Ball
point
Center
rail
Washer
Screw
Iceservice
rack

13
Vertical Shelf Divider (some models)
Install vertical shelf divider by completing the following
steps:
1. Slideprongs of shelf divider beneathdesired grill
work, slightly off-center from center rail.
2. Press top of divider down and slide hook assembly
beneathcenterrail.
1
2
FixedWire Shelf (some models)
• Remove wire shelf by pulling out. A sharp tug may
be necessary.
• Replace wire shelf by sliding in until back locks in
place.
Wire Basket
Wire basket slides out for easy access to items in back.
• Remove wire basket by lifting and pulling out.
• Replace wire basket by sliding in.
Wire
basket
Ice Bin (some models)
Ice bin sits below the ice service rack on the wire freezer
shelf.
Icebin

14
4. Raise stabilizing legs (some models) by turning
counterclockwise.
!
CAUTION:
Protect soft vinyl or other flooring with cardboard, rugs
or other protective material to avoid property damage.
5. Pullrefrigerator away fromwall. Run avacuum
brush across grille onbackofrefrigerator.
Glass Shelves
!
CAUTION:
Handle tempered glass shelves carefully to avoid
personal injury or property damage.Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperaturechange.
Remove shelf by lifting front, releasing hooks from metal
track then pulling out. Place shelf on a towel. Allow shelf
toadjust toroom temperaturebefore cleaning.
Clean crevices by completing the following:
1. Dilute mild detergent and brush solution into crevices
using a plastic bristle brush. Let sit for 5 minutes.
2. Spray warm water into crevices using faucet spray
attachment.
3. Dry shelf thoroughly and replace shelf by inserting
hooks into metal track and lowering it from the front.
Odor Removal
1. Remove all food anddisconnect powertorefrigerator.
2. Clean all interior surfaces including ceiling, floor, and
wallsaccording to GeneralCleaninginstructions
above.Pay special attention to corners, crevices, and
grooves.Include all drawers,shelves, andgaskets.
3. Connectpowerto refrigerator andreturnfoodto
refrigerator.Washanddry allcontainers.Wrapfoods
in tightly sealed containers to prevent further odor.
After 24 hours, check if odor has been eliminated.
Complete steps 4–9 if odor has not been eliminated.
4. Place crispers on top shelf of refrigerator section.
Packrefrigeratorand freezersections,including
doors,withcrumpled sheetsof newspaper.
5. Placecharcoal briquettes randomly throughout
newspaper.
6. Closedoors and letstand 24–48hours.
7. Removecharcoalbriquettesand newspapers.
8. Completesteps 2–3.
If odor is still not eliminated, contact a custoer service
representative with the number located in the Model
Identification section.
Care and Cleaning
!
WARNING:
Disconnect power to refrigerator beforecleaningto
avoid electrical shock which can cause severe personal
injury or death.After cleaning, restore power.
!
CAUTION:
Readand followall manufacturer’scleaning directions
to avoid personal injury or property damage.
General Cleaning
1. Wash surfaces and exterior with 4 tablespoons
baking soda dissolved in 1 quart warm water and a
soft, clean cloth.
2. Rinsesurfacesandexteriorwith warmwater.Dry
surfaces with a soft, clean cloth.
3. DO NOT USE the following items:
• abrasiveor harsh cleaners,ammonia,chlorine
bleach, etc.
• concentrateddetergents or solvents
• metalscouring pads
These items can scratch, crack, and discolor
surfaces.
4. Do not place buckets, shelves, etc., in dishwasher.
Adhesives
1. Removeadhesive residue fromrefrigerator surfaces
by rubbing toothpaste into adhesive with fingers until
adhesiveloosens.
2. Rinse surface with warm water.Dry surface with a
soft, clean cloth.
Door Gaskets
1. Clean door gaskets every 3 months according to
GeneralCleaning instructions. Cleananyspills
immediately.
2. Apply a light film of petroleum jelly to keep gaskets
pliable.
Condenser Coils
Clean condenser coil behind toe grille every 3 months to
ensuremaximumperformanceof refrigerator.
Accumulated dust and lint may cause the following:
• reducedcoolingperformance
• increasedenergyusage
• prematurepart failure
1. Removetoe grille byholding ends andpulling away
fromrefrigerator.
2. Clean front surface of condenser coil with a vacuum
cleanerhosenozzle.
3. Replace toe grille by inserting clips in holes and
snappingin.

15
Light Bulb Replacement
!
WARNING:
Disconnectpower torefrigerator before replacinglight
bulb to avoid electrical shock which can cause severe
personal injury or death.After replacing light bulb,
restorepower.
!
CAUTION:
Observe the following to avoid personal injury or
property damage.
• Allow light bulbs to cool
• Weargloveswhen replacing lightbulb.
Fresh Food Light
• Remove light bulb cover by removing ¼" hex nut
screws.Replace with appliancebulbno greater than
60watts.
• Replace light bulb cover by replacing ¼" hex nut
screws.
Freezer Light
• Remove light bulb cover by removing ¼" hex nut
screws.Replace with appliancebulbno greater than
60watts.
• Replace light bulb cover by replacing ¼" hex nut
screws.
1/4" hex nut screws
Light bulb cover
Vacation Tips
Complete the following steps for short vacations.
1. Removeperishablefoods.
2. If an ice maker is installed, move ice maker arm to
Off position. (See “Automatic Ice Maker” section page
12)
Complete the following steps for long vacations.
1. Emptyrefrigerator and freezersections.
2. Unplugrefrigerator.
3. Cleanrefrigerator and door gasketsaccordingto
GeneralCleaninginstructionsin“Careand Cleaning”
section.
4. Prop doors open, so air can circulate inside.
5. If an ice maker is installed, turn off water supply to
refrigerator and move ice maker arm to Off
position.(See “Automatic IceMaker” sectionpage 12)
Energy Tips
This refrigerator is designed to be one of the most energy
efficientrefrigerators available. Reduceenergyuse by
observingthefollowing.
• Operatein normal householdtemperaturesof 55° to
110°F(13° to 43°C)away fromheat sources anddirect
sunlight.
• Setrefrigerator, freezer, andtemperaturecontrolled
meat drawer system controls no colder than necessary.
• Keepfreezersection full.
• Keep door gaskets clean and pliable.Replace gaskets
ifworn.
• Keepcondenser coilsclean.
1/4" hex nut screws
Lightbulbcover

16
Normal Operating Sounds
Thisnew refrigerator maybe replacing adifferently
designed,less efficient orsmaller refrigerator.Today’s
refrigeratorshavenew features andaremoreenergy
efficient.As a result, certain sounds may be unfamiliar.
Thesesounds are normaland will soonbecome familiar
to you.They also indicate refrigerator is operating and
performingasdesigned.
1. Freezer control clicks when starting or stopping
compressor.
2. Freezer fan airrushes andwhirs.
3. Sealed system (evaporator and heat exchanger)
refrigerantflow gurgles, popsor sounds likeboiling
water.
4. Defrost heater sizzles, hisses or pops.
5. Defrost timer sounds like an electric clock and
snaps in and out of defrost cycle.
6. Condenser fan airrushes and whirs.
7. Compressor hasa high pitchedhum orpulsating
sound and cycles on and off.
8. Ice cubes from ice maker (some models) drop into
ice bucket.
9. Ice maker water valve hookup (somemodels)
buzzes when ice maker fills with water.This occurs
whetheror not refrigeratoris connected towater
supply.If refrigerator is not connected to water
supply, stop sound by raising ice maker arm to Off
position. Ice maker water valve hookup is located
behindcondenser faninbackof refrigerator.
Note: Foam insulation is very energy efficient and
has excellent insulating capabilities.However, foam
insulation is not as sound absorbent as
previouslyused fiberglass insulation.
8
7
6
5
4
3
2
1

17
Problem Solution
Refrigerator does not operate. •Make sure Deepfreeze©control is on.
•Make sure refrigerator is plugged in. If not, firmly plug the cord into a
live outlet with proper voltage.
•Check fuse or circuit breaker. Plug in another item at that wall outlet.
I
outlet does not work, replace the fuse or reset the circuit.
•If freezer control is on, light works but 2 fans and compressor are not
operating, refrigerator may be in defrost cycle. Wait 40 minutes to se
e
if refrigerator restarts.
Refrigerator still will not operate. •Unplug refrigerator. Transfer food to another refrigerator or place dry
ice in freezer section to preserve food. Call for service.
Food temperature appears too warm. •See above sections.
•Allow time for recently added warm food to reach Fresh Food or
Deepfreeze©temperature. Adding food warms the refrigerator. It can
take a few hours for the refrigerator to return to normal temperature.
•Check gaskets for proper seal. Gaskets should seal tightly to cabinet.
•Clean condenser coils. See “Condenser Coils” instructions in “Care
and Cleaning” section.
•Adjust Fresh Food and Deepfreeze© control. See “Setting Controls”
instructions in “Controls” section.
•Freezer or refrigerator light stays on. If light stays on, call service.
•Return air vents behind crisper are blocked restricting airflow. Locate
return air vent behind crispers and remove any debris that blocks ven
t
or restricts airflow.
Chiller FreshTM System temperature
is too warm. •Slide control to colder setting.
•Adjust Deepfreeze©control to colder setting. See “Setting Controls”
instructions of “Controls” section.
•Verify Chiller Fresh System cap has been moved if drawer has been
moved from left to right side of cabinet. See “Chiller Fresh System”
section.
Food temperature is too cold. •Clean condenser coils. See “Condenser Coils” instructions in “Care
and Cleaning section.
•Adjust Fresh Food control. See “Setting Controls” instructions in
“Controls” section.
•Adjust Deepfreeze©control to warmer setting. See “Setting Controls”
instructions in “Controls” section. Allow several hours for temperature
to adjust.
•Verify plastic cap is in place near Chiller FreshTM System. See “Chiller
FreshTM System” section.
Refrigerator runs too frequently. •It may be normal to maintain constant temperature.
•Doors have been opened frequently or for an extended period of time
.
When the door is opened warm humid air is allowed into the
refrigerator. The more the door is opened the more warm air the
refrigerator must cool.
•Allow time for recently added warm food to reach refrigerator or
freezer temperature. It can take a few hours for the refrigerator to
return to normal temperature.
•Clean condenser coils. See “Condenser Coils” instructions in “Care
and Cleaning” section.
•Adjust Deepfreeze©control. See “Setting Controls” instructions in
Before Calling For Service

18
Water droplets form on inside of
refrigerator. •It is normal during high humidity periods or if doors have been opened
frequently.
•Wrap food tightly and wipe off damp containers prior to storing in the
refrigerator to avoid moisture accumulation.
Water droplets form on outside of
refrigerator. •Check door seals for proper seal. Gaskets should seal tightly to cabinet.
•It is normal during high humidity periods or if doors have been opened
frequently.
Chiller FreshTM System or Garden
FreshTM crispers does not close
freely (some models).
•Check for a package that may prevent drawer from closing properly.
•Confirm drawer is in proper position.
•Clean drawer channels with warm, soapy water. Rinse and dry
thoroughly.
•Apply a thin layer of petroleum jelly to drawer channels.
•Confirm refrigerator is level.
Refrigerator has an odor. •See “Odor Removal” instructions in “Care and Cleaning” section.
Refrigerator makes unfamiliar
sounds or seems too loud. •It may be normal. See “Normal Operating Sounds” section.
Ice cubes have an odor. •See “Odor Removal” instructions in “Care and Cleaning” section.
•Ice maker was recently installed. Discard first few batches of ice to avoid
discolored or off-flavored ice.
•Food has not been wrapped tightly in either refrigerator or freezer
compartment. Rewrap foods since odors may migrate to the ice if food is
not wrapped properly.
•Discard ice and clean ice bucket or trays more frequently. Ice cubes are
porous and absorb odors easily.
•Water supply contains minerals such as sulfur. In some situations a filter
may need to be installed to eliminate taste and odor problems.
Ice cubes stick together or
“shrink”. •Empty ice cube bucket or trays more frequently. If used infrequently, ice
cubes may stick together or shrink.
Ice maker is not producing ice. •Water pressure may be to low or high. Ice maker requires a water
pressure of 20-100 psi to function properly.
•Confirm ice maker arm is down. See “Automatic Ice Maker” section.
•Confirm household water supply is reaching water valve. Make sure the
water valve shut off is fully turned on.
•Confirm ice maker wiring harness is inserted completely in proper holes.
•Check for kinks in copper or plastic tubing. Remove kinks or replace
tubing.
•Check electrical connections to water valve coil and connector block on
refrigerator cabinet.
•If a water filter has been installed on the water line outside the
refrigerator, check the filter for clogs or improper installation of the filter.
Ice maker is not producing enough
ice. •Ice maker has just recently been installed or a large amount of ice has
just been used. Wait 24 hours for ice production to begin and for ice
maker to restock after emptied.
•Confirm household water supply is reaching water valve. Make sure the
water valve shut off is fully turned on.
•Piercing type or 3/16” saddle valve was used for hookup. Both reduce
water flow and may become clogged with time. Replace these valves
with correct type of saddle valve requiring 1/4” hole to be drilled in water
supply pipe prior to valve attachment.
•Check for kinks in copper or plastic tubing. Remove kinks or replace
tubing
•Confirm freezer section is operating at proper temperature. Freezer
must be cold enough to produce ice. See ‘Setting Controls” section.
Ice forms in inlet tube to ice
maker. •Check water pressure. Low water pressure causes valves to leak.
Problem Solution

19
Warranty
Full One Year Warranty
Full Five Year Warranty on Sealed System Components
and Food Compartment Liner
First Year
Amana Appliances will repair or replace, free of charge, any part which is defective due to workmanship or
materials.
Second through FifthYear
Amana Appliances will replace, free of charge, any sealed system component (compressor, condenser,
evaporator and interconnecting tubing) and repair any food compartment liner (exclusive of door liner) which is
defectivedue toworkmanship ormaterials.
Warranty Limitations
•Beginsat date oforiginal purchase.
• Applies to product used within the United States or in
Canadaifproducthas Canadian Standards
Association listing when shipped from the factory.
• Servicemust be performed byanauthorized Amana
technician.
Warranty Is Void If
• Serialplate is defaced.
• Product is used on a commercial, rental or leased
basis.
• Producthas defect ordamage dueto product
accident,alteration, connection toan improper
electricalsupply, fire, flood,lightning, shipping and
handling,or other conditionsbeyond the controlof
Amana.
• Product is improperly installed or used.
Owner'sResponsibilities
• Provideproofofpurchase (sales receipt).
• Providenormalcareandmaintenance.Replace
ownerreplaceableitems where directions appearin
Owner'sManual.
• Makeproduct reasonably accessibleforservice.
• Paypremium service costsfor service outside
technician'snormal business hours.
• Pay for service calls related to product installation.
In no event shall Amana Appliances be liable for
incidental or consequential damages including food
loss*
*Thiswarranty gives youspecific legalrights and you
may have others which vary from state to state. For
example, some states do not allow the exclusion or
limitation of incidental or consequential damages so this
exclusion may not apply to you.

20
