Amana Bottom Freezer Refrigerator User manual

Bottom Freezer
Refrigerator
Owner's Manual
Keep these instructions for future reference.Be sure this
manualstays with refrigerator.

2
Contents
ElectricalRequirements ................................................................ 2
ModelIdentification........................................................................ 2
Service ......................................................................................... 2
ProperDisposalofYourRefrigerator.............................................. 3
SpaceRequirements..................................................................... 3
InstructionsforInstallation............................................................. 4
To Remove Doors andHinges .................................................. 4
To Reverse Doors..................................................................... 4
To ReplaceDoors ..................................................................... 4
ConnectIce Maker WaterSupplyLine(some models)............... 4
LevelingRefrigerator ..................................................................... 6
InstallationChecklist ..................................................................... 7
Controls ........................................................................................ 8
Fresh Foodand FreezerControls ............................................. 8
SettingControls......................................................................... 8
Fresh FoodFeatures .................................................................... 8
FreshFood Shelves.................................................................. 8
BeverageOrganizer.................................................................. 8
AdjustableDeliDrawerTM (somemodels)................................... 9
Garden FreshTMCrisper ............................................................ 9
ChillerFreshTM System(somemodels) ..................................... 9
StorageRack (some models)...................................................10
CoveredStorage Bucket (somemodels)..................................10
DairyCenter (some models) ....................................................10
Door Buckets ...........................................................................11
Tall PackageRetainer ..............................................................11
DoorShelves ...........................................................................11
AdjustableDivider(somemodels) ............................................11
BottleHolder ............................................................................11
FreezerFeatures.........................................................................12
Frost-FreeSystem...................................................................12
AutomaticIce Maker (somemodels) ........................................12
IceService Rack(some models) .............................................12
SlideoutShelf(somemodels) ...................................................12
VerticalShelfDivider(somemodels) ........................................12
FixedWireShelf (some models) ...............................................12
WireBasket (some models) .....................................................13
IceBin (some models) .............................................................13
Vertical BasketDivider .............................................................13
Tilt-OutBin(some models) .......................................................13
PulloutDrawer Baskets (somemodels)....................................13
IceShield(some models) .........................................................13
CareandCleaning .......................................................................14
GeneralCleaning .....................................................................14
StainlessSteelCleaning ...........................................................14
Adhesives ................................................................................14
Door Gaskets ..........................................................................14
CondenserCoils ......................................................................14
GlassShelves..........................................................................14
OdorRemoval..........................................................................14
LightBulbReplacement ............................................................15
VacationTips................................................................................15
EnergyTips..................................................................................15
NormalOperatingSounds ............................................................16
BeforeCallingFor Service............................................................17
Warranty......................................................................................19
Note: Translationmaysometimescausevariations in meaning.Inall
caseswhere meaning varies,themost accurate meaningwillbe the
Englishversionof this document.
!
Recognize this symbol as a safety precaution.
Model Identification
Thank you for purchasing this Amana®refrigerator. Please
read this Owner's Manual thoroughly. This manual
provides proper maintenance information.
When contacting your distributor, provide product
information. Product information is on the serial plate,
located on the ceiling of fresh food section. Record the
following information.
Model Number: _________________________
Manufacturing Number: _________________________
S/N or Serial Number: _________________________
Date of Purchase: _________________________
Dealer's name and address: ________________________
________________________________________________
Service
Keep a copy of sales receipt for future reference or in
case warranty service is required. Warranty service must
be performed by an authorized servicer. Amana also
recommends contacting an authorized servicer if service
is required after warranty expires.
Service Notice: Contour Door Models Only
Only a qualified servicer can reverse this door. To have
doors reversed, please call your authorized service
company. There is a fee for this service.
Electrical Requirements
WARNING
!
To avoid electrical shock which can cause severe
personal injury or death do not cut or remove the round
earthing prong from the plug. Refrigerator must be
earthed at all times. Do not remove warning tag from
power cord.
Do not use a two-prong adapter. Do not use an
extension cord.

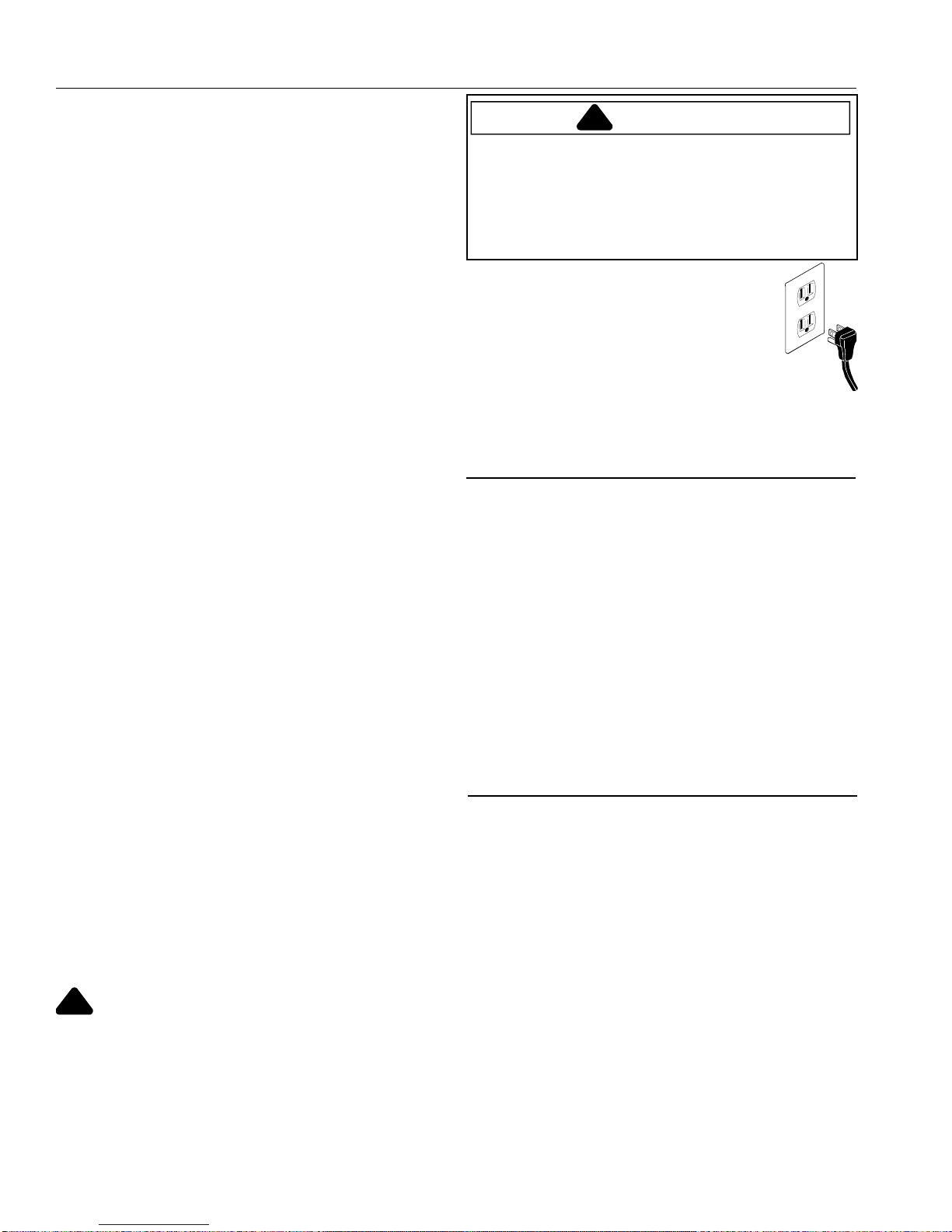

This refrigerator is equipped with a three-prong earthing
plug for protection against possible
shock hazards. If a two-prong wall receptacle
is encountered, contact a qualified
electrician and have the two-prong wall
receptacle replaced with a properly earthed
three-prong wall receptacle in accordance
with the National Electrical Code.
Refrigerator is designed to operate on a separate 220 to
240 volt, 10 amp., 50 Hz line.

3
Space Requirements
WARNING
!
Keep flammable materials and vapors, such as
gasoline, away from refrigerator. Failure to do so can
result in death, explosion, fire, or burns.
•To ensure proper ventilation for your refrigerator, allow
for a 25 mm for 84 cm wide models, or 13 mm for 76
cm wide models, at the top of your refrigerator.
• If your refrigerator has an ice maker, make sure you
leave some extra space at the back to allow for the
water line connection. The refrigerator can be flush with
the back wall if you do not have an ice maker installed.
• If you are installing your refrigerator next to a fixed wall,
leave 64 mm minimum on hinge side (depending on
your model) to allow for the door to swing open 90°.
NOTE: Do not install the refrigerator near an oven,
radiator, or other heat source. Do not install the
refrigerator in a location where the temperature will fall
below 13° C.
DANGER
!
Proper Disposal ofYour Refrigerator
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous--
even if they will sit for "just a few days." If you
discard an old refrigerator, please follow the
instructions below to help prevent accidents.
BEFOREBEFORE
BEFOREBEFORE
BEFORE
YY
YY
YOUOU
OUOU
OU
THRTHR
THRTHR
THROO
OO
OW AW A
W AW A
W AWW
WW
WAA
AA
AYY
YY
YYY
YY
YOUR OLDOUR OLD
OUR OLDOUR OLD
OUR OLD
REFRIGERAREFRIGERA
REFRIGERAREFRIGERA
REFRIGERATT
TT
TOR OR FREEZER:OR OR FREEZER:
OR OR FREEZER:OR OR FREEZER:
OR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so that children may
not easily climb inside.

4
6. Remove toe grille (A) and bottom hinge cover (B) . Both
snap off.
7. Remove bottom hinge
and shim (C) with 3/8" hex nut
driver. Remove hinge pin
(D) . Remove and retain all
round washer shims
(E) , if present.
B
A
D
C
E
To Reverse Doors
Some installations may require door reversal to achieve
full swing door. To reverse swing door direction perfrom the
following steps.
Service Notice: Contour Door Models Only
Only a qualified servicer can reverse this door. To have
doors reversed, please call your authorized service
company. There is a fee for this service.
For Non-Contour Door Models
1. Complete all directions in section entitled
To Remove
Doors
.
2. Peel off positive positioning shim from top of unit
(A) .
NOTE: Keep adhesive surface of shim free of dirt and
dust until ready to replace. Soiling of adhesive surface
will prevent proper reinstallation.
IMPORTANT:
• Save all screws for reuse.
• For plug removal requiring use of flat blade screwdriver
or putty knife, blade of tool must be covered with
masking tape to avoid damage to refrigerator finish.
For plugs using a screwdriver or nut driver style head,
use appropriate tool to avoid damage to plugs.
To Remove Doors and Hinges
Some installations may require door and hinge removal to
transport unit to final location.
WARNING
!
To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before removing doors. After replacing
doors, connect power.
1. Remove top hinge cover
(A) . Top hinge cover snaps off.
While supporting refrigerator door, remove top hinge
(B)
and shim (C) using 5/16" hex nut driver to remove
screws
(D) .
A
B
D
C
2. Lift refrigerator door off center hinge.
3. While supporting freezer door, remove center hinge pin
(A) from center hinge bracket (B) with 5/16" hex nut
driver. Remove and retain all round washer shims
(C–
some models)
.
B
C
A
4. Remove freezer door by lifting door off bottom hinge.
5. Remove center hinge bracket
(A) and shim (B) by
removing screws
(C) using Phillips screwdriver.
BA
C
Instructions for Installation
Proper installation will ensure this
refrigerator operates most efficiently.
Amana cannot be held responsible for
improper installation.
Tools Required
Putty knife 5/16" hex nut driver
Masking tape ¼" hex nut driver
3/8" hex nut driver Phillips screwdriver
A
3. Transfer three cabinet plugs from top corner of cabinet
to holes left from top hinge removal.
4. Transfer three 5/16" hex head screws opposite center
hinge area to the holes left by center hinge removal.
Remove Door Stop
1. Unscrew 2 Phillips screws and remove door stop
(A)
from refrigerator and freezer door (B) . Retain all screws
for door stop replacement.
AB

5
To Replace Doors
1. Replace bottom hinge and shims with 18 mm hex nut
screws from hinge removal.
2. Replace bottom hinge pin
(A) in hinge bracket
hole
(B) toward outside of cabinet. Replace all washer
shims
(C–some models) .
A
B
C
7. Place refrigerator door on center hinge.Tighten down
top hinge to securely hold door.
8. Use a dime at top to space door 18 mm from cabinet.
Handle side of door should be approximately 3 mm
higher than hinge side. Door will become level
when it is loaded with food.
1/8"
(3 mm)
11/16"
(18 mm)
9. Replace hinge cover.
Note: If automatic ice maker water supply is
required, procede to
Connect Ice Maker Water
Supply Line
. If not, procede to section entitled
Leveling Refrigerator .
Reverse Handle (front-mounted design)
1. Remove handle screw from handle trim (A) . Pry up
edge of handle trim
(A & B) using a putty knife blade
wrapped in masking tape. Remove handle
(C) from
door by removing 1 remaining mounting screw at each
end of handle
(D) .
2. Remove plugs from hinge side of door
(E) . Replace
plugs in empty mounting holes.
3. Mount refrigerator handle
(C) on opposite side of door
using mounting screws removed in previous step.
4. Snap handle trim
(A & B) into place and replace screw
at top of handle.
A
B
C
D
Reverse Freezer Handle
1. Locate two notches on back of freezer handle
(A) .
Insert putty knife blade wrapped in masking tape. Pry
up back edge of handle cap
(B) and remove from
handle.
2. Remove handle from door by removing screws
(C) .
B
C
A
3. Transfer plugs (D) from opposite side of freezer door to
empty mounting holes.
D
3. Replace center hinge and shims with Phillips screws
from hinge removal.
4. Place freezer door on bottom hinge pin.
5. Replace center hinge pin with 3 mm hex nut driver.
Make sure fit is tight. Replace all washer shims
(some models) .
6. Assemble top hinge, hinge shim, and positioning
shim together. Attach loosely to opposite side of
cabinet to allow for door clearance.
Connect Ice MakerWater Supply Line
(some models)
DANGER
!
To avoid electrical shock which can cause severe
personal injury or death. Disconnect power to
refrigerator before connecting water supply.
CAUTION
!
Observe the following to avoid property damage:
• Raise stabilizing leg before moving unit.
• Make sure water pressure to water valve is
between 1.4 and 6.9 bar.
• Tighten adapter fitting and nuts with pliers and
wrenches. Do not overtighten.
• Check for water leaks and correct if necessary
before returning refrigerator to normal location. After
24 hours check again for leaks.

6
Leveling Refrigerator
CAUTION
!
Protect soft vinyl or other flooring with cardboard, rugs
orother protectivematerial to avoidproperty damage.
Ifyour refrigerator requires an ice maker watersupply
connection, proceed to Connectice maker water supply
sectionbeforeleveling your refrigerator.
1. Plugin power cord.
2. Moverefrigerator into final location.
3. Level refrigerator using a level placed on top of the
refrigerator.
• Removetoegrille (A) .Removebottomhinge
cover (B) .
• Turn roller adjustmentscrews (C) to raiseorlower
refrigeratorcabinet.Front of refrigerator mustbe
6 mm, or ½ bubble on your level, higher than the
backof yourrefrigerator.
• Make sure refrigerator cabinet is level from side to
side by adjusting left and right roller adjustment
screw (C) .
• Turn stabilizing leg (C) clockwise until firmly against
floor.
4. Replacetoegrille (A) andbottom hinge cover (B) . See
markings on inside of toe grille to insure proper
placement.
•Snap top portion into place first. Press down on
lower part of grille until bottom portion snaps into
place.
AB
C
D
5. Review Installation Checklist in Owner's Manual with
consumer.
Important
• Before connecting water supply, contact a plumber to
connect coper tubing to household plumbing in
compliance with local codes and ordinances.
•DO NOT use piercing type or 5 mm saddle valves!
Both reduce water flow, become clogged with time and
in addition, may cause leaks if repair is attempted. The
correct type–a shut-off valve–requires a 6 mm hole to
be drilled in the water supply pipe before valve
attachment.
• Do not install copper tubing in area where temperatures
drop below 0°C.
Materials Required
6 mm O.D. flexible copper tubing
13 mm open end wrench
Length of copper tubing must reach from water supply
connection to water valve inlet port on back of
refrigerator, plus additional 2 m of tubing for a service
loop. A service loop will allow refrigerator to be pulled
away from the wall without disconnecting tubing.
Procedure
1. Remove plastic cap
(A) from water valve inlet port (B) .
A
B
2. Place brass nut (A) and brass sleeve (B) on copper
tubing
(C– Brass nut and sleeve are found in your
literature packet.
) . Insert copper tubing into water
valve inlet port
(D) . Connect brass nut on copper
tubing to water valve inlet port. Make sure copper
tubing is secure by pulling on copper tubing.
3. Turn on water supply to refrigerator and check for
leaks. Correct any leaks at connection. Be careful not
to overtighten connection.
4. Create a service loop using extreme care to avoid
kinks. Secure copper tubing to refrigerator cabinet
with a "P" clamp
(E) . It is important to secure copper
tubing to refrigerator to avoid leaks when pushing
refrigerator back into opening.
A
B
D
C
E
5. Proceed to Leveling Refrigerator for final refrigerator
placement.

7
Installation Checklist
This checklist is for personal records only.
Consumer Installer Doors
Handles are solidly attached to doors.
Handleside of door is3 mm higher thanhinge side. (Door lowerswhen loaded
withfood.)
Doorsseal completely to refrigeratorcabinet.
Leveling
Refrigeratoris tilted 6 mm from front torear.
Toegrilleis properly attached to refrigerator.
Product Literature
Owner'smanualisreviewed including the following information.
• productregistrationcard
• Freshfoodandfreezer controls
• Humidity-controlledcrispers
• normaloperatingsounds
Notes
Consumer's Signature DateInstaller's Company Name/Phone Number
Installer's Signature

8
Controls
This refrigerator is designed to operate at normal
household temperatures of 13° to 43°C.
Fresh Food and Freezer Controls
Fresh food control is located on upper rear wall of fresh
food section.
456
7
3
2
1
Freezer control is located on left front ceiling of freezer
section.
4Deepfreeze Control
Cold Coldest
Setting Controls
When freezer control is set to OFF, neither refrigerator nor
freezer sections will cool. Initially, set both controls to 4.
Wait 24 hours for refrigerator and freezer sections to
stabilize temperatures. After 24 hours, adjust controls,
one number at a time, as desired. One is warmest setting
and seven is coldest.
Set controls precisely using a household thermometer
with a temperature range between -21° to 10°C.
Put thermometer snugly between frozen packages in
freezer section. Wait 5–8 hours. If freezer temperature is
not -17° to -16°C, adjust freezer control one
number at a time. Check again after 5–8 hours.
Put thermometer in a glass of water in middle of fresh
food section. Wait 5–8 hours. If fresh food temperature is
not 3° to 4°C, adjust fresh food control one
number at a time. Check again after 5–8 hours.
Fresh Food Features
Fresh Food Shelves
Shelves adjust to meet individual storage needs. Some
models feature Spillsaver TM Shelves and Easy Glide TM
shelves. Spillsaver TM Shelves hold minor spills for easier
cleaning.
CAUTION
!
Make sure shelf is secure before replacing items on
shelf to avoid property damage.
CAUTION
!
Handle tempered glass shelves carefully to avoid
personalinjury or property damage.Shelves may
break suddenly if nicked, scratched, or exposed to
suddentemperaturechange.
• Remove shelves (A) by lifting up shelf front,releasing
hooks (B) from metal track (C), then pulling out.
• Replace shelves by inserting hooks into metal track
and lowering front of shelf.
AC
B
Easy Glide™ shelves pull forward for easy access to
items in back.
Beverage Organizer (some models)
The beverage organizer slides out from underneath the
glide-out shelf. This may hold 12 cans or other desired
beverages.
• Before removing organizer, empty contents.
• Remove organizer
(A) by pulling organizer forward until
it catches on grooves
(B) in shelf rail (C) . Lift organizer
front and pull out.
• To replace, guide organizer
(A) into shelf rails (C) until
forward movement is stopped by groove
(B) . Lift
organizer front and ease organizer toward back of unit.
C
B
C
A

9
6. Replace crispers and shelves by performing steps
2 through 5 in reverse order.
Note: Be sure to hook shelf frame over notch on top
of support post when replacing shelf frames.
7. Slide crisper glass into place.
To remove or clean crisper drawer assembly for 30"
wide units:
1. Open refrigerator door as wide as possible and
remove crisper drawers.
CAUTION
!
Handle tempered glass shelves carefully to avoid
personal injury or property damage. Shelves may
break suddenly if nicked, scratched, or exposed to
sudden temperature change.
2. Remove glass crisper top by gently pushing up from
underneath. Tilt one end up and pull out.
1
2
3. Raise front of crisper frame free of refrigerator cabinet
rail assembly and pull out of unit.
3
4. Replace crispers and shelf by performing steps 2
through 3 in reverse order.
5. Slide crisper glass into place.
Chiller FreshTM System (some models)
The Chiller FreshTM System features a drawer inside a
sleeve. Freezer air circulates between drawer and sleeve.
This systems keeps food fresh longer and up to 3°C
colder than refrigerator temperature.
Adjustable Deli Drawer™ (some models)
• Refer to instructions entitled Spillsaver ™ Shelves for
removingandreplacingshelf.
• Remove drawer and sleeve by lifting and pulling out.
• Replacedrawer by sliding intoplace.
Garden Fresh™ Crispers
Garden Fresh ™ crispers keep produce fresh longer. Wrap
produce tightly. Do not wash produce before placing in
crispers. Excess moisture could cause produce to spoil
prematurely. Do not line crispers with paper towels. Paper
towels retain moisture.
Garden Fresh ™ crisper control is located below front
shelf trim. Control adjusts humidity in crisper drawers.
Slide control to high for produce with leaves such as
lettuce,spinach or cabbage. Slide control to low for
produce with skins such as cauliflower, corn or tomatoes.
To remove or clean crisper drawer assembly for 33"
wide units:
1. Remove crisper drawer on handle side of unit.
CAUTION
!
Handle tempered glass shelves carefully to avoid
personal injury or property damage. Shelves may
break suddenly if nicked, scratched, or exposed to
sudden temperature change.
2. Remove glass crisper top by gently pushing up from
underneath. Tilt one end up and pull out.
2
1
3. Lift front of crisper shelf frame and remove.
4. Lift front of remaining crisper assembly and remove
support post from center of refrigerator floor.
3
4
5. To avoid interference with door, move remaining
crisper assembly to opposite wall and remove.
5

10
D
A
2
C
B
A
1
C
B
D
E
E
F
FG
G
Chiller FreshTM control (A) is located below front shelf trim.
Control adjusts amount of air circulating around drawer.
Slide control to
COLD for normal refrigerator temperature
and to
COLDER for colder temperature. Ice crystals may
form on drawer or food on
COLDER setting. Cold air
entering the Chiller FreshTM drawer can decrease
refrigerator temperature. Fresh food control may need to
be adjusted to a lower number to compensate for colder
air.
Chiller FreshTM drawer can be moved from the left to the
right side of the refrigerator compartment to accomodate
different storage needs.
To install on left side, see Figure 1. To install on right
side, see Figure 2
1. Remove drawer
(B) by lifting and pulling out. Remove
shelf
(C) by lifting from front, releasing hooks from
metal track
(D) , then pulling out.
2. Remove plastic cap
(E) from back wall of fresh food
section by placing a knife covered with masking tape
underneath cap and pulling forward.
3. Rotate boot
(F) 180° to opposite side.
4. Insert plastic cap in hole
(G) opposite side of fresh
food section. Confirm cap is snugly in place. Cold air
may cause food to freeze if cap is not replaced.
5. Replace shelf by inserting hooks into metal track and
lowering the front. Use slots 4 though 6 only.
6. Replace drawer by sliding in. Make sure boot fits
snugly over air inlet in back wall.
Storage Rack (some models)
Storagerack (A) providesconvenient storage for a large
bottle, eggs, etc.
• Hang rack by hooking over side of shelf.
A
Covered Storage Bucket (some models)
The covered storage bucket has a lid and removable egg
tray.When tray is removed, bucket will accept standard
egg carton, ice, etc.
Dairy Center (some models)
The dairy center provides convenient storage for butter,
cheese, etc.
• Removedairycenter by lifting door (A) ,pushing
tabs (B) of shelf down on both sides, and pulling out.
• Replace dairy center by sliding in until tabs lock
intoplace,thenlower door.
A
B

11
Door Buckets
Door buckets adjust to meet individual storage needs.
• Removedoor buckets bypushing tabs (A) on both
sides of shelves toward center and pulling bucket
out.
• Replace door buckets by sliding in until tabs lock
intoplace.
A
Tall Package Retainer (some models)
Tallpackageretainer (A) keepstallitems secure.Retainer
fits on front edge of any refrigerator door bucket or door
shelf.
A
Door Shelves
• Remove door shelves by lifting ends and pulling
out.
• Replace door shelves by placing shelf on glides (A)
andslidingdown.
A
Adjustable Divider (some models)
Adjustable divider keeps items in place and adjusts to
meet individual storage needs. Divider fits in any door
bucket or door shelf.
Bottle Holder (some models)
Bottle holder keeps items in place and adjusts to meet
individual storage needs. Bottle holder fits in any door
bucket or door shelf.

12
CAUTION
!
Make sure shelf is secure before placing items on
shelf to avoid property damage.
Freezer Features
Frost-Free System
The fresh food and freezer sections are completely frost-
free. Defrosting is automatic under normal conditions.
Automatic Ice Maker (some models)
• Make sure ice bucket is in place and ice maker arm (B)
isdown (C) .
B
A
C
• After freezer section reaches normal temperature, the
ice maker fills with water and begins operating. For
optimum ice production, it is recommended that freezer
section be at least half full. Allow 24–48 hours after
installation before first harvest of ice. Ice maker
produces 7 to 9 harvests of ice in a 24-hour period
under ideal conditions.
• After ice is formed, ice maker drops ice cubes into ice
storage bucket. During ice production, ice maker arm
(B)
raises and lowers. When ice storage bucket is full, ice
maker arm turns ice maker off
(A) .
Note: Discard first 3 harvests of ice so any impurities left
in the water line after installation are not consumed.
• If you wish to stop automatic ice production lift ice
maker arm
(A) . A definite click is heard when proper
position is reached. Ice maker arm will remain in that
position until pushed down.
Ice Service Rack (some models)
Install ice service rack (A) by placing ice service rack on
washers
(B) and sliding down.
A
B
Slideout Shelf (some models)
Slide out shelf pulls forward for easy access to items in
back.
• Remove slideout shelf by sliding forward until ball
point
(B) beneath center rail (A) catches in molding
groove.
• Grasp shelf by center rail, pull up, and remove.
• Slide in until ball point falls into molding groove.
A
B
Vertical Shelf Divider (some models)
Install vertical shelf divider by completing the following
steps:
1. Slide prongs of shelf divider beneath desired grill
work, slightly off-center from center rail.
2. Press top of divider down and slide hook assembly
beneath center rail.
12
FixedWire Shelf (some models)
• Remove wire shelf by pulling out. A sharp tug may
be necessary.
• Replace wire shelf by sliding in until back locks in
place.

13
Wire Basket
Wire basket (A) slides out for easy access to items in
back.
• Remove wire basket by lifting and pulling out.
• Replace wire basket by sliding in.
A
Ice Bin (some models)
Ice bin (A) sits below the ice service rack on the wire
freezershelf.
A
Vertical Basket Divider
Install vertical basket divider (A) by completing the
following steps:
1. Align clips on side of divider with rungs in basket
wall.
2. Press top of divider down until divider meets bottom
of basket
To remove divider:
1. Grasp top of divider and pull straight up.
A
Tilt-Out Bin (some models)
The tilt-out bin (A) provides convenient storage for frozen
food items in freezer door and tilts forward for easy
access of those items.
A
Pullout Drawer Baskets (some models)
(Door assembly of drawer removed from illustration for
visual clarity)
To remove and replace top basket:
• Remove basket by pulling basket out to its full
extension and lift out.
• Replace basket by sliding into upper compartment of
freezer.
To remove and replace bottom basket:
• Remove basket by lifting basket from rail guides.
• Replace basket by placing into rail guides.
Ice Shield (some models)
The ice shield is mounted at the back of the pullout
drawer to prevent ice from falling behind the basket
assemblies.
To remove and replace ice shield:
• Slide ice shield to the right to release hooks
(A) from
vertical wire rungs.
• To replace, slide tab
(B) into place as shown.
BA

14
GeneralCleaninginstructions. Clean any spills
immediately.
Condenser Coil
Clean condenser coil behind toe grille every 3 months to
ensuremaximumperformance of refrigerator.
Accumulated dust and lint may cause the following:
• reducedcoolingperformance
• increasedenergyusage
• prematurepart failure
1. Removetoe grille by holdingends and pulling away
fromrefrigerator.
2. Clean front surface of condenser coil with a vacuum
cleanerhosenozzle.
3. Replace toe grille by inserting clips in holes and
snappingin.See LevelingRefrigerator section.
4. Raise stabilizing legs (some models) by turning
counterclockwise.
CAUTION
!
Protect soft vinyl or other flooring with cardboard, rugs
or other protective material to avoid property damage.
5. Pullrefrigerator away from wall.Run a vacuum
brush across grille on backofrefrigerator.
Glass Shelves
CAUTION
!
Handle tempered glass shelves carefully to avoid
personalinjury or property damage.Shelves may
break suddenly if nicked, scratched, or exposed to
suddentemperaturechange.
Remove shelf by lifting front, releasing hooks from metal
track then pulling out. Place shelf on a towel. Allow shelf
toadjust to room temperaturebefore cleaning.
Clean crevices by completing the following:
1. Dilute mild detergent and brush solution into crevices
using a plastic bristle brush. Let sit for 5 minutes.
2. Spray warm water into crevices using faucet spray
attachment.
3. Dry shelf thoroughly and replace shelf by inserting
hooks into metal track and lowering it from the front.
Odor Removal
1. Remove all foodanddisconnect powertorefrigerator.
2. Clean all interior surfaces including ceiling, floor, and
wallsaccordingto General Cleaning instructions
above.Pay special attention to corners, crevices, and
grooves.Include all drawers, shelves, and gaskets.
3. Connectpowertorefrigeratorand return food to
refrigerator.Wash and dry all containers.Wrapfoods
in tightly sealed containers to prevent further odor.
After 24 hours, check if odor has been eliminated.
Complete steps 4–9 if odor has not been eliminated.
Care and Cleaning
WARNING
!
Disconnectpowertorefrigerator before cleaning to
avoid electrical shock which can cause severe
personalinjury or death.Aftercleaning, restore power.
CAUTION
!
Readand follow all manufacturer’s cleaning directions
toavoid personal injury or property damage.
General
See section on Stainless Steel Cleaning if doors are
stainlesssteel.
1. Wash surfaces with 4 tablespoons baking soda
dissolved in 1 liter warm water and a soft, clean
cloth.
2. Rinse surfaces with warm water.Dry surfaces with a
soft, clean cloth.
• Do not use the following items:
- abrasiveorharsh cleaners, ammonia,
chlorine bleach, etc.
- concentrateddetergentsor solvents
- metalscouringpads
These items can scratch, crack and discolor
surfaces.
• Do not place buckets, shelves, etc. in dishwasher.
Stainless Steel Cleaning
Damage to stainless steel finish due to improper use
of cleaning products, or using non-recommended
cleaining products,is not covered under warranty.
1. Wash surfaces with warm soapy water and a soft,
clean cloth or sponge.
2. Rinse surfaces with warm water.Dry surfaces with a
soft, clean cloth.
• Do not use the following harsh cleaners:
- abrasiveoracidiccleaners(ammonia, chlorine
bleach,vinegar-basedproduct,etc.
- citrus-basedcleaners
- scouring pads(metal, textured plastic, etc.)
These items can scratch, discolor, or permanently
tarnish surfaces.
3. Follow up rinsing by immediately drying with a soft,
clean cloth. This will avoid water spotting on
stainless steel finish.
Adhesives
1. Removeadhesiveresiduefrom refrigerator surfaces
by rubbing toothpaste into adhesive with fingers until
adhesiveloosens.
2. Rinse surface with warm water.Dry surface with a
soft, clean cloth.
Door Gaskets
1. Clean door gaskets every 3 months according to

15
4. With unit unplugged, place crispers on top shelf of
refrigerator section.Pack refrigerator and freezer
sections, including doors, with crumpled sheets of
newspaper.
5. Placecharcoalbriquettesrandomlythroughout
newspaper.
6. Closedoorsand let stand 24–48 hours.
7. Removecharcoalbriquettesandnewspapers.
8. Completesteps2–3.
If odor is still not eliminated, contact a customer service
representativewith the number locatedin the Model
Identification section.
Light Bulb Replacement
WARNING
!
Disconnectpowertorefrigeratorbefore replacing light
bulb to avoid electrical shock which can cause severe
personalinjury ordeath.After replacinglight bulb,
restorepower.
CAUTION
!
Observethe following toavoid personal injuryor
propertydamage.
• Allow light bulbs to cool
• Wear gloveswhenreplacinglightbulb.
Fresh Food Light
• Remove light bulb cover (B) by removing 6 mm hex nut
screws (A) .Replacewithappliancebulbno greater
than 25 watts.
• Replace light bulb cover by replacing 6 mm hex nut
screws.
A
B
Vacation Tips
Complete the following steps for short vacations.
1. Removeperishablefoods.
2. If an ice maker is installed, move ice maker arm to
Off position. (See “Automatic Ice Maker” section)
Complete the following steps for long vacations.
1. Emptyrefrigerator and freezer sections.
2. Unplugrefrigerator.
3. Cleanrefrigeratoranddoor gaskets according to
GeneralCleaninginstructionsin“CareandCleaning”
section.
4. Prop doors open, so air can circulate inside.
5. If an ice maker is installed, turn off water supply to
refrigerator and move ice maker arm to Off
position. (See “Automatic Ice Maker” section.
Energy Tips
This refrigerator is designed to be one of the most energy
efficientrefrigeratorsavailable. Reduce energy use by
observingthefollowing.
• Operateinhousehold temperatures of 13° to43°Caway
from heat sources and direct sunlight.
• Setrefrigerator,freezer,andtemperature controlled
meat drawer system controls no colder than necessary.
• Keepfreezersection full.
• Keep door gaskets clean and pliable.Replace gaskets
ifworn.
• Keepcondenser coils clean.
Freezer Light
• Remove light bulb cover (B) by removing 6 mm hex nut
screws (A) .Replacewithappliancebulbno greater
than 25 watts.
• Replace light bulb cover by replacing 6 mm hex nut
screws.
B
A

16
Normal Operating Sounds
Thisnew refrigerator may bereplacing a differently
designed,less efficient or smallerrefrigerator.Today’s
refrigeratorshavenewfeaturesand are more energy
efficient.As a result, certain sounds may be unfamiliar.
Thesesounds are normal andwill soon become familiar
to you.They also indicate refrigerator is operating and
performingasdesigned.
1. Freezer control clicks when starting or stopping
compressor.
2. Freezer fan airrushes and whirs.
3. Sealed system (evaporator andheatexchanger)
refrigerantflow gurgles, pops orsounds like boiling
water.
4. Defrost heater sizzles, hisses or pops.
5. Defrost timer sounds like an electric clock and
snaps in and out of defrost cycle.
6. Condenser fan airrushes and whirs.
7. Compressor hasa high pitched hum or pulsating
sound and cycles on and off.
8. Ice cubes from ice maker (some models) drop into
ice bucket.
9. Ice maker water valve hookup (somemodels)
buzzes when ice maker fills with water.This occurs
whetherornot refrigerator is connectedto water
supply.If refrigerator is not connected to water
supply, stop sound by raising ice maker arm to Off
position. Ice maker water valve hookup is located
behindcondenser fanin backofrefrigerator.
Note: Foam insulation is very energy efficient and
has excellent insulating capabilities.However, foam
insulation is not as sound absorbent as
previouslyused fiberglass insulation.
8
7
6
5
4
3
2
1

17
Before Calling For Service
Problem Solution
Refrigerator does not
operate. •Make sure freezer control is on.
•Make sure refrigerator is plugged in. If not, firmly plug the cord into a live outlet
with proper voltage.
•Check fuse or circuit breaker. Plug in another item at that wall outlet. If outlet
does not work, replace the fuse or reset the circuit.
•If freezer control is on, light works but 2 fans and compressor are not
operating, refrigerator may be in defrost cycle. Wait 40 minutes to see if
refrigerator restarts.
Refrigerator still will not
operate. •Unplug refrigerator. Transfer food to another refrigerator or place dry ice in
freezer section to preserve food. Call for service.
Food temperature appears
too warm. •See above sections.
•Allow time for recently added warm food to reach refrigerator or freezer
temperature. Adding food warms the refrigerator. It can take a few hours for the
refrigerator to return to normal temperature.
•Check gaskets for proper seal. Gaskets should seal tightly to cabinet.
•Clean condenser coil. See “Condenser Coil” instructions in “Care and
Cleaning” section.
•Adjust refrigerator and or freezer control. See “Setting Controls” instructions in
“Controls” section.
•Freezer or refrigerator light stays on. If light stays on, call service.
•Return air vents behind crisper are blocked restricting airflow. Locate return air
vent behind crispers and remove any debrisis that blocks vents or restricts
airflow.
Chiller Fresh™ System
temperature is too warm. •Slide control to colder setting.
•Adjust freezer control to colder setting. See “Setting Controls” instructions of
“Controls” section.
•Verify Chiller Fresh™ System cap has been moved if drawer has been moved
from left to right side of cabinet. See “Chiller Fresh™ System” section.
Food temperature is too
cold. •Clean condenser coil. See “Condenser Coil” instructions in “Care and Cleaning
section.
•Adjust refrigerator control. See “Setting Controls” instructions in “Controls”
section.
•Adjust freezer control to warmer setting. See “Setting Controls” instructions in
“Controls” section. Allow several hours for temperature to adjust.
•Verify plastic cap is in place near Chiller Fresh™ System. See “Chiller Fresh™
System” section.
Refrigerator runs too
frequently. •It may be normal to maintain constant temperature.
•Doors have been opened frequently or for an extended period of time. When
the door is opened warm humid air is allowed into the refrigerator. The more
the door is opened the more warm air the refrigerator must cool.
•Allow time for recently added warm food to reach refrigerator or freezer
temperature. It can take a few hours for the refrigerator to return to normal
temperature.
•Clean condenser coil. See “Condenser Coil” instructions in “Care and
Cleaning” section.
•Adjust freezer control. See “Setting Controls” instructions in “Controls” section.
•Check gaskets for proper seal. Gaskets should seal tightly to cabinet.
•Freezer light stays on. If light stays on, call service
•Make sure refrigerator is level. See “Leveling Refrigerator” section of
Installation Instructions.

18
Problem Solution
Water droplets form on inside of
refrigerator. •It is normal during high humidity periods or if doors have been opened
frequently.
•Wrap food tightly and wipe off damp containers prior to storing in the
refrigerator to avoid moisture accumulation.
Water droplets form on outside
of refrigerator. •Check door seals for proper seal. Gaskets should seal tightly to cabinet.
•It is normal during high humidity periods or if doors have been opened
frequently.
Chiller Fresh™ System or
crisper drawer does not close
freely (some models).
•Check for a package that may prevent drawer from closing properly.
•Confirm drawer is in proper position.
•Clean drawer channels with warm, soapy water. Rinse and dry thoroughly.
•Apply a thin layer of petroleum jelly to drawer channels.
•Confirm refrigerator is level.
Refrigerator has an odor. •See “Odor Removal” instructions in “Care and Cleaning” section.
Refrigerator makes unfamiliar
sounds or seems too loud. •It may be normal. See “Normal Operating Sounds” section.
Ice cubes have an odor. •See “Odor Removal” instructions in “Care and Cleaning” section.
•Ice maker was recently installed. Discard first few batches of ice to avoid
discolored or off-flavored ice.
•Food has not been wrapped tightly in either refrigerator or freezer
compartment. Rewrap foods since odors may migrate to the ice if food is not
wrapped properly.
•Discard ice and clean ice bucket or trays more frequently. Ice cubes are
porous and absorb odors easily.
•Water supply contains minerals such as sulfur. In some situations a filter may
need to be installed to eliminate taste and odor problems.
Ice cubes stick together or
“shrink”. •Empty ice cube bucket or trays more frequently. If used infrequently, ice cubes
may stick together or shrink.
Ice maker is not producing ice. •Water pressure may be to low or high. Ice maker requires a water pressure of
1.4 to 6.9 bar to function properly.
•Confirm ice maker arm is down. See “Automatic Ice Maker” section.
•Confirm household water supply is reaching water valve. Make sure the water
valve shut off is fully turned on.
•Piercing type or 5 mm saddle valve was used for hookup. Both reduce water
flow and may become clogged with time. Replace these valves with correct
type of saddle valve requiring 6 mm hole to be drilled in water supply pipe prior
to valve attachment.
•Confirm ice maker wiring harness is inserted completely in proper holes.
•Check for kinks in copper or plastic tubing. Remove kinks or replace tubing.
•Check electrical connections to water valve coil and connector block on
refrigerator cabinet.
•If a water filter has been installed on the water line outside the refrigerator,
check the filter for clogs or improper installation of the filter.
Ice maker is not producing
enough ice. •Ice maker has just recently been installed or a large amount of ice has just
been used. Wait 24 hours for ice production to begin and for ice maker to
restock after emptied.
•Confirm household water supply is reaching water valve. Make sure the water
valve shut off is fully turned on.
•Piercing type or 5 mm saddle valve was used for hookup. Both reduce water
flow and may become clogged with time. Replace these valves with correct
type of saddle valve requiring 6 mm hole to be drilled in water supply pipe prior
to valve attachment.
•Check for kinks in copper or plastic tubing. Remove kinks or replace tubing
•Confirm freezer section is operating at proper temperature and that freezer is,
at least, half-full. Freezer must be cold enough to produce ice. See ‘Setting
Controls” section.
Ice forms in inlet tube to ice
maker. •Check water pressure. Low water pressure causes valves to leak.
•Piercing type or 5 mm saddle valve was used for hookup. Both reduce water
flow and may become clogged with time. Replace these valves with correct
type of saddle valve requiring 6 mm hole to be drilled in water supply pipe prior
to valve attachment.

Warranty
Full One Year Warranty
Full Five Year Warranty on Sealed System Components
and Food Compartment Liner
Limited Ten Year Warranty on Sealed System Components
FirstYear
Amana Appliances will repair or replace, free of charge, any part which is defective due to workmanship or
materials.
Second through FifthYear
Amana Appliances will replace, free of charge, any sealed system component (compressor, condenser,
evaporator,drier, and interconnectingtubing) and repair anyfood compartment liner (exclusiveofdoor liner)
which is defective due to workmanship or materials.
Sixth throughTenthYear
Amana Appliances will provide a free replacement part, f.o.b.Amana, Iowa, for any sealed system
component(compressor,condenser, evaporator,drier, and interconnecting tubing)andrepair anyfood
compartment liner (exclusive of door liner) which is defective due to workmanship or materials.
Warranty Limitations
• Begins at date of original purchase.
• Applies to product used within the United States
orinCanada if product has CanadianStandards
Association listing when shipped from the factory.
• Service must be performed by an authorized
Amanatechnician.
Warranty IsVoid If
• Serial plate is defaced.
• Product is used on a commercial, rental or leased
basis.
• Product has defect or damage due to product
accident,alteration, connection to animproper
electrical supply, fire, flood, lightning, or other
conditions beyond the control of Amana
Appliances.
• Product is improperly installed or used.
Owner'sResponsibilities
• Provideproof of purchase (sales receipt).
• Providenormalcareandmaintenance.Replace
ownerreplaceableitemswheredirectionsappear
inOwner'sManual.
• Make product reasonably accessible for service.
• Pay premium service costs for service outside
technician'snormalbusiness hours.
• Pay for service calls related to product installation
orusage.
In no event shall Amana Appliances be liable for
incidental or consequential damages including
food loss*
* This warranty gives you specific legal rights and
you may have others which vary from state to
state. For example, some states do not allow the
exclusion or limitation of incidental or
consequential damages so this exclusion may not
apply to you.
AmanaApplianceL.C.
2800220thTrail
Amana, IA 52204-0001
1-800-843-0304or1-319-622-5511
www.amana.com

20
