Amana AWCE50AR User manual

ROOM AIR CONDITIONING AND DEHUMIDIFIER PRODUCTS
User Manual
Model # AWCE50ARS
Guide de l’Utilisateur
Modéle # AWCE50ARS
Manual del Usuario
Para Modelo de # AWCE50ARS
Built In / Freestanding Wine Vault
Construire Dans / Indépendant Vin Cave
Construido En / Bodega Aislada
Amana is a registered trademark of the Maytag Corporation and is used under license to Haier America.

1
English
Recognize Safety Symbols,
Words and Labels
What you need to know about Safety Instructions
Warning and Important Safety Instructions appearing in this manual are not
meant to cover all possible conditions and situations that may occur. Common
sense, caution and care must be exercised when operating, moving or cleaning
this product.
Always contact your dealer, distributor, service agent or manufacturer about
problems or conditions you do not understand.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
DANGER
WARNING
CAUTION
CAUTION

2
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the
following:
1) Use this appliance only for its intended purpose as described in this use and
care guide.
2) This wine cellar must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your wine cellar by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your wine cellar before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) If your old wine cellar is not being used, we recommend that you remove the
door and leave the shelves in place. This will reduce the possibility
of danger to children.
7) Do not operate your wine cellar in the presence of explosive fumes.
8) Do not store foods in wine cellar as interior temperature may not be cool
enough to prevent spoilage.
SAVE THESE INSTRUCTIONS
English

English
3
Staple your receipt to your manual. You will need it to obtain warranty service.
Thank you for using our Amana product. This
easy-to-use manual will guide you in getting the
best use of your wine cellar.
Remember to record the model and serial
number.They are on a label in back of the wine
cooler.
Model number
Serial number
Date of purchase
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves in place
so that children may not easily climb inside.
DANGER

English
4
TABLE OF CONTENTS
PAGE
Section One
Recognize Safety Symbols Words and Labels .........................................1
Safety Precautions .............................................................................2-3
Section Two
Parts And Features ...............................................................................5
Installing Your Wine Cellar ...................................................................6
Unpacking Your Wine Cellar.................................................................6
Leveling Your Wine Cellar.....................................................................6
Electrical Requirements.........................................................................6
Use of Extension Cord..........................................................................6
Section Three
Wine Cellar Features And Use ..............................................................7
Initial Set Up........................................................................................7
Shelving...............................................................................................7
Interior Light ........................................................................................7
Normal Operating Sounds ...................................................................7
Wine Cellar Installation ........................................................................8
Install Limitations .................................................................................8
Door Handle Installation ......................................................................8
Dimensions..........................................................................................8
Door Reversal.................................................................................9-10
Section Four
Replace Light Bulbs ............................................................................10
Proper Wine Cellar Care and Cleaning...............................................11
Cleaning and Maintenance ................................................................11
Power Interruptions.............................................................................11
Vacation and Moving Care.................................................................11
Troubleshooting .................................................................................12
Section Five
Limited Warranty................................................................................13

5
English

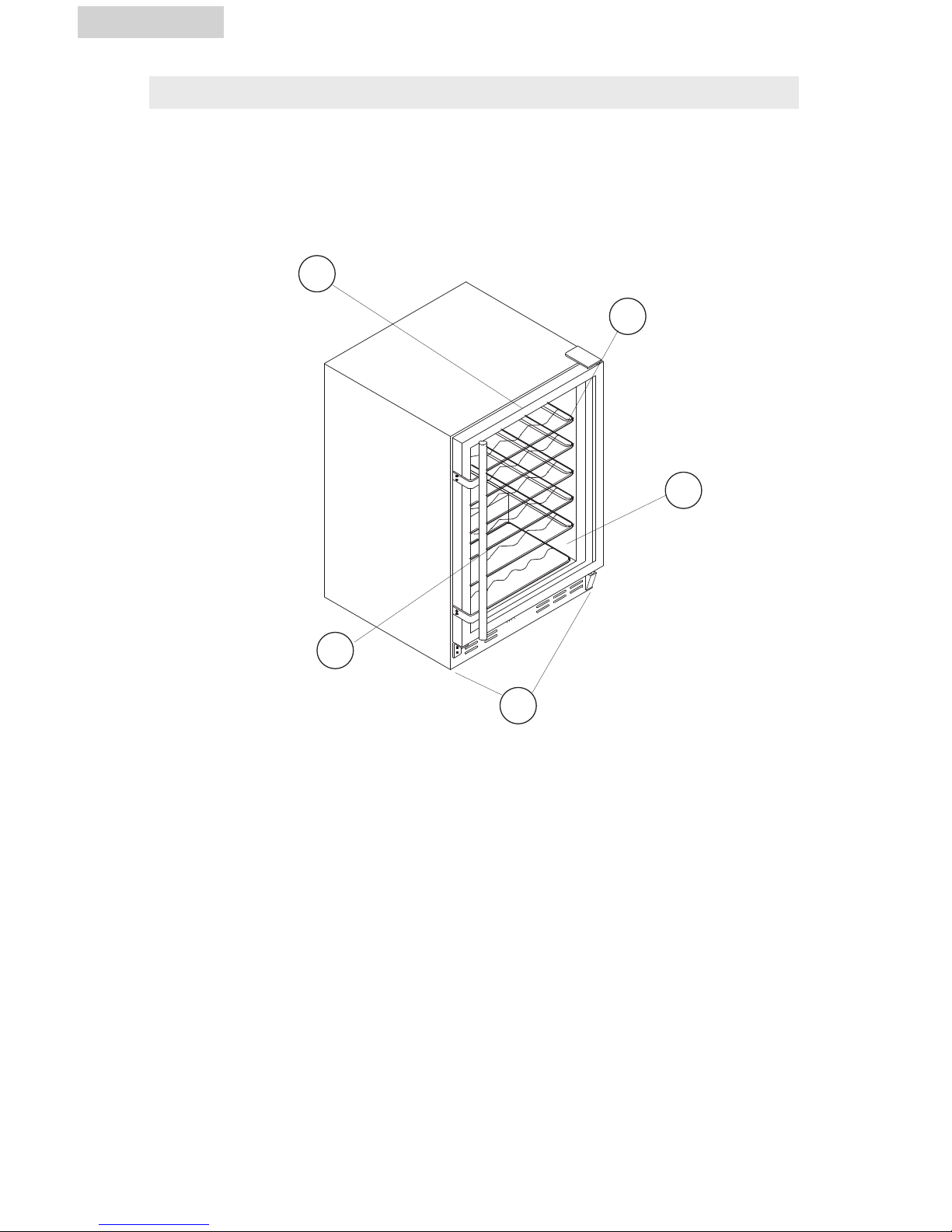

PARTS AND FEATURES
1
4
2
3
5
1. Door Handle
2. Door Trim
3. Chrome Plated Slide-Out Shelves
4. Tinted Glass
5. Leveling Legs
6. Adjustable Temp. Control (not shown)
7. Interior Light (not shown)
8. Reversible Door (not shown)

English
6
Unpacking Your Wine Cellar
1. Remove all packaging material. This includes the foam base and all adhesive tape
holding the wine cellar accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the wine cellar.
Leveling Your Wine Cellar
•Your wine cellar has four leveling legs which are located in the front and rear corners of your wine
cellar. After properly placing your wine cellar in its final position, you can level your wine cellar.
• Leveling legs can be adjusted by turning them clockwise to raise your wine cellar or by turning them
counterclockwise to lower your wine cellar. The wine cellar door will close easier when the leveling legs
are extended.
Electrical Requirement
•Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to
power the wine cellar.
• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two
plug outlet. This is a dangerous practice since it provides no
effective grounding for the wine cellar and may result in shock hazard.
Use of Extension Cords
•Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be
equal to or greater than the electrical rating of the appliance.
INSTALLING YOUR WINE CELLAR
WARNING
CAUTION

7
English
Shelving
•The shelves on this model are chrome plated. They are designed for flexibility and easy cleaning. To
accommodate different sized bottles the shelves slide out and can be moved up or down into any of
the tracks molded into the cooler cabinet. Larger bottles, or Magnums can be more easily accommo-
dated on the bottom of the cooler. You will notice that the shelves are designed so the bottles do not
line-up directly over one another. The shelves are designed to allow free air movement and provides
more space.
Interior Light
•To compliment the look of your wine collection, a soft light has been built into the wine cellar. The light
switch is on the electronic control panel.
• When door is open the light will go on. Upon closing the door, the light will go off in approximately 5
seconds.
Normal Operating Sounds You May Hear
•Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating
through the cooling coils.
•The thermostat control will click when it cycles on and off.
WINE CELLAR FEATURES AND USE
Initial Setup
•Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to
acclimate itself before making any adjustments. During this time the Red Wine light will stay on.
Temperature inside the cooler, if not adjusted, will be at 55°-60°F.
•The wine cellar can be set to any temperature you desire to accommodate your wine storage
requirements. To set the temperature, press both the "White Wine" and "Red Wine" buttons
simultaneously and hold for approximately 3 seconds. Now you are in temperature set mode.
Decrease the temperature by pushing the "White Wine" button and increase the temperature by press-
ing the "Red Wine" button. Pressing the appropriate button 3 times will adjust the temperature 3
degrees, press 4 times equals 4 degrees, 5 times equals 5 degrees, and so on. Once you have select-
ed the temperature you desire, push the "On/Off" button. Now the wine cellar is programmed and the
LED readout will return to current internal temperature reading.
• There will be a 3 degree variance +/- between the temperature you select and the temperature
indicated on the LED readout. This occurs because the wine cellar activates and deactivates trying to
maintain your desired temperature. There is often a variance between the top and bottom shelves of
the wine cellar. Therefore, if you have set the wine cellar for 50° and have a mix of red and white
wines, you may want to put the white wine on the bottom shelf where the temperature will be cooler,
and place the red wine on the top shelf where the temperature will be warmer.
Down
White Red
Up on / off

8
English
WINE CELLAR INSTALLATIONS
Install Limitations
•Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your
wine cellar was not designed to operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the wine cellar on a hard even surface away from direct sunlight or heat
source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be cor-
rected with the leveling legs located on the front and rear bottom corners of the wine cellar.
Door Handle Installation
•Once you have unpacked your wine cellar you will have to install the grip handle on the door with the
supplied screws.
Dimensions
•Built-in wine cellars need to be ventilated from the front. This feature allows the unit to be built in an
enclosed area. The bottom front grille should be clear of all obstructions. This is absolutely necessary
for the air to circulate and for the unit to operate efficiently. The dimensions for installation are as fol-
lows. (W x D x H)
Unit Dimensions: 23-7/8” x 23-3/4” x 34-11/16”
Built-In Dimensions: 24” x 24” x 35”
34-11/16”
23-7/8”
23-3/4”

9
English
upper hinge cover
upper hinge bracket
bottom hinge
bracket
Choices

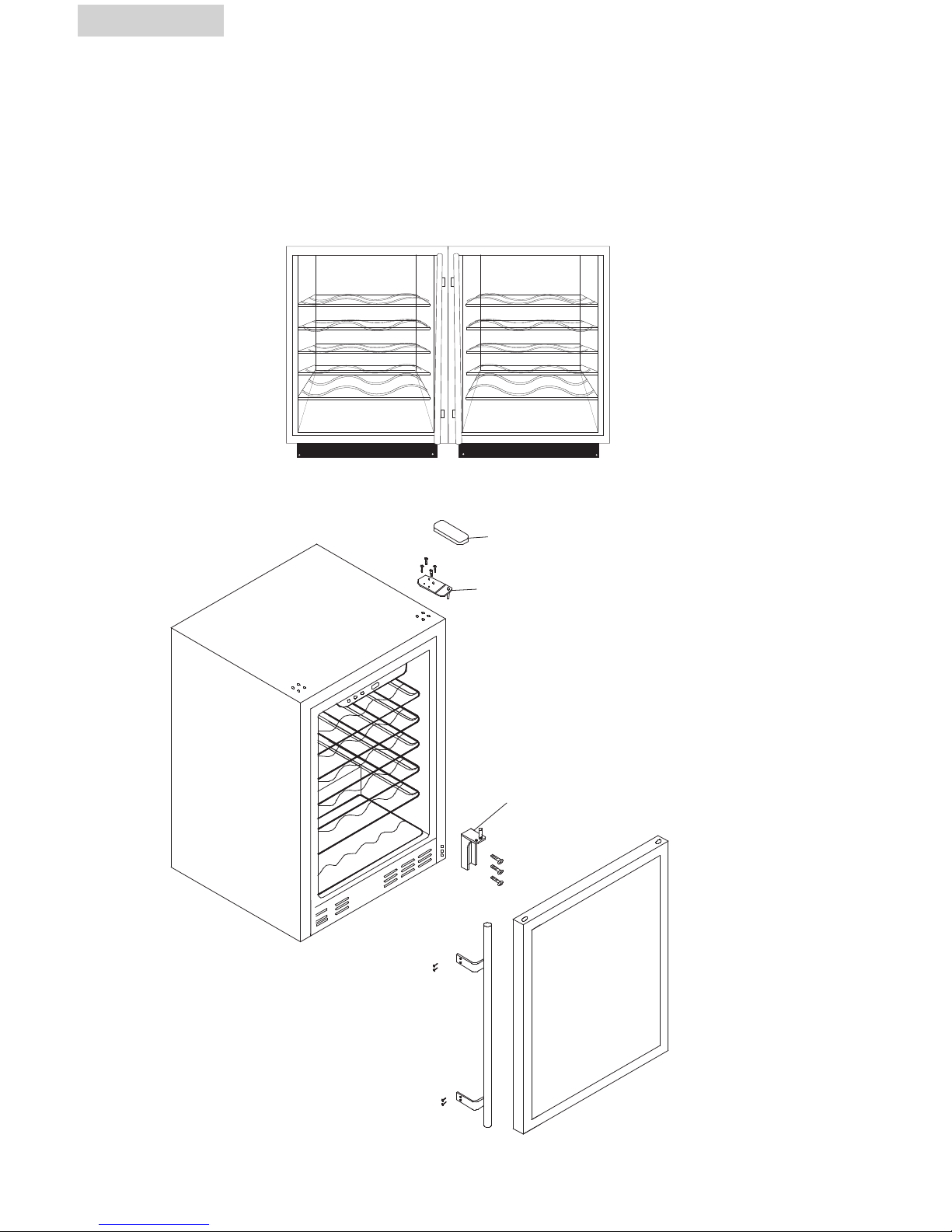

•As the doors of the built-in wine cellars are reversible, 2 wine cellars could be placed side by side with
the doors opening from the middle. This would not only allow you more storage space but also better
placement of your wine collection. The red wines could be separate from the white wines. Before
installing make sure there is enough space for installation and that both the units are plugged into
separate power receptacles.
Door Reversal

10
English
1.Remove the upper hinge cover and then using a Phillips screw driver remove the upper hinge bracket
by removing the 4 screws on the bracket. (on the right side).
2.Lift and remove the door.
3. Remove the bottom hinge bracket by removing the 3 hexagonal nuts. Be careful not to loose the
door level rings which are placed in the hinge bracket axle. (right side).
4. Install the bottom hinge bracket on the opposite side (left side).
5. Carefully align the bottom hinge axle hole on the door with the axle of the lower hinge bracket.
Remember to have the door level rings in place before you place the door on its axle.
6.Install the upper hinge bracket (left side hinge bracket supplied as an accessory) on the left side.
7. Make sure the door is aligned and then tighten the screws.
8. Remove and reinstall the door handle on the opposite side.
Replacing Light Bulb
1. Turn off and unplug the power cord of the wine cellar.
2. Remove the light bulb cover.
3. Make sure the light bulb is cool before removing it. Replace using a 10 watts light bulb.
4. After the bulb is secure, install the light bulb cover.
5. Turn unit on to its original setting after plugging in the power cord.

11
English
PROPER WINE CELLAR CARE AND CLEANING
Cleaning and Maintenance
•To avoid electric shock always unplug your wine cellar before clean-
ing. Ignoring this warning may result in death or injury.
•Before using cleaning products, always read and follow manufactur-
er’s instructions and warnings to avoid personal injury or product
damage.
•Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed
with warm water. Use sponge or soft cloth, dampened with the clean-
ing solution, to wipe down your wine cellar.
•Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. SOME of
these chemicals may dissolve, damage and/or discolor your wine cel-
lar.
Door Gaskets: •Clean door gaskets every three months according to general instruc-
tions. Gaskets must be kept clean and pliable to assure a proper
seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep
the gasket pliable and assure a good seal.
Power Interruptions
•Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the
power cord from ACoutlet when a power outage occurs. When power has been restored, re-plug
power cord to AC outlet.
Vacation and Moving Care
•For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets
according to "General cleaning" section. Prop doors open, so air can circulate inside. When moving
always move the wine cellar vertically. Do not move with the unit lying down. Possible damage to the
sealed system could occur.
WARNING
CAUTION
CAUTION

12
English
TROUBLESHOOTING
Wine Cellar does not operate
•Check if wine cellar is plugged in.
•Check if there is power at the ac outlet, by checking the circuit breaker.
Wine appears too warm
•Frequent door openings.
• Allow time for recently added wine to reach desired temperature.
•Check gaskets for proper seal.
•Adjust temperature control to colder setting.
Wine temperatureis too cold
•If temperature control setting is too cold, adjust to a warmer setting.
Wine Cellar runs too frequently
•This may be normal to maintain constant temperature during high temperature and humid days.
• Doors may have been opened frequently or for an extended period of time.
•Check gasket for proper seal.
•Check to see if doors are completely closed.
Moisture build up on interior or exterior of the Wine Cellar:
•This is normal during high humidity periods.
• Prolonged or frequent door openings.
•Check door gaskets for proper seal.
Wine Cellar door does not shut properly:
•Level the wine cellar.
• Check for blockages e.g. wine bottles, shelves.

English
13
LIMITED WARRANTY
What is covered and for how long?
This warranty covers all defects in workmanship or
materials for a period of:
12months labor
12 months parts
5 years sealed system
The warranty commences on the date the item
was purchased and the original purchase receipt
must be presented to the authorized service center
before warranty repairs are rendered.
EXCEPTIONS: Commercial or Rental Use
warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts, which
serve as a functional, purpose of this appliance
for a period of 12 months. This includes all
parts except finish, and trim.
2. The components of the sealed system e.g. her-
metic compressor, condenser and evaporator
from manufacturing defects for a period of 5
years from the date of purchase. Any damages
to such components caused by mechanical
abuse or improper handling or shipping will
not be covered.
What will be done?
1. We will repair or replace, at our discretion any
mechanical or electrical part which proves to be
defective in normal usage during the warranty
period so specified.
2. There will be no charge to the purchaser for
parts and labor on any covered items during
the initial 12 month period. Beyond this period
only parts are covered in the remaining
warranty. Labor is not provided and must be
paid by the customer.
3. Contact your nearest authorized service
center. For the name of the nearest service cen-
ter please call 1-888-842-2440
THIS WARRANTY COVERS APPLIANCES
WITHIN THE CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident, alteration,
lack of proper care and maintenance or incorrect
current or voltage.
Damage from other than household use.
Damage from service by other than an authorized
dealer or service center.
Decorative trims or replaceable light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).|
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF
ALL OTHER WARRANTIES,EXPRESSED OR,
INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE
The remedy provided in this warranty is exclusive
and is granted in lieu of all other remedies.
This warranty does not cover incidental or
consequential damages, so the above limitations
may not apply to you. Some States do not allow
limitations on how long an implied warranty lasts,
so the above limitations may not apply to you.
This warranty gives you specific legal rights, and
you may have other rights, which vary, from state
to state.
Haier America
New York, NY 10018

Français
1
Reconnaître les Symboles de
Sécurité, Mots et Étiquettes
Ce que vous devez savoir concernant les consignes de sécurité
Les mises en garde et les importantes consignes de sécurité présentes dans ce
guide ne couvrent pas toutes les circonstances et situations pouvant se produire.
Il convient de faire preuve de bon sens, prudence et attention lorsque vous
utilisez, bougez ou nettoyez ce produit.
Contactez votre revendeur, distributeur, dépositaire ou fabricant concernant tout
problème ou circonstance que vous ne comprenez pas.
Ceci est le symbole d’alerte de sécurité. Il est utilisé pour
vous prévenir de risques de blessure potentiels. Obéissez à
tout message de sécurité faisant suite à ce symbole afin
d’éviter des blessures ou la mort.
DANGER indique un danger imminent qui s’il n’est
pas évité entraînera la mort ou de graves blessures.
WARNING indique un danger potentiel qui s’il n’est
pas évité peut entraîner la mort ou de graves
blessures.
CAUTION indique un danger potentiel qui s’il n’est
pas évité peut entraîner des blessures légères à mod-
érées.
CAUTION utilisé sans le symbole d’alerte de sécurité
indique un danger potentiel qui s’il n’est pas évité peut
entraîner des dégâts matériels.
DANGER
WARNING
CAUTION
CAUTION

2
Français
MESURES DE SECURITE
Lire l’ensemble des instructions avant d’utiliser l’appareil. Lors de
l’utilisation de cet appareil, prendre toutes les mesures de sécurité de
base, y compris les suivantes:
1) N’utiliser cet appareil que pour l’usage pour lequel il est prévu,
tel qu’il est indiqué dans le guide d’utilisation et d’entretien.
2) Ce réfrigérateur à vin doit être installé correctement, selon les instructions
d'installation, avant d'être utilisé. Voir les instructions de mise à la terre
dans la section d'installation.
3) Ne jamais débrancher le réfrigérateur à vin en tirant sur le cordon
d'alimentation. Saisissez toujours la fiche fermement et la tirez-la
directement de la prise de courant.
4) Réparez ou remplacez immédiatement tous les cordons d'alimentation qui sont
frangés ou endommagés. N'utilisez pas de cordon qui présente des
fissures ou de l'abrasion sur le fil ou aux extrémités.
5) Débranchez votre réfrigérateur avant de le nettoyer ou d'en faire
l'entretien général. Note: N'essayez pas de faire les réparations
vous-mêmes. Contactez un agent de service qualifié pour toute réparation.
6) Si vous remplacez un vieux réfrigérateur à vin, enlevez les portes avant de
l'entreposer ou de le jeter et laissez les étagères en place. Cela réduira les
dangers potentiels pour les enfants.
7) Ne faites pas fonctionner le réfrigérateur à vin en présence d'émanations
explosives.
8) N'enregistrez pas les nourritures dans le refroidisseur de vin car la
température intérieure peut ne pas être assez fraîche pour empêcher la détéri-
oration.
VEUILLEZ CONSERVER CES INSTRUCTION

3
Français
Nous vous remercions d’avoir choisi ce produit
Haier. Ce guide d’utilisation facile d’emploi per-
met une utilisation optimum du réfrigérateur á
vin. Ne pas oublier de prendre note du numéro
de modèle et de série. Ils sont inscrits sur une pla-
quette apposée sur l’arrière du réfrigérateur à vin.
Numéro de modèle
Numéro de série
Date d’achat
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout service après-vente sous
garantie.
Les enfants pourraient se retrouver coincés dans votre réfrigérateur à
vin usagé avant que vous ne puissiez vous en débarrasser. Retirer les
portes. Laisser les étagères en place de manière à ce que les enfants
ne puissent pas grimper facilement à l’intérieur.
DANGER

4
Français
TABLE DES MATIERES
PAGE
Section Une
Reconnaître les Symboles de Sécurité, Mots et Étiquettes ........................1
Mesures de Sécuriteé ........................................................................2-3
Section Deux
Pièces et Caractéristiques......................................................................5
Installation du Réfrigératuer á Vin .........................................................6
Désemballage du Réfrigérateur á Vin....................................................6
Réglage du Réfrigérateur á Vin .............................................................6
Caractéristiques Electriques ..................................................................6
Utilisation de Rallonges ........................................................................6
Section Trois
Caractéristques du Réfrigérateur á Vin ..................................................7
Montage Initial.....................................................................................7
Tablettes ..............................................................................................7
Lumière Intèrieure ................................................................................7
Bruits de Fonctionnement lors d'une Exploitation Normale......................7
Installation du Compartiment à Vin.......................................................8
Limitations ...........................................................................................8
Installation de Traitement de Porte.........................................................8
Dimensions..........................................................................................8
Changer l'emplacement de la Porte ....................................................10
Section Quatre
Remplacer les Ampoules.....................................................................10
Entretien et Nettoyage du Réfrigérateur á Vin ......................................11
Nettoyage et Maintenance..................................................................11
Coupures de Courant.........................................................................11
Entretien lors des Vacances ou d'un Déménagement............................11
Guide de Dépannage ........................................................................12
Section Cinq
Garantie............................................................................................13

5
Français
PIÉCE ET CARACTÉISTIQUES
1
4
2
3
5
1. Traitement de Porte
2. Équilibre de Porte
3. Le Chrome Plaqué Glissent-Dehors des Étagères
4. Verre Teinté
5. Mise à niveau des Jambes
6. Commande de température réglable (non montrée)
7. Lumière Intérieure (non montrée)
8. Porte Réversible (non montrée)

6
Français
INSTALLATION DU RÉFRIGÉRATEUR Á VIN
Désemballage du Réfrigérateur á Vin
1.Retirer l’ensemble du material d’emballage. Ceci comprend la base en mousse ainsi que
l’ensemble du materiel adhesif qui maintient les accessoires du réfrigérateur à vin l’intérieur tout
comme à l’extérieur.
2. Inspecter et enlever tout restant d’emballage, de scotch ou de matériaux imprimés avant de brancher
le réfrigérateur à vin.
Réglage du Réfrigérateur á Vin
•Votre refroidisseur de vin a quatre jambes de mise à niveau qui sont plac dans les coins avant et
arrière de votre refroidisseur de vin.
• Pour régler les pieds de mise à niveau, les tourner dans le sens des aiguilles d’une montre afin de
surélever le réfrigérateur á vin et dans le sens inverse des aiguilles d’une montre pour l’abaisser. La
porte du réfrigérateur á vin se ferme plus facilement lorsque les pieds de mise à niveau sont surélevés.
Caractéristiques Electriques
•Pour l’alimentation du réfrigérateur á vin, veiller à utiliser une prise de courant convenable (prise de
115 volts,15 amp) raccordée à la terre.
• Eviter d’utiliser des adaptateurs à trois fiches ou de sectionner la troisième fiche reliée à la terre dans
le but d’utiliser un branchement à deux fiches. Cette pratique pourrait s’avérer dangereuse
dans la mesure où le réfrigérateur á vin n’est pas relié convenablement à la terre, et risquerait de
causer des risques d’électrocution.
Utilisation de Rallonges
•Éviter d’utiliser une rallonge électrique car,dans certains cas, cela peut entraîner des risques pour la
santé. S’il est nécessaire d’utiliser une rallonge, utiliser uniquement une rallonge possédant une fiche
male à deux broches plus terre à une extrémité et une prise femelle de même type à l’autre extrémité.
Lacapacité électrique de la rallonge doit être égale ou supérieure à la capacité de l’appareil.
WARNING
CAUTION
