Amazfit GTS 2e User manual

Amazfit GTS 2e
Product Manual
A2021

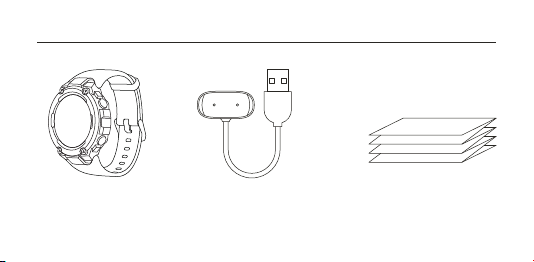

01 Package Contents
Smartwatch with
band × 1
Charging base × 1
1
Instruction Manual × 1

02 About the Watch
2
Note: Press and hold the power button to turn on the watch. If the watch cannot be
turned on, please charge it and then try again.
Heart rate
sensor
Charging
plates
Power/Select button
Touch screen
Upper
button
Lower
button
Back button

03 Pairing the Watch
3
1.
2.
3.
4.
Scan the QR code on the Instruction Manual with your mobile phone to download the
app to your mobile phone. You can also download the latest version of app from the
Google Play Store or Apple App Store.
Open the app, register an account and log in.
Follow the steps in the app to pair your watch correctly.
Once pairing is complete, the watch will display the
correct time.
You can set the other watch functions as needed.
Download Zepp App

4
Note:
1.
2.
3.
For a better user experience, please use the most recent version of the app.
The operating system needs to be Android 5.0, iOS 10.0, or above.
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the
steps in the app to pair your watch correctly.

04 Charging the Watch
5
Note:
1.
2.
Please use the charging base that comes with the watch.
Make sure that the charging base is dry before charging.
Please use a 1A or above power adapter.
1.
2.
3.
Connect the watch's charging cable to a power adapter or a computer's USB port.
Put the watch into the charging base. Pay attention to the direction and position of
the watch, and make sure that the metal contacts on the back of the watch fit
closely with the charging base.
When charging starts, the watch screen displays the
charging progress.

05 Disassembly and Assembly of the Watch Strap
6
If you need to install or remove the strap, hold the screw on one side with a
screwdriver, and rotate the nut on the other side, as shown in the figure below.
Note:
Once the strap is assembled, pull the strap properly to ensure it is installed successfully.

06 Wearing the Watch
7
1.
2.
3.
Wear the watch strap not too tightly or too loosely, and leave enough space for
the skin to breathe. This makes you feel comfortable and allows the sensor to
function.
When measuring blood oxygen saturation, wear the watch correctly. Avoid
wearing the watch on the wrist joint, keep your arm flat, maintain comfortable
(appropriately tight) fitting between the watch and the skin of your wrist, and
keep your arm still throughout the measurement process. When aected by
external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement
result may be inaccurate or the measurement may fail and provide no output.
We recommend that you tighten the watch strap during exercise and loosen it
afterwards.

07 Basic Parameters
8
Product model: A2013
Input: 5V d.c. 500mA MAX
Bluetooth version: BLE V5.0
BLE output power: <5 dBm
View product certification information on the watch's Settings > System > Regulation page.
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions
Operating temperature: 0°C to 45°C
Water resistance rating: 10 ATM
Bluetooth frequency: 2400–2483.5 MHz
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Anhui
Huami Information Technology Co., Ltd. is under license. Other
trademarks and trade names are those of their respective owners.

08 Regulatory Notice
9
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: 2AC8UA2013
Any changes or modifications that are not expressly approved by the party
responsible for the compliance may void the user’s authority to operate the device.

10
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

11
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which
thereceiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
IS 13252(Part 1)/
IEC 60950-1
R-41136905
www.bis.gov.in HIDF19000259

12
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
IC: 21806-A2013 CAN ICES-3(B)/NMB-3(B)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radioexempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.

13
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance
isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.

09 Disposal and Recycling Information
14
All products bearing this symbol are waste electrical and electronic
equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human
health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and
electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as
well as terms and conditions of such collection points.

15
10 Certifications and Safety Approvals
Hereby, Anhui Huami Information Technology Co., Ltd. declares that the
radio device type A2013 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address: https://support.amazfit.com/en
For more regulatory information and product certification/compliance
logos related to Amazfit T-Rex Pro, please go to Regulatory on your
Amazfit T-Rex Pro.

16
11 Battery Safety
1.
2.
3.
4
This device is equipped with a built-in battery that cannot be removed or
replaced. Do not disassemble or modify the battery by yourself.
Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment
can result in an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or
the leakage of flammable liquid or gas.

17
12 Safety Notice
1.
2.
3.
4.
Do not allow children or pets to bite or swallow the product or its accessories, as
this may cause injury.
Do not place this product under excessively high or low temperatures, which
may cause the product to catch fire or explode.
Do not place this product near heat sources or open flame, such as ovens and
electric heaters.
Some people may experience allergic skin reactions to plastics, leathers, fibers,
and other materials, and symptoms such as redness, swelling, and inflammation
will occur after long-term contact with this product's components. If you
experience such symptoms, please discontinue use and consult your doctor.

18
5.
6.
7.
Do not use unauthorized or incompatible power adapters, chargers, or data
cables, which may damage the watch and accessories, or cause fire, explosion,
or other hazards.
The radio waves generated by this product may aect the normal operation of
implanted medical devices or personal medical devices, such as pacemakers
and hearing aids. If you use any such medical devices, consult the manufacturer
for relevant usage restrictions.
Do not dispose of this device or its accessories as ordinary household waste.
Please make sure you dispose of or recycle this device and its accessories in
accordance with local laws and regulations.

19
13 Repair and Maintenance
1.
2.
3.
4.
5.
Avoid using detergents such as soap, hand sanitizer, bath foam, or lotion for
cleaning to prevent chemical residues from irritating the skin, corroding the
device, or degrading the water resistance of the device.
After wearing the device while bathing (for devices that support bathing),
swimming (for devices that support swimming), or sweating, please promptly
clean and dry the device.
The leather strap is not waterproof. Avoid getting the strap wet, as this may shorten
its service life.
When using light-colored watch straps, avoid contact with dark clothing to
prevent staining.
Do not place the device in direct sunlight for long periods. Excessively high or low
ambient temperature may cause device failure.
