Amazfit Stratos 3 Specification sheet

Amazfit Stratos 3 Product Instruction Manual

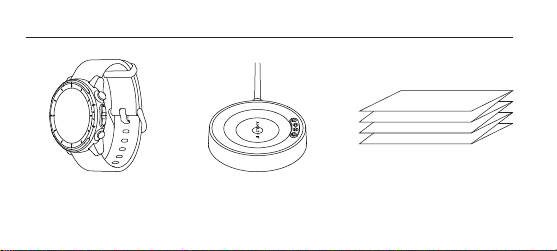

01 Package Contents
1
Smartwatch with the band × 1 Charging base × 1 Instruction Manual × 1

2
Scan the QR code on the Instruction Manual with your mobile phone to download the Amazfit
App to your mobile phone. You can also download the latest version of the Amazfit App from
the Google Play Store or Apple App store.
02 Installing the App

3
Power/Start button
Charging port
Heart rate sensor
Quick release
wristband
Return button
Up button
Down button
03 About the Watch

1.
2.
3.
Long press the Power/Start button on the upper right of the watch, and then the watch screen
will light up and display the boot animation.
With the watch on, long press this button for more than 6s, then the shutdown menu will pop up.
At the first start-up of the watch, the QR code for binding appears on the screen.
04 Turning the Watch on/o
4

Open the App on your mobile phone, create a new account and login. Go to "Profile" - "Add
device", choose "Amazfit Stratos 3", and follow the prompts to scan the QR code displayed on
the watch. Then the binding is done.
05 Pairing the Watch
5

Connect the watch charging port closely with the contacts of the charging base. Connect the
USB port at the other end of the charging base with the mobile phone charger or computer
USB port (rated output voltage of 5V and output current
of above 500mA) to charge the watch.
06 Charging the Watch
6
Note:
Only use the original charging base provided in the
product package to charge your watch. Also make
sure that the charging base is always kept dry.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including the interference that may cause
undesired operation.
FCC ID: 2AC8UA1929
Any changes or modifications that are not expressly approved by the party responsible for the
compliance may void the user’s authority to operate the device.
07 Regulatory Notice
7

8
Note: This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interferences in a residential installation. This device generates, uses, and may
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause harmful interference
to radio or television reception, which can be determined by turning the device o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

9
- Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.

10
This device complies with Industry Canada license-exempt RSS standard(s). Operationis subject
to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that maycause undesired
operation of the device.
IC: 21806-A1929 CAN ICES-003 (B)/NMB-003(B)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and the maximum (or lesser) gain approved for the transmitter by Industry Canada.To
reduce the potential of radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des
autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
11

12
The following symbol signifies that this device has to be disposed separately from
ordinary household wastes at the end of its life. Please kindly be aware that thisis your
responsibility to dispose the electronic device at recycling centers so as to help conserve
the natural resources.
08 Disposal and Recycling Information

13
Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device
type A1929 is in compliance with Directive 2014/53/EU. The full text of the EU declaration
of conformity is available at the following internet address:
http://en.amazfit.com/support.html
For more regulatory information and product certification/compliance logos related to
Amazfit Stratos 3, please go to Regulatory on your Amazfit Stratos 3.
09 Certifications and Safety Approvals

1.
2.
3.
4.
Please use the charging base in the package for charging, and wipe the charging port dry
before charging.
The watch can withstand pressure equivalent to at a depth of 50m. It is suitable for swimming
in pools and shallows, but not for diving, bathing, or a sauna.
Do not operate the watch underwater. If the watch has been immersed in water, do not operate
the touch screen or charge the watch until the watch is wiped dry by using a soft cloth.
The watch is not resistant to erosive liquid such as acidic and alkaline solutions and chemical
reagents. Damages or defects caused by misuse or improper use are not covered under warranty.
10 Precautions
14

15
Product model: A1929
Wristband width: 22 mm
Battery capacity: 300 mAh
Operating temperature: 0 °C to 45 °C
Input: 5V 0.5A (MAX)
Frequency: 2402–2480 MHz
Max. Output: 10 dBm
Wireless connection: Wi-Fi IEEE 802.11b/g 2.4GHz; BT 4.0 BLE
Water resistance rating: 5 ATM (equivalent to pressure at a depth of 50m)
Compatibility: The watch is compatible with the devices that support Bluetooth 4.0 and are
installed with Android 5.0, iOS 10.0, or later.
11 Basic Parameters

1.
2.
3.
4.
It is strictly forbidden to use this device in such environments as gas stations, fuel depots,
chemical plants, transportation or storage facilities of fuel or chemical samples, otherwise
explosion or fire may occur.
It is strictly forbidden for children or pets to swallow or bite this device or its accessories, so
as to avoid any injury.
It is strictly forbidden to place this device in the areas where the temperature is too high or
too low, otherwise it may cause fire or explosion.
It is strictly forbidden to keep this device close to the heat source or bare fire source, such as
ovens and electric heaters.
Before using and operating this device, please read and observe the following considerations
to ensure the optimum performance and avoid dangerous or illegal situations.
Usage scenarios and operational environment considerations:
12 Safety Notice
16

5.
6.
7.
8.
Some people have allergic constitution. Their skins may be allergic to plastics, leather, fiber, and
other materials. Long-term contact areas will have symptoms such as swelling, inflammation,
and the like. Anyone who has similar symptoms should stop using the device and consult a doctor.
Do not use unauthorized or incompatible power adapters, chargers, or data cables, which may
damage the device and its accessories, and cause fire, explosion, or other hazards.
Radio waves generated by the device may aect the normal operation of implantable medical
devices or personal medical devices, such as pacemakers and hearing aids. If you use these
medical devices, please consult their manufacturers about the restrictions on their use.
Do not treat the device and its accessories as common household waste. Please abide by the
local decree on the disposal of the device and its accessories and support the recycling action.
17

1.
2.
3.
4.
5.
6.
This device is equipped with a non-removable built-in battery. Do not replace the battery by
yourself, so as to avoid any damage to the battery or device. The battery can only be replaced
by ocially authorized service centers.
Do not expose the battery to high temperature or around heating equipment, sunshine, heaters,
microwave ovens, etc.
Do not disassemble or refit the battery, insert foreign bodies or immerse it in liquid, so as to
avoid leakage, overheating, ignition, or explosion of the battery.
If the battery leaks liquid, do not expose the skin or eyes to such liquid. If the liquid touches
your skin or eye, please rinse your skin or eye with clean water and consult a doctor immediately.
Do not throw the battery into the fire, otherwise it may cause the battery to fire and explode.
Please dispose of the battery according to local regulations, absolutely not as household waste.
13 Battery Safety
18

7.
8.
9.
Do not allow children or pets to swallow or bite the battery, so as to avoid any injury to them
or explosion of the battery.
Do not drop, squeeze, or puncture the battery, so as to avoid the short circuit and overheat-
ing inside due to strong external pressure.
Do not use any damaged battery.
19
