ambiance LR-016 Manual

1. Minimum distance from the front of the lamp to combustible
surfaces is 8”.
2. Make sure all connections are tight.
WARNING: Use of other manufacturers components will void warranty, and
create a potential safety hazard.
CAUTION - RISK OF FIRE: KEEP AWAY FROM
COMBUSTIBLE MATERIALS.
DIMMING HALOGEN LAMPS GREATLY REDUCES LAMP LIFE.
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE or INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when turning on.
Do not touch hot lens, guard, or enclosure.
Keep lamp away from materials that may burn.
Do not touch the lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
Do not operate the luminaire fitting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
INSTALLATION AND SAFETY INSTRUCTIONS
WARNING:Be sure the electricity to the system you are working
on is turned off; either the fuse removed or the circuit breaker set
at off.
IF YOU ARE UNCLEAR AS TO HOW TO PROCEED, CONTACT
A QUALIFIED ELECTRICIAN.
FOR USE WITH THE 120V TRANSITION TRACK SERIES BY
SEA GULL LIGHTING.
CAUTION – To reduce the risk of a burn during relamping,
remove from the track before relamping.
FOR YOUR SAFETY IMPORTANT SAFETY INSTRUCTIONS

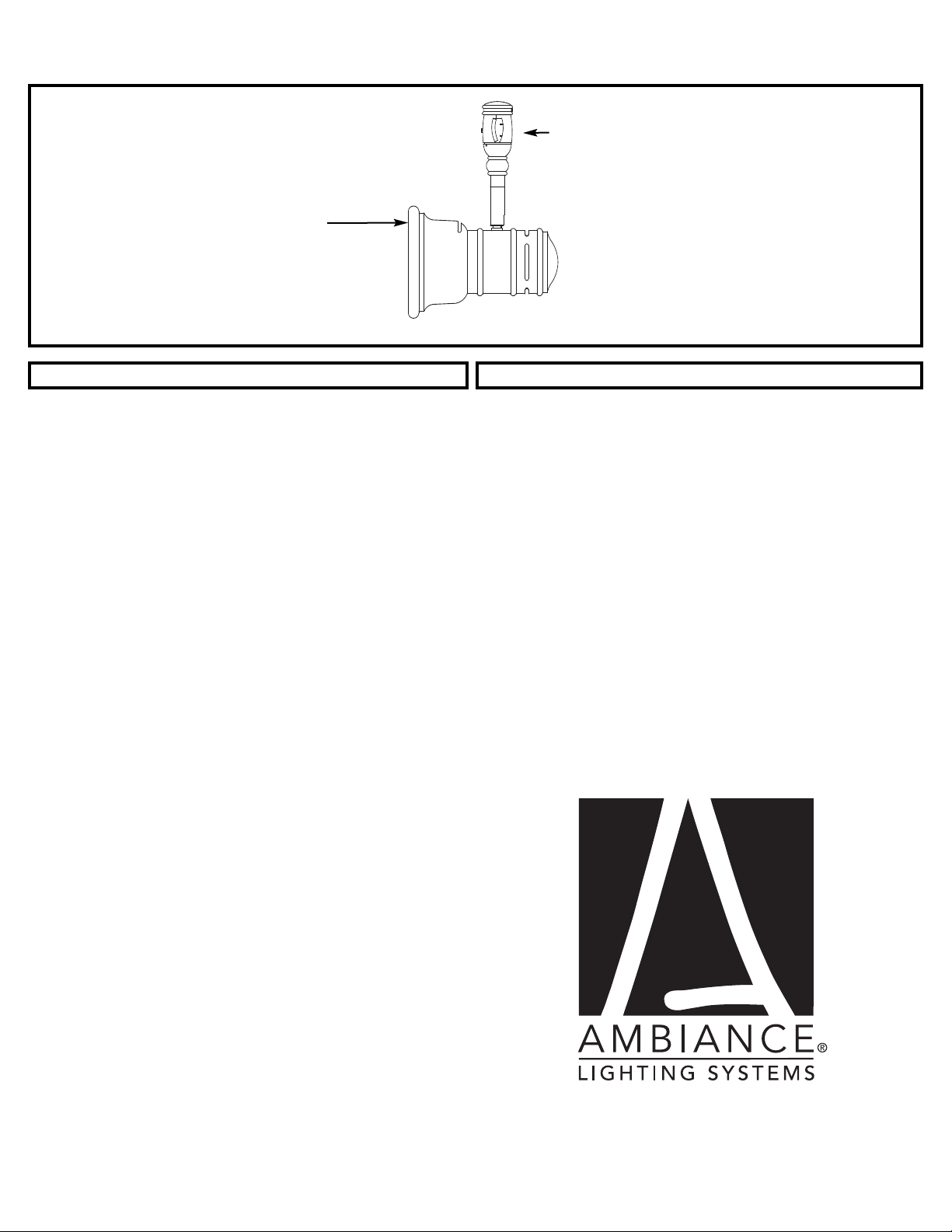

FIGURE 1
LR-016
070506
www.SeaGullLighting.com
RAIL ADAPTER
SHADE

1. Install shade over threaded socket assembly and secure in
place with retaining ring.
2.Remove cap from rail adapter on track head.
3. Align contacts on track head to conductors on rail.
4. Install fixture to rail by closing adapter over rail. (see fig. 2)
5.Install cap over top of rail adapter and secure cap set screw.
6. Tighten ground set screw on adapter so it sits in groove of rail.
7. Install lamp and thread glass enclosure over lamp.
(see fig. 3)
ATTACH TRACK HEAD TO RAIL (Fig. 2) LR-016
MRC 16
VERSION
T4
VERSION
MRC 16
VERSION
T4
VERSION
MRC 16
VERSION
T4
VERSION
MRC 16
VERSION
T4
VERSION
MRC 16
VERSION
T4
VERSION
FIGURE 3
(OPTIONAL)
ADJUST REFLECTOR
BACK & FORTH FOR
VARIOUS BEAM
DIAMETERS OR USE
WITH OUT REFLECTOR
FOR AGENERAL LIGHT
SOURCE
SOCKET ASSEMBLY
LAMP
SUPPLIED
GLASS
SHIELD
REFLECTOR
(OPTIONAL)
REFLECTOR USED TO ADJUST DIRECTIONAL BEAM SPREAD
FIXT-INST.
INCORRECT
FIXT-INST.
CORRECT
FIXT-INST.
INCORRECT
FIXT-INST.
CORRECT
FIGURE 2
CORRECT INCORRECT
TRACK HEAD INSTALLATION
CAP SET
SCREW
GROUND
SET
SCREW
GROUND
SET
SCREW
