AmbiCom SKYHS-KIT User manual

Wireless Skype Headset
Model: SKYHS-KIT Rev1.0
DESCRIPTIONS
The AmbiCom Wireless Skype Headset (SKYHS-KIT) allows you to communicate freely without the cable. It is compatible
with most VOIP software such as Skype, MSN Messenger, Yahoo Messenger, Google Talk and more. The comfortable design
makes the SKYHS-KIT perfect for extended wear with or without the ear hook to match your left or right ear for a snug and
secure fit. As an added feature, it can also be use as a handsfree headset when paired with a Bluetooth enabled mobile
phone. When using with the Bluetooth Handsfree profile, you will be able to manage your call wirelessly with your headset.

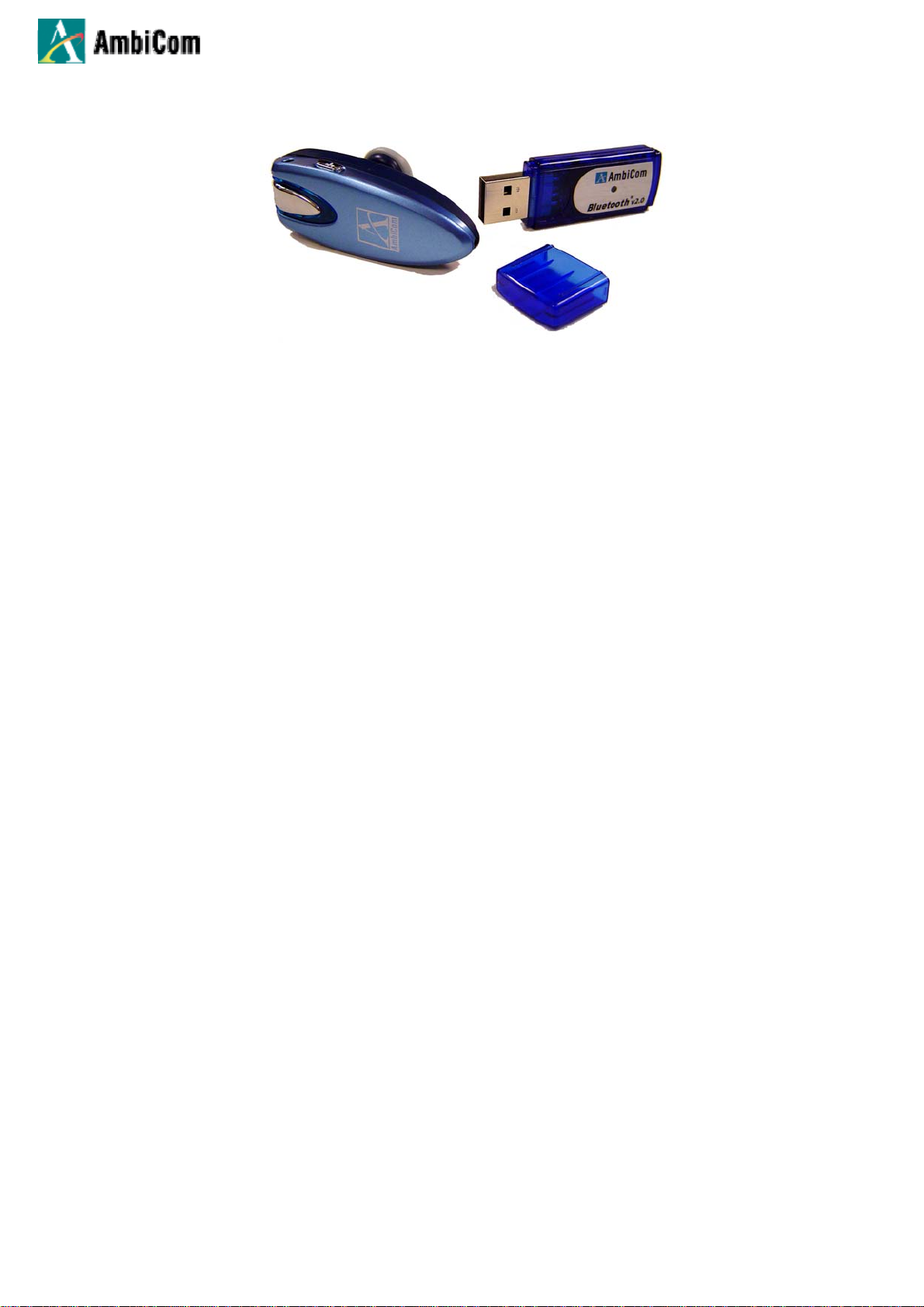

The retail package consists of two main devices, a Bluetooth Headset and a Bluetooth Version 2.0 USB adapter. The
bundled AmbiCom Bluetooth Version 2.0 Class 2 USB Adapter allows you to communicate and transfer data 4 times faster
than the Bluetooth Version 1.2 devices. Simply turn on your Bluetooth enabled devices such as mobile phones, desktops,
PDAs, printers, laptops and it will allow a mobile user to connect to a mobile device wirelessly and effortlessly. The new
AmbiCom Bluetooth Version 2.0 Class 2 USB Adapter also utilizes the latest USB Specification V2.0, which boosts the
transfer rate to 480Mbps between the USB adapter and the host computer with the same equipment specification, as well
as allowing multiple connections between different devices without bottlenecking the bandwidth.
FEATURES – Bluetooth Headset
• Bluetooth V1.2.
• Class 2 Transmission Range Up To 33ft. (10m)
• Continuous Music Playback Time Up To 5 Hours.
• Compatible With Most mobile phone with Bluetooth Handsfree Mode.
• Compatible With Most VOIP Software: Skype, MSN Messenger, Yahoo Messenger, Google Talk And More.
• Compatible With Most Media Player Software: Windows Media Player, i-Tune And More. (Audio only)
FEATURES – Bluetooth USB Adapter
• Bluetooth V2.0 + EDR. (3Mbps)
• USB Specification V2.0. (480Mbps)
• Class 2 transmission range up to 33ft. (10m)
• Extended Data Rate (EDR) technology boosting in Bluetooth data rate and security.
• Extended Synchronous Connections (eSCO) for better voice quality.
• 4 times faster compare to Bluetooth Specification V1.2.
• Less interference with WLAN.
• Better communication distance.

SPECIFICATION – Bluetooth Headset
Standards: Bluetooth V1.2, Class 2
Frequency Band: 2.4 ~ 2.480GHz
Functions: Volume Up / Down, Mute, Call Transfer, Last Number Redial, Reject Call, Answer
Incoming Calls, Voice Dialing
Talk Time: Up To 6 Hours
Standby Time: Up To 200 Hours
Distance: Up To 33ft (10 m)
Bluetooth Profile: Headset, Handsfree
Dimension: (L x W x H) 2.31 x 0.84 x 0.59in (58.70 x 21.55 x 15.18mm)
Weight: With Ear Hook 0.56oz (16.0g)
Sensitivity: <0.1% BER @ -80dBm
RF Output Power: -6dBm ~ +4dBm
Certifications: FCC, CE
SPECIFICATION – Bluetooth USB Adapter
Standards: Bluetooth V2.0 + EDR. Class 2
EDR (Extended Data Rate)
Frequency Band: 2.402 ~ 2.480GHz
Tx Power: 0.25 ~ 2.5mW (Class 2)
Rx Sensitivity: < -80dBm (BER 0.1%)
Distance: Up To 33ft (10m)
Output Interface: USB 2.0 (480Mbps)
Supported Operating System: Microsoft Windows XP/2000
Dimension: (L x W x H) 2.58 x 0.75 x 0.31in (65.5 x 19 x 8mm)
Weight: 0.35oz (10g)
Operating Temperature: 14°F ~ 122°F (-10°C ~ +50°C)
Humidity: Relative Humidity 0 ~ 95%
Audio Streaming Format: SBC 48.000kHz
Audio Frequency Range: 20Hz ~ 22kHz
Certifications: FCC, CE
AmbiCom SKU: SKYHS-KIT (Revision 1.0)
UPC: 646543 193467
Package Contents: Bluetooth Headset BT-HS Rev1.0, Bluetooth v2.0 USB Dongle BT2-USB, Bluetooth
USB Dongle Driver CD, Quick Installation Guide
