Ambient TinyMike ATM 216 User manual

experience quality.
Mini Shotgun Microphone
TinyMike
ATM 216

experience quality.
ATM216
www.ambient.de/en
1
Table of contents page
1. Thank you for choosing an Ambient product 2
2. Features 2
3. ATM 216 DSLR 3
Miniature Electret Shotgun Microphone for DSLR Cameras 3
4. ATM 216 PH 4
Miniature Electret Shotgun for cameras with 48V Phantom power 4
5. ATM 216 AM 5
Miniature Electret Shotgun for ARRI AMIRA 5
6. Cable Mounting Instructions ATM 216 AM 6
7. Accessories 7
QBS 7
ATMWJ 7
ATB101 8
ATMB 8
ATMP 8
8. Technical Data 9
9. Cable Wiring 10
ATM3.5 10
ATM3.5H 10
ATMEMP & ATMEMPAM 10
10. Supplementary Information 11
11. Safety Instructions 11
12. Warranty 12
13. Approvals 13

ATM216
©2019, Ambient Recording GmbH
2
1. Thank you for choosing an Ambient product
This high-quality miniature microphone can work straight of the low voltage power on DSLR or small DV
cameras. Alternatively, an active adaptor cable allows phantom powered operation, which
makes it all the same a suitable accessory for the popular small HD cameras with XLR inputs.
Meeting the requirements of most common camera types, the TinyMike is available in
preconfigured sets, which contain all necessary bits and pieces. A special adaptor also
allows for boom or stand mounted operation.
The TinyMike has been successfully used in many documentaries and broadcast
applications and was rewarded with the Cinec Award for technical innovation.
2. Features
Electret Microphone can be
powered by „Plug in power“
available on almost all DV
Camcorders.
Good general frequency
response with highly
directional characteristic in
mid and high frequency
range.
Cover: Example of use, TinyMike mounted on Canon Mark II; not included in purchased parts package!

experience quality.
ATM216
www.ambient.de/en
3
3. ATM 216 DSLR
Miniature Electret Shotgun Microphone for DSLR Cameras
Prod.nr.
Description
1)
ATM216
TinyMike, miniature electret shotgun microphone
2)
ATMWS
Velvet foam windshield
3)
ATHRY
Custom Rycote suspension incl. insert and QBS hot shoe mount
4)
ATM3.5
Adaptor cable Binder 3-pin to 1/8” mini jack
5)
ATM3.5H
Adaptor cable Binder 3-pin to 1/8” mini jack, hi-sens.
INSIDE

ATM216
©2019, Ambient Recording GmbH
4
4. ATM 216 PH
Miniature Electret Shotgun for cameras with 48V Phantom power
Prod.nr.
Description
1)
ATM216
TinyMike, miniature electret shotgun microphone
2)
ATMWS
Velvet foam windshield
3)
ATHRY
Custom Rycote suspension incl. insert and QBS hot shoe mount
4)
ATMEMP
Active adaptor cable Binder 3-pin to 3-pin XLR male
5)
ATHPD
Concentric mounting adaptor with variable diameter to fit all
generic mic brackets
INSIDE

experience quality.
ATM216
www.ambient.de/en
5
5. ATM 216 AM
Miniature Electret Shotgun for ARRI AMIRA
Prod.nr. Description
1) ATM216 TinyMike, miniature electret shotgun microphone
2) ATMWS Velvet foam windshield
3) ATMWJ Fluffy windshield
4) ATHAM Custom suspension for ARRI AMIRA incl. 4 pieces cable brackets
4) ATMEMPAM Active adaptor cable Binder 3-pin to 3-pin XLR male right angle

ATM216
©2019, Ambient Recording GmbH
6
6. Cable Mounting Instructions ATM 216 AM

experience quality.
ATM216
www.ambient.de/en
7
7. Accessories
QBS
Mounting Adaptor for 3/8" female Threads
To mount a microphone suspension or accessory with 3/8" thread to a hot/ cold shoe we invented our
sophisticated QBS mount.
Thanks to the divided screw the thread can be spread when the microphone is in the perfect position.
This way it will lock and protect the microphone from twisting and turning on the camera with rapid
movements.
The necessary standard hex-wrench is included in the purchased parts package.
(opened thread)
(locked thread)
Technical Details
Material: anodized Aluminum
Weight: approx. 10 g
Screw diameter: 3/8"
Screw length: approx. 27 mm
Dimension (cold shoe): 18 x 18 mm
Including Allen key®
ATMWJ
Fluffy Windshield
Technical Details
Length: approx. 200 mm
Diameter: OD = 100 mm
Color: black
Material: fur

ATM216
©2019, Ambient Recording GmbH
8
ATB101
Hot Shoe Adaptor
Pivoting hot shoe mount with 3/8" thread
Technical Details
Dimension: approx. 50 mm
Material: POM, aircraft aluminum
Weight: approx. 70 g
ATMB
TinyBar
TinyBar double cold shoe 3/8“ and 1/4“ mount
Technical Details
Dimension (WDH): approx. 100 x 23 x 25 mm
Material: anodized Aluminum
Color: blue
Weight: approx. 42 g
ATMP
Accessory Mount
Hot shoe accessory mount with additional
hot shoe for radio transmitter.
Technical Details
Dimension (accessory mount): 60 x 65 mm
Dimension (additional hot shoe): 45 x 25 mm
Dimension (cold shoe): 18 x 18mm
Material (accessory mount): POM, metal
Weight: approx. 46 g
Example for use (Sennheiser wireless fixed by belt clip)

experience quality.
ATM216
www.ambient.de/en
9
8. Technical Data

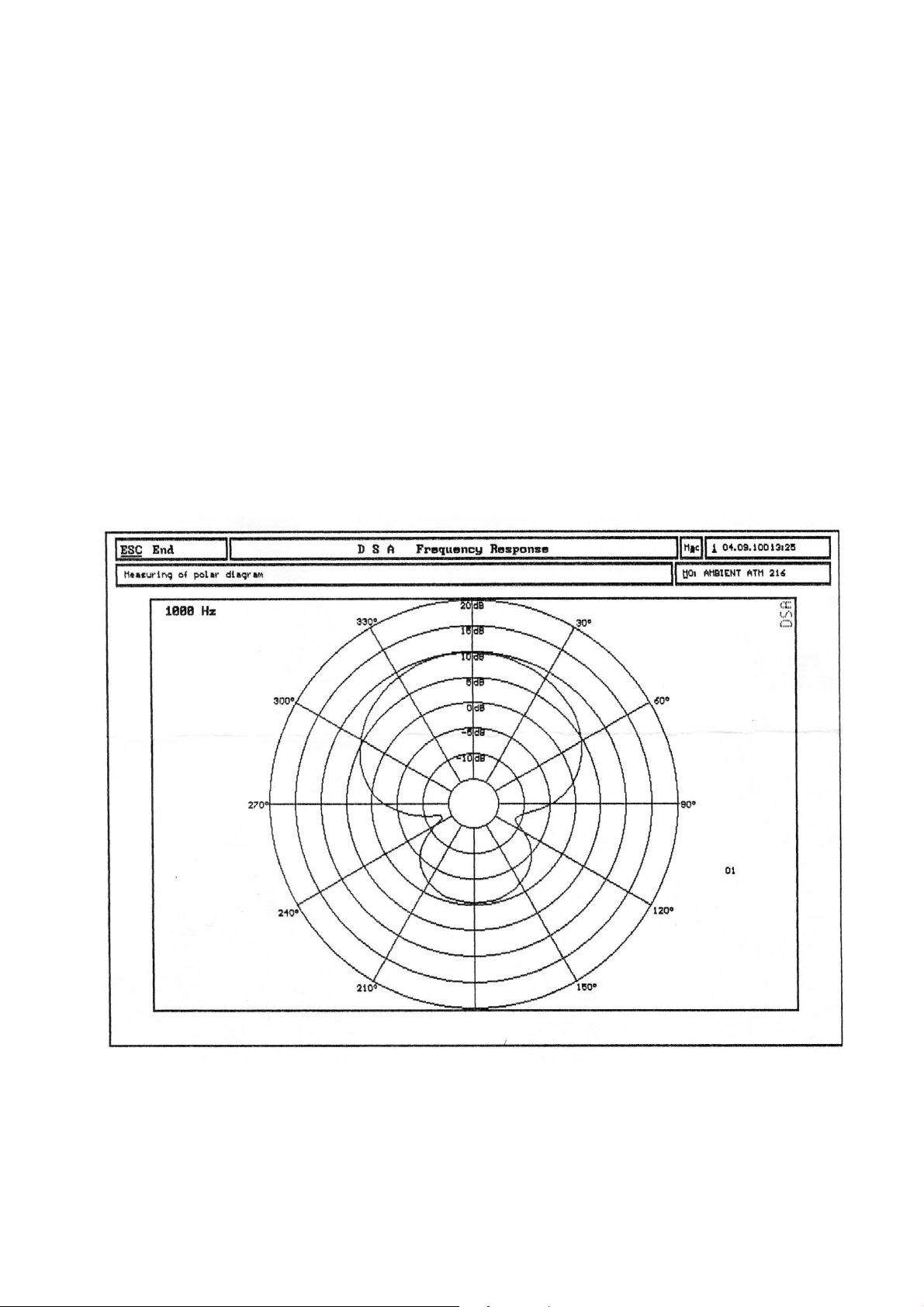

Polar pattern
Hyper cardioid (mini shotgun)
Frequency response +- 2 dB
20- 18000 Hz
Sensitivity
17mV/ Pa
Equivalent SPL rated at CCIR
33dB
Max. SPL 1kOhm
128dB
Dimensions
Ø 12/ 8 mm x 140 mm
Weight (without suspension)
30 g

ATM216
©2019, Ambient Recording GmbH
10
J4
J3
J2
J1
1
2
3
Minus wire only Minus wire & shield
red
red
Binder plug
9. Cable Wiring
ATM3.5
Adaptor Cable “TinyMike” adaptor with 3.5 TRRS right angle plug
Binder 3-pin to 3.5 mm TRS right angle plug
Length: approx. 27 cm
ATM3.5H
Adaptor Cable, unpadded
“TinyMike” adaptor with 3.5 TRRS right angle plug, unpadded
High sensitivity
Binder 3-pin to 3.5 mm TRS right angle plug
Length: approx. 27 cm
ATMEMP & ATMEMPAM
Active Cable
“TinyMike” Adaptor with 3-pin XLR
Active cable for 48 Volt Phantom power
Binder 3-pin to 3-pin XLR male
Length: approx. 40 cm
XLR cap: red
NC3MX-B with EMP plate on Binder plug

experience quality.
ATM216
www.ambient.de/en
11
10. Supplementary Information
To guarantee the best experience with your TinyMike, Ambient provides 2 different
3-pin Binder to mini jack interconnection cables:
One cable is unmarked and a straight connection to the camera/ recorder while the other one is
marked with a yellow sleeve and attenuates the signal level for recording high sound levels.
This helps to compensate for the wide variation in input sensitivity on devices with this kind of input
and their partial lack of manual level control.
Since it is almost impossible to give a globally valid recommendation it may become necessary to
evaluate the right cable for your application and gear and do a test.
We would advise to start with the unmarked/ unpadded cable and move over to the padded one only if
the audio shows one or more of these symptoms:
•Too loud
•Obtrusive AGC engagement ("pumping" background sounds in lower passages)
•Distorted audio even though signal metering in the display is still below max.
Contrary, the unpadded cable may be indicated if the recording shows increased noise and hiss.
We hope you enjoy recording with our gear.
11. Safety Instructions
For your own safety and trouble-free use, please carefully read through the instructions below. Always
keep a copy of these instructions and hand them out with the unit to other users.
This unit is exclusively intended for indoor use. Keep it safe and away from water, rain and humidity
and dry under all conditions, even when powered off. Clean gently with a slightly moistened cloth and
never let water, detergents or liquids of any kind get into the unit as this will imply the risk of short
circuits and electrical hazard.
Keep distant from sources of heat and never expose to direct sunlight. Admissible ambience
temperature for operation and storage is from +5° to +50° Celsius. Power down before storing or
shipping, detach external power sources, and, if applicable remove batteries.
Do not throw or expose to mechanical impact and keep it safe from hard vibrations.
Only use genuine accessories such as cables antennae etc. which have been included with the unit or
supplied by an authorized dealer. Always observe integrity and the pertinent compatibility with all units
connected to.
Powering from external sources is exclusively limited to the use of LPS sources in compliance to part
2.5 of EN 60950-1 with correct polarity, voltage range, and current rating. Disregarding recommended
power requirements may damage the product or even risk explosion of the internal backup cell.
Do not perform software updates in situations in which the integrity of mains supply cannot be granted
such as thunderstorms and remove connections from and to all devices directly or in directly
connected to mains.
When using the wireless connection, place it centrally and keep it distant from sources of possible
interference such as microwaves or electrical devices with large metal surfaces.
Only use the original external antenna directly and firmly attached to the socket. Extension or use of
3rd party accessories is not permissible.

ATM216
©2019, Ambient Recording GmbH
12
Only use the included WiFi dongle that was carefully evaluated for best performance, and leave it
connected all the time.
(Re-) attaching the WiFi dongle during operation will require a system restart.
Never open the unit. Inappropriate and unauthorized access will void the warranty and imply possible
risk of harm to the user.
When disposing the unit, follow the legal requirements for recycling electronic equipment.
12. Warranty
Ambient Recording GmbH warrants the TinyMike ATM216 against defects in materials and
workmanship for a period of ONE (1) year from date of original retail purchase. This is a non-
transferable warranty that extends only to the original purchaser. Ambient Recording GmbH will repair
or replace the product at its discretion at no charge. Warranty claims due to severe service conditions
will be addressed on an individual basis. THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE
EXCLUSIVE. AMBIENT RECORDING GMBH DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AMBIENT
RECORDING GMBH IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
ARISING FROM ANY BREACH OF WARRANTY OR UNDER ANY OTHER LEGAL THEORY. Because some
jurisdictions do not permit the exclusion or limitations set forth above, they may not apply in all cases.
For all service, including warranty repair, please send the ACN-ML, along with proof of purchase date to
your retailer, or, if not applicable, to:
Ambient Recording GmbH
Schleissheimer Str. 181 C
DE –80797 Muenchen, Germany
Please obtain a return authorization through the contact form on our website before sending in a unit.

experience quality.
ATM216
www.ambient.de/en
13
13. Approvals
-Conformity Statement:
-
Manufacturer´s Name: Ambient Recording GmbH
Manufacturer´s Address: Schleissheimer Str. 181 C
DE ‒80797 Munich, Germany
declares that the product:
ATM 216, TinyMike
is conformity with:
Document No.
EN 301 489-01
FCC-Code of Federal Regulations,
CFR47, Part 15, Sections 15.107 and 15.109 (Class B)
Industry Canada Interference-Causing Equipment Standard ICES-003 Issue 4,
Sections 5.3 and 5.5 (Digital Apparatus)
Sebastian Fell
Ambient Recording GmbH
[email protected]
