Ambient ABT-PSC48 User manual

User Manual
EN
Power Supply Combiner
ABT-PSC48
www.ambientsystem.eu
ver. 04.2020

Power Supply Combiner ABT-PSC48
User Manual
2
Table of Contents
1. Safety__________________________________________________________________________________ 3
2. ABT-PSC48 Power Supply Combiner____________________________________________________ 7
3. Unpacking _____________________________________________________________________________ 7
4. Installing and connecting the device ___________________________________________________ 8
5. ABT-PSC48 rear panel _________________________________________________________________ 9
6. ABT-PSC48 technical specications ___________________________________________________ 10
7. ABT-PS48800 Power Supply Unit______________________________________________________ 11
7.1 Rear panel______________________________________________________________________ 11
7.2 ABT-PS48800 technical specications ____________________________________________ 12
8. ABT-PF4 – PSU bracket ________________________________________________________________ 13

3
1. Safety
Danger!
High risk: This symbol indicates an imminently hazardous situation such
as"Dangerous Voltage" insidethe product. If not avoided, this will result
inanelectrical shock, serious bodily injury, or death.
Warning!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily injury.
Caution!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of damage to the unit.
1 Read these instructions. All the safety and operating instructions should be read before the
apparatus or system is operated.
2 Keep these instructions. The important safety instructions and operating instructions
should be retained for future reference.
3 Heed all warnings. All warnings on the apparatus and in the operating instructions should
be adhered to.
4 Follow all instructions. All instructions for installation or use/operating should be followed.
5 Do no use this apparatus near water. Do not use this apparatus near water or a moist
environment – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor installation, or any area which
is classied as a wet location.
6 Clean only with dry cloth. Unplug the apparatus from the outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. Openings in the enclosure, if any, are provided for ventilation and to ensure
reliable operation of the apparatus and to protect it from overheating. These openings must
not be blocked or covered. This apparatus should not be placed in a built-in installation unless
proper ventilation is provided or the manufacturer’s instructions have been adheredto.

Power Supply Combiner ABT-PSC48
User Manual
4
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat or in direct sunlight.
9 No naked ame sources, such as lighted candles, should be placed on the apparatus.
10 Do not defeat the safety purpose of the polarized or ground-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wider blade or the third prong are provided for your safety.
Ifthe provided plug does not t into your outlet, consult an electrician for replacement of
the obsolete outlet.
11 Protect the power cord from being walked on or pinched particularly at plug,
convenience receptacles, and the point where they exit from the apparatus.
12 Only use attachments/accessories specied by the manufacturer. Any mounting of
the apparatus should follow the manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
13 Use only with the cart, stand, tripod, bracket or table specied by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
14 Unplug this apparatus during lighting storms or when unused for long periods of time.
Not applicable when special functions are to be maintained, such as evacuation systems.
15 Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, theapparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
16 Avoid mechanical shocks. Strong impacts and shocks may damage the device. Transport the
device carefully and avoid dropping it.
17 The apparatus shall not be exposed to dripping or splashing and that no objects lled
with liquid, such as vases, shall be placed on the apparatus.
18 Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, re or the like.
Caution! Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type. Dispose of used batteries according to the
environmental law and procedures.
19 Professional installation only. Do not use this equipment in residential applications.
20 Condensation. In order to avoid condensation; wait a few hours before turning on the
equipment when it is transported from a cold to a warm space.
21 Hearing damage. For apparatus with audio output, to prevent possible hearing damage,
donot listen at high volume levels for long periods.

5
22 Do not disassemble the device or attempt to repair or modify it. The device does
not include user replaceable components inside the chassis. Opening the chassis and
unauthorized repairs will void the warranty. Unauthorized substitutions may result in re,
electric shock or other hazards.
23 Safety check. Upon completion of any service or repairs to this apparatus, ask the service
technician to perform safety checks to determine that the apparatus is in proper operating
condition.
Danger!
Overloading – do not overload outlets and extension cords as this can result in a risk
of re or electric shock.
24 Power sources. This apparatus should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply you plan to use,
consult your appliance dealer or local power company. For apparatuses intended to operate
from battery power, or other sources, refer to the operating instructions.
25 Power lines. An outdoor system should not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outdoor system, extreme care should be taken to keep from touching such
power lines or circuits, as contact with them might be fatal.
Danger! Object and Liquid entry – never push objects of any kind into this
apparatus through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill liquid of
any kind on the apparatus.
26 Protective grounding. An apparatus with class I construction shall be connected to a power
outlet socket with a protective grounding connection.
Protective earthing. An apparatus with class I construction shall be connected to a mains
socket outlet with a protective earthing connection.
Note for power connections
» For permanently connected equipment, a readily operable mains plug or all-pole
mains switch shall be external to theequipment and in accordance with all
applicable installation rules.
» For pluggable equipment, the socket-outlet shall be installed near the equipment and
shall be easily accessible.

Power Supply Combiner ABT-PSC48
User Manual
6
This label may appear on the bottom of the apparatus due to space limitations.
Caution! To reduce the risk of electrical shock, DO NOT open covers. Refer servicing to
qualied service personnel only.
Warning!
To prevent re or shock hazard, do not expose units to rain or moisture.
Warning! Installation should be performed by qualied service personnel only in
accordance with the National Electrical Code or applicable local codes.
Warning! Power disconnect: If the apparatus is mains powered and a power supply cord
set is provided, the disconnect device is the mains plug of the power cord set.
If an AC DC adapter is provided and the mains plug that is part of the direct plug in device,
the AC DC adapter is the disconnect device. The socket outlet shall be near the apparatus
and shall be easily accessible.
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected
separately and sent for environmentally compatible recycling (in accordance with
the European Waste Electrical and Electronic Equipment Directive). To dispose of old
electrical or electronic devices, you should use the return and collection systems put
in place in the country concerned.
Only used at altitude not exceeding 2000m.
Only used in non-tropical climate regions.
≤ 2000 m

7
2. ABT-PSC48 Power Supply Combiner
The ABT-PSC48 Power Supply Combiner is used to supply electroning equipment with 52 VDC rated
voltage, with a total maximum power of 3,2 kW.
It uses external 800W ABT-PS48800 switching power supplies.
The ABT-PSC48 can work with up to four of ABT-PS48800 power supplies, ensuring their
safe work connection.
The Power Supply Combiner is to be used in cases where emergency battery power is not needed.
The ABT-PSC48 Power Supply Combiner is designed to power ampliers, which are not equipped
with their own PSU, it is also possible to power ampliers equipped with an auxillary DC input.
The maximum conguration of the power delivery system is as follows:
» 1 × ABT-PSC48 – Power Supply Combiner
» 4 × ABT-PS48800 – Power Supply Module
» 1 × ABT-PF4 – Power Supply Modules Bracket
Fig. 1. ABT-PSC48 front panel
3. Unpacking
Please read the following instructions in order to gain useful information regarding installation,
operation and specications of the product. Similar to most of electronic devices, upon returning
the product, original packaging will be required.

Power Supply Combiner ABT-PSC48
User Manual
8
4. Installing and connecting the device
General Notes
Installing, connecting and conguring the devices should be performed in accordance to the
following manual. When connecting DC power cables pay special attention to the polarity. Wrong
polarity will result in PSU or Power Supply Combiner damage. Before powering the system up
check all the connections.
Installation
The device is designed to be mounted in a 19” rack enclosure. The Power Supply Units should be
mounted in a dedicated ABT-PF4 bracket which is then mounted in the rack cabinet.
Connecting the device
Ground the device using the grounding bolt on the lower left side of the rear panel. Next, connect
the necessary number of ABT-PS48800 Power Supply Units to the INPUT DC 52 V terminals placed
on the rear panel of the ABT-PSC48, making sure of the correct polarity.

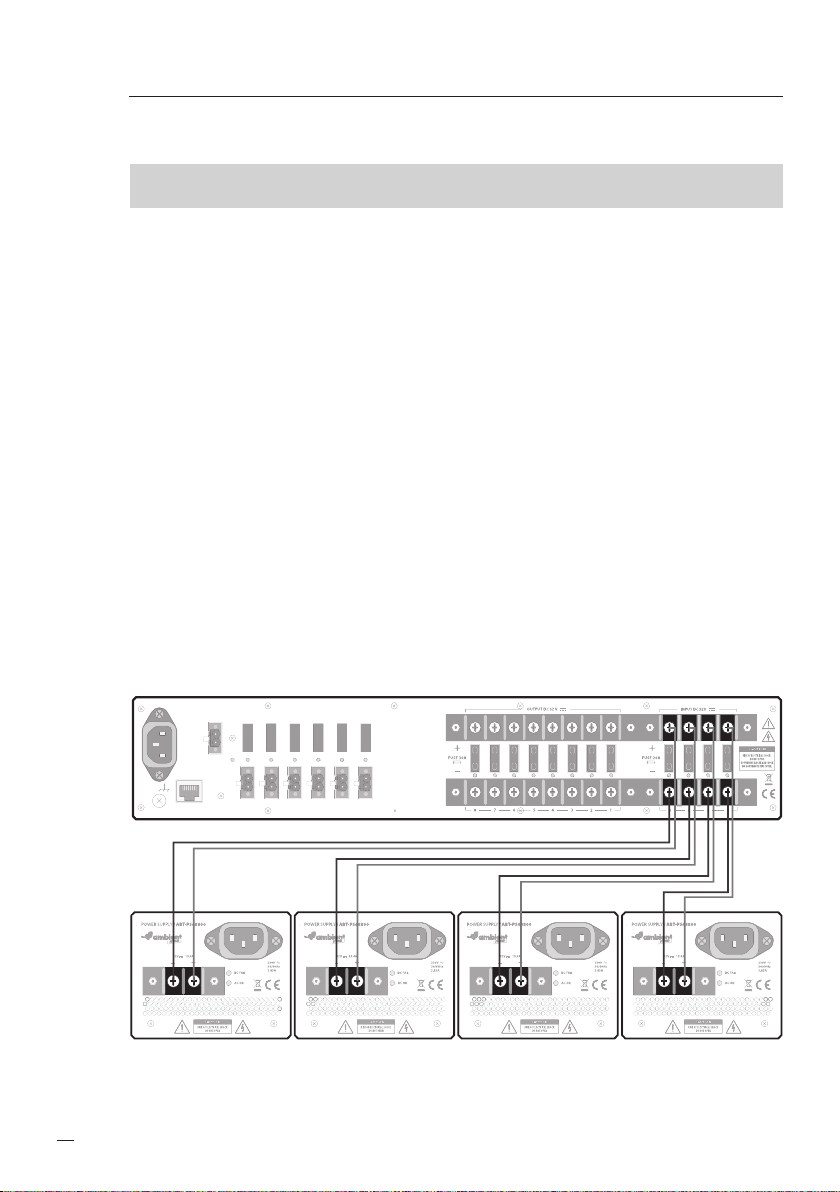

The diagram below shows the maximum conguration of the power delivery system consisting of
four connected PSUs. Lastly, connect the devices powered by the ABT-PSC48.
NOTE: In order to connect devices drawing more than 30 A bridge an according
number of 52V outputs.
Fig. 2.
POWER SUPPLY COMBINERP
O
WER S
U
PPLY
CO
MBINER
Connection between 4 Power Supply Units ABT-PS48800 & Power Supply Combiner ABT-PSC48

9
5. ABT-PSC48 rear panel
All of the rear panel’s connectors are shown on the diagram below.
Fig. 3.
POWER SUPPLY COMBINER
67
89
10
12 3 4 5
Rear panel of ABT-PSC48
1. Not connected
2. Not connected
3. Not connected
4. 52 V DC output terminals
5. 52 V DC input terminals. Used to connect Power Supply Units
6. Grounding bolt
7. Not connected
8. Not connected
9. Output circuit fuses (30 A, 58 VDC) used to prevent 52 VDC overcurrent
10. Input circuit fuses (20 A, 58 VDC) used to prevent PSU overcurrent

Power Supply Combiner ABT-PSC48
User Manual
10
6. ABT-PSC48 technical specifications
Model ABT-PSC48
Electrical parameters
DC inputs 4, M4 DEGSON terminals, 13 mm raster,
dedicated PSU (ABT-PS48800)
DC input protection 4× 20A 58 VDC blade fuse
DC outputs 8× 52 V, M4 DEGSON terminals, 13 mm raster,
each 52 VDC output 30A max.
DC output protection 8× 30 A 58 VDC blade fuse
Maximum total DC load The maximum total DC
load should not exceed 60A
External parameters
Enclosure Steel front panel, powder coated,
atblack, white inscriptions
Dimensions 482 (W) × 85 (H) × 443 (D) mm
Weight 6 kg

11
7. ABT-PS48800 Power Supply Unit
The ABT-PS48800 is a switching Power Supply Unit. It’s rated power is 800W. It is possible to use
theABT-PS48800 as a standalone unit without using the ABT-PF4 rackmount bracket.
7.1 Rear panel
The ABT-PS48800 rear panel is shown on the diagram below.
Fig. 4.
1
3
2
Rear panel of ABT-PS48800 Power Supply Unit module
1. 230V AC 3,85A C13 power connector
used to connect the power cord
2. 52V DC 15,4A output connector
used to supply 52V DC current
3. Device state indicator lights
see LED explanation below
DC FAIL lights up red, when sucient output voltage
is not reached (overload)
AC OK lights up green, when the AC voltage is sucient
for the device to operate

Power Supply Combiner ABT-PSC48
User Manual
12
7.2 ABT-PS48800 technical specifications
Model ABT-PS48800
Electrical parameters
AC power
230 V AC +10% -15%, 50/60 Hz, 3,85A
Power cord: IEC 60320
C13 3x0,75 mm2 (included)
Maximum power consumption 885 W
Eciency at rated power > 90%
AC input protection T6,3A/250V 5× 20 mm cartridge fuse
(accessibleupon opening the chassis)
Electrical shock protection Class I (PN-EN 60065)
DC output M4 DEGSON terminal,13mm
raster, 52V DC, 15,4A max.
External parameters
Dimensions 85 (W) × 95 (H) × 395 (L) mm
Weight 2,6 kg
Accessories IEC 60320 C13 1,5m power cord

13
8. ABT-PF4 – PSU bracket
The bracket is used to mount the Power Supply Units in a 19” IP30 rack cabinet. Four independent
ABT-PS48800 Power Supply Units can be mounted in the bracket using the supplied mounting
screws. The bracket should be placed under the ABT-PSC48 Power Supply Combiner.
Fig. 5. ABT-PF4 front panel

Power Supply Combiner ABT-PSC48
User Manual
14

15

www.ambientsystem.eu
Ambient System Sp. z o.o.
ul. Bysewska 27 | 80-298 Gdańsk | Poland
T: [phone] | [e-mail]
