AmbiSonic Systems LS Kit 3 User manual

LS KITS 3 & 4
Landscape Speaker System
Installation Manual
LS Kit 3
LS Kit 4

2
Thank you for buying Ambisonic Landscape Loudspeaker
system. These systems were designed and tuned by the same
engineers who invented multiple speaker satellite/subwoofer
outdoor sound systems. They’re built to install easily and
quickly, and to sound fantastic day in and day out for years to
come.
This manual provides all the necessary information for
installation. If for any reason you experience problems or if you
have installation questions, please call us at [phone].
Hours of operation are 8:00 AM to 5:00 PM (Pacific Time),
Monday through Friday.
1. INTRODUCTION

3
TABLE OF CONTENTS
1. Introduction...................................................................................................
2. Important Safety Instructions ............................................................
3. Warranty .......................................................................................................
4. Tools Needed .............................................................................................
5. Speaker Cable Choice ...........................................................................
6. What’s Included .........................................................................................
7. Specifications .............................................................................................
8a. L-300 Amplifier Features (Without Streamer) ........................
8b. L-300 Amplifier Features (With Streamer) ...............................
9. System Planning & Installation ..........................................................
10a. LS KIT 3 Set Up & Configuration .................................................
10b. LS KIT 3 L-300 Amplifier Calibration ........................................
11a. LS KIT 4 Set Up & Configuration ..................................................
11b. Linking Both Amplifiers for LS KIT 4 ..........................................
11c. LS KIT 4 L-300 Amplifier Calibration .........................................
12a. LS KIT 3 Wiring Diagram .................................................................
12b. LS KIT 4 Wiring Diagram .................................................................
13. Testing the System ................................................................................
14. Connecting to a Bluetooth Device ................................................
15. Troubleshooting ......................................................................................
16. Technical Assistance ...........................................................................
2
4
6
7
7
8
9
10
12
14
18
22
24
27
28
30
31
32
32
33
34

4
2. IMPORTANT SAFETY INSTRUCTIONS
1
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide bladed or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
• Unplug this apparatus during lightning storms or when unused for
long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

5
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER OR BACK. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO AUTHORIZED
SERVICE PERSONNEL.
CAUTION: WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE
APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING. NO OBJECTS FILLED WITH LIQUIDS SHALL
BE PLACED ON THE APPLIANCE.
2
• To help maintain ambient temperature, DO NOT mount in locations
with direct sunlight.
• To reduce the risk of electrical shock, do not open the equipment.
For safety reasons it is only allow to the opened by qualified service
personnel.
• WARNING: To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. Additionally, the apparatus shall not
be exposed to dripping or splashing and no objects filled with liquids
shall be
placed on the apparatus.
• The mains plug is used as the disconnect device and shall remain
readily operable.
• The product shall be used on open bench.
• No naked flame sources, such as lighted candles, should be placed
on the apparatus.
• The apparatus should be connected to a mains socket outlet with a
protective earthing connection.
• Ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, table-cloths, curtains, etc.
• This apparatus is suitable for use in tropical climates.

6
3. WARRANTY
Ambisonic warrants to the original retail purchaser only that this
Ambisonic product will be free from defects in materials and
workmanship, provided the speaker was purchased from an Ambisonic
authorized dealer. If the product is determined to be defective, it will be
repaired or replaced at Ambisonic’s discretion. If the product must be
replaced yet it is no longer manufactured, it will be replaced with a model
of equal to or greater value that is the most similar to the original. If this
is the case, installing the replacement model may require mounting
modifications; Ambisonic will not be responsible for any such related
costs.
This warranty may not be valid if the product was purchased through
an unauthorized dealer. This warranty only applies to the individual that
made the original purchase, and it cannot be applied to other purchases.
The purchaser must be prepared to provide proof of purchase (receipt).
This warranty will not be valid if the identifying number or serial number
has been removed, defaced, or altered.
Warranty Requirements & Warranty Coverage:
All warranties and warranty conditions are subject to change. Please
refer to www.ambisonicsystems.com for the latest information.
These conditions are not covered by warranty:
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone
other than Ambisonic or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of
the unit
• Damage inflicted during the return shipment
3 YEAR LIMITED WARRANTY - L300 AMPLIFIER & S11BP-IG
5 YEAR LIMITED WARRANTY - LS64 SATELLITE

7
4. TOOLS NEEDED
• Speaker Wire (Burial Grade)
• Wire Stripper
• Precision Screwdriver
• Shovel
• Trenching Shovel (Optional)
• Rubber Mallet (Optional)
5. SPEAKER CABLE CHOICE
Be sure to use burial-grade speaker cable for any cables that will be
buried underground.
If the cables will be run through walls (such as running from the speaker
system to an amplifier installed indoors), make sure your cables are
CL3-rated for in-wall use.
To ensure the best performance from the speakers, use stranded
speaker wire of the appropriate gauge for the length of the wire run.
Wire Gauge Wire Length
16 0 - 100 ft (0 - 30m)
14 50 - 150 ft (15 - 45 m)
12 100 - 250 ft (30 - 76m)
MAX Length 250 ft (76m)

8
a. LS KIT 3
b. LS KIT 4
6. WHAT’S INCLUDED
a. LS KIT 3
1 x L-300 Amplifier
1 x S11BP-IG Burial Subwoofer
2 x LS64 Landscape Speakers
2 x LSLS Stakes
2 x Resistors
b. LS KIT 4
2 x L-300 Amplifiers
1 x S11BP-IG Burial Subwoofer
4 x LS64 Landscape Speakers
4 x LSLS Stakes

9
7. SPECIFICATIONS
LS64 Satellite Speakers:
• 6'' Polypropylene Woofer
• 6'' Passive Radiator
• 1'' Titanium Tweeter
• Frequency Response: 60Hz - 20kHz [+/-3dB]
• Power Handling: 50W x RMS | 150W Peak
• Impedance: 8  or 70 V
• SPL:  dB
• Weather & UV Resistant ABS Enclosure/
Rugged Injected Molded Polypropylene
• Dimensions: 11'' L x 7'' H x 7.1'' Diameter
• LSLS Ground Spike: 11''
S11BP-IG Subwoofer:
• In-Ground Subwoofer
• 11'' Dual Voice-Coil Polypropylene Woofer
• 2'' Voice Coil
• Frequency Response: 41Hz – 150Hz [+/-3dB]
• Power Handling: 200W x 2 AES | 400W x 2 Peak
• Impedance: 8  or 70 V
• Low Density Polyethylene (LDPE) Black Sealed Enclosure
• Dimensions: 12⁄’’ Diameter x 23'' H Base
17'' Diameter x 8⁄'' H Canopy
L-300 Digital 2-Channel Outdoor Amplifier:
• 2 Channels: 150W @ 8 / 250W @ 4
• Surface Mounting
• Bluetooth Connectivity
• All Weather Finish IP66
• 7'' W x 6.25'' D x 12.75'' H
• 120Hz LPF Switch as Subwoofer Amp
• Input Sensitivity

10

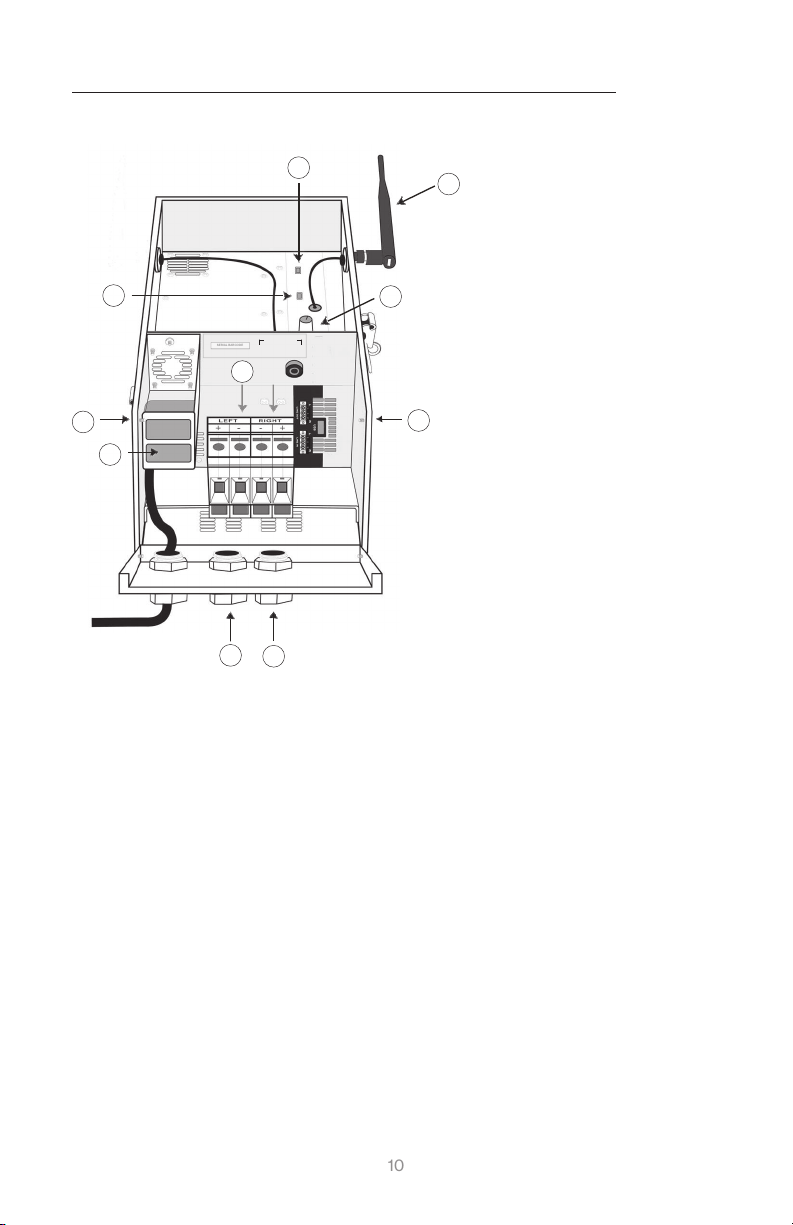

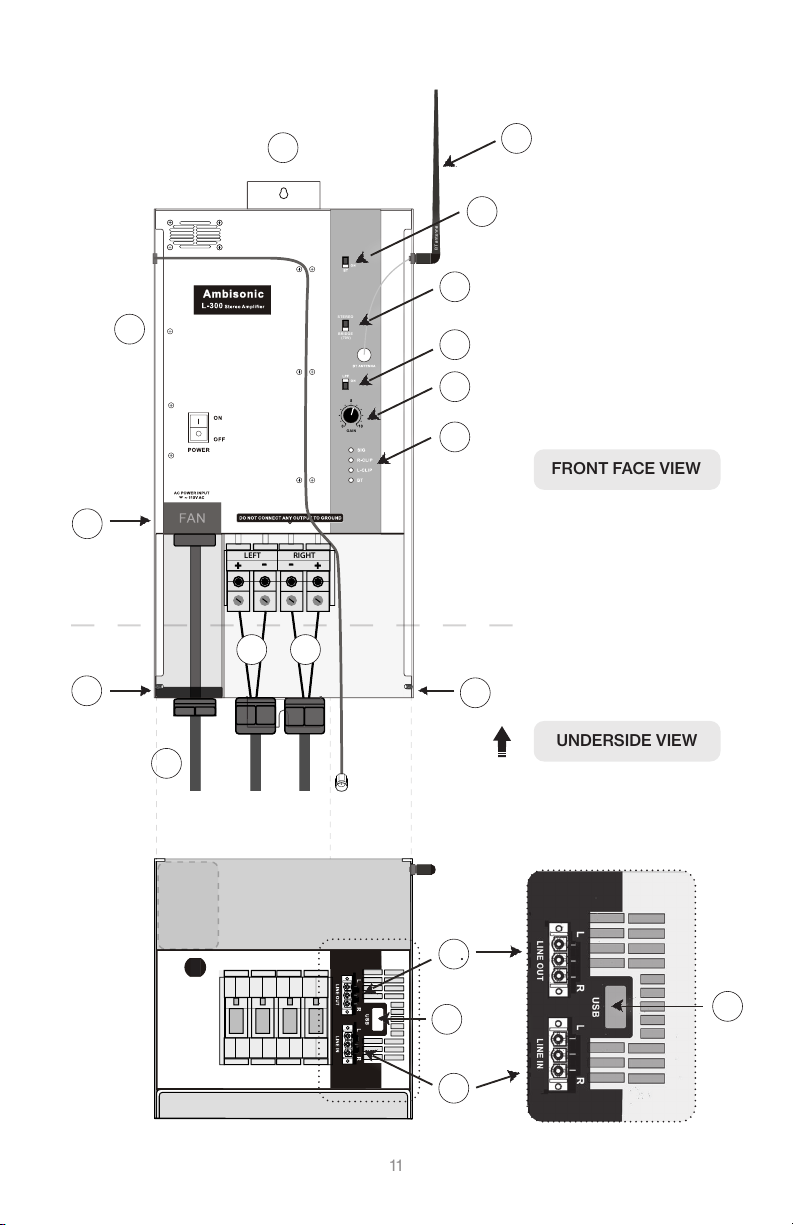

8a. L-300 AMPLIFIER FEATURES (Without Streamer)
1. Bluetooth Antenna (1)
2. Bluetooth Switch
3. Bridge (70V) or Stereo Switch
4. Low Pass Filter (LPF) Switch
5. Gain Knob
6. Clipping/BT Indicator Lights
7. Speaker Output: Right
8. Speaker Output: Left
9. 120V AC Input
10. Fan
11. Bridge (70V) Speaker Output
L+ & R-
12. Line OUT Phoenix Connection
13. Line IN Phoenix Connection
14. USB 5V Power Port
15. -
16. -
17. Speaker Wire Strain Reliefs (2)
18. Weather Resistant Enclosure
19. Mounting Tab
20. Bottom Panel Access Door:
(For easier access, loosen the
2 forward screws on each side &
then pull panel downward)
1.
5.
20.
20.
10.
17. 17.
2.
3.
MANUFACTUREDIN CHINA
SERIAL BARCODE
SERIAL NUMBER
BRIDGE (70V)
LEFT + RIGHT -
11.

11
LEFT RIGHT
-
+-+
GAIN
BRIDGE
(70V)
STEREO
18.
19. 1.
2.
3.
20.
20.
4.
5.
13.
14.
12.
6.
FRONT FACE VIEW
UNDERSIDE VIEW
14.
9.
10.
7.8.

12

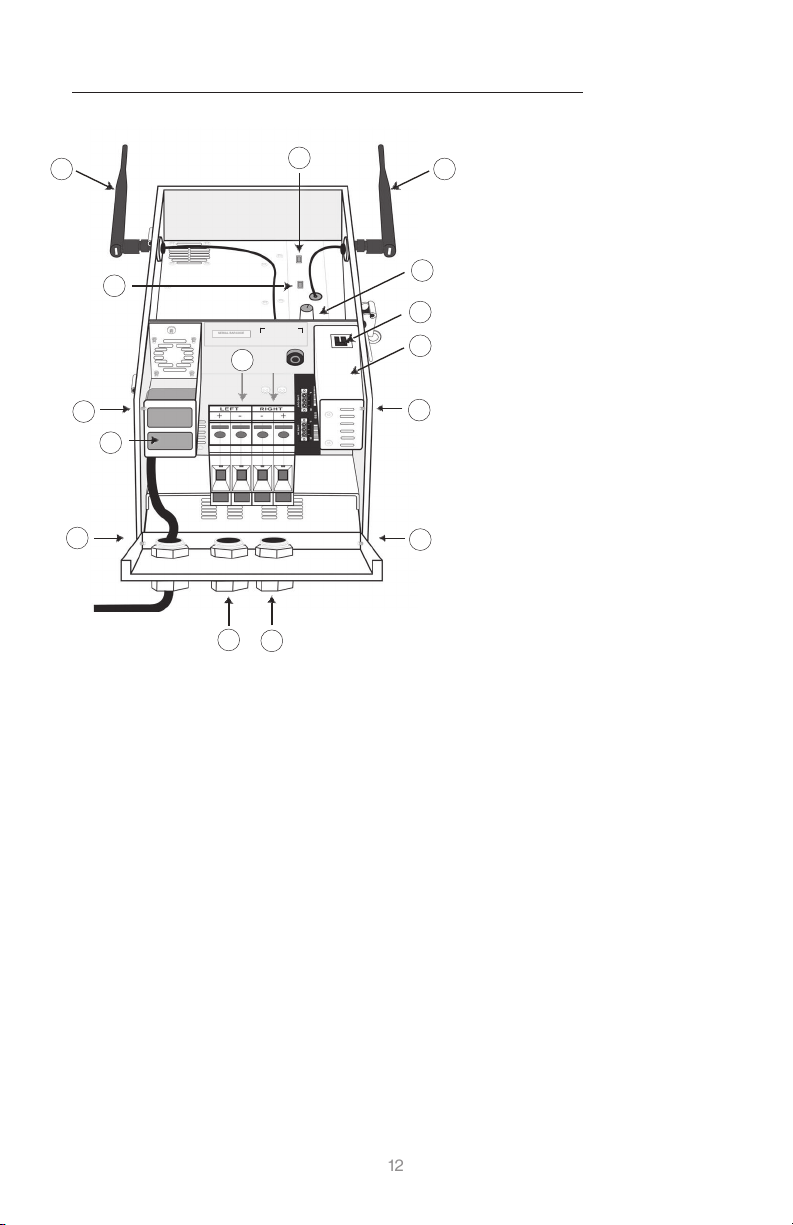

8b. L-300 AMPLIFIER FEATURES (With Streamer)
1.
1. Bluetooth Antennas (2)
2. Bluetooth Switch
3. Bridge (70V) or Stereo Switch
4. Low Pass Filter (LPF) Switch
5. Gain Knob
6. Clipping/BT Indicator Lights
7. Speaker Output: Right
8. Speaker Output: Left
9. 120V AC Input
10. Fan
11. Bridge (70V) Speaker Output
L+ & R-
12. Line OUT Phoenix Connection
13. Line IN Phoenix Connection
14. USB 5V Power Port to Streamer
15. Streamer
16. RJ45 Internet Hardwire
Connection
17. Speaker Wire Strain Reliefs (2)
18. Weather Resistant Enclosure
19. Mounting Tab
20. Bottom Panel Access Door:
(For easier access, loosen the
2 forward screws on each side &
then pull panel downward)
3.
5.
20.
20.
16.
15.
1.
17. 17.
2.
20.
20.
10.
11.
MANUFACTUREDIN CHINA
SERIAL BARCODE
SERIAL NUMBER
BRIDGE (70V)
LEFT + RIGHT -

13
LEFT RIGHT
-
+-+
GAIN
BRIDGE
(70V)
STEREO
18.
7.8.
19. 1.1.
20.
FRONT FACE VIEW
UNDERSIDE VIEW
13.
14.
12.
14.
20.
9.
3.
4.
5.
10.
6.
2.

14
9. SYSTEM PLANNING & INSTALLATION
The speakers and subwoofer should be strategically placed to evenly
distribute sound throughout the outdoor area. Fully plan out the
locations of the amp, all speakers, subwoofer and buried wires, before
beginning the installation process.
The system is designed for the speakers to be evenly divided between
two PARALLEL wire runs, with the subwoofer connected to both. The
wires will be buried in single 5'' trench.
9a. POSITIONING & INSTALLING THE SATELLITE SPEAKERS
I. Speakers should be fairly evenly spaced, in a line, and aimed so they
cover the listening area and so that sound is evenly dispersed around
the outdoor space uniformly.
 For best coverage, we recommend spacing the speakers 8 - 15 feet
apart.
 Use a minimum of 14 AWG wire.
 Do not place speakers in direct line with sprinkler spray.
II. Push the mounting spikes for the satellite speakers to vertically plumb
into the ground.
 Be sure to have the wire hole on the side of the stake facing away from
the listening area.
 If the ground is too firm to push the spike in all the way, remove the
speaker from the spike and tap the spike in gently with a rubber mallet.
 Be careful not to use too much force on the spikes, because they can
break.

15
III. Feed the speaker wire through the top hole of the ground stake and
out the wire hole on the side of the stake.
 The speaker can now be screwed onto the stake clockwise until tight.
 Using a 4mm hex wrench, adjust speaker angle to the direction of the
listening area.
DIAGRAM  • LS64 Speaker Head Attachment

16
9b. POSITIONING & INSTALLING THE SUBWOOFER
I. The S11BP-IG dimensions are 12⁄'' diameter x 23'' high, 17'' diameter
x 18⁄ Canopy
 Select a location for the subwoofer. It should be placed as close to the
middle of the speaker system as practical, ideally with half the satellite
speakers on one side and half on the other.
 Subwoofer should be positioned away from standing water.
II. For more bass, install the subwoofer near a wall or other solid surface.
III. Make a hole 15’’ diameter x 8’’ deep and insert the subwoofer.
Place subwoofer, as level as possible, not tilted, in the center of hole &
use loose dirt to level the subwoofer, ensuring the subwoofer is not in
direct contact with any large rocks or large empty holes.
Fill remaining space around subwoofer with loose dirt.
Mount the Canopy to the Subwoofer Base. Ensure that all vents under
the Canopy are exposed, allowing a visible space of about 5’’ from the
ground level to the bottom edge of the Canopy.

17
DIAGRAM  • S11BP Subwoofer Burial Installation
8.46 in
15.75 in
2-4 in
23.65 in
17 inch
12.09 in
5 in
9c. POSITIONING & INSTALLING THE AMPLIFIER
 Locate a shaded area for the amplifier to be installed out of direct
sunlight.
 Mount amplifier to a wall or post located in a shaded area.
 Use a minimum of 14 AWG wire for sending a strong signal.
Do NOT Turn ON Amplifier until all Wiring is Complete

18
10a. LS KIT  | SET UP & CONFIGURATION
Running Wires from the Amplifier to the Speaker & Subwoofer
I. Dig a 5'' trench where you plan on laying out the wire. Run the left and
right speaker cables from the amplifier to the subwoofer location. The
subwoofer should have four input connections:
WHITE / Positive | GREEN / Negative (Left Channel)
RED / Positive | BLACK / Negative (Right Channel)
6
•Waterproof Wire nuts
WHITE GREEN RED BLACK
•
•
•
•
■381.00
■740.00 ■615.00
坑纹方向
■740.00 ■615.00
AS41SYS LSCAPE: Gift box
材質：
300G 白板+A9 高强+A9 高强+光胶
Scale: 1:1
Unit: mm
数量：
1SUB+4PCS SATS
AS4100SYS
844.674.4461
[e-mail]
www.originacoustics.com
AS4SAT
AS4SAT
AS4SAT
AS4SAT
AS41SUB10
DESIGNED IN OREGON, USA - MADE IN CHINA
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
PREMIUM OUTDOOR LOUDSPEAKER SYSTEM
ADD UP TO EIGHT SATELLITE SPEAKERS
WITH STANDARD 2-CHANNEL AMPLIFICATION (SOLD SEPARATELY)
WHAT’S INCLUDED:
4 x AS4SAT 4.5” SATELLITE LOUDSPEAKERS
1 x AS41SUB10 10” DUAL VOICECOIL SUBW0OFER
CREATE RICH HI-FI SOUND IN ANY OUTDOOR ENVIRONMENT 1,500 SQ FT OF HIGH QUALITY AUDIO COVERAGE |EXPANDABILITY UP TO 2,550 SQ FT*
* WITH 8 x AS4SATS | AS4SAT EXPANSION PAIR PACKS SOLD SEPARATELY
SIMPLE, FAST & FLEXIBLE INSTALLATION | EXPANDABILITY
WORKS WITH 2 CHANNELS ON AMBISONIC L300 AMPLIFIER
SOUND CAN BE DIRECTED INWARDS / ELIMINATING DISTURBANCES TO SURROUNDING NEIGHBORS
DUAL-USE PATIO OR BURIAL SUBWOOFER | CO-AXIAL TWO-WAY LOUDSPEAKERS
ALL MOUNTING HARDWARE INCLUDED | BURIAL SPEAKER WIRE SOLD SEPARATELY
EARTH COLOR CAMOUFLAGE ENCLOSURES FOR A HIDDEN SOUNDSCAPE WITHIN PLANTS & FOLIAGE
IPX6 RATED | ENGINEERED TO WITHSTAND ANY CONDITIONS FROM 4º TO 176ºF (-15.5º TO 80ºC)
BACKED BY 5 YEAR FACTORY WARRANTY
FOUR AS4SAT 4.5” SATELLITE LOUDSPEAKERS
ONE AS41SUB1 10” DUAL VOICE COIL SUBW0OFER
AS41SUB10 FLEXIBLE INSTALLATION
BURIAL
OR
HARDSCAPE
1 x AS41SUB10 Subwoofer
(Included)
4 x AS4SAT Speakers
(Included)
Receiver
(Not Included)
4 x AS4SAT Speakers
(Sold Separately)
Description
Quantity
Dimensions
Woofer Cone
Tweeter
Enclosure
System Impedance
Frequency Response (System)
Crossover Frequency (System)
Power Handling
Output SPL
Dispersion
Listening Area
Wire Recommendations
4 1/2” Plantable Speakers w/ 11 3/4” In-Ground Mounting Stakes
4
5 3/4” W x 5 9/16” H x 7 1/16” W (146 x 142 x 180mm) |18“ H w/ Stakes (457mm)
4 1/2” Injection Molded Polypropylene
0.75” PEI Dome
Sealed Color-Molded Composite
10
” Dual Voice Coil Subwoofer with Sealed Enclosure for Low Bass Extension
1
12 7/8” H x 15 3/4” W (326 x 400mm)
10
” Dual Voice Coil Injection Molded Polypropylene
-
Sealed Poly Composite PVC Enclosure
4 - 8 Ω per Channel, Nominal
35Hz - 20kHz
(+/-3dB)
100Hz
120W (Program) / 240W (Peak)
87dB
70° up to 20’ Omnidirectional
Up to 1,500 Sq Ft (Up to 2,550 Sq Ft with 8 AS4SATs)
14 Gauge -- Up to 250 Feet (80 Meters) 2 Conductor,
Stranded, Direct Burial
12 Gauge -- Up to 400 Feet (122 Meters) 2 Conductor,
Stranded, Direct Burial
AS4SAT SATELLITE LOUDSPEAKER AS41SUB10 10” DUAL VOICE COIL SUBWOOFER
DIAGRAM  • Wiring from L-300 Amp to S11BP Subwoofer
LEFT CHANNEL
to speaker
RIGHT CHANNEL
to speaker
LEFT CHANNEL
from amp
RIGHT CHANNEL
from amp

19
Using waterproof wire nuts, connect both left and right channels from
the amp to the subwoofer, making sure positive is connected to positive
and negative is connected to negative.
II. From the subwoofer location, extend the left speaker cable to the
left satellite speaker, and the right speaker cable to the right satellite
speaker, using a parallel connection from the subwoofer.
Strip ½'' of the jacket o the ends of all cables.
++
--
++
--
L300 L300
++
L300
L300 Subwoofer Amp:
Engage LPF
++
--
++
--
8Ω 8Ω
--
■381.00
■740.00 ■615.00
坑纹方向
■740.00 ■615.00
AS41SYS LSCAPE: Gift box
材質：
300G 白板+A9 高强+A9 高强+光胶
Scale: 1:1
Unit: mm
数量：
1SUB+4PCS SATS
AS4100SYS
844.674.4461
[e-mail]
www.originacoustics.com
AS4SAT
AS4SAT
AS4SAT
AS4SAT
AS41SUB10
DESIGNED IN OREGON, USA - MADE IN CHINA
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
PREMIUM OUTDOOR LOUDSPEAKER SYSTEM
ADD UP TO EIGHT SATELLITE SPEAKERS
WITH STANDARD 2-CHANNEL AMPLIFICATION (SOLD SEPARATELY)
WHAT’S INCLUDED:
4 x AS4SAT 4.5” SATELLITE LOUDSPEAKERS
1 x AS41SUB10 10” DUAL VOICECOIL SUBW0OFER
CREATE RICH HI-FI SOUND IN ANY OUTDOOR ENVIRONMENT 1,500 SQ FT OF HIGH QUALITY AUDIO COVERAGE |EXPANDABILITY UP TO 2,550 SQ FT*
* WITH 8 x AS4SATS | AS4SAT EXPANSION PAIR PACKS SOLD SEPARATELY
SIMPLE, FAST & FLEXIBLE INSTALLATION | EXPANDABILITY
WORKS WITH 2 CHANNELS ON AMBISONIC L300 AMPLIFIER
SOUND CAN BE DIRECTED INWARDS / ELIMINATING DISTURBANCES TO SURROUNDING NEIGHBORS
DUAL-USE PATIO OR BURIAL SUBWOOFER | CO-AXIAL TWO-WAY LOUDSPEAKERS
ALL MOUNTING HARDWARE INCLUDED | BURIAL SPEAKER WIRE SOLD SEPARATELY
EARTH COLOR CAMOUFLAGE ENCLOSURES FOR A HIDDEN SOUNDSCAPE WITHIN PLANTS & FOLIAGE
IPX6 RATED | ENGINEERED TO WITHSTAND ANY CONDITIONS FROM 4
º TO 176ºF (-15.5º TO 80ºC)
BACKED BY 5 YEAR FACTORY WARRANTY
FOUR AS4SAT 4.5” SATELLITE LOUDSPEAKERS
ONE AS41SUB1 10” DUAL VOICE COIL SUBW0OFER
AS41SUB10 FLEXIBLE INSTALLATION
BURIAL
OR
HARDSCAPE
1 x AS41SUB10 Subwoofer
(Included)
4 x AS4SAT Speakers
(Included)
Receiver
(Not Included)
4 x AS4SAT Speakers
(Sold Separately)
Description
Quantity
Dimensions
Woofer Cone
Tweeter
Enclosure
System Impedance
Frequency Response (System)
Crossover Frequency (System)
Power Handling
Output SPL
Dispersion
Listening Area
Wire Recommendations
4 1/2” Plantable Speakers w/ 11 3/4” In-Ground Mounting Stakes
4
5 3/4” W x 5 9/16” H x 7 1/16” W (146 x 142 x 180mm) |18“ H w/ Stakes (457mm)
4 1/2” Injection Molded Polypropylene
0.75” PEI Dome
Sealed Color-Molded Composite
10
” Dual Voice Coil Subwoofer with Sealed Enclosure for Low Bass Extension
1
12
7/8 ” H x 15 3/4 ” W (326 x 400mm)
10
” Dual Voice Coil Injection Molded Polypropylene
-
Sealed Poly Composite PVC Enclosure
4 - 8 Ω per Channel, Nominal
35Hz - 20kHz
(+/-3dB)
100Hz
120W (Program) / 240W (Peak)
87dB
70° up to 20’ Omnidirectional
Up to 1,500 Sq Ft (Up to 2,550 Sq Ft with 8 AS4SATs)
14 Gauge -- Up to 250 Feet (80 Meters) 2 Conductor,
Stranded, Direct Burial
12 Gauge -- Up to 400 Feet (122 Meters) 2 Conductor,
Stranded, Direct Burial
AS4SAT SATELLITE LOUDSPEAKER AS41SUB10 10” DUAL VOICE COIL SUBWOOFER
DIAGRAM • LS KIT 3 | Wiring Diagram
RIGHT CHANNELLEFT CHANNEL

20
Extend from the subwoofer to the LEFT satellite speaker.
At the LEFT satellite speaker, connect the RESISTOR in line with the
LEFT positive to LEFT positive wire and the LEFT negative to LEFT
negative wire.
Extend from the connected RESISTOR to the LEFT satellite speaker.
Connect the LEFT positive to the RED positive wire and the LEFT
negative to the BLACK negative wire of the LEFT satellite speaker.
See Diagram 5.
IV. Connect the RIGHT positive conductor from the amp, to the RIGHT
(Red Wire) input on the subwoofer.
Connect the RIGHT negative conductor from the amp, to the RIGHT
(Black Wire) input on the subwoofer.
 Left Channel: WHITE = Positive | GREEN = Negative
 Right Channel: RED = Positive | BLACK = Negative
Extend from the subwoofer to the RIGHT satellite speaker.Connect the
RESISTOR in line with RIGHT positive to the RIGHT positive wire and
the RIGHT negative to the RIGHT negative wire of the RIGHT satellite
speaker. See Diagram 5.
Extend from the connected RESISTOR to the RIGHT satellite speaker.
Connect the RIGHT positive to the RED positive wire and the RIGHT
negative to the BLACK negative wire on the RIGHT satellite speaker.
III. Connect the LEFT positive conductor from the amp, to the LEFT
positive (White Wire) input on the subwoofer.
Connect the LEFT negative conductor from the amp, to the LEFT
negative (Green Wire) input on the subwoofer.
