AMC MP04 User manual

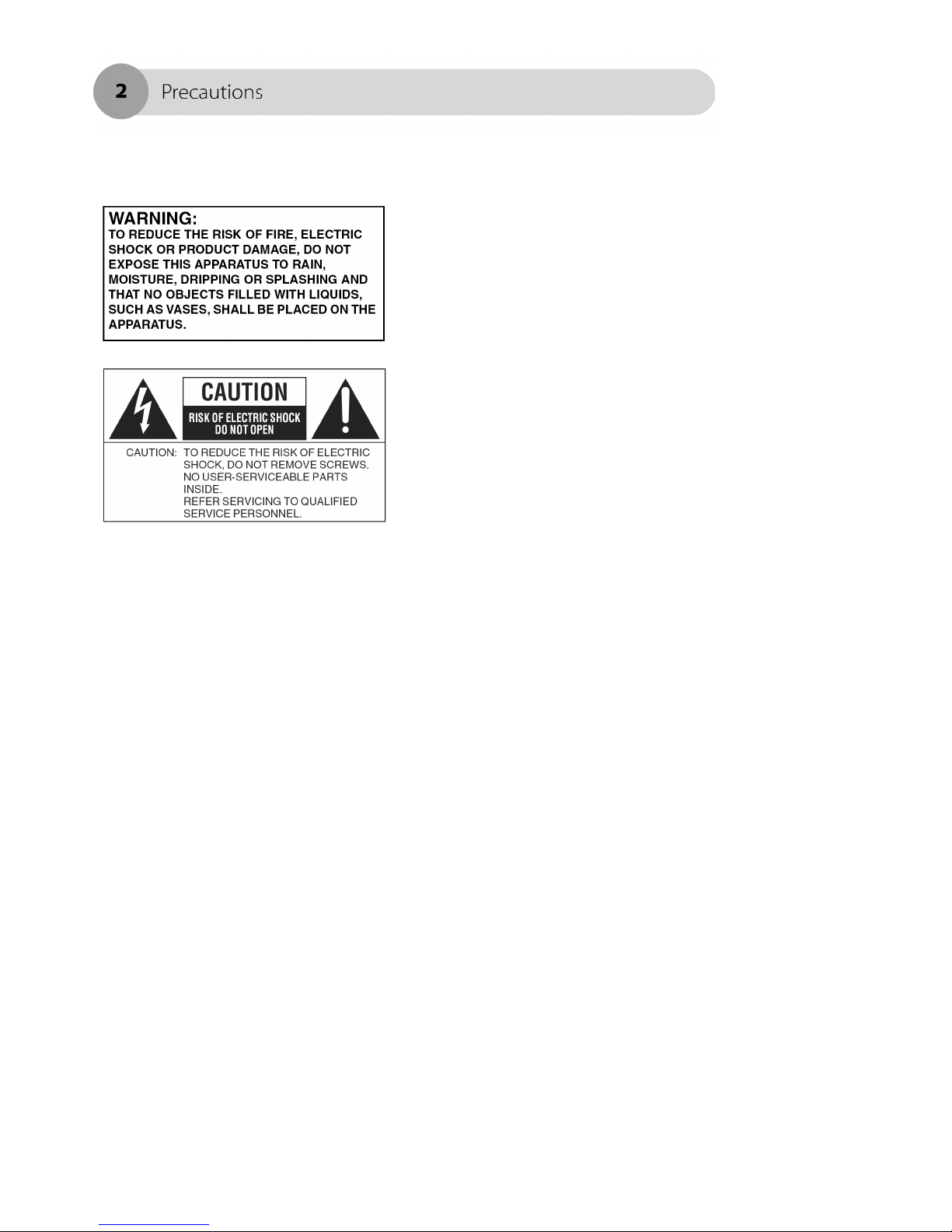

Important
Do not install this equipment in a
confined space such as a book case or
similar unit.
The apparatus should not be dripped or
splashed and no objects filled with
liquids, such as vases, should not be
placed on the apparatus.
This unit should not be used near water
(e.g. near bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or
near a swimming pool, etc.) are should
be taken so than objects do not fall and
liquids are not spilled into enclosure
through openings.

ONTENTS:
Before you start
System components 4
Hints on installation 4
ontrols and connections
Front panel 5
Rear panel 5
Settings and functions
Functions description 6
Specifications
General 9

System components
All system includes:
•MP 04 music player/recorder ..................................................................................................................1pc.
•Remote control.............................................................................................................................................1pc.
•Instruction manual.......................................................................................................................................1pc.
•Power cable....................................................................................................................................................1pc.
Hints on installation
Do…
•Use in a well-ventilated room.
•Place on a solid, flat, level surface, such as a table, shelf or stereo rack
Don’t…
•Use in a place exposed to high temperatures or humidity, including near radiators and other
heat-generating appliances.
•Place on a window sill or a place where the player will be exposed to direct sunlight.
•Use in an excessively dusty or damp environment.
•Place directly on top of an amplifier, or other component that becomes hot in use.
•Use near television or monitor as you may experience interference-especially if the television
uses an indoor antenna.
•Use in a kitchen or other room where the player may be exposed to smoke or steam.
•Use on a thick rug or carpet, or cover with cloth-this may prevent proper cooling of the unit.
•Place on an unstable surface, or one that is not large enough to support all four of the unit’s
feet.
•Do not use or store batteries in direct sunlight or other hot place, such as inside car or near
heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the
life or performance of batteries.

Front Panel
1. ON/OFF switch
2. Track selection buttons
3. Intro
4. Random
5. Display
6. SD MM card’s slot
7. USB flash’s slot
8. Folder up
9. Folder down
10. Down/Rev
11. Up/ ue
12. Stop
13. Play/Pause
14. Prog
15. Repeat
16. Find
17. Record
18. Delete
19. Function
20. IR detector
Rear Panel
1. Stereo line output
2. Stereo RE input
3. Mains power socket
4. A fuse holder

Functions description
ON/OFF switch.
Turns on and off the device.
Track selection buttons
Allows select the sound tracks directly.
Intro
Set or release the intro scan mode. When this key is pushed, the device will play each track for ten
second.
Random
Set or release the random play mode. When this key is pushed, it will start random play mode.
Display
Displays the status of the device and main information about the files and folders.
SD MM card’s slot
This slot is designed for SD and MM cards. Please note that maximum supported capacity of card is
up to 32GB.
USB flash’s slot
This slot is designed for USB flash disc and it can support up to 32GB capacity.
Folder up
In stop mode this key skips the starting play folder to next folder, and automatically switches to first folder if
current folder is last.
In the program entry mode this key switches to next folder’s first file, if the folder is last it switches to first
folder.
In normal play mode this key skips the playing file and switches to next folder’s first file.
Folder down
In stop mode this key skips the starting play folder to next previous, and automatically switches to last folder
if current folder is first.
In the program entry mode this key switches to previous folder’s first file, if the folder is first it switches to last
folder.
In normal play mode this key skips the playing file and switches to previous folder’s first file.
Down/Rev
In stop mode this key changes starting track (file) in descending order, and automatically goes to
the last track if it is in first track.
Single pressed in play mode or program mode changes to previous track (file).
By pressing longer than 0,7 sec switches to fast reverse mode.
Up/ ue
In stop mode this key changes starting track (file) in ascending order, and automatically goes to first
track if it is in the last track.
Single pressed in play mode or program mode changes to next track, in random mode skips to
random track.
By pressing longer than 0,7 sec. switches to fast forward mode.

STOP
When device is playing or is in pause mode, by pressing this you will stop it.
PLAY/PAUSE
By pressing this key when device is stopped, play starts after track search. When this key is pressed
during playing the mode of the device is changed in to pause. When this key is pressed during
pause, it switches back to play mode.
PROG
This key is used for programming.
All programs are cleared when STOP key is pushed.
Repeat

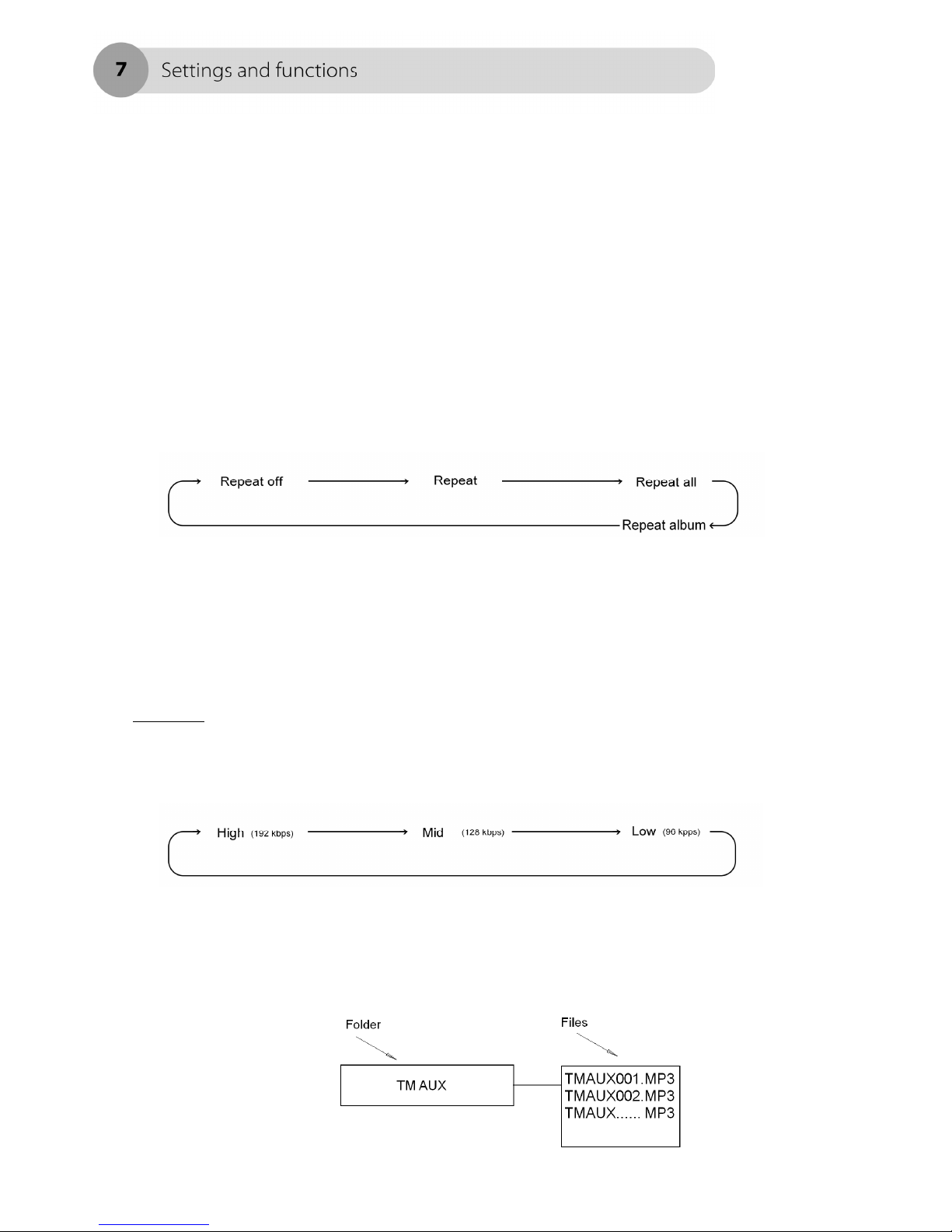

Pressing this key allows to change sound tracks playing mode like in picture below.
Find
By pressing this key once search mode is changed into FILE search. By pressing this key twice search
mode is changed into ALBUM search. If “FIND” key is pressing for a long time, track time is displayed,
if it pressed twice ID3 tag is displayed.
Record
Recording
When AUX is selected press RE button for a long time for recording quality selection. When quality
indication appears on the screen, push RE button shortly for changing recording quality as in
picture below.
AUX input must be selected by the “FUN ” button before the start of recording. After AUX selection
push RE button to start recording. Press RE button again to stop the recording. For confirmation
of successful ending “RE OK” appears on the screen. All records will be named automatically and
placed in TM AUX folder, like in picture below.

opying
If USB or SD/MM source are selected you can copy files from one source to another (from USB to
SD/MM and otherwise). Press RE button and by using REV ant UE keys find the desired folder.
After this you must select the file from this folder by pressing REV or UE for the long time. Now
you can press RE button one more time and copying will be starts. During the copy procedure
display will show “ OPY”. If copy is successful “ OPY OK” appears on the screen.
Delete
If USB or SD/MM source are selected you can delete files from memory card or flash. First of all you
must press DEL button to turn on delete function. By pressing REV or UE keys find the folder. After
this you must select the file from this folder by pressing REV or UE for the long time. After file
selection pres DEL button one more time to delete file.

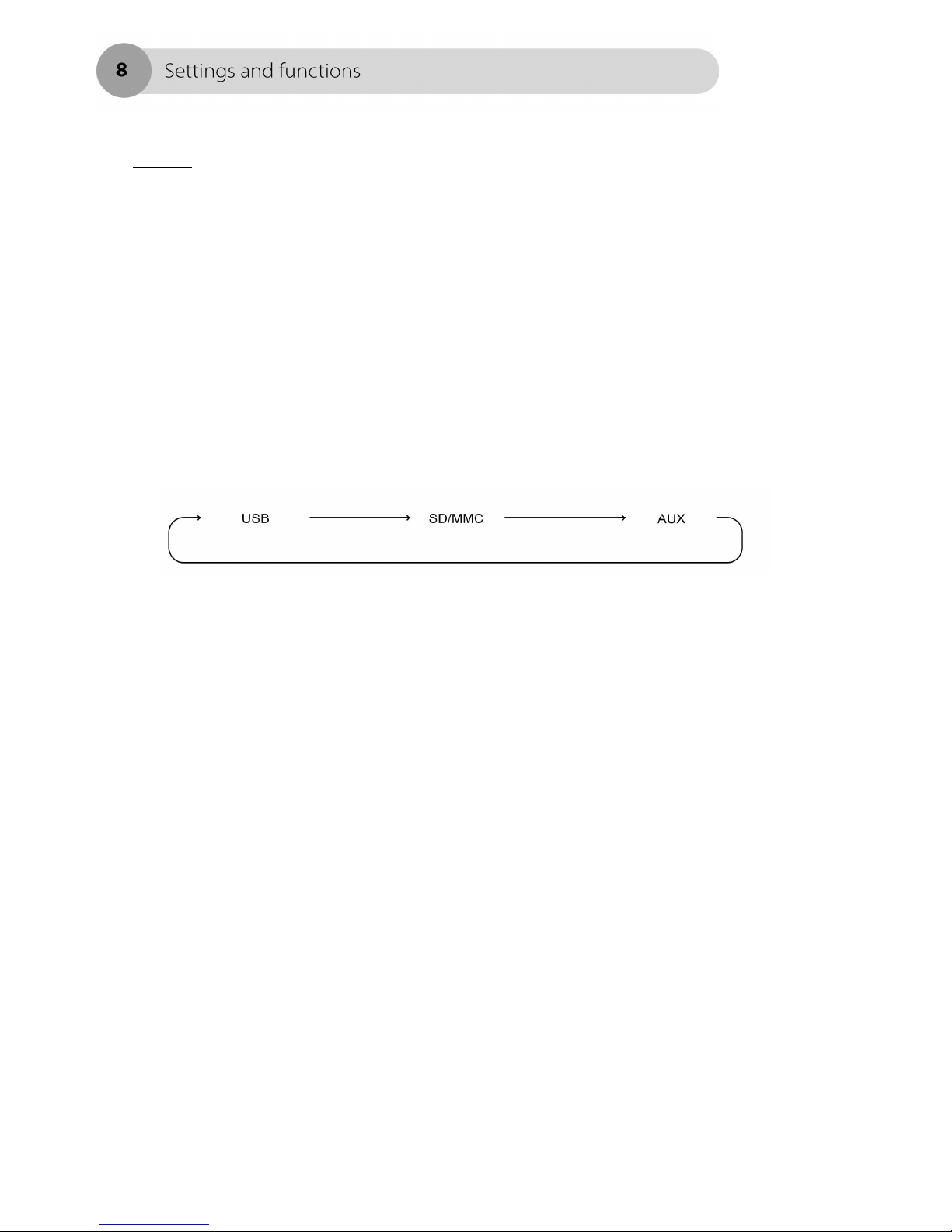

FUN
This key allows change music scourge and select AUX input. When this key is pressed device mode
are changed cyclically as in picture below.
IR detector
Receive controls commands from remote control.

General specifications
1. Available sources USB flash and SD/MM card
2. Maximum compatible USB SD/MM size up to 32GB
3. Input Stereo R A (RE input)
4. Output Stereo R A
5. Max RE input level 0,8 V
6. Output level 1,2 V ± 2 dB
7. THD 0.8 % @ 1 kHz
8. Frequency response 20 Hz – 20 kHz
9. Signal to noise ratio 80 dB
10. Stereo separation 60 dB
11. Maximum recording bitrate 192 kbps
12. Supported audio formats ompressed audio
13. Power supply 230 V 50 Hz
14. Power consumption 50 VA
15. Weight 3,5 kg
16. Dimension 482 mm*44 mm*250 mm
AMC is a registered trademark of AMC Baltic www.amcpro.lt
