Welcome
Thank you for purchasing an Amcrest Speed Dome PTZ camera!
This user manual is designed to be a reference tool for the installation
and operation of your IP camera.
Here you can find information about the camera’s features and
functions, as well as information to aid in troubleshooting.
Many of the setup and installation sections below have
corresponding videos on YouTube
To access the setup videos, please go to http://amcrest.com/videos
For access to the quick start guide and other support information, go
to http://amcrest.com/support To contact Amcrest support, please
do one of the following:
Visit http://amcrest.com/contacts and use the email form
Call Amcrest Support using one of the following numbers
Toll Free: [phone]
International Callers (Outside of US): [phone]
USA: [phone]
Canada: 437-888-0177
UK: 203-769-2757
Email Amcrest Customer Support s[email protected]
Important Security Warning
To keep your Amcrest camera secure and prevent unauthorized access,
please make sure to follow the steps below:
•Always make sure that your camera has
the latest firmware as listed on
www.amcrest.com/firmware
•Never use the default password for your camera. Always ensure
that your password is at least 8-10 characters long and contains
a combination of lowercase characters, uppercase characters as
well as numbers.

5
Important Safeguards and Warnings
1．Electrical Safety
All installation and operation should conform to your local
electrical safety codes.
The product must be grounded to reduce the risk of
electric shock. We assume no liability or responsibility
for any fires or electrical shock caused by improper
handling or installation.
2．Transportation Security
Heavy stress, violent vibrations, and excess moisture should not
occur during transportation, storage, and installation of the
device.
3．Installation
Handle the device with care. Do not apply power to the camera
before completing installation. Do not place objects on top of
the camera.
4．Repair Professionals
All the examination and repair work should be done by qualified
service engineers.
We are not liable for any problems caused by unauthorized
modifications or user-attempted repair.
5．Environment
The camera should be kept in a cool, dry place away from direct
sunlight, flammable materials, explosive substances, etc.
This product should be transported, stored, and used only
in the specified environments as stated above. Do not aim
the camera at a strong light source, as it may cause
overexposure of the picture, and may affect the longevity
of the camera’s sensors.
Ensure that the camera is in a well-ventilated area to prevent
overheating.
6. Operation and Maintenance
Do not touch the camera sensor or lens directly.
To clean dust or dirt off the lens, use an air blower or a
microfiber cloth.
7. Accessories

6
Be sure to use only the accessories recommended by
manufacturer. Before installation, please open the package
and check to ensure that all the components are present.
Contact the retailer that you purchased from, or Amcrest directly
if anything is broken or missing in the package.
1. Features and Specifications
1.1 Overview
The Amcrest Outdoor Speed Dome PTZ camera is an
excellent tool for digital surveillance that can be useful to a
wide variety of users. The camera connects to any router
and uses an internet connection to allow the user to access
all of its functionality from many internet connected
devices. It’s easy to use and can be set up in a relatively
small amount of time. It has various functions such as
recording, playback, and monitoring functionality and it
synchronizes audio and video by default.
This Outdoor Speed Dome PTZ camera adopts a high-quality
design to achieve high levels of reliability and security. It can
be configured to work locally, as well as remotely over the
internet.
1.2 Features
The Amcrest Outdoor Speed Dome PTZ camera has the following
features:
Network Access
The Outdoor Speed Dome PTZ camera connects to a wide
variety of routers to connect to the internet, using a wired
PoE connection. Once setup, the camera can be accessed
remotely from a wide variety of internet connected devices,
including PCs, iPhones, iPads, Android tablets, and Android
phones.
Cloud Storage Functionality
The Outdoor Speed Dome PTZ camera can record video and
audio streams to the Amcrest Cloud service to enable long-
term storage for recordings. Amcrest Cloud also allows the
user to easily find and download recorded video for
playback from any internet connected PC or Mac computer.

7
Advanced Playback Function
This device supports real-time recording and supports
searching through recorded footage, fast forward playback,
and downloading of videos and screenshots. The Outdoor
Speed Dome PTZ camera can also playback in slow motion,
backwards, and frame by frame as needed. When recording,
the Outdoor Speed Dome PTZ network camera shows a
date/time overlay to ensure accurate viewing of events
when they occurred. Lastly, the Outdoor PTZ camera can
support video enlargement of certain zones within a stream.
Advanced Network Protocol Support
The Outdoor Speed Dome PTZ camera is UPnP compatible,
and includes functionality for use with PPPoE, DDNS, and
other protocols to allow remote and local connection with a
large variety of network hardware. Note: There may be
slight differences in functionality due to the existence of
different product series.
2. Device Overview
The diagram below shows the camera’s rear panel.

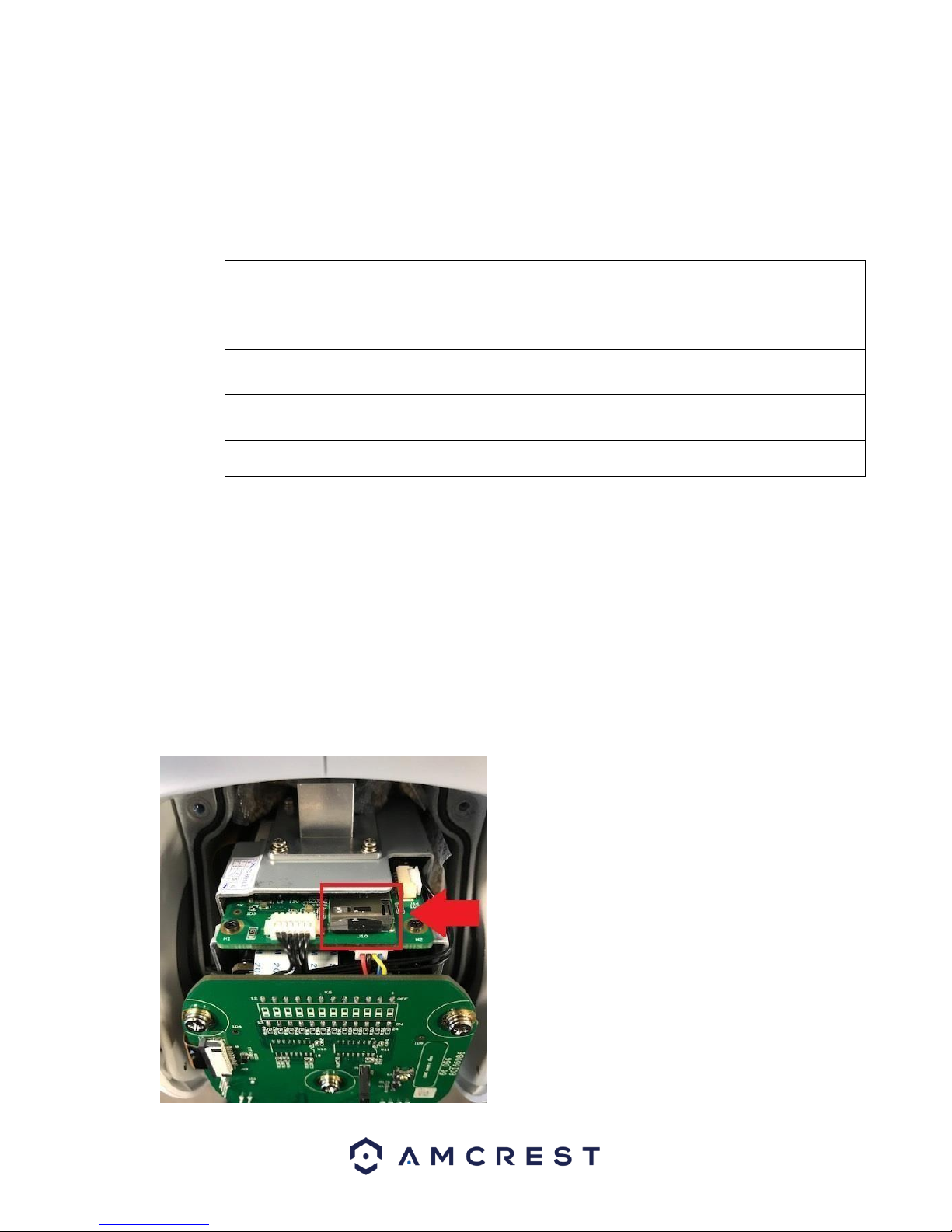

The images below show the microSD card slot for the camera.
The microSD card slot can be found on the board behind the
reset switch:

8
3. Connection & Installation
This section provides information about the connection and installation
of the Amcrest Outdoor PTZ camera.
Note: This is a POE+ device and requires a POE+ compatible
router/switch to function.
3.1 Connection Guide
The camera initially should be connected via the following method:
3.2. Installation Guide
Important Notice: Prior to installation ensure that the installation
environment can support at least 3 times the weight of the camera.
When accessing your camera, you will notice a few additional wiring
connections associated with the device. These connections contain a
power connection and ground, an Ethernet connection, audio wires, and
alarm wiring.
POWER - This connection is optional for this device since the device
will draw power via an Ethernet cable (PoE) however, the option is
there. The camera will require a basic 12V DC power adapter. This wire
also has a optional grounding (EARTH) wire for additional grounding of
the unit.
Ethernet Connection - This connection is used to transmit data and transmit PoE power
to the unit. The unit is PoE + (802.3af) compatible.

9
AUDIO - This connection provides two-way audio to the unit. The red wire is for
AUDIO OUT, the white wire is for AUDIO IN, and the black wire is there to
ground the audio.
ALARM -This connection provides alarm in and alarm out features to an external
alarm or security system. The basic overview of these wires are as follows:
Blue
Alarm OUT1
Green
Alarm COM1 (Communication
Port)
Yellow & Green
Alarm Ground
Red
Alarm IN1
Brown
Alarm IN2
3.3 MicroSD card Installation
To install a microSD card into your camera, please refer to the step by
step guide below.
Note: Please refer to section 2, Device Overview, for more details on how
to access the microSD card slot.
1. Locate the microSD card slot can be found on the board behind the
reset switch.
2. Slide the microSD card into the SD card slot, gold pins down.

10
3. Gently press the card into place within the slot to click and lock the
microSD card into place.
3.4 Physical Installation Guide
This installation guide will highlight how to properly install and mount your camera in several different
environments. These environments included; wood, masonry (brick /block walls), and cement. Prior to installation,
please ensure that the installation environment can support at least three times the weight of the camera and the
installation bracket.

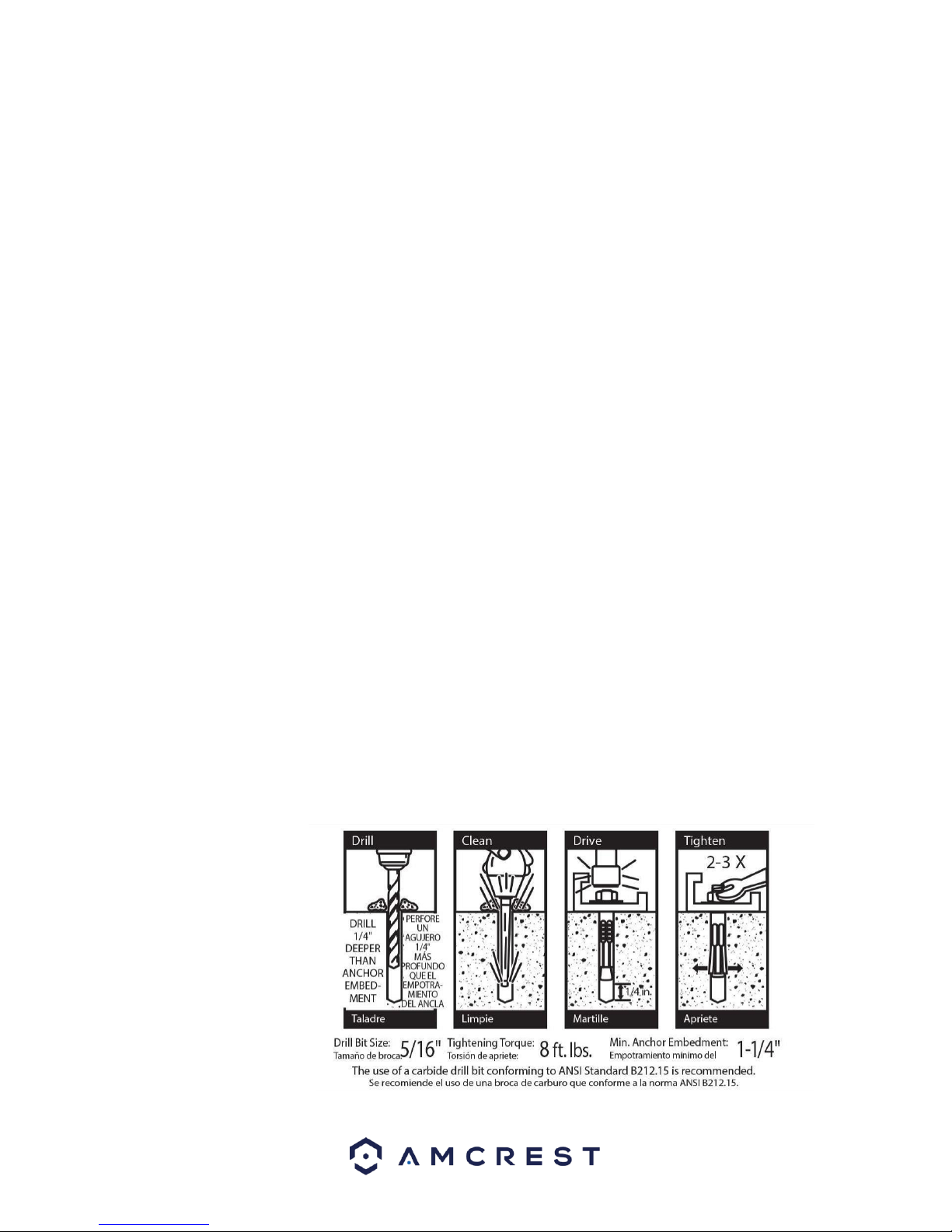

Note: There are 3 carabiners included with the camera. These carabiners will be used to provide additional support
to the camera after installation. To install, link one carabiner to the mounting bracket then link the third carabiner
to the camera.
The camera will come with proper installation materials such as screws and anchors already, however, if
replacements are needed a 9/16 lag bolt, masonry anchor, cement anchor will be required.
Please ensure the following tools are available and ready for use:
oPower Drill/impact Drill
o9/16 Drill Bit (Masonry)
o9/16 Hex Head Drill Bit
oMarker or Sharpie
oHammer/Impact
oSafety Glasses
o3/16 Allen wrench
o1” Paddle Bit (In-wall Installation)
Note: In-wall installation is when the cables run hidden inside the ceiling
or wall.
3.4.1 Wood Installation
1. Using a 3/16 Allen wrench, remove the three security screws from
the mounting bracket of the camera to remove the unit from its base.
2. Using the mounting bracket, mark holes in the appropriate areas you
would like to mount the camera.
3. Remove the mounting bracket and using a 1” paddle bit, drill a hole
into the center of the surface area.
4. Run the camera wiring through the mounting bracket and to the
applied 1” hole created for in-wall installation.
5. Using a 9/16 drill bit, drill additional holes into each marked area to
insert the appropriate lag bolt screws.
6. Align the mounting bracket to the drilled holes and place a 5/16 lag
bolt into the mounting bracket holes.
