American Champion 8KCAB Technical specifications

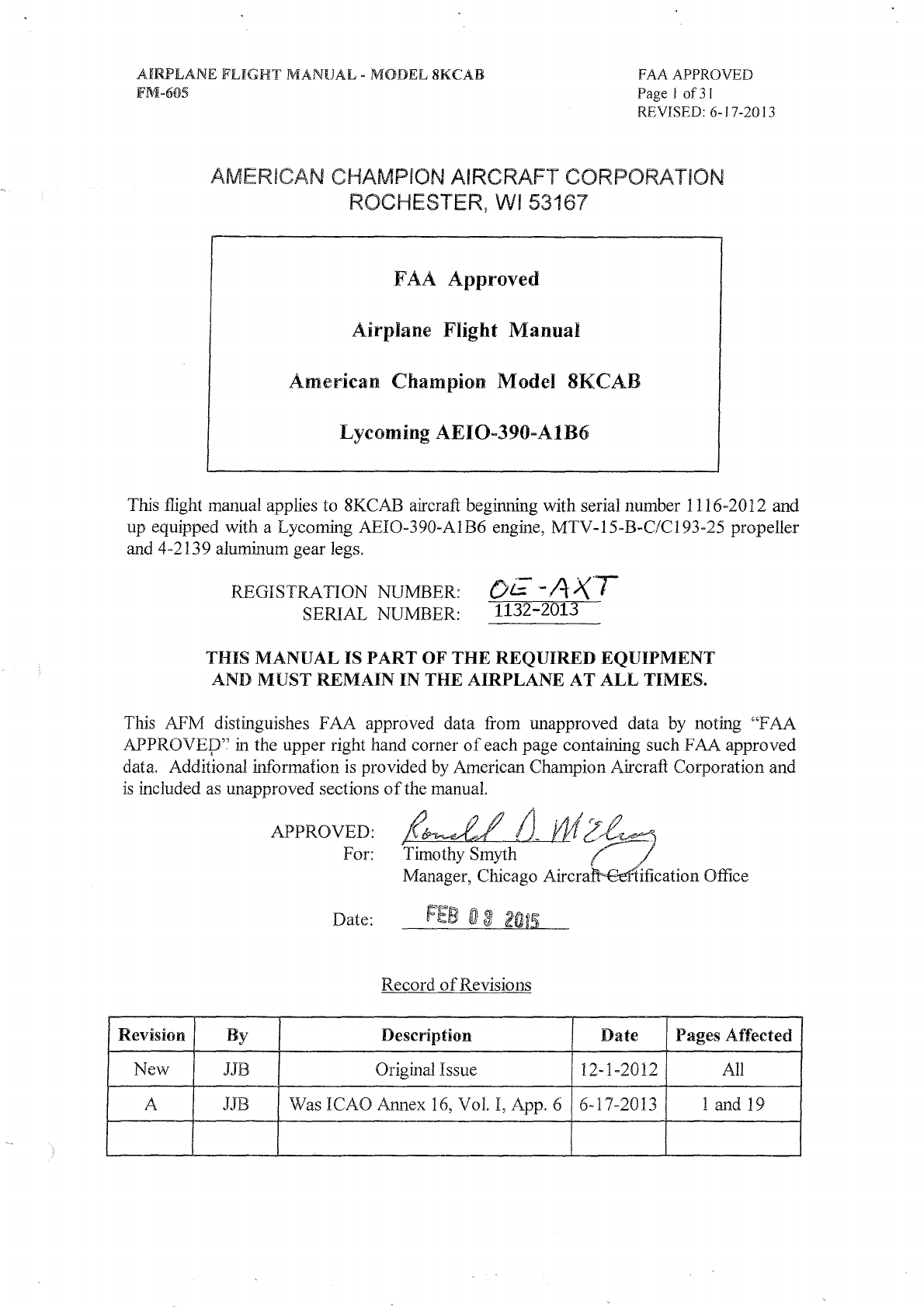

AIRPLANE FLIGHT MANUAL - MODEL 8KCAB
IFM-605
FAA APPROVED
Page l of31
REVISED: 6-17-2013
AMERICAN CHAMPION AIRCRAFT CORPORATION
ROCHESTER, WI 53167
FAA Approved
Airplane Flight Manual
American Champion Model 8KCAB
Lycoming AEI0-390-A1B6
This flight manual applies to 8KCAB aircraft beginning with serial number 1116-2012 and
up equipped with a Lycorning
AEI0-390-AlB6 engine, MTV-15-B-C/C193-25 propeller
and 4-2139 alurninum gear legs.
REGISTRATION NUMBER:
OG"-A>(T
SERIAL NUMBER: 1132-2013
THIS MANUAL IS PART OF THE REQUIRED EQUIPMENT
AND MUST REMAIN IN THE AIRPLANE AT ALL TIMES.
This AFM distinguishes F AA approved data from unapproved data by noting "F AA
APPROVEp" in the upper right hand corner of each page containing such FAA approved
data. Additional informafion
is provided by Arnerican Champion Aircraft Corporation and
is included as unapproved sections of the manual.
APPROVED: f ~ 11 J1!f ZL. ~
For: 1 Timothy Smyth ~
Manager, Chicago Aircrafr.edt'ification Office
Date: FEB ®3 ltHS
Record of Revisions
Revision
By
Description Date Pages Affected
New
JJB Original Issue 12-1-2012 All
A JJB Was ICAO Annex 16, Vol. I, App. 6 6-17-2013 1 and 19
Neues Wiegebaltt
8.Spt..2017
e
EAR

AJRPLANE FLIGHT MANUAL - MODEL 8KCAB
FM-605 FAA APPROVED
Page 2
of3 I
ISSUED: 12-1-2012
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
1. I1
1.12
1.13
1.14
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
2.13
2.14
2.15

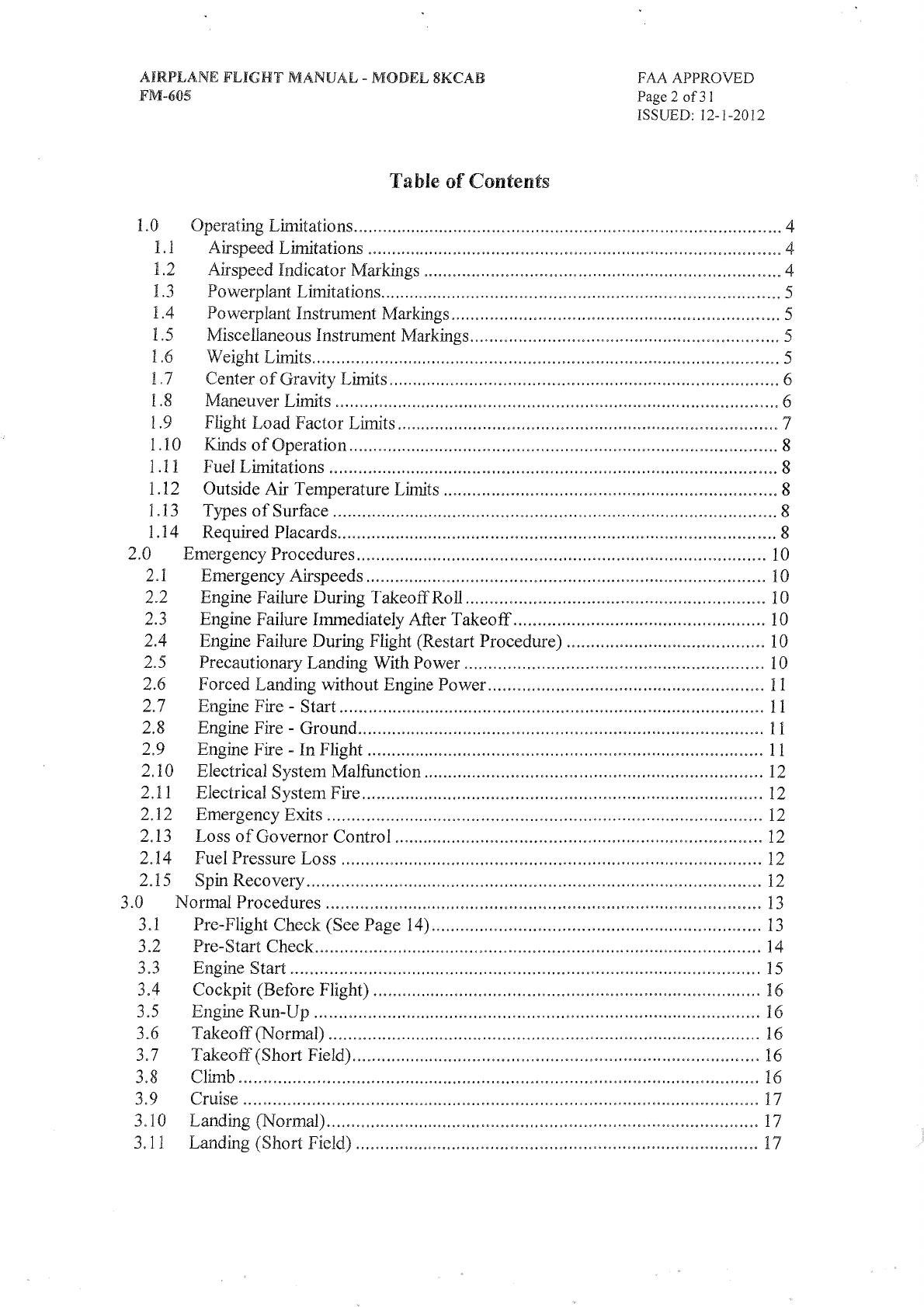

Table of Contents
Operating Limitations.„.„ .... „.„ „. „ .. „ ............... „. „ „ „ „ .......... „ „. „„ ........ „ ....... „. 4
Airspeed Lirnitations .......„„ „
•. „.„ .. „ „.„....„........„...„ ... „. „. „. „ .... „ .... „.......... 4
Airspeed Indicator Markings .„„ „ „. „ ..... „ .. „.„ ••. „ ......... „ „. „. „ ......... „......„ ... „ 4
Powerplant Lirnitations.„.....„
•• „............................„ .. „ ....... „...............„ .. „ •.. „ 5
Powerplant Instrument Markings .. „ ................... „ ..... „„. „. „ ••• „„........„ •••.••.•• „ 5
Miscellaneous Instrument Markings.......................„ ... „...„ ............. „ .•••.. „ .... „ 5
Weight Limits...„ ...... „.„ .. „.....„...„...............„ .•• „....„ .... „... „.„.„ ..... „ ... „.„ ..... 5
Center of Gravity Limits...„„...„ .. „. „. „ •••. „....„........„ •••• „„ „„ .„ .. „........ „„ ...... 6
Maneuver Limits ..........„. „. „ „ ...... „ .. „„ .. „ .. „ „ .... „... „ „„„.„.„ ..... „ „ ........ „ .... „ 6
Flight Load Factor Limits.„ „. „. „....„ .... „. „ ...•.... „ ...... „ ... „. „„ „„ „ .. „ „ ......•...... 7
Kinds
of Operation .......... „. „ „. „ .. „ ...... „ ... „ „ .... „.... „„ „.......„„ „. „...„ •.........•.. 8
Fuel Limitations .........„..... „„ .. „ .• „ .. „.............................„..„ .. „ „. „ „„ ...•......•.. 8
Outside Air T emperature Limits ........„„ „ „. „.„ ........ „ „ •.•... „ „ „.„....„ ..• „ ......... 8
Types of Surface „ ..... „ „ ... „ .. „ .. „...................„.„ .„ ............. „. „.....„......„....„ „ 8
Required Placards...„ .... „. „ .. „„........„„ ....... „.„. „ „ .... „ „...„„ „ .. „„ .. „.....„....„ .. 8
Emergency Procedures .. „. „ .. „. „„„...„ ............... „ ..... „.....„ „.„ ... „....„ „ .. „. „...... 10
Emergency Airspeeds „ .. „ „ .. „ „ ... „.....„„ •...... „ .... „ .. „.„„ .. „ ... „....„....„....„„ .. 10
Engine Failure During TakeoffRoll.„ .. „ ....•.. „......„.....„..... „„ .. „.„ .... „.„ .. „ .. 10
Engine Failure Irnrnediately After Takeoff .. „... „. „....„ „.„ „...„ „.„.........„...... 10
Engine Failure During Flight (Restart Procedure) .„.„„„ „. „.„.„ „. „...„...„.„.. 10
Precautionary Landing With Power ..........„.„....„.........„ .... „.„....„„.....„.„... 10

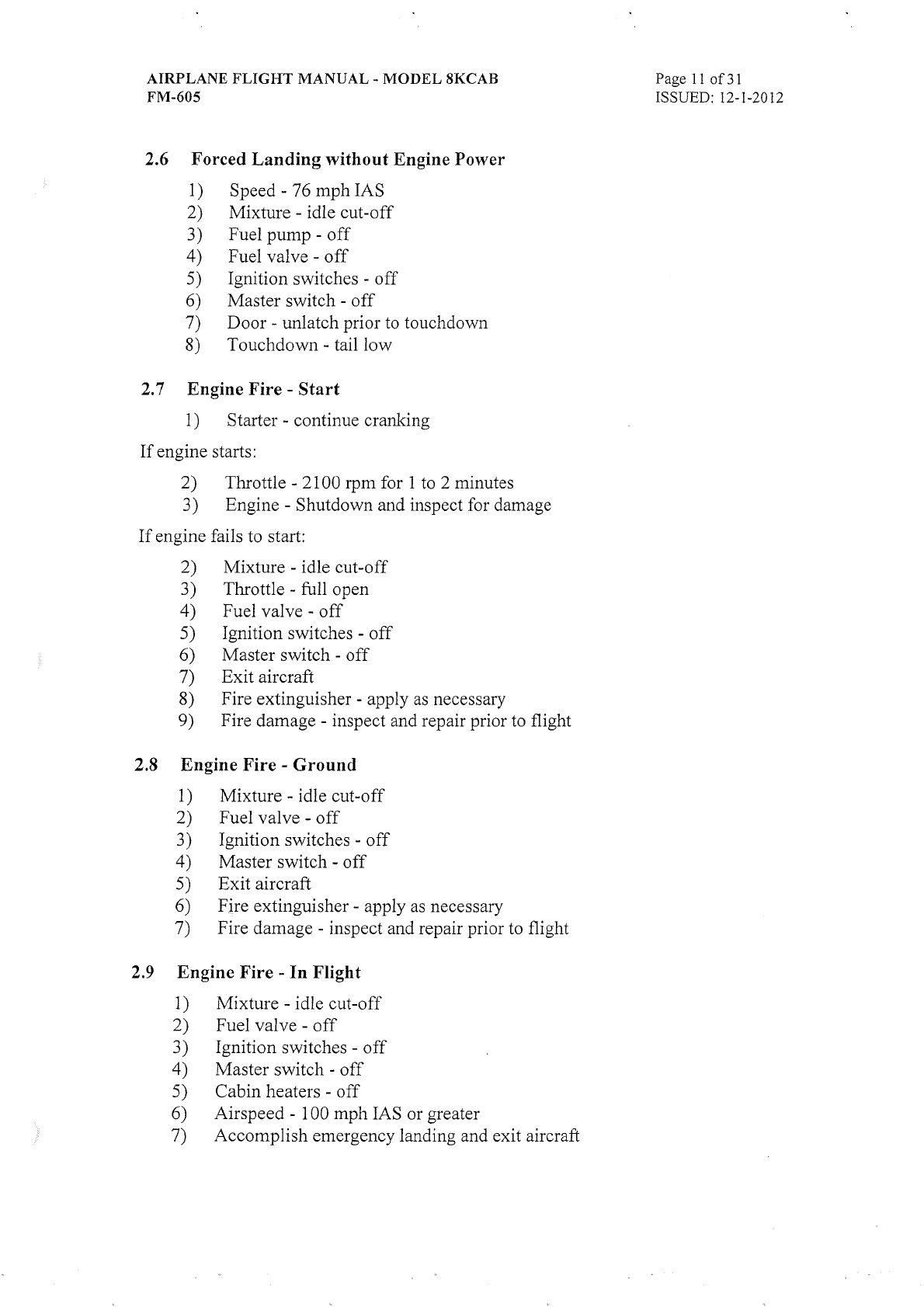

Forced Landing without Engine Power „„ .. „.„ .. „.„„„ .. „„„„ .. „„„ ... „.„.„ ... „. 11
Engine Fire - Start .„„. „ .. „.„.„.„ .. „.„ .. „.„ ... „ .. „.......„ .. „ .. „„ .. „„„„„ ... „.„ ..... 11
Engine Fire - Ground .....„ .. „.... „„ ....„.....„.....„...„........„ .. „„ .. „„ .... „ .. „„.„„. 11
Engine Fire - In Flight ......„ „„„ „ .... „ .. „....„...„..................„„„.............„ .. „ .. 11

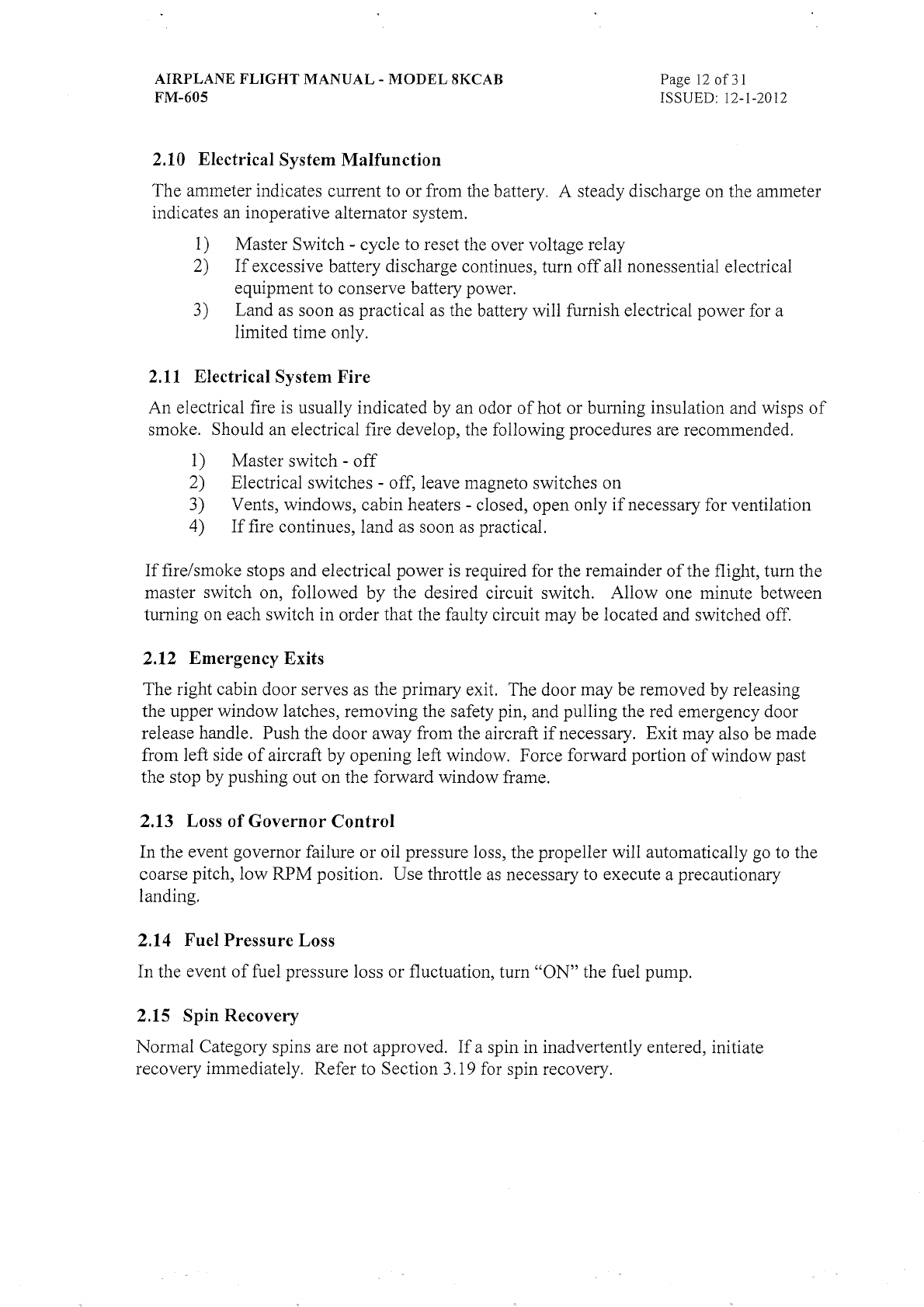

Electrical System Malfunction „ ...... „. „„......„.„............„......„ „. „......„.„ .. „ .. 12
Electrical
System Fire.„„...„„... „. „„....„ .. „...„ .. „.„.......„ .. „ ..... „„........„....... 12
Emergency Exits ...„„...„„.....„.„ .. „ .. „.„......„.......„...„.„„...„...„ .. „ •••.••• „..... 12
Loss of Governor Control .. „.„.„ ... „.„.„ ...... „.„„ .. „ .. „ ... „„ ... „.„ ..... „„„.„ ...„ 12
Fuel
Pressure Loss ..........„... „. „ .. „.„...„......„ .. „.„.............„„.......„.............. 12
Spin Recovery .........„..... „„ ... „.„„„ ........................„... „....„.....„.................. 12
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
Normal Procedures .„ ......„ .. „„„.„ ... „.„„.„.„ ......„.....„.........„.... „„ .. „.......„..... 13
Pre-Flight Check (See Page 14)„„ ......„ ..... „....„.............„ .. „ ... „........ „.„ ....„ 13
Pre-Start Check ...........„.„...„ „. „.„.„....„ .... „....„............„ ... „...„ .. „.............. 14
Engine
Start „ „....„ „........„......„„ .... „....„...........................„.„..........„ .. „..... 15

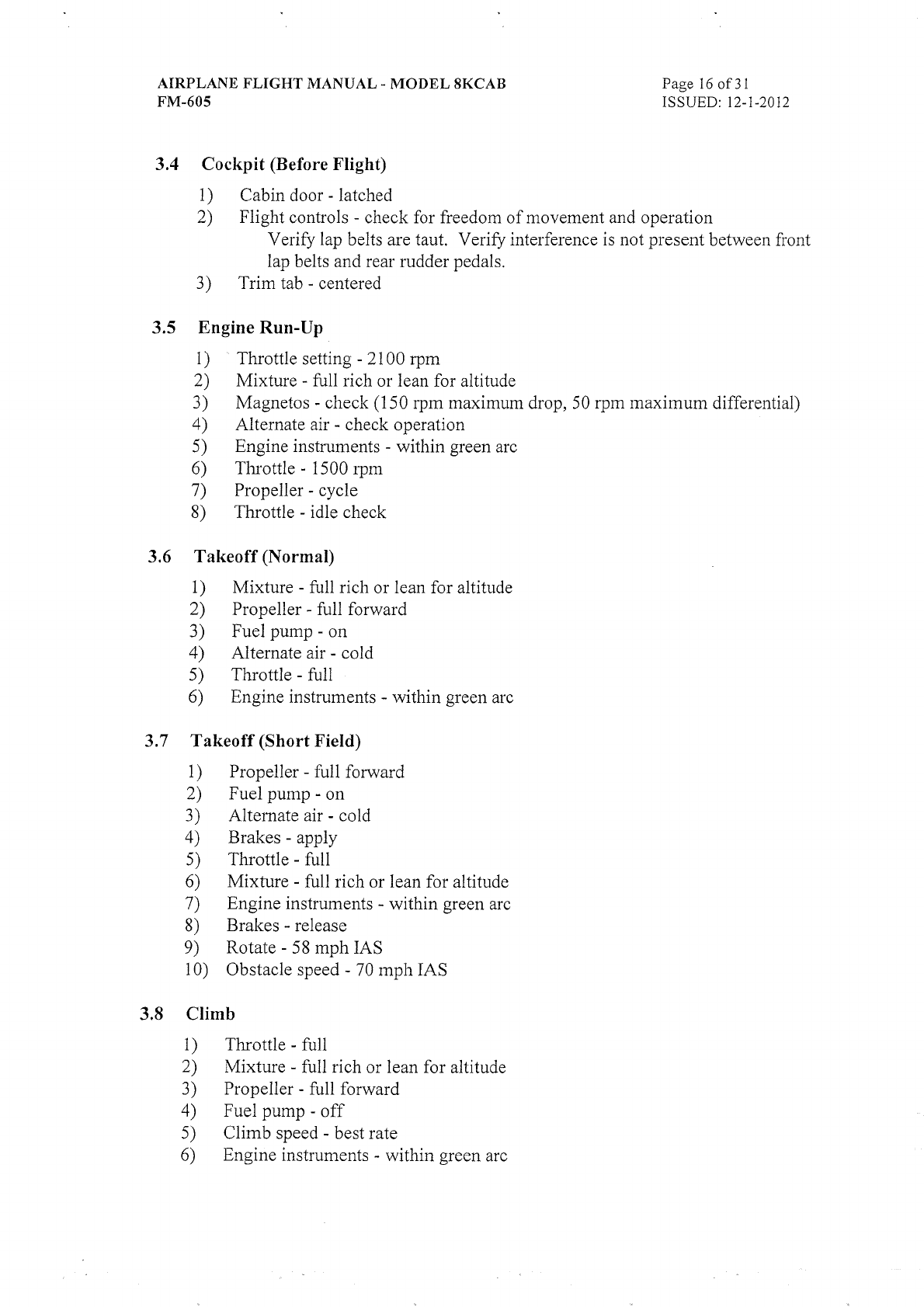

Cockpit (Before Flight) ...„ .. „.„ „ .. „. „ „ „ „...„„.......„.....„....„.„„„....„....„ ..... 16
Engine
Run-Up ..... „.„„ .....„ .. „.......„....„....„ .•..•••••••••.•.• „ .. „ .. „ .. „......„ .. „ ...•. 16
Takeoff (Normal) „...„.......................„....„....„......„.....„ .. „.„ .. „„ .. „ .. „ .. „„ ... 16
Takeoff (Short Field)...„ „ .. „ ... „. „.....„ .. „„........„. „.....„ .. „„ .. „„ „. „.... „.„ „ .... 16
Clirnb ...„....„...
„.„ .. „ .. „..... „.„.„ .. „...„..... „„.„ .......„........ „.„ ..... „„„„„„„ ..... 16
Cruise ..........„ .. „„ ...........„ .. „ .. „„.„ .. „....................... „.„ .. „......„.................. 17
Landing (Normal)...„.....„.....„
.. „............„.....„ .... „...„......„...... „.„„ .. „.„ ...... 17
Landing
(Short Field) ..........„ .. „ „.....„ .. „ „........... „. „.......„ .. „ .. „„ .. „ „ •....••.• „ 17

AIRPLANE FLIGHT MANUAL - MODEL 8KCAB
FM-605 FAA APPROVED
Page 3
of 31
ISSUED: 12-1-2012
3.12
3.13
3.14
3.15
3.16
3.17
3.18
3.19
3.20
3.21
3.22
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8

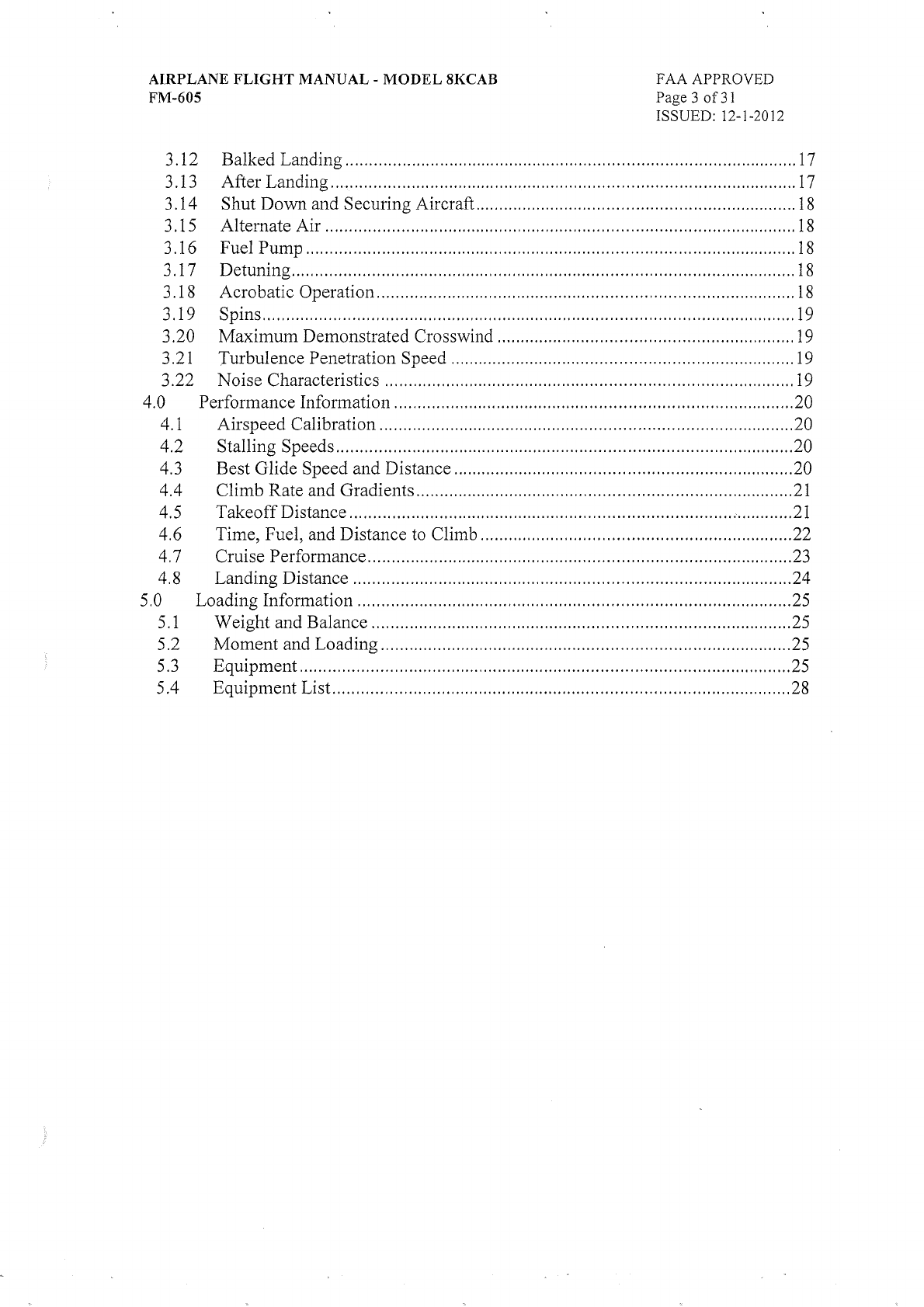

Balked Landing ..............„.............„.............„........................................„........ 17
After Landing ............„.......
„. „„ .. „„.......„„.......................„...................„........ 17

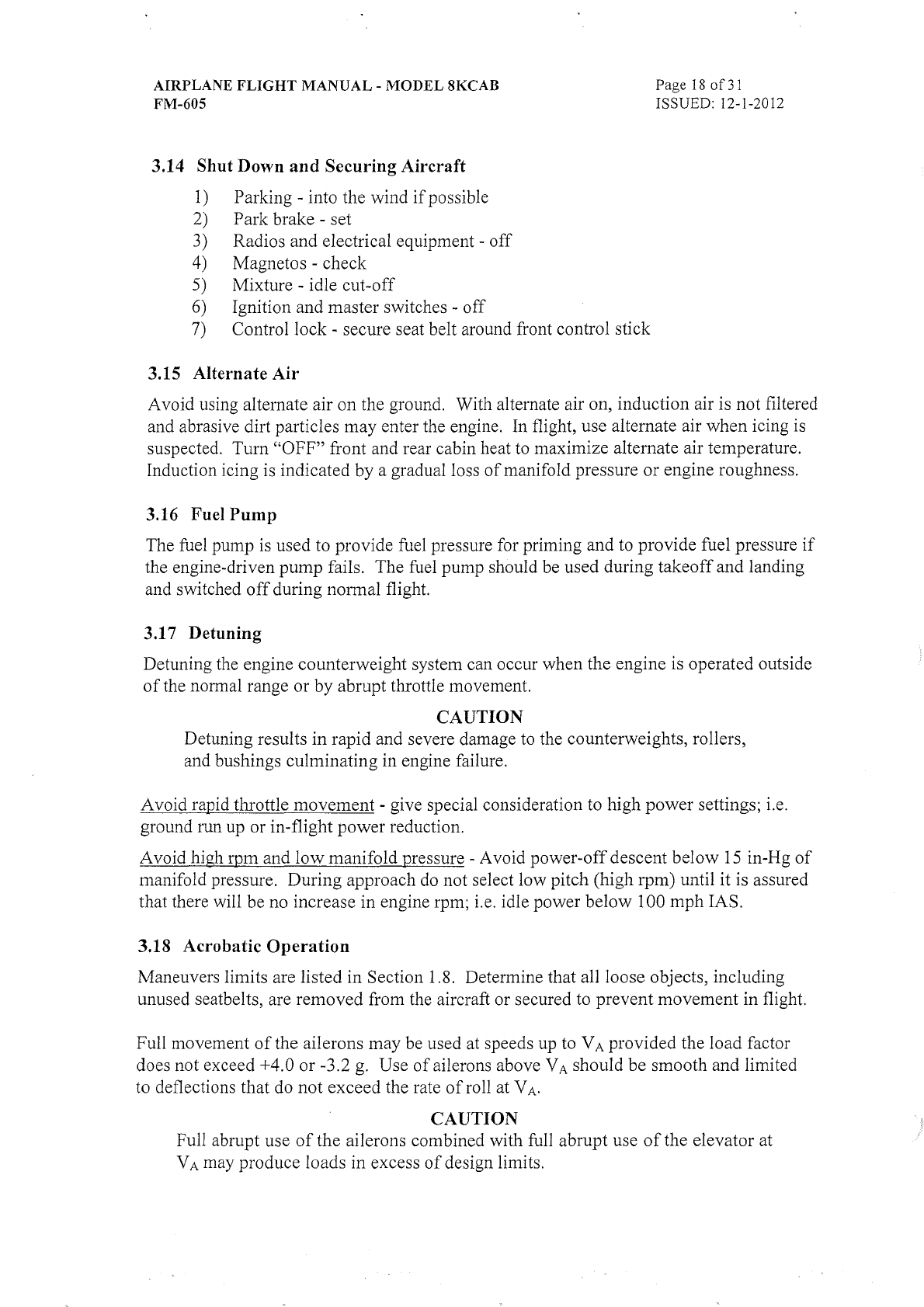

Shut Down and Securing Aircraft „„ „„„„„„„„„„„„„„„„„ „. „„„„„„„„„„„„ „. 18
Alternate Air „„ „. „. „ „. „. „„„„ „ „. „ „. „„ .. „ „. „„„„„„...... „. „. „„ „. „„ „. „„„„. „. „. 18
Fuel Pump „„„„ „. „. „ „. „ „. „„„„ „. „ „. „ „. „„„„„„„„„ „. „. „„ .. „„ „. „„„„„„„„ „. „. 18
Detuning.„..................................„„ ....„...............„.........................„.....„......... 18
Acrobatic Operation .. „„„„„ .. „„ „„„„ „. „„„„„„„„.„„„„ .. „ „. „. „„„„„ „. „„„„„„18

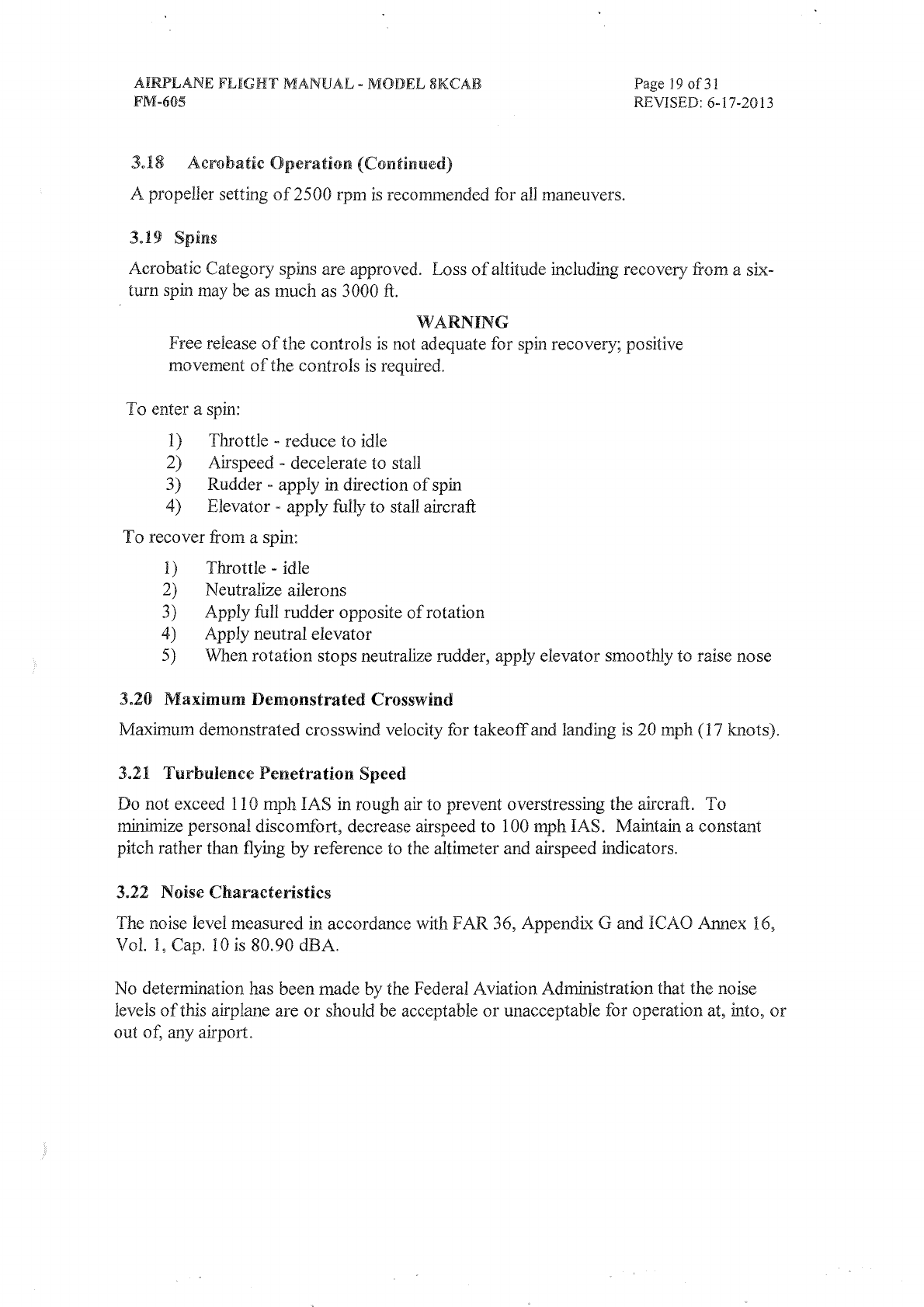

Spins................................................................................................................. 19
Maximum Demonstrated Crosswind „„„„„„„„„„„„„. „„„„„ „. „„„„„„„„„„ „. 19
Turbulence Penetration Speed „„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„ „. 19
Noise Characteristics .......„..........„ .... „......„.....„...........„.............„ .. „ ... „........ 19
Performance Information .....„......„ .. „....„ ... „.......„..........................„......„„........ 20
Airspeed Calibration .„ ....„.......„ .. „....„ .. „............................................„.....„„.20
Stalling Speeds„ ... „ ... „....„...........„....„ .. „.....„...................„....................„.„ ... 20
Best Glide Speed and Distance „ .. „ .. „....„„..........................„ .. „.„.........„.„..... 20
Climb Rate and Gradients................................................................................ 21
TakeoffDistance ..........„....„.....„„.....„ ... „ ... „....................„.............. „-„.„ .. „.„21
Time, Fuel, and Distance to Climb „„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„22
Cruise Performance ... „.....„.......................... „. „............................„.............. „. 23
Landing Distance ........................„.........„....„....„„...........„„......... „. „.....„...... 24
5.0 Loading Information ..............................„
.. „............................„.......... „. „. „......„ 25
5.1
5.2
5.3
5.4
Weight and Balance .....„...........„.„ .. „....„.„„„ .. „ .. „........„........„.„ .. „.„„„ .. „ ... 25
Moment and Loading.......„ .. „ ... „.„........„....„ ... „„.....„...„.................„............ 25
Equipment„.... „ .. „............„„.......„ ... „ ... „.„ .. „ ... „......„........„....„.„.„ .. „........... 25
Equipment List.................„ .. „.........„....................................................„......... 28

AIRPLANE FLICHT MANUAL -MODEL 8KCAB
FM-605

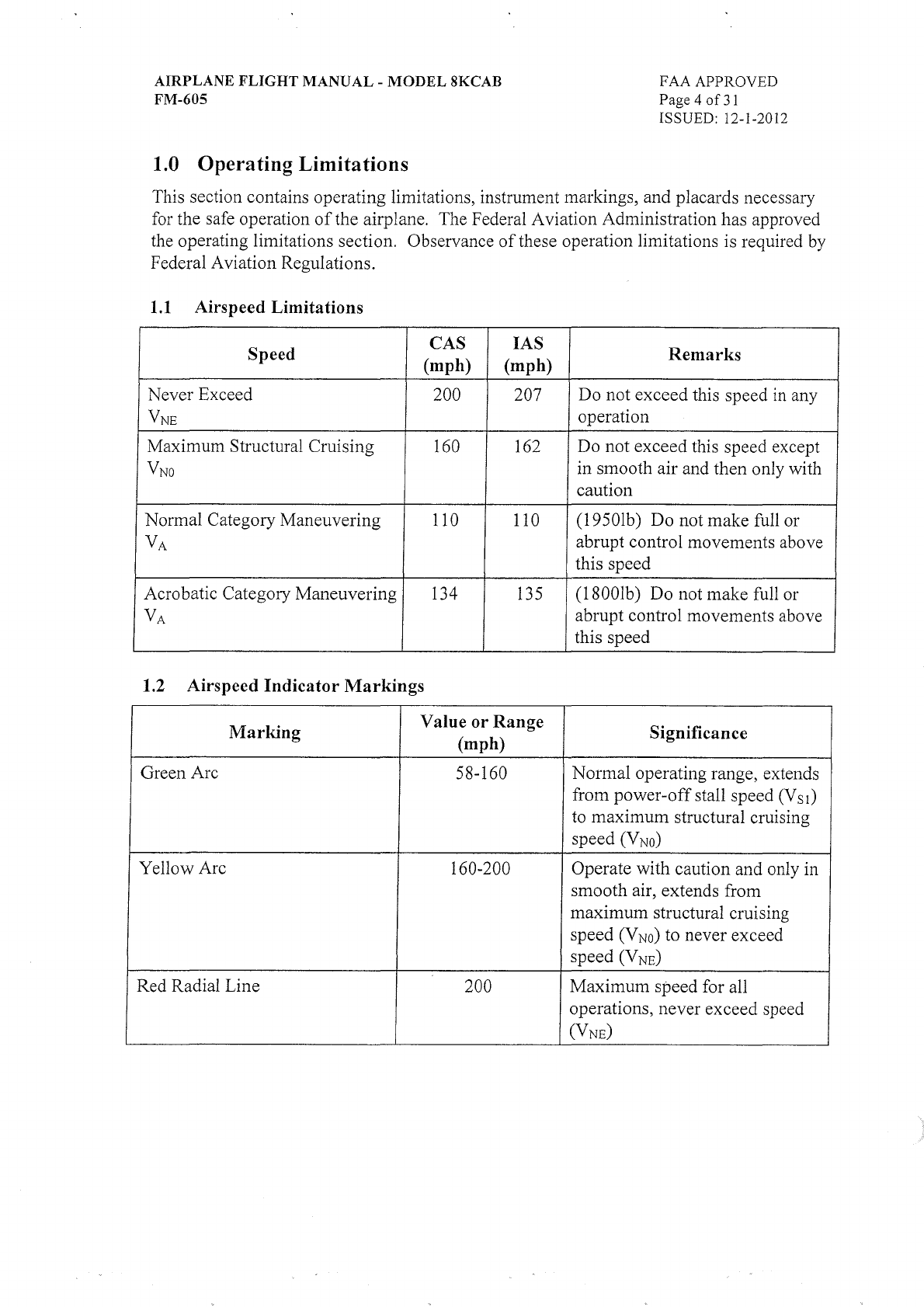

1.0 Operating Limitations
FAA APPROVED
Page 4
of 31
ISSUED: 12-1-2012
This section contains operating limitations, instrument markings, and placards necessary
for the safe operation
ofthe airplane. The Federal Aviation Administration has approved
the operating limitations section. Observance
of these operation limitations is required by
Federal Aviation Regulations.
1.1 Airspeed Limitations
Speed CAS IAS Remarks
(mph) (mph)
Never Exceed 200 207 Do not exceed this speed in any
VNE
operation
Maximum Structural Cruising 160 162 Do not exceed this speed except
V
No
in smooth air and then only with
caution
Normal Category Maneuvering 110 110 (1950lb)
Do not make füll or
VA
abrupt control movements above
this speed
Acrobatic Category Maneuvering 134 135 (1800lb)
Do not make füll or
VA
abrupt control movements above
this speed
1.2 Airspeed lndicator Markings
Marking Value or Range Significance
(mph)
Green Are 58-160
Normal operating range, extends
from
power-off stall speed (Vs1)
to maximum structural cruising
speed
(VNo)
Yellow Are 160-200 Operate with caution and only in
smooth air, extends from
maximum structural cruising
speed (V
No) to never exceed
speed
(VNE)
Red Radial Line 200
Maximum speed for all
operations, never exceed speed
(VNE)

AIRPLANE FLICHT MANUAL -MODEL 8KCAB
FM-605 FAA APPROVED
Page 5
of 31
ISSUED: 12-1-2012

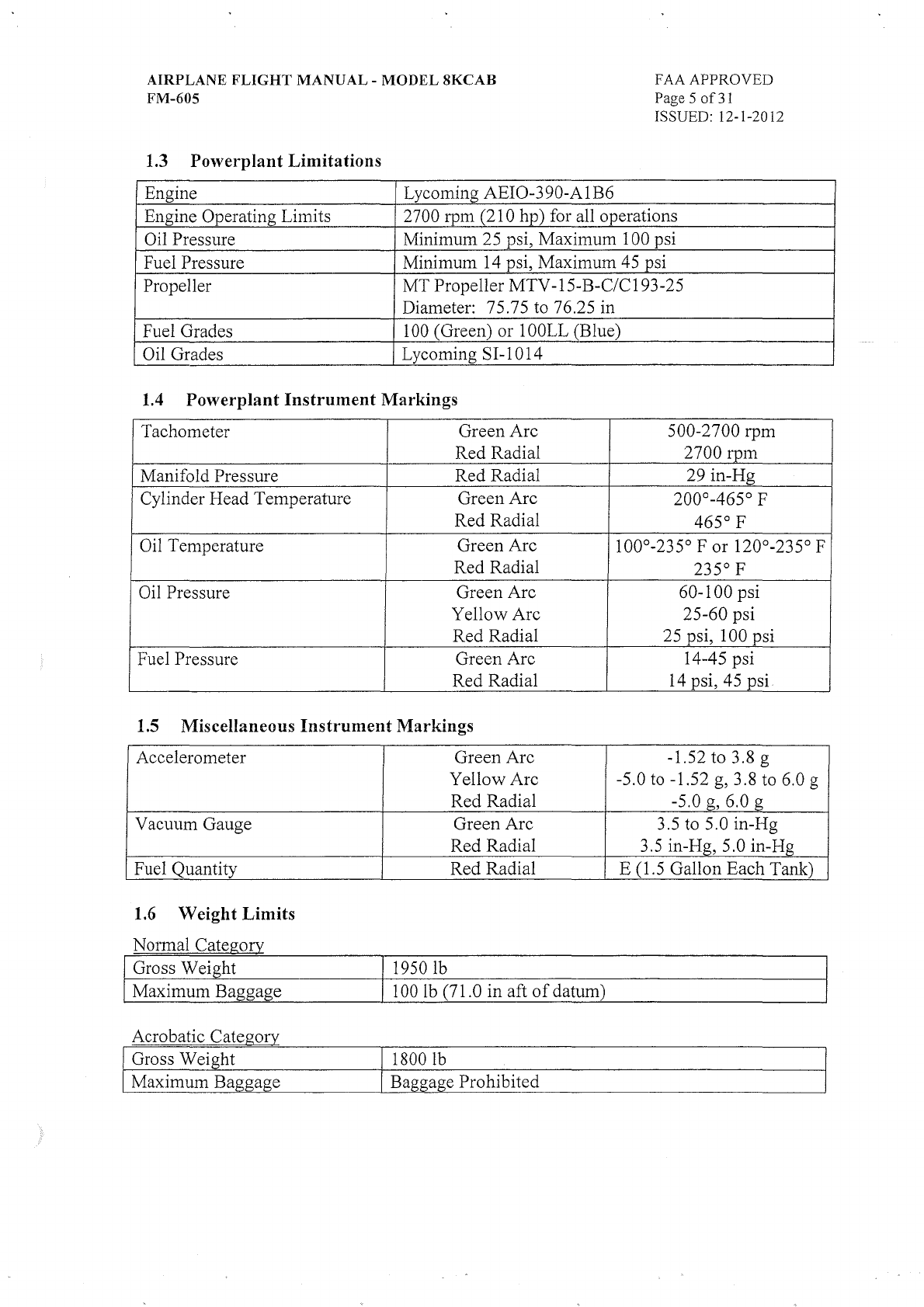

1.3 Powerplant Limitations
Engine Lycoming AEI0-390-A1B6
Engine Operating Limits 2700 rpm (210 hp) for all operations
Oil Pressure Minimum 25 psi, Maximum 100 psi
Fuel Pressure Minimum
14 psi, Maximum 45 psi
Propeller
MT Propeller MTV-15-B-C/C193-25
Diameter: 75.75 to 76.25 in
Fuel Grades
100 (Green) or IOOLL (Blue)
Oil Grades Lycoming SI-1014
1.4 Powerplant Instrument Markings
Tachometer Green Are
Red Radial
Manifold Pressure Red Radial
Cylinder Head Temperature Green Are
Red Radial
Oil Temperature Green Are
Red Radial
Oil Pressure Green Are
Yellow Are
Red Radial
Fuel Pressure Green Are
Red Radial
1.5 Miscellaneous Instrument Markings
Accelerometer
Vacuum Gauge
Fuel Quantity
1.6 Weight Limits
Normal Categorv
Gross Weight
Maximum Baggage
Acrobatic Category
1 Gross Weight
1 Maximum Baggage
Green Are
Yellow Are
Red Radial
Green Are
Red Radial
Red Radial
1950 lb
100 lb (71.0 in aft of datum)
1800 lb
Baggage Prohibited
500-2700 rpm
2700 rpm
29 in-Hg
200°-465° F
465° F
100°-235° F or 120°-235° F
235° F
60-100 psi
25-60 psi
25 psi, 100 psi
14-45 psi
14 psi, 45 psi
-1.52 to 3.8 g
-5.0 to -1.52 g, 3.8 to 6.0 g
-5.0 g, 6.0 g
3.5 to 5.0 in-Hg
3.5 in-Hg, 5.0 in-Hg
E (1.5 Gallon Each Tank)

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605

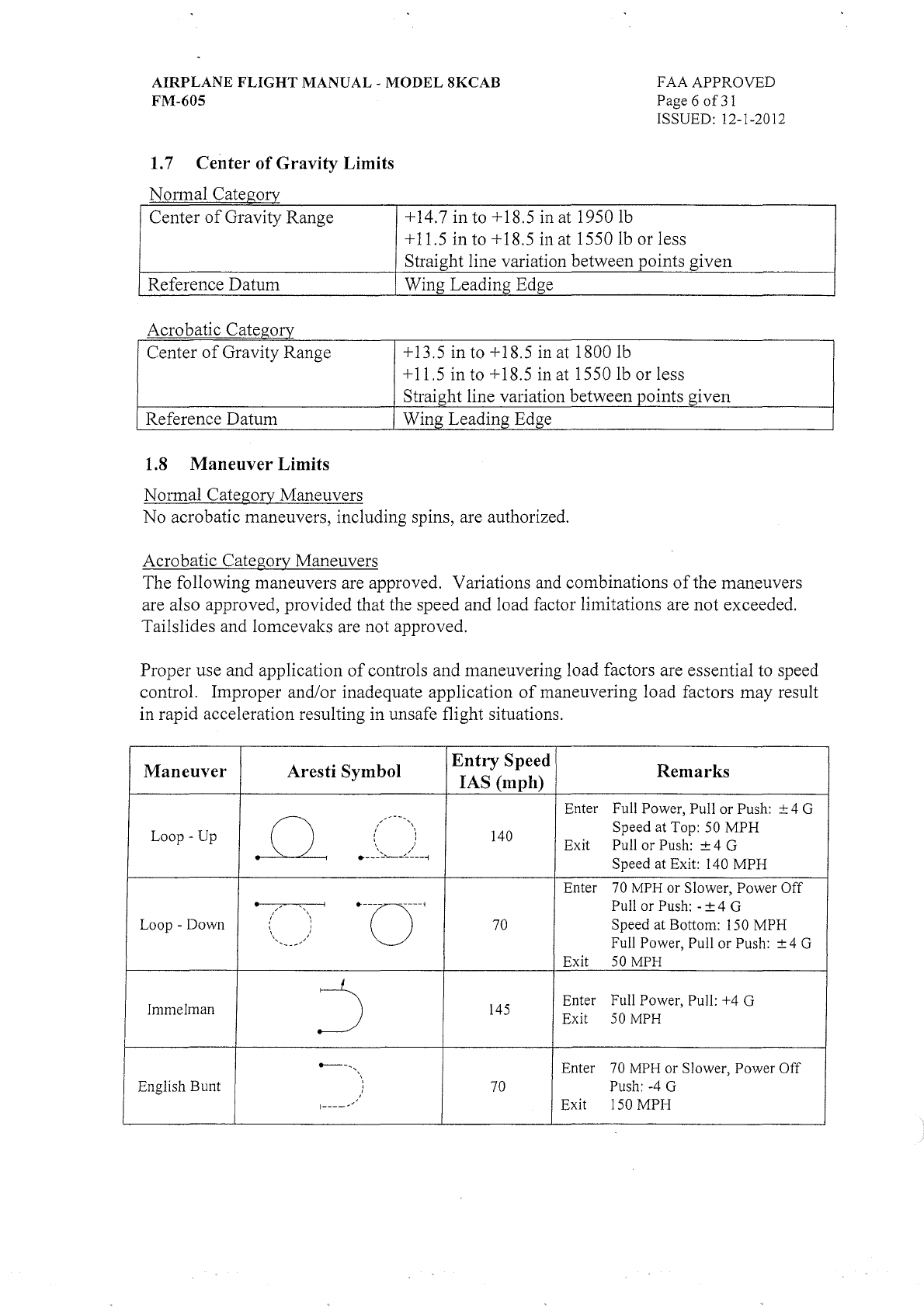

1. 7 Center of Gravity Limits
Normal Categoa
FAA APPROVED
Page 6 of31
ISSUED: 12-1-2012
Center of Gravity Range +14.7 in to +18.5 in at 1950 lb
Reference Datum
Acrobatic
Catego!}'.
Center of Gravity Range
Reference Datum
1.8 Maneuver Limits
Normal Catego!}'. Maneuvers
+11.5 in
to +18.5 in at 1550 lb or less
Straight line variation between points given
Wing Leading Edge
+13.5 in to +18.5
in at 1800 lb
+11.5 in to +18.5
in at 1550 lb or less
Straight line variation between points given
Wing Leading Edge
No acrobatic maneuvers, including spins, are authorized.
Acrobatic
Categoa Maneuvers
The following maneuvers are approved. Variations
and combinations ofthe maneuvers
are also approved, provided that the speed and load factor limitations are not exceeded.
Tailslides and lomcevaks are not approved.
Proper use and application of controls and rnaneuvering load factors are essential to speed
control. Improper and/or inadequate application
of maneuvering load factors rnay result
in rapid acceleration resulting in unsafe flight situations.
Maneuver Aresti Symbol Entry Speed Remarks
IAS (mph)
---
Enter Full Power, Pull or Push: ± 4 G
il
; ' ' ' ' Speed at Top: 50
MPH
Loop -Up , ' 140
' '
' ' Exit Pul! or Push: ± 4 G
' ,
·--~~'"<...--~~---!
Speed at Exit: 140 MPH
Enter 70 MPH or Slower, Power Off
; ' '
·--o--<
Pul! or Push: -± 4 G
, '
'
Loop -Down ' 70 Speed at Bottom: 150 MPH
' '
' ,
... __ „ ...
Full Power, Pull or Push: ± 4 G
Exit 50 MPH
ImmeIman
:j
145
Enter Full Power, Pull: +4 G
Exit 50MPH
--- .... , Enter 70
MPH or Slower, Power Off
English Bunt ' 70 Push: -4 G
'
,
1-----'"
Exit 150 MPH

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605

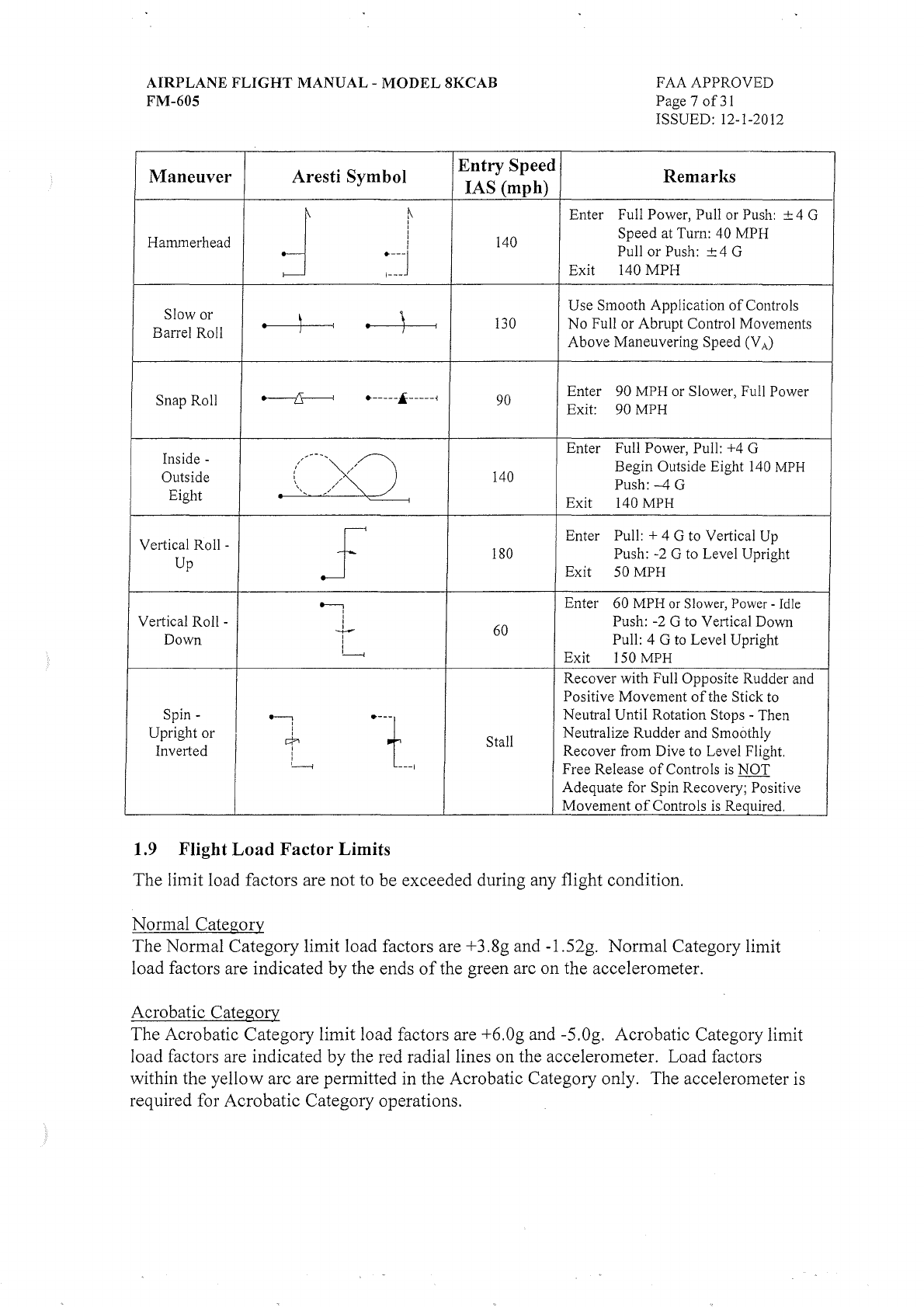

.Maneuver Aresti Symbol Entry Speed
IAS (mph)
d
~
1
1
1
Hammerhead 1 140
1
1
·--J
1---
Slow or )
Barrel Roll •
~
1 • 1 130
Snap Roll
~
·-----·-----<
90
Inside -
Outside
()<J_
140
Eight •
Vertical Roll -
s·
Up
180
.__,
1
Vertical Roll -1
1
--1- 60
Down 1
1
1
'----<
Spin -----i
·--t
Upright or i
~
Stall
Inverted 1
:
'----<
---1
1.9 Flight Load Factor Limits
Enter
Exit
FAA APPROVED
Page 7
of31
ISSUED: 12-1-2012
Remarks
Full Power, Pull or Push: ± 4 G
Speed at Turn: 40 MPH
Pull
or Push: ± 4 G
140 MPH
Use Smooth Application of Controls
No Full or Abrupt Control Movements
Above Maneuvering Speed
(VA)
Enter 90 MPH or Slower, Full Power
Exit: 90 MPH
Enter Full Power, Pull: +4 G
Begin Outside Eight 140
MPH
Push: -4 G
Exit 140 MPH
Enter Pull: + 4 G to Vertical Up
Push: -2 G to Level Upright
Exit 50MPH
Enter 60 MPH or Slower, Power - Idle
Push: -2 G to Vertical Down
Pull: 4 G to Level Upright
Exit 150
MPH
Recover with Full Opposite Rudder and
Positive Movement ofthe Stick to
Neutra! Until Rotation Stops -Then
Neutralize Rudder and Smoothly
Recover from Dive to Level Flight.
Free Release
ofControls is NOT
Adequate for Spin Recovery; Positive
Movement of Controls is Required.
The limit load factors are not to be exceeded during any flight condition.
Normal Category
The Normal Category limit load factors are +3.8g and -1.52g. Normal Category limit
load factors are indicated by the ends
of the green arc on the accelerometer.
Acrobatic Category
The Acrobatic Category limit load factors are +6.0g and -5.0g. Acrobatic Category limit
load factors are indicated by the red radial lines on the accelerometer. Load factors
within the yellow arc are permitted in the Acrobatic Category only. The accelerometer
is
required for Acrobatic Category operations.

AIRPLANE FLICHT MANUAL -MODEL SKCAB
FM-605
1.10 Kinds of Operation
FAA APPROVED
Page 8 of31
ISSUED: 12-1-2012
Only VFR, day or night, operation is approved. Equipment listed in the Aircraft
Equipment List as
"R" is required to be installed and operational for VFR day or night
flight. Flight into
known icing conditions is prohibited.
1.11 Fuel Limitations
Left and Right Wing Tanks
Total Fuel: 43.0 Gallons; 21.5Gallons
per tank
Useable Fuel: 40.0 Gallons; 20.0 Gallons per tank
Unusable Fuel: 3 .0 Gallons; 1.5 Gallons per tank
A header tank provides fuel for
2. 0 minutes of inverted flight. One minute of positive G
flight is required to completely refill the header tank.
1.12 Outside Air Temperature Limits
Adequate powerplant cooling has been demonstrated for outside air temperatures below
120°F. Remove oil cooler covers when outside air temperature exceeds 40°F.
1.13 Types of Surface
Operations may be conducted from hard surface, grass, gravel, or similar surfaces.
Performance allowances shall be made in accordance with Sections 4.5 and 4.8.
1.14 Required Placards
In Full View
of Pilot
"MANEUVERING SPEED 110 MPH (96 KNOTS) CAS
DEMONSTRATED CROSSWIND VELOCITY 20 MPH (17
KNOTS)"
"SOLO FROM FRONT SEAT ONL Y. NO ACROBATIC MANEUVERS, INCLUDING SPINS,
APPROVED
IN NORMAL CATEGORY. DA Y OR NIGHT VFR OPERATION ONL Y. FLIGHT IN
KNOWN ICING.PROHIBITED. TO RECOVER FROM NORMAL OR INVERTED SPIN, USE FULL
OPPOSITE RUDDER AND NEUTRALIZE ELEVATOR."
"THIS AIRPLANE MUST BE OPERATED AS ANORMAL OR ACROBATIC CATEGORY
AIRPLANE IN COMPLIANCE WITH THE OPERATING LIMITATIONS STATED IN THE FORM OF
PLACARDS, MARKINGS AND MANUALS. MARKINGS AND PLACARDS (EXCEPT
ACCELEROMETER MARKINGS) REFER TO NORMAL CATEGORY ONLY. SEE AIRPLANE
FLIGHT MANUAL FOR ACROBATIC CATEGORY INFORMATION, WEIGHT AND BALANCE
INFORMATION AND OTHER OPERATING LIMITATIONS."
"NO SMOKING"
"MAGNETIC COMPASS MAY DEVIATE AS MUCH AS 30° WITH PITOT HEA TON" (Heated Pitot)
"SEAT BACK RESTRAINER CABLE MUST BE CONNECTED BEFORE FLIGHT UNLESS
CONTROL STICK
IS REMOVED"

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605
In Baggage Compartment
"MAXIMUM BAGGAGE 100 LBS"
On Forward Left Side Window
"DO NOT OPEN ABOVE 130 MPH"
F AA APPROVED
Page 9
of 31
ISSUED: 12-1-2012
"ALTERNATE EMERGENCY EXIT, UNLATCH- FORCE FORWARD PORTION PAST STOP"
On Emergency Door Release
"EMERGENCY DOOR RELEASE, PULL PIN -PULL HANDLE"
Adjacent to Fuel Gauge
"FUEL IN TANK WHEN GAUGE READS 'E' (EMPTY) CANNOT BE SAFELY USED IN FLIGHT"
Above Fuel ShutoffRod
"FUEL 40 GAL USEABLE -DOWN ON"
Adjacent to Fuel Cap
"AVGAS 100 OCTANE 20 GALLONS"
Adjacent to Strohe Light Switch
"TURN OFF STROBE LIGHTS WHEN TAXIING IN VICINITY OF OTHER AIRCRAFT OR DURING
FLIGHT THROUGH CLOUD, FOG, OR HAZE. STANDARD POSITION LIGHTS TOBE ON FOR
ALL NIGHT OPERATIONS."
On Front Seat Rear Leg
"REAR SEAT PIN 7-1500 OR 7-1501 AND REARCONTROL STICK PIN 4-1711 REQ'D WITH THIS
SEAT INSTALLATION" (Adjustable Front Seat)
On Rear Control Stick
"REAR STICK PIN 4-1711" (Adjustable Front Seat)
On Rear Seat Front Leg
"REAR SEAT PIN 7-1500" or "REAR SEAT PIN 7-1501" (Adjustable Front Seat)

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605
2.0 Emergency Procedures
2.1 Emergency Airspeeds
Page 10 of3 l
ISSUED: 12-1-2012
Engine Failure After Takeoff.„.„ .. „ .. „ ... „.„„.„.„„ ... „„.„„„„.„„„„ .. 76 mph IAS
Best Glide
(1950lb)„„„„.„„„„„„„„„„„„„„„„„„„„„„„„„„„„„. 70 mph IAS
(1800lb)„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„
„. „. 68 mph IAS
(1650lb)„„„„„„„.„„„ .. „.„„„.„ ...„„„..... „.„„„„„„„ .. 65 mph IAS
Precautionary Landing with Engine
Power„„„„ .... „„.„„„„„„„„„„. 76 mph IAS
Forced Landing without Engine Power „„„.„„„„„„„„.„ ... „„„„.„ ... 76 mph IAS
2.2 Engine Failure During TakeoffRoll
1) Throttle -idle
2) Brakes -apply
3) Mixture -idle cut-off
4) Ignition switches -
off
5) Master switch - off
2.3 Engine Failure Immediately After Takeoff
If possible land on rernaining runway or land ahead. Do not atternpt to reverse course.
1) Airspeed - 76 mph IAS
2) Mixture -idle cut-off
3) Fuel valve -
off
4) Ignition switches - off
5) Master switch - off
2.4 Engine Failure During Flight (Restart Procedure)
1) Airspeed -80 mph IAS
2) Throttle - Yz travel
3) Alternate air -on
4) Mixture -rich
5) Propeller -füll forward
6) Fuel valve -on
7) Master -on
8) Fuel
pump - on
9) Ignition switches -on
10) Starter -engage (if propeller is stopped)
2.5 Precautionary Landing With Power
1) Speed -76 rnph IAS
2) Master switch - off
3) Door -unlatch prior to touchdown
4) Touchdown -tail low

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605
2.6 Forced Landing without Engine Power
1) Speed -76 mph IAS
2) Mixture -idle cut-off
3) Fuel pump -
off
4) Fuel valve - off
5) Ignition switches - off
6) Master switch - off
7) Door -unlatch prior to touchdown
8) Touchdown -tail low
2. 7 Engine Fire -Start
1) Starter -continue cranking
If engine starts:
2) Throttle -2100 rpm for 1
to 2 minutes
3) Engine -Shutdown and inspect for damage
If engine fails to start:
2) Mixture -idle cut-off
3) Throttle -füll open
4) Fuel valve -
off
5) Ignition switches - off
6) Master switch - off
7) Exit aircraft
8) Fire extinguisher -apply
as necessary
9) Fire damage -inspect and repair prior
to flight
2.8 Engine Fire -Ground
1) Mixture -idle cut-off
2) Fuel valve -
off
3) Ignition switches - off
4) Master switch - off
5) Exit aircraft
6) Fire extinguisher -apply
as necessary
7) Fire damage -inspect and repair prior to flight
2.9 Engine Fire -In Flight
1) Mixture -idle cut-off
2) Fuel valve -
off
3) Ignition switches - off
4) Master switch - off
5) Cabin heaters - off
6) Airspeed -100 mph IAS or greater
7) Accomplish emergency landing and exit aircraft
Page 11 of3 l
ISSUED: 12-1-2012

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605
2.10 Electrical System Malfunction
Page 12 of31
ISSUED: 12-1-2012
The arnmeter indicates current to or from the battery. A steady discharge on the ammeter
indicates
an inoperative alternator systern.
1) Master Switch -cycle to reset the over voltage relay
2)
If excessive battery discharge continues, turn off all nonessential electrical
equipment to conserve battery power.
3) Land as soon as practical as the battery will furnish electrical power for a
lirnited time only.
2.11 Electrical System Fire
An electrical fire is usually indicated by an odor of hot or burning insulation and wisps of
smoke. Should an electrical fire develop, the following procedures are recornmended.
1) Master switch - off
2) Electrical switches -off, leave magneto switches on
3) Vents, windows, cabin heaters -closed, open only if necessary for ventilation
4)
If fire continues, land as soon as practical.
If fire/smoke stops and electrical power is required for the rernainder of the flight, turn the
master switch on, followed by the desired circuit switch. Allow one minute between
turning
on each switch in order that the faulty circuit rnay be located and switched off.
2.12 Emergency Exits
The right cabin door serves as the primary exit. The door rnay be removed by releasing
the upper window latches, removing the safety pin, and pulling the red emergency door
release handle. Push the door away from the aircraft
if necessary. Exit may also be made
from left side
of aircraft by opening left window. Force forward portion of window past
the stop by pushing out on the forward window frame.
2.13 Loss of Governor Control
In the event governor failure or oil pressure loss, the propeller will automatically go to the
coarse pitch, low RPM position. Use throttle
as necessary to execute a precautionary
landing.
2.14 Fuel Pressure Loss
In the event of fuel pressure loss or fluctuation, turn "ON" the fuel pump.
2.15 Spin Recovery
Nonnal Category spins are not approved. If a spin in inadvertently entered, initiate
recovery immediately. Refer to Section 3.19 for spin recovery.

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605 Page
13 of 31
ISSUED: 12-1-2012
3.0 Normal Procedures
3.1 Pre-Flight Check (See Page 14)
1) a. Release controls.
2)
3)
4)
5)
6)
b. Check ignition switches "OFF".
c. Check fuel quantity on fuel gauges.
d. Fuel valve "ON".
e. Inspect seat belts for condition.
f. Secure rear seat belt, rear shoulder harness, and all loose or hanging
objects
if not in use. Determine that the rear seat folding back has two
restrainer cables to prevent seat back from folding forward and interfering
with rear stick movement.
g.
a.
b.
c.
a.
b.
a.
b.
c.
d.
e.
f.
g.
a.
b.
c.
d.
e.
a.
b.
c.
Emergency locator transmitter -armed.
Check right wing root
cover for security.
Check aileron for freedom
of movement and security.
Check wing and struts for general condition.
Check right main wheel for condition and proper inflation.
Visually check right fuel quantity and filler cap security.
Check oil level and secure dip stick. Inspect engine
compaiiment for
general condition, fuel leaks, oil leaks, etc.
Check that the cowl doors are properly latched.
On first flight of day and after refueling, drain fuel from gascolator.
Check windshield for cleanness.
Check prop for condition and prop spinner for security.
Check prop blade shank for excessive grease leakage.
Check air filter for cleanliness and security.
Check left main wheel for condition and proper inflation.
Visually check left fuel quantity and filler cap security.
Check fuel vent for stoppage.
Check pitot tube for stoppage.
Inspect stall warning vane for freedom
of movement.
Check wing root cover for security.
Check aileron for freedom
of movement and security.
Check wing and struts for general condition.

AIRPLANE FLIGHT MANUAL -MODEL 8KCAB
FM-605 Page
14 of3 l
ISSUED: 12-1-2012
7) a.
b.
c.
8) a.
b.
c.
d.
On first flight of day and after refueling, drain fuel from aft fuselage drain.
Inspect bottom
of aircraft for general condition.
Inspect left static port for stoppage.
Check tail surfaces and brace wires for general condition.
Check control surfaces and trim tab for freedom
of movement and
security.
Check tail wheel security and proper inflation.
Inspect right static po1i for stoppage.
~--- 8 >---·-----~
Figure 3-1, Pre-Flight Inspection (See Page 12)
3.2 Pre-Start Check
1) Seat belts -adjust and secure
Lap belts must be taut; verify slack is not present in lap belts. Verify
interference is not present between front lap belts and rear rudder pedals.
2) Fuel valve handle -on
3) Brakes -test and set
4)
Radiosand electrical equipment - off

AIRPLANE FLICHT MANUAL -MODEL 8KCAB
FM-605

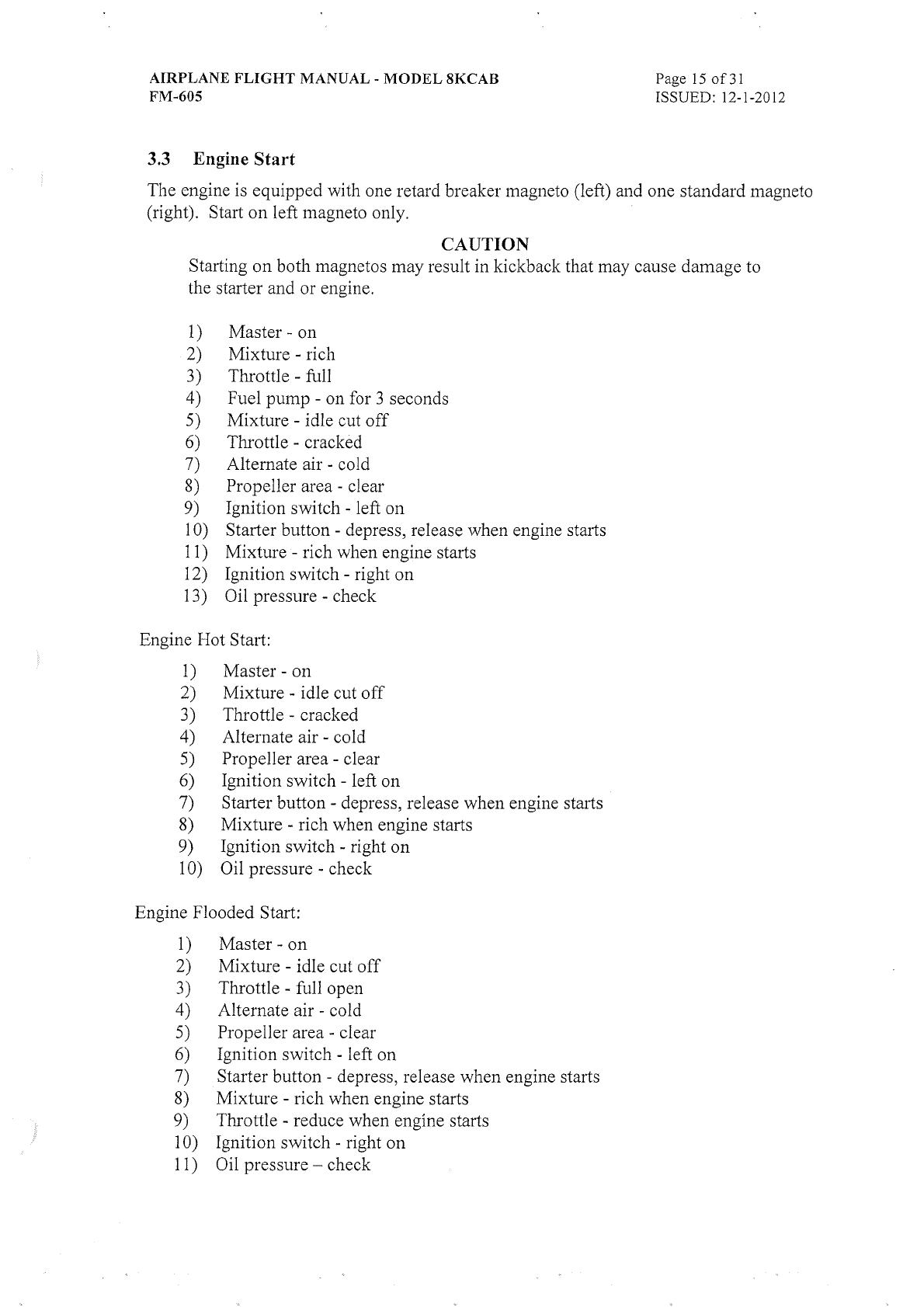

3.3 Engine Start
Page 15 of31
ISSUED: 12-1-2012
The engine is equipped with one retard breaker magneto (left) and one standard magneto
(right). Start on left magneto only.
CAUTION
Starting on both magnetos may result in kickback that may cause damage to
the starter and or engine.
1) Master -on
2) Mixture -rich
3) Throttle -füll
4) Fuel pump -on for 3 seconds
5) Mixture -idle cut
off
6) Throttle -cracked
7) Alternate air -cold
8) Propeller area -clear
9) Igllition switch -left on
10) Starter button -depress, release when ellgine starts
11) Mixture -rich when engine starts
12) Igllition switch -right Oll
13) Oil pressure -check
Engille Hot Staii:
1) Master - Oll
2) Mixture -idle cut off
3) Throttle -cracked
4) Alternate air -cold
5) Propeller area -clear
6) Ignition switch -Ieft on
7) Starter button -depress, release when engine starts
8) Mixture -rich when engine starts
9) Ignitioll switch -right Oll
10) Oil pressure -check
Engine Flooded Start:
1) Master - Oll
2) Mixture -idle cut off
3) Throttle -füll open
4) Alternate air -cold
5) Propeller area -clear
6) Ignition switch -left on
7) Starter button -depress, release whell engine starts
8) Mixture -rich whell engine starts
9) Throttle -reduce whell engille starts
10) Igllition switch -right on
11) Oil pressure -check

AIRPLANE FLICHT MANUAL -MODEL 8KCAB
FM-605 Page
16of31
ISSUED: 12-1-2012
3.4 Cockpit (Before Flight)
1) Cabin door -latched
2) Flight controls -check for freedom
of movement and operation
Verify lap belts are taut. Verify interference is not present between front
lap belts and rear rudder pedals.
3) Trim tab -centered
3.5 Engine Run-Up
1) Throttle setting -2100 rpm
2) Mixture -füll rich or lean for altitude
3) Magnetos -check (150
rpm maximum drop, 50 rpm maximum differential)
4) Alternate air -check operation
5) Engine instruments -within green arc
6) Throttle -1500 rpm
7) Propeller -cycle
8) Throttle -idle check
3.6 Takeoff(Normal)
1)
Mixture -füll rich or lean for altitude
2) Propeller -füll forward
3) Fuel pump - on
4) Alternate air -cold
5) Throttle -füll
6) Engine instruments -within green arc
3.7 Takeoff(Short Field)
1)
Propeller -füll forward
2) Fuel
pump -on
3) Alternate air -cold
4) Brakes -apply
5) Throttle -füll
6) Mixture -füll rich or lean for altitude
7) Engine instruments -within green arc
8) Brakes -release
9) Rotate -58
mph IAS
10) Obstacle speed -70
mph IAS
3.8 Climb
1) Throttle -füll
2) Mixture -füll rich or lean for altitude
3) Propeller -füll forward
4) Fuel
pump - off
5)
Climb speed -best rate
6) Engine instruments -within green arc

AIRPLANE FLICHT MANUAL - MODEL SKCAB
FM-605

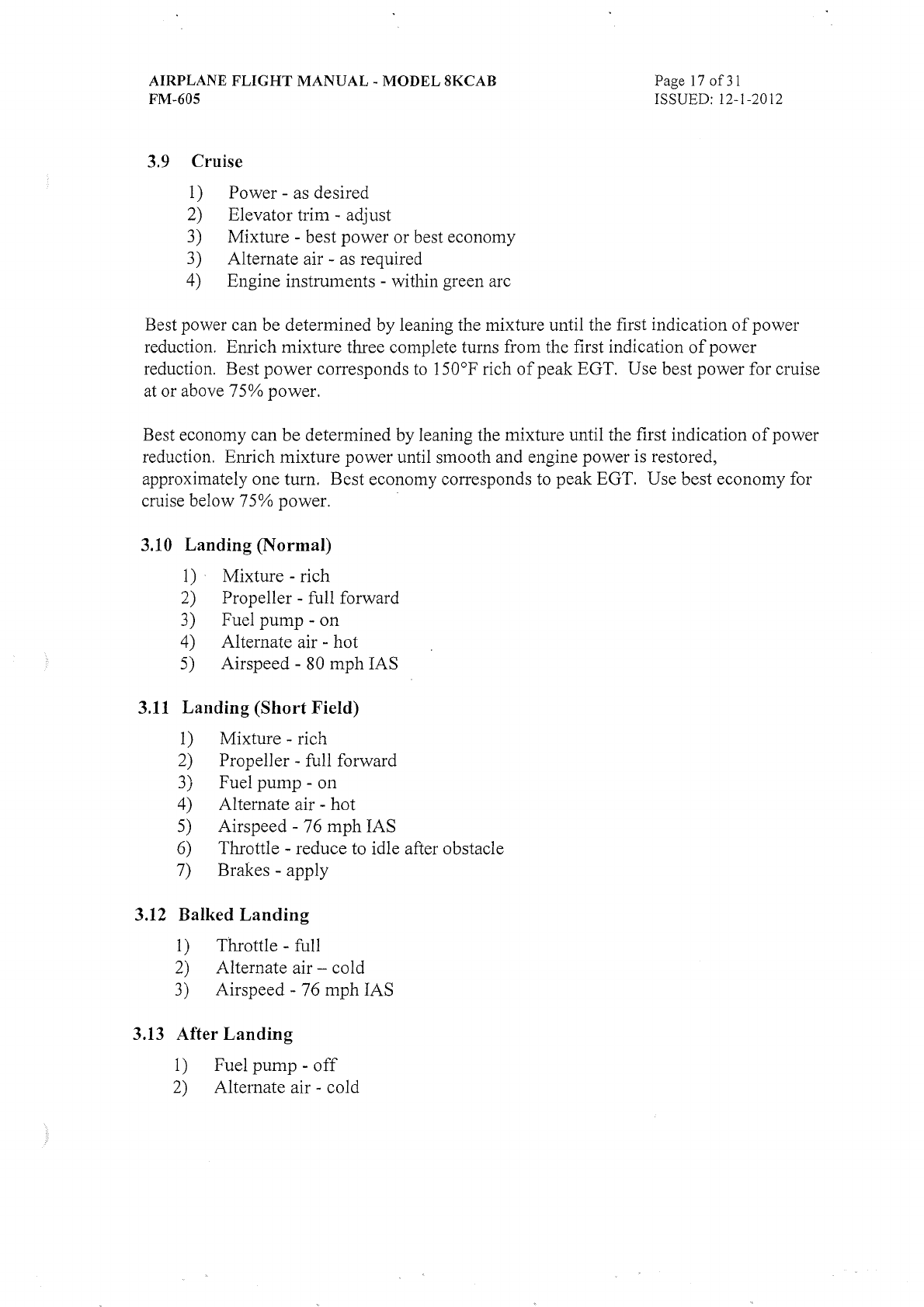

3.9 Cruise
1) Power -as desired
2) Elevator trim -adjust
3) Mixture -best power or best economy
3) Alternate air -as required
4) Engine instruments -within green arc
Page 17 of3 l
ISSUED: 12-1-2012
Best power can be determined by leaning the mixture until the first indication of power
reduction. Enrich mixture three complete turns from the first indication
of power
reduction. Best power corresponds
to 150°F rich ofpeak EGT. Use best power for cruise
at or above 75% power.
Best economy can be determined by leaning the mixture until the first indication
of power
reduction. Enrich mixture power until smooth and engine power is restored,
approximately one turn. Best economy corresponds
to peak EGT. Use best economy for
cruise below 75% power.
3.10 Landing (Normal)
1) · Mixture -rich
2) Propeller -füll forward
3) Fuel pump - on
4) Alternate air -hot
5) Airspeed - 80 mph IAS
3.11 Landing (Short Field)
1) Mixture -rich
2) Propeller -füll forward
3) Fuel pump -on
4) Alternate air -hot
5) Airspeed -76 mph IAS
6) Throttle -reduce to idle after obstacle
7) Brakes -apply
3.12 Balked Landing
1) Throttle -füll
2) Alternate air -cold
3) Airspeed -76 mph IAS
3.13 After Landing
1) Fuel pump - off
2) Alternate air -cold

AIRPLANE FLICHT MANUAL -MODEL 8KCAB
FM-605
3.14 Shut Down and Securing Aircraft
1) Parking -into the wind if possible
2) Park brake -set
3)
Radiosand electrical equipment -off
4) Magnetos -check
5) Mixture -idle cut-off
6) Ignition and master switches - off
7) Control lock -secure seat belt around front control stick
3.15 Alternate Air
Page 18 of31
ISSUED: 12-1-2012
Avoid using alternate air on the ground. With alternate air on, induction air is not filtered
and abrasive dirt particles may enter the engine. In flight, use alternate air when icing is
suspected. Turn "OFF" front and rear cabin heat to maximize alternate air temperature.
Induction icing is indicated by a gradual lass
of manifold pressure or engine roughness.
3.16 Fuel Pump
The fuel pump is used to provide fuel pressure for priming and to provide fuel pressure if
the engine-driven pump fails. The fuel pump should be used during takeoffand landing
and switched
off during normal flight.
3.17 Detuning
Detuning the engine counterweight system can occur when the engine is operated outside
of the normal range or by abrupt throttle movement.
CAUTION
Detuning results in rapid and severe damage to the counterweights, rollers,
and bushings culminating in engine failure.
Avoid rapid throttle movement -give special consideration to high power settings; i.e.
ground run up or in-flight power reduction.
Avoid high rpm and
low manifold pressure - Avoid power-offdescent below 15 in-Hg of
manifold pressure. During approach do not select low pitch (high rpm) until it is assured
that there will be no increase in engine rpm; i.e. idle power below 100 mph IAS.
3.18 Acrobatic Operation
Maneuvers limits are listed in Section 1.8. Determine that all loose objects, including
unused seatbelts, are removed from the aircraft or secured to prevent movement in flight.
Full movement
of the ailerons may be used at speeds up to VA provided the load factor
does not exceed +4.0 or -3.2
g. Use of ailerons above VA should be smooth and limited
to deflections that do not exceed the rate
of roll at VA·
CAUTION
Full abrupt use of the ailerons combined with füll abrupt use of the elevator at
VA may produce loads in excess of design limits.

AlRPLANE FUGHT MANUAL - MODEL 8KCAB
FM-605
3,18 Acrobatk Operation (Confümed)
A propeller setting of 2500 rprn is recommended for aII rnaneuvers.
3.19 Spins
Page 19 of31
REVISED: 6-17-2013
Acrobatic Category spins are approved. Lass of altitude including recovery from a six-
tum spin rnay be as much as 3000 ft.
WARNING
Free release of the controls is not adequate for spin recovery; positive
rnovement
of the controls is required.
To enter a spin:
1) Throttle - reduce to idle
2) Airspeed -decelerate to stall
3) Rudder -apply in direction of spin
4) Elevator -apply fully to stall aircraft
Torecover from a spin:
1) Throttle -idle
2) Neutralize ailerons
3) Apply füll rudder opposite of rotation
4) Apply neutral elevator
5) When rotation stops neutralize rudder, apply elevator smoothly to raise nose
3.20 Maximum Demonstrated Crosswind
Maximum dernonstrated crosswind velocity for takeoff and landing is 20 mph (17 knots).
3.21 Tu.rbulence Penetration Speed
Do not exceed 110 mph IAS in rough air to prevent overstressing the aircraft. To
minimize personal discomfort, decrease airspeed to 100 mph IAS. Maintain a constant
pitch rather than flying by reference to the altimeter and airspeed indicators.
3.22 Noise Characteristics
The noise level measured in accordance with FAR 36, Appendix G and ICAO Annex 16,
Vol.
1, Cap. 10 is 80.90 dBA.
No determination has
been made by the Federal Aviation Administration that the noise
Ievels
ofthis airplane are or should be acceptable or unacceptable for operation at, into, or
out of, any airport.

AIRPILANE FUGH'f MANUAL - MODEL 8KCAB
FM-605
4.0 Performance Information
4.1 Airspeed Calibration
IAS (mph)
58
60
80
100
120
140
160
180
200
207
1) Assumes zero instrument error
2)
Power required for Ievel flight
4,2 Stailing Speeds
CAS (mph)
58
60
80
100
120
139
158
176
194
200
JAS
(mph) -Angle of Bank
oo
30° 45° 60°
58 62
69
82
1) Gross weight -1950 lb
43 Best Glide Speed and Distance
Height AGL (ft)
Distance (nm)
2000 2.3
4000 4.6
6000 6.9
8000 9.1
10000 11.4
Page 20 of3 I
ISSUED: 12-1-2012
1) Best glide airspeeds IAS (mph), 1950 lb -70, 18001b -68, 1650lb -65
2)
Best glide range and airspeeds are substantially affected by headwind,
tailwind, updrafts and downdrafts, chart
is for still-air only
