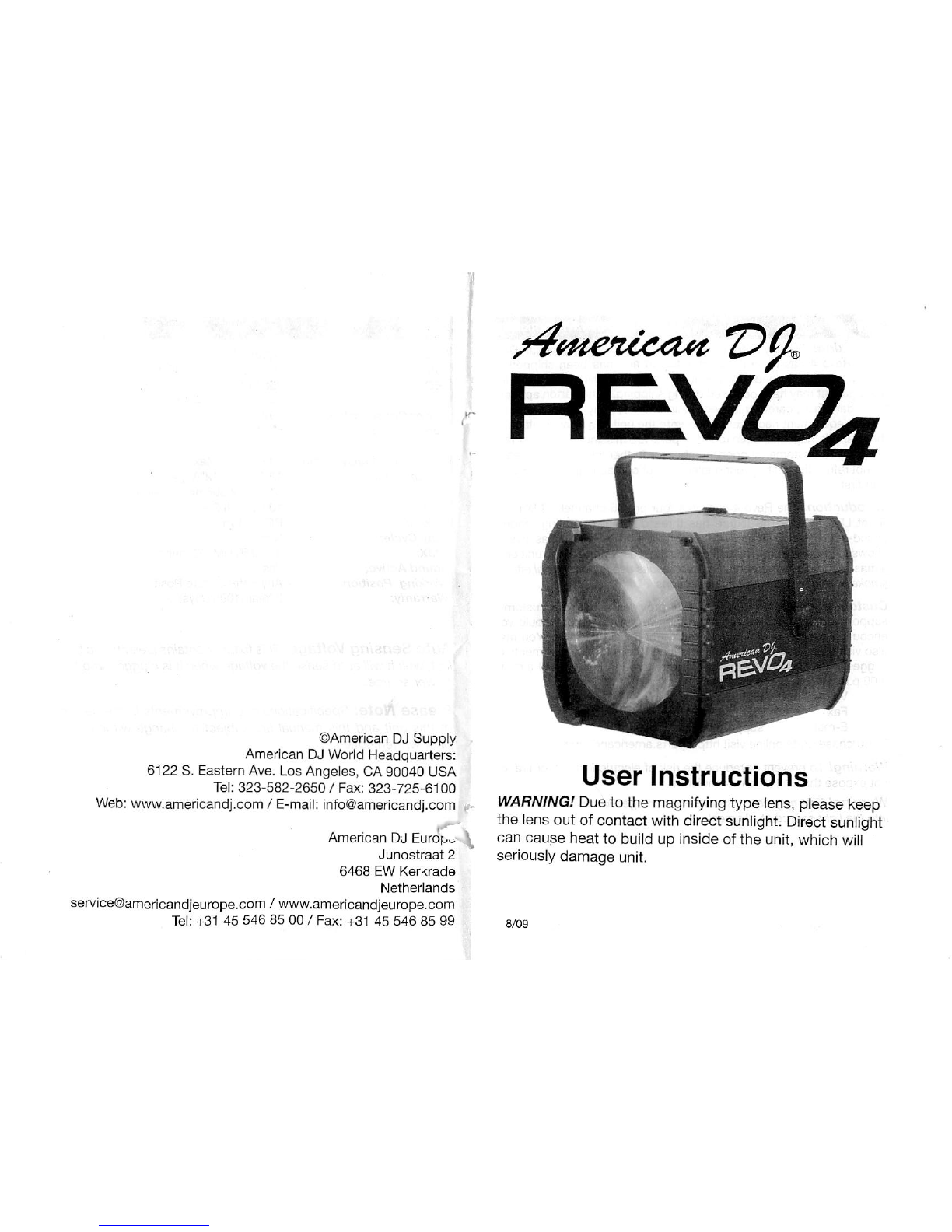

American DJ Revo 4 User manual

•
©American DJ Supply
American DJ World Headquarters:
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: [phone] / Fax: [phone]
Web: www.americandj.com /E-mail: [email protected]
American DJ Europ^
Junostraat 2
6468 EW Kerkrade
Netherlands
[email protected] /www.americandjeurope.com
Tel: [phone] / Fax: [phone]
s4m&Uc<Zit *D^
User Instructions
WARNING! Dueto the magnifying type lens, please keep
the lens out of contact
with direct sunlight. Direct sunlight
can cause heat to build up inside of the unit, which will
seriously damage unit.
8/09

Revo 4
Notes
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 18
Revo 4 General Instructions
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Revo 4
Features
• DMX-512 Protocol Compatible (Four or 256 DMX Channels)
• RGB + White
• 3 Operating Modes - Show Mode; Sound Active; DMX Controlled
•
Stand Alone or Master/Slave Configuration
• Internal Microphone
• Digital Display for Address and Function Setting
• UC3 Controller (Not Included)
• 12 Show Modes
Revo 4
Warranty Registration
The Revo 4 carries a 3 year (1095 days) limited warranty. Please fill
out the enclosed warranty card to validate your purchase and war
ranty. You may also register your product online at www. americandj.
com. All returned service items whether under warranty or not, must
be freight pre-paid and accompany a return authorization (R.A.) num
ber. If the unit is under warranty you must provide a copy of your
proof of purchase invoice. Please contact American DJ® customer
support for aR.A. number.
Revo 4
Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so willvoid your manufactures war
ranty. In the unlikely event your unit may require service please contact
American DJ®.
American DJq will not accept any liability for any resulting damages
caused by the non-observance of this manual or any unauthorized
modification to this unit.
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 3

Revo 4
Warranty
MANUFACTURER'S LIMITED WARRANTY
A. AmericanDJ, Inc.hereby warrants, to the original purchaser, AmericanDJ and American
Audioproducts to be free of manufacturing defects Inmaterialand workmanship tor a prescribed
period
from the date of purchase (see specific warrantyperiodon reverse).This warrantyshall be
validonlyifthe product is purchased
within the UnitedStates of America, includingpossessions
and territories. Itis the owner's responsibility to establish the date and place of purchase by ac
ceptable evidence, at the timeservice issought.
B. For warranty service you must obtain a Return Authorization number (RAfl) before
sending back the product. Contact American DJ, Inc. Service Department at 800-322-6337.
Send
the product only to the American DJ, Inc. factory. All shipping charges must be pre-paid. Ifthe
requested repairs or service (including parts replacement) are within the terms of this warranty,
American DJ, Inc. will pay return shipping charges only to a designated point within the United
States. Ifthe entire instrument is sent, it must be shipped in it's original package. No accessories
should be shipped with the product. Ifany accessories are shipped with the product, American DJ,
Inc.shall have no liability whatsoever for loss of or damage to any such accessories, nor for the
safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is
modified in any
manner which American DJ, Inc. concludes, after inspection, affects the reliability
of
the product; if the product has been repaired or serviced by anyone other than the American DJ,
Inc. factory unless prior written authorization was issued to purchaser by American DJ, Inc.; if the
product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning
or periodic
check-up. During the period specified above, American DJ, Inc. will replace defec
tive parts at its expense with new or refurbished parts, and will absorb all expenses for warranty
service and repair labor by reason of defects in material or workmanship. The sole responsibility
of American DJ, Inc. under this warranty shall be limited to the repair of the product, or replace
ment thereof, including parts, at the sole discretion of American DJ. All products covered by this
warranty were
manufactured after January 1, 1990, and bear identifying marks to that effect.
E. American DJ, Inc. reserves the right to make changes in design and/or improvements
upon its products without any obligation to include these changes in any products theretofore
manufactured. No warranty, whether expressed or implied, is given or made with respect to any
accessory supplied with products described above. Except to the extent prohibited by applicable
law, all implied warranties made by American DJ, Inc. in connection with this product, including
warranties of merchantability or fitness, are limited in duration to the warranty period set forth
above. And no warranties, whether
expressed or implied, including warranties of merchantability
or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's
sole remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall American DJ, Inc. be liable for any loss or damage, direct or consequential,
arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to American DJ and American Audio
Products and
supersedes all prior warranties and written descriptions of warranty terms and
conditions heretofore published.
MANUFACTURER'S LIMITED WARRANTY PERIODS:
• All American Audio Products = 1-year (365 day) LimitedWarranty (except V-Plus SeriesAmpli
fiers)
• AllAmerican Audio V-Plus Series Amplifiers = 3-year (1095 day) Limited Warranty
• American DJ Lighting and American DJ Branded Products= 1-year (365 day) Limited Warranty
(Suchas: Special Effect Lighting, Intelligent Lighting, UV lighting. Strobes, FogMachines, Bubble
Machines, MirrorBalls, Par Cans, Trussing, Lighting Stands etc. excluding Laser Products, lamps,
and Star Tec Series)
• American DJ Laser Products and Star Tec Products = 90-Day Limited Warranty
• American DJ L.E.D. Products =3-year (1095 day) LimitedWarranty (excluding motors which
havea 1-year (365 day Limited Warranty) -,.,•., ,o <e
American DJ® - www.amencandj.com - Revo 4 Instruction Manual Page 16
Revo 4
SetUp
Power Supply: Before plugging your unit in, be sure the source volt
age in your area matches the required voltage for your American DJ®
Revo 4. The American DJ® Revo 4 contains a electronic ballast, which
will auto sense the voltage when it is plugged into the power source.
With the electronic ballast you do not need to worry about wall volt
age, this unit can be plugged in anywhere. Also be sure to only use the
included I.E.C. power cable supplied with the unit.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro
tocol used by most lighting and controllermanufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX
fixtures (most controllers only have a DATA "OUT" terminal).
DMX
Linking: DMX is a language allowing all makes and models
of different manufactures to be linked together and operate from a
single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMXline, at the beginning, at the
end, or anywhere in the middle. Therefore, the
first fixture controlled
by the controller could
be the last fixture in the chain. When a fixture
is assigned a DMX address, of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX
and Master/Slave Operation): The Revo 4 can
be controlled via DMX-512 protocol. The Revo 4
can be a four or 256 channel DMX unit. The DMX
address is set electronically using the controls on
the rear panel of the unit. Your unit and your DMX
controller require a approved DMX-512 110 Ohm
Data cable for data input and data output (Figure
1). We recommend Accu-Cable DMX cables. If you Figure 1
are making your own cables, be sure to use standard 110-120 Ohm
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 5

Revo 4 Traits & Values - 4 Channel DMX Mode I
— • ..,,
Ch1 Ch2 Ch3
Ch4
Function
Pattern
CH1 = 10-99
Chase
CH1 = 100-239
Color
CH1 = 10-99
Chase Speed
CH1=100-239
Strobe
240-255
Sound Active
236-255 Pattern 12
215-235 Pattern 11
194-214 Pattern 10
236-255 Chase 12
215-235 Chase 11
194-214 Chase 10
239-255 R+G+8+W
222-238 G+B+W
205-221 R+B+W
188-204 R+G+W
255
Fast
***
100-239
Chase
173-193 Pattern 9
151-172 Pattern 8
173-193 Chase 9
151-172 Chase 8
171-187 R+G+B
154-170 B+W
130-150 Pattern 7 130-150 Chase 7
137-153 G+W
10-255
**
109-129 Pattern 6
109-129 Chase 6
120-136 G+B
10-99
Pattern
0-9
OFF
088-108 Pattern 5 088-108 Chase 5
103-119 R+W
066-087 Pattern 4
042-065 Pattern 3
021-041 Pattern 2
000-020 Pattern 1
066-087 Chase 4
042-065 Chase 3
021-041 Chase2
000-020 Chase 1
086-102 R+B
069-085 R+G
052-068 W
035-051 B
018-034 G0
Slow
0-9 Stop
000-017 R
Using 4 Channel DMX Mode:
To project a pattern using Channel 2, the Channel values must
be between 10-99. This also applies to changing the pattern
color using Channel 3.
To run
the chases using Channel 2, the Channel 1 values must
be between 100-239. This also applies to controlling the chase
speed using Channel 3.
Revo 4 Traits & Values - 256 Channel DMX Mode
Ch1 Ch2
Ch3 Ch4 Ch253
Ch254
Ch255
Ch256
Red Green
Blue
White
Red Green
Blue
White
255r100% 255r100%
255r-100% 255r100%
255r100%
255i-100%
0 - 0%
0. 0%
0 - 0%
0 - 0°S
American DJ® - www.americandj.com - Revo4 Instruction Manual Page 14
h
Revo 4
SetUp
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR
connectors for DATA transmission in place of 3-pin. 5-pin XLR fixtures
may
be implemented in a 3-pin XLR DMX line. When inserting stan
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor
3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Ground/Shield Pin1 Pin 1
Data Compliment (- signal)
Pin 2 Pin 2
Data True(+signal) Pin 3 Pin 3
Not Used Pin 4 - Do Not Use
Not Used Pin 5 - Do Not Use
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 7

Revo 4
Operation
Universal DMX Control: Thisfunction allows you to use a Elation©
universal DMX-512 controller to control the chases and patterns,
dimmer and strobe. A DMX controller allows you to create unique
programs tailored to your individual needs.
1. The Revo 4 has 4 DMX channel mode and a 256 DMX channel
mode. To set the channel mode see page 8. See page 14 a for
detailed description of the DMXtraits.
To control your fixture in DMX mode, followthe set-up procedures
on pages 5-7 as well as the set-up specifications that are
included with your DMXcontroller.
Use the controller's faders to control the various DMX fixture traits.
This will allow you to create your own programs.
Follow the instruction on page 8 to set the DMX address.
For longer cable runs (more than a100 feet) use aterminator on
the last fixture.
For help operating in DMX mode consult the manual included
with your DMX controller.
2.
3.
4.
5.
6.
7.
Master-Slave Operation: This function will allow you to link up to
16 units together and operate without acontroller. In Master-Slave
operation one unit will act as the controlling unit and the others will
react to the controlling units programs. Any unit can act as aMaster
or as a Slave.
1. Using standard XLR microphone cables, daisy chain your units
together via the XLR connector on the rear of the units. Remem
ber the Male XLR connector is the input and the Female XLR
connector is the output. The first unit in the chain (master) will use
the female XLR connector only - The last unit in the chain will use
the male XLR connector only. For longer cable runs we suggest a
terminator at the last fixture.
2. On the Master unit find your desired show or choose sound act-
tive mode and set that by pressiing the ENTER button.
3. On the slave units tap the MENU button until "5Lnu" is display
ed, and Press ENTER. f
4. The slave units will now follow the Master unit.
5. The optional UC3 Controller(not included) may be used to con
trol different functions including blackout.
American DJ© - www.americandj.com - Revo 4 Instruction Manual Page 12
Revo 4
System Menu
RDDR - DMX Address Setting.
1. Tap the either the MENU, UP, or DOWN buttons until "RDDR"
is displayed, press ENTER.
,. 2. "I" will now be displayed and flashing. Press the UP or
DOWN buttons to find your desired address. Press ENTERto
set your desired DMX address.
"_rii iu - This will let you switch between 4Channel DMX
mode and 256 Channel DMX mode.
1. Tap the either the MENU button until "CHAD" is displayed,
press ENTER. Either "HUH" or "Z5&C" will be displayed
2. Tap the UP or DOWN buttons to choose your desired DMX
mode and press ENTER to confim and exit.
Bli ijj - This will let you set unit asa master or slave in a
master/slave configuration.
1. Tap the either the MENU button until "SLfiD" is displayed,
press ENTER. "DR5T", "5L1" or "SL?" will be displayed.
2. Tap the UP or DOWN buttons until your desired setting is
displayed, press ENTER to confim and exit.
Si-Imu: 5f"i 1- SN if? - Show modes 0- 12 For Show Mode
to run properly make sure Sound Active Mode is off.
1. Tap the MENU button until "SHAD" is displayed, press
ENTER.
f2. "SH X" will now be displayed, "X" representing a number
between 1-12. Programs 1-12 are preset shows, while "SH 0"
is random mode. Press the UP or DOWN buttons to find your
desired show and press ENTER to confirm.
American DJ© -www.americandj.com - Revo4 Instruction Manual Page 9

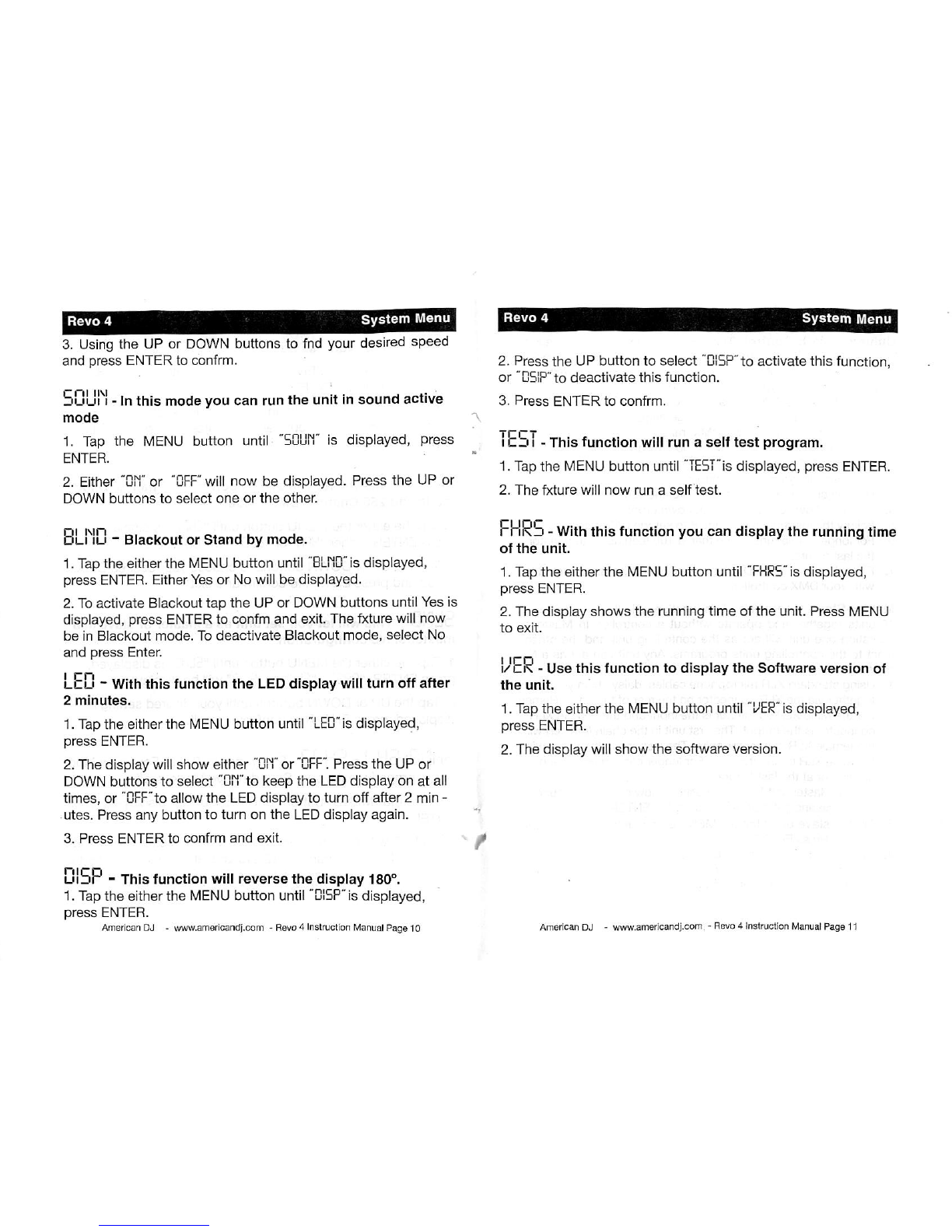

System Menu
3. Using the UP or DOWN buttons to fnd your desired speed
and press ENTER to confrm.
Suul i- In this mode you can run the unit in sound active
mode
1. Tap the MENU button until "SCUM" is displayed, press
ENTER.
2. Either "Dm" or "OFF" will now be displayed. Press the UP or
DOWN buttons to select one or the other.
o'u iu - Blackout or Stand by mode.
1. Tapthe either the MENU button until "BLuD" is displayed,
press ENTER. Either Yes or No will be displayed.
2. To activate Blackout tap the UP or DOWN buttons until Yes is
displayed,
press ENTER to confm and exit. The fxture will now
be in Blackout mode. To deactivate Blackout mode, select No
and press Enter.
Leu - With this function the LED display will turn off after
2 minutes.
1. Tap the either the MENU button until "LED" is displayed,
press ENTER.
2. The display will show either "On" or "OFF". Press the UP or
DOWN buttons to select "On" to keep the LED display on at all
times, or "0FF"to allow
the LED display to turn off after 2 min -
utes. Press any button to turn on the LED display again.
3. Press ENTER to confrm and exit.
ui5r - This function will reverse the display 180°.
1. Tap the either the MENU button until "D!SP" is displayed,
press ENTER.
American DJ - www.americandj.com - Revo4 Instruction Manual Page 10
Revo 4
System Menu
2. Press the UP button to select "DISP"to activate this function,
or "DSIP"to deactivate this function.
3. Press ENTER to confrm.
i CD I- This function will run aselftest program.
1. Tap the MENU button until "TEST "isdisplayed, press ENTER.
2. The fxture will now run a self test.
rnrsb - With this function you can display the running time
of the unit.
1. Tap the either the MENU button until "FHRS" is displayed,
press ENTER.
2.
The display shows the running time of the unit. Press MENU
to exit.
i/Ci\ - Use this function to display the Software version of
the unit.
1. Tap the either the MENU button until "l/'ER" is displayed,
press ENTER.
2.
The display will show the software version.
American DJ - www.americandj.com - Revo 4 Instruction Manual Page 11

Revo 4
-RcigV
1
1h
11
1 1 d
HSOTd
hTO
IS
HLh
£58
-DB.5h
-Eh
System Menu
DMX512 Address Setting
Channel mode
Master Mode
Slave Mode "Normal"
HSlLTig Slave mode "2 Light Show"
HSIliI IQI Random Show
SH B Show mode 1-12
menu-
-EKE
QnJ
oFP
Sound Mode on
Sound Mode off
Blackout Mode " Yes Blackout"
Blackout Mode " No Blackout"
LED on
LED off
Normal
Inversion
n
fflOBr-n
ypjs
no
ihjTJ
on
oPP
•
5P
clI
1s
I-1
-dS
IP
HhlEffl Self-Test
~EEEd Fixture Hours
ulFJIrl ISoftware Version
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 8
a
.
Revo 4
Operation
Sound Active Mode: This mode allows a single unit or several units
linked together, to run to the beat of the music.
1. Tap the MENU button until "SOUu" is displayed, and press
ENTER.
2. Tap the UP or DOWN buttons until "ON" is displayed and press
ENTER.
3. The optional UC3 Controller(not included) may be used to con
trol different functions including blackout.
Show Mode: This mode allows asingle unit or several units linked
together, to run 1 of 12 light
shows. For Show Mode to run properly
make sure that Sound Active Mode is off.
1. Tap the MENU button until "SHfiu" is displayed, and press
ENTER.
2. Tap the UP or DOWN buttons until you find your desired show,
and press ENTER to confirm.
3. The optional UC3 Controller (not included) may be used to con
trol different functions including blackout.
Revo 4
Power Cord Daisy Chain
With this feature you can connect the fixtures to one another
using the IEC input and output sockets. The quantity that can be
connected is 20 fixtures maximum. After 20 fixtures you will need
to use a new power outlet. They must be the same fixtures. DO
NOT mix fixtures.
Revo 4
UC3 Control
n
Blackout
Blackout the unit
Function
1. Sound White Strobe
2. Sound Color Strobe
Select Show
(Show 1-12)
Mode
Sound/Strobe
(LED OFF)
Show
(LED ON)
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 13

Revo 4
SetUp
shielded cable (This cable may be purchased at almost all professional
sound and lighting stores). Your cables should be made with a male
and female XLR connector on either end of the cable. Also remember
that DMX cable must be daisy chained and cannot be split.
Notice: Be sure to followfigures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con
nect the cable's shield conductor to the ground lug or allowthe shield
conductor to come in contact with the XLR's outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 0UT
3-PIN XLH
XLR Mali) Socket
^^^^ 2Coic
3 Hoi
COMMON
XLR Fernalo Sockot
2Cold^O^IGround
D
DMX512 IN
3-PIN XLR
Figure 2
XLR Pin Configuration
Pin I • Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
Figure 3
Special Note: Line Termination. When longer runs of cable are
used,
you may needto use a terminator onthe last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1 /4 watt resistor which is con
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit inyour daisy chain to terminate the
line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
avoids signal transmission probloms
and interference II ts always advisablo
to connect aDMX terminal. (Resistance
120 Ohm 1/4 W) botwoen PIN2 (DMX-)
and PIN3 (DMX .) ol the last fixture. Figure 4
American DJ© - www.americandj.com - Revo 4 Instruction Manual Page 6
Revo 4 Fuse Replacement
First unplug the power. The fuse holder is located next to the power
cord. Using a flat-head screw driver unscrew the fuse holder. Remove
the bad fuse and replace with a new one.
Revo 4 Cleaning
rv Fixture Cleaning: Due to fog residue, smoke, and dust cleaning the
internal and external optical lenses and mirror should be carried out
periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates (I.e. smoke, fog residue,
dust, dew). In heavy club use we recommend cleaning on a monthly
basis. Periodic cleaning will ensure longevity, and crisp output.
1. Use normal glass cleaner and a soft cloth to wipe down the out
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics and mirror with glass cleaner and a soft
cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Revo 4
Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the rear panel of the unit.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
American DJ® - www.americandj.com - Revo4 Instruction ManualPage 15

Revo 4
Safety Precautions
For Your Own PersonalSafety, Please Read and Understand This
Manual CompletelyBefore You Attempt ToInstall Or Operate
This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
•Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
•
Never operate this unit when it's cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6" (15cm) between this device and awall.
• Do
not attempt to operate this unit, if it becomes damaged.
•This unit is intended for indoor use only, use of this product out
doors voids all warranties.
•Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep
tacles, and the point where they exit from the appliance.
•Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 15 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat. "'
• The fixture should be serviced by qualified service personnel when:
A.
Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page4
Revo 4
Notes
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 17

Revo 4
General Information
Unpacking: Thank you for purchasing the Revo 4 by American DJ®.
Every Revo 4 has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your fixture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
the event damage has been found or parts are missing, please contact
our toll free customer support number for further instructions. Please
do not return this unit to your dealer without contacting customer sup
port first.
Introduction: The Revo 4 can be a four or 256 channel, DMX intel
ligent LED fixture. The fixture has three different operating modes;
sound-active, show mode, DMX controlled. The Revo 4 has twelve
shows to choose from. The unit can be used as a stand alone unit or in
a master/slave configuration. For best results use fog or special effects
smoke to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail:
[email protected]
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning! This maycause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 2
Revo 4
•
Specifications
Model: Revo 4
Voltage: 100V-240V 60Hz/50Hz
LEDs:
256 LEDs (64 Red, 64 Green,
64 Blue, and 64 White)
Power Consumption:
29W
Beam Angle:
50 Degrees
Fuse: 7A
Power Cord Daisy Chain:
20 Fixtures Max.
Dimensions: 12.25"(L) x 12"(W) x 13.25"(H)
312mm x 306mm x 334mm
Weight: 10 Lbs. / 4.2 kgs.
Colors: RGB + White
Duty Cycle:
None
DMX: 4 or 256 DMX Channels
Sound Active: Yes
Working Position: Any Safe, Secure Position
Warranty: 3 Year (1095 days)
Auto Sensing Voltage: This fixture containsa electronicbal
last, which willauto sense the voltage when it is plugged into the
power source.
Please Note: Specificationsand improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
American DJ® - www.americandj.com - Revo 4 Instruction Manual Page 19
