American Dryer Corp. AD-758DV User manual

AD-758DV
(Gas DSI/Electric/Steam)
Installation Manual
For replacement parts, contact the reseller from which the dryer
was purchased or
American Dryer Corporation
88 Currant Road
Fall River, MA 02720- 781
Telephone: [phone] / Fax: [phone]
e-mail: [e-mail]
www.amdry.com
WARNING: For your safety the information in
this manual must be followed to minimize the
risk of fire or explosion or to prevent property
dama e, personal injury or death.
 Do not store or use asoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 WHAT TO DO IF YOU SMELL GAS:
 Do not try to li ht any appliance.
 Do not touch any electrical switch; do not
use any phone in your buildin .
 Clear the room, buildin or area of all
occupants.
 Immediately call your as supplier from a
nei hbors phone. Follow the as suppliers
instructions.
 If you cannot reach your as supplier, call
the fire department.
 Installation and service must be performed by a
qualified installer, service a ency or the as
supplier.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette notice
pour réduire au minimum le risque dincendie
ou dexplosion ou pour éviter tout domma e
matériel, toute blessure ou la mort.
 Ne pas entreposer ni utiliser dessence ni
dautres vapeurs ou liquides inflammables à
proximité de cet appareil ou de tout autre
appareil.
 QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
 Ne pas tenter dallumer dappareils.
 Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le bâtiment.
 Évacuez la pièce, le bâtiment ou la zone.
 Appelez immédiatement votre fournisseur
de az depuis un voisin. Suivez les
instructions du fournisseur.
 Si vous ne pouvez rejoindre le fournisseur
de az, appelez le service des incendies.
 Linstallation et lentretien doivent être assurés
par un installateur ou un service dentretien qualifié
ou par le fournisseur de az.
071800GS/rar ADC Part No. 113156

Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following FOR YOUR SAFETY caution must e posted near the dryer in a prominent location.
IMPORTANT NOTE TO PURCHASER
Information must be obtained from your local as supplier on the instructions
to be followed if the user smells as. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use asoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser dessence
ni dautres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information
DATE OF PURCHASE ________________________________ MODEL NO. __________________________________________
RESELLERS NAME ________________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at (508) 678-9 7 or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
AD-758DV

IMPORTANT
YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE GAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(Occupational Safety and Health Administration) STANDARDS.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYER(S).
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
CAUTION
DRYERS SHOULD NE ER BE LEFT UNATTENDED WHILE IN OPERATION.
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES sh uld the dryer d r switches, lint drawer switch,
r heat safety circuit ever be disabled.
Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.
«Attention: Au moment de lentretien des
commandes, étiquetez tous les fils avant de
les débrancher. Des erreurs de câblage
peuvent entraîner un fonctionnement
inadéquat et dangereux.»

WARNING
The dryer must never be perated with any f the back guards, uter t ps, r service
panels rem ved. PERSONAL INJURY OR FIRE COULD RESULT.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed n the equipment and/ r
specified in the installati n manual included with the dryer.
WARNING
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
Dryers must not be installed or stored in an area where it will be exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.

Table of Contents
SECTION I
IMPORTANT INFORMATION ............................................................................... 3
A. Receivin and Handlin ............................................................................................................... 3
B. Safety Precautions ...................................................................................................................... 4
SECTION II

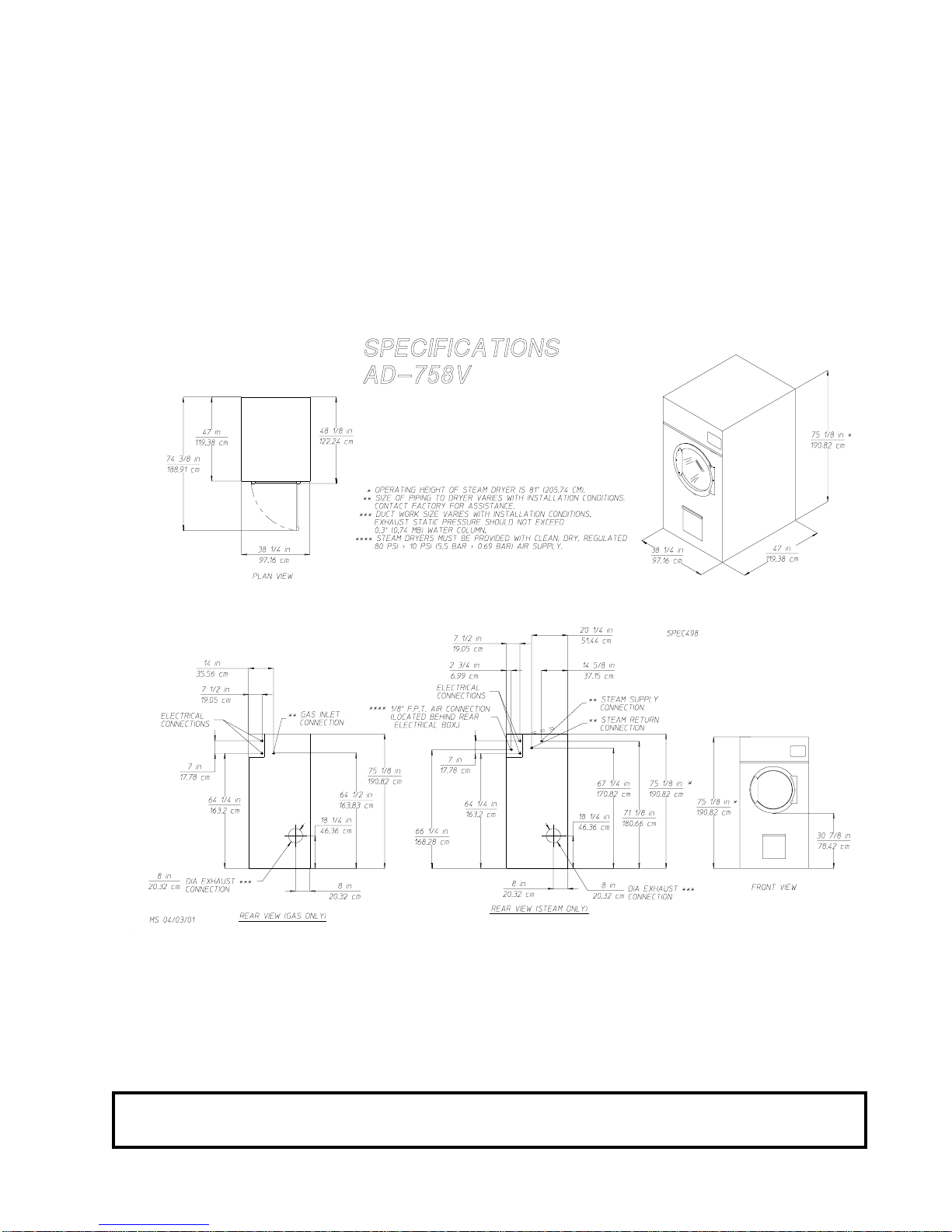

SPECIFICATIONS/COMPONENT IDENTIFICATION .................................... 6
A. Specifications ............................................................................................................................. 6

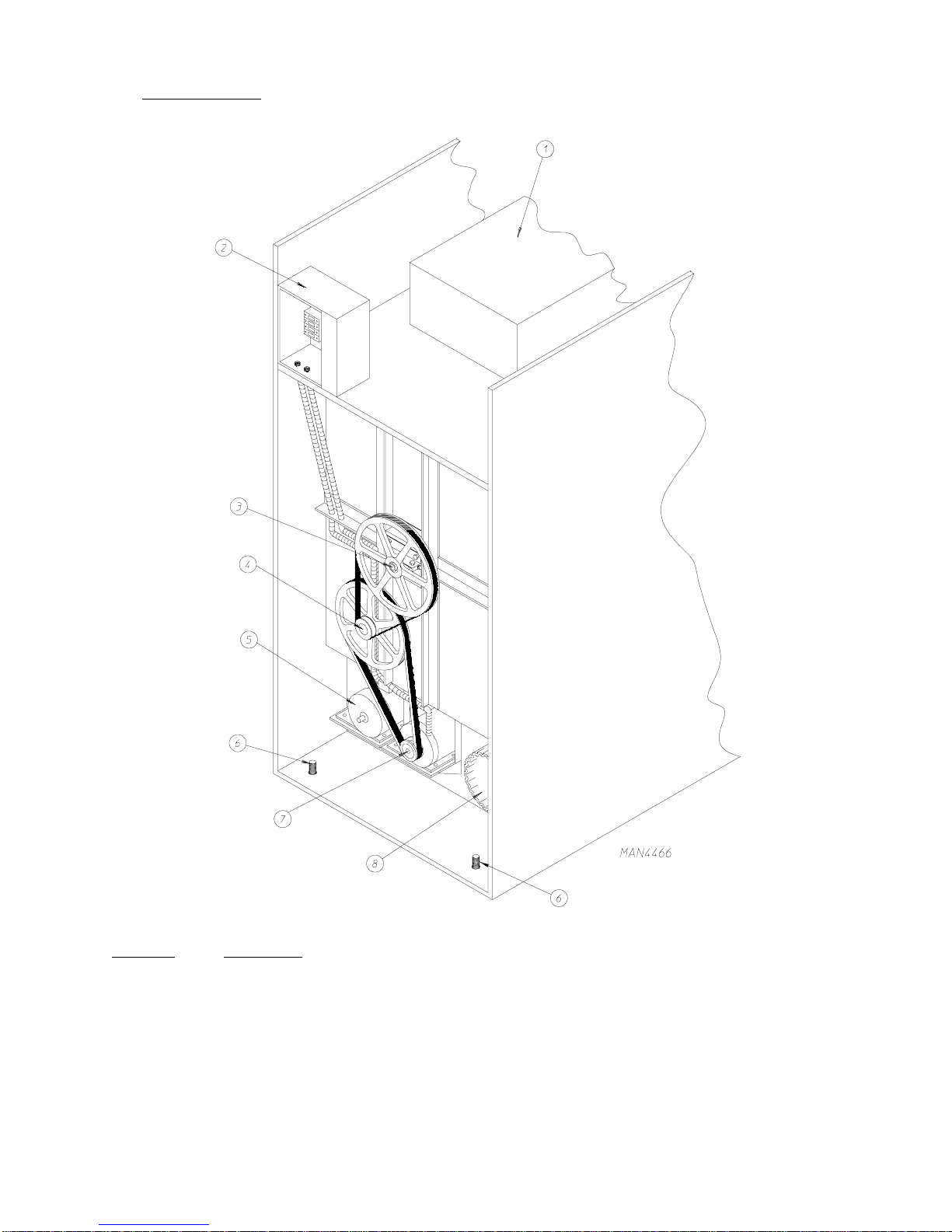

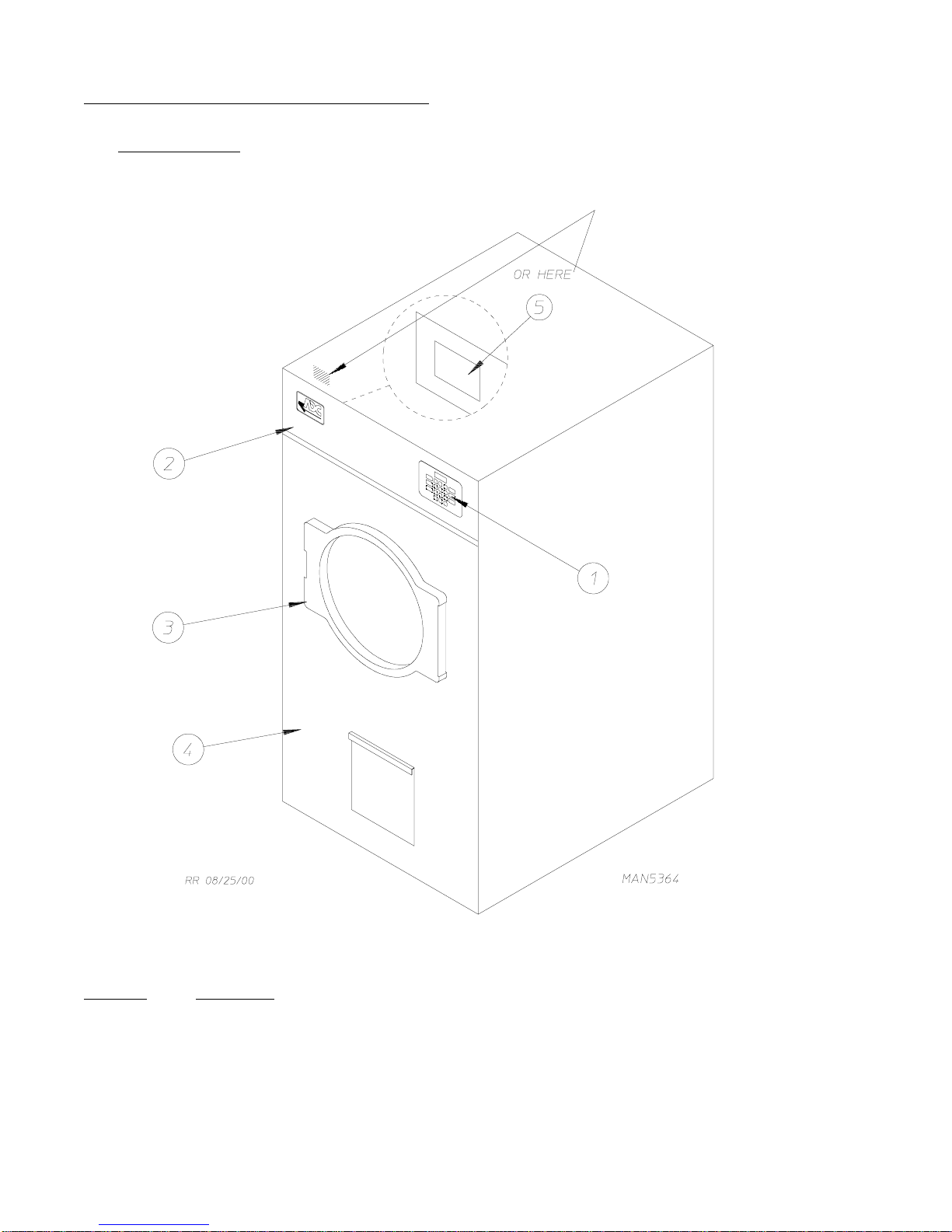

B. Component Identification ............................................................................................................ 8
SECTION III
INSTALLATION PROCEDURES ......................................................................... 10
A. Location Requirements ............................................................................................................. 10

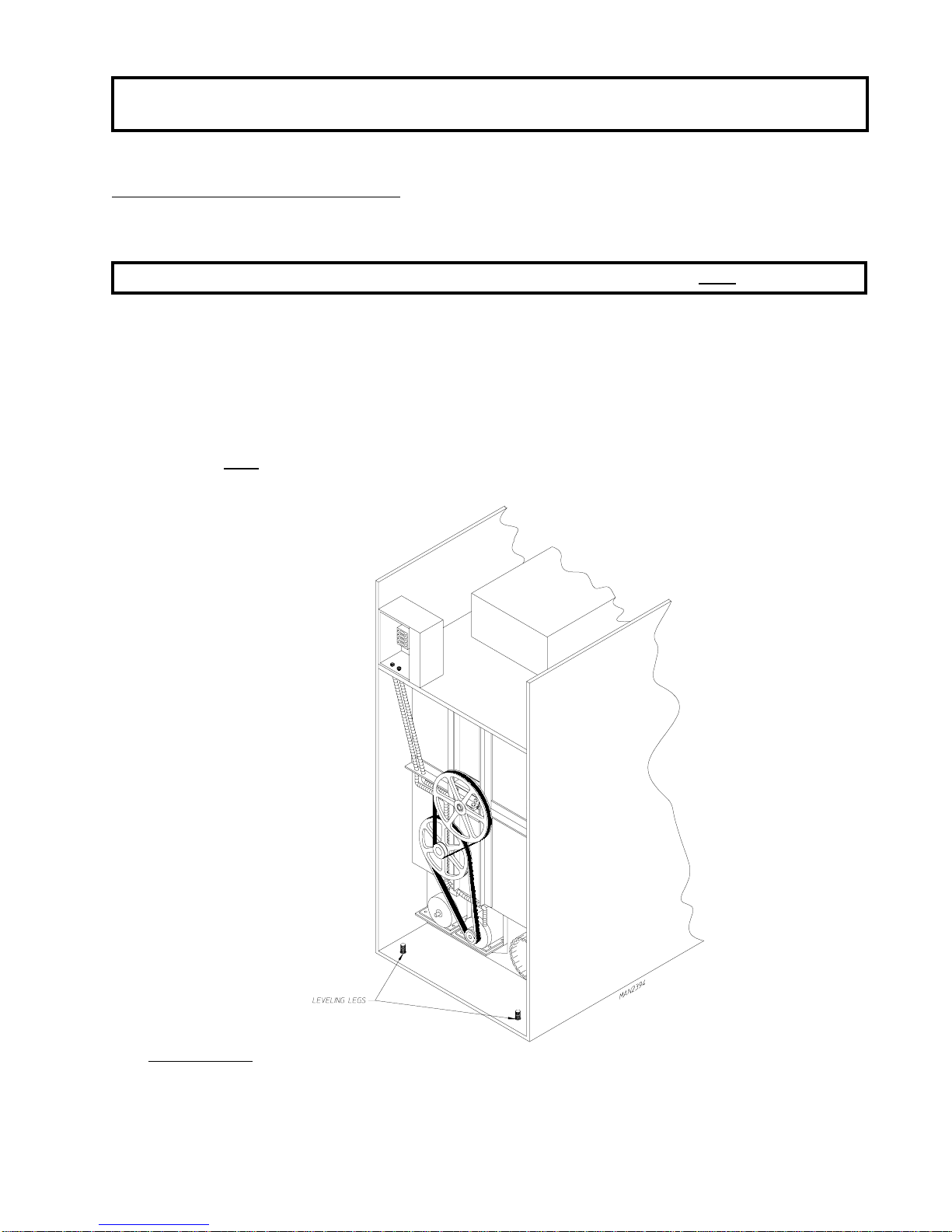

B. Unpackin /Settin Up ............................................................................................................... 11
C. Dryer Enclosure Requirements .................................................................................................. 12

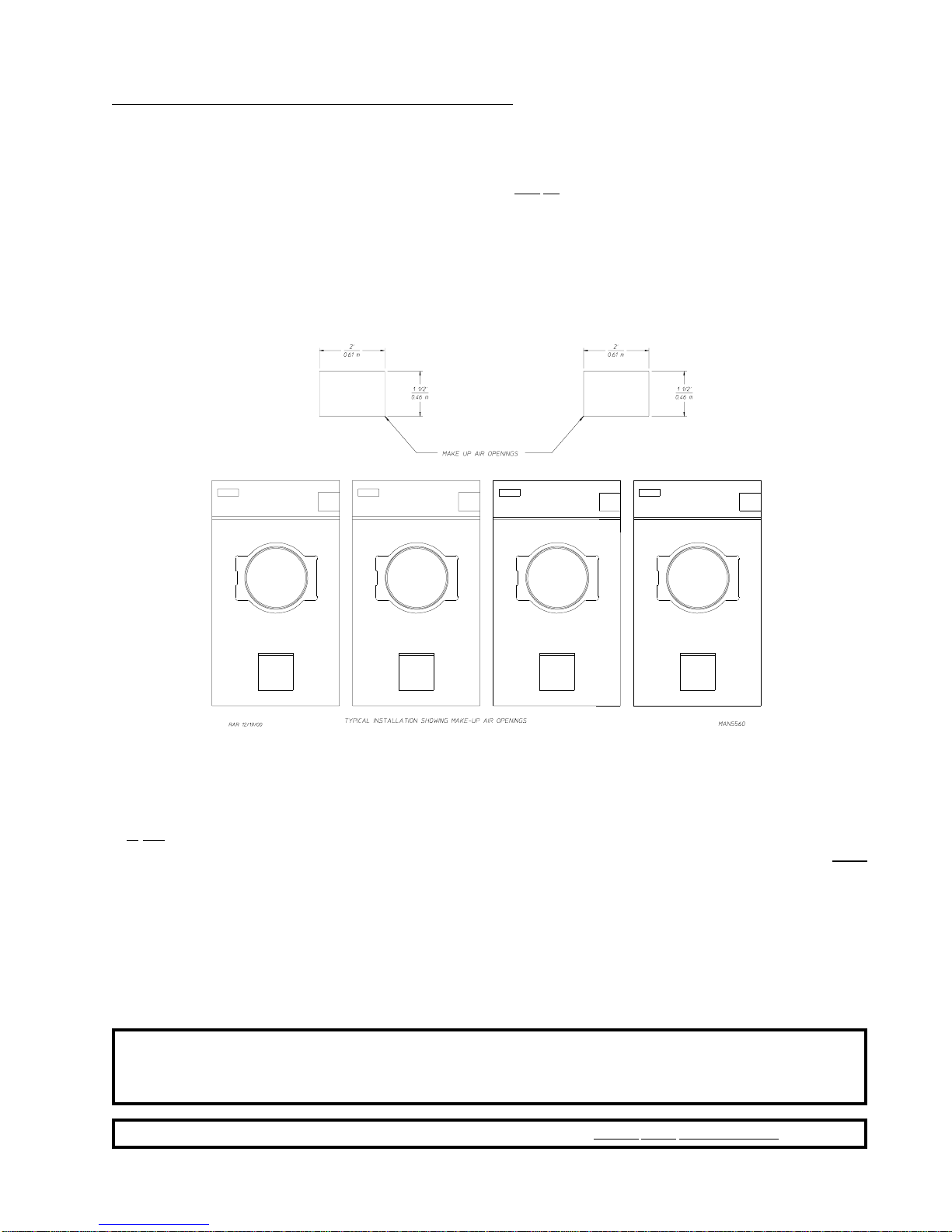

D. Fresh Air Supply Requirements ................................................................................................. 13

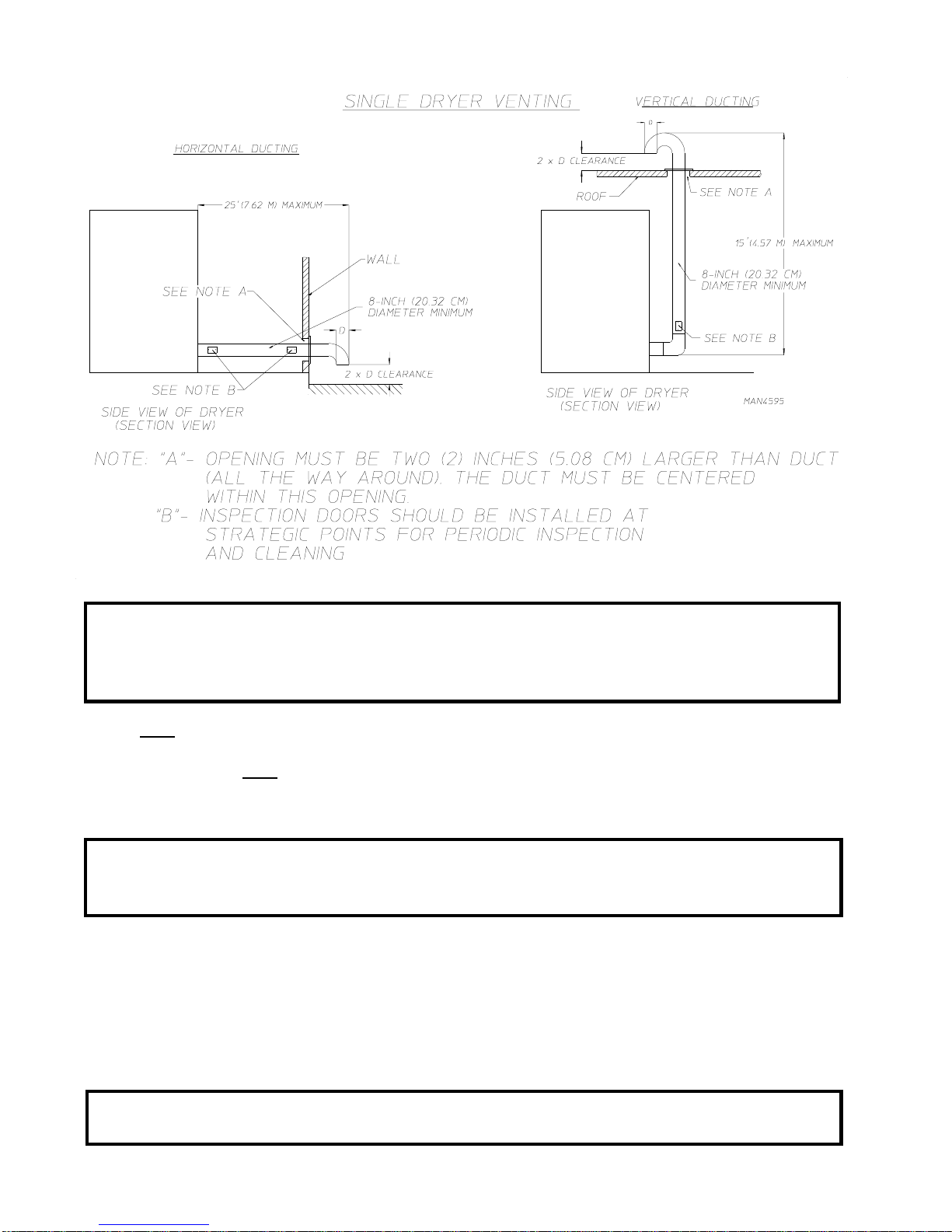

E. Exhaust Requirements ............................................................................................................... 14
F. Electrical Information ................................................................................................................ 19
G. Gas Information ........................................................................................................................ 26
H. Steam Information .................................................................................................................... 30
I. Preparation For Operation/Start-Up ......................................................................................... 35
J. Preoperational Tests ................................................................................................................. 36
K. Preoperational Instructions ........................................................................................................ 38
L. Shut Down Instructions ............................................................................................................. 38
SECTION IV
SERVICE/PARTS INFORMATION ...................................................................... 39
A. Service ..................................................................................................................................... 39
B. Parts ........................................................................................................................................ 39
SECTION V
WARRANTY INFORMATION .............................................................................. 40
A. Returnin Warranty Cards ......................................................................................................... 40
B. Warranty .................................................................................................................................. 40
C. Returnin Warranty Parts .......................................................................................................... 40

SECTION VI
ROUTINE MAINTENANCE .................................................................................. 42
A. Cleanin .................................................................................................................................... 42
B. Adjustments .............................................................................................................................. 43
C. Lubrication ................................................................................................................................43
D. Lint Drawer Removal ................................................................................................................ 44
SECTION VII
TROUBLESHOOTING ........................................................................................... 4
Microprocessor Controller (Computer) Models ............................................................................... 45
Dual Timer Models .......................................................................................................................... 51
SECTION VIII
DATA LABEL INFORMATION .............................................................................
A. Data Label ................................................................................................................................55
SECTION IX
REVERSING TIMER SPIN/DWELL ADJUSTMENTS .................................... 7
SECTION X
PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT
COMPONENTS ....................................................................................................... 8
SECTION XI
BURNER AND BASKET (TUMBLER)/LINT CHAMBER
MANUAL RESET HI-LIMIT INSTRUCTIONS ................................................. 60
Gas Models Only ........................................................................................................................... 60
Electric or Steam Models Only ....................................................................................................... 61

3
SECTION I
IMPORTANT INFORMATION
A. RECEIVING AND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and
wooden skid should be visually inspected for shipping damage. f any damage whatsoever is noticed, inspect
further before delivering carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. f there is suspected damage or actual damage, the truckers receipt should be so noted.
3. f the dryer is damaged beyond repair, it should be refused. Those dryers, which were not damaged in a
damaged shipment, should be accepted, but the number received and the number refused must be noted
on the receipt.
4. f you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carriers freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. t is your responsibility to file freight
claims. Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. f you need assistance in handling the situation, please contact the ADC Traffic Manager at (508)
678-9000.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

4
B. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryer must never be operated with any of the back guard , outer top , or
ervice panel removed. PERSONAL INJURY OR FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO F YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. mmediately call your gas supplier from a neighbors phone. Follow the gas suppliers instructions.
f. f you cannot reach your gas supplier, call the fire department.
4. nstallation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryer(s) must be exhausted to the outdoors.
6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent, or all purpose cleaner.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a
fire hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubber materials. Drying in a heated basket (tumbler) may damage
plastics or rubber and may be a fire hazard.

5
7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential
fire hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANS /NFPA NO. 70-LATEST ED T ON or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST ED T ON.
NOTE: Failure to do so will VOID THE WARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety
circuit ever be disabled.
WARNING: PERSONAL INJURY OR FIRE COULD RESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DR ER.
13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%), 50 lbs (22.7 kg) of its rated capacity.
WARNING: YOU MUST DISCONTINUE AND LOCKOUT THE ELECTRIC SUPPLY
AND THE GAS SUPPLY OR STEAM SUPPLY BEFORE ANY COVERS OR
GUARDS ARE REMOVED FROM THE DRYER TO ALLOW ACCESS FOR
CLEANING, ADJUSTING, INSTALLATION, OR TESTING OF ANY
EQUIPMENT PER OSHA (Occupational Safety and Health Administration)
STANDARDS.

6
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
SECTION II
SPECIFICATIONS/COMPONENT IDENTIFICATION
A. SPECIFICATIONS
STEAM GASELECTRIC
* AD-758DV 50 Hz 1-phase (1ø) non-reversing dryers use a 3/4 HP (0.56 kw) motor. ALL AD-758DV
reversing dryers are supplied with two (2) 3-phase (3ø) motors standard: a 1/2 HP (0.37 kw) blower motor
and a 1/2 HP (0.37 kw) drive motor.
** Size of piping to dryer varies with installation conditions. Contact factory for assistance.
*** Contact factory for information not listed, 3-phase (3ø) figures shown are for 3-wire service.
MAXIMUM CAPACITY (DRY WEIGHT) 75 lbs 34 kg
BASKET (TUMBLER) DIAMETER 37” 94 cm
BASKET (TUMBLER) DEPTH 36” 91.5 cm
BASKET (TUMBLER) MOTOR 3/4 HP* 0.560 kw
DOOR OPENING (DIAMETER) 21-1/2” 54.61 cm
BASKET (TUMBLER) VOLUME 22.4 cu. ft. 0.634 cu.m.
EXHAUST CONNECTION (DIAMETER) 8” 20.3 cm
AIRFLOW 750 cfm 21.2 cmm
DRYERS PER 20'/40' CONTAINER 10/20
DRYERS PER 48'/53' TRUCK 24/26
VOLTAGE AVAILABLE 120-460v 1ø-3ø 3, 4w 50/60 Hz
APPROX. WEIGHT (UNCRATED) 721 lbs 327 kg
APPROX. WEIGHT (CRATED) 771 lbs 349.7 kg
HEAT INPUT 175,000 btuh 44,100 kcal/hr
INLET PIPE CONNECTION 3/4” F.P.T.**
OVEN SIZE
KW BTUH
(60
H Z )KCAL/HR
(50 Hz)
30 102,390 25,800APPLIED VOLTAGE/PHASE/APPROX. AMP DRAW***
KW 208/1ø 240/1ø 208/3ø 240/3ø 380/3ø 416/3ø 460/3ø
60 Hz 50 Hz 50/60 Hz 60 Hz 50 Hz 50/60 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz
30 -- --
--
88 -- 77 -- -- -- 45 40 --
VOLTAGE AVAILABLE 120-460v 1ø-3ø3, 4w 50/60 Hz
APPROX. WEIGHT (UNCRATED) 752 lbs 341.1 kg
APPROX. WEIGHT (CRATED) 802 lbs 363.8 kg
COMPRESSED AIR VOLUME 0.75 cfh 0.02 cmh
AIR CONNECTION 1/8”F.P.T.
STEAM CONSUMPTION BOILER HP NORMAL LOAD
205 lbs/hr 92.98 kg/hr 6
OPERATING PRESSURE SUPPLY CONNECTION** RETURN CONNECTION
125 PSI max 8.6 bars 1”F.P.T. 1”F.P.T.
Shaded areas are stated in metric equivalents

7
Specifications
AD-758DV (Gas/Electric/Steam)
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.

8
B. COMPONENT IDENTIFICATION
1. Dryer Front View
llus. No. Description
1 Controls
2 Control (top access) Door Assembly
3 Main Door Assembly
4 Lint Compartment Area (lint screen located behind lint door or left sidewall)
5 Data Label and nstallation Label (affixed to the upper left side panel area behind the
top control [access] door)

9
2. Dryer Rear View
llus. No. Description
1 Heating Unit
2 Electric Service Relay Box
3 Basket (tumbler) Bearing Mount Assembly
4 dler Bearing Mount Assembly
5 Blower Motor Assembly (for reversing models only)
6 Leveling Legs (rear)
7 Basket (drive) Motor Assembly
8 Dryer Exhaust

10
SECTION III
INSTALLATION PROCEDURES
nstallation should be performed by competent technicians in accordance with local and state codes. n the
absence of these codes, the installation must conform to applicable American National Standards: ANS Z223.1-
LATEST ED T ON (National Fuel Gas Code) or ANS /NFPA NO. 70-LATEST ED T ON (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST ED T ON (for General
nstallation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST ED T ON
(for Electrical Connections).
A. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. n the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANS .Z223.1 LATEST ED T ON,
or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural
Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST ED T ON (for General nstallation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: The dryer must be installed on noncombustible floors only.
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. Dryer must be exhausted to the outdoors as noted in this manual (refer to Exhaust Requirements in
Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.
9. The dryer must be installed with a proper exhaust duct connection to the outside.
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.

11
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every six
(6) months, inspect the exhaust ducting and remove any lint build up.
B. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap and/or optional shipping box) from dryer.
IMPORTANT: Dryer must be transported and handled in an upright position at ALL times.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid the
dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are at
the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint chamber. To
remove the two (2) bolts located in the lint chamber area, remove the lint door.
To increase bearing life and improve efficiency, the dryer should be tilted slightly to the rear.
The lint coops of ALL AD-758DV dryers are supported during shipping by a bracket. REMOVE THIS BRACKET
BEFORE STARTING THE DRYER.
1. Leveling Dryer
The dryer is equipped with four (4) leveling legs, one (1) at each corner of the base. Two (2) are located at
the rear of the dryer base, and two (2) are located in the lint chamber (coop). To increase bearing life and
improve efficiency, the dryer should be tilted slightly to the rear.

12
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions should be made of noncombustible materials and must be located a minimum of
12-inches (30.48 cm), 18-inches (45.72 cm) or more is recommended for ease of installation, maintenance, and
service above the dryers outer top, except along the front of the dryer which may be partially closed in if desired.
The clearance between the bulkhead header and the dryer must be a minimum of 4-inches (10.16 cm) and must
not extend more than 4-inches (10.16 cm) to the rear of the front. The bulkhead facing must not be closed in
ALL the way to the top of the dryer. A 1-inch (2.54 cm) clearance is required.
NOTE: Allowances must be made for the opening of the control door.
Dryers may be positioned sidewall to sidewall. However, a 1/16 (1.5875 mm) minimum allowance must be
made for the opening and closing of the control door and the lint door. t is suggested that the dryer be positioned
about 2 feet (0.61 meters) away from the nearest obstruction for ease of installation, maintenance, and service
(to be measured from the back guard). Refer to the illustration above for details.
NOTE: Air considerations are important for proper and efficient operation.
IMPORTANT: Even though a minimum of only 12-inches (30.48 cm) is required, 18-inches
(45.72 cm) or more is suggested. The additional clearance is advantageous for
ease of installation and service.
IMPORTANT: When fire sprinkler systems are located above the dryers, a minimum of 18-inches
(45.72 cm) above the dryer console (module) is required. Dryers may be positioned
sidewall to sidewall however, a 1/16 (1.5875 mm) minimum allowance is required
between dryers (or wall) for ease of installation and maintenance. Allowances must
be made for the opening and closing of the control door and the lint door.

13
D. FRESH AIR SUPPLY REQUIREMENTS
When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and
exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. f the
make-up air is inadequate, drying time and drying efficiency will be adversely affected. gnition problems and sail
switch fluttering problems may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer. An
unrestricted source of air is necessary for each dryer. An airflow of 750 cfm (cubic feet per minute), (21.24 cmm
[cubic meters per minute]) must be supplied to each dryer. As a general rule, an unrestricted air entrance from
the outdoors (atmosphere) of a minimum of 1-1/2 square feet (0.14 square meters) is required for each dryer.
The dryer must be installed with provisions for adequate combustion and make-up air supply.
To compensate for the use of registers or louvers used over the openings, this make-up air must be increased by
approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near
where exhaust vents exit the building.
t is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers.
EXAMPLE: For a bank of four (4) dryers, two (2) unrestricted openings measuring 2 feet by 1-1/2 feet (0.61
meters by 0.46 meters), (6 square feet [0.56 square meters]) is acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.
Make-up air that is contaminated by dry cleaning solvent fumes will result in
irreparable damage to the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY.

14
E. EXHAUST REQUIREMENTS
1. General Exhaust Ductwork nformation
Exhaust ductwork should be designed and installed by a qualified professional. mproperly sized ductwork
will create excessive back pressure which results in slow drying, increased use of energy, overheating
of the dryer, and shutdown of the burner by the airflow (sail) switches, burner hi-limits, or basket (tumbler)
hi-heat thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.
CAUTION: DRYER MUST BE EXHAUSTED TO THE OUTDOORS.
CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN
CREATE A POTENTIAL FIRE HAZARD.
The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the
outdoors with as few turns as possible. Single or independent dryer venting is recommended.
Horizontal Venting:
When single dryer venting is used, the length of ductwork from the dryer to the outside exhaust outlet
must not exceed 25 feet (7.62 meters). The minimum diameter of this ductwork must be at least
8-inches (20.32 cm). n the case of multiple (common) dryer venting, the distance from the last dryer to the
outside exhaust outlet must not exceed 15 feet (4.57 meters). The shape of the ductwork is not critical
so long as the minimum cross-sectional area is provided. t is suggested that the use of 90° turns be avoided;
use 30° and/or 45° angles instead. The radius of the elbows should preferably be 1-1/2 times the diameter
of the duct. ncluding basket (tumbler)/dryer elbow connections or elbows used for outside protection from
the weather, no more than two (2) elbows should be used in the exhaust duct run. f more than two (2)
elbows are used, the cross-sectional area of the ductwork must be increased. ALL ductwork should be
smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint.
When adding ducts, the duct to be added should overlap the duct to which it is to be connected. ALL
ductwork joints must be taped to prevent moisture and lint from escaping into the building. nspection doors
should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint
from the ductwork.
Vertical Venting:
When single dryer venting is used, the length of the ductwork from the dryer to the outside exhaust outlet
must not exceed 15 feet (4.57 meters). The minimum diameter of this ductwork must be at least
8-inches (20.32 cm). n the case of multiple (common) dryer venting, the distance from the last dryer to the
outside exhaust outlet must not exceed 15 feet (4.57 meters). The shape of the ductwork is not so critical
so long as the minimum cross-sectional area is provided. t is suggested that the use of 90º turns be avoided;
use 30º and/or 45º bends instead. The radius of the elbows should preferably be 1-1/2 times the diameter
of the duct. ALL ductwork should be smooth inside with no projections from sheet metal screws or other
obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to
which it is to be connected. ALL ductwork joints must be taped to prevent moisture and lint from
escaping into the building. nspection doors should be installed at strategic points in the exhaust ductwork
for periodic inspection and cleaning of lint from the ductwork.

15
IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less
than 0 and must not exceed 0.3 inches (0.75 mb) of water column (W.C.).
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
a. Outside Ductwork Protection
1) To protect the outside end of horizontal ductwork from the weather, a 90° elbow bent downward
should be installed where the exhaust exits the building. f the ductwork travels vertically up
through the roof, it should be protected from the weather by using a 180° turn to point the opening
downward. n either case, allow at least twice the diameter of the duct between the duct opening
and the nearest obstruction.
IMPORTANT: DO NOT use screens or caps on the outside opening of the exhaust ductwork.
2. Single Dryer Venting
Where possible, it is suggested to provide a separate exhaust duct for each dryer. The exhaust duct should
be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns
as possible. t is suggested that the use of 90° turns in the ducting be avoided; use 30° and/or 45° angles
instead. The shape of the exhaust ductwork is not critical so long as the minimum cross section area is
provided.
IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less
than 0 and must not exceed 0.3 inches (0.75 mb) of water column.

16
IMPORTANT: For extended ductwork runs, the cross section area of the ductwork can only be
increased to an extent. When the ductwork approaches the maximum limits noted in
this manual, a professional heating, venting, and air conditioning (HVAC) firm should
be consulted for proper venting information.
ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to
be connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the
building. nspection doors should be installed at strategic points in the exhaust ductwork for periodic
inspection and cleaning of lint from the ductwork.
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
a. Outside Ductwork Protection
1) To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward
should be installed where the exhaust exits the building. f the ductwork travels vertically up
through the roof, it should be protected from the weather by using a 180° turn to point the opening
downward. n either case, allow at least twice the diameter of the duct between the duct opening
and the nearest obstruction.
IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust
ductwork.
