American Dryer Corp. Hot Surface Ignition ADG-530HS User manual

ADC Part No. 450171
American Dryer Corporation
88 Currant Road
FallRiver,MA02720-4781
Telephone:[phone] /Fax: [phone]
e-mail: [e-mail]
020197JEV/abe
ADG-530HS/WDA-530
1996 Thru February 1999
Parts Manual
Hot Surface Ignition

Retain This Manual In A Safe Place For Future Reference
Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your orders directly to the ADC Parts Department at
[phone]. Please specify the dryer model number and serial number in addition to the description and part number, so
that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite from
the various dryer models. Be sure to check descriptions of the parts thoroughly before ordering.
DATE OF PURCHASE MODEL NO.
DISTRIBUTORS NAME
Serial Number(s)
“IMPORTANTNOTE TOPURCHASER”
Informationmustbeobtained fromyourlocalgassupplierontheinstructions
tobefollowed iftheuser smellsgas. Theseinstructionsmustbepostedina
prominentlocationnearthe dryer.
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation/operator's manual
included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Donotstore orusegasoline or
otherflammablevaporsorliquids
inthevicinityofthisoranyother
appliance.
POUR VOTRE SÉCURITÉ
Nepas entreposerni utiliserd’essence
nid’autresvapeursouliquides
inflammablesdanslevoisinagedecet
appareilou de youtautre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:

For Detailed Information refer to the Table of Contents on next page.
Quick Reference Diagram

Table of Contents
Front Panel Assembly ...................................................................................................... 3
Left Coin Panel Assembly................................................................................................ 4
Right Coin Panel Assembly.............................................................................................. 5
Microprocessor 2-Piece (Computer) Panel Coin Chute Assembly ................................ 6
Coin Box/Vault Assembly (Left and Right) ..................................................................... 7
Main Door “Steel’’ Assembly......................................................................................8, 9
Main Door Switch Assembly ......................................................................................... 10
Lint Drawer/Basket Assembly III................................................................................... 11
Tumbler (Basket)/Support Assemblies .......................................................................... 12
Microprocessor Temperature Sensor Bracket Assembly ............................................. 13
Lint Drawer/Switch Assembly IV .................................................................................. 14
Lint Drawer/Switch Assembly III................................................................................... 15
Rear Electrical Panel Assembly................................................................................16, 17
Tumbler Bearing Mount Assembly ..........................................................................18, 19
Sail Switch Assembly..................................................................................................... 20
BurnerHi-LimitAssembly.............................................................................................. 21
Burner Train Assembly............................................................................................. 22, 23
Drive Motor Mount Assembly
(for 60 Hz Models) ............................................................................................. 24, 25
Fan (Impellor)/Idler Bearing Assembly
(for 60 Hz Models) ............................................................................................. 26, 27
Drive and Idler Belts/Pulleys
(for 60 Hz Models) ................................................................................................... 28
Exhaust Duct Assembly ................................................................................................. 29
Rear Guard Assemblies.................................................................................................. 30
AdditionalPartsAvailable .............................................................................................. 31

3
Telephone: [phone] Fax: [phone]
Front Panel Assembly
Illus. No. Part No. Qty. Description
1881471* 1Right Hand Textured Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
881472 1Right Hand Stainless Steel Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
881473* 1Right Hand Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
2--------- 1Top Hinge Block Assembly
(refer to page 8and page 9)
3--------- 1Bottom Hinge Block Assembly
(refer to page 8and page 9)
4112227 1Top Arrow Label (Red)
5150309 24 #10-16 x 1/2" Hex Head TEK Crimptite Screw
6112226 1Bottom Arrow Label (Blue)
7154215 45/32” Pop Rivet
8170330 2Friction Door Catch
* Specify color when ordering.

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1881163 125¢ U.S. Hanke Coin Acceptor Assembly with Optic Switch
881450 125¢ Canadian Hanke Coin Acceptor with Optic Switch
881451 1.880 Token Hanke Coin Acceptor with Optic Switch
2881143 1Hanke Optic Switch w/Connector
3112564 1Left Keypad (Blue)
4881160 1Coin Panel ONLY
881161 1Left Coin Panel with Label
(includes illus. nos, 3, 4, 8, and 9)
5160029 1Lock (keyed NO530) ONLY with Key
160129 1NO530 Key ONLY
6160028 1Lock Cam ONLY
7137098 1Display Board
137104 1Display Board Ribbon Cable Assembly ... Not Illustrated
8153010 2#6 Star Washer
9150005 2#6-32 x 1/4" Phillips Round Head Machine Screw
10 120906 11/8" Wire Clip
11 152102 4M3 Metric Hex Nut
Left Coin Panel Assembly

5
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty. Description
1881163 125¢ U.S. Hanke Coin Acceptor Assembly with Optic Switch
881450 125¢ Canadian Hanke Coin Acceptor with Optic Switch
881451 1.880 Token Hanke Coin Acceptor with Optic Switch
2881143 1Hanke Optic Switch w/Connector
3112565 1Right Keypad (Red)
4881160 1Coin Panel ONLY
881162 1Right Coin Panel with Label
(includes illus. nos, 3, 4, 8, and 9)
5160029 1Lock (keyed NO530) ONLY with Key
160129 1NO530 Key ONLY
6160028 1Lock Cam ONLY
7137098 1Display Board
137104 1Display Board Ribbon Cable Assembly ... Not Illustrated
8153010 2#6 Star Washer
9150005 2#6-32 x 1/4" Phillips Round Head Machine Screw
10 120906 11/8" Wire Clip
11 152102 4M3 Metric Hex Nut
Right Coin Panel Assembly

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Microprocessor2-Piece (Computer)Panel/Coin ChuteAssembly
Illus. No. Part No. Qty. Description
1137103 1Phase 5 Microprocessor Controller (computer)
2150005 2#6-32 x 1/4" Phillips Round Head Machine Screw
3137104 1Ribbon Cable Assembly
4136048 11/8-Amp (Slo Blo) Fuse ONLY
5853071 1 or 2 Optic Switch Harness
6853171 1Computer Panel II
853170 1Computer Panel Mounting Plate ... Not Illustrated
7881484 12-Piece 8" Coin Chute Assembly V

7
Telephone: [phone] Fax: [phone]

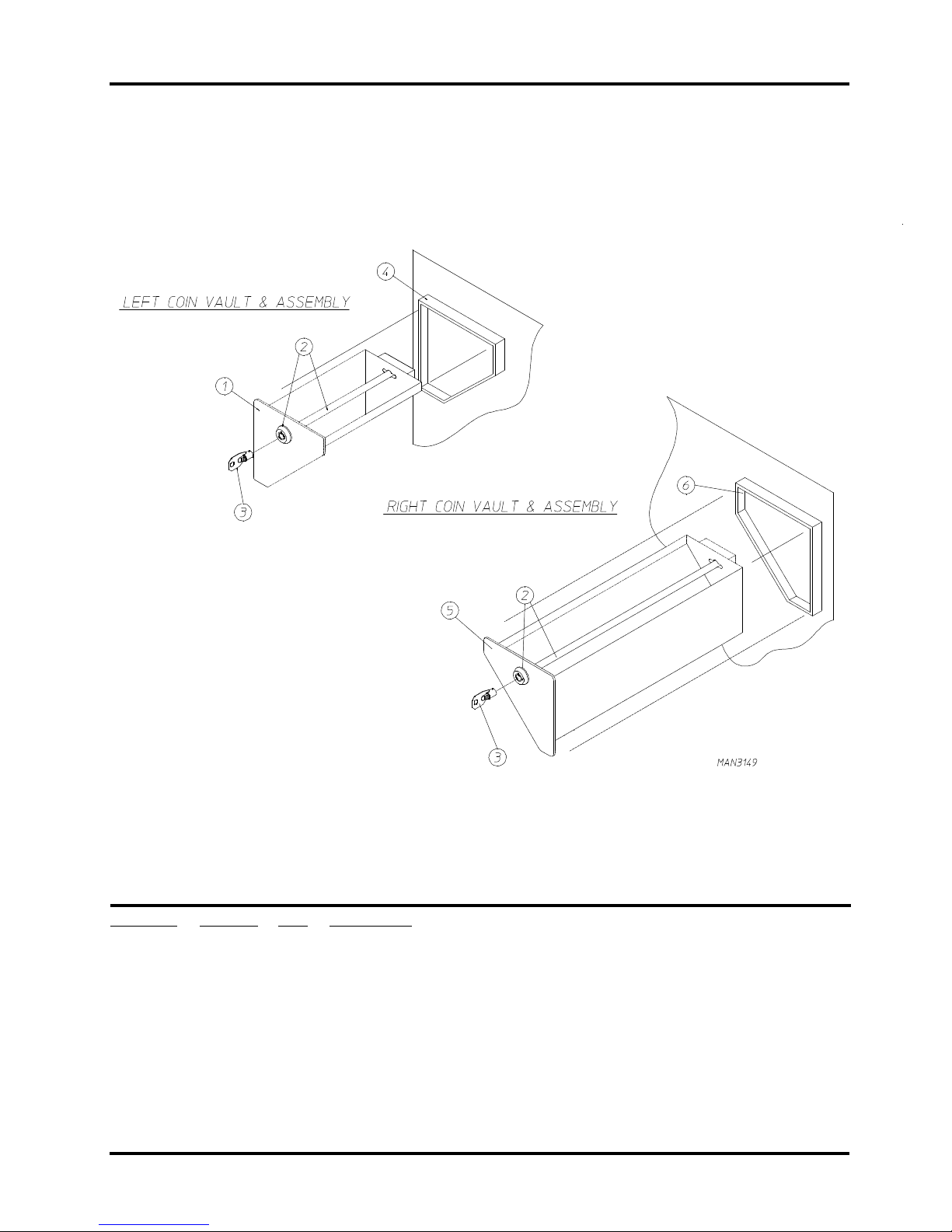

Illus. No. Part No. Qty. Description
1881174 1Left / Right Coin Box Face Plate ONLY (Black)
881476 1Left Coin Box with Black Face Plate Only (less Lock)
2881474 1Coin Box Lock Kit (includes 2 Locks with keys "keyed alike")
3* 160136 1Coin Box Lock Key ONLY
4881477 1Left Coin Vault ONLY (Black)
5881174 1Left/Right Coin Box Face Plate ONLY (Black)
881167 1Right Coin Box with Black Face Plate ONLY (less Lock)
6881179 1Right Coin Vault ONLY (Black)
* Specify key number when ordering.
Coin Box/Vault Assembly (Left and Right)

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Main Door “Steel’’ Assembly

9
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty. Description
1881150 1Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
881207 1Stainless Steel Main Door Assembly Complete
(includes illus. 1, 2, and 8 through 15)
2102354 1Door Gasket
170730 1Glass/Gasket Adhesive (Clear) 10.3 oz. cartridge
170731 1Glass/Gasket Adhesive (Black) 10.3 oz. cartridge
3881152 1Top Hinge Block Assembly (Black)
(includes illus. nos. 3 and 4)
881208 1Stainless Steel Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
4150445 21/4-20 x 3/4" Black Cap Head Set Screw
150443 21/4-20 x 3/4" Stainless Steel Cap Head Set Screw
5153031 11/4" Nylon Washer
6881151 1Bottom Hinge Block Assembly (Black)
(includes illus. nos. 5, 6, and 7)
881209 1Stainless Steel Bottom Hinge Block Assembly
(includes illus. nos. 5, 6, and 7)
7150445 21/4-20 x 3/4" Black Cap Head Set Screw
150443 21/4-20 x 3/4" Stainless Steel Cap Head Set Screw
8150683 31/4-20 x 5/8" Black Carriage Bolt
150682 31/4-20 x 5/8" Polished Carriage Bolt
(for models with Stainless Steel Door)
9152014 31/2-20 Free Spin Wash Nut
10 151010 1#10-32 Black Hex Acorn Nut
151009 1#10-32 Stainless Steel Hex Acorn Nut
11 150120 1Door Latch Screw
12 150683 31/4-20 x 5/8" Black Carriage Bolt
150682 31/4-20 x 5/8" Polished Carriage Bolt
(for models with Stainless Steel Doors)
13 152014 31/2-20 Free Spin Wash Nut
14 881210 1Black Main Door Handle ONLY
170333 1Stainless Steel Main Door Handle ONLY
15 102211 120-7/16" Door Glass
170730 1Glass/Gasket Adhesive (Clear) 10.3 oz. cartridge
170731 1Glass/Gasket Adhesive (Black) 10.3 oz. cartridge
Main Door “Steel’’ Assembly

10
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Main Door Switch Assembly
Illus. No. Part No. Qty. Description
1150006 2#6-32 x 7/8" Phillips Pan Head Machine Screw
2152013 2#6-32 Hex Nut
3153010 2#6 Star Washer
4137005 1Door Switch ONLY
5122636 2Flag Terminal
6881211 1Black Main Door Switch Housing ONLY
881212 1Beige Main Door Switch Housing ONLY
881213 1White Main Door Switch Housing ONLY
881214 1Blue Main Door Switch Housing ONLY
881153 1Black Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
881215 1Beige Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
881216 1White Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
881217 1Blue Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
7150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw

11
Telephone: [phone] Fax: [phone]
Lint Drawer/Basket Assembly III
Illus. No. Part No. Qty. Description
1881467* 1Textured Lint Drawer Assembly III
(Less Lock and Logo)
881466 1Stainless Steel Lint Drawer Assembly III
(Less Lock and Logo)
881468* 1Lint Drawer Assembly III
(Less Lock and Logo)
112346 1Wasco Dry Logo ... Not Illustrated
2160015 1MK-100 Lock with key (less cam)
3160031 1Cam Only (90° Bend)
4160104 1MK-100 Key ONLY
5117604 4Neoprene Sponge Tape (sold by the foot)
For models mfd. as of July 13, 1998
117600 4Noise Suppressor Tape (sold by the foot)
For models mfd. prior to July 13, 1998
6--------- 1Lint Drawer Switch
(refer to Lint Drawer Switch Assembly IV on page 14)
(refer to Lint Drawer Switch Assembly III on page 15)
* Specify color when ordering.

12
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Tumbler (Basket)/Support Assemblies
Illus. No. Part No. Qty. Description
1800831 1Galvanized Tumbler (Basket)/SupportAssemblyCompletewithFeltCollar
(includes illus. nos. 1 through 11)
800721* 1Galvanized Tumbler(Basket)ONLY
800891 1Stainless Steel Tumbler (Basket)/Support Assembly Complete with Felt Collar
(includes illus. nos. 1 through 11)
800841* 1Stainless Steel Tumbler (Basket) ONLY
2301315 2Short Galvanized Tumbler (Basket) Rib ONLY
301316 1Tall Galvanized Tumbler (Basket) Rib ONLY
301414 2Short Stainless Steel Tumbler (Basket) Rib ONLY
301415 1Tall Stainless Steel Tumbler (Basket) Rib ONLY
3150518 15/16-18 x 3/8" Socket Button Head Screw
4100902 35/16-18x31"TieRod
5153001 35/16” Flat Washer
6154210 30 5/32” Pop Rivet
7800617 1Tumbler (Basket) Support ONLY
8152004 35/16-18 Hex Nut
9153002 35/16” Lock Washer
10 153001 35/16” Flat Washer
11 116003 1Felt Collar ONLY
401010 1#847 Adhesive for Felt Collar (5 oz. Tube)
* Felt Collar is not included and must be ordered separately.

13
Telephone: [phone] Fax: [phone]
Microprocessor Temperature Sensor Bracket Assembly
Illus. No. Part No. Qty. Description
1853021 1Sensor Bracket ONLY
881090 1Microprocessor Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 6 and 9 through 12)
2880251 1Microprocessor Sensor Probe Assembly Complete
(includes illus. nos. 2 through 6)
3154007 21/4" Push-On Fastener
4121028 21/4" Terminal
5122701 4Socket Terminal ONLY
122801 1Pin/Socket Extraction Tool
6122605 14-Position Connector (Female)
7122700 4Pin Terminal ONLY
8122604 14-Position Connector (Male)
9130112 1225° Thermostat ONLY
10 150005 2#6-32 x 1/4" Phillips Round Head Machine Screw
11 153010 2#6 Star Washer
12 152013 2#6-32 Hex Nut
13 152014 21/4-20 Free Spin Wash Nut

14
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Lint Drawer/Switch Assembly IV
Illus. No. Part No. Qty. Description
1150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
2826303 1Lint Drawer Switch Panel
3150301 4#8-18 x 7/16" Phillips Pan Head TEK Screw
4353261 1Lint Drawer Bracket
881494 1Lint Drawer Switch Box Assembly (Type IV)
(includes illus. nos. 1, 2 and 4 through 9)
5122116 1Lint Drawer Switch
6122636 2.250 Insulated Flag Terminal
7122701 4M-N-L (Mate-N-Lock) Socket Terminal
8122605 24-Pin Socket Connector
9881502 1Lint Drawer Switch Harness
formodelsmfd. as ofJanuary31,1997

15
Telephone: [phone] Fax: [phone]
Lint Drawer/Switch Assembly III
Illus. No. Part No. Qty. Description
1122116 1Lint Drawer Switch
2122605 24-Pin Socket Connector
3122701 4M-N-L (Mate-N-Lock) Socket
4304034 1Lint Drawer Switch Box Cover
881493 1Lint Drawer Switch Box Assembly (Type III)
(includes illus. nos. 1 through 5 and 8)
5150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
6122700 2Pin Terminal ONLY
122801 1Pin/Socket Extraction Tool
7122604 24-Pin Terminal
8853104 1Lint Drawer Switch Mounting Panel
9150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
10 152014 21/4-20 Free Spin Wash Nut
formodelsmfd.priortoJanuary 31,1997

16
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Rear Electrical Panel Assembly

17
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty. Description
1881495 1HSI (Hot Surface Ignition) 24 VAC Transformer Kit
2150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
3152014 21/4-20 Free Spin Wash Nut
4150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
5136008 1 or 2 Fuse Block
6136049 1 or 2 3/4-Amp (Slo Blo) Fuse
7150301 1 or 2 #8-18 x 7/16" Phillips Pan Head TEK Screw
8132451 1Motor Contactor - 24 VAC
9150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
10 112025 1“CAUTION - Disconnect Supply” Label
11 353161 1Connector Bracket
12 150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
13 122642 19-Pin Connector
14 122643 8M-N-L (Mate-N-Lock) Pin
15 122645 16-Pin Connector
16 122643 6M-N-L (Mate-N-Lock) Pin
17 122645 14-Pin Connector
18 122643 4Mate-N-Lock Pin
19 150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
20 353153 1Rear Electrical Box Cover
21 112046 1“Computer Ground” Label
22 112014 1“High Voltage” Label
23 112039 1“Black/White/Green Ground” Label
24* 150008 2#6-32 x 1-1/4" Round Head Machine Screw
25* 120701 14-Position Terminal Block
26* 881222 1Power Distribution Block Mounting Bracket
27* 151000 2#6-32 Pal Nut
28* 153528 2#8-32 x 1/2" Clinch Stud
29* 121300 2Bushing
30* 152001 2#8-32 Hex Nut
31 121010 1L-70 Ground Lug
32 153007 11/4" Lock Washer
33 152002 11/4"-20 Hex Nut
34 131814 1Relay
(for use on 120 VAC Models Only)
131815 1Relay
(for use on 240 VAC Models Only)
35 150301 2#8-18 x 7/16" Phillips Pan Head TEK Screw
36 824828 1R.C. Network
* For use on Top Tumbler (basket) ONLY.
Rear Electrical Panel Assembly

18
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Tumbler Bearing Mount Assembly
