American Dryer Corp. AD-60 User manual

AD-60 Parts Manual
24 VAC Phase 5
1992 thru 1998
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [e-mail]
www.amdry.com
122194
052697WM/tf ADC Part No. 450306

Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following FOR YOUR SAFETY caution must e posted near the dryer in a prominent location.
We have tried to make this manua as comp ete as possib e and hope you wi find it usefu . ADC reserves the right to make
changes from time to time, without notice or ob igation, in prices, specifications, co ors, and materia , and to change or
discontinue mode s.
Important
For your convenience, log the following information
DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________
RESELLERS NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Rep acement parts can be obtained from your rese er or the ADC factory. When ordering rep acement parts from the factory,
you can FAX your order to ADC at [phone] or te ephone your order direct y to the ADC Parts Department at (508)
678-9000. P ease specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurate y and prompt y.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
IMPORTANT NOTE TO PURCHASER
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
AD-60
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser dessence
ni dautres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

Control Door Assembly Without Trim
For OPL (Non-Coin Models Mfd. as of July 13, 1998 .................................................................... 3
High Security Control Door Assembly .................................................................................................... 4
Phase 5 OPL Microprocessor Control Panel Assembly ......................................................................... 5
Phase 5 OPL Microprocessor Control Box Assembly ........................................................................... 6
Dual Timer Tap Touch Controls
For Models Mfd. as of November 3, 2000 ..................................................................................... 7
Dual Timer Control Panel Assembly ...................................................................................................8, 9
Dual Timer Control Box Assembly ....................................................................................................... 10
Main Door Cold Rolled Steel (CRS Assembly .................................................................................... 11
Plastic Main Door Assembly ................................................................................................................ 12
Cold Rolled Steel (CRS Door Front Panel Assembly .......................................................................... 13
Plastic Door Front Panel Assembly ...................................................................................................... 14
Cold Rolled Steel (CRS Main Door Switch Assembly ......................................................................... 15
Plastc Main Door Switch Assembly ...................................................................................................... 16
Lint Trap Assembly .............................................................................................................................. 17
Drop Lint Door Assembly without Trim
For OPL (Non-Coin Models Mfd. as of July 13, 1999 .................................................................. 18
Drop Lint Door Assembly with Trim
For Models Mfd. prior to July 13, 1999..........................................................................................19
Basket (Tumbler /Support Assembly ............................................................................................... 20, 21
Basket (Tumbler Bearing Assembly
For Models Mfd. as of April 20, 1999 ....................................................................................... 22, 23
Table of Contents

(Basket Tumbler Bearing Assembly
For Models Mfd. prior to April 20, 1999 ................................................................................... 24, 25
Idler Bearing Assembly ................................................................................................................... 26, 27
Non-Reversing T.E.F.C. Motor Mount Assembly ............................................................................ 28, 29
Reversing T.E.F.C. Motor Mount Assembly .................................................................................... 30, 31
Sensor Bracket Assemblies ............................................................................................................. 32, 33
Direct Spark Ignition (DSI Burner Box Assembly
For Models Mfd. as of April 10, 2000 ...................................................................................... 34, 35
Direct Spark Ignition (DSI Burner Assembly
For Models Mfd. prior to April 10, 2000 ................................................................................... 36, 37
Electric Oven Assembly ................................................................................................................. 38, 39
Sail Switch/Hi-Limit Assemblies ...................................................................................................... 40, 41
Single-Phase (1ø Motor, Electric Relay Panel Assembly ...................................................................... 42
3-Phase (3ø Motor, Electric Relay Panel Assembly ............................................................................. 43
Microprocessor Reversing Rear Control Box Assembly ........................................................................ 44
Dual Timer Reversing Rear Control Box Assembly ............................................................................... 45
Air-Operated Steam Damper Assembly .......................................................................................... 46, 47
Mechanical Steam Damper Assembly Option .................................................................................. 48, 49
Outer Top/Back Guard Assembly ........................................................................................................ 50
Heat Reclaimer Assembly .................................................................................................................... 51
Direct Spark Ignition (DSI Burner Assembly Specifications ................................................................. 52
Electric Oven Component Application Chart ........................................................................................ 53
Additional Parts Available .................................................................................................................... 54

3
Telephone: [phone] Fax: [phone]

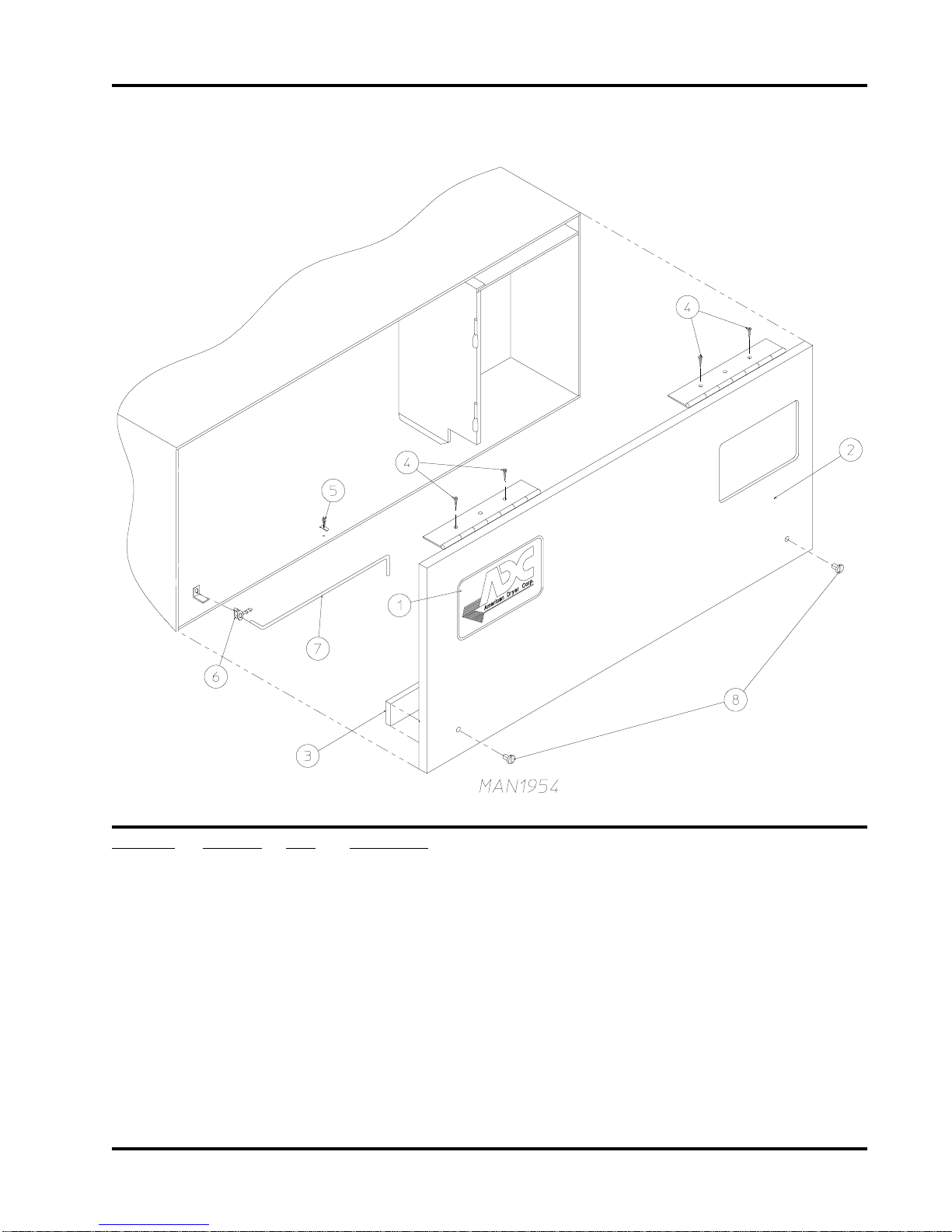

Control Door Assembly Without Trim
For OPL (Non-Coin) Models Mfd. as of July 13, 1998
Illus. No. Part No. Qty.Description
1 881053 1 ADC Logo ONLY (wit double ad esive tape)
870011 1 Logo Double Tape Kit
2 881045* 1 Control Door
881046 1 Stainless Steel Control Door
(includes illus. nos. 2 and 3)
3 117604 4 Neoprene Sponge Tape (sold by t e foot)
4 150300 4 #10-16 x 1/2 Hex Was er TEK Screw
5 102603 1 Control Door Rod Support Catc
6 102601 1 Control Door Rod Retainer Clip
7 102502 1 Control Door Support Rod
8 882541 2 Spring Turn Latc Assembly
* Specify color w en ordering.

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
High Security Control Door Assembly
Illus. No. Part No. Qty.Description
1 160017 1 Special Dummy Lock ONLY (for non-coin models Only)
160104 1 MK-100 Key ONLY (optional)
2 160016 1 Lock Cam ONLY
3 882052 1 Metal ADC Logo wit Tape
870011 1 Logo Double Tape Kit
4 800021* 1 Hig Security Control Door Assembly
(includes illus. nos. 4 t roug 7)
800142 1 Hig Security Stainless Steel Control Door Assembly Less Lock
(includes illus. nos. 4 t roug 7)
5 180202 1 Top Trim Strip wit Lock Hole
6 117603 3 Suppressor Tape/Gasket (sold by t e foot)
(for models mfd. as of February 6, 1995)
102307 3 Trim Bumper Gasket (sold by t e foot)
(for models mfd. prior to February 6, 1995)
7 150201 6 #10-32 x 1/4 P illips Round Head Mac ine Screw
8 150300 4 #10-16 x 1/2 Hex Was er TEK Screw
9 102600 1 Control Door Rod Support Catc
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod
* Specify color w en ordering.

5
Telephone: [phone] Fax: [phone]

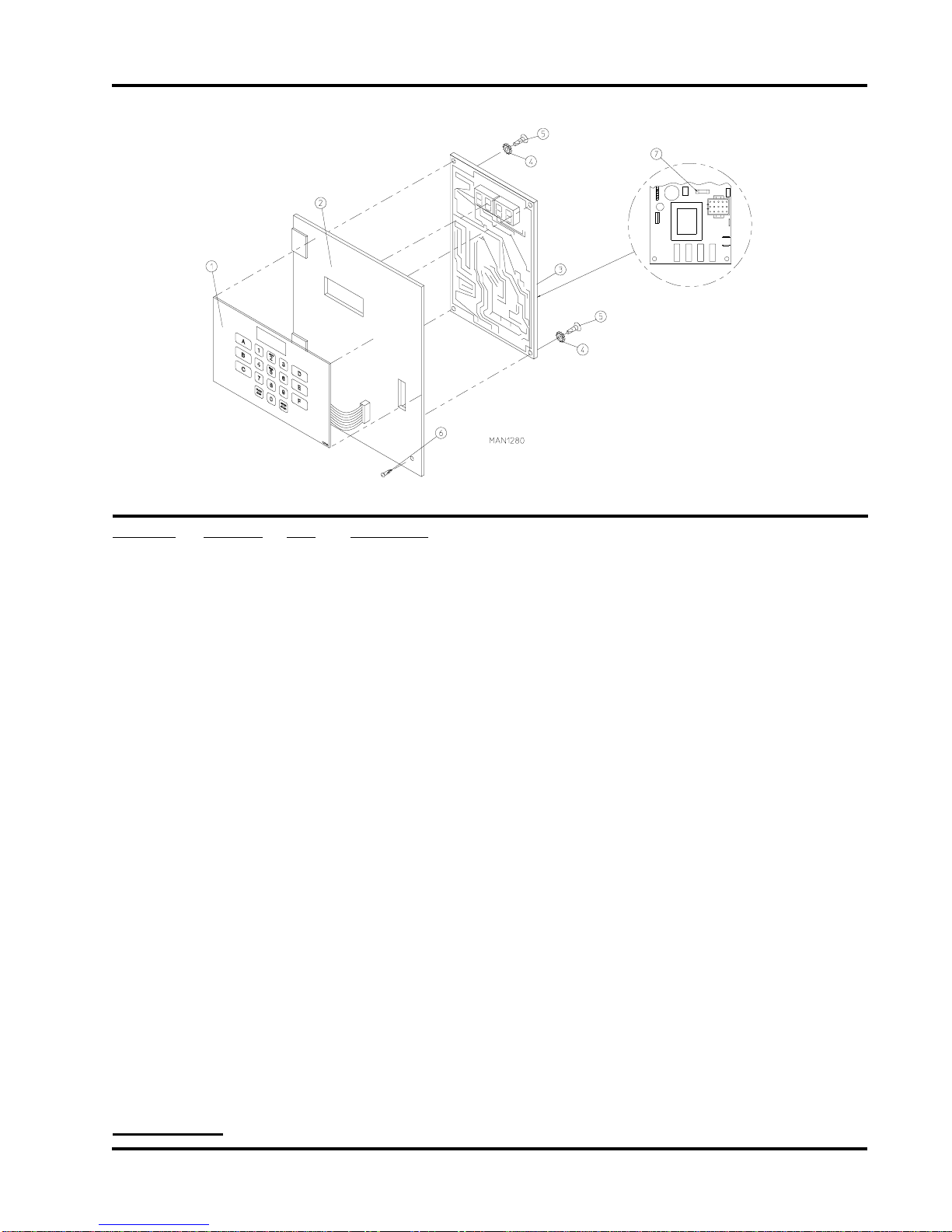

Phase 5 OPL Microprocessor Control Panel Assembly
Illus. No. Part No. Qty.Description
1 112535 1 OPL Englis Keyboard Label Assembly
112276 1 OPL Stick-On Labels (Englis Only)...Not Illustrated
112275 1 3-Language OPL Stick-On Labels...Not Illustrated
(Spanis , Italian, and Hebrew)
112277 1 3-Language OPL Stick-On Labels...Not Illustrated
(Englis , Spanis , and Hebrew)
112278 1 5-Language OPL Stick-On Labels...Not Illustrated
(Italian, Dutc , Frenc , German, and C inese)
2 801255 1 P ase 5 Microprocessor Control Panel ONLY
801256 1 P ase 5 Microprocessor Control Panel ONLY wit Battery Bracket
801206 1 P ase 5 OPL Non-Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 t roug 6)
801207 1 P ase 5 OPL Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 t roug 6)
3 137222 1 P ase 5 OPL Non-Reversing Controller ONLY
137231 1 P ase 5 OPL Reversing Controller ONLY
824998 1 P ase 5 Battery Clip
4 153010 2 #6 Star Was er
5 150005 2 #6-32 x 1/4 P illips Round Head Mac ine Screw
6 150413 1 #10-16 x 1/2 TORX Crimptite Screw
(for models mfd. as of Marc 1, 1994)
160005 1 Spring Turn Latc (2-piece)...Not Illustrated
(for models mfd. prior to Marc 1, 1994)
7 136048 1 1/8-Amp (slo blo) Fuse
IMPO TANT: Check label on computer chip to verify correct part number for controller.

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

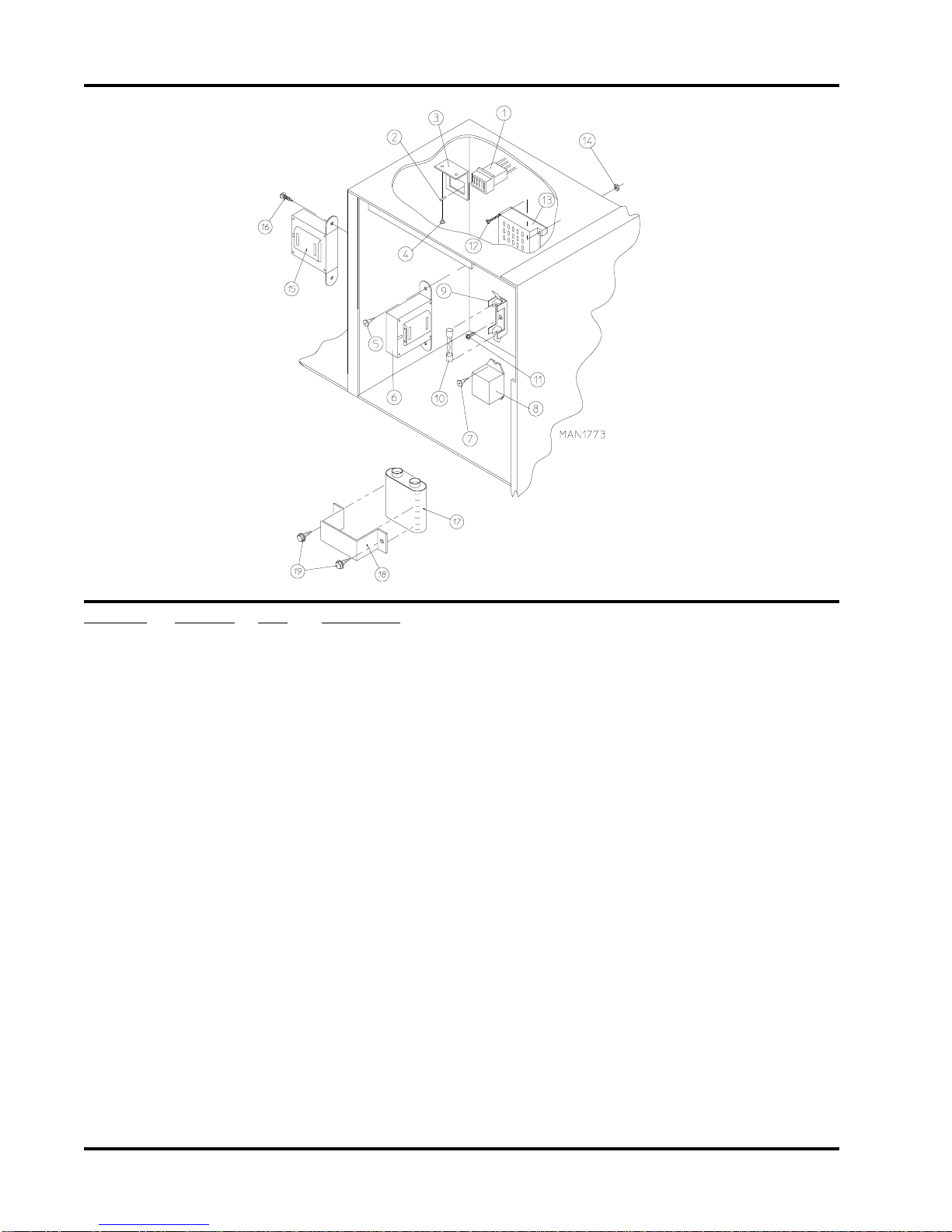

Illus. No. Part No. Qty.Description
1 141403 1 24 VAC Transformer
2 150300 2 #10-16 x 1/2 Hex Was er TEK Screw
3 120715 1 30-Position Terminal Block
4 150002 2 #6-32 x 1 P illips Round Head Screw
5 151000 2 #6-32 Pal Nut
6 136057 * 1/2-Amp (slo blo) Fuse
7 150301 * #8-18 x 7/16 Self Drilling Screw
8 136008 * Fuse Block/Strip ONLY
9 122641 1 15-Pin Microprocessor Connector
10 122706 * Sockets ONLY
11 131931 1 Steam Valve Relay - 24 VAC
(for mec anical steam damper models Only)
12 150415 2 #10-16 x 1/2 P illips Round Head Crimptite Screw
13 137035 1 Motor Capacitor
(for mec anical steam damper models Only)
14 323583 1 Capacitor Bracket
(for mec anical steam damper models Only)
15 150300 2 #10-16 x 1/2 Hex Was er TEK Screw
16 132002 1 Transformer
(for mec anical steam damper models 208 volts and ig er)
17 150300 2 #10-16 x 1/2 Hex Was er TEK Screw
* As required.
Phase 5 OPL Microprocessor Control Bo Assembly

7
Telephone: [phone] Fax: [phone]

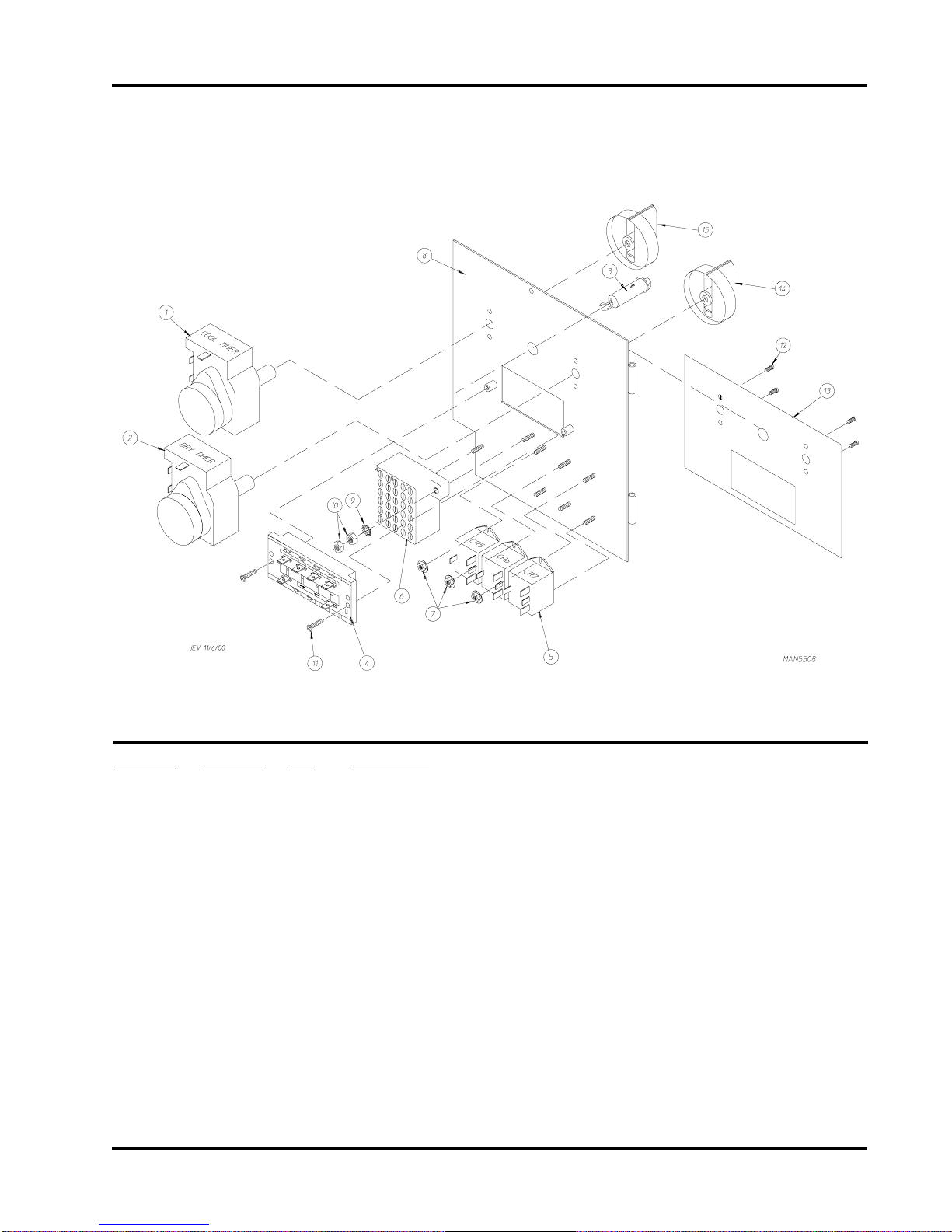

Dual Timer Tap Touch Controls
For Models Mfd. as of November 3, 2000
Illus. No. Part No. Qty.Description
1 124030 1 15 Minute Timer - 24 VAC
2 124025 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Lig t - 24 VAC
4 122301 1 Tap Touc  Switc
5 131932 3 Relay SPST 24v
6 120730 1 30-Position Terminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual Timer Panel Complete
(includes illus. nos. 1 t roug 15)
850392 - Dual Timer Panel ONLY
9 153010 2 #6 Star Was er
10 152000 3 #6-32 Hex Nut
11 150207 2 #10-24 x 1/2 P illips Pan Head Mac ine Screw
12 150110 4 #8-32 x 1/4 P illips Round Head Mac ine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touc Knob wit Red Pointer
15 124105 1 Pure Touc Knob wit Blue Pointer

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

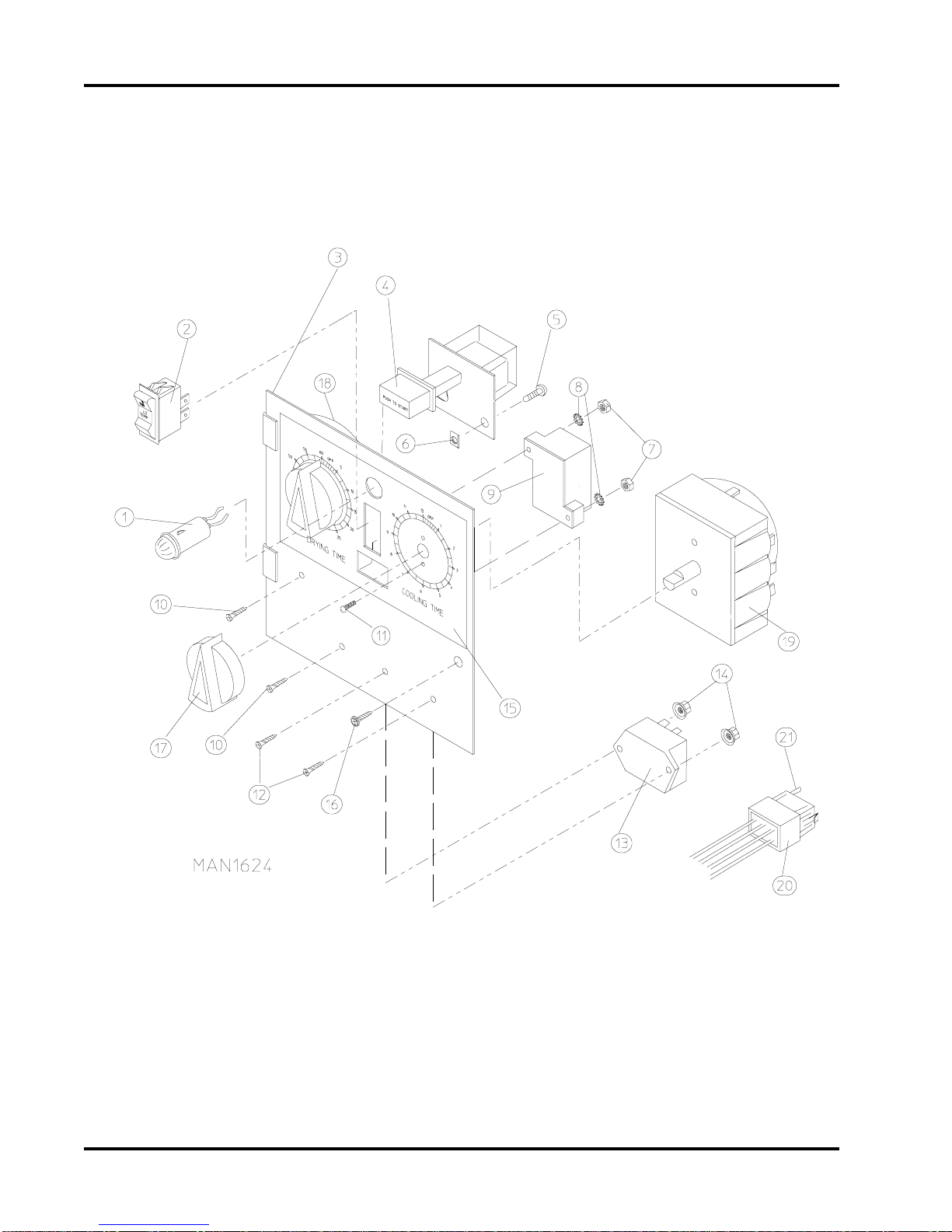

Dual Timer Control Panel Assembly
