American Dryer Corp. Phase 7 OPL/Fire Suppression System EURO-14 User manual

Euro-14 Parts Manual
24 VAC Phase 5 Coin
Phase 6 OPL
AmericanDryerCorporation
88Currant Road
FallRiver,MA02720-4781
Telephone: [phone] / Fax: [phone]
E-mail:[e-mail]
www.amdry.com
ADCPartNo.450578

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OFPURCHASE ____________________________ MODELNO. __________________________________________
RESELLER’SNAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. When ordering replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Pleasespecify thedryermodel numberand serial numberinadditionto thedescriptionand partnumber,so that
your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANTNOTETOPURCHASER”
Informationmustbeobtainedfromyourlocalgassupplierontheinstructions
tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a
prominentlocationnearthedryer.
Euro-14
FORYOURSAFETY
Donot store or use gasolineor
otherflammablevaporsand
liquidsinthevicinityofthisor
anyotherappliance.
POURVOTRESÉCURITÉ
Nepasentreposer ni utiliser d’essence
nid’autresvapeursouliquides
inflammablesàproximitédecet
appareiloude tout autreappareil.

Table of Contents
ControlDoorAssembly .......................................................................................................................... 3
Phase6Non-Coin Microprocessor ControlPanelAssembly ................................................................... 4
Phase6Non-CoinMicroprocessor Control BoxAssembly ...................................................................... 5
Phase5Coin Microprocessor Control PanelAssembly ........................................................................... 6
DualTimerControlPanelAssembly ........................................................................................................ 7
CoinandDualTimerControlBoxAssembly............................................................................................ 8
CoinVaultAssembly ............................................................................................................................... 9
FrontPanelAssembly ........................................................................................................................... 10
MainDoor“Steel”Assembly ................................................................................................................ 11
MainDoorSwitchAssembly................................................................................................................. 12
Tumbler/SupportAssemblies ................................................................................................................. 13
LintDrawer/LintDrawerSwitchAssemblies
For Models Mfd. as of September 8, 2000 ..................................................................................... 14
LintDrawer/LintDrawerSwitchAssemblies
For Models Mfd. prior to September 8, 2000 ................................................................................. 15
IdlerBearingAssembly ................................................................................................................... 16, 17
TumblerBearingAssembly
For Models Mfd. as of July 17, 2000........................................................................................ 18, 19
TumblerBearingAssembly
For Models Mfd. prior to July 17, 2000 .................................................................................... 20, 21
Non-ReversingTotally Enclosed, Fan Cooled MotorMountAssembly ............................................ 22, 23
ReversingTotallyEnclosed,FanCooledMotorMountAssembly .................................................... 24, 25
SensorBracketAssemblies ............................................................................................................. 26, 27
GasBurnerAssembly ..................................................................................................................... 28, 29
ElectricOvenAssembly .................................................................................................................. 30, 31
Single-Phase(1ø)Motor,ElectricRelayPanelAssembly ....................................................................... 32

3-Phase(3ø)Motor,ElectricRelayPanelAssembly .............................................................................. 33
ReversingElectricRelayPanelAssembly ......................................................................................... 34, 35
SteamCoil/Air OperatedSteamDamperAssembly ......................................................................... 36, 37
SteamCoil/MechanicalSteamDamperAssembly ............................................................................ 38, 39
OuterTop/BackGuardAssemblies ....................................................................................................... 40
MicroprocessorCoinAcceptorsListing ................................................................................................ 41
ElectricalOvenComponentApplicationChart ....................................................................................... 42
AdditionalPartsAvailable ..................................................................................................................... 43

450578-2 Telephone: [phone] / www.amdry.com 3

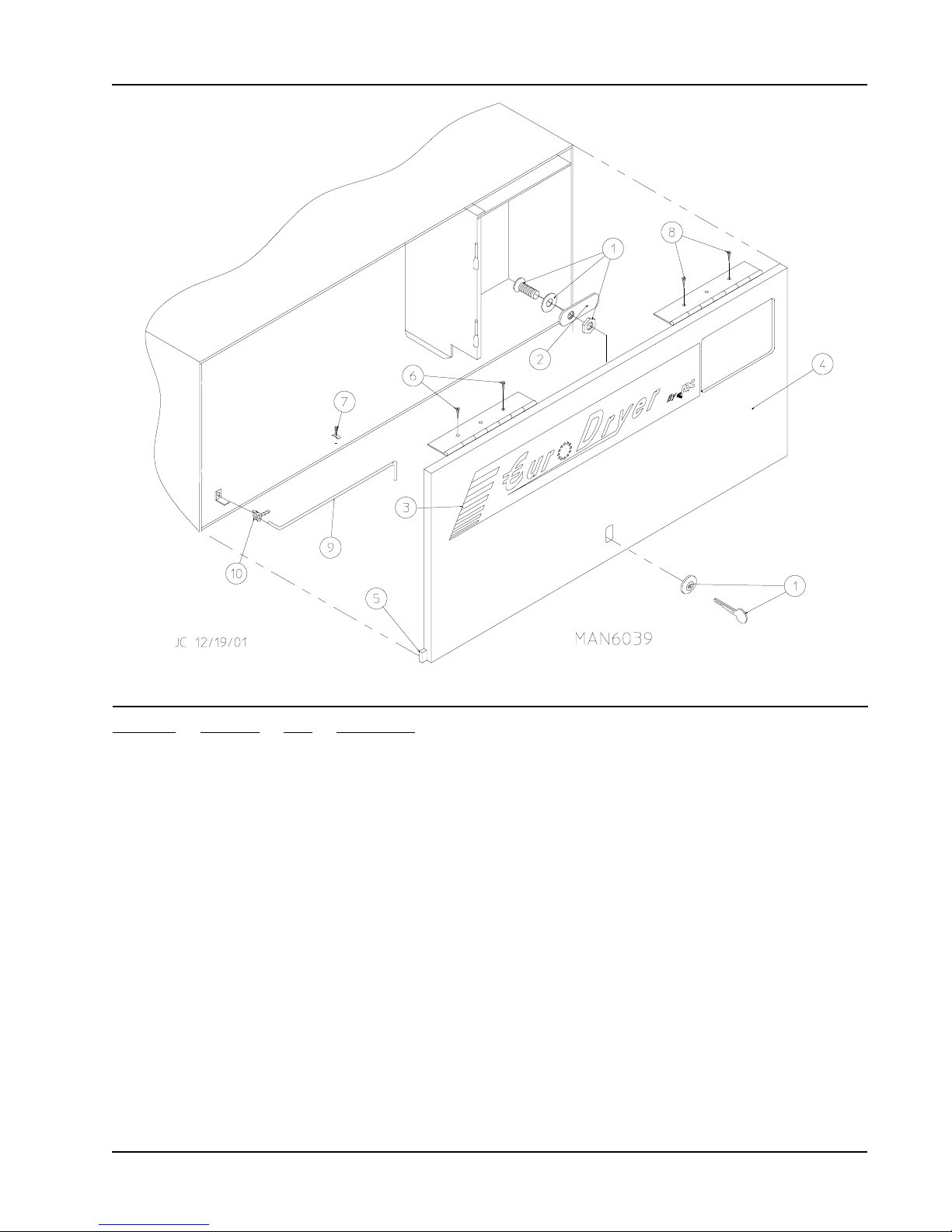

Control Door Assembly
Illus. No. Part No. Qty.Description
1 160015 1 High Security MK-100 Lock Assembly with Key
(for coin models Only)
160017 1 Special Dummy Lock Only
(for non-coin models Only)
160104 1 MK-100 Key Only
2 160052 1 Lock Cam Only
3 112367 1 Euro Logo with Tape
4 882511 1 White Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
882513 1 Almond B Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
882512 1 Coral Blue Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
5 117603 3 Noise Suppressor Tape (sold by the foot)
6 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
7 102603 1 Control Door Rod Support Catch
8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
9 102502 1 Control Door Support Rod
10 102601 1 Control Door Rod Retainer Clip

4 American Dryer Corporation 450578-2
Phase 6 Non-Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty.Description
1 112537 1 Phase 6 Non-Coin Keyboard
112276 1 Non-Coin Stick-On Labels
(English Only)...Not Illustrated
112275 1 3-Language Non-Coin Stick-On Labels
(Spanish, Italian, and Hebrew)...Not Illustrated
112277 1 3-Language Non-Coin Stick-On Labels
(English, Spanish, and Hebrew)...Not Illustrated
112278 1 5-Language Non-Coin Stick-On Labels
(Italian, Dutch, French, German, and Chinese)...Not Illustrated
2 881745 1 Phase 6 Microprocessor Controller (computer) Panel Only
881747 1 Phase 6 Non-Coin Non-Reversing Computer Panel Assembly Complete
(includes illus. nos. 1 through 5 and 7 through 9)
881746 1 Phase 6 Non-Coin Reversing Computer Panel Assembly Complete
(includes illus. nos. 1 through 5 and 7 through 9)
3 137123 1 Phase 6 Non-Coin Non-Reversing Microprocessor Controller (computer)
Only
137122 1 Phase 6 Non-Coin Reversing Microprocessor Controller (computer) Only
4 150005 3 #6-32 x 3/4” Phillips Round Head Machine Screw
5 153010 3 #6 Star Washer
6 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 136048 1 1/8-Amp (Slo-Blo) Fuse
8 136017 1 3.15-Amp (fast acting) Fuse
9 136019 1 1-Amp (fast acting) Fuse

450578-2 Telephone: [phone] / www.amdry.com 5

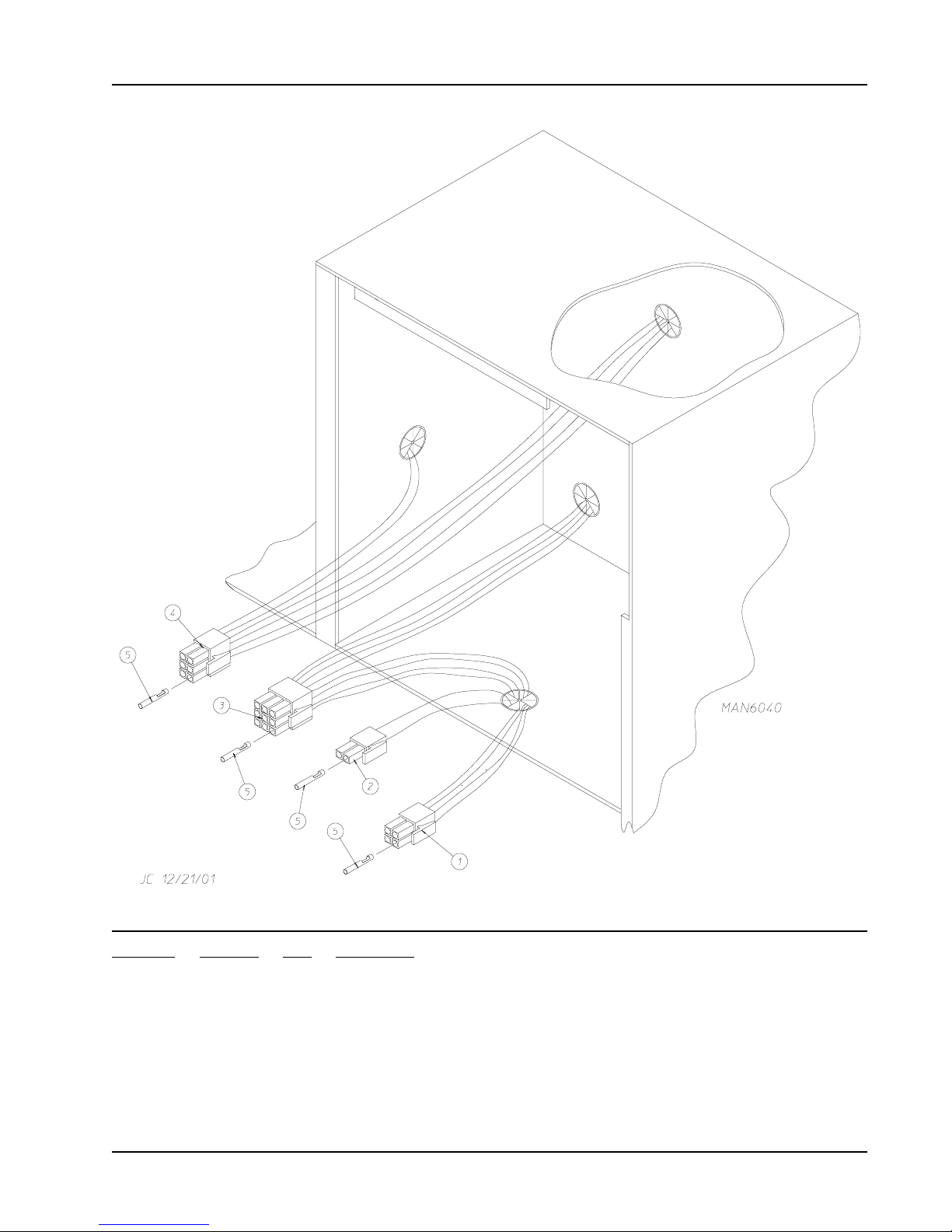

Illus. No. Part No. Qty.Description
1 122648 1 4-Pin Connector
2 122646 1 2-Pin Connector
3 122640 1 9-Pin Connector
4 122644 1 6-Pin Terminal
5 122706 * Socket Terminal ONLY
-- 122801 1 Pin/Socket Extraction Tool
* As needed.
Phase 6 Non-Coin Microprocessor Control Box Assembly

6 American Dryer Corporation 450578-2
Phase 5 Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty.Description
1 112526 1 Coin Keyboard Label Assembly
2 801213 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4, 5, and 6)
801229 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4, 5, and 6)
801259 1 Coin Control Panel Only
801258 1 Coin Control Panel Only with Battery Bracket
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller Only
824998 1 Phase 5 Battery Clip
5 153010 2 #6 Star Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 -------- 1 Microprocessor Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 41)
8 -------- 1 Optic Switch Only
(refer to Microprocessor Coin Acceptors Listing on page 41)
9 137023 1 Optic Switch Connector Only
10 137021 3 Microprocessor Socket Only
880772 1 Single Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label on computer chip to verify correct part number of controller (computer).

450578-2 Telephone: [phone] / www.amdry.com 7
Dual Timer Control Panel Assembly
Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 818051 1 Dual Timer Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 16)
882600 1 Dual Timer Reversing Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 17)
850456 1 Dual Timer Control Panel Only
4 131917 1 Push-To-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
6 154001 2 #10-24 Speed Nut
7 152000 2 #6-32 Hex Nut
8 153010 2 #6 Star Washer
9 120730 1 30-Position Terminal Block
10 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
11 131932 1 Dual Timer Relay - 24 VAC
12 151000 4 #6-32 Pal Nut
13 112050 1 Dual Timer Label Only
14 124103 2 Arrow Timer Knob
15 124025 1 60-Minute Timer - 24 VAC
16 124030 1 15-Minute Timer - 24 VAC
17 132198 1 Reversing Timer - 24 VAC

8 American Dryer Corporation 450578-2
Coin and Dual Timer Control Box Assembly
Illus. No. Part No. Qty.Description
1 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
2 131931 1 Heat Relay - 24 VAC
(for dual timer models Only)
3 122641 1 15-Pin Microprocessor Controller (computer) Connector
4 122706 * Socket Terminal Only
-- 122801 1 Pin/Socket Extraction Tool
5 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
6 132198 1 Reversing Timer 24v
(for coin models Only)
* As required.

450578-2 Telephone: [phone] / www.amdry.com 9

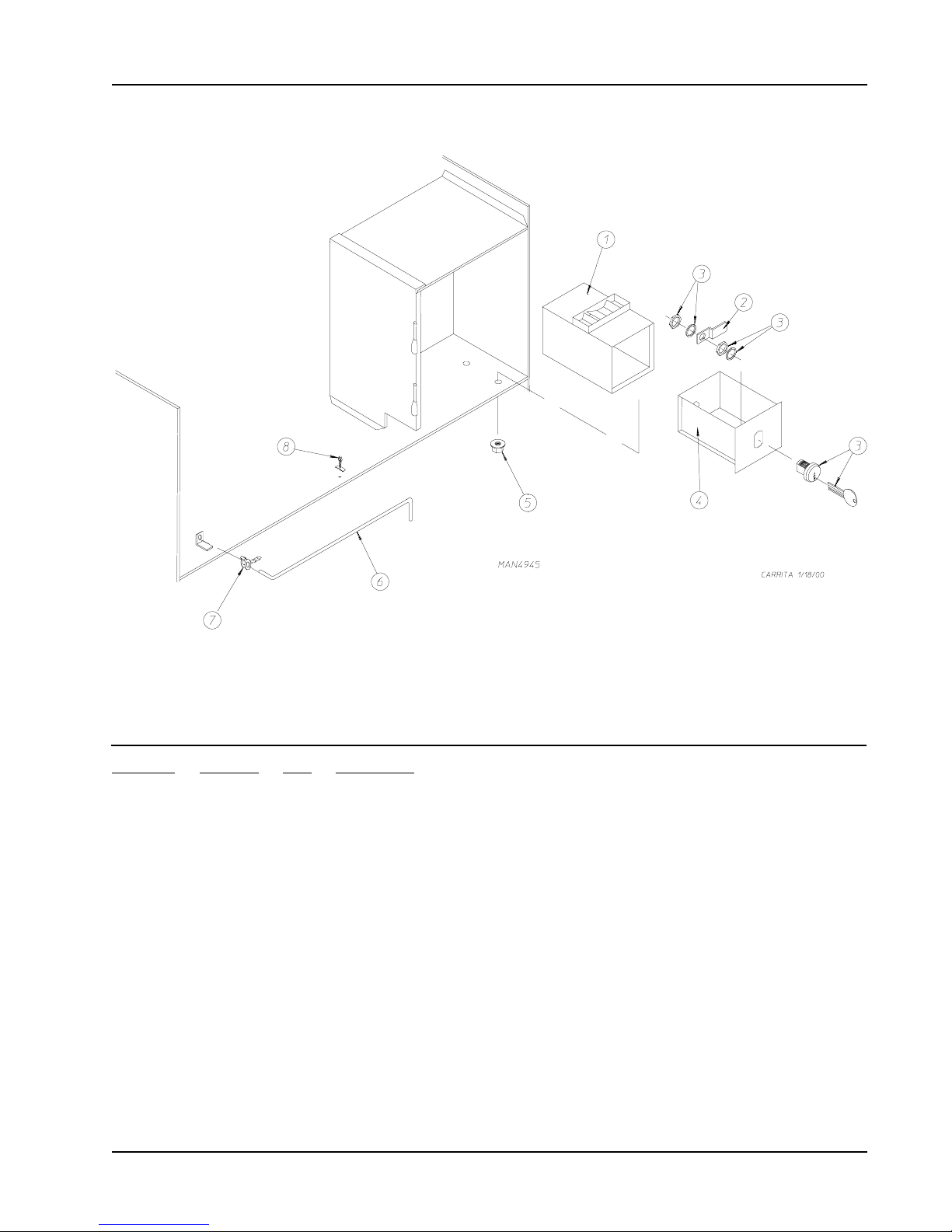

Coin Vault Assembly
Illus. No. Part No. Qty.Description
1 802112 1 Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 5)
802117 1 Microprocessor Coin Vault Only
802110 1 Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 5)
802115 1 Non-Microprocessor Coin Vault Only
2 160028 1 Cam for 1/4 Turn Lock Only
3 875061 1 1/4 Turn Lock with Key and Cam
160105* 1 1/4 Turn Mer-Pel Key Only
4 802020 1 1/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 4)
5 152014 4 1/4-20 Free Spin Wash Nut
6 102502 1 Control Door Support Rod
7 102601 1 Control Door Rod Retainer Clip
8 102603 1 Control Door Rod Catch
* Specify key number when ordering.

10 American Dryer Corporation 450578-2
Front Panel Assembly
Illus. No. Part No. Qty.Description
1 883137 1 White Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. as of January 18, 2000)
883138 1 Coral Blue Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. as of January 18, 2000)
883139 1 Ivory Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. as of January 18, 2000)
817052* 1 Front Panel
(includes illus. nos. 1, 5, and 6)
(for models mfd. prior to January 18, 2000)
2 150313 11 #10-16 x 1/2” TORX Plus BTN Type 1
150318 1 25 IP TORX Plus Bit 1/4 Hex (for removal of TORX head screw)
3 -------- 1 Main Door Hinge
(refer to Main Door “Steel” Assembly on page 11)
4 -------- 1 Lint Drawer Switch
(refer to Lint Drawer/Lint Drawer Switch Assemblies on page 14)
5 881987 1 Friction Door Latch
(includes illus. nos 5 and 6)
6 154215 2 5/32” Pop Rivet
* Specify color when ordering.

450578-2 Telephone: [phone] / www.amdry.com 11
Main Door “Steel” Assembly
Illus. No. Part No. Qty.Description
1 881150 1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5, 6, and 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/2-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/2-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle Only
15 102211 1 20-7/16” Door Glass
102218 1 20-7/16” Door Glass with 4 Holes
(for models mfd. between February 2, 2001 and September 6, 2001)
170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)

12 American Dryer Corporation 450578-2
Main Door Switch Assembly
Illus. No. Part No. Qty.Description
1 150006 2 #6-32 x 7/8” Phillips Pan Head Machine Screw
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 Star Washer
4 137005 1 Door Switch
5 122636 2 Flag Terminal
6 881211 1 Black Main Door Switch Housing Only
881153 1 Black Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

450578-2 Telephone: [phone] / www.amdry.com 13
Tumbler/Support Assemblies
Illus. No. Part No. Qty.Description
1* 882519 1 Galvanized Tumbler Only (without felt collar)
882520 1 Stainless Steel Tumbler Only (without felt collar)
882521 1 Polished Stainless Steel Tumbler Only (without felt collar)
882522 1 Galvanized Tumbler/Support Assemblies
(includes illus. nos. 1 through 10)
882524 Stainless Steel Tumbler/Support Assemblies
(includes illus. nos. 1 through 10)
882523 Polished Stainless Steel Tumbler/Support Assemblies Only
(without felt collar)
2 150313 40 #10-16 x 1/2” TORX Plus
3 301304 4 Galvanized Tumbler Rib Only
322002 2 Galvanized Taper Tumbler Rib
322003 2 Galvanized Straight Tumbler Rib
322001 2 Stainless Steel Straight Tumbler Rib
322000 2 Stainless Steel Tapered Tumbler Rib
322066 2 Polished Stainless Steel Tumbler Rib
322067 2 Polished Stainless Steel Tapered Tumbler Rib
4 150518 1 5/16-18 x 3/8” Socket Button Head Screw
5 100918 4 3/8-16 x 26 3/4” Tie Rod
6 153004 4 3/8” Flat Washer
7 882517 1 Tumbler Support Only
8 152005 4 3/8-16 Hex Nut
9 153005 4 3/8” Lock Washer
10 153004 4 3/8” Flat Washer
11 116002 1 Felt Collar Only
-- 401010 1 #847 Adhesive for Felt Collar (5.0 oz. tube)
* Felt collar is not included and must be ordered separately.

14 American Dryer Corporation 450578-2
Lint Drawer/Lint Drawer Switch Assemblies
For Models Mfd. as of September 8, 2000
Illus. No. Part No. Qty.Description

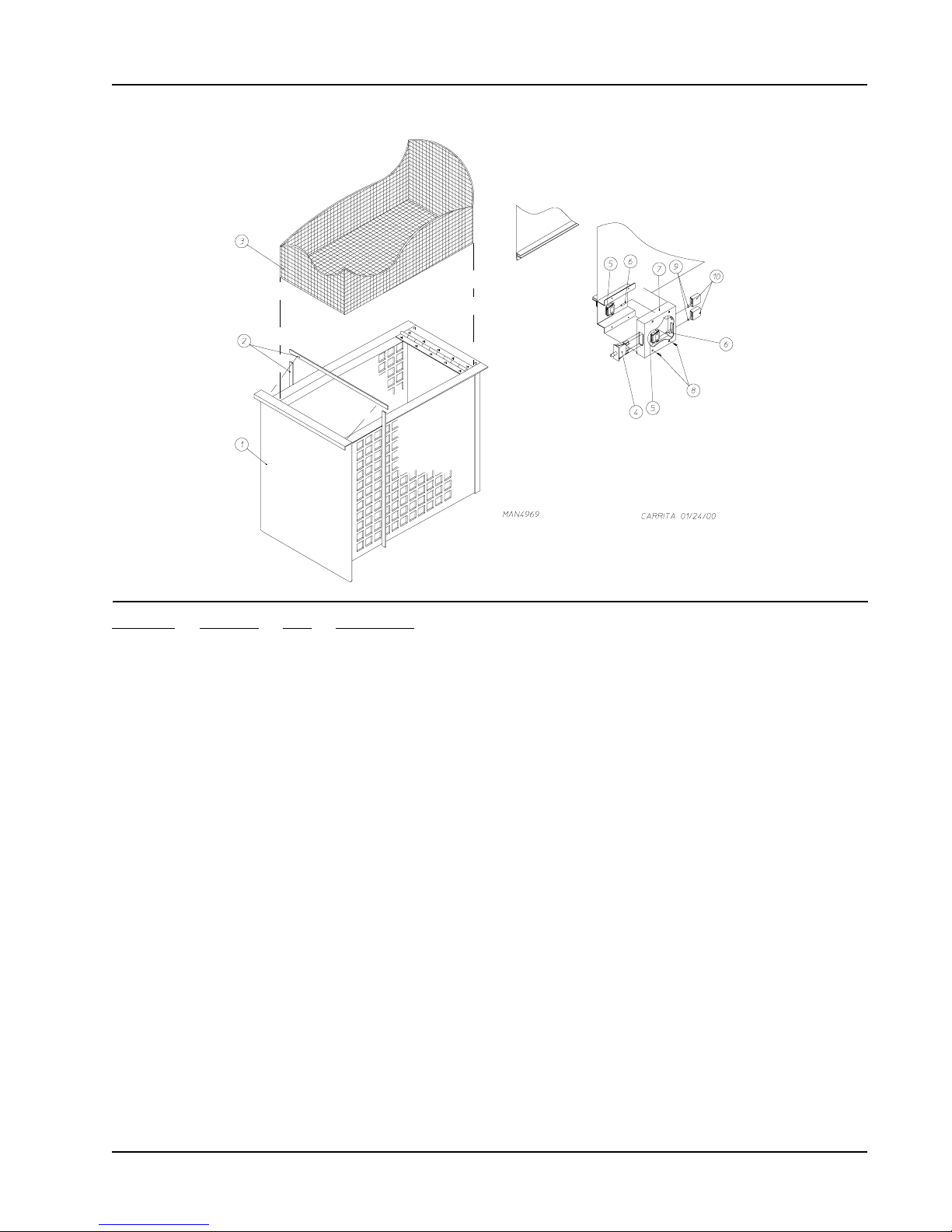

1 883155 1 White Lint Drawer Assembly
(includes illus. nos. 1 and 2)
883156 1 Coral Blue Lint Drawer Assembly
(includes illus. nos. 1 and 2)
883157 1 Ivory Lint Drawer Assembly
(includes illus. nos. 1 and 2)
2 117605 5 Gasket (sold by the foot)
3 122116 1 Lint Drawer Switch
4 122605 1 or 2 4-Pin Socket Connector Only
5 122701 * Socket Terminal Only
122801 1 Pin/Socket Extraction Tool
6 833229 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 4 through 7)
(for Non-Coin models Only)
818087 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 4 through 7)
(for coin models Only)
304136 1 Lint Drawer Switch Box Only
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
8 122700 * Pin Terminal Only
9 122604 1 or 2 4-Pin Connector Only
* As required.

450578-2 Telephone: [phone] / www.amdry.com 15
Lint Drawer/Lint Drawer Switch Assemblies
Illus. No. Part No. Qty.Description

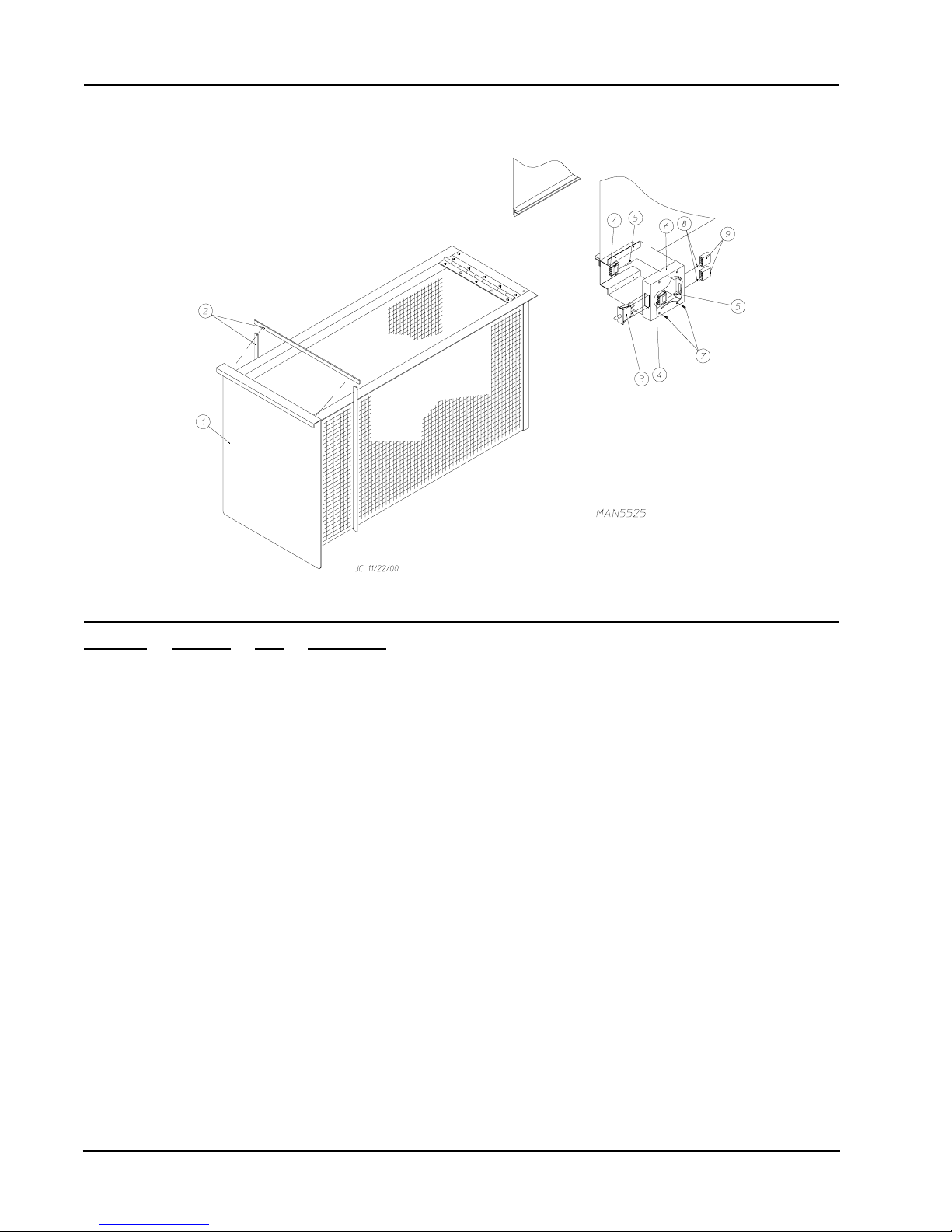

1 882514 1 White Lint Drawer Assembly
(includes illus. nos. 1 and 2)
882515 1 Coral Blue Lint Drawer Assembly
(includes illus. nos. 1 and 2)
882516 1 Almond B Lint Drawer Assembly
(includes illus. nos. 1 and 2)
2 117605 5 Neoprene Sponge Tape (sold by the foot)
3 108224 1 Lint Screen Assembly
4 122116 1 Lint Drawer Switch
5 122605 1 or 2 4-Pin Socket Connector
6 122701 * Socket Terminal Only
122801 1 Pin/Socket Extraction Tool
7 833229 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 4 through 7)
(for Non-Coin models Only)
818087 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 4 through 7)
(for coin models Only)
304136 1 Lint Drawer Switch Box Only
8 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 122700 * Pin Terminal Only
10 122604 1 or 2 4-Pin Connector Only
* As required.
For Models Mfd. prior to September 8, 2000

16 American Dryer Corporation 450578-2

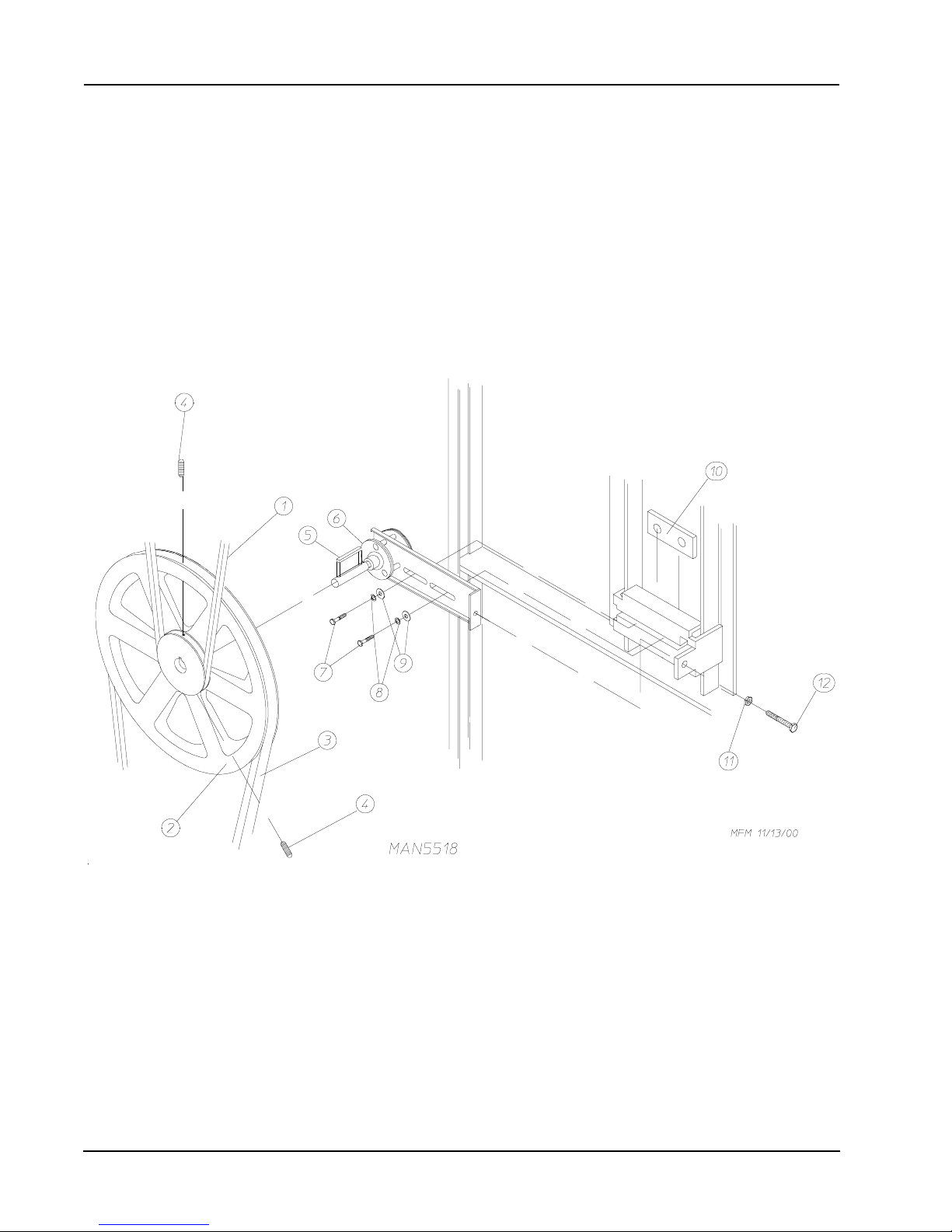

Idler Bearing Assembly

450578-2 Telephone: [phone] / www.amdry.com 17
Illus. No. Part No. Qty.Description
1 100100 1 5L-660 V-Belt (tumbler to idler) - Non-Reversing Models Only
100108 1 5L-680 V-Belt (tumbler to idler) - Reversing Models Only
2 101129 1 9” x 2-1/2” Compound Pulley
3 100105 1 4L-520 V-Belt (idler to motor) - Non-Reversing Models Only
100112 1 4L-610 V-Belt (idler to motor) - Reversing Models Only
4 154301 2 5/16-18 x 1” Allen Setscrew
5 100705 1 3/16” x 3/16” x 1-3/8” Key
6 882576 1 Idler Bearing Assembly Complete
(includes illus. nos. 5 through 12)
7 150617 2 3/8-16 x 1” Hex Head Machine Bolt
8 153005 2 3/8” Lock Washer
9 153004 2 3/8” Flat Washer
10 801009 1 Idler Square Washer
11 152004 1 5/16-18 Hex Nut
12 150509 1 5/16-18 x 3” Hex Head Machine Bolt
Idler Bearing Assembly

18 American Dryer Corporation 450578-2
Tumbler Bearing Assembly
For Models Mfd. as of July 17, 2000
