ML-96
(HSI)
Parts Manual
1999/2000

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OFPURCHASE ____________________________ MODELNO. __________________________________________
RESELLER’SNAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. Whenordering replacement parts from thefactory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at
[phone]. Pleasespecifythe dryermodelnumberand serialnumberin addition to thedescriptionand partnumber,so
that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
ML-96
“IMPORTANTNOTETOPURCHASER”
Informationmustbeobtainedfromyourlocalgassupplierontheinstructions
tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a
prominentlocationnearthedryer.
FORYOUR SAFETY
Donot store or use gasolineor
otherflammablevaporsorliquids
inthevicinityofthisoranyother
appliance.
POURVOTRESÉCURITÉ
Nepasentreposer ni utiliser d’essence
nid’autresvapeursou liquides
inflammablesdans levoisinagedecet
appareiloude yout autre appareil.

Table of Contents
Control Door Assembly ................................................................................................. 2
Phase 6 Microprocessor Panel Assembly ...................................................................... 3
Main Door/Front PanelAssembly .............................................................................. 4, 5
Main DoorAssembly ................................................................................................. 6, 7
Main Door SwitchAssembly ......................................................................................... 8
Temperature Sensor Bracket Assembly ......................................................................... 9
Wrapper Assembly....................................................................................................... 10
Lint DoorAssembly ..................................................................................................... 11
Basket (Tumbler)Assembly ......................................................................................... 12
Basket(Tumbler) BearingAssembly ............................................................................ 13
Idler ShaftAssembly .................................................................................................... 14
Drive ShaftAssembly................................................................................................... 15
Drive MotorAssembly ................................................................................................. 16
Motorized Impellor (Fan)Assembly ............................................................................ 17
Reversing Relay PanelAssembly ................................................................................. 18
PneumaticValveAssembly........................................................................................... 19
Hot Surface Ignition (HSI) BurnerAssembly......................................................... 20, 21
Air JetAssembly .......................................................................................................... 22
Sail SwitchAssembly ................................................................................................... 23
Exhaust CollarAssembly ............................................................................................. 24

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
2Control Door Assembly
Illus. No. Part No. Qty.Description
1 882246 1 White Control DoorAssembly Complete
(includes illus. nos. 1 and 3)
882376 1 Wrinkle Blue Control DoorAssembly Complete
(includes illus. nos. 1 and 3)
882355 1 Corvel Dry Blue Control DoorAssembly Complete
(includes illus. nos. 1 and 3)
882357 1 Coral Wrinkle Blue Control DoorAssembly Complete
(includes illus. nos. 1 and 3)
882359 1 Coral Blue Control DoorAssembly Complete
(includes illus. nos. 1 and 3)
2 112368 1 Logo ONLY
3 882541 2 Spring Turn Latch (2-piece)
4 150309 9 #10-16 x 1/2” Hex Head TEK Crimptite Screw
5 102505 1 Control Door Support Rod
6 102601 1 Control Door Retainer Clip
7 102603 1 Control Door Rod Catch

3
Telephone: [phone] Fax: [phone]
Phase 6 Microprocessor PanelAssembly
Illus. No. Part No. Qty.Description
1 112537 1 Phase 6 OPL Keyboard (touch pad)
112276 1 OPL Stick-On Labels
(English Only) ... Not Illustrated
112275 1 3-Language OPL Stick-On Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 1 3-Language OPL Stick-On Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 1 5-Language OPL Stick-On Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2 824480 1 Phase 6 Microprocessor Controller (computer) Panel ONLY
3 137124 1 Phase 6 Reversing Microprocessor Controller (computer) with Air Jet
(for models mfd. as of June 26, 1998)
137122 1 Phase 6 Reversing Microprocessor Controller (computer) without Air Jet
(for models mfd. prior to June 26, 1998)
4 150005 6 #6-32 x 1/4” Phillips Round Head Machine Screw
5 153010 6 #6 Star Washer
6 136048 1 1/8-Amp (slo blo) Fuse
7 136017 1 3.5-Amp (fast acting) Fuse
8 136019 1 1-Amp (fast acting) Fuse

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
4Main Door/Front Panel Assembly

5
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 -------- 1 Main Door
(refer to Main Door Assembly on page 6 and page 7)
2 150443 2 Socket Cap Screw
3 881441 1 White Bottom Hinge Block
882306 1 Wrinkle Blue Bottom Hinge Block
881735 1 Corvel Dry Blue Bottom Hinge Block
882283 1 Coral Wrinkle Blue Bottom Hinge Block
882335 1 Coral Blue Bottom Hinge Block
4 153031 1 Nylon Washer
5 150443 2 Socket Cap Screw
6 881440 1 White Top Hinge Block
882307 1 Wrinkle Blue Top Hinge Block
881736 1 Corvel Dry Blue Top Hinge Block
882284 1 Coral Wrinkle BlueTop Hinge Block
882334 1 Coral Blue Top Hinge Block
7 882236 1 White Front Panel
(includes illus. nos. 7, 13, and 14)
882375 1 Wrinkle Blue Front PanelAssembly
(includes illus. nos. 7, 13, and 14)
882344 1 Corvel Dry Blue Front Panel Assembly
(includes illus. nos. 7, 13, and 14)
882345 1 Coral Wrinkle Blue Front PanelAssembly
(includes illus. nos. 7, 13, and 14)
882346 1 Coral Blue Front Panel Assembly
(includes illus. nos. 7, 13, and 14)
8 390227 1 Emblem
9 116326 1 Front Panel Insulation
10 -------- 1 Main Door Switch
(refer to Main Door Switch Assembly on page 8)
11 182507 2 1/4-20 High Crown Acorn Nut
12 -------- 1 Lint Screen
(refer to Lint Door Assembly on page 11)
13 881987 1 Friction Door Latch Kit
(includes illus. nos. 13 and 14)
14 154215 2 5/32 x 1/4” Rivet
15 150317 20 #10-16 x 3/4” TORX Plus BTN Type 1
(for models mfd. as of September 29, 2000)
150318 * 25 IP Stick Fit TORX Plus Bit
(needed for removal of P/N 150317)
150311 20 #10-16 x 3/4” Phillips Hex Head Screw
(for models mfd. prior to September 29, 2000)
* As required.
Main Door/Front Panel Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
6Main Door Assembly

7
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 881968 1 White Cold Rolled Steel (CRS) Main DoorAssembly
(includes illus. nos. 1 through 10)
882308 1 Wrinkle Blue Cold Rolled Steel (CRS) Main DoorAssembly
(includes illus. nos. 1 through 10)
881761 1 Corvel Dry Blue Cold Rolled Steel (CRS) Main DoorAssembly
(includes illus. nos. 1 through 10)
882292 1 Coral Wrinkle Blue Cold Rolled Steel (CRS) Main DoorAssembly
(includes illus. nos. 1 through 10)
882353 1 Coral Blue Cold Rolled Steel (CRS) Main DoorAssembly
(includes illus. nos. 1 through 10)
881966 1 White Cold Rolled Steel (CRS) Large Main Door Ring (white)
882309 1 Wrinkle Blue Cold Rolled Steel (CRS) Large Main Door Ring
881756 1 Corvel Dry Blue Cold Rolled Steel (CRS) Large Main Door Ring
882305 1 Coral Wrinkle Blue Cold Rolled Steel (CRS) Large Main Door Ring
882343 1 Coral Blue Cold Rolled Steel (CRS) Large Main Door Ring
2 102214 1 30” Main Door Glass
3 881685 1 White Main Door Hinge
882310 1 Wrinkle Blue Main Door Hinge
881757 1 Corvel Dry Blue Main Door Hinge
882296 1 Coral Wrinkle Blue Main Door Hinge
882336 1 Coral Blue Main Door Hinge
4 881740 6 1/4-20 x 5/8” White Carriage Bolt
882311 6 1/4-20 Carriage Bolt (wrinkle blue)
881739 6 1/4-20 Carriage Bolt (corvel dry blue)
882339 6 1/4-20 Carriage Bolt (coral wrinkle blue)
882336 6 Coral Blue Main Door Hinge
5 881688 1 White Main Door Handle
882312 1 Wrinkle Blue Main Door Handle
881737 1 Corvel Dry Blue Main Door Handle
882295 1 Coral Wrinkle Blue Main Door Handle
882337 1 Coral Blue Main Door Handle
6 881806 6 1/4-20 Free Spin Wash Nut (white)
882313 6 1/4-20 Free Spin Wash Nut (wrinkle blue)
881807 6 1/4-20 Free Spin Wash Nut (corvel dry blue)
882293 6 1/4-20 Free Spin Wash Nut (coral wrinkle blue)
882342 6 1/4-20 Free Spin Wash Nut (coral blue)
7 152008 1 #10-32 Hex Nut
8 150120 1 Door Latch Screw
9 882411 1 7/8” x 7/8” x 104” Door Gasket
10 151012 4 #10-32 Nylon Acorn Nut (white)
Main Door Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
8Main Door Switch Assembly
Illus. No. Part No. Qty.Description
1 150006 2 #6-32 x 7/8” Phillips Pan Head Machine Screw
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 Star Washer
4 137005 1 Main Door Switch ONLY
5 881702 1 White Main Door Switch HousingAssembly Complete
(includes illus. nos. 1 through 5)
882314 1 Wrinkle Blue Main Door Switch HousingAssembly
(includes illus. nos. 1 through 5)
881700 1 Corvel Dry Blue Main Door Switch HousingAssembly
(includes illus. nos. 1 through 5)
882298 1 Coral Wrinkle Blue Main Door Switch HousingAssembly
(includes illus. nos. 1 through 5)
882341 1 Coral Blue Main Door Switch HousingAssembly
(includes illus. nos. 1 through 5)
881687 1 White Main Door Switch Housing ONLY
882315 1 Wrinkle Blue Main Door Switch Housing ONLY
881695 1 Corvel Dry Blue Main Door Switch Housing ONLY
882291 1 Coral Wrinkle Blue Main Door Switch Housing ONLY
882338 1 Coral Blue Main Door Switch Housing ONLY
6 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

9
Telephone: [phone] Fax: [phone]

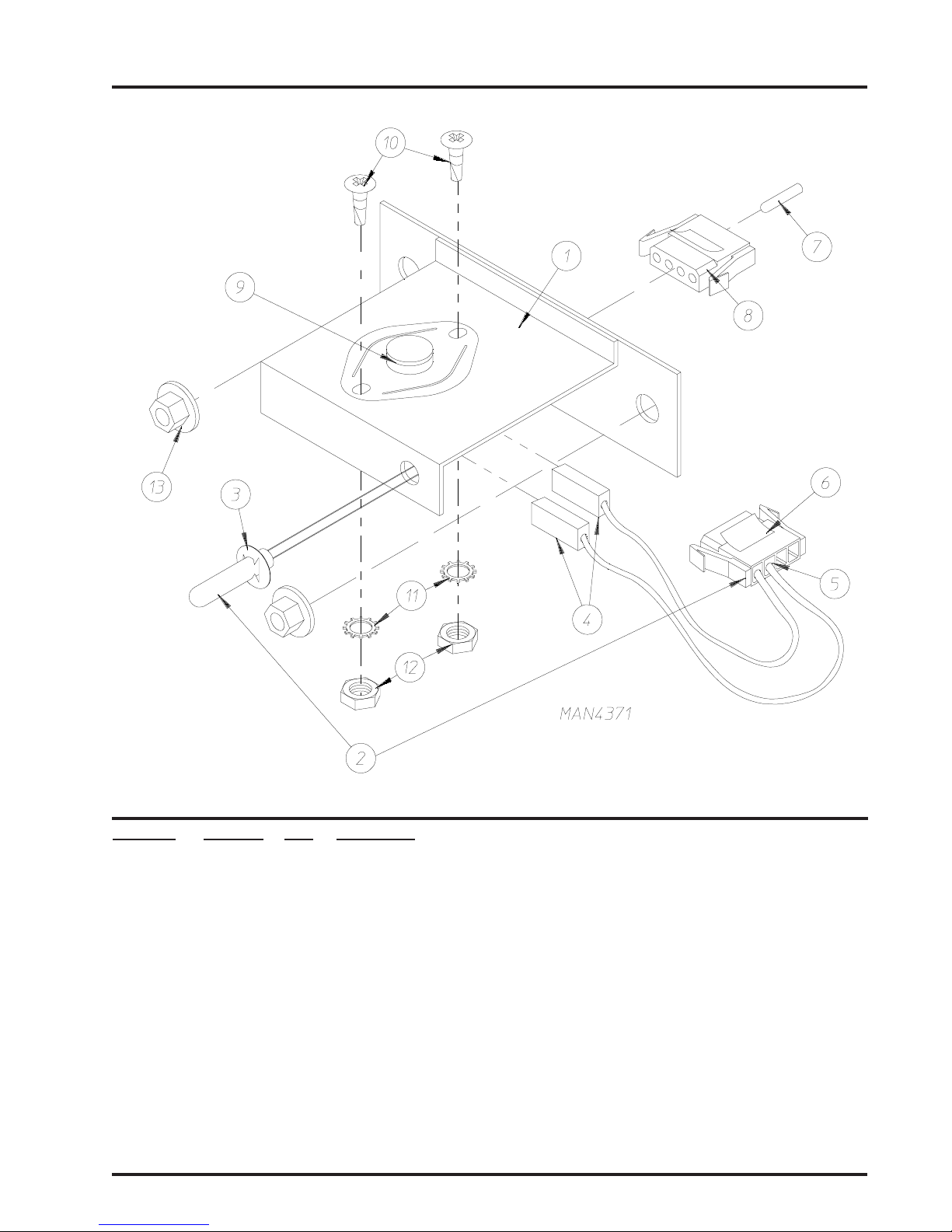

Temperature Sensor Bracket Assembly
Illus. No. Part No. Qty.Description
1 859372 1 Temperature Sensor Bracket Complete
(includes illus. nos. 1 through 6 and 9 through 12)
881089 1 Sensor Bracket
2 880252 1 4” Temperature Sensor Probe Assembly
3 154007 2 1/4” Push On Fastener
4 121028 1 1/4”Terminal
5 122701 4 Socket Terminal ONLY
6 122605 1 4-Position Female Connector
7 122700 4 Pin Terminal ONLY
8 122604 1 4-Position Male Connector
9 130302 1 225º Thermostat
10 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
11 153010 2 #6 Star Washer
12 152013 2 #6-32 Hex Nut
13 152014 2 1/4-20 Free Spin Wash Nut

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

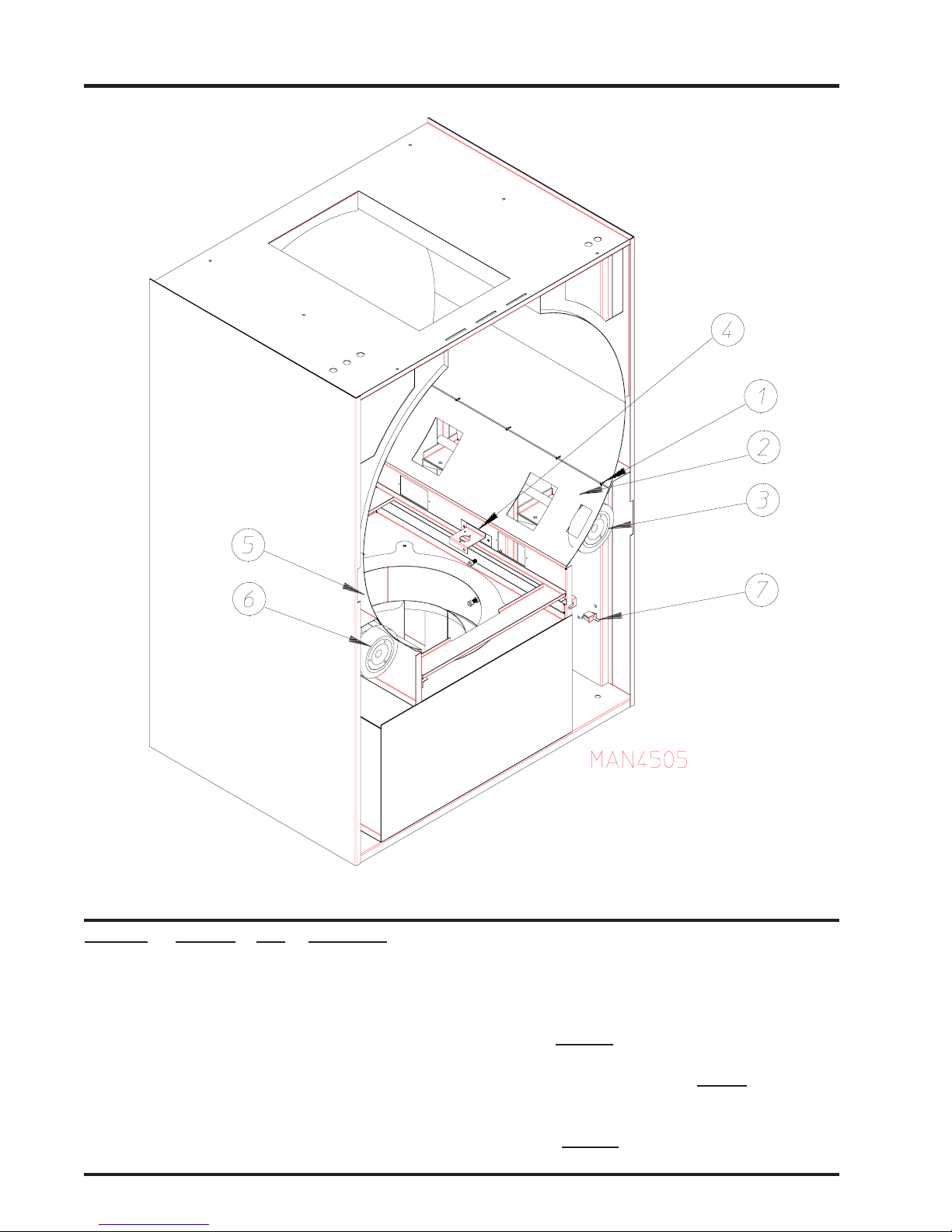

10 WrapperAssembly
Illus. No. Part No. Qty.Description
1 150309 20 #10-16 x 1/2” Hex Head TEK Crimptite Screw
2 859367 1 Bottom Right Wrapper
3 -------- 1 Idler Shaft
(refer to Idler Shaft Assembly on page 14)
4 -------- 1 Temperature Sensor Bracket
(refer to Temperature Sensor Bracket Assembly on page 9)
5 859368 1 Bottom Left Wrapper
6 -------- 1 Drive Shaft
(refer to Drive Shaft Assembly on page 15)
7 122116 1 Lint Door Switch - 24 VAC

11
Telephone: [phone] Fax: [phone]
Lint Door Assembly
Illus. No. Part No. Qty.Description
1 882347 1 White Lint Drawer Assembly
(includes illus. nos. 1, 2, and 4)
882378 1 Wrinkle Blue Lint DrawerAssembly
(includes illus. nos. 1, 2, and 4)
882348 1 Corvel Dry Blue Lint Drawer Assembly
(includes illus. nos. 1, 2, and 4)
882349 1 Coral Wrinkle Blue Lint DrawerAssembly
(includes illus. nos. 1, 2, and 4)
882350 1 Coral Blue Lint Drawer Assembly
(includes illus. nos. 1, 2, and 4)
2 115902 1 Lint Basket Felt
3 882210 1 Lint Screen Assembly
4 154215 5 5/32 x 1/4” Rivet

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
12
Illus. No. Part No. Qty.Description
1 859342 1 Basket (tumbler)Assembly Complete
(includes illus. nos. 1 through 3)
2 882234 4 Perforated Basket (tumbler) Panel
3 150123 24 1/4-20 x 1/4” Socket Button Head Cap Screw
4 116004 1 Felt Collar 131-1/2 x 2-1/2 x 1/8
- 170730 1 10.3 oz. Clear GlassAdhesive
Basket (Tumbler) Assembly

13
Telephone: [phone] Fax: [phone]

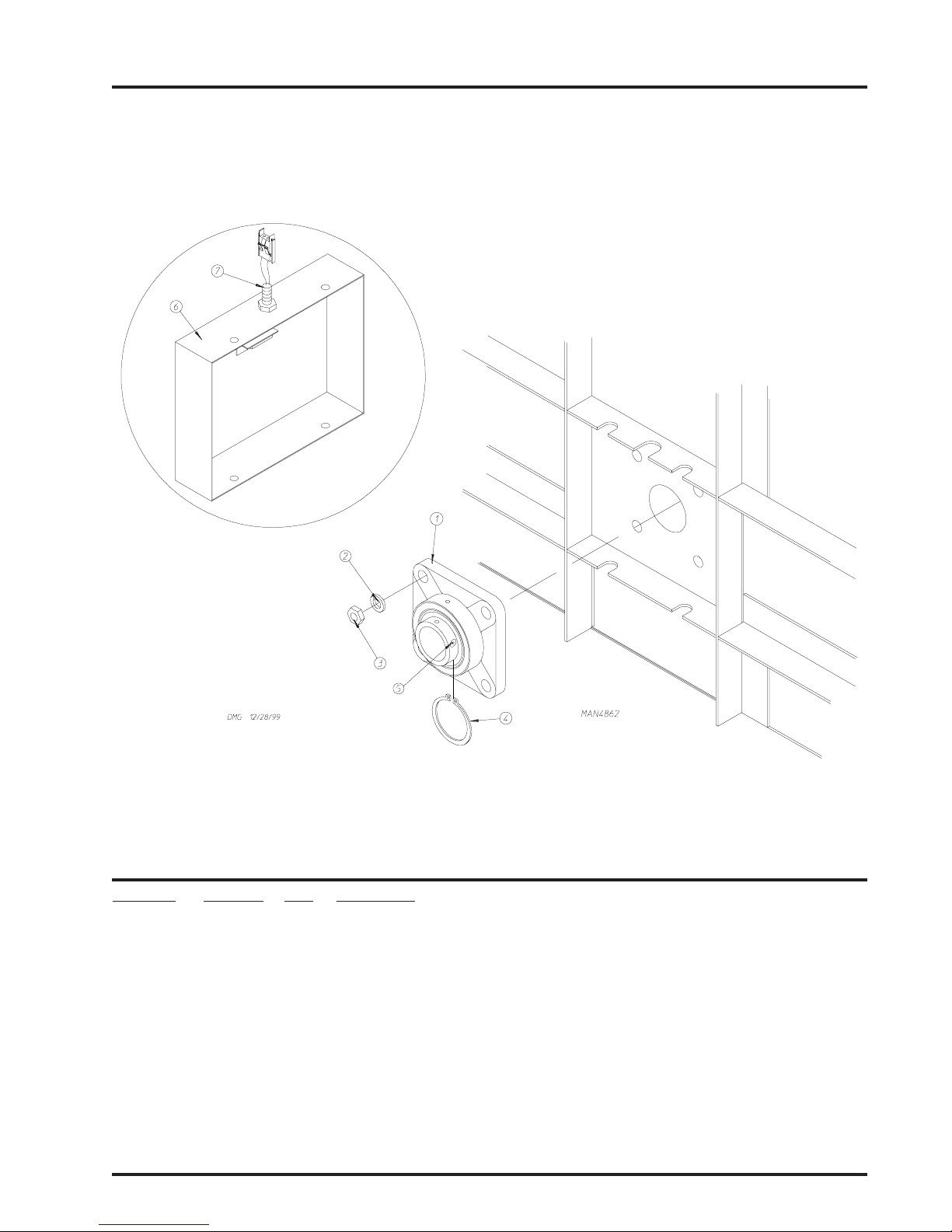

Basket (Tumbler) Bearing Assembly
Illus. No. Part No. Qty.Description
1 882244 1 1-3/4” Flange Bearing
(includes illus. nos. 1 and 5)
2 153025 4 9/16” Lock Washer
3 152050 4 9/16-12 Hex Nut
4 100816 1 1-3/4”E-ClipRetainingRing
5 102120 1 Rotational Sensor Magnet
6 882333 1 White Bearing/Rotational Sensor Cap
882382 1 Wrinkle Blue Bearing/Rotational Sensor Cap
882330 1 Corvel Dry Blue Bearing/Rotational Sensor Cap
882331 1 Coral Wrinkle Blue Bearing/Rotational Sensor Cap
882332 1 Coral Blue Bearing/Rotational Sensor Cap
7 824807 1 Rotational Sensor ONLY

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
14
Illus. No. Part No. Qty.Description
1 859328 1 Idler Shaft Assembly Complete
(includes illus. nos. 1 through 10)
390232 1 Idler Shaft ONLY
2 180037 1 6” Wheel
3 180038 1 1” Taper Lock Bushing
4 880205 2 1” Pillow Block Bearing
5 152004 4 5/16-18 Hex Nut
6 153002 4 5/16” Lock Washer
7 153001 4 5/16” Flat Washer
8 859008 2 Bearing Bolt Plate Assembly
9 859327 2 Bearing Pad
10 150509 4 5/16-18 x 3” Tap Bolt

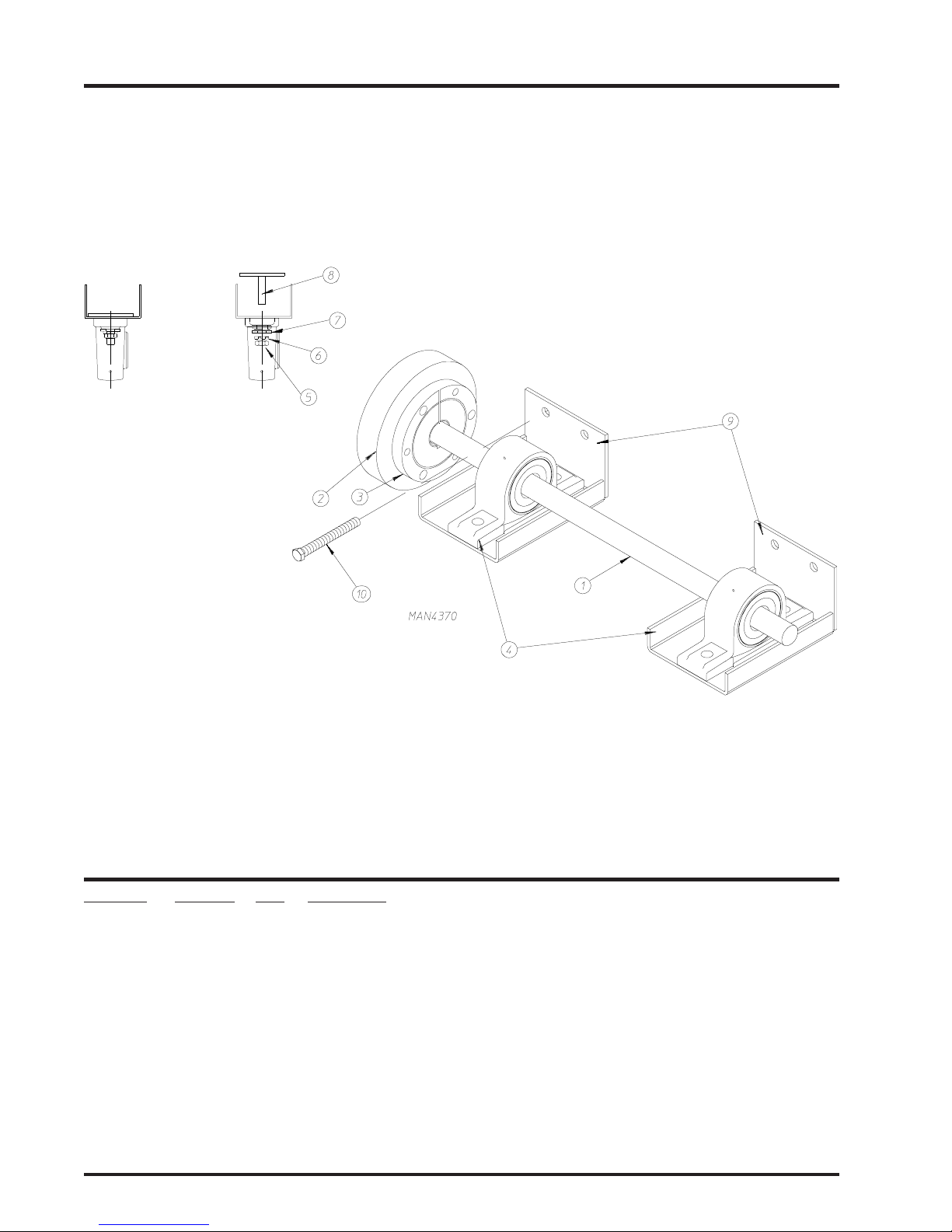

Idler Shaft Assembly

15
Telephone: [phone] Fax: [phone]
Drive Shaft Assembly
Illus. No. Part No. Qty.Description
1 859329 1 Drive Shaft Assembly Complete
(includes illus. nos. 1 through 11)
390243 1 Drive Shaft ONLY
2 180037 1 6” Wheel
3 180038 1 1” Taper Lock Bushing
4 880205 2 1” Pillow Block Bearing
5 152004 4 5/16-18 Hex Nut
6 153002 4 5/16” Lock Washer
7 153001 4 5/16” Flat Washer
8 859008 2 Bearing Bolt Plate Assembly
9 859327 2 Bearing Pad
10 150509 4 5/16-18 x 3” Tap Bolt
11 101209 1 9” Pulley

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
16 Drive Motor Assembly
Illus. No. Part No. Qty.Description
1 882245 1 Motor MountAssembly Complete
(includes illus. nos. 1, 2, 6, and 9 through 11)
882237 1 Motor Mount ONLY
2 152004 4 5/16-18 Hex Nut
3 150501 3 5/16-18 x 3/4” Tap Bolt
4 153001 3 5/16” Flat Washer
5 153002 3 5/16” Lock Washer
6 181106 1 1/2 HP 208-480v 3ø 50/60 Hz Motor
7 100174 1 AX-53 Cogged V-Belt
8 101132 1 5/8” x 2” Motor Pulley
9 150501 4 5/16-18 x 3/4” Tap Bolt
10 153002 8 5/16” Lock Washer
11 153001 8 5/16” Flat Washer
12 150523 1 1/4-20 x 3/4” Hex Washer Machine Bolt

17
Telephone: [phone] Fax: [phone]
Motorized Impellor (Fan) Assembly
Illus. No. Part No. Qty.Description
1 882319 1 White Coop Cone
882380 1 Wrinkle Blue Coop Cone
882324 1 Corvel Dry Blue Coop Cone
882328 1 Coral Wrinkle Blue Coop Cone
882329 1 Coral Blue Coop Cone
2 100617 1 Motorized Impellor (fan) - 208 Volt 60 Hz ONLY
100622 1 Motorized Impellor (fan) - 230 Volt 60 Hz ONLY
100619 1 Motorized Impellor (fan) - 230/400 Volt 50 Hz ONLY
460/480 Volt 60 Hz ONLY
859363 1 Motorized Impellor (fan)Assembly Complete - 208 Volt 60 Hz
(includes illus. nos. 1, 2, 3, and 6)
859361 1 Motorized Impellor (fan)Assembly Complete - 230 Volt 60 Hz
(includes illus. nos. 1, 2, 3, and 6)
816086 1 Motorized Impellor (fan)Assembly Complete - 460/480 Volt 60 Hz
(includes illus. nos. 1, 2, 3, and 6)
3 882323 1 White Motor Plate
882379 1 Wrinkle Blue Motor Plate
882325 1 Corvel Dry Blue Motor Plate
882326 1 Coral Wrinkle Blue Motor Plate
882327 1 Coral Blue Motor Plate
4 150511 4 1/4-20 x 1” Hex Head Machine Bolt
5 150512 4 1/4-20 x 1/2” Hex Head Machine Bolt
6 154335 8 M10 x 16 Metric Bolt

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
18 Reversing Relay Panel Assembly
Illus. No. Part No. Qty.Description
1 150008 2 #6-32 x 1-1/4 Phillips Round Head Machine Screw
2 120701 1 4-Position Terminal Block
3 859356 1 208 Volt Reversing Relay PanelAssembly Complete
(includes illus. nos. 1 through 4 and 8 through 15)
323743 1 Reversing Relay Panel ONLY
4 151000 1 #6-32 Pal Nut
5 152004 1 5/16-18 Hex Nut
6 153002 1 5/16” Lock Washer
7 121012 1 Ground Lug
8 137060 1 Arc Suppressor (A.S.) Board
9 137013 4 Nylon Standoff
10 136057 2 1/2-Amp (slo blo) Fuse
11 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
12 136008 2 Fuse Holder ONLY
13 132455 1 1 HP 3ø Contactor
14 132448 1 Reversing Contactor
15 132070 1 208-240 Volt Transformer
881763 1 Transformer Terminal Kit
16 132457 1 Drive Motor Overload
(for 208 volt models Only)
