American Dryer Corp. AD-20 User manual

AD-20
Installation Manual
For replacement parts, contact the reseller from which the dryer
was purchased or
AmericanDryerCorporation
88Currant Road
FallRiverMA02720-4781U.S.A.
Telephone:[phone] / Fax:[phone]
e-mail:[e-mail]
www.amdry.com
WARNING: Foryoursafetytheinformationin
thismanual mustbe followedto minimizethe
riskof fireor explosionor toprevent property
damage,personalinjury or death.
— Donot storeoruse gasolineor other flammable
vapors and liquids in the vicinity of this or any
otherappliance.
— WHATTODO IFYOU SMELLGAS:
• Donottryto lightany appliance.
• Donottouch anyelectricalswitch;do not
useanyphoneinyourbuilding.
• Cleartheroom, building orareaofall
occupants.
• Immediatelycallyourgassupplierfroma
neighbor’sphone. Followthe gassupplier’s
instructions.
• Ifyoucannotreach yourgas supplier,call
thefiredepartment.
— Installationand servicemustbe performedby a
qualified installer, service agency or the gas
supplier.
AVERTISSEMENT: Assurez-vous de bien
suivrelesinstructionsdonnéesdanscettenotice
pourréduire auminimumle risqued’incendie
ou d’explosion ou pour éviter tout dommage
matériel,touteblessureou lamort.
— Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables à
proximité de cet appareil ou de tout autre
appareil.
— QUEFAIRESIVOUSSENTEZUNEODEUR
DEGAZ:
• Nepastenter d’allumerd’appareils.
• Netouchez àaucun interrupteur. Ne pas
vousservirdes téléphonessetrouvant dans
lebâtiment.
• Évacuezlapièce,le bâtimentoulazone.
• Appelezimmédiatementvotrefournisseur
degazdepuisunvoisin. Suivezles
instructionsdufournisseur.
• Sivousnepouvezrejoindrelefournisseur
degaz,appelez leservicedes incendies.
— L’installationetl’entretiendoiventêtreassuréspar
uninstallateurou unserviced’entretienqualifié
ouparle fournisseurdegaz.
080902GS/mcronan ADCPartNo.113379

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
“IMPORTANTNOTETOPURCHASER”
Informationmustbeobtainedfromyourlocalgassupplierontheinstructions
tobefollowed iftheusersmells gas. Theseinstructionsmustbepostedina
prominentlocationnearthedryer.
FORYOURSAFETY
Donot storeor usegasoline or
otherflammablevaporsand
liquidsinthevicinityofthisor
anyotherappliance.
POURVOTRESÉCURITÉ
Nepas entreposer niutiliserd’essence
nid’autresvapeursouliquides
inflammablesàproximitédecet
appareilou detoutautre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information:
DATEOFPURCHASE________________________________ MODELNO. __________________________________________
RESELLER’SNAME ________________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. When ordering replacement parts fromthe factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Pleasespecify the dryermodel numberand serial numberin addition to thedescriptionand part number,so that
your order is processed accurately and promptly.
AD-20

IMPORTANT
YOUMUSTDISCONNECTANDLOCKOUTTHEELECTRICSUPPLYANDTHEGAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(OccupationalSafetyand HealthAdministration)STANDARDS.
WARNING
CHILDRENSHOULDNOTBEALLOWEDTOPLAYONORNEARTHEDRYER(S).
CHILDRENSHOULDBESUPERVISEDIFNEARDRYERSINOPERATION.
CAUTION
DRYERSSHOULDNEVERBELEFTUNATTENDEDWHILEINOPERATION.
FORYOURSAFETY
DONOTDRYMOPHEADSINTHEDRYER.
DONOTUSEDRYERINTHEPRESENCEOFDRYCLEANINGFUMES.
WARNING
UNDERNOCIRCUMSTANCES shouldthedryermaindoorswitch,lintdrawerswitch,
or the heat circuit devices ever be disabled.
“Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.”
«Attention: Au moment de l’entretien des
commandes,étiqueteztous les filsavantde
les débrancher. Des erreurs de câblage
peuvent entraîner un fonctionnement
inadéquatetdangereux.»

WARNING
Thedryermustneverbeoperatedwiththebackguard removed. PERSONALINJURY
ORFIRECOULDRESULT.
IMPORTANT
PLEASEOBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipmentand/or
specified in the installation manual included with the dryer.
WARNING
DRYERMUSTNEVERBEOPERATEDWITHOUTTHELINTFILTER/SCREENIN
PLACE.
Dryers mustnotbeinstalledorstoredin an area where it willbeexposed to waterorweather.

Table of Contents
SECTION I
IMPORTANT INFORMATION............................................................................... 3
A. ReceivingandHandling ................................................................................................................. 3
B. SafetyPrecautions ........................................................................................................................ 4
SECTION II
SPECIFICATIONS ....................................................................................................6
A. Specifications ............................................................................................................................... 6
SECTION III
INSTALLATION PROCEDURES ........................................................................... 8
A. Unpacking/SettingUp ................................................................................................................... 8
B. LocationRequirements ................................................................................................................. 9
C. DryerEnclosureRequirements .................................................................................................... 10
D. FreshAir Supply Requirements ................................................................................................... 11
E. ExhaustRequirements ................................................................................................................. 12
F. ElectricalInformation .................................................................................................................. 14
G. GasInformation .......................................................................................................................... 20
H. PreparationForOperation/Start-Up ........................................................................................... 24
I. PreoperationalTests ................................................................................................................... 25
J. ShutDownInstructions ............................................................................................................... 26
SECTION IV
SERVICE/PARTS INFORMATION......................................................................27
A. Service ....................................................................................................................................... 27
B. Parts .......................................................................................................................................... 27
SECTION V
WARRANTY INFORMATION ..............................................................................28
A. ReturningWarrantyCards ........................................................................................................... 28
B. Warranty .................................................................................................................................... 28
C. ReturningWarrantyParts ............................................................................................................ 28

SECTION VI
ROUTINE MAINTENANCE..................................................................................30
A. Cleaning ..................................................................................................................................... 30
SECTION VII
DATA LABEL INFORMATION.............................................................................32
A. DataLabel ................................................................................................................................. 32

3
SECTIONI
IMPORTANTINFORMATION
A. RECEIVINGAND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and packaging, and wooden
skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further
before delivering carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker’s receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers, which were not damaged in a
damaged shipment, should be accepted, but the number received and the number refused must be noted
on the receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carrier’s freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. It is your responsibility to file freight
claims. Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, andALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508)
678-9000.
IMPORTANT: The dryermustbetransportedand handledinanupright positionatALLtimes.

4
B. SAFETY PRECAUTIONS
WARNING: Foryoursafety,theinformationinthismanualmustbefollowedtominimizetherisk of
fireorexplosion ortopreventproperty damage,personalinjury,or loss oflife.
WARNING:Thedryermustneverbe operatedwiththe backguard removed. PERSONAL
INJURYORFIRE COULDRESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALLoccupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryer(s) must be exhausted to the outdoors.
6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dryonly waterwashed fabrics. DONOTdryarticles spottedor washedin dry
cleaningsolvents,acombustibledetergent,or“all purpose”cleaner.
EXPLOSIONCOULDRESULT.
WARNING:DONOT dryrags orarticlescoated orcontaminated withgasoline,kerosene, oil,paint,
orwax.
EXPLOSIONCOULDRESULT.

5
WARNING:DONOTdrymopheads. Contamination by waxorflammable solventswillcreate a
firehazard.
WARNING:DONOTuseheatfor dryingarticlesthat containplastic,foam, spongerubber, or
similarlytexturedrubbermaterials. Dryinginaheatedbasket (tumbler) maydamage
plasticsor rubberandmay bea firehazard.
7. A program should be established for the inspection and cleaning of lint in the exhaust ductwork and area
around the back of the dryer. The frequency of inspection and cleaning can best be determined from
experience at each location.
WARNING: Thecollectionoflintin theexhaustductworkcancreatea potentialfirehazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failureto dosowillVOIDTHEWARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer main door switch, lint drawer switch, or the heat
circuit devices ever be disabled.
WARNING:PERSONALINJURYOR FIRECOULDRESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articlesleftinthedryer afterthe dryingandcoolingcycleshave been completedcan
createa firehazard.
12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
WARNING:YOUMUSTDISCONNECTAND LOCKOUTTHEELECTRICSUPPLYAND
THEGAS SUPPLYBEFOREANYCOVERS ORPANELSAREREMOVED
FROMTHEMACHINETOALLOWACCESS FORCLEANING,
ADJUSTING,INSTALLATION,ORTESTINGOFANYEQUIPMENTPER
OSHA(Occupational Safetyand HealthAdministration)STANDARDS.

6

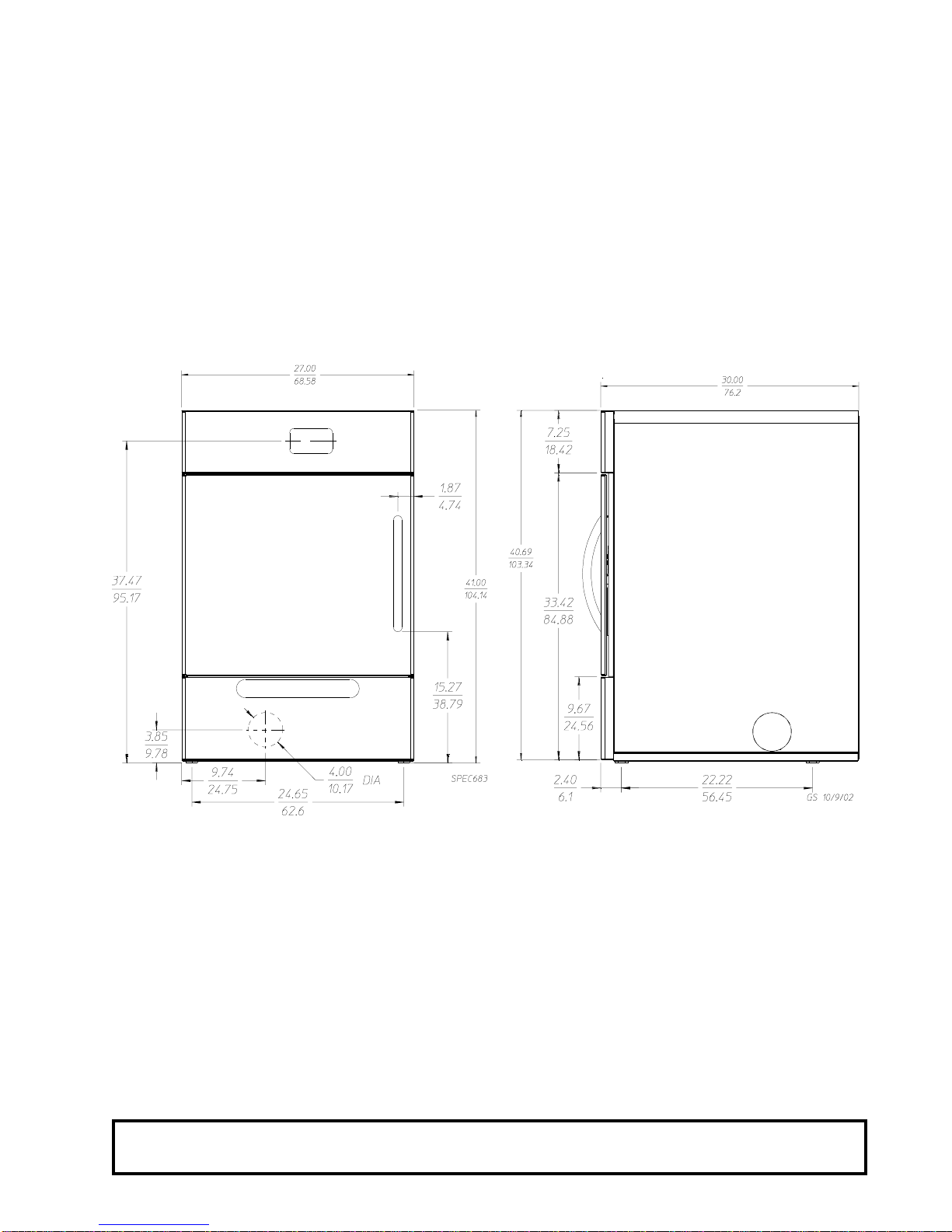

SECTIONII
SPECIFICATIONS
A. SPECIFICATIONS
* Contact factory for information not listed, 3-phase (3ø) figures shown are for 4-wire service, non-reversing.
NOTE: ADCreserves therighttomakechanges inspecifications atanytimewithoutnotice or
obligation.
Gas
Electric
MAXIMUM CAPACITY (DRY WEIGHT) 20 lbs 9 kg
BASKET (TUMBLER) DIAMETER 25.75” 65.4 cm
BASKET (TUMBLER) DEPTH 24” 60.95 cm
BASKET (TUMBLER) MOTOR 1/4 HP 0.19 kw
BLOWER MOTOR 1/8 HP 0.1 kw
BASKET (TUMBLER) VOLUME 7.5 cu.ft. 0.21 cu.m.
VENT CONNECTION 4” 10.2 cm
CABINET WIDTH 27” 68.6 cm
CABINET DEPTH 30” 76.2 cm
CABINET HEIGHT 41” 104 cm
VOLTAGE AVAILABLE 120v /60 Hz/1ø, 240v/60 Hz/1ø,
240v/50 Hz/1ø
HEAT INPUT 40,000 btu/hr 10,080 kcal/hr
AIRFLOW 240 cfm 6.79 cmm
INLET PIPE CONNECTION 3/8” N.P.T.
OVEN SIZE 1ø
3ø 5.4 kw
8.1 kw
VOLTAGE AVAILABLE 240v/60 Hz/1ø, 240v/50 Hz/1ø,
416v/50 Hz/3ø
Shaded areas are stated in metric equivalents

7
NOTE:ADCreservestherighttomake changes inspecificationsatanytime without noticeor
obligation.
Specifications
AD-20

8
SECTIONIII
INSTALLATIONPROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation mustconform to applicableAmerican National Standards:ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) orANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.
IMPORTANT: Dryermustbetransported andhandledinan uprightpositionat ALL times.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the two (2) bolts securing the base of the dryer to the wooden skid.
With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL four (4)
leveling legs, so that the dryer will slide on the legs instead of the base frame.

9
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-
M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “Thedryer mustbeinstalledonnoncombustiblefloors only.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions mustbemade from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. Dryer must be exhausted to the outdoors as noted in this manual (refer to Exhaust Requirements in
Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryershouldbelocatedwhere aminimumamount of exhaustductwillbenecessary.
9. The dryer must be installed with a proper exhaust duct connection to the outside.
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer producescombustible lintandmust beexhaustedto theoutdoors. Every6
months,inspecttheexhaustductingandremoveanylintbuildup.

10
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions should be made of noncombustible materials and must be located a minimum of
6-inches (15.24 cm) above the dryer’s outer top; except along the front of the dryer which may be closed if
desired.
NOTE: Allowancesmust bemade foropeningthe controldoor.
X = 12-inch (30.48 cm) minimum, 24-inches (60.96 cm) is suggested for ease of maintenance.
NOTE: Airconsiderationsareimportant for properandefficientoperation.
Dryers may be positioned sidewall to sidewall. However, a 1/16” (1.5875 mm) minimum allowance must be
made for the opening and closing of the control door and the lint door. It is suggested that the dryer be positioned
about 2 feet (0.61 meters) away from the nearest obstruction for ease of installation, maintenance, and service
(to be measured from the back guard). Refer to the illustration above for details.

11
D. FRESH AIR SUPPLYREQUIREMENTS
TheAD-20 air supply (make-up air) must be given careful consideration to assure proper performance of each
dryer. An unrestricted source of air is necessary for each dryer. As a general rule, an unrestricted air entrance
from the outdoors (atmosphere) of a minimum of 1/4 square feet (0.023 square meters) is required for each
dryer. If registers or louvers are installed over the openings, then the area must be increased. It is not
necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable.
However, they must be set up in such a manner that the make-up air is distributed equally to the dryers. The
dryer must be installed with provisions for adequate combustion and make-up air supply.

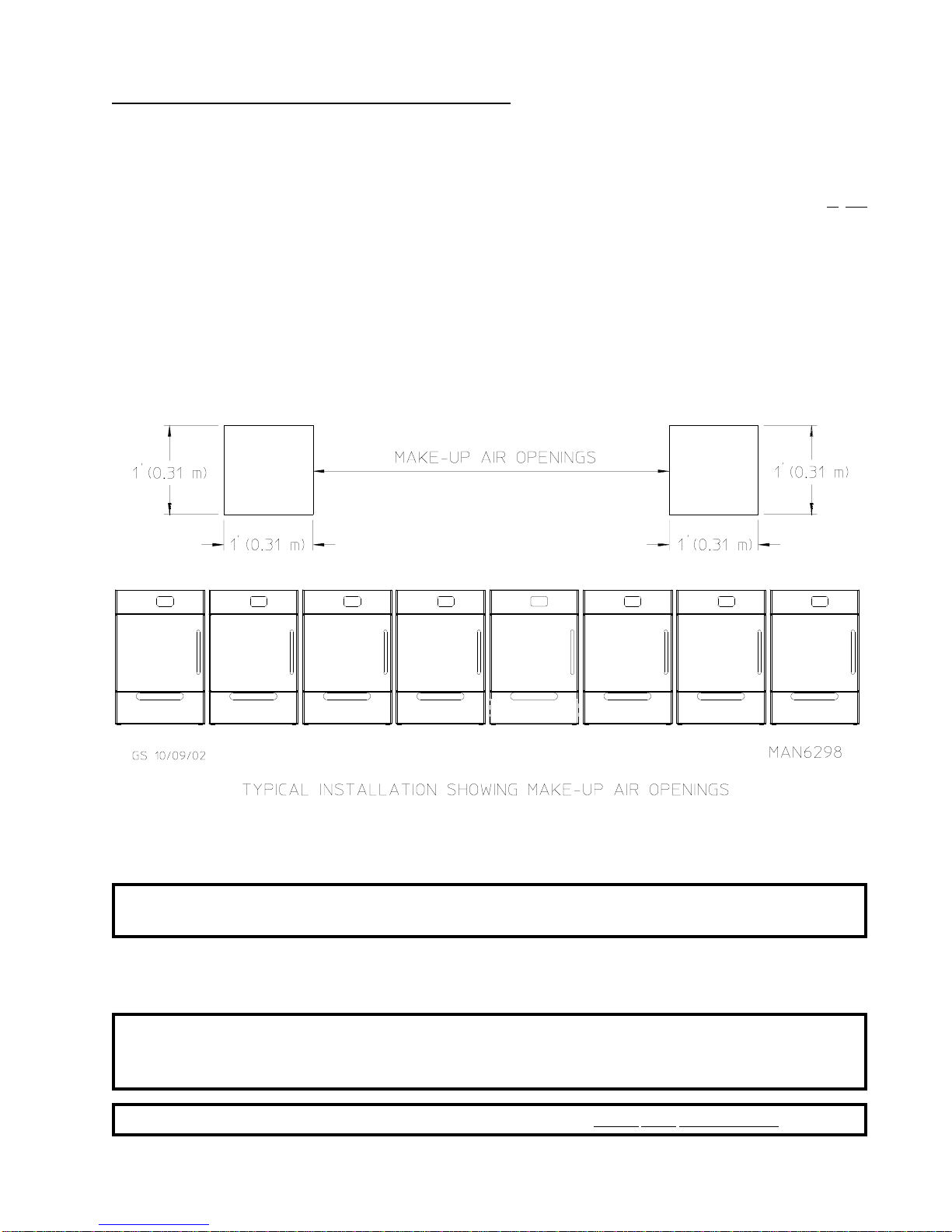

EXAMPLE: For a bank of eight (8) dryers, two (2) unrestricted openings measuring 1 foot by 1
foot (0.31 meters by 0.31 meters), (1 square foot [0.93 square meters]) are
acceptable.
IMPORTANT: Make-up airopenings should notbe locatedin anarea directlynear whereexhaust
ventsexitthebuilding.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up airmustbeprovided from asourcefree ofdrycleaning solventfumes.
Make-upairthatiscontaminatedbydrycleaningsolventfumeswillresultin
irreparabledamage tothemotors andotherdryer components.
NOTE: ComponentfailureduetodrycleaningsolventfumeswillVOIDTHEWARRANTY.

12
E. EXHAUST REQUIREMENTS
DO NOT use a nonmetal flexible vent or a metal vent that is smaller than 4” (10.2 cm) in diameter or exhaust
hoods with magnetic latches.
DO NOT exhaust dryer into a chimney, furnace, cold air vent, attic, crawl space, or any other vent used for
venting.
DO NOT install flexible vent in enclosed walls, ceilings, or floors.
IMPORTANT: ObserveALLgoverning codesandordinances.
Exhaust your dryer to the outside. Moisture and lint indoors may cause:
1. Lint to gather around the dryer where it can be fuel for a fire.
2. Moisture damage to woodwork, furniture, paint, wallpaper, carpet, etc...
3. Housecleaning problems and health problems.
A 4” (10.2 cm) diameter vent is required. Arigid or flexible metal vent must be used. DO NOT use a plastic
or a foil covered vent.
Use a heavy metal vent. DO NOT use a plastic or metal foil vent. A rigid metal vent is recommended to
prevent crushing and kinking. Aflexible metal vent must be fully extended and supported when the dryer is in
its final position. Remove excess flexible vent to avoid sagging and kinking that may result in reduced airflow.
If using an existing exhaust system, clean lint from entire length of system and make exhaust hood is not plugged
with lint. Replace any vinyl or metallized plastic foil vent with rigid metal or flexible metal vent.
Use duct tape to seal ALL joints. DO NOT use screws or other fastening devices that extend into the interior
of the vent to secure vent.
Service check: Back pressure in any exhaust system used must not exceed 0.6 inches (1.49 mb) water column
(W.C.) measured with an incline manometer at the point that exhaust vent connects to the dryer.

13

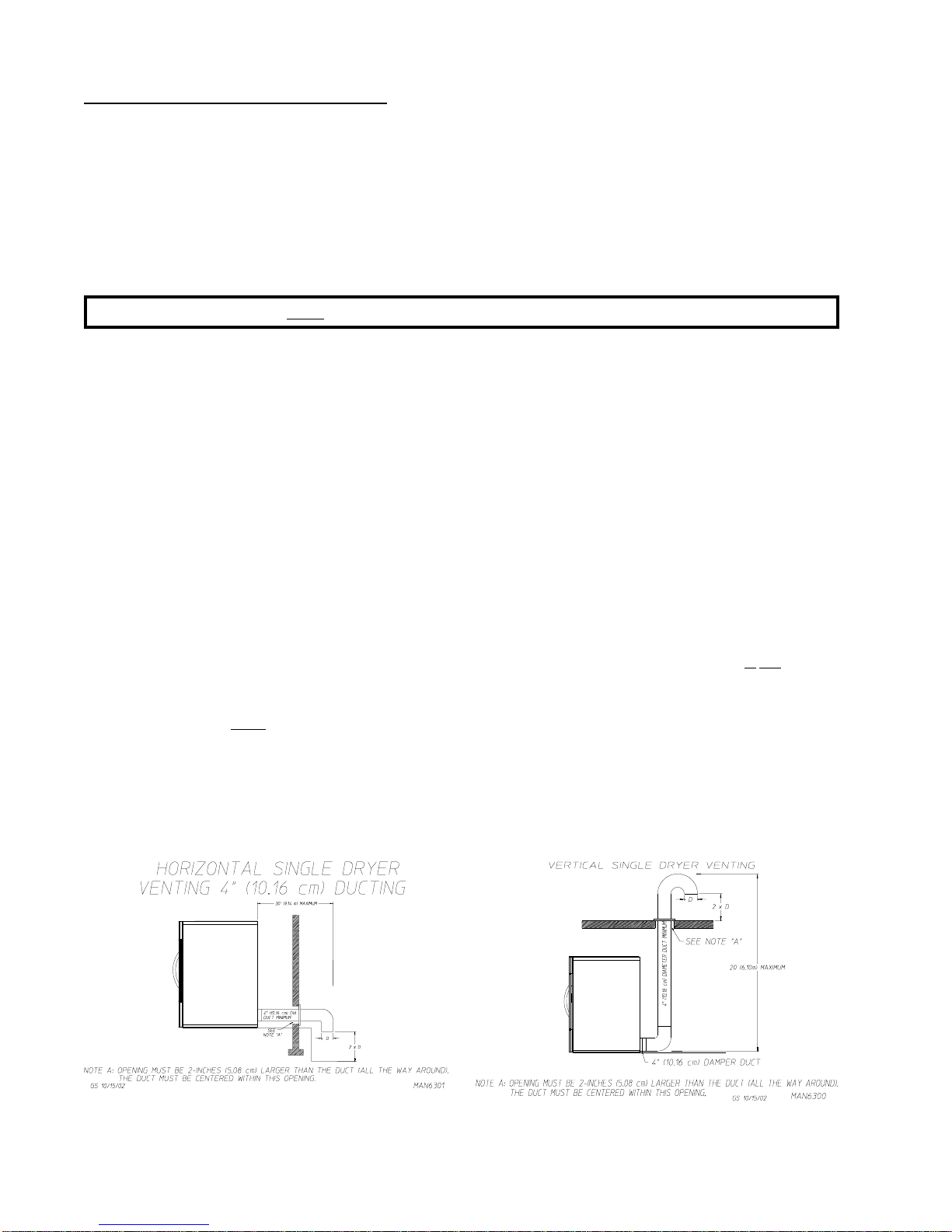

IMPORTANTVENTINGREMINDERS
1. Ductwork size and installation should be done by a qualified professional.
2. The dryer must be exhausted to the outdoors.
3. Ductwork should be routed as short as possible to the outdoors with as few elbows as possible.
4. Avoid 90° turns, use 30° or 45° turns instead.
5. The inside of the ductwork should be as smooth as possible with no projections from sheet metal screws.
Ducts added should overlap the duct to which it is to be connected.
6. ALL ducts should be taped to prevent moisture and lint from escaping into the building.
7. Inspection or clean out doors should be installed throughout strategic points in the ductwork for periodic
inspection and cleaning.
8. Wherever the ductwork passes through combustible materials, the opening must be 2-inches (5.08 cm)
larger than the duct (all the way around). The duct must be centered within this opening.
9. The outside of the ductworkmust beprotected from the weather. A90° elbow must be used for horizontal
run and when vertically through a roof by using a 180° turn to point the opening downward. The distance
between the exhaust duct and the nearest obstruction (i.e., roof or ground) must be twice the diameter of
the duct.
10. DO NOT use screens, louvers, or caps on the outside opening of the exhaust ductwork.
11. Exhaust back pressure measured by a manometer at the dryer exhaust duct area must be no less than 0
and must not exceed 0.6 inches (1.49 mb) of water column (W.C.).
WARNING: DRYER MUST NEVERBE OPERATEDWITHOUTTHELINTFILTER/SCREEN
IN PLACE, EVEN IFAN EXTERNALLINT COLLECTION SYSTEM IS USED.
12. Exhaust ductwork outlets should not be located in an area directly where the make-up air openings are
located.
IMPORTANT: Itisrecommended thatexhaust orbooster fansnotbe usedin theexhaust ductwork
system.

14
F. ELECTRICAL INFORMATION
1. Electrical Requirements
It is your responsibility to have ALL electrical connections made by a properly licensed and competent
electrician to assure that the electrical installation is adequate and conforms to local and state regulations or
codes. In the absence of such codes, ALL electrical connections, materials, and workmanship must
conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST
EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION.
IMPORTANT: Failureto complywiththesecodesor ordinances,and/ortherequirementsstipulated
inthismanualcanresultinpersonalinjuryorcomponentfailure.
NOTE: ComponentfailureduetoimproperinstallationwillVOIDTHEWARRANTY.
IMPORTANT: Each circuitmustbeconnected toanindependently protectedbranchcircuit.
IMPORTANT: USE ONLY COPPERCONDUCTORCABLE of proper ampacityand insulation in
accordancewithelectriccodes formaking serviceconnections.
NOTE: TheuseofaluminumwirewillVOIDTHEWARRANTY.
IMPORTANT: Aseparate circuitservicing each dryermustbeprovided.
2. Electrical Service Specifications
a. Electric Service
1) Gas Models ONLY
IMPORTANT: The dryer mustbeconnected tothe electricsupplyshown onthe datalabelthat is
affixedto the upperleftarea oftheinner backpanel.
IMPORTANT: USE ONLY COPPERCONDUCTORCABLE of proper ampacityand insulation in
accordancewithelectriccodes formaking serviceconnections.
NOTE: ComponentfailureduetoimpropervoltageapplicationwillVOIDTHEWARRANTY.

15
2) Electric Models ONLY
ALL electrically heated dryers must be connected to the electric service shown on the dryer’s
data label, which is affixed to the upper left area of the inner back panel. The connecting wires
must be properly sized to handle the rated current.
NOTE: Electricallyheatedservice (amperage) specifications/requirements arenotavailableatthetime
ofprinting. Contactfactory forupdate.
NOTE: Componentfailureduetoimpropervoltage application willVOIDTHEWARRANTY.
3. Grounding
A ground (earth) connection must be provided and installed in accordance with state and local codes. In
the absence of these codes, grounding must conform to applicable requirements of the National Electrical
CodeANSI/NFPANO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable
Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The
ground connection may be to a proven earth ground at the location service panel.
For added personal safety, when possible, it is suggested that a separate ground wire (no. 18 minimum) be
connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground to a
gas pipe or hot water pipe. The grounded cold water pipe must have metal to metal connection ALL the
way to the electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic,
rubber, or other insulating connectors, they must be jumped out with no. 4 copper wire and securely
clamped to bare metal at both ends.
IMPORTANT: For personalsafety andproper operation,the dryermustbegrounded.
Provisions are made for ground connection in each dryer at
the electrical service connection area.
4. Electrical Connections

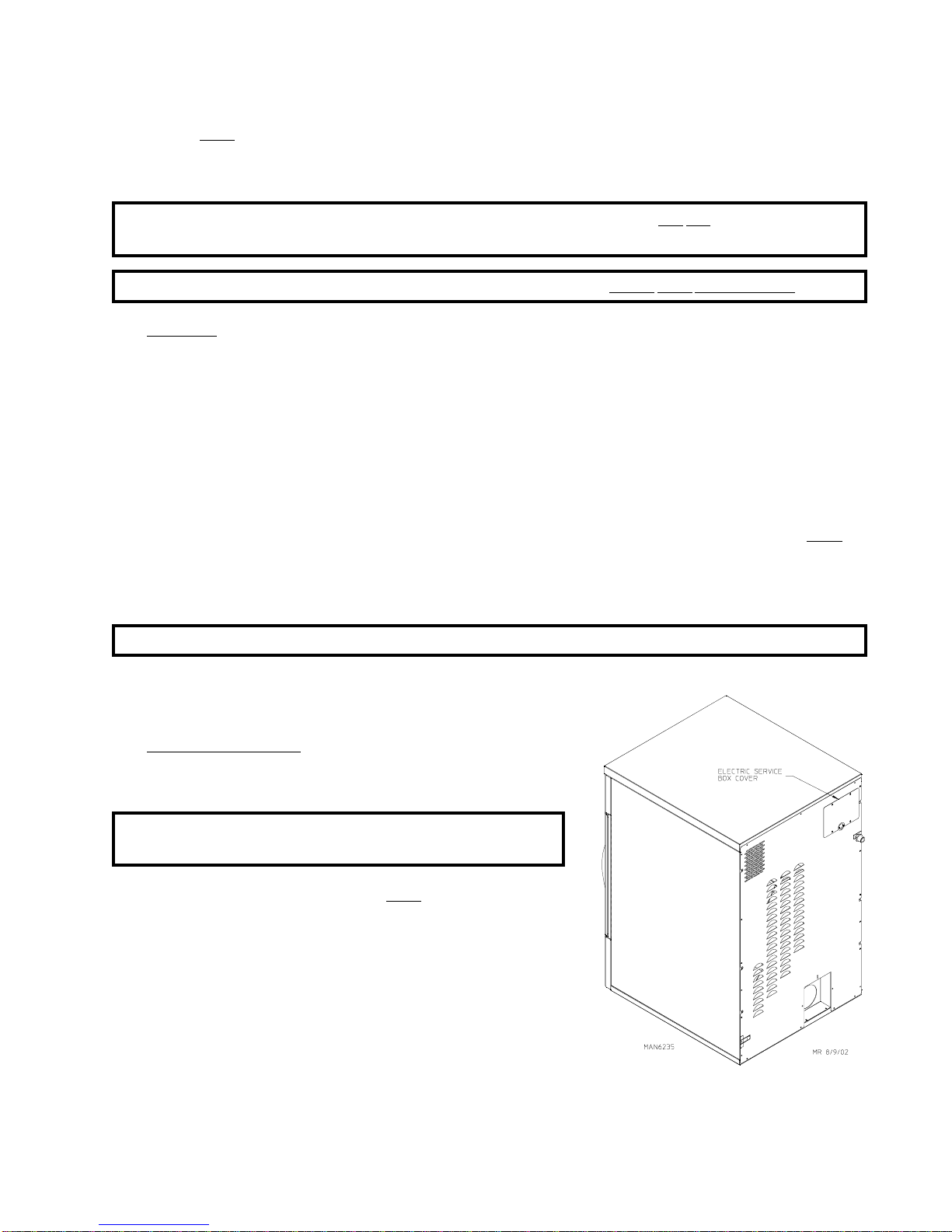

A wiring diagram is located inside the rear electric box.
NOTE: ACIRCUITSERVICINGEACHDRYER
MUST BE PROVIDED.
The electrical input connections on ALLdryers are made
into the rear service box located at the upper right area
of the dryer.

16
If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power
cord or pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly
to the service breaker panel. In both cases, a strain relief must be installed where the wiring enters
the dryer.
a. Gas Models Only
1) Single-Phase (1ø) Wiring Connections/Hookup
