American Dryer Corp. AD/ML-310 Non-Tilt User manual

AD/ML-310 Phase 7
NON-TILT
Parts Manual
AmericanDryerCorporation
88Currant Road
FallRiverMA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail:[e-mail]
www.amdry.com
ADCPartNo.450028

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATEOFPURCHASE ____________________________ MODELNO. __________________________________________
RESELLER’SNAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. When orderingreplacementparts fromthefactory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at
[phone]. Pleasespecify the dryer modelnumberand serialnumberinadditiontothe descriptionand partnumber, so
that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
AD/ML-310 Non-Tilt
“IMPORTANTNOTETOPURCHASER”
Informationmustbeobtainedfromyourlocalgassupplierontheinstructions
tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a
prominentlocation near thedryer.
FORYOUR SAFETY
Donot store or use gasolineor
otherflammablevaporsorliquids
inthevicinityofthisoranyother
appliance.
POURVOTRESÉCURITÉ
Nepasentreposer ni utiliser d’essence
nid’autres vapeursouliquides
inflammablesdanslevoisinagedecet
appareiloude autre appareil.

Table of Contents
Front PanelAssembly
Automatic Door .................................................................................................... 4, 5
Front PanelAssembly
Manual Door ......................................................................................................... 6, 7
Rear PanelAssembly
1 Door ................................................................................................................. 8, 9
Rear PanelAssembly
2 Automatic Doors............................................................................................ 10, 11
Rear PanelAssembly
2 Manual Doors ................................................................................................ 12, 13
Left Load Door Assembly
Manual Door ........................................................................................................... 14
Right Load Door Assembly
Manual Door ........................................................................................................... 15
Left Load Door Assembly
Automatic Door ................................................................................................ 16, 17
Right Load Door Assembly
Automatic Door ................................................................................................ 18, 19
End of Cycle LightAssembly ...................................................................................... 20
PneumaticAssembly
Automatic Door ...................................................................................................... 21
Magnetic Door SwitchAssembly ................................................................................ 22
Left Control Door Assembly
For 1 Door or 2 Door Models................................................................................ 23
Front Control Door Assembly ............................................................................... 24, 25

Right Rear Control Door Assembly
2 Door Models ONLY ...................................................................................... 26, 27
Side PanelAssemblies ........................................................................................... 28, 29
Left Hand Electrical Control PanelAssembly
For Models Mfd. with Thermal-Magnetic Protection ONLY............................ 30, 31
Right Hand Electrical Control Panel ...................................................................... 32, 33
Base Main Electrical Junction BoxAssembly
For Models Mfd. with Thermal-Magnetic Protection ONLY............................ 34, 35
Idler Shaft and Basket (Tumbler)Assembly ................................................................ 36
Basket (Tumbler) Retaining WheelAssembly.............................................................. 37
LintDrawer/BasketAssembly...................................................................................... 38
Temperature Sensor Bracket Assembly ....................................................................... 39
Basket (Tumbler) Drive ShaftAssembly................................................................ 40, 41
Post Assembly ............................................................................................................. 42
Drive MotorAssembly................................................................................................. 43
Fan Motor Assembly
For Gas Models ONLY .................................................................................... 44, 45
Fan Motor Assembly
For Steam Models ONLY................................................................................. 46, 47
Front Gas Burner Assembly .................................................................................. 48, 49
Rear Gas Burner Assembly.................................................................................... 50, 51
Sail SwitchAssembly................................................................................................... 52
Direct Spark Ignition (DSI) ModuleAssembly............................................................ 53
Steam CoilAssembly ............................................................................................. 54, 55
Pneumatic ValveAssembly 1Auto Door w/Optional Sprinkler ............................. 56, 57
Pneumatic ValveAssembly 2Auto Doors w/Optional Sprinkler ........................... 58, 59
Air JetAssembly .................................................................................................... 60, 61
Optional Sprinkler Control Panel ........................................................................... 62, 63

Optional SprinklerAssembly ................................................................................. 64, 65
Optional Sprinkler Temperature Probe Junction BoxAssembly.................................. 66
Base PanelAssemblies................................................................................................. 67
Selector Switch, Nameplate, and Mounting Base Chart .............................................. 68
Right Rear/Front Control Panel ................................................................................... 69
Right Hand Electrical Control Panel Chart................................................................... 70
Right Hand Base Electrical Panel and Left Hand Electrical Panel Charts .................... 71

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Front PanelAssembly
AutomaticDoor
Illus. No. Part No. Qty.Description
1* 332680 1 Left Gusset
(for gas models Only)
2 150522 15 1/4-20 x 1/2” Hex Washer Head Machine Screw
(for gas models Only)
3* 332681 2 Right Gusset
(for gas models Only)
4* 332679 1 Top Front Panel
(for gas models Only)
5* 826033 1 Upper Guard

5
Telephone: [phone] Fax: [phone]
Front Panel Assembly (continued)
Illus. No. Part No. Qty.Description
6* 821239 1 MiddleGuard
7* 881117 1 Left Control Cabinet
8* 821285 1 Bottom Guard
9 153001 8 5/16” Flat Washer
10 153002 8 5/16” Lock Washer
11 150501 8 5/16-18 x 3/4” Hex Head Machine Bolt
12 150510 12 1/4-20 x 3/4” Hex Head Machine Bolt
13 153007 12 1/4” Lock Washer
14 153018 12 1/4” Flat Washer
15 170364 1 Bottom Door Track
16* 881116 1 Right Control Cabinet
17 154312 14 #10-32 x 3/4” Socket Head Cap Screw
18 170364 1 Bottom Door Track
19 -------- - Basket (tumbler) Retaining Wheel
(refer to Basket [Tumbler] Retaining Wheel Assembly on page 37)
20 150523 5 1/4-20 x 3/4” Hex Washer TEK Screw
21 150617 8 3/8-16 x 1” Hex Head Bolt
22 153005 8 3/8” Split Lock Washer
23 153004 8 3/8” Flat Washer
24* 881109 1 Front PanelAssembly
25 150501 12 5/16-18 x 3/4” Hex Head Machine Bolt
26 153002 12 5/16” Lock Washer
27 153001 12 5/16” Flat Washer
28 116009 180 Felt (sold by the inch)
401010 1 Construction Mastic
29 152011 4 1/2-13 Hex Nut
30 153050 8 1/2 x 1-1/16” Flat Washer
31 153026 4 1/2” Lock Washer
32 150605 4 1/2-13 x 1-1/2” Hex Head Bolt
33 170365 1 Upper Door Track
34 153007 12 1/4” Lock Washer
35 152002 12 1/4-20 Hex Nut
36 154312 15 #10-32 x 3/4” Socket Head Cap Screw
37* 821244 2 Basket (tumbler) Retaining Wheel Cover
38 153018 12 1/4” Flat Washer
39 150523 5 1/4-20 x 3/4” Hex Washer TEK Screw
* Specify color when ordering.
AutomaticDoor

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Front PanelAssembly
ManualDoor
Illus. No. Part No. Qty.Description
1* 332680 1 Left Gusset
(for gas models Only)
2 150522 15 1/4-20 x 1/2” Hex Washer Head Machine Screw
(for gas models Only)
3* 826033 1 Upper Guard
4* 332681 2 Right Gusset
(for gas models Only)
5* 332679 1 Top Front Panel
(for gas models Only)

7
Telephone: [phone] Fax: [phone]
Front Panel Assembly (continued)
Illus. No. Part No. Qty.Description
6* 821239 1 MiddleGuard
7* 881117 1 Left Control Cabinet
8* 821285 1 Bottom Guard
9 153001 8 5/16” Flat Washer
10 150501 8 5/16-18 x 3/4” Hex Head Machine Bolt
11 153002 8 5/16” Lock Washer
12 150510 12 1/4-20 x 3/4” Hex Head Machine Bolt
13 153007 12 1/4” Lock Washer
14 153018 12 1/4” Flat Washer
15* 881116 1 Right Control Cabinet
16 -------- - Basket (tumbler) Retaining Wheel
(refer to Basket [Tumbler] Retaining Wheel Assembly on page 37)
17 150523 5 1/4-20 x 3/4” Hex Washer TEK Screw
18 150617 8 3/8-16 x 1” Hex Head Bolt
19 153005 8 3/8” Split Lock Washer
20 153004 8 3/8” Flat Washer
21* 881108 1 Front Panel
22 150501 12 5/16-18 x 3/4” Hex Head Machine Bolt
23 153002 12 5/16” Lock Washer
24 153001 12 5/16” Flat Washer
25 116009 180 Felt (sold by the inch)
401010 1 Construction Mastic
26 152011 4 1/2-13 Hex Nut
27 153050 8 1/2” x 1-1/16” Flat Washer
28 153026 4 1/2” Lock Washer
29 150605 4 1/2-13 x 1-1/2” Hex Head Bolt
30 170365 1 Upper Door Track
31 153007 12 1/4” Lock Washer
32 152002 12 1/4-20 Hex Nut
33 154312 15 #10-32 x 3/4” Socket Head Cap Screw
34* 821244 2 Basket (tumbler) Retaining Wheel Cover
35 153018 12 1/4” Flat Washer
36 150523 5 1/4-20 x 3/4” Hex Washer TEK Screw
* Specify color when ordering.
ManualDoor

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

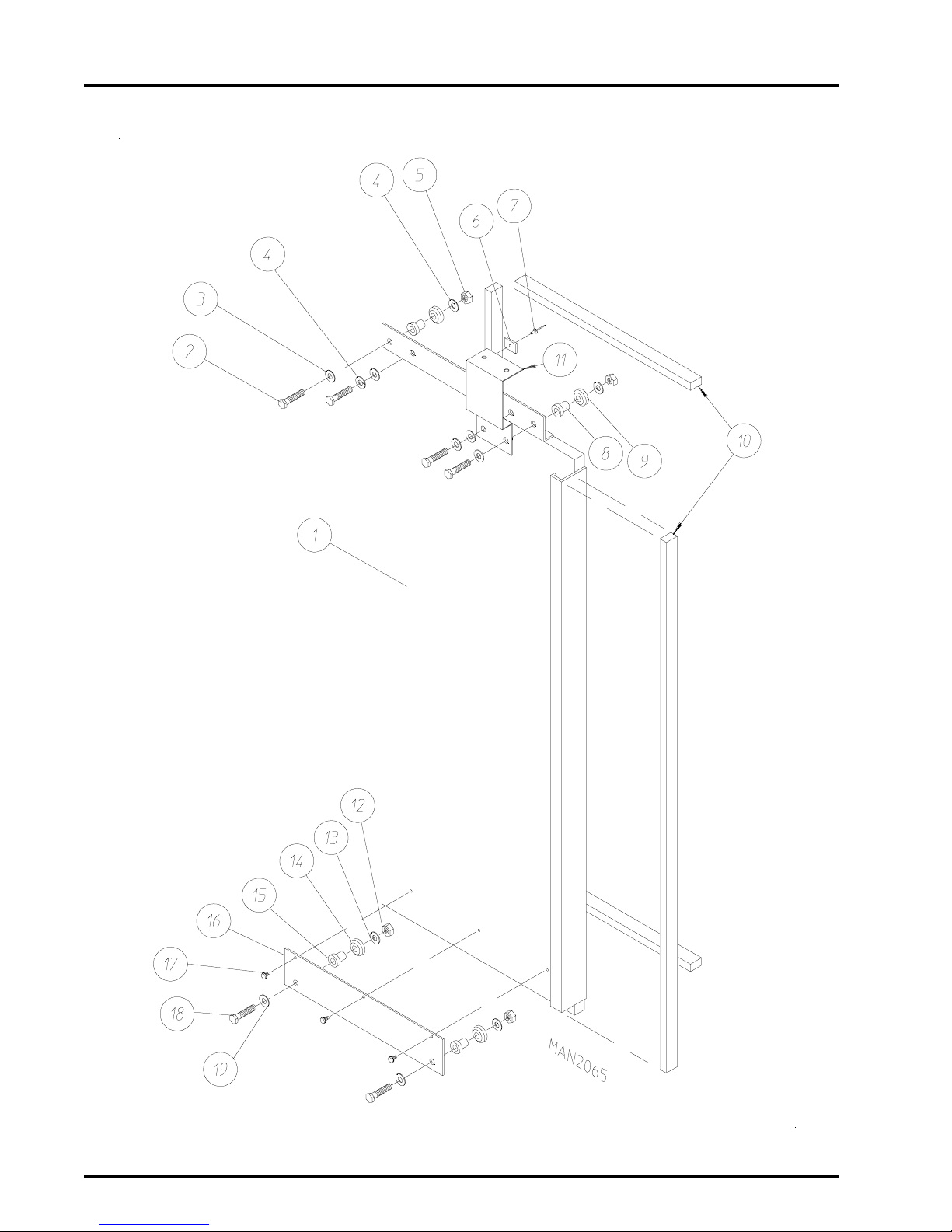

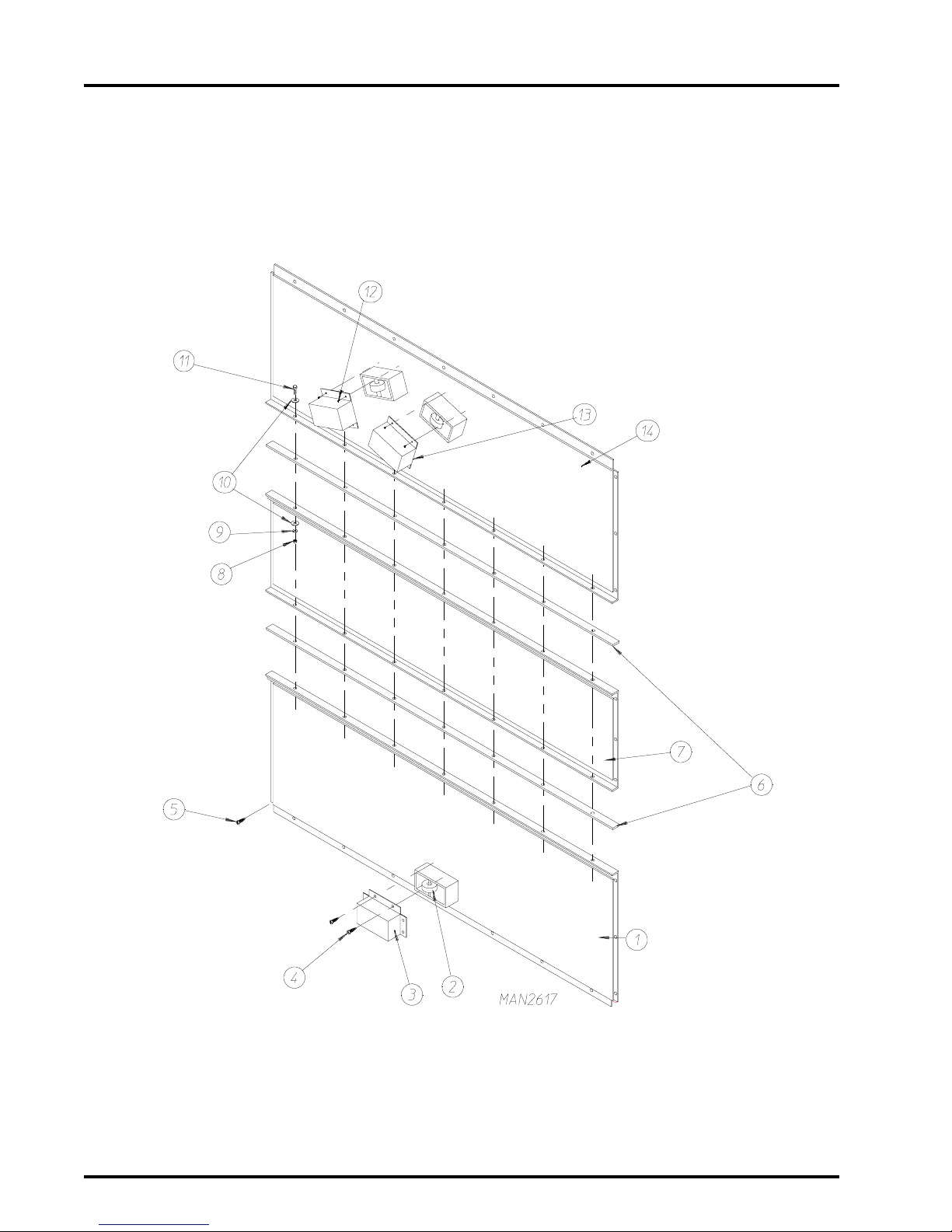

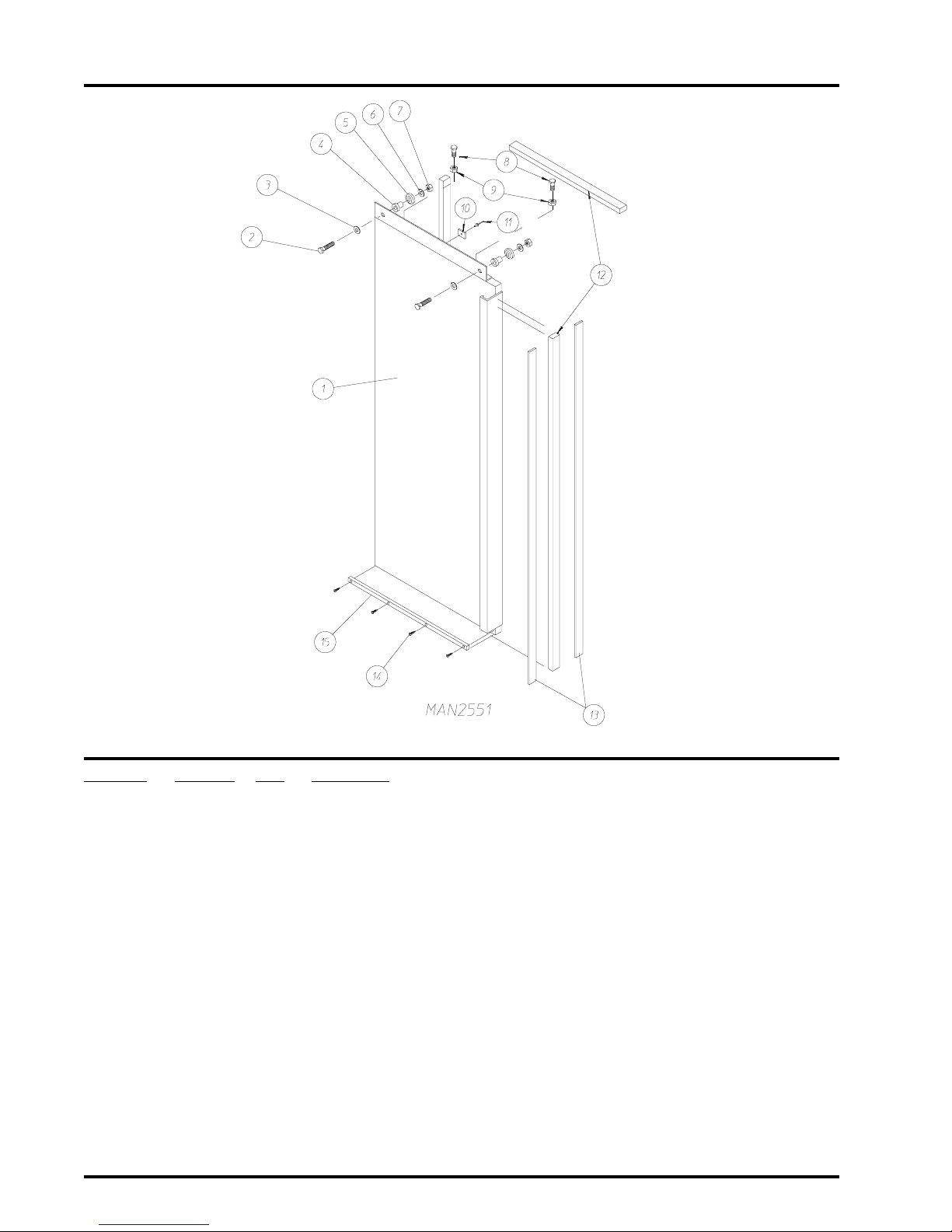

Rear PanelAssembly
1 Door
