Part Number: 8200-2646-02 B0
VideoEdge IP Indoor Mini-dome
Installation & Operation Guide
Version1.6

Copyright
Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced,
translated or reduced to any electronic medium or machine-readable form, in whole or in part,
without prior written consent of Tyco International Ltd. © Copyright 2009 and its Respective
Companies. All Rights Reserved,
American Dynamics
6600 Congress Avenue
Boca Raton, FL 33487, U.S.A.

4 Installation and Operation Guide
Table Of Contents
SAFETY PRECAUTIONS .............................................................................6
1. PRODUCT FEATURES.............................................................................7
1.1 PRODUCT INSTRUCTIONS.....................................................................7
1.2 PRODUCT FEATURES ...........................................................................7
2. DESCRIPTION OF THE FRONT/REAR VIEW.........................................8
2.1 THE FRONT VIEW ................................................................................8
2.2 THE USB FUNCTION..........................................................................10
2.3 POE (POWER OVER ETHERNET).........................................................10
2.4 POWER LED & IR LED POWER SETTING ..........................................12
2.5 LENS ADJUSTMENT ............................................................................14
2.6 COVER ATTACHING ............................................................................15
2.7 CEILING MOUNTING............................................................................16
3. INSTALLATION ......................................................................................17
3.1 UPDATING SYSTEM SOFTWARE.................................................17
3.2 IP CAMERA SD CARD TROUBLESHOOTING ..........................................19
4. Network Configuration..........................................................................20
4.1 CABLE CONNECTIONS........................................................................20
4.2 CONFIGURE YOUR IP CAMERA NETWORK SETTINGS ...........................20
4.2.1 Enable DHCP Function.....................................................................................................................20
4.2.2 Set IPAddress ...................................................................................................................................21
4.3 TCP/IP COMMUNICATION SOFTWARE.................................................22
4.4 TCP/IP INSTALLATION .......................................................................23
4.5 TCP/IP CONFIGURATION SETTING ......................................................24
4.6 CONNECTION TESTING.......................................................................25

Installation and Operation Guide
5
5. Operation Instructions for the Network...............................................27
5.1 MICROSOFT INTERNET EXPLORER......................................................28
5.1.1 Connecting the IP camera ................................................................................................................28
5.1.2 Change Video Setting.......................................................................................................................30
5.1.3 Change the Network Setting............................................................................................................33
5.1.4 Change the System Setting ..............................................................................................................44
5.1.5 Change the Application Setting .......................................................................................................52
5.1.6 Change the SD card Setting.............................................................................................................60
5.1.7 PPPoE & DDNS...............................................................................................................................61
5.1.8 The Bandwidth Calculator of the IP camera....................................................................................63
6. ADVANCED OPERATION......................................................................64
7. SPECIFICATIONS...................................................................................67
8. Functions of client PC...........................................................................68
APPENDIX 1. –IP camera UPnP How To..................................................69
APPENDIX 2. –The ARP function.............................................................79
APPENDIX 3. –Register as a DDNS member ..........................................81
APPENDIX 4. –MPEG4 Bit Rate Lookup Table of IP camera.................85
APPENDIX 5. –PoE Installation Method ..................................................86
APPENDIX 6. –FAQ....................................................................................89

6 Installation and Operation Guide
SAFETY PRECAUTIONS
All the following safety and operational instructions to prevent harm or injury to the
operator(s) or other persons should be read carefully before the unit is activated.
WARNING
 To prevent fire or shock hazard, avoid exposing this unit to rain or moisture.
 Do not block ventilation openings.
 Do not place anything on top of the unit that might spill or fall into it.
 Do not attempt to service this unit yourself, as opening or removing covers
may expose you to dangerous voltage or other hazards. Please refer all
servicing to your distributor / retailer.
 Do not use liquid cleaners or aerosols for cleaning.
 To prevent fire or electric shock, do not overload wall outlets or extension
cord.
 This unit must be grounded to reduce the risk of electric shocks.
 Indoor use only.
 The installation should be made by a qualified service person.
 PoE considered a Network Environment 0 per IEC TR62101, and thus the
interconnected ITE circuits may be considered SELV.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Installation and Operation Guide
7
1. PRODUCT FEATURES
1.1 Product Instructions
The VideoEdge IP Indoor Mini-dome ADCIPE3312I is a 3-axis IP dome camera with a
vandal-proof body for day and night surveillance. With the specific 3-axis mechanical design, this
dome camera provides a flexible installation for ceiling or wall mounting and wide angled viewing
which pans 360°and tilts 180°.
The ADCIPE3312I provides a dual video stream in the MJPEG and MPEG4 formats with up to
30 fps for real-time images. The built-in Web server supports remote monitoring and control via
local area network or the Internet. With the built-in IR lights, this camera captures vivid imaging
for nighttime condition. In addition, the ADCIPE3312I supports PoE function, built-in motion
detection, and alarm notification by SD card (SDHC, up to 32GB) and one alarm output.
The ADCIPE3312I is a feature-packed IP dome camera for indoor surveillance, which enables you
to meet your security demands.
1.2 Product Features
 Selectable MJPEG / MPEG4 video compression.
 1/3” Sony Super HAD CCD.
 Horizontal resolution: 520 TV lines.
 Built-in motion detection.
 IR distance: 20M.
 Built-in Web server.
 Pre-alarm: 100 pictures.
 Supports upgrading by SD card / USB / FTP.
NOTE: The fan and the IR light only functions in the Night mode.

8 Installation and Operation Guide
2. DESCRIPTION OF THE FRONT/REAR VIEW
2.1 The Front View
1. SD CARD slot:
This is used for system software updating and archiving / accessing critical images.
2. RESET:
Recover to factory default.
3. 5pin MINI USB Port:
You can use a USB device cable to connect the IP camera to the USB port on the PC.
4. GPIO:
This is an 8-PIN connector including the RS485+/-, ALARM IN/OUT, ALARM RESET,
AUDIO IN/OUT and GROUND items for connecting with external devices.
RESET USB 12345678 VIDEO ETHERNET
(PoE) AC 24V
-DC 12V+
SD
123 4 5 6 7

Installation and Operation Guide
9
Alarm wiring diagram:
5. VIDEO OUT Connector:
The connector provides the unit’s composite video signals to a monitor.
6. ETHERNET (PoE):
This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks. PoE (Power over
Ethernet) function: Provides power to the device via the same cable as used for the network
connection.
NOTE: Please refer to the APPENDIX 6 –PoE Installation Method for more details.
7. Plug Inlet:
An AC 24V or a DC 12V inlet that connects to an external power supply.
NOTE: This device’s requires AC 24 voltage, which is within the range of the SELV (safety
extra-low voltage and Separated to primary circuit by double or reinforced
insulation).

10 Installation and Operation Guide
2.2 The USB function
By connecting the IP camera with a PC via the USB connector, the IP camera can provide two
different functions.
1. Insert an SD card: As a card reader.
Insert an SD card into the IP camera, then connect to the PC. You might transfer files between
the SD card and the PC. Once you've connected your IP camera to your computer, the
Windows system will detect the connection and ask you what you want to do with your SD
card.
In other words, if the user connects the IP camera with an SD card and the PC via the USB
connector, the IP camera can be used as a normal card reader.
2. Remove an SD card: As a configuring tool.
Before using the USB configuration setting page, please remember to remove the SD card or
your PC will read the SD card and won’t show this window.
DHCP ON
DHCP OFF
(default)
NOTE: After changing the settings, please click the “Apply” button. All of the options
will be effective after removing the USB connector.
NOTE: After the IP address has been changed and/ or reset, please unplug the network
cable, then plug it once again to make sure the network connection is in normal
mode.
Network
Setting

Installation and Operation Guide
11

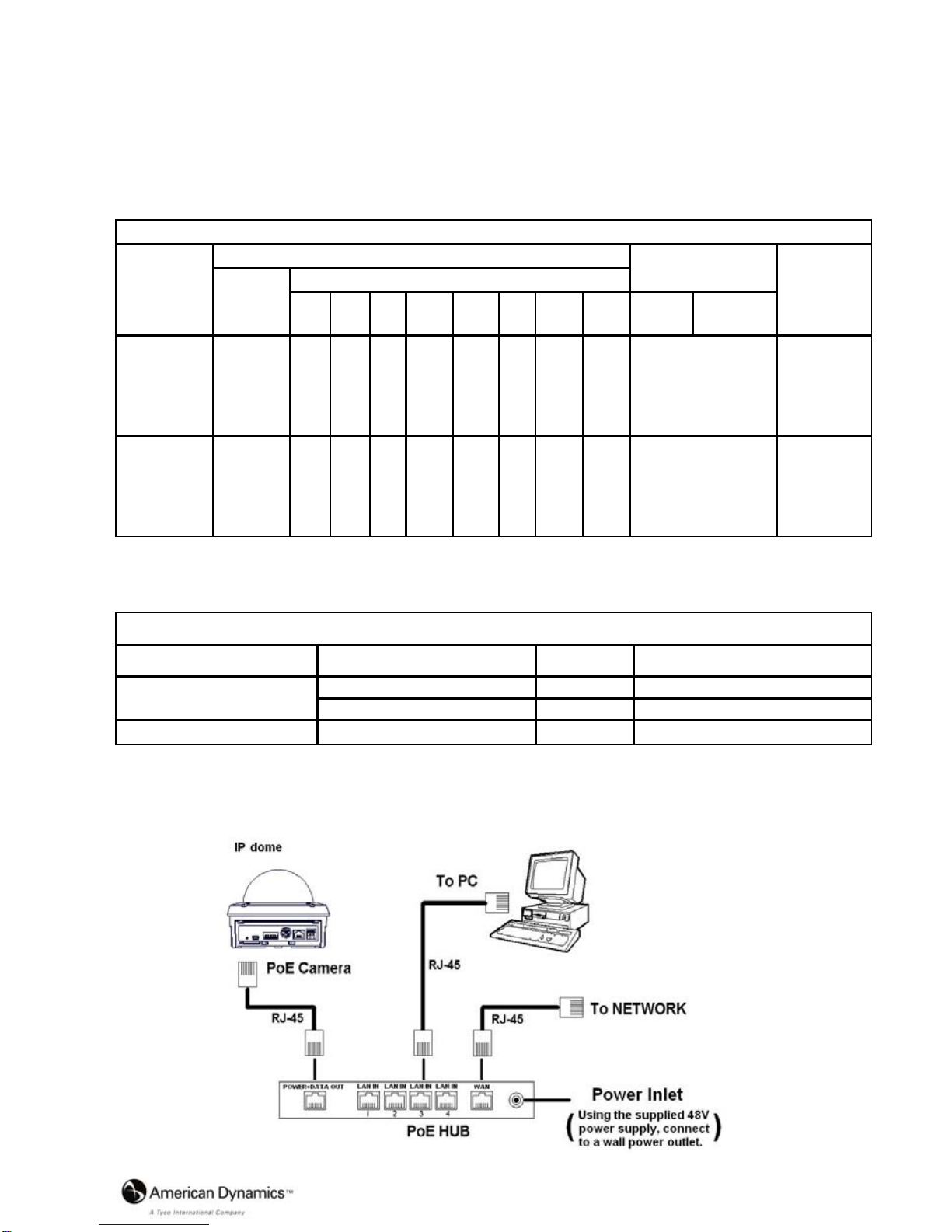

2.3 PoE (Power over Ethernet)
These technologies will enable the development of new networked appliances, by providing
power as well as data over existing Ethernet cables.
The Summary Comparison of PoE Standards (Table 1) is listed as follows.
Table 1. Summary Comparison of PoE Standards
SOURCE
Ethernet RJ-45 connector pin number * LOAD
STANDARD Source
Voltage 1 2 3 4 5 6 7 8 Load
Voltage DC Load Connector
REMARKS
IEEE
802.3af
using data
pairs
48 V DC,
protected RX, DC+ RX, DC+ TX, DC- spare spare TX, DC- spare spare (embedded)
Industry
Standard
for
embedded
PoE
IEEE
802.3af
using spare
pairs
48 V DC,
protected RX RX TX DC+ DC+ TX DC- DC- (embedded)
Industry
Standard
for
embedded
PoE
The compatible PoE Hubs (Table 2), which can be used with the unit, are shown in the tables
below.
Table 2. Compatible PoE HUB
Manufacturer Model Port Note
FSP-804P 4 Port PoE HUB
PLANET POE-151 1 Port PoE HUB
D-Link DWL-P200 1 Port PoE HUB
Connect to a PoE HUB
The Standard RJ-45 PIN configuration for connecting with a PoE HUB is shown below.

12 Installation and Operation Guide
2.4 Power LED & IR LED Power setting
The IR Board:
 The J1 Jumper: Controls ON/ OFF function of the Power LED
LED Power Disable:
Pin1 & Pin2 short
LED Power Enable (Factory Default):
Pin2 & Pin3 short
Make short circuits of PIN 1 and PIN 2 to disable the Power LED function. Make short circuits of
PIN 2 and PIN 3 to enable the Power LED function.

Installation and Operation Guide
13
 The J2 Jumper: Controls ON/ OFF function of the IR LED
IR Power Disable (Factory Default):
Pin1 & Pin2 short
IR Power Enable:
Pin2 & Pin3 short
Make short circuits of PIN 1 and PIN 2 to disable the IR LED function and the IR LED will not light
even when in the night mode. Make short circuits of PIN 2 and PIN 3 to enable the IR LED
function and in this situation the IR LED will light in the night mode.
NOTE: To avoid the mechanical damage of the device, please power off the camera
before exchanging the jumpers.

14 Installation and Operation Guide
2.5 Lens adjustment
Before adjusting the lens, the user has to remove the cover of the dome. 1) Loosen the screws
holding the camera mount and then 2) carefully lift the cover up. After all adjustments
completion, attach the dome cover to the camera.
I. Focus adjustment:
(1)Loosen the fixing screws on the Zoom ring and Focus ring.
(2)Adjust the angle of view with the Zoom ring and adjust the focus with the Focus ring for
the best picture resolution.
(3)After lens adjustment completion, tighten both the Zoom ring fixing screw and the Focus
ring fixing screw.
II. Adjust the camera angle:
The camera angle can be adjusted manually for horizontal rotation and vertical rotation.
NOTE: The default angle between the lens and the camera pedestal is approximately
45∘.

Installation and Operation Guide
15

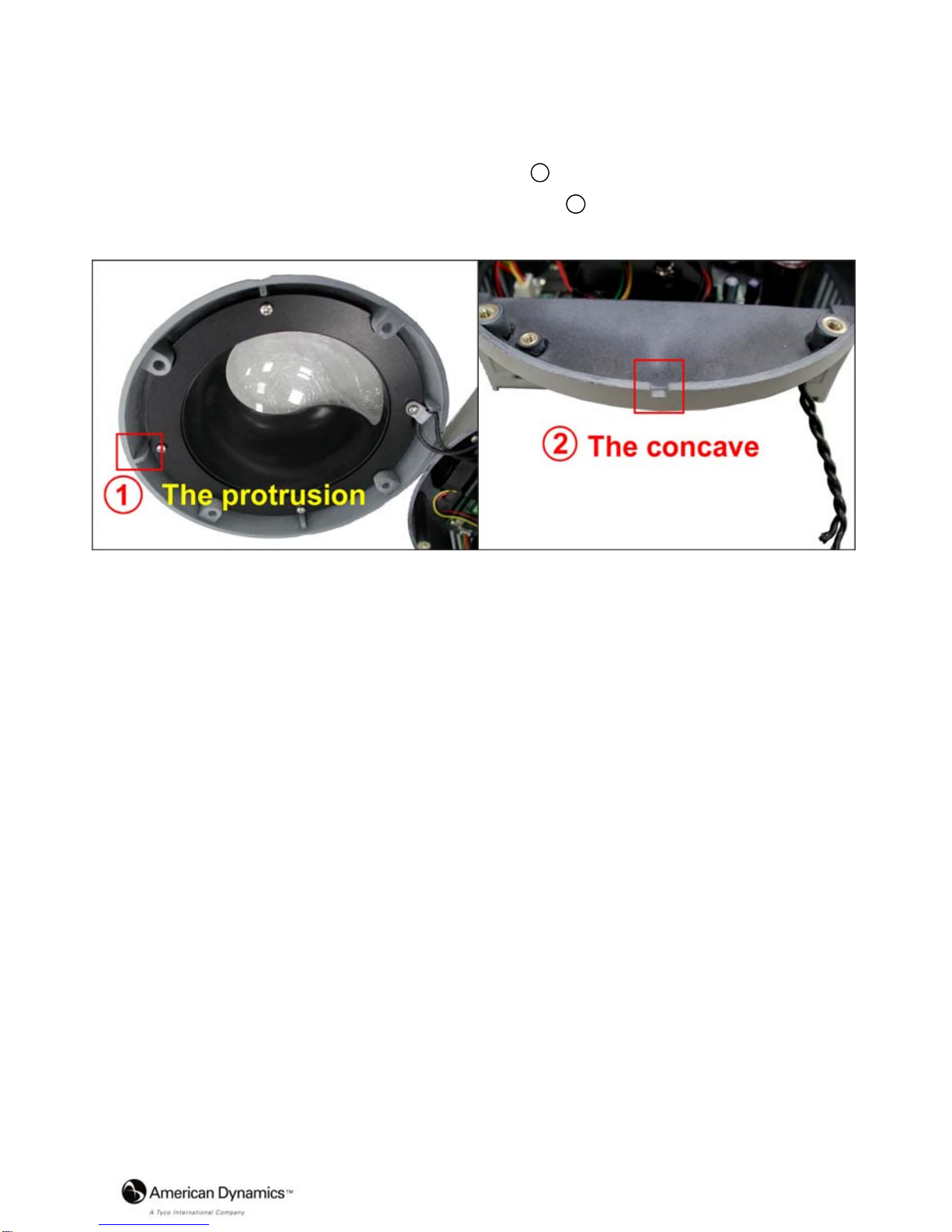

2.6 Cover Attaching
To attach the dome to the base, please do as steps (1) and (2).
(1) Note that the protrusion (the convex-shaped fitter) 1that reaches right up to the edge of
the ring on the dome cover must align with the concave 2on the dome body.
The dome cover The dome body
(2) Screw the dome cover and the body together.

16 Installation and Operation Guide
2.7 Ceiling mounting
When mounting the camera in the plywood ceiling, please follow steps (1) to (3).
(1) Make 3 entry holes in the plywood ceiling as shown above.
(2) Install the dome in the ceiling, then attach the supplied “ceiling fix plate” to the camera.
(3) Fix the dome to the ceiling using the 3 mounting screws.
ceiling fix plate
screws*3
plywood ceiling

Installation and Operation Guide
17
3. INSTALLATION
Please follow the instructions and the diagram below to set up the system.
3.1 UPDATING SYSTEM SOFTWARE
If the system software of the IP camera needs to be upgraded, please take the following steps to
safely process it.
Important: Before carrying out the following procedures, please ensure the SD card is
working and the file of the system firmware is intact
1. Format an SD card using the FAT format.
2. Create a directory named LANCAM in the SD card if it does not exist.
3. Copy the file of UPDATE.BIN to the LANCAM-directory.
4. If the IP camera is running, please power it off first.
5. Insert the SD CARD into the IP camera.
6. Remove the Ethernet cable from the RJ-45 port and then power on the IP camera.
7. In 5 to 10 seconds, a message reading "UPDATE PROCESSING" will show up on the screen on
a blue background; if not, please check out steps 1 to 6 carefully or else inform your technical
support while ignoring the following steps.
8. DO NOT power off the IP camera while this update process is running until the message
"UPDATE OK RESET PLEASE" appears on the screen; it might take 15 to 30 seconds to
appear.
9. If the message "UPDATE NG RESET PLEASE" appears rather than "UPDATE OK RESET
PLEASE", please write down the error messages shown on the screen and inform your
technical support, while ignoring the following steps.
10. Power off the IP camera when this update process is finished, then remove the SD card from
the IP camera.
11. Reconnect the Ethernet cable to the RJ-45 port as necessary.
12. Power ON the IP camera and it will work normally if the entire update procedure goes correctly.
13. Verify the version of the system software.

18 Installation and Operation Guide
WARNING:
1. Don’t use the NTFS format in step 1.
2. Steps 1 to 3 have to be done on a PC.
3. Make sure the file of UPDATE.BIN is a correct one in step 3, or the IP camera will not
work normally after being updated.
4. If the power of the IP camera is suddenly lost in step 8, please remove the SD card first
and turn on the IP camera next to test its operation. If the IP camera remains working
normally, please go back to step 4; otherwise, please inform your technical support.
5. In step 10, if the SD card is not removed and the IP camera does not get online as well,
the updating process must be repeated again after rebooting the IP camera.
6. Make sure that the SD card is inserted in a correct position in step 5, or the IP camera
will suffer permanent physical damage.
7. If the message "CSUM ERROR" appears in step 8, it implies a problem in the file of
UPDATE.BIN.
8. Don’t interrupt the process while the unit is updating itself; proceed with an SD card
not including any system software of the unit, or else the unit will crash.

Installation and Operation Guide
19
3.2 IP camera SD card Troubleshooting
1. Check if the SD card position is correct or not. Please refer to the manual for the related
information.
2. After powering the IP camera on, correctly insert the SD card, and a little icon of "SD" will show
up in the upper-right corner of the monitor screen. If not, it means the device detection has failed.
Please contact your technical support and ignore the following steps.
3. If no cross sign appears beside the "SD" icon, please go on to the next step. If a cross sign
appears, please check the following:
a. Is it really an SD "Memory" Card?
b. Is this SD card formatted in the FAT16 format?
c. Connect the SD card with a PC and test to see whether the PC can read the data or not.
d. Does this SD card still have the capacity for storing data?
e. Is the SD card set to write?
If all the answers are "yes" but the cross sign still persists, please contact your technical support
and ignore the following steps.
4. Please make sure the function of "SD CARD ENABLE" is activated in the ALARM and
SCHEDULE pages if no cross sign appears beside the "SD" icon on the screen.
5. After recording, read the data on the web page of "sdget.htm". If the data cannot be read through
the network, please read it instead in a PC, check the data stored in the "LANCAM" directory
and contact your technical support regardless of whether there is data or not.
WARNING:
1. Performing this troubleshooting process may need a monitor, a PC, a card reader and
some cables.
2. If the SD card is removed while storing or accessing data, the data will be lost.
3. If there is a cross sign beside the "SD" icon, it means the SD card has been inserted into
the IP camera but cannot perform its writing function. Possible reasons are:
a. It is not an SD memory card.
b. The SD card is unformatted or formatted in a non-FAT16 or non-FAT12 format.
c. The file system is damaged.
d. The capacity of the SD card is full.
e. The SD card is set to be read only.
4. Turn off the power before inserting the SD card. Otherwise the unit may shut down.

20 Installation and Operation Guide
4. Network Configuration
4.1 Cable Connections
Please follow the instructions belowto connect your IP camera to a computer or a network and to
choose a proper RJ-45 cable configuration for connections.
Physical specifications of the RJ-45 cable for Ethernet
Wire Type Cat. 5
Connector Type RJ-45
Max. Cable Length 100 m
Hub Wiring Configuration Straight Through
PC Wiring Configuration Straight
4.2 Configure Your IP Camera Network Settings
Upon connecting with the network hardware, you need to activate the network function and
configure the proper network settings of the IP camera.
4.2.1 Enable DHCP Function
This function can only work if the LAN, which the unit is connected to, has a DHCP server. If the
DHCP server is working, please turn on to use the DHCP protocol; now the IP CAMERA will
obtain an IP address automatically from the DHCP server. In this instance, please skip section
4.2.2 (Set IP address) and follow section 4.3 (TCP/IP Communication Software).
NOTE: The IP Dome camera software default setting is DHCP OFF. Users can build the
camera working environment with a static IP address. The default static IP is
192.168.1.168. You can set an IP address for the camera if the LAN unit isn’t
connected to a DHCP server. Or turn on to use the DHCP protocol if the DHCP
server is working in the LAN, The camera will obtain an IP address automatically
from the DHCP server. The camera is linked by its Video Out connection via a
BNC connector to a monitor's Video In connection. If this connection is there, you
can see some information on the monitor screen, such as the camera factory
default Static IP address.
