American Legend AL3100W/F User manual

© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
1
All Rights Reserved.
1-888-996-2729
FAX: [phone]
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE,
please contact us toll free @:
Your Model Number ____________________
have your model number when inquiring about parts.
[email protected]
Please
Date Code ___________________________
2 - AL3100W/F- - SY
When contacting Escalade Sports please provide your model number, date
code (if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
Purchase Date ________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
AL3100W/F
Mailing Address: (Correspondence Only)
Escalade Sports
PO Box 889
Evansville, Indiana 47706-0889
Physical Location:
Escalade Sports
817 Maxwell Ave.
Evansville, Indiana 47711

Make sure you understand the following tips before you begin to assemble your billiard table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
TWO ADULTS ARE REQUIRED TO ASSEMBLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE REQUIRED TO ASSEMBLE THIS GAME TABLE.
Socket Head Wrench (Included)
Furnitur e Polish and Soft Cloth
ATTENTION:
IMPORTANT! READ EACH STEP
IN THIS MANUAL BEFORE YOU
BEGIN THE ASSEMBLY.
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
2
All Rights Reserved.
THIS 84'' BAYVILLE BILLIARD TABLE
Carpenters Level

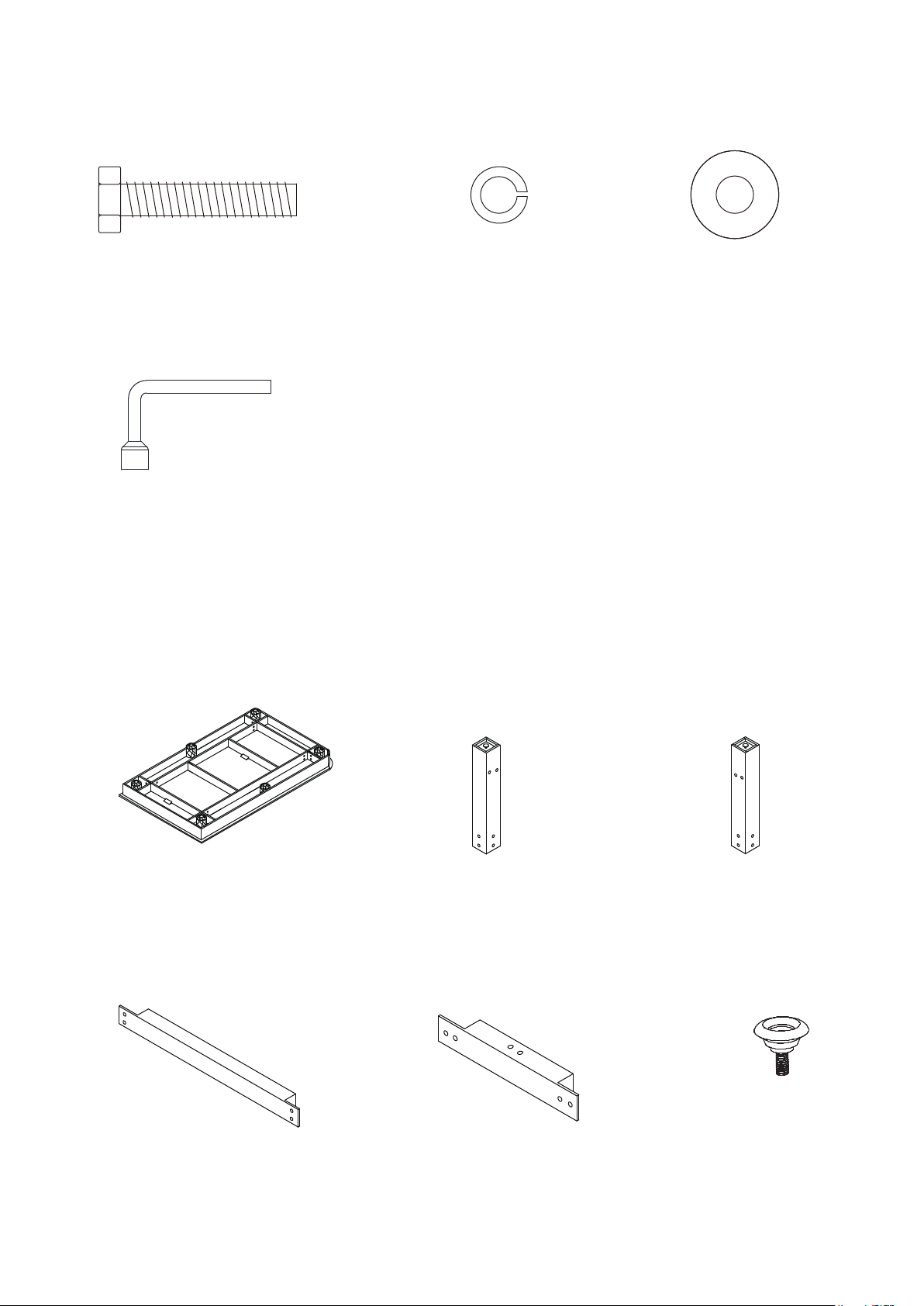

PARTS IDENTIFIER
(Not to Scale)
HARDWARE IDENTIFIER
(To Scale)
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
3
All Rights Reserved.
H1 - 8mm x 40mm
Hex Head Bolt
(28 pcs)
H3 - M8 Flat Washer
(28 pcs)
（Not to Scale)
T1 - Socket Head Wrench
(1 pc)
H2 - M8 Lock Washer
(28 pcs)
P1 - Main Cabinet
(1 pc)
P2 -Left Leg
(2 pcs)
P3 - Right Leg
(2 pcs)
P4 - Middle Leg Long Support
(1 pc)
P5 - End Leg Cross Support
(2 pcs)
P6 - Leg Leveler
(4 pcs)

A1 - Billiard Ball Set
(1 pc)
A2 -Pool Cue
(2 pcs)
A3 - Triangle
(1 pc)
A4 - Cue Chalk
(2 pcs)
A5 - Playfield Brush
(1 pc)

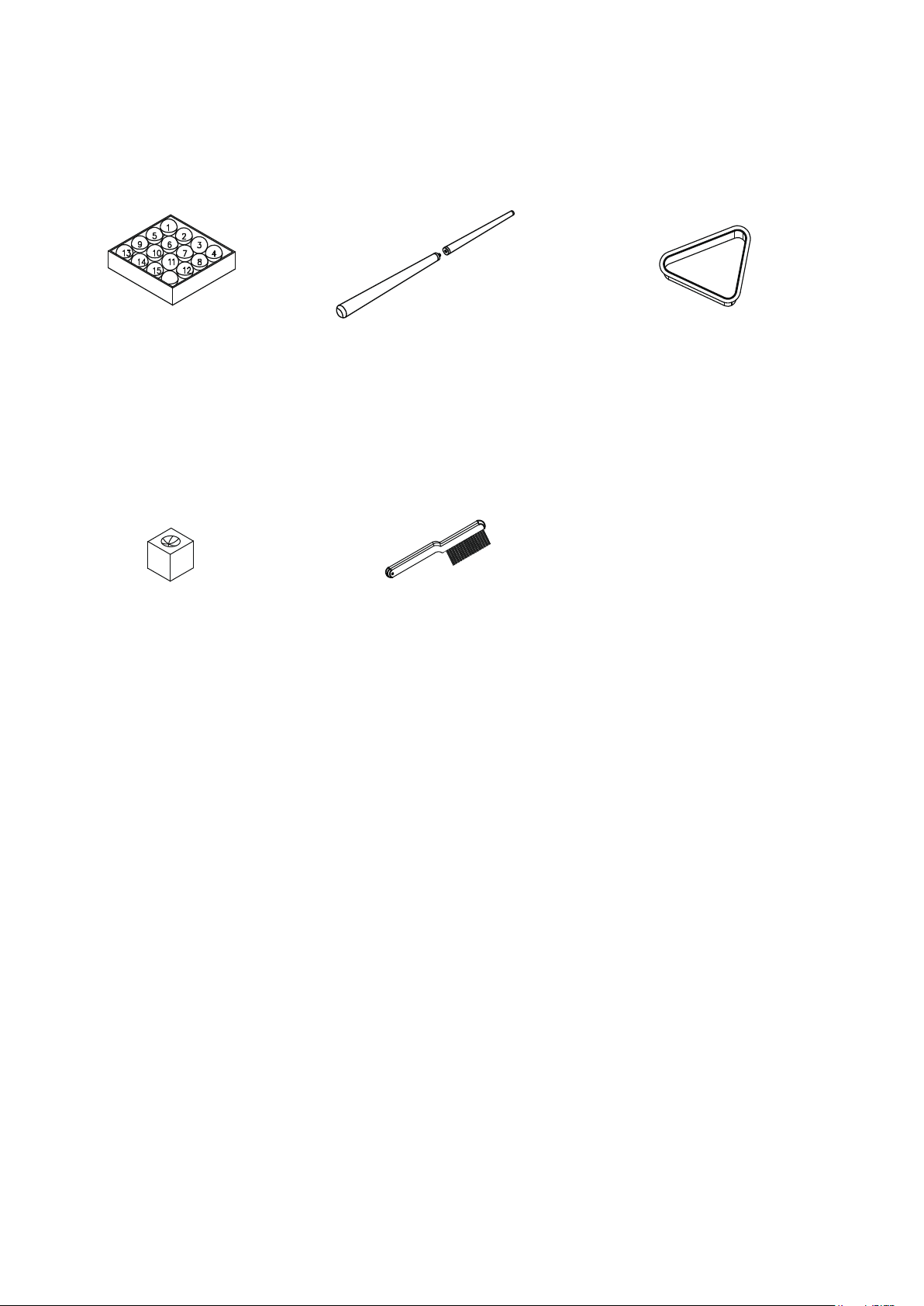

ACCESSORIES IDENTIFIER
(Not to Scale)
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
4
All Rights Reserved.

PARTS REQUIRED
16pcs - H1 Hex Head Bolt
16pcs - H3 Flat Washer
16pcs - H2 Lock Washer4pcs - P2 Left Leg
4pcs - P2 Right Leg
1pc - P1 Main Cabinet
PARTS REQUIRED
8pcs - H1 Hex Head Bolt 8pcs - H3 Flat Washer
8pcs - H2 Lock Washer
2pcs - P5 End Leg Cross Support
STEP 1
Attach the P2 Left Legs and P3 Right Legs onto the P1 Main
Cabinet using the H1 Hex Head Bolts,H2 Lock Washers and H3
Flat Washers as shown in FIGURE 1.
Note: To best protect table, build this game table in the carton
bottom tray it was packed in.
STEP 2
Attach the P5 End Leg Cross Supports onto the Legs using the H1 Hex Head Bolts, H2 Lock
Washers and H3 Flat Washers as shown in FIGURE 2.
FIGURE 1
FIGURE 2
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
5
All Rights Reserved.
Do not tighten the H1 bolts at this time.
Do not tighten the H1 bolts at this time.
P3
H1 H1
H2
H3
H2
H3
P3
P2
P2
P1
H1 H2
H3
P5
P5
Assembly NOTE:
Be sure to install legs on the
outside of the support beam
as per FIGURE 1.
NOTE:
Holes to outer end.
NOTE: Please inspect all Bolt holes to insure they are clean and open.

PARTS REQUIRED
4pcs - P6 Leg Leveler
4pcs - H1 Hex Head Bolt
4pcs - H3 Flat Washer
4pcs - H2 Lock Washer
1pc - P4 Middle Leg Long Support
Attach the P4 Middle Leg Long Support onto the P5 End
Leg Cross Supports using the H1 Hex Head Bolts,H2 Lock
Washers and H3 Flat Washers as shown in FIGURE 3.
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
6
All Rights Reserved.
THIS STEP REQUIRES FOUR OR MORE ADULTS.
WHILE FLIPPING THE TABLE OVER, DO NOT ALLOW TABLE
TO REST ON THE SIDE OF LEGS AS THIS COULD DAMAGE THEM.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.
HOLD TABLE
CABINET DO NOT
HOLD THE
LEGS
DO NOT LEAN THE
TABLE ON ITS LEGS!
STEP 3
Tighten all bolts from STEP 1, 2 & 3 now using the
T1 Socket Head Wrench-tight.
H1
H2
H3
P4
P6
P5
P5
NOTE: Will need another adult
to hold the P4 during ssembly.
Thread P6 Leg levelers into legs as shown
in FIGURE 3.
FIGURE 3

CARE AND USE OF YOUR TABLE
1. Use spray furniture polish to clean all exterior surfaces of your table.
3. This product is intended for INDOOR use only.
4. DO NOT sit, climb or lean on the table.
5. DO NOT drag the table when moving it. This will damage the legs.
6. DO NOT set drinks on the table.
7. The purchase of a table cover will both protect and help keep clean the
8.
Use a carpenters level to properly level the table using the Leg Levelers.
entire top of the table.
Description Qty.
H1
H2
H3
T1
P1
P2
P4
P5
P6
Key # Part #
PRODUCT PARTS LIST FOR MODEL # AL3100W/F
AL3100STXH1
AL3100STXH2
AL3100STXH3
AL3100STXT1
AL3100STXP1
AL3100STXP2
AL3100STXP4
AL3100STXP5
AL3100STXP6
8mm x 40mm Hex Head Bolt
M8 Lock Washer
M8 Flat Washer
Socket Head Wrench
Main Cabinet
Left Leg
Middle Leg Cross Support
End Leg Long Support
Leg Leveler
28
28
28
1
1
2
P3 AL3100STXP3 Right Leg 2
1
2
4
A1
A2
A3
AL3100STXA1
AL3100STXA2
AL3100STXA3
Billiard Ball Set
Pool Cue
Triangle
K1
M1
AL3100STXK1
AL3100STXM1
Hardware Kit
Owner's Manual
1
2
1
A4 AL3100STXA4 Cue Chalk 2
A5 AL3100STXA5 Playfield Brush 1
C1 AL3100STXC1 2
Middle Pocket(pre-installed)
C2 AL3100STXC2 4
End Pocket(pre-installed)
1
1
© 2020 Escalade Sports For Customer Service Call 1-888-996-2729
7
All Rights Reserved.
2. Use the table brush provided to clean the cloth on the table.
Congratulations! You have now assembled your game table. Please note the Care and Use
instructions below to insure many years of trouble free use of your game table.

This customer warranty extends to the original owner, on the purchase of any ESCALADE SPORTS
Product (hereinafter referred as the "Product").
This Product is warranted to the original owner, for a period of 90 days from the
original purchase.
ESCALADE SPORTS warrants to the original owner, this product to be free
from defects in material and workmanship when used for the intended purpose under normal use and
conditions. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT,
UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS
PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL
AND WORKMANSHIP.
During the above 90 day warranty period, ESCALADE SPORTS shall
provide replacement components or replace with a comparable product at our choosing. If product is
defective under normal use and proper care, please contact our Customer Service Dept.
Other than shipping requirements no charge will be made for such replacement of in-warranty Products.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
may vary from state to state.
WARRANTY DURATION:
WARRANTY COVERAGE:
WARRANTY REPLACEMENT:
LEGAL REMEDIES:
1-888-996-2729 / Customer Service Dept.
Or Write us at:
Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706
Attn: Customer Service Dept.
Or E-mail us at:
[email protected]
ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
ABOVE 90 DAY PERIOD. ESCALADE SPORTS SHALL NOT BE LIABLE FOR LOSS OF
USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL COSTS,
EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
WARRANTY DISCLAIMERS:
90 DAY LIMITED WARRANTY
