IC Controller Operations Manual
Contents
Introduction & Features .............................................................................................................................................2
Temperature Monitoring.............................................................................................................................................2
Temperature Alarms ..................................................................................................................................................2
Door Frame Heater and Window Control ..................................................................................................................3
Electronically Controled Light Switch ........................................................................................................................3
Automatic Light Off Controls......................................................................................................................................4
IC User Interface .......................................................................................................................................................4
Parameter Programming ...........................................................................................................................................6
Air Temperature Probe Offset....................................................................................................................................9
Load Factory Standard Settings..............................................................................................................................10
Troubleshooting.......................................................................................................................................................12

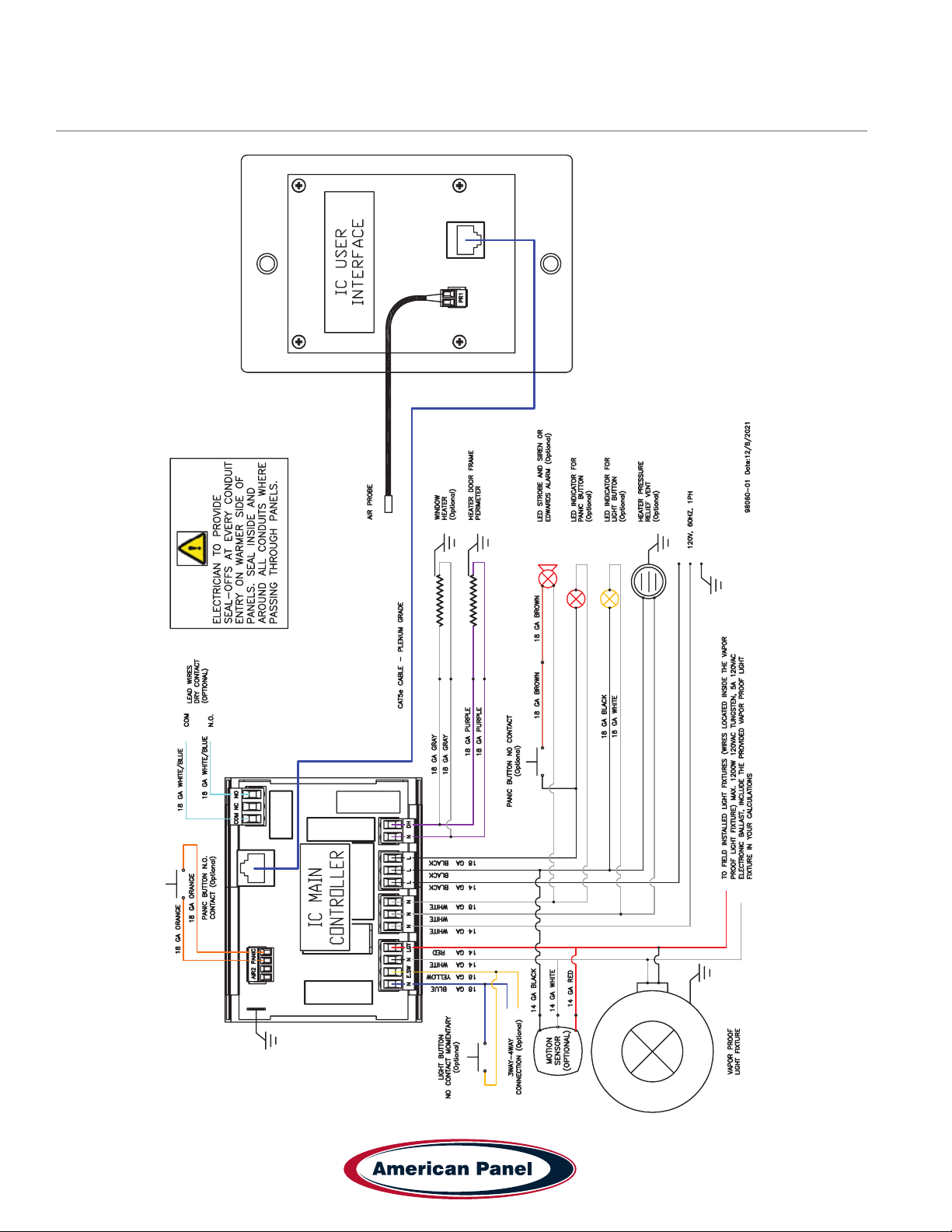

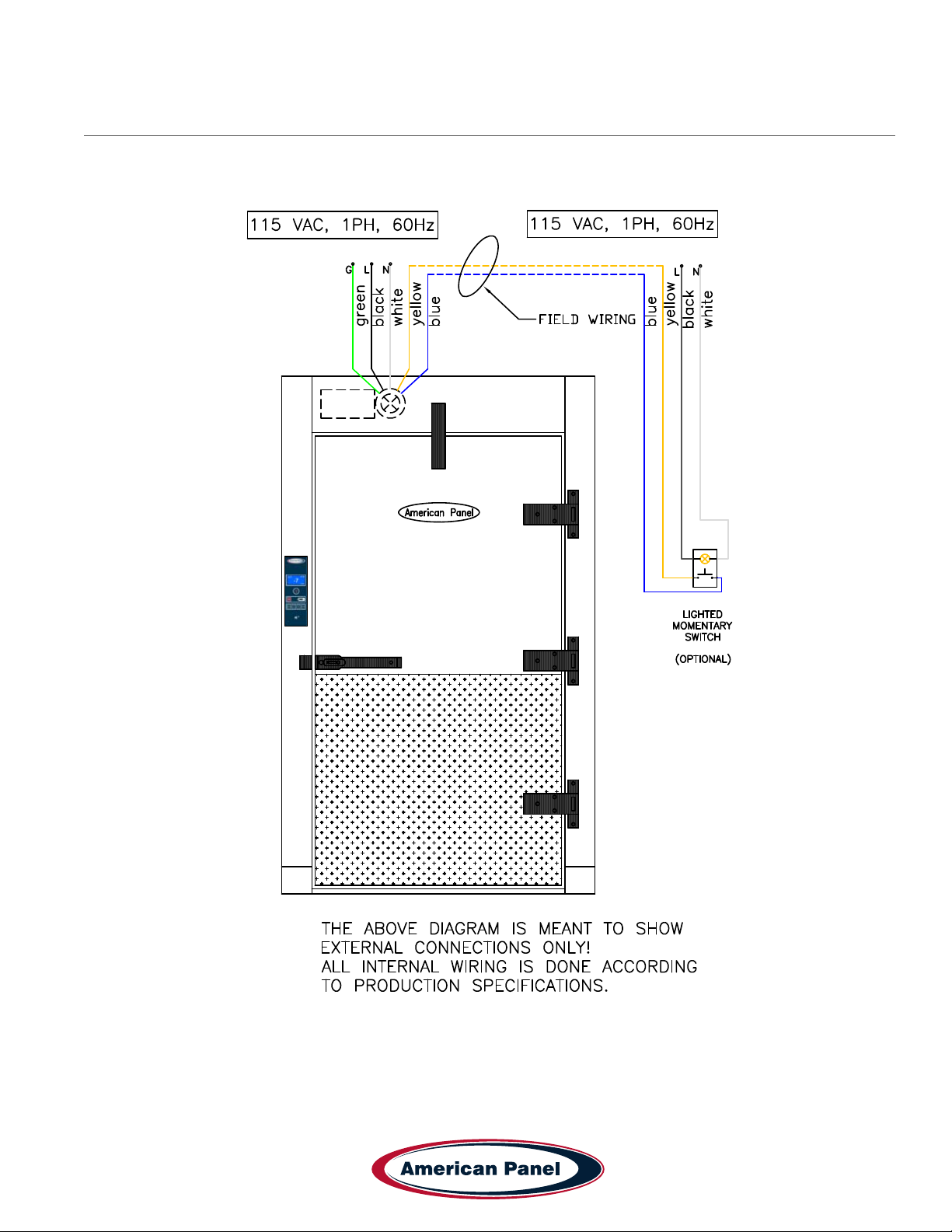

Field Wiring..............................................................................................................................................................13
Electrical Diagram ...................................................................................................................................................14
Contacts and Information
Customer service - [phone] or [phone]
Service department. - [email protected]
Parts department. - [email protected]
Website - www.americanpanel.com

3
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
1 Introduction and Features
Intelligent Controller IC was designed by American Panel Corporation to control various walk-in door devices and to
monitor the temperature of the walk-in cabinet.
IC features:
• Temperature monitoring
• High and low temperature alarm with on-board buzzer and alarm time delay
• Door frame heater and window heater control
• Electronically controlled light switch with light On indicator
• Automatic light off
• External switch connection for CAL-OSHA back-to-back light control (Optional)
• Adaptive setting
1.1 Temperature Monitoring
IC monitors the walk-in cabinet temperature via a probe mounted in the warmest part of the cabinet which is near the
door. The alarm delay will ensure that the alarm does not go off during normal door openings.
For an accurate air temperature reading do not restrict the airow over the temperature probe. To monitor the air
temperature at a different location an extended temperature probe is available for purchase.
1.2 Temperature Alarms
If the temperature inside the walk-in cabinet goes above the high alarm threshold or below the low alarm threshold,
the temperature reading on the display will blink indicating that the alarm time delay has been triggered. If the
temperature does not return to normal limits within the delay time, the buzzer will go off and the display will show the
alarm message “AH” alternating with the temperature reading. The buzzer can be silenced by pressing the alarm
mute button.
The alarm’s set points and delay times are fully programmable to user’s needs.
Default set points:
High Alarm Trigger Point
(AH)
Low Alarm Trigger Point
(AL)
Alarm Delay
(AD)
Cooler 45˚F 32˚F
40 MinutesFreezer 20˚F -25˚F
Beer Cooler 34˚F 30˚F

5800 SE 78th St. Ocala, FL 34472
4P: [phone]
E: [email protected]
IC Controller Operations Manual
1.3 Door Frame Heater and Window Heater Control
IC controller switches on the door frame heater and the window heater (if so equipped) when the air temperature
drops below the preset threshold of 45oF and then cycle them on and off based on a time cycle. On coolers, by
default, the heaters stay on for 35% of a 6-minute cycle and then will stay off for 65%, the cycle will repeat. On
freezers, by default, controller keeps the heaters on until the temperature of the cabinet goes above 45˚F. The alarm’s
set points and delay times are fully programmable to user’s needs.
Default set points:
Heaters On (Pr) Heaters Off Heaters Switched On Below Temp:
(tP)
Cooler 30% of 6-minute cycle 65% of 6-minute cycle
45˚FFreezer 100% of 6-minute cycle 0% of 6-minute cycle
Beer Cooler 65% of a 6-minute cycle 35% of a 6-minute cycle
1.4 Electronically Controlled Light Switch and Automatic Light Off
The cabinet light can be switched on and off from the IC controller. The integrated light button is equipped with an
LED light to display the ON/OFF status of the light.
The Automatic Light Off feature of IC enables the user to save energy. The amount of time the light will stay on can
be set from 1 minute to 60 minutes or can be set for manual shut off only. As default, the automatic light off feature is
disabled.
Back-to-back light control is provided as an optional feature.

5
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
2 IC User Interface
Menu / Down
Display
Alarm Mute / Up
Light Button / Enter
Light Indicator
Display

5800 SE 78th St. Ocala, FL 34472
6P: [phone]
E: [email protected]
IC Controller Operations Manual
3 Parameter Programming
On powering up, IC will run through a procedure to adjust its settings based on the type of room it is installed within,
user input is not required. The procedure may take up to 12 hours of continuous operation, during this time the
controller will not display any temperature alarm. The user may change any of the default settings.
Note: During the programming steps, any delay longer than one minute before pushing the next
button will cause the controller to revert to the normal operation state. To avoid this, the following
instructions should be carefully reviewed, and the desired settings should be determined before
proceeding.
The instructions below contain screens with the exact messages displayed by the controller during the programming
procedure. Follow the notes located to the left of these screens.
Press the MENU button.
The display will show:
Enter access code 055
Use the UP or DOWN button to change the blinking character to the correct number and press ENTER to conrm.
High Air Alarm Setting
The display will alternate between and the value
This setting indicates the high temperature threshold, if the cabinet temperature goes above this setting,
the alarm will go off.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.

7
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
Low Air Alarm Setting
The display will alternate between and the value
This setting indicates the low temperature threshold, if the cabinet temperature goes below this setting,
the alarm will go off.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.
Alarm Delay
The display will alternate between and the value
This setting indicates the amount of time in minutes the controller will delay the temperature alarm.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.

5800 SE 78th St. Ocala, FL 34472
8P: [phone]
E: [email protected]
IC Controller Operations Manual

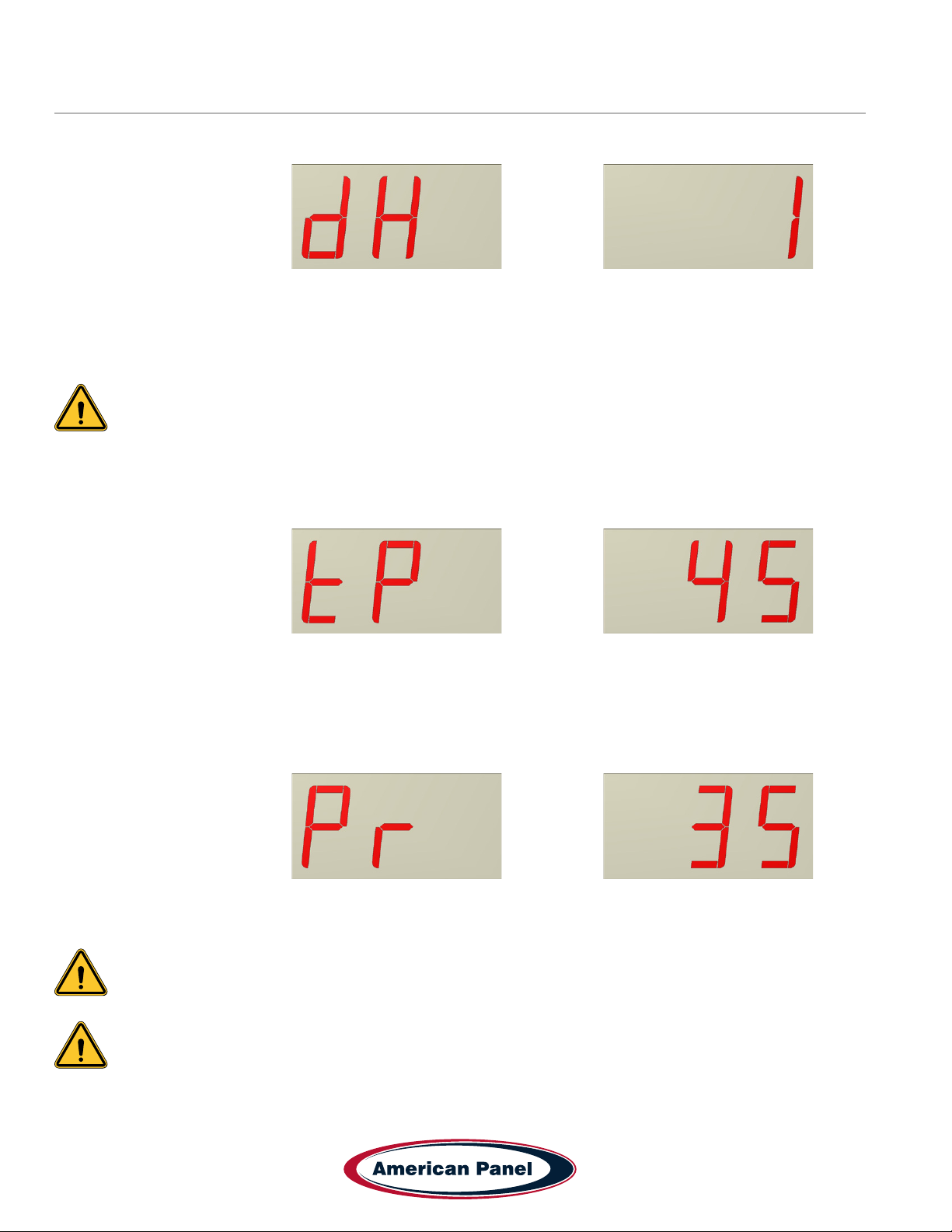

Door Frame Heater and Window Heater Settings
The display will alternate between and the value
This setting will enable or disable the door frame and window heaters.
1– heaters enabled
0– heaters disabled
Note: If you set the ashing value to “0”, the heaters will be disabled and the controller will skip the
heater settings. If the ashing value is set to “1”, the heaters will be enabled and the controller will
guide you through the heater settings.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.
The display will alternate between and the value
This setting indicates the walk-in temperature at which the controller will engage the door and window heaters.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.
The display will alternate between and the value
This value indicates the percentage the heater will stay on out of a 6-minute cycle.
Note: If condensation occurs on the door frame or on the window increase the percentage
the heater is on.
IMPORTANT!
ON COOLERS THIS SETTING MUST NOT EXCEED 80%.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm.

9
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
Automatic Light Off Setting
The display will alternate between and the value
This value indicates the amount of time in minutes that the light will stay on before it will automatically turn off.
Note: “no” setting indicates that the light will stay on until it is turned off manually.
Use UP or DOWN buttons to set the desired value and press ENTER to conrm, the controller will return to normal
operation mode.
4 Air Temperature Probe Offset
As standard, the air temperature probe is located on the door frame, inside the walk-in. The IC will display the air
temperature at that location ONLY. However, IC can be adjusted to estimate the temperature of a remote location
inside the walk-in.
4.1 Calculating the Probe Temperature Offset
• Establish the location inside the walk-in where you want to monitor the air temperature.
Ex: Return Air Temperature (measured behind the evaporator)
• Using a calibrated thermometer, measure the air temperature at that location.
• Read the air temperature on the display of IC.
• The temperature difference between the two temperatures is the temperature offset. (TOFFSET)
Ex: Return Air Temperature (37˚F) - IC Displayed Temperature (40˚F) = Temperature offset (-3˚F)
(37˚F) - (40˚F) = - 3˚F

5800 SE 78th St. Ocala, FL 34472
10 P: [phone]
E: [email protected]
IC Controller Operations Manual
4.2 Adjust the Probe Temperature Offset
Press and hold ALARM MUTE button for ten seconds.
The display will alternate between and the value
Use UP or DOWN buttons to set this value to the temperature offset calculated in the previous step (TOFFSET) then
press ENTER to conrm, the controller will return to normal operation mode.
The display will reect the air temperature at the desired location.
Note: The air probe temperature offset is not to be used to make up for undersized or defective
refrigeration systems. If a different temperature is desired inside the walk-in, contact a refrigeration
technician to adjust your refrigeration system. Special care should be taken when adjusting the air
probe temperature offset. You should never adjust the air probe temperature offset for more than
5˚F. American Panel Corporation is not responsible for any losses such as food spoilage resulted
from misusing the air probe temperature offset.
5 Load Standard Settings
Press and hold UP and DOWN buttons, simultaneously, for ten seconds.
The display will alternate between and the value
Use UP button to set this value to “1” then press ENTER to conrm.
The display will show:
Enter the access code 055, use UP or DOWN button to change the blinking character then press ENTER to conrm.

11
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
The display will alternate between and the value
or
or
or
This value sets the cabinet type, use UP or DOWN buttons to choose
“co” – cooler, “Fr” – freezer, “br” – beer cooler, or “Aut” – automatic selection.
If the cabinet type is set to cooler, freezer, or beer cooler the unit will return to normal operation mode and all the
alarm and door heater parameters will be set to default, see section 1.
If the room type is set to automatic selection, user will have to set the detection time in hours.
The display will alternate between and the value
Set a low value (1hr) if the cabinet is already at the desired temperature, set a higher value (12hrs) if the cabinet is
pulling down such as during the initial start-up.

5800 SE 78th St. Ocala, FL 34472
12 P: [phone]
E: [email protected]
IC Controller Operations Manual
6 Troubleshooting
Issue Possible Cause Action
IC controller display is ashing a
number
IC controller detected cabinet
temperature higher or lower than the
preset limits. The ashing number
is the measured temperature inside
the cabinet. The alarm will not go off
until the alarm delay time expires.
Make sure all the doors are closed
and check the temperature after a
few minutes to make sure it goes
back to the normal range.
IC controller has audible beep and
the display alternates between
and a number
The high air temp. alarm has gone
off, the temperature inside the
cabinet is above the preset limit. The
ashing number is the measured
temperature inside the cabinet.
To silence the alarm, press the alarm
mute button. Check to make sure
the refrigeration system is working
properly.
IC controller has audible beep and
the display alternates between
and a number
The low air alarm went off, the
temperature inside the cabinet is
below the preset limit. The ashing
number is the measured temperature
inside the cabinet.
To silence the alarm, press the alarm
mute button. Check to make sure the
refrigeration system works properly.
Condensation on the door frame and
/or the window
The setting for the door heater is too
low.
Increase the percentage the door
heater stays on, see Parameter
Programming (section 3)
7 Field Wiring
Note: All eld wiring must be done by a licensed electrician in compliance with the national and
local electrical codes.
Note: Electrician must provide seal-offs at every conduit entry on the warmer side of panels. Seal
inside and around all conduits where passing through panels.
Make all the connections inside the vapor proof light xture located on the door frame inside the walk-in.
If an electrical stub-out construction was requested, all the connection wires will be stubbed-out thru the ceiling. In this
case, the eld connections will be made in a junction box provided by the installer.

13
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
7.1 Remote Light Button Connection
Note: Check the blue print to nd out which IC controller connects to the remote button.

5800 SE 78th St. Ocala, FL 34472
14 P: [phone]
E: [email protected]
IC Controller Operations Manual
8 Electrical Diagram

15
5800 SE 78th St. Ocala, FL 34472
IC Controller Operations Manual
P: [phone]
E: [email protected]
This page intentionally left blank.

This manual is updated as new information and models are released. Visit our website for the latest manual. IC_OEM 12/21
5800 SE 78th St. Ocala, FL 34472 • 352.245.7055 • [email protected] • www.americanpanel.com
Versatile, Dependable Walk-Ins & Blast Chillers
American panel is your trusted manufacturer for all your cold
storage, blast chilling and shock freezing needs. Building on a
57-year family owned and operated heritage, American panel
provides versatile, dependable custom crafted walk-in coolers,
freezers, combination cold rooms and blast chillers.
Find out more at www.americanpanel.com
