Siren LED GSM User manual

www.usmartbuy.com
Quick Installation Manual
LED GSM WirelessAlarm System
By shield4u
http://www.usmartbuy.com
(Version 20120827)

www.usmartbuy.com
A. Alarm Understanding
Away
Disarm
Home
Emergency

www.usmartbuy.com
Function Signal Interpretation
Buzzer
Short “Beep” twice Error in command or failed operation
Long “Beep” once or twice Successful in command or successful
operation
Defense Zone
LED Always lit Defense zone alerting
All Alarm LED Always lit Arming status
Part Alarm LED Always lit Home arming status
Emergency alarm
LED Always lit Emergency alerting
Signal Indicator
Blinking every 5 second GSM module, and SIM card working
properly
Always lit GSM signal weak, or SIM card not found
Blinking every 1 second GSM signal weak, or SIM card not found
Low Power
Indicator Always lit The internal backup battery is low
B. Manipulation Specification
1. Zone types and definitions
i) Perimeter zone (zone number 06 – 10): Generally is used for wireless door/window gap sensor
ii) Motion zone (zone number 11 – 15): At home armed status, sensors in this zone will not trigger the alarm. Generally is
used for wireless wide-angle.
iii) Emergency zone (zone number 01 – 05): All sensors in Emergency zone will trigger the alarm whenever the alarm is
armed or disarmed. It is used for detecting the space like Emergency area (such as emergency distress, medical rescue, gas
leakage and fire alarm, etc.), this zone keeps 24-hour monitoring. Generally is used for panic button, wireless gas sensors and
wireless smoke sensors.
2. Arming
Arming means that when there are no persons at home, and need to all-around guarded. All detectors are working. Once
something triggers the detectors, the alarm sets off. After arming operation, “All alarm” LED on the host will be always
on.
3. Home arming
Home arming means that when there are some body at home, for the sake of security, it is needed to make the outside
doors, windows, balconies, and around detectors of the alerting system work. But, it is also needed to avoid the person at
home from triggering the domestic detectors to alert wrongly. At that time, we choose home arming, letting some
detectors work and the other not. At home arming status, all sensors in motion zone will not trigger the alarm. After
Home arming operation, “Part alarm” LED on the host will be always on.

www.usmartbuy.com
4. Disarming operation
Disarming means that when control host sets off, it can stop the alerting or make the system on the disarmed status. After
disarming, even triggering detectors can NOT make the control host alert, except the detectors in emergency zone or
emergency key in the remote control. After disarming, “All alarm” and “Part alarm” LED light die out.
5. Emergency alerting
When emergency happens, press on the emergency key in the remote control, keypad or panic button.
C. Host Installation
DO NOT INSERT THE SIM CARD INTO THE CONTROL HOST WHILE THE CONTROL HOST IS
TURNED ON OR WORKING
1. Make sure the SIM card PIN code has been turned off
2. It is recommended to turn off the voice mail for the SIM card
3. Put on the antenna (please do not over-tighten the nut)
4. Open the SIM card slot at back of the control host. Put the SIM card in to the tray and lock the slot. The metal
contact of the SIM card must be down
5. Connect the power to the host and turn the switch at the side to DC ON
6. Please wait for searching the GSM network for a while
7. If the GSM Signal LED on the host blinking every 5 seconds, it means the host has found the GSM signal. If the
GSM Signal LED on the host blinking every 1 second or stay on, it means the host has not found the GSM signal,
please check if the SIM card has been installed properly
D. Register/Program/Learn Sensors to the Control Host
1. Register siren to the control host
Normally, the wireless indoor siren has already been registered with the control host by
manufacturer, not need to register again.
i). Register wireless indoor siren to the control host
Make sure the control host is in disarmed status
Turn off all sensors
Connect the indoor strobe siren to the power socket and then wait 10 seconds for the initialization
Press and hold the “Learn” button at the side of the indoor siren for about 15 seconds and all lights flash once
Press the “Learn” button at the side of the indoor siren and all lights on
Press key on the host and alarm host goes off
Press key on the host and input password and press 【ENT】
The indoor strobe siren flash for 5 times to indicate the learning is successful

www.usmartbuy.com

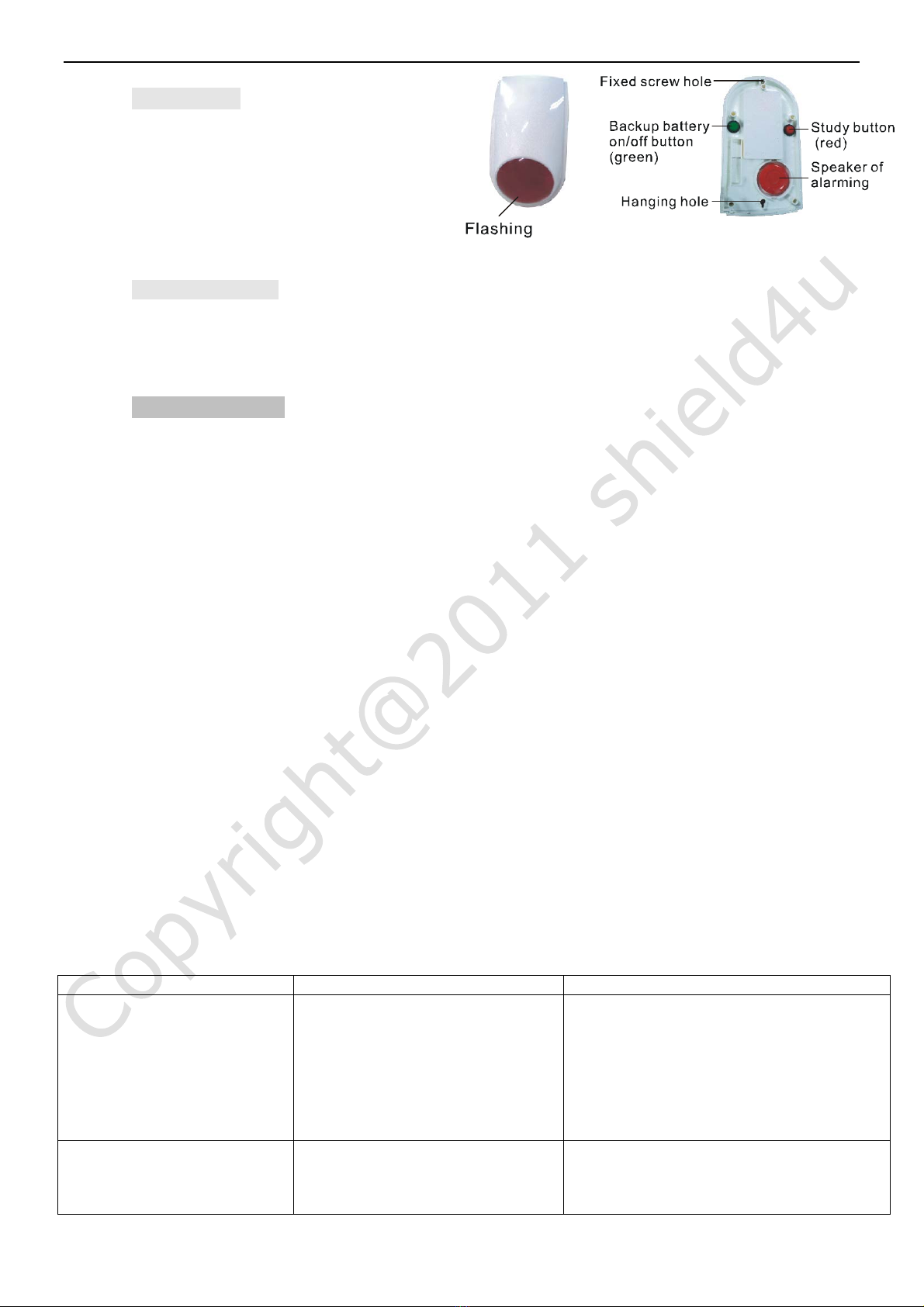

ii).Register wireless Outdoor Strobe Siren to the host
Make sure the control host is in disarmed status
Turn off all sensors
Turn off wireless indoor siren
Connect the outdoor strobe siren to the power socket and wait 10 seconds for the initialization
Press down the green button at the back of outdoor siren
Press red button at the back of outdoor siren and all lights on (not only power LED)
Press key on the host and alarm host goes off
Press key on the host and input password and press 【ENT】
The outdoor strobe siren flash for 5 times to indicate the learning is successful
2. Register sensors to the control host
Normally, the sensors in the big blue box have been programmed (learned) to the host. For additional sensors,
please refer to the user manual or sections below for how to program sensors (learn sensors) to the host
Command: 【7】【0】【ENT】YY 【ENT】
Where “YY”: Zone number, includes“00 ~15”
*It is recommended that to turn off all sensors first and then only turn on the sensor which needs to
be learned. After each successful learning, please turn off the learned sensor and turn on the next
sensor which needs to be learned.
i). Register remote control to the control host:
Use zone 00 for remote control and it can learn up to 10 remote controls
Make sure the control host is in disarmed status and Press 【SET】”Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
①Press 【7】Press 【0】Press 【ENT】Input 00 and press 【ENT】”Learn” LED lights up Press
the button on the remote twice successively when hear long “Beep” from the control host and see the “Learn” LED
flashes and then off, this means the sensor learning is successful
After that please start from ①again to register another sensor.
ii). Register door/window gap sensor to the control host:
Normally, zones 06 to 10 are used for door/window gap sensor. Each zone can learn 4 sensors.
Open the cover at the side of the sensor and put in a battery 
Make sure the control host is in disarmed status and Press 【SET】” Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】button again) Input Password (default: 888888) and press
【ENT】①Press 【7】Press【0】Press 【ENT】Input Zone Number (can be zone number between 06

www.usmartbuy.com
and 10) and press 【ENT】”Learn” LED lights up use magnet contact to trigger the sensor twice successively 
when hear long “Beep” from the control host and see the “Learn” LED flashes and then off, this means the sensor
learning is successful
After that please turn off registered sensor and start from ①again to register another sensor.
iii). Register PIR to the control host:
Normally, zones 11 to 15 are used for PIR sensor. Each zone can learn 4 sensors
Open PIR’s cover and install the battery 
Make sure the control host is in disarmed status and Press 【SET】”Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
①Press 【7】Press 【0】Press 【ENT】Input Zone Number (can be zone number between 11 and 15) and
press 【ENT】”Learn” LED lights up Turn on the switch at the side of the sensor (up for ON and down for OFF)
and press the sending button on the PIR’s PCB twice successively when hear long “Beep” from the control host and
see the “Learn” LED flashes and then off, this means the sensor learning is successful
After that please turn off registered sensor and start from ①again to register another sensor.
iv). Register panic button to the control host:
Zone 01 is used for panic button. Each zone can learn 4 sensors
Make sure the control host is in disarmed status and Press 【SET】”Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
①Press 【7】Press 【0】Press 【ENT】Input 01 and press 【ENT】”Learn” LED lights up Press
the button twice successively when hear long “Beep” from the control host and see the “Learn” LED flashes and then
off, this means the sensor learning is successful
After that please turn off registered sensor and start from ①again to register another sensor.

www.usmartbuy.com
v). Register smoke detector to the control host:
Normally, zones 01 to 05 are used for smoke alarm. Each zone can learn 4 sensors
Remove the back bracket and open the cover to install the battery 
Make sure the control host is in disarmed status and Press 【SET】”Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
①Press 【7】Press 【0】Press 【ENT】Input Zone Number (can be zone number between 01 and 05)
and press 【ENT】”Learn” LED lights up Press and hold the testing button twice successively when hear long
“Beep” from the control host and see the “Learn” LED flashes and then off, this means the sensor learning is successful
After that please turn off registered sensor and start from ①again to register another sensor.
E. Unregister/Deactivate Sensors to the Control Host
1. Sensor
Command: 【7】【1】【ENT】YY 【ENT】
Where “YY”: Zone number, includes“00 ~15”
Make sure the control host is in disarmed status. Press 【SET】”Programming” LED light up (if it does not light up,
please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
Press 【7】Press 【1】Press 【ENT】Input Zone Number and press 【ENT】when hear long “Beep”
from the alarm host the operation is successful. Please note: all sensors registered on that zone will be deleted.
2. Indoor siren
Plug the indoor siren into the power Press down and hold the learning button at the side for 15 seconds and release 
the LED in the siren flashes once.
3. Outdoor siren
Connect the power to the outdoor siren Keep pressing the red button for 10 seconds and release a successful
deactivation will be followed by a flash of the alarming light

www.usmartbuy.com
F. Preset Phone Numbers into the Control Host
Command: 【0】X 【ENT】“Telephone number” 【ENT】Y 【ENT】
Where “X”: Phone number group number, can be 1~6;
“Y”: 0 or 1. (“0”: phone call alert; “1”: SMS message alert)
You can store 6 phone numbers. Group 1 and 2 are for monitoring centres and other 4 groups are for
personal numbers. In this case, group 3~6 are used here.
Make sure the control host is in disarmed status and Press 【SET】”Programming” LED light up (if it does not light
up, please press 【ESC】first and then press 【SET】again) Input Password (default: 888888) and press 【ENT】
Press 【0】Input group number (can be 3 to 6) and press 【ENT】Enter telephone number and press 【ENT】
Enter 【0】( call alert: it will dial the preset phone number) OR Enter【1】(for SMS message alert: it will send SMS
message) Press 【ENT】
G. Voice Message Recording:
1．Make sure the control host is in disarmed status
2．Check if the power adapter has been connected to the control host ( the voice message recording only works when
the control host is connected to the external power)
3．Turn the switch at the side of the host to Record On
4．Press and hold key and speak close to the host, then release the key to stop recording
5．Turn the switch at the side of the host to DC On, press and hold the key to playback the recorded message
6．After the successful recording, please turn the switch at the side to DC ON
H. Local Arm/Home Arm/Disarm/Emergency Alarm
1. Arm
i) By wireless remote control：Press the “Away” button, “All alarm” LED lights up and the control host will beep
once to complete the operation successfully
ii) By keypad on the control host: press“▲▼” on the control host keypad to choose Arm (“All alarm” LED will
light up)
2. Home arm
i) By wireless remote control：Press the “Home” button, “Part alarm” LED lights up and the control host will beep
once to complete the operation successfully
ii) By keypad on the control host: press“▲▼” on the control host keypad to choose Home Arm (“Part alarm” LED
will light up)
2. Disarm
i) By wireless remote control: press the corresponding disarm button and the host will beep twice to successfully
complete the operation

www.usmartbuy.com
ii) By keypad on the control host: Press 【ESC】and enter password Press 【ENT】the control host will beep
twice to successfully complete the operation
I. Phone long-distance-control
1. Call-in to control
Dial the phone number associated to the SIM card which in the control host through telephone or cellphone. After a
cycle of ringing, the control host will pick up the call. After one beep, enter password (default password is 888888)
and then after one beep, pressing phone or cellphone keys.
Concrete operation is as follows:
【1】key:Arming 【0】key: Disarming
The control host will automatically hang up after every command above is entered and operated successfully.
If without any operations, the host will automatically hang up and quit after 15 seconds.
2. Sending SMS message to control
Arm: send SMS message “XXXXXXBF” to control host, where “XXXXXX” is the password
Disarm: send SMS message “XXXXXXCF” to control host, where “XXXXXX” is the password
The control host will reply message with “Arm successfully” or “disarm successfully”.
*Please make sure the SIM card text message storage does not full, otherwise this feature may not work.
3. Telephone alert-receiving
After host alerts, it will automatically dial all pre-set telephones and cellphones in sequence. When the user picks up
the phone, it will immediately broadcast alerting record for 30 seconds and let user obtain the alarming information.
After phone received, if only listen to alerting voice without long-distance control, please directly hang up, the host will
continuously dial the latter phone for alerting, until someone picks up. If there is no person receiving calls, the host will
dial all phones in circulation for three times, then automatically hang up and at the same time, it conducts long-distance
remote control on the alerting host through telephone and cellphone keyboard operation:
【8】key: Enter into the monitoring listening status for 20 seconds. If continue to monitor, user needs press “8”key
again.
【#】key: Play the recorded voice message for one time automatically
【*】key: Quits from the status and hang up, the system will not dial the next group of numbers.
4. SMS message alert-receiving
Mobile will get SMS message like “System Alarming XX, YYYY”, “XX” means zone number, “YYYY” means the
sensor name.

www.usmartbuy.com
J. Alarm Setting Command:
Before operating the alarm function setting commands in Table below, user needs to make sure the control host has
entered into the program status.
How to enter into the program status: Make sure the control host is in disarmed status and Press 【SET】
”Programming” LED light up (if it does not light up, please press 【ESC】first and then press 【SET】again) 
Input Password (default: 888888) and press 【ENT】
To be programmed Setting Command Operation Instruction Default
Setting
Input phone
numbers
【0】X【ENT】
“Telephone number” 【ENT】
Y 【ENT】
“X”: Phone number group number, can be
1~6. “1” for CID protocol. “2” for XSJ
protocol. “3 ~ 6” for personal phone
number (normally just enter 3~ 6).
“Y”: 0 or 1. (“0”: phone call alarm; “1”:
SMS message alarm)
No
number
Exit delay 【1】X【ENT】“X”: 0 (0 second) or 1 (15 seconds) 0
Entry delay 【2】X【ENT】“X”: 0 (0 second) or 1 (15 seconds) 0
Emergency alarm
sound 【3】X【ENT】“X”: 0 (silent) or 1 (audible) 1
Perimeter zone,
motion zone alarm
sound
【4】X【ENT】“X”: 0 (silent) or 1 (audible) 1
Program wireless
sensors
【7】X 【ENT】YY 
【ENT】
“X”: 0 (add) or 1 (delete)
“YY”: Zone number, includes“00~15”
Sensors in
big blue
box have
been
programm
ed to the
control
host
On/Off of door
& window state
check (can only use
with our intelligent
sensors)
【9】X【ENT】“X”: 0 (closed) or 1 (open) 0
If upload arm &
disarm to
management/
monitoring center
【5】X【ENT】“X”: 0 (not upload) or 1 (upload) 0
User Code 【8】【0】【ENT】X X
X X【ENT】“X X X X”:4-digit user code No code
Note: Press to exit from the programming state after finishing programming.
