Ecolink Siren+Chime User manual

© 2016 Ecolink Intelligent Technology Inc. PN SC-ZWAVE5-ECO R1.01
SIREN+CHIME (Z-WAVE PLUSTM)
PRODUCT OVERVIEW

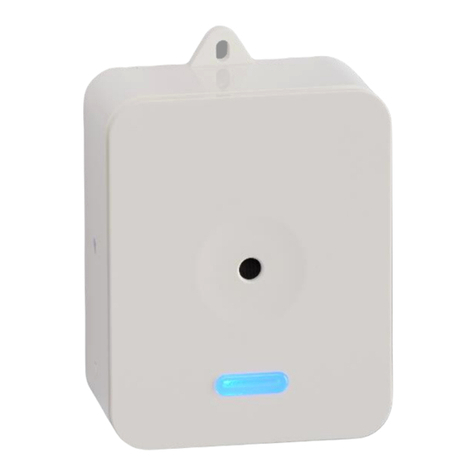

The Ecolink Siren+Chime is a Z-Wave PlusTM enabled device intended to integrate into a Z-Wave PlusTM home
automation network for the purpose of sounding a siren or chime when told to do so by a controlling device. It can
be used to sound its siren when a house has been broken into; to chime when a monitored door or window is
opened; and to give audible user feedback on the state of the security system with entry-delay and exit-delay
tones.
Plug and Play for Z-Wave Plus enabled Alarm Systems
Chime (Programmable) to alert when zones are opened
120 dB Siren
Can be plugged into any AC outlet and screwed into faceplate for solid installation
PRODUCT SPECIFICATIONS
For indoor use only
Operating Frequency 908.42 MHz
Operating range: Up to 100 feet (30.5 meters) line of sight
Operating temperature: 0˚C to 49˚C, 32˚F to 120˚F (ambient temperature)
HOW DO I USE THIS?
The Siren+Chime can be enabled through “scenes” to make noise under certain conditions defined in your scene.
A scene on some gateways can be called an “automation,” or a “Smart App.”
However, not every Z-Wave PlusTM controller allows our devices to appear for the user to properly use and control
via their user interface. You should check with the manufacturer of your particular Z-Wave PlusTM controller to see
if they support our device explicitly. If they do not explicitly support our device, it may still work with limited
functionality. In fully supported controllers, the Siren+Chime device would show up as such, and all or most
functionality will be enabled within the user interface, otherwise this device may appear as a generic electric
outlet and be controlled as if it were a lamp. An incomplete list of compatible Z-Wave PlusTM gateways may be
found on our website at www.discoverecolink.com.
If your Z-Wave PlusTM controller only allows the Siren+Chime to be controlled as if it was single electric outlet,
you can choose whether your Siren+Chime is just a siren or just a chime via the jumper labeled “J5” on the back of
the device. With the jumper placed, the device will enable its chime functionality, and with the jumper removed
(default) the siren functionality is enabled.

© 2016 Ecolink Intelligent Technology Inc. PN SC-ZWAVE5-ECO R1.01
If the Siren+Chime is semi supported via its multiple endpoints, the Siren+Chime may appear on the user interface
as a collection of switches or power outlets.
Endpoint
Sound
1
Default
Siren
J5 Jumper Placed
Chime
2
Default
Chime
J5 Jumper Placed
Siren
3
Entry Delay
4
Exit Delay
WHAT IS Z-WAVE PLUSTM?
The Z-Wave PlusTM protocol is an interoperable, wireless, RF-based communications technology designed
specifically for control, monitoring and status reading applications in residential and light commercial
environments. It is a mesh network that can allow non-sleeping devices to extend the range of an existing
network. The Z-Wave Plus protocol is a standard governed by the Z-Wave PlusTM alliance, and allows for most
certified Z-Wave PlusTM devices to communicate and interoperate with each other.
For a more complete look at Z-Wave technology for non-technologists, and to learn more about Z-Wave's role as
a key enabling technology for the Internet of Things and connected objects, please visit www.z-wave.com.
HOW CAN I ADD IT TO MY EXISTING NETWORK?
1. As stated above, be sure that our device is enabled to work with your Z-Wave PlusTM controller (hub).
2. Plug the Siren+Chime into the wall and observe the LED’s behavior. If after 10 seconds, the LED fades from
on to off continuously, this means that the Siren+Chime is ready to be added to your Z-Wave PlusTM
network. If LED turns off, that means that the Siren+Chime is already learned into an old Z-Wave PlusTM
network and must be excluded first.
To do this, follow the directions below on removing a Z-Wave PlusTM device or factory defaulting the device.
1. Unplug the Siren.
2. Follow your Z-Wave PlusTM controller’s instructions for activating its Add (Z-Wave PlusTM inclusion) mode.
3. Plug the siren in to power. On power-up, the Siren+Chime goes into learn mode. Wait 10 seconds for user
feedback that your Z-Wave PlusTM controller’s inclusion mode has completed.
HOW CAN I REMOVE IT FROM MY NETWORKOR AN OLD NETWORK?

© 2016 Ecolink Intelligent Technology Inc. PN SC-ZWAVE5-ECO R1.01
Any Z-Wave PlusTM controller can remove any Z-Wave PlusTM device from any network. The following steps
remove the old Node ID that may be on your device preventing you from adding it.
1. Unplug the Siren.
2. Follow your Z-Wave PlusTM controller’s instructions for activating its remove (Z-Wave PlusTM exclusion)
mode.
3. Plug the siren in to power. On power-up, the Siren+Chime goes into learn mode. Wait 10 seconds and for user
feedback that your Z-Wave PlusTM controller’s inclusion mode has completed. If successful, the Siren+Chime
will beep and the LED will fade on and off continuously.
If this does not seem to be working, then either repeat from step 1 or factory reset the device.
HOW CAN I FACTORY RESET THE SIREN+CHIME?
To restore the Siren+Chime back to factory default settings and also remove any Z-Wave PlusTM node ID from the
device follow these steps:
1. Unplug the Siren+Chime.
2. Hold the button down on the left side of the device.
3. While continuing to hold the button down, plug the Siren+Chime into power, and continue holding the
button down for 10 seconds until the Siren+Chime starts to beep.
4. Release the button and observe if the LED starts to fade on and off continuously.
5. Your Siren+Chime is factory reset and ready to be added to your Z-Wave PlusTM network.
IT’S ADDED. HOW DO I USE IT?
The Siren+Chime has what are called “endpoints”. These make the single device appear on supported Z-Wave
PlusTM controllers as multiple devices or rather explicitly breakout the various functionality of the Siren+Chime, i.e.
the Siren and the Chime as separate devices that can be used in a home automation “scene.” Your controller’s
manufacturer may have another word for a scene. If you see only one device, and that one device has only an ON
or OFF button, then the Siren+Chime is not fully supported, but it may still be possible to use the device the way
you intend to by controlling the main endpoint. The main endpoint, by default, is the Siren, but this can be
swapped with the Chime functionality and is selected via a jumper on the back. When this jumper is shorted, the
main endpoint will chime, so a user could set a scene for doors and windows to activate the Chime when they are
opened or closed.
Z-WAVE PLUSTM SPECIFIC INFORMATION
The following is information that can be used by Z-Wave PlusTM controller manufacturers and home automation
enthusiasts to integrate the Ecolink Siren+Chime into their ecosystem and fully support all functionality.
ACTIVATING SOUNDS
We make use of the multichannel command class by having four endpoints each represents a different sound and
can be activated by sending either a Basic Set or Binary Switch Set.

© 2016 Ecolink Intelligent Technology Inc. PN SC-ZWAVE5-ECO R1.01
The device supports the Basic Command Class by mapping it to a Binary Switch Command Class. A 0xFF hex is
ON while a 0x00 is an OFF. The chime sound is very short and turns off by itself which might be a bit of an issue for
gateways that poll for the latest state with a get after a set.
ASSOCIATION
This device has a single association group which is group #1, and it can have 1 node in the group. It is intended for
receiving unsolicited reports as a part of the test button on the Siren+Chime.
TESTING THE Z-WAVE PLUSTM NETWORK
The Siren+Chime has a test button on the side of the device which will send a frame to the node as association
group 1. If the frame is successful in reaching node 1, the Siren+Chime will make a chime sound. If the reception is
poor the led will stay on while it retries and will make a low pitched single beep on failing to reach the destination
node.
Device Information
Device Classes
Generic Device Class
GENERIC_TYPE_SWITCH_BINARY
Specific Device Class
SPECIFIC_TYPE_SIREN
Command Classes
COMMAND_CLASS_ZWAVEPLUS_INFO
v2
COMMAND_CLASS_VERSION
v2
COMMAND_CLASS_MANUFACTURER_SPECIFIC
v2
COMMAND_CLASS_DEVICE_RESET_LOCALLY
v1
COMMAND_CLASS_POWERLEVEL
v1
COMMAND_CLASS_ASSOCIATION
v2
COMMAND_CLASS_ASSOCIATION_GRP_INFO
v1
COMMAND_CLASS_FIRMWARE_UPDATE_MD
v2
COMMAND_CLASS_SWITCH_BINARY
v2
COMMAND_CLASS_MULTI_CHANNEL
V4
Manufacturer ID
MFG_ID_ECOLINK ( 0x014A )
Product Type
0x0A
Product ID
0x05

© 2016 Ecolink Intelligent Technology Inc. PN SC-ZWAVE5-ECO R1.01
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment to an outlet on a different circuit from the receiver
Consult the dealer or an experienced radio/TV contractor for help.
Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to
operate the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux
conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y
compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif.
MODEL: SC-ZWAVE5-ECO
FCC ID: XQC-SCZ5
IC ID: 9863B-SCZ5
Warranty
Ecolink Intelligent Technology Inc. warrants that for a period of 3 years from the date of purchase that this product is free from
defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused
by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any
unauthorized modifications.
If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc.
shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase.
The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether
expressed or implied and of all other obligations or liabilities on the part of Ecolink Intelligent Technology Inc. neither assumes
responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume
for it any other warranty or liability concerning this product. The maximum liability for Ecolink Intelligent Technology Inc. under all
circumstances for any warranty issue shall be limited to a replacement of the defective product. It is recommended that the
customer check their equipment on a regular basis for proper operation.
Designed in Carlsbad, CA www.discoverecolink.com
