American Range AROFE-30 User manual

USE AND CARE MANUAL FOR
ELECTRIC WALL OVENS
MODEL NUMBERS:
AROFE-30, AROSE-30, AROFSE-230, AROFFE-230, AROSSE-230
PROFESSIONAL QUALITY COOKING EQUIPMENT
R70000 030811
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE

Table of Contents
Important For Your Safety ............................................3
Unpacking Your Oven...................................................4
Carton Contents.............................................................4
Shipping Damage Claim Procedure............................4
Installation Instructions ...............................................5
Installing The Wood Screws........................................6
Electrical Connection....................................................6
Safety Instructions........................................................8
Cautions.........................................................................9
Using The Oven(s)......................................................10
To Use The Broiler......................................................14
Keeping Your Oven Clean...........................................15
Installation Diagrams...................................APPENDIX

WARNING: If the information in this manual is not
followed exactly, electrical shock or fire may result
causing property damage, personal injury or death
•INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE SUPPLIER
•Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance
• Before beginning, please read all instructions carefully.
• Not doing so may void the warranty.
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product
• Please ensure that this product is properly grounded.
• Consumers should retain these instructions for local
inspectors and for future use.

4
IMPORTANT FOR YOUR SAFETY
This manual has been prepared for qualified personnel only. In-field
start-ups and adjustments must be done by those qualified to install
electric cooking equipment.
BEFORE YOU USE YOUR OVEN
•Remove all wrapping and packing materials
•Remove any tape or protective plastic
•Remove and save this manual for future reference
•Check and make sure you have all the necessary parts listed below
Carton Contents
Parts supplied with this oven include:
30 inch
Fixed rack guides
(2) oven racks (model AROFG-30)
(4) oven racks (model AROFG-230)
(4) Wood screws for securing Wall Oven to kitchen cabinet
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted carefully and inspected by skilled personnel before
leaving the factory.
The transportation company assumes full responsibility for safe delivery of this
equipment after it leaves our factory.
What to do if shipment arrives damaged:
•Visible loss or damage: Make note on the freight bill or express delivery
and have it signed by the delivery person. File a claim for damages
immediately regardless of the extent of the damages.
•Concealed loss or damage: If damage is noticed after unpacking, notify
the transportation company immediately and file a “Concealed Damage”
claim with the transportation company. This should be done within fifteen
(15) days of the delivery to you.
•Retain container for inspection.

5
INSTALLATION INSTRUCTIONS
Cooking appliances must be connected only to the electrical service type
identified on the rating plate
1. Make a written record of the information on the rating plate located
underneath the control panel on the front of the oven.
2. Open the oven door to access and read the rating plate.
This plate contains the model and serial number of this unit.
3. Write the information on the front cover of this manual for easy reference
should the need to communicate with this company ever occur.
4. Installation of this oven should be performed by qualified, certified and
licensed persons.
5. Service should be performed by persons who are familiar with American
Range oven equipment.
CABINET PREPARATION:
•This oven is a built-in unit.
•The oven is zero-clearance safe against combustible surfaces.
•Any openings in the wall behind the oven must be sealed. Please review

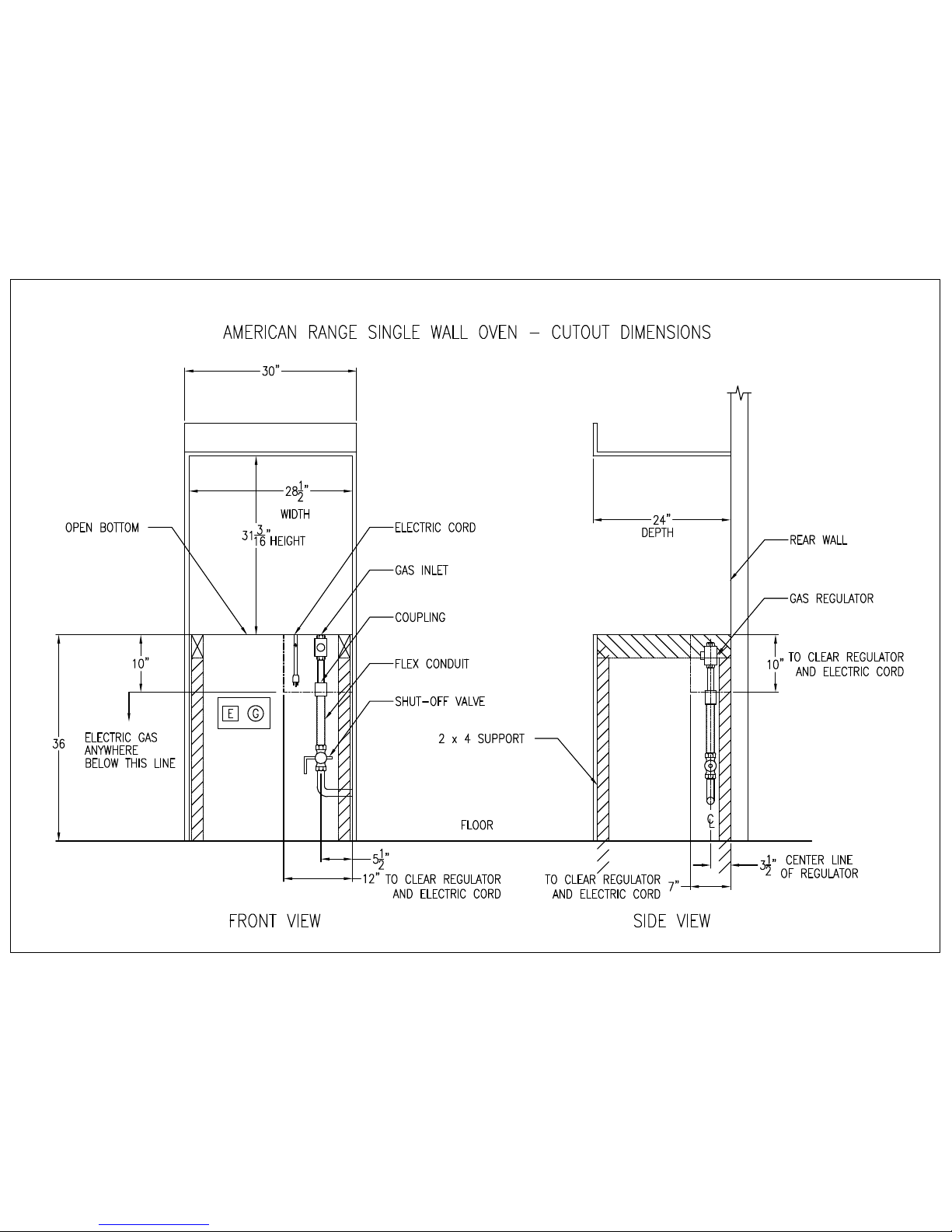

the cut-out drawing (see appendix) for the oven to ensure the bottom
support inside the cabinet is properly constructed.
•The bottom edge of cabinet doors must be a minimum 4” from the top of
the top edge to the oven.
GENERAL INSTRUCTIONS:
1. Always keep the oven area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
2. For proper operation of the oven do not obstruct the flow of air and
ventilation needed for the proper combustion in the oven.
3. Proper clearance must be provided in front of the oven for ease of use and
servicing.
4. The complete installation must comply with local codes.
.

6
SECURING OVEN WITH WOOD SCREWS
All ovens must SECURED to kitchen cabinetry using the provided wood screws.
1. Install the wood screw through the vertical side trim holes
2. Upon installing the wood screw, ensure the wall oven is securely attached
ELECTRICAL CONNECTION
•The oven must be electrically grounded in compliance with local codes
or, in the absence of local codes, with the National Electrical Code,
ANSI/NFPA70.
•This oven requires a 240 VAC, 20 ampere electrical supply to operate.
A four conductor "pig-tail" is provided at the back of the unit for
electrical service connection and grounding protection against shock.
•The electrical service in the building must be equipped with proper
ground wiring.
POWER REQUIREMENTS FOR THIS OVEN
•240VAC, 60Hz, 20AMP, single phase
•Always disconnect electric supply using the household circuit breakers
before servicing.

8
SAFETY INSTRUCTIONS
1. Do not use aluminum foil or oven liners to line the oven bottom or sides
of the oven. Excess heat accumulates under the foil and could cause
damage to the finish.
2. Never cover any slots or holes inside the oven.
3. Covering the vents or openings inside the oven will result in poor
baking performance.
4. The oven must have adequate ventilation and fresh air so that the by
products of incomplete combustion such as formaldehyde and
benzene can be eliminated if a gas leak should occur.
5. This oven must be installed by a qualified technician or licensed
plumber who has read and is familiar with the instructions in this
manual.
6. Do not store or use corrosive chemicals, vapors, flammables, or non-
food products in or near this appliance.
7. This appliance was designed to heat and cook food. Other uses such
as heating a corrosive chemical or material will damage the oven and
could result in personal injury.
8. Never use the oven to heat a room because of possible carbon
monoxide emissions and soot.
9. Overheating the oven for long periods of time could cause damage to
the oven materials. Do not use the oven as storage. Store broil pan
outside of the oven for safety.
10.Use a 2 piece broil pan when broiling to prevent grease fires in the
oven.
11.If a fire occurs in the oven, turn off the oven and don’t open the door.
This oven has been designed to be safe and reliable for household use
only and is not approved for outdoor use. Read the manual and
instructions for use and follow basic safety precautions carefully.
Contact an authorized repair technician if this range is not working
properly. Do not use the oven if it has been damaged.

9
Have a CLASS C fire extinguisher close by and know how to use it.
Consult with your local fire department regarding proper operating
techniques and procedures for using this class of fire extinguisher.
CAUTIONS
1. To prevent burns, always use a dry pot holder for moving a hot pan or
skillet.
2. Do not touch a hot burner.
3. For oven fires in a pan or skillet, smother flames with a tight
fitting lid, cookie sheet or metal tray. Turn off and be careful to not
burn yourself. If the flames do not go out immediately, evacuate the
premises and call the fire department.
4. Never use water to put out a grease fire; never use a wet rag or towel
to smother a fire.
5. Cooking with high heat should always be attended; do not leave the
oven unattended. Food can boil over and hot grease in a pan can
ignite.
6. Caution should be used when small children are around the oven
while cooking. Treats and toys should not be stored around or in
the oven. This could attract children to climb on or around the
oven to reach the item. Children should not climb, stand or sit on
open oven doors or on any part of the oven.
REMOVING OVEN(S) FROM CABINET FOR SERVICE UNIT
1. Shut off the main electrical supply using the household circuit breakers.
2. Remove the mounting screws located on the vertical trim on both sides
of the oven
3. Pull the oven out from the cabinet; be mindful of the power cord
Note: Do not pull the oven using the oven door handle

10
USING THE OVEN
Before baking or broiling:
Independently, turn the oven burners on for 20-minutes respectively.
This will burn off the manufacturing oils used by the factory.
•Turn the selector knob to Bake and set the thermostat knob to 450°F. Run
the oven for 2-hours.
•Allow the oven to cool for 10-minutes.
•Upon completing the oven cycle, turn the selector knob to Broil. Turn the
thermostat knob to broil and allow the broiler to run for 20-minutes.
•There may be an odor during these respective functions
All model ovens have three cooking methods available:
•INNOVECTION® -CONVECTION
•Traditional Bake
•Broil
•Fan – Cool Down (used to cool your oven temperature rapidly)
WHAT IS THE CONVECTION COOKING PROCESS?
•Convection is the process of cooking with hot air that is mechanically
circulated by a fan in a continuous pattern around the food
•Cooking results can be faster than cooking charts suggest and food
should be checked for doneness perhaps 5 - 15 minutes early.
•Oven temperatures should be lowered 25°F in most cases.
•Multiple racks of food can be cooked at the same time with even browning
and even cooking times.
Other Features:
•This oven can also be used at low temperatures to dehydrate food, warm
plates or for very slow cooking at a low heat.
•The fan only can be used to defrost frozen foods.
The thermostat on every oven is factory checked for accuracy.

11
AMERICAN RANGE PROFESSIONAL WALL OVENS
•INNOVECTION® -CONVECTION is the unique, proprietary convection
system created by American Range engineers.
•INNOVECTION® -CONVECTION uses two fans at the back of the oven to
circulate hot air more evenly around the oven. Air is also vented into the
oven through side vents to create a more uniform and fast cooking
process. Circulating hot air reaches all areas of the oven and eliminates
any hot or cold spots.
•The bake burner is rated at 2,200 Watts, the broil burner is 3,500 watts.
OVEN FEATURES:
•Your new Professional Oven is equipped with state-of-the-art bake and
infrared broil burners.
•Each oven has its own temperature control knob that cycles the burners
off and on to maintain the proper heat.
•All models have 6 rack positions and the large 30“ oven includes 3 racks.
•When cooking with INNOVECTION® -CONVECTION, any rack is suitable.
HOW TO COOK WITH INNOVECTION-CONVECTION:
1. INNOVECTION® -CONVECTION fan-circulated hot air browns all food
surfaces quickly.
2. The circulating hot air seals in juices in meats and vegetables.
3. This cooking process eliminates the need to baste with additional fat or
juices.
4. Meat and poultry are roasted in an uncovered shallow pan that allows the
circulating hot air to quickly brown all food surfaces.
5. This roasting process enhances flavors and keeps the inside of food moist
and juicy.
6. Some recipes or meats adapted to INNOVECTION® -CONVECTION will
cook faster than the expected time in a recipe or chart and should be
checked about 5 to 10 minutes early.
7. For best results when cooking with INNOVECTION® -CONVECTION we
recommend that low sided pans be used.
8. The circulating hot air needs to reach all sides of the food for the
best cooking results.
9. It is suggested that the oven temperature be lowered 25° for all recipes
and to reduce the cooking time by 10 to 15%.
10.Multiple racks of food can be successfully cooked at one time such as
three racks of cookies or breads.
11.A meal of meat and vegetables can be cooked on different racks
concurrently while conserving energy.

12
12.For best results always preheat the oven before INNOVECTION® -
CONVECTION baking.
13.Condensation occurs during cooking and water could appear on the cooler
panel outside of the oven door.
14.Caution should be used when opening the oven door during the cooking
TO BEGIN COOKING
1. Adjust the racks for the best cooking position before turning on the oven.
2. Insert rack with the back safety rail in the up position towards the rear of
the oven. Lift and slide the rack into the desired position.
3. Push in and turn the Oven Selector Knob to the bake, convection or broil
position. This will activate the respective heating elements.
4. Turn the temperature setting knob clockwise to the correct oven
temperature.
5. The blue indicator light on the oven panel glows indicating the burner is on
and cycles off when the oven is at the correct temperature.
Turn the oven temperature knob and the selector switch
knobs to the off position when finished cooking; be sure
the two knobs are completely in the off position
TRADITIONAL BAKE:
•Traditional Bake is the standard way to bake and is best when one rack of
food is cooked at a time.
•Any food item can be baked in the traditional manner but some foods can
only be baked in the traditional way for the best results.
•Traditional baking is best for foods that need to be covered and or cooked
for a long time, such as casseroles, and slow cooked roasts in liquid.
•Traditional bake is best for custard pies such as pumpkin, quiches, or nut
pies such as pecan.
•Traditional baking is also best for recipes that call for very high
temperatures, such as meringue toppings.
For best results use a single rack for traditional baking.
•Before turning on the oven, position the oven racks to the desired baking
position for the food being cooked.
•Most single rack baking of cakes, pies and cookies will be in the center of
the oven. Numbering the rack positions, start from the bottom rack
position which is one, to the top.
•Most roasting will be at rack position one or two depending on the size
and quantity of food being roasted.
•A cake will usually be baked on rack three or in the center rack position of
the oven.

13
BAKING CHART
Food Traditional
temperature Traditional time Innovection
Convection
temperature
Innovection
Convection
time
Yeast bread 375°F 30-35 min. 350°F 25-35 min.
Quick Bread 375°F 30-35 min. 350°F 20-25 min.
Muffins 375°F 15-20 min. 350°F 12-15 min.
Angel Food
Cake 375°F 35-45 min. 350°F 30-35 min.
Bundt Cake 350°F 45-50 min. 325°F 35-40 min.
Sheet layer
9x13 350°F 40-50 min. 325°F 30-35 min.
Cake, layer
round 8” or 9” 350°F 30-35 min. 325°F 25-30 min.
Cookie/choc
chip 375°F 10-12 min. 350°F 8-10 min.
Pie shell 425°F 10-12 min. 400°F 7-9 min.
2 crust fruit pie
375°F 55-60 min. 350°F 50-55 min.
Custard 350°F 35-40 min Not
recommended
Baked potato 375°F 60-75 min. 350°F 50-55 min.
Lasagna 375°F 55-60 min. 350°F 45-50 min.
Soufflé 350°F 45-50 min. 325°F 35-45 min.
Quiche 400°F 25-30 min Not
recommended

14
ROASTING CHART
W
h
ole, unstuffed, poultry such as chicken and turkey should be placed on rack 1
or 2 with the legs and cavity opening pointing towards the back of the oven.
TO USE THE BROILER:
When using broil, the rack position depends on the food, and the thickness of the
meat. Rack position one is at the bottom of the oven, and the positions number
up as a ladder with six being at the top.
•The oven door should remain closed during broil
•Most broiling uses rack positions three or four counting from the bottom.
•Push in oven knob and turn to the broil setting;the blue indicator light will
come on.
•When inspecting the food, open the oven door no more than 2 inches.
•For best results, broil small, flat cuts of meat such as steaks, hamburgers,
chops or boneless chicken breasts.
Food Traditional
Setting Innovection
Convection
Setting
Roast Time
Min/lb. Internal Temperature
Beef Rib
Roast 325°F 300°F 20-min. per lb 25-min. per l
30-min. per lb.
.Rare-140°F
b.Medium-155°F
Well -170°F
Beef Tri Tip 325°F 300°F 30-min. / lb.
Med.-155°F
Lamb-leg 325°F 300°F 30min./lb Med-145°F
Pork Loin 325°F 300°F 35 min. / lb. Med-well
170°F
Chicken –
whole 375°F 350°F 25min./lb.170°Fbreast 175° thigh
Stuffing165°F
Turkey
unstuffed 325°F 300°F 9-12min./lb.165°Fbreast 175°F thigh

15
BROIL CHART
Food Weight and Size Rack Time
Steak 12 oz. and 1” 3 Rare: 10 min.
Med: 12 min.
Well: 15 min.
Hamburger 4 oz. and ½ ” 4 10 min.
Chicken Pieces 1 lb. 3 15 to 20 min.
Pork Chop’s 1 lb. and ¾” 3 14 min.
Salmon Steak 1 lb. 4 8 to10 min.
KEEP YOUR OVEN CLEAN
To keep your oven operating properly, clean after each use. This prevents build-
up of soil and grease. Grease and soil will be more difficult to clean if it has been
allowed to sit and cook onto the oven.
TO CLEAN THE EXTERIOR OF THE OVEN
The exterior is brushed stainless steel.
1. Wash all exterior surfaces with hot water and dish detergent such as
Ivory Liquid, or Joy.
2. Rub stubborn spots with baking soda or liquid cleaner such as Windex
All Surface Cleaner or 409.
3. Do not use abrasives on stainless steel. Use rough towels, sponges or
soft plastic scrubbers. RUB ONLY WITH THE “GRAIN”.
4. Mild scouring cleaners can be used, such as Bon Ami or Cameo.
5. Do not use steel wool pads or green rough Scrubee’s.
TO CLEAN THE OVEN
The oven cavity is porcelain with steel rack guides and racks. The infra-red broil
element and bake elements both have glass shields that are easy to clean. Most soil is
burned off by the intense heat, here's how to handle the remaining:
1. Turn the unit off.
2. Wash the interior with soap and water. For stubborn stains make a
paste with baking soda and water and rub with a sponge or nylon pad.
3. Use mild scrubbing compounds designed for glass ceramic cooktops.
4. Do not use steel wool pads or abrasive sponges or scrubbers.
5. If necessary, spray oven cleaner can be used. DO NOT SPRAY
OVEN CLEANER INTO THE CONVECTION FANS OR ONTO
THE BAKE OR BROIL GLASS SHIELDS.
6. Do not use scouring powders on the glass shields; windex may be
used on the window.

Notes SerialNumber
DateofPurchase

DrawingArea

13592 Desmond Street
PacoimaCalifornia91331
888.753.9898
